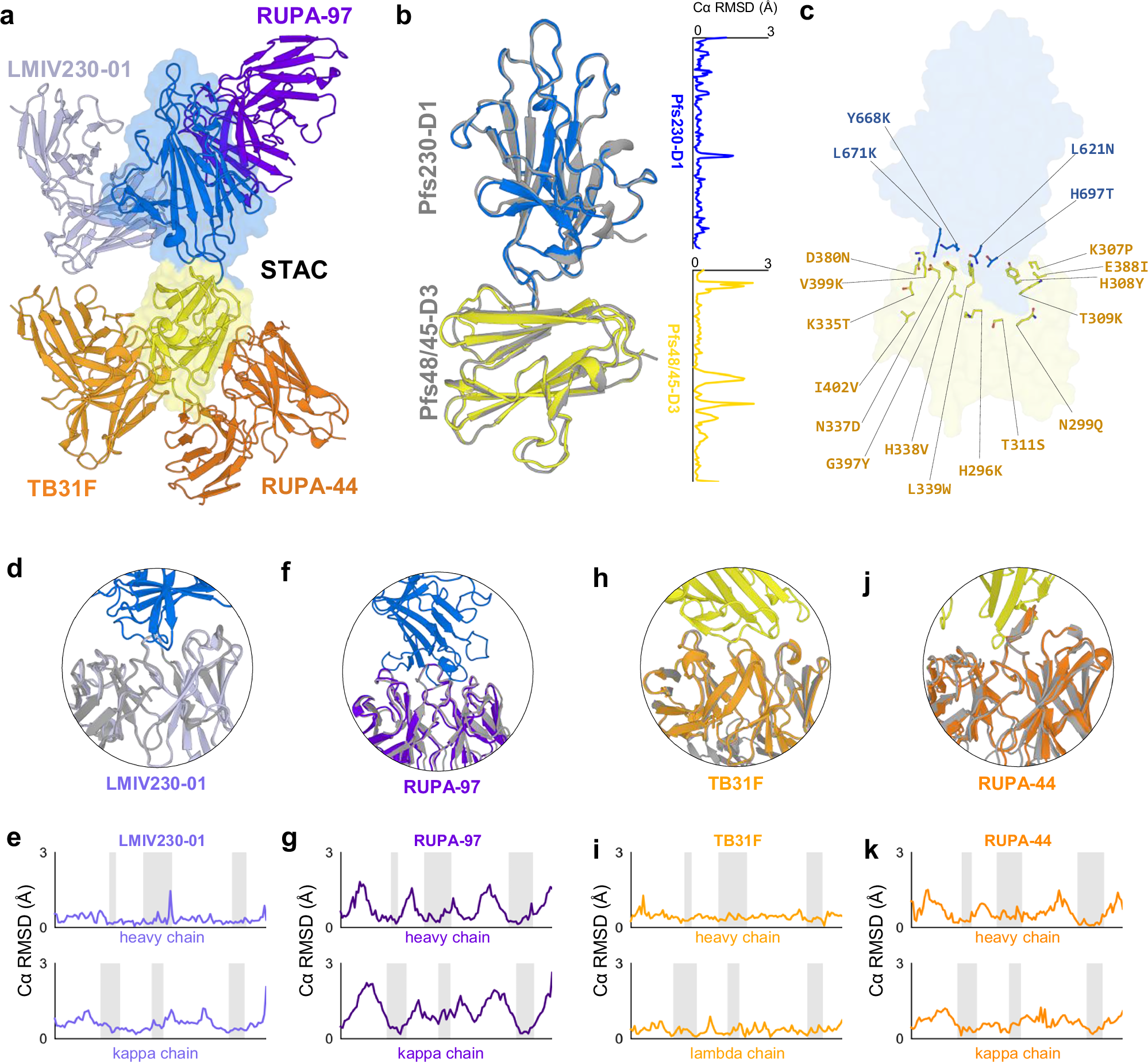

Fig. 3: Structural basis for improved stability with intact functional antigenicity.
From: A stabilized tandem antigen chimera that elicits potent malaria transmission-reducing activity
