Introduction

Reducing the consumption of light energy needed in photocatalytic reactions is significant. Excess inputs of light energy into organic chemical reactions not only result in a waste of energy, but also probably cause several intractable issues, such as overfunctionalization of reactants and incompatibility with light-sensitive/labile functional groups1,2,3. In this context, the direct use of high-energy light (λ < 500 nm)4—encompassing both the high-energy visible (400–500 nm) and UV (<400 nm) regions—frequently leads to an excessive input of photon energy. Furthermore, the poor penetration depth and biocompatibility of high-energy light significantly limit its applications, particularly in scale-up synthesis and biomedical fields5,6,7. Therefore, for a given high-energy photocatalytic system, the strategy for reducing its demand for light energy is of great importance7,8.

The natural abundance, low toxicity, and versatile catalytic reactivity of 3d metal render 3d metal-catalyzed chemical reactions extraordinarily valuable. Integrating exogenous light energy into 3d metal catalysis provides intriguing opportunities to enrich the diversity of synthetic strategies in organic synthetic chemistry9,10,11. In direct visible light-induced 3d metal catalysis, a 3d metal-based light-absorbing system—without any external photocatalyst—drives the entire catalytic cycle (Fig. 1A)12,13,14,15,16,17,18,19. However, current 3d metal-based photoredox catalysis relies heavily on the use of high-energy light to achieve the desired catalytic effect. The unique mildness and deep-tissue penetration of low-energy light (λ > 595 nm) motivated us to develop a low-energy, 3d metal-based photocatalytic system7,20,21,22. Such a system holds great promise for applications across synthetic organic chemistry, biomedicine, and polymer science7,23.

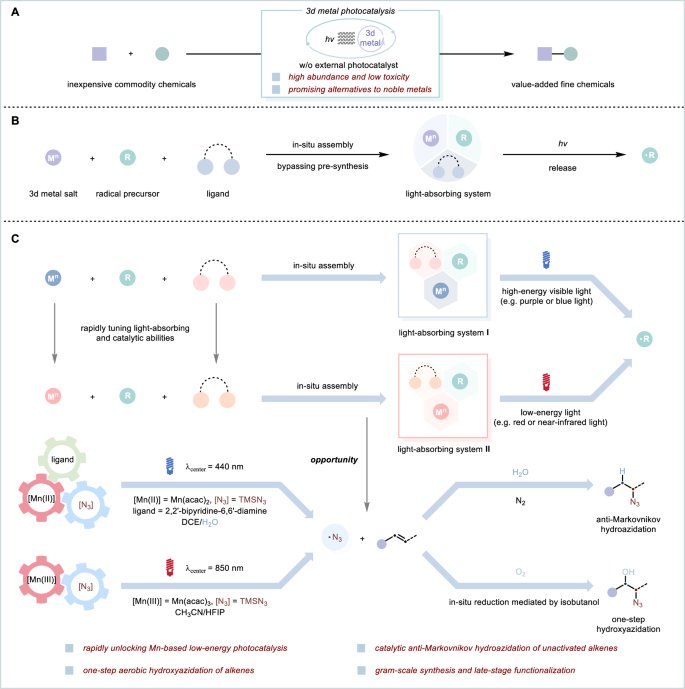

Fig. 1: Developing 3d metal-based photoredox catalysis for organic synthesis.
Fig. 1: Developing 3d metal-based photoredox catalysis for organic synthesis.
Full size image

A 3d Metal-based photoredox catalysis. B Assembling 3d metal-based photocatalytic system in situ. C This work: evolution of manganese low-energy photoredox catalysis from high-energy visible light photocatalysis.

The in-situ assembly of a 3d metal-based photocatalytic system from readily available components—such as metal salts, ligands, or substrates—is a straightforward strategy for controlling both light-absorbing and catalytic properties through modulating the ligand, counterion, or metal oxidation state (Fig. 1B)24,25. This paradigm avoids the preparation process of 3 d metal photocatalysts and is expected to enable a rapid shift from prevalent high-energy to low-energy photoredox catalysis platforms25.

We observed that Mn-based photocatalysis still remains in its infancy26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43. To date, CO-coordinated Mn(0) complexes (e.g., Mn2(CO)10) have been extensively studied as robust photocatalysts to mediate atom transfer or single electron transfer processes for the production of various carbon-centered radicals44,45,46,47,48. By contrast, N-centered radicals generated by a Mn(II or III)-based photocatalytic system remain to be developed. Given the privileged status of N-centered radicals in synthetic organic chemistry49,50,51,52 and the limitations of existing systems, we questioned whether an effective Mn(II or III)-based photocatalytic platform that allows for the controllable absorption of light energy could be devised using easy-to-access starting materials to yield versatile N-centered radicals53.

Here, we demonstrate that assembling Mn-based photocatalytic systems in situ is an effective strategy to rapidly unlock a low-energy photoredox catalytic system from high-energy visible light-induced Mn catalysis (Fig. 1C). The formation of valuable azido radicals can be achieved not by leveraging high-energy visible light (blue light, λcenter = 440 nm), but by using low-energy, near-infrared light (λcenter = 850 nm). The blue light-induced Mn photocatalytic system enables the anti-Markovnikov hydroazidation of unactivated alkenes with H2O as the hydrogen source, while the Mn-based low-energy photocatalytic platform allows for the aerobic hydroxyazidation of alkenes in a single step. This showcases the unique catalytic ability of in-situ-assembled, Mn-based photocatalysis.

Results and discussion

Evolution of a Mn-based low-energy photocatalytic system via in-situ assembly

Our study began with UV−Vis experiments to probe the in-situ assembly of the Mn-based light-absorbing system for generating desired azido radicals (Supplementary Figs. 13−18). After continuous efforts, we found that the mixture of Mn(acac)2, 2,2′-bipyridine-6,6′-diamine (L1) and TMSN3 exhibited a distinct absorption band at approximately 475 nm, which lies within the high-energy visible light region (Fig. 2A and Supplementary Fig. 13). This peak was eliminated upon removal of any one of the three components. When the mixture was subjected to blue light irradiation (λcenter = 440 nm), the intensity of the absorption peak gradually decreased, indicating that the events of electron transfer and azido radical generation along with the valence change of Mn might have occurred (Fig. 2B and Supplementary Fig. 15)25. In addition to the prominent absorption peak at ~475 nm, the absorption tail extended into the low-energy light range. Low-energy light irradiation (λcenter = 630 nm) was also able to consume the Mn(II)-based light-absorbing system (Fig. 2C and Supplementary Fig. 17), whereas the consumption rate was markedly lower than that under blue light irradiation. The weaker light absorption in the region of 700−850 nm relative to 630 nm should account for the lower efficiency of the expected redox event (Fig. 2D and Supplementary Fig. 18). We therefore sought a method to enhance its absorption and corresponding photoredox activity in the 700–850 nm region. In principle, raising the valence of Mn from +2 to +3 can improve the oxidizing ability of the Mn center. This stronger oxidizing power may lower the light energy required to drive the redox event, thereby enabling the use of lower-energy light.

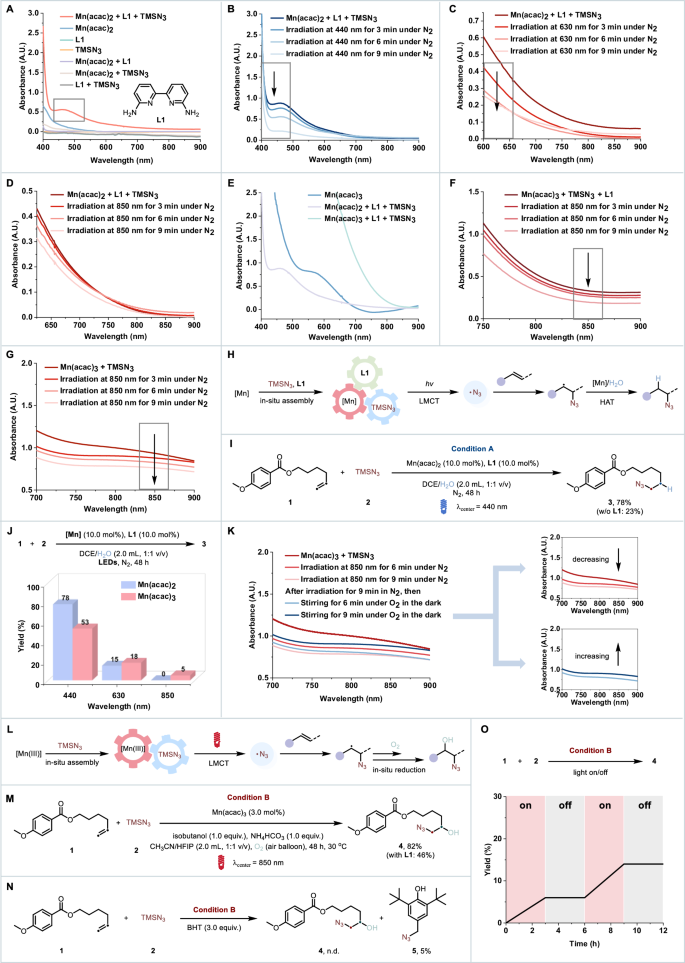

Fig. 2: Evolution of Mn-based low-energy photoredox catalysis.
Fig. 2: Evolution of Mn-based low-energy photoredox catalysis.
Full size image

A UV−Vis absorption spectra of the Mn(II)-based photochemical system. B UV−Vis monitoring of the Mn(II)-based photochemical system under 440 nm irradiation. C UV−Vis monitoring of the Mn(II)-based photochemical system under 630 nm irradiation. D UV−Vis monitoring of the Mn(II)-based photochemical system under 850 nm irradiation. E UV−Vis absorption spectra of the Mn(II/III)-based photochemical system. F UV−Vis monitoring of the Mn(III)-based photochemical system under 850 nm irradiation. G UV−Vis monitoring of the Mn(acac)3 and TMSN3 mixture upon 850 nm irradiation. H Design of anti-Markovnikov hydroazidation of alkenes. I Model reaction of the hydroazidation of alkenes. J Hydroazidation reactivity comparison of the Mn(II) vs. Mn(III) system under different light sources. K UV−Vis monitoring of the regeneration of Mn(III)-based photochemical system under O2 atmosphere. L Design of one-step aerobic hydroxyazidation of alkenes. M Model reaction of one-step aerobic hydroxyazidation of alkenes. N Radical capture experiment with BHT in the hydroxyazidation reaction. O Light on/off experiment.

With this hypothesis in hand, we examined the absorption spectrum of the mixture of Mn(acac)3, L1 and TMSN3. The spectrum indeed showed stronger absorption in the 700–850 nm low-energy light region (Fig. 2E and Supplementary Fig. 19). It was also worth noting that irradiation of the Mn(III)-based system with a near-infrared light source (760−918 nm, λcenter = 850 nm) caused a distinct decrease in absorbance (Fig. 2F and Supplementary Fig. 20). Moreover, L1 was not essential for the absorption of the near-infrared light (Fig. 2G and Supplementary Figs. 21−24). To confirm that light irradiation triggers the formation of the valuable azido radical, we proposed an anti-Markovnikov hydroazidation of alkenes54,55,56,57,58,59,60,61,62,63 catalyzed by the Mn-based light-absorbing systems, employing H2O as the hydrogen source (Fig. 2H and Supplementary Figs. 28, 38 and 40). As shown in Fig. 2I, the targeted hydroazidation of the unactivated alkene proceeded in good yield (3, 78%) under the blue light-induced, Mn(II)-based photoredox catalytic system (Supplementary Tables 1−5, Supplementary Fig. 26); the yield of 3 drastically decreased when L1 was absent (Supplementary Figs. 32–34). Furthermore, the deuterioazidation of alkenes was observed when H2O was replaced with D2O (Supplementary Fig. 30), confirming that H2O is the source of hydrogen for the alkene hydroazidation. The low reactivity observed under irradiation at 630 nm and 850 nm might correlate with the relatively weak absorption of low-energy light by the Mn(II)-based photoredox catalytic system (Fig. 2J). The Mn(III)-based, low-energy photoredox catalytic system was also examined. Unfortunately, the yields of the target product 3 were still very low (Fig. 2J). These results led us to reevaluate the plausibility of the Mn(III)-catalyzed hydroazidation of alkenes. From a mechanistic perspective (Supplementary Figs. 40 and 41), the regeneration of [MnIII] from [MnII] is much more difficult under external oxidant-free conditions compared with that of [MnII] from [MnI]. This might be the real reason why the blue light-induced, Mn(II)-based photoredox catalytic system was competent to perform the hydroazidation of alkenes, but the Mn(III)-based, low-energy photoredox catalytic system was ineffective.

To unlock a Mn(III)-based, low-energy photoredox catalytic reaction, the green oxidant O2 was employed to fulfill the regeneration of [MnIII], and the preliminary results of UV−Vis experiments showed that O2 could indeed facilitate the regeneration of the Mn(III)-based light-absorbing system (Fig. 2K and Supplementary Fig. 25). This finding encouraged us to design a step-economic hydroxyazidation of alkene64,65,66,67,68,69,70 catalyzed by the Mn(III)-based, low-energy photoredox catalytic platform. We envisioned harnessing a simple alkyl alcohol as cheap reductant to reduce the peroxyl alcohol intermediate in situ, enabling the one-step synthesis of the corresponding β-azido alcohol (Fig. 2L and Supplementary Figs. 39, 42, and 43). It was satisfactory that in the presence of Mn(acac)3 (3.0 mol%), isobutanol (1.0 equiv.), NH4HCO3 (1.0 equiv.), and 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP) as the co-solvent, a good yield 82% for 4 was obtained under the irradiation of low-energy light (λcenter = 850 nm) (Fig. 2M, Supplementary Tables 6−13 and Supplementary Fig. 31). This low-energy photoredox catalytic platform did not require the use of bidentate N ligand L1 (Supplementary Figs. 35−37). Notably, the azido radical was captured by butylated hydroxytoluene (BHT) which also inhibited the generation of 4, indicating that azido radical was the crucial intermediate in the low-energy photocatalytic conditions (Fig. 2N, Supplementary Fig. 29). Also, the aerobic hydroxyazidation of alkenes is unlikely to proceed via a radical chain process, as continuous irradiation with low-energy light was necessary to provide the desired product (Fig. 2O, Supplementary Fig. 27).

Scope of substrates

Having identified the optimal conditions of the anti-Markovnikov hydroazidation and aerobic hydroxyazidation of alkenes, we next examined the substrate scope. As shown in Fig. 3, an array of alkenes was successfully converted into value-added alkyl azides in moderate to good yields (6−59). Crucially, quinoline (16), thioether (40), unprotected amine (21 and 42), alcohol (26 and 31−59), thiazole (15) and triazole (29 and 54) functionalities, whose coordination ability might influence the in-situ assembly of the Mn(II/III)-based light-absorbing system, did not hinder the catalytic reactivities, showcasing excellent functionality tolerance. The incorporation of CF3 group (35 and 39) and diverse heterocycles (12−17, 29, 30, 54 and 55) into alkyl azides enhanced their application potential in the field of biomedicine. Although there was a cyclopropyl in the structure of the alkene, a satisfactory yield of the hydroazidation could still be obtained (18 and 19). Subsequently, the late-stage functionalization of a plethora of alkenes that bear more complex molecular skeletons from various pharmaceuticals was evaluated to access new potential drug candidates. Both of the Mn-based photoredox systems generated via the strategy of in-situ assembly showed the ability to unlock complex alkyl azides with useful yields (60−81, 20%−90%) (Fig. 4, Supplementary Tables 16 and 17). In addition, the coexistence of azido and hydroxy functionalities in 74−81 enabled by the Mn-based low-energy photoredox catalysis further attracted the interests of biologists and pharmacologists.

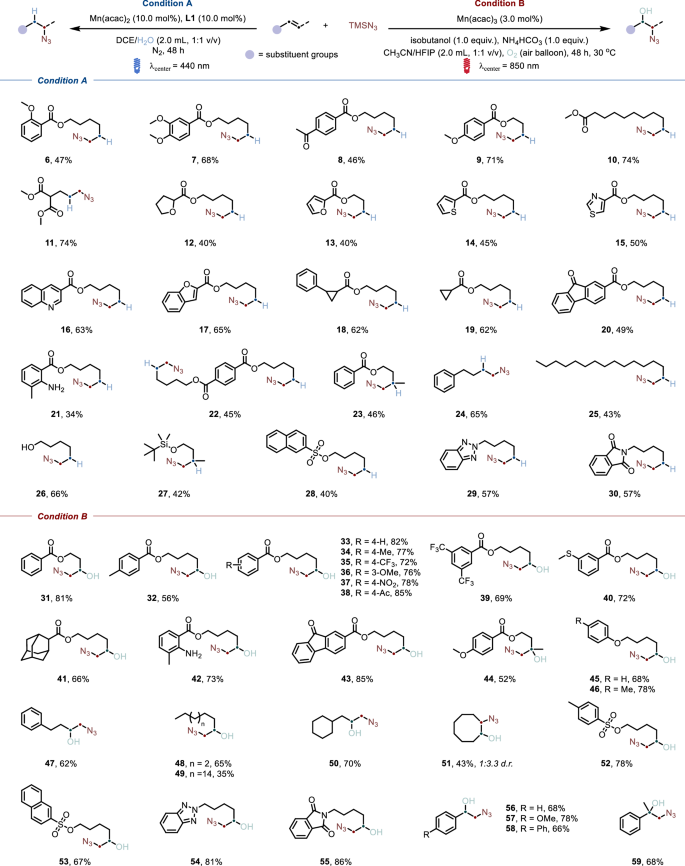

Fig. 3: Substrate scope.
Fig. 3: Substrate scope.
Full size image

Products were purified by silica gel chromatography to afford the isolated yields. Reaction condition A: a mixture of alkene (0.2 mmol), TMSN3 (0.6 mmol), Mn(acac)2 (10.0 mol%) and L1 (10.0 mol%) in 1,2-dichloroethane (DCE)/H2O (2.0 mL, 1:1 v/v) was stirred under nitrogen atmosphere and irradiated by 440 nm light at room temperature for 48 h. Reaction condition B: a mixture of alkene (0.2 mmol), TMSN3 (0.6 mmol), Mn(acac)3 (3.0 mol%), isobutanol (1.0 equiv.) and NH4HCO3 (1.0 equiv.) in HFIP/CH3CN (2.0 mL, 1:1 v/v) was stirred under air atmosphere and irradiated by 850 nm light at 30 °C for 48 h. See the Supplementary Figs. 11, 12, 46 and 47 for details.

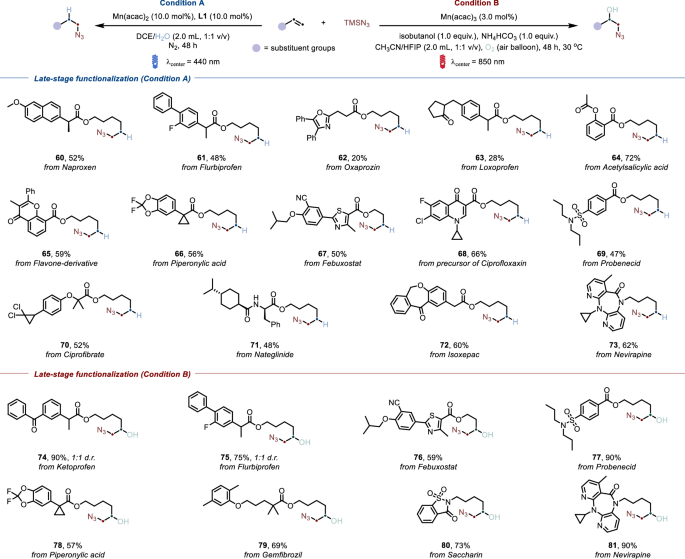

Fig. 4: Late-stage functionalization.
Fig. 4: Late-stage functionalization.
Full size image

Products were purified by silica gel chromatography to afford the isolated yields. Reaction condition A: a mixture of alkene (0.2 mmol), TMSN3 (0.6 mmol), Mn(acac)2 (10.0 mol%) and L1 (10.0 mol%) in DCE/H2O (2.0 mL, 1:1 v/v) was stirred under nitrogen atmosphere and irradiated by 440 nm light at room temperature for 48 h. Reaction condition B: a mixture of alkene (0.2 mmol), TMSN3 (0.6 mmol), Mn(acac)3 (3.0 mol%), isobutanol (1.0 equiv.) and NH4HCO3 (1.0 equiv.) in HFIP/CH3CN (2.0 mL, 1:1 v/v) was stirred under air atmosphere and irradiated by 850 nm light at 30 °C for 48 h. See the Supplementary Figs. 11, 12, 46 and 47 for details. The click reaction of alkyl azide 73 yielded the triazole derivative S15. The X-ray crystallographic structure of S15 was provided in the Supplementary Information (Supplementary Table 16).

Synthetic utility

The synthetic utility and advantage of the in-situ assembly paradigm for Mn-based photocatalysis were further demonstrated. The hydroazidation and hydroxyazidation of alkenes were both synthetically scalable, and of particular note was that natural sunlight was directly utilized to drive the Mn-based, low-energy photocatalytic hydroxyazidation of alkenes (Fig. 5A, Supplementary Figs. 44 and 45). During the examination of the substrate scope, we found that the alkene 82 containing an anthraquinone moiety, which itself had the ability to absorb high-energy visible light (e.g., purple or blue light), was not a competent substrate for the hydroazidation of C=C double bond (Fig. 5B-i); by contrast, only under the low-energy photocatalytic aerobic conditions (630 or 850 nm), could useful yields toward β-azido alcohol 84 be observed (Fig. 5B-ii). This huge disparity in reactivity between high-energy visible light photocatalysis and the low-energy photocatalysis highlighted the unique functional group tolerance of the Mn-based, low-energy photocatalytic platform. Furthermore, we found that adopting a series of current popular photocatalysts including 4CzIPN (PC1), Ir[dF(CF3)ppy]2(dtbbpy)PF6 (PC2), Ru(bpy)3(PF6)2 (PC3), and [Acr-Mes]+(ClO4)− (PC4) to catalyze the hydroazidation/hydroxyazidation of alkenes was all unsatisfactory (Fig. 5C-i). Meanwhile, the manganese-based photocatalytic system was significantly more effective than its iron-based counterpart in the hydroazidation of alkenes (Fig. 5C-ii, Supplementary Tabs. 14 and 15). Last but not least, the alkyl azide 3 and β-azido alcohol 4 were derivatized into a series of new organic N-containing compounds (85−91), further highlighting the synthetic utility of our protocol (Fig. 5D).

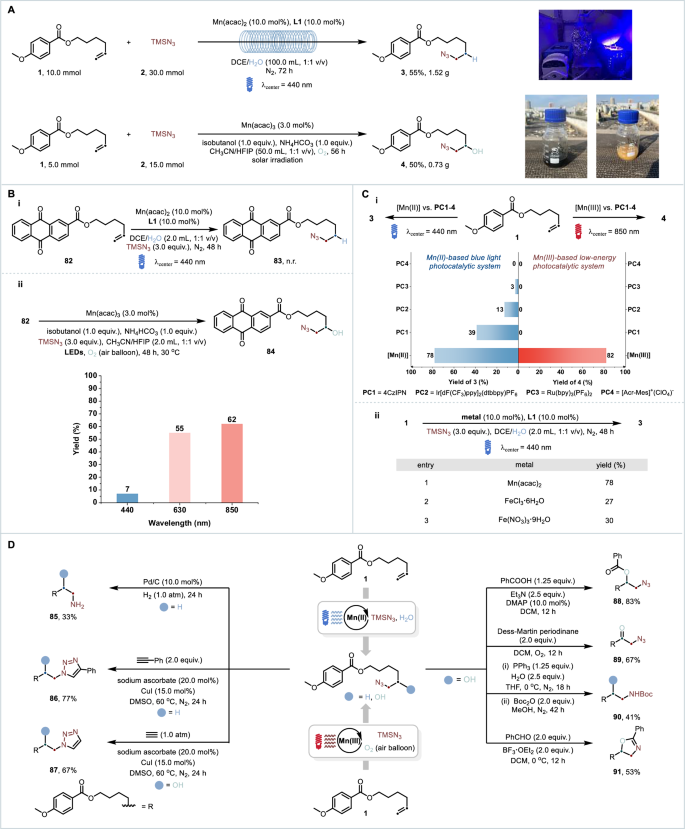

Fig. 5: Synthetic utility of the two Mn-based photocatalysis systems.
Fig. 5: Synthetic utility of the two Mn-based photocatalysis systems.
Full size image

A Gram-scale and solar irradiation experiments. B Unique advantages of the Mn-based, low-energy photoredox catalytic system. The X-ray crystallographic data for β-azido alcohol 84 were provided in the Supplementary Information (Supplementary Tab. 17). C Comparisons of the two Mn-based systems and classical photocatalysts. D Derivatization of hydroazidation and hydroxyazidation products. (DMSO dimethyl sulfoxide, DMAP 4-dimethylaminopyridine, DCM dichloromethane, THF tetrahydrofuran).

In conclusion, we have shown that a modular in-situ assembly strategy using easily accessible components can rapidly unlock a highly desirable Mn-based, low-energy photoredox catalytic platform, starting from a corresponding high-energy visible light photocatalysis. The Mn-based high-energy visible light photocatalysis achieves an anti-Markovnikov radical hydroazidation of unactivated alkenes with H2O as hydrogen source, and the low-energy photoredox catalytic platform enables a one-step aerobic hydroxyazidation of alkenes. The successful gram-scale synthesis and late-stage functionalization of complex molecules underscore the practical utility and broad applicability of both the Mn-based photocatalytic systems. Further efforts on the development of Mn-based low-energy photocatalytic platforms are still ongoing in our laboratory.

Methods

All reagents and catalysts were purchased from commercial sources or can be easily prepared (Supplementary Figs. 6−10), and all manipulations were carried out by standard Schlenk techniques.

General procedure for the anti-Markovnikov hydroazidation of alkenes

To a 25.0 mL Schlenk tube that contains a stir bar were added Mn(acac)2 (0.02 mmol, 10.0 mol%) and 2,2’-bipyridine-6,6’-diamine (L1, 0.02 mmol, 10.0 mol%). The mixture was thoroughly degassed via vacuum-nitrogen purging and filled with nitrogen. Alkene (0.2 mmol, 1.0 equiv.), azidotrimethylsilane (TMSN3, 0.6 mmol, 3.0 equiv.), H2O (1.0 mL) and anhydrous 1,2-dichloroethane (DCE, 1.0 mL) were added under nitrogen. Then the reaction was stirred and irradiated with blue light (λcenter = 440 nm) at room temperature for 48 h (Supplementary Figs. 1 and 2). After the reaction was complete (monitored by TLC), the reaction mixture was extracted with ethyl acetate (EtOAc) three times. The combined organic layers were dried over Na2SO4 and removed under reduced pressure. The residue was purified by column chromatography on silica gel by eluting with petroleum ether (PE)/EtOAc to afford the products (Supplementary Figs. 11 and 46).

General procedure for the one-step hydroxyazidation of alkenes

To a 25.0 mL Schlenk tube that contains a stir bar were added Mn(acac)3 (0.006 mmol, 3.0 mol%) and NH4HCO3 (0.2 mmol, 1.0 equiv.). The mixture was thoroughly degassed via vacuum-air purging and filled with air. Alkene (0.2 mmol, 1.0 equiv.), TMSN3 (0.6 mmol, 3.0 equiv.), isobutanol (0.2 mmol, 1.0 equiv.), 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP, 1.0 mL) and anhydrous CH3CN (1.0 mL) were added under air and the tube was sealed with parafilm. Then the reaction was stirred and irradiated with low-energy light (λcenter = 850 nm) at 30 °C for 48 h (Supplementary Figs. 3−5). After completion of the reaction (monitored by TLC), the solvent was removed under reduced pressure. The residue was purified by column chromatography on silica gel (PE/EtOAc) to afford the products (Supplementary Figs. 12 and 47).
