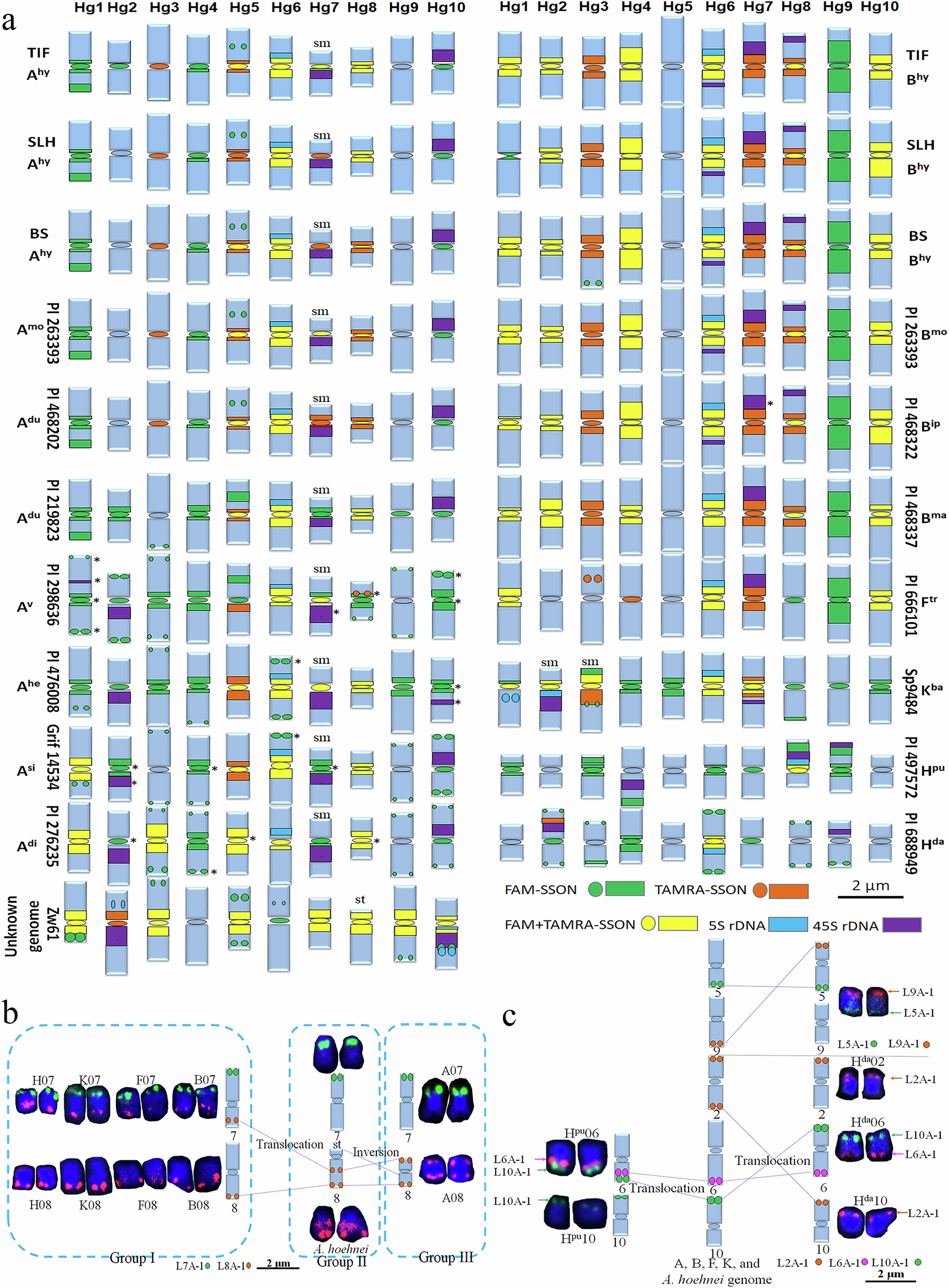

Fig. 3: Idiogram and structural chromosome variation (SCV) model of Arachis species based on signals from the 10 CSCOLs, SSON, and 45S and 5S rDNA probes.

From: Origin of small chromosome A08 and genome evolution of Arachis species

Fig. 3: Idiogram and structural chromosome variation (SCV) model of Arachis species based on signals from the 10 CSCOLs, SSON, and 45S and 5S rDNA probes.

a Idiogram showing homoeologous chromosome groups in Arachis species based on signals from the SSON (green and orange correspond to signals generated by FAM- and TAMRA-labeled SSON probes, respectively; yellow indicates signals generated by both probes simultaneously), 45S (blue) and 5S rDNA (purple) probes. sm and st, submetacentric and subtelocentric chromosomes, respectively. b SCVs observed in chromosomes 7/8 across the A, B, F, K, A’ and H genomes. c SCVs identified in chromosomes 2, 5, 6, 9, and 10 within genome H. “*” indicates heterogeneous sites; sm, submetacentric; st, subtelocentric; bar, 2 μm. Source data are provided as a Source Data file.
