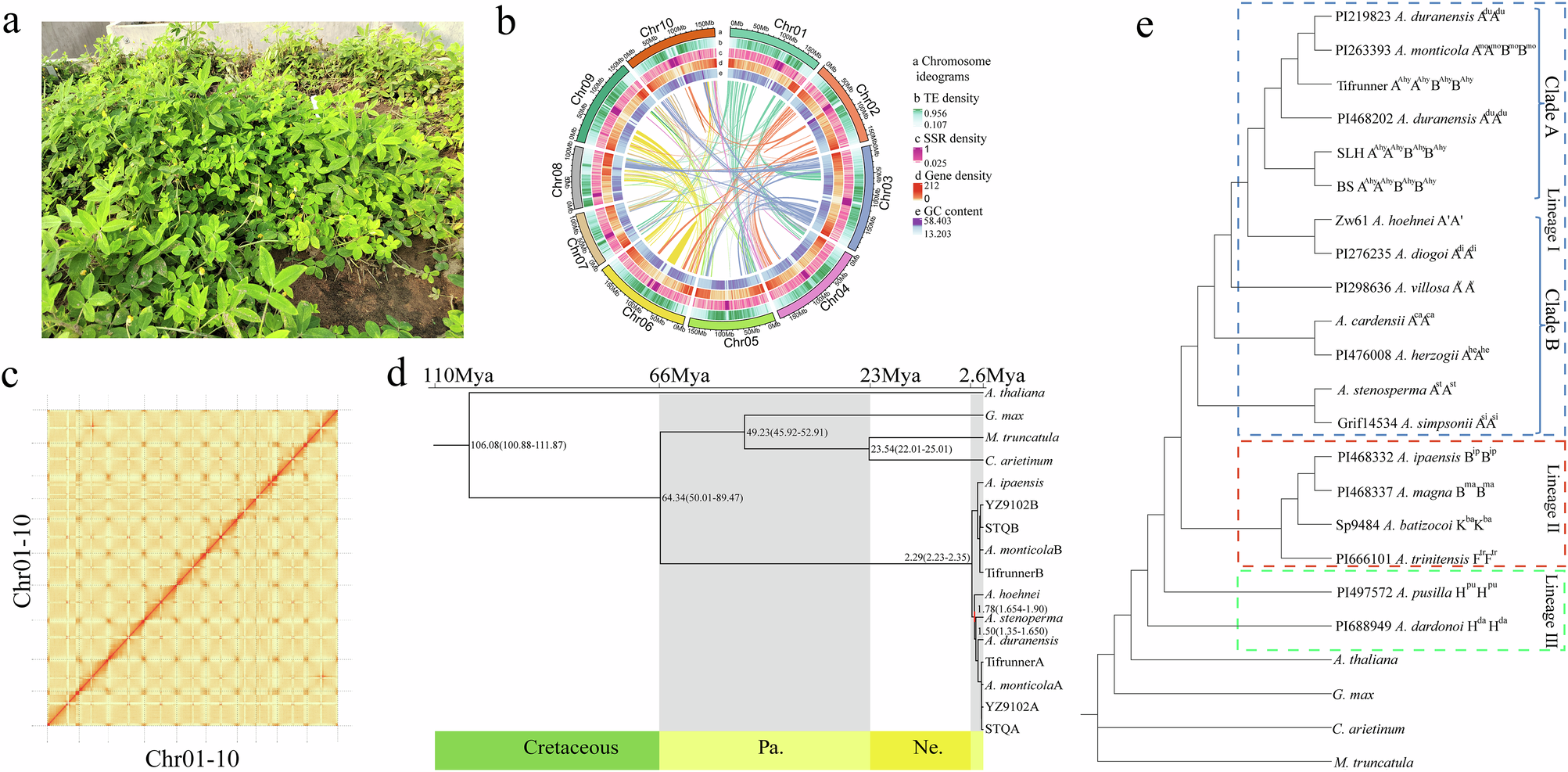

Fig. 4: Complete genome assembly of A. hoehnei and evolution of genome A’.
From: Origin of small chromosome A08 and genome evolution of Arachis species
a A. hoehnei plants. b Genome information: chromosome information (a), TE density (b), SSR density (c), gene density (d), and GC content (e). Each term in panels b, c, d, and e represents a scale of 100 kb, and lines within circles illustrate chromosomal collinearity. c Hi-C interaction heatmap indicating that the contigs of A. hoehnei were assembled into 10 chromosomes. d Evolutionary tree showing the relationships among 12 species with differentiation time. The top of the tree is absolute age (million years ago, Mya) and geological time. e Evolutionary tree of the chloroplast genomes of 23 species; outgroups included A. thaliana, C. arietinum, M. truncatula, and G. max.
