Decoding efficacy and resistance space at a drug binding site

Altmann, Simone; Mendoza-Martinez, Cesar; Ridgway, Melanie; Tinti, Michele; Saini, Jagmohan S.; Ibrahim, Peter E. G. F.; Thomas, Michael; De Rycker, Manu; Bodkin, Michael J.; Horn, David

doi:10.1038/s41467-026-69187-5

Download PDF

Article
Open access
Published: 04 February 2026

Decoding efficacy and resistance space at a drug binding site

Nature Communications volume 17, Article number: 2337 (2026) Cite this article

4161 Accesses
1 Citations
11 Altmetric
Metrics details

Subjects

Abstract

Assessing and understanding the impacts of all possible mutations at a drug binding site remain challenging. Here we use multiplex oligo targeting for mutational profiling, and computational modelling, to decode efficacy and resistance space at the otherwise native binding site for an anti-trypanosomal proteasome inhibitor. We saturation-edit twenty codons in the Trypanosoma brucei proteasome and subject the resulting libraries to stepwise drug selection and codon variant scoring, yielding dose-response profiles for >100 resistance-conferring mutants. Codon variant scores are predictive of relative resistance observed using a bespoke set of mutants, while fitness profiling reveals otherwise extensive constraints on mutational fitness and resistance space. The resistance profile is predictive of routes to spontaneous drug resistance observed within ‘accessible’, single nucleotide mutational space, while in silico predictions are closely aligned with impacts on drug resistance observed in cellulo. Thus, multiplex oligo targeting facilitates assessment of all possible mutations at a drug binding site.

Profiling the interactome of oligonucleotide drugs by proximity biotinylation

Article Open access 17 January 2024

Coupling cellular drug-target engagement to downstream pharmacology with CeTEAM

Article Open access 06 December 2024

Multivariable regression models improve accuracy and sensitive grading of antibiotic resistance mutations in Mycobacterium tuberculosis

Article Open access 04 March 2025

Introduction

Interactions between drugs and their targets impact efficacy and, when altered by mutation, can result in resistance^1,2,3, undermining the durability of chemotherapeutics used against infectious diseases or in oncology. An improved understanding of the impacts of all possible mutations at drug binding sites would therefore facilitate drug discovery and resistance surveillance, but assessing these impacts remains challenging^4,5,6,7,8. Insights into drug – target interactions typically emerge from a combination of empirical experimental observation in cellulo, structural studies, and computational modelling and prediction in silico. Currently, although powerful approaches for saturation mutagenesis, combined with multiplexed assays, are available, in cellulo data describing comprehensive sets of mutations at native drug binding sites are often lacking⁹, and confidence in in silico predictions can suffer from unquantified limitations as a result.

Several CRISPR-based editing approaches have been used to assess drug resistance associated mutations in eukaryotic cells. However, these approaches employ Cas9 nucleases that can yield undesirable and imprecise recombinants, base editors that typically introduce <50% of all possible edits^6,10, or prime editors that currently display limited efficiency^4,5,7. CRISPR-based approaches are also typically constrained by the availability of suitable protospacer-adjacent motifs in the editing window and necessitate the introduction of further changes at the target site to prevent multiple rounds of editing. These approaches also present multiplexing challenges in diploid cells since different edits will likely be introduced in each allele, complicating genotype to phenotype assessments; although this latter challenge can be mitigated by using haploid cells¹¹. Deep mutational scans, widely used for multiplex analysis of variant effects¹², have also been used to assess drug resistance mechanisms. However, these approaches typically employ ectopic expression systems that may alter target protein abundance and/or expression patterns¹³.

Alternative approaches for the delivery of codon edits to native genes are available. Indeed, editing using multiplex genome engineering¹⁴, or oligo targeting¹⁵, simply require the delivery of short single-stranded oligonucleotides. These approaches are DNA cleavage-free, and CRISPR-independent, and can deliver the full range of possible base edits, albeit at relatively low frequency. These approaches have been described in Saccharomyces cerevisiae¹⁴, in embryonic stem cells¹⁶, and in the trypanosomatids, Trypanosoma brucei, T. cruzi and Leishmania¹⁵; parasitic protozoa that are transmitted by insects, causing neglected tropical diseases in humans, and a range of veterinary diseases. Indeed, we recently reported the development of oligo targeting for the assessment of drug resistance mechanisms in the trypanosomatids¹⁵.

In this work, we scale the oligo targeting approach for saturation-editing of the codons encoding a drug binding site in the T. brucei proteasome β5 subunit. The proteasome is a promising drug target in the trypanosomatids^{17,18,19,20,21}, in malaria parasites²², and against multiple myeloma^23,24. Cryo-electron microscopy structures of the Leishmania proteasome reveal a common binding site for both GSK3494245²¹ and LXE408²⁵, and anti-trypanosomal proteasome inhibitors are currently in clinical development against both visceral leishmaniasis, and T. cruzi, which causes Chagas disease. Multiplex oligo targeting, amplicon sequencing, and codon variant scoring, combined with computational modelling to predict impacts on ligand affinity and proteasome function, provide unprecedented insights into the relationships between a drug and a mutated, but otherwise native, drug target. The readouts reveal how each binding site residue, and all possible binding site mutations, impact drug efficacy and drug resistance.

Results

Mutagenesis at a drug binding site

The proteasome is a high-priority drug target and was selected for the development and testing of multiplexed oligo targeting in trypanosomes. The proteasome comprises four stacked heteroheptameric rings with the β subunits contributing six proteolytic active sites that reside in the central chamber. These sites are autocatalytically activated in the assembled structure via cleavage of N-terminal propeptides; at the glycine preceding the catalytic threonine in the T. brucei β5 subunit (Tb927.10.6080)²⁶. Anti-trypanosomal proteasome inhibitors selectively target the chymotrypsin-like site in this subunit^17,21,25.

Oligo targeting in T. brucei involves delivery of single-stranded oligodeoxynucleotides (ssODNs) of ~50 b in length, with higher efficiency editing achieved when using ‘reverse-strand’ ssODNs¹⁵; a single allele is typically edited in T. brucei, which is diploid. To target the chymotrypsin-like site in the β5 subunit, we considered a pooled ssODNs delivery protocol but noted the potential for introduction of multiple edits in the same cell¹⁴, which would allow for enrichment of bystander edits, complicating codon-based genotype to phenotype assessments. We, therefore, tested co-editing efficiency by delivering pairs of ssODNs to wild-type T. brucei cells, one designed to introduce a resistance-conferring edit (G⁹⁸S - GGA-AGC), equivalent to G⁹⁸S in T. cruzi¹⁵, and a second designed to introduce a synonymous edit either ~100 (C⁶³C, TGC-TGT) or 200 bp (V³¹V, GTT-GTA) upstream. Although an allele replacement frequency of only 0.003 % was reported previously in wild-type T. brucei¹⁵, not readily detectable using Sanger sequencing, we readily detected synonymous edits in drug-resistant populations generated using this approach (Supplementary Fig. 1), indicating efficient co-editing at adjacent sites, likely at a common transcription or replication fork. Accordingly, and to avoid co-editing, we subsequently delivered each degenerate ssODN individually.

We selected compound DDD247 (compound 7a in ref. ²¹), a low nanomolar potency inhibitor, for detailed analysis, and used cryo-EM structural data²¹ to identify amino acids located within 5 Å of the proteasome β5 subunit binding site (Fig. 1a). The cognate codons for these twenty amino acids were distributed over a region of ~500 bp in the β5 gene. To assemble a DDD247 binding site mutant library, we designed twenty reverse-strand, 53-b, ssODNs, each with a centrally located degenerate ‘NNN’ (N = A, C, T, G) codon (Fig. 1b; Source Data, sheet 1). Mismatch-repair, previously reported to supress editing efficiency ~50-fold¹⁵, was transiently knocked down using MSH2 RNA interference for 24 h and, to avoid co-editing at adjacent sites in individual cells (see above), each degenerate ssODN was delivered individually. We then pooled the resulting populations and split the pool to generate a pair of Multiplex Oligo Targeting (MOT) libraries. Given a calculated allele replacement frequency of >0.04% using this approach (Supplementary Fig. 2), we estimated an average yield of >1000 codon edits per ssODN. To assess editing at each of the targeted codons, we extracted genomic DNA before, and six hours after library assembly, PCR-amplified the edited region in the proteasome β5 gene, and deep-sequenced the amplicons (Fig. 1b). A scan to quantify variant codons across the edited region revealed highly specific editing at all twenty targeted sites (Fig. 1c; Source Data, sheet 2). We concluded that all 1280 possible variants around the β5 subunit drug binding site were likely represented in our pooled MOT libraries. These results served to validate the edited MOT libraries and the codon variant scoring approach.

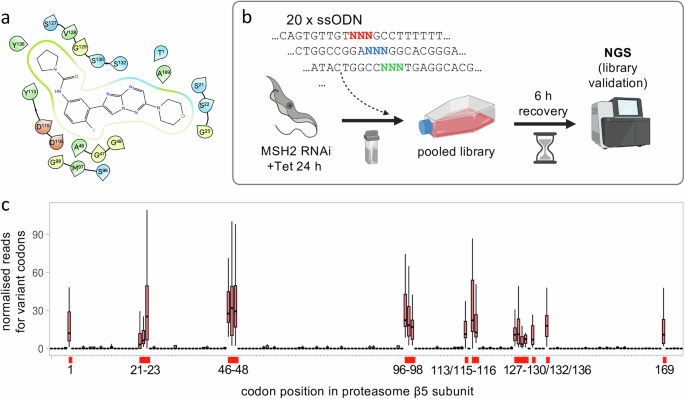

**Fig. 1: Saturation mutagenesis at the proteasome β5 drug binding site.**

More than 100 resistance-conferring base edits

To select drug-resistant mutants, the MOT libraries were grown with DDD247 at 8 nM; twice the EC₅₀ (Effective Concentration of drug to inhibit growth by 50%). The selected libraries were then split three ways and grown with DDD247 at either 40, 200 or 1000 nM (Fig. 2a). We extracted genomic DNA following selection at each drug concentration, PCR-amplified the edited region in the proteasome β5 gene, deep-sequenced the products (Fig. 2a), and quantified variant codons. Principle Component Analysis of variant codon read counts revealed similar profiles for the replicate MOT libraries (Fig. 2b). An assessment of edits generating stop/nonsense codons (n = 60) or synonymous codons (n = 61), neither of which were expected to yield resistant cells, revealed negligible read counts across the dose-response profile (Fig. 2c). In contrast, a number of edits generating mis-sense (non-synonymous) codons yielded elevated read counts across the dose-response profile, at the Y¹¹³ codon for example (Fig. 2c).

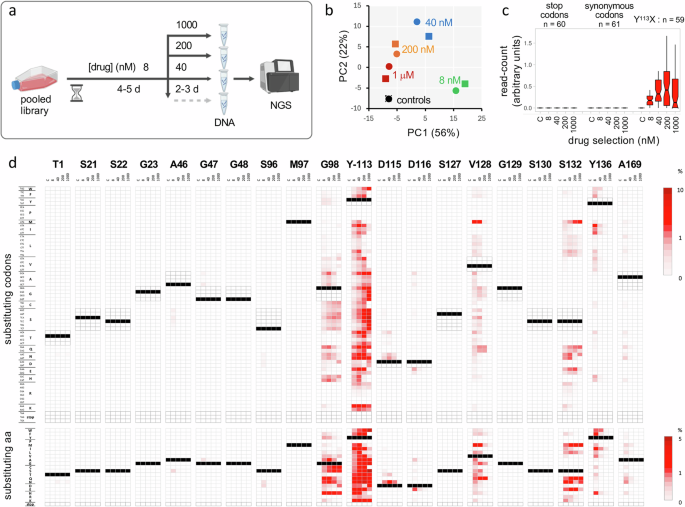

**Fig. 2: Codon variant scoring reveals >100 resistance-conferring base edits.**

The heatmap shown in Fig. 2d (upper panel) shows relative representation of all 1280 codon variants in the unselected library and across the dose-response profile (Source Data, sheet 3). We observed >100 resistance-conferring edits that were enriched following drug selection (Fig. 2d). By averaging read counts for sets of synonymous codons, we derived a second heatmap showing the behaviour of all 400 possible amino acid variants across the dose-response profile, revealing forty-six resistance-conferring edits that were enriched following drug selection (Fig. 2d, lower panel).

Those edits associated with drug resistance show that oligo targeting can be used to introduce all twelve possible base edits, with no apparent bias in terms of single-nucleotide edits (SNEs), double-nucleotide edits (DNEs), or triple-nucleotide edits (TNEs). Eight of the twenty sites targeted yielded edits associated with drug resistance, with G⁹⁸, Y¹¹³, V¹²⁸ and S¹³² emerging as resistance ‘hotspots’ (Fig. 2d). Conversion to asparagine yielded resistance in six cases and glutamine yielded resistance in four, while only conversion to proline or arginine failed to yield resistance.

We next selected a set of nine drug-resistant mutants to interrogate the predictive power of the MOT-library profile. We used the sequencing read count data to reconstruct virtual dose-response curves, and to derive virtual EC₅₀ values for these mutants (Fig. 3a; Source Data, sheet 4; see Methods). As can also be observed in Fig. 2d, codons for the same amino acid edit yielded highly consistent results. A bespoke set of ssODNs (Source Data, sheet 1) was used to introduce each selected codon-edit in otherwise wild-type cells, and a panel of mutants was assembled, a pair of independent clones for each edit. The mutants, comprising six SNEs (G⁹⁸A, GGA-GCA; Y¹¹³H, TAC-CAC; D¹¹⁵N, GAC-AAC; D¹¹⁶E, GAC-GAA; V¹²⁸M, GTG-ATG; and Y¹³⁶F, TAT-TTT), a DNE (V¹²⁸Q GTG-CAG) and two TNEs (Y¹¹³G, TAC-GGA, S¹³²M TCC-ATG), were validated by sequencing, confirming the expected edits in every case (Fig. 3b; Supplementary Fig. 3); these results also indicated that heterozygous edits were sufficient to yield resistance in every case. The mutant panel was then used to derive conventional dose-response curves and EC₅₀ values (Fig. 3c; Supplementary Fig. 4). A comparison with the virtual EC₅₀ data revealed an excellent correlation (R² = 0.98), indicating that codon variant scores from MOT libraries were indeed predictive of relative resistance observed using the bespoke set of mutants, and across a wide range of EC₅₀ values (Fig. 3d). Thus, we identified forty-six distinct drug-resistant mutants, which displayed up to 70-fold increased resistance relative to wild-type cells (Source Data, sheet 4), and which included all four previously known drug resistance mutations in trypanosomatid proteasome β5 subunits; Y¹¹³F in T. brucei²⁵, D¹¹⁵N in T. cruzi²⁷, and G⁹⁸C and G⁹⁸S in Leishmania²¹. We concluded that MOT-library profiling can be used to identify large numbers of distinct drug resistance associated edits in trypanosomes, and also that sequence read counts for variant codons across a dose-response profile are excellent predictors of relative resistance.

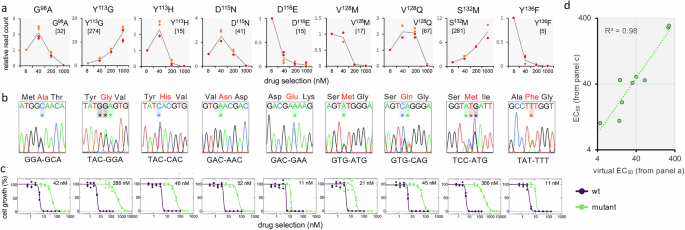

**Fig. 3: Drug resistance assays reveal the predictive power of MOT-library profiling.**

As a further test of MOT-library profiling, we screened the libraries used above with bortezomib, which binds a site immediately adjacent to the DDD247 binding site (Supplementary Fig. 5a). Bortezomib is a modified Phe-Leu dipeptide with a boronic acid warhead²⁵; the compound is approved for cancer chemotherapy, but resistance is a significant problem²³. Selection of the MOT-library with 4 nM bortezomib, approximately twice the EC₅₀ for wild-type T. brucei, yielded resistant cells, while selection with higher drug concentrations failed to do so. Amplicon sequencing and codon variant scoring revealed only two conservative amino acid edits associated with bortezomib resistance, M⁹⁷I and M⁹⁷V (Supplementary Fig. 5b; Source Data); edits that notably failed to yield DDD247 resistance. These results highlight the ability of MOT-library screens to discriminate between inhibitors that engage immediately adjacent sites within the same target.

Fitness constraints on resistance space

More than 90% of edits fail to yield drug resistance in our screens, either because they fail to impact drug binding affinity, or simply because they yield defective proteasomes. Thus, mutational resistance space will be constrained by mutational fitness space at any given drug binding site. In order to assess mutational fitness space at the proteasome β5 subunit drug binding site, we deleted one copy of the β5 gene, assembled MOT libraries in the diploid and haploid strains, and derived codon variant scores after six hours and four days, without any drug selection (Fig. 4a; Source Data). To validate the approach, we first assessed edits producing stop codons, which were severely depleted in the haploid strain, but could be retained in the diploid strain, as expected (Fig. 4b). This analysis also revealed dominant-negative impacts of more distal stop codons in the diploid strain, likely due to the expression of longer, albeit truncated, β5 peptides.

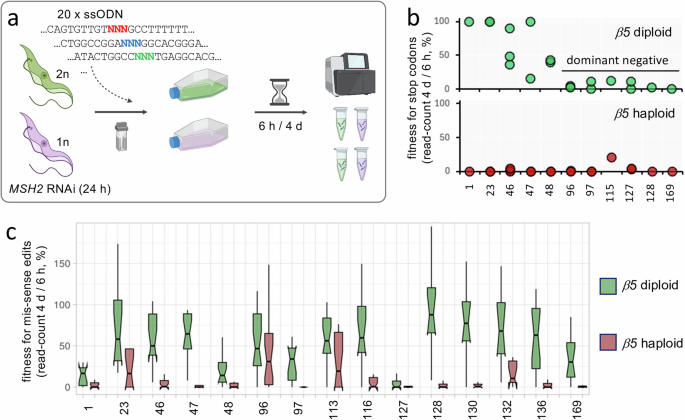

**Fig. 4: Constraints imposed on mutational resistance space by fitness space.**

We next turned our attention to edits generating mis-sense (non-synonymous) codons, comparing relative codon-variant scores from the diploid and haploid strains, and for fifteen sites for which we obtained sufficient data. Mutational tolerance was reduced at all fifteen of these sites in the haploid strain relative to the diploid strain, indicating widespread loss-of-fitness associated with mutant proteasomes (Fig. 4c). Beyond this feature, three notable categories of edited codons emerged. First were codons for which most edits were poorly tolerated in both strains, consistent with dominant-negative defects (T¹, G⁴⁸, S¹²⁷); second were codons for which many edits were tolerated only in the diploid strain, consistent with loss of proteasome function (A⁴⁶, G⁴⁷, M⁹⁷, D¹¹⁶, V¹²⁸, S¹³⁰, Y¹³⁶, A¹⁶⁹); and third were codons for which many edits were tolerated in both strains, consistent with retained proteasome function (G²³, S⁹⁶, Y¹¹³, S¹³²) (Fig. 4c). Dominant-negative edits were not expected to yield drug resistance, and indeed we saw no evidence for resistance-associated edits at these three sites, which included the catalytic threonine at T¹ (Fig. 2d). The second loss-of-function category edits were also not expected to yield robust drug resistance, and indeed resistance-associated edits were limited at these eight sites, typically with failure to tolerate >40 nM drug selection (Fig. 2d); V¹²⁸ did emerge as a resistance hotspot above but the mean virtual EC₅₀ for edits at this site was only 23 nM (n = 8). In contrast, edits in mutational fitness space, those associated with retained proteasome function, have the potential to yield robust resistance, and indeed we identified both Y¹¹³ and S¹³² as resistance hotspots above (Fig. 2d). Thus, although only a minority of edits around the proteasome β5 subunit drug binding site sustain fitness, a substantial proportion of these edits yield robust drug resistance. We concluded that MOT-library profiling can be employed to elucidate both drug resistance space at a given drug binding site, and constraints imposed on resistance space by fitness space.

Predicting resistance in SNP-accessible space

The codon-degenerate ssODNs used above were able to introduce the full range of SNEs, DNEs, and TNEs, and to access all amino acid variants. The vast majority of naturally occurring mutations are limited to single nucleotides, however, and can access only nine alternative codons, or five to seven alternative amino acids (see Fig. 5a, lower left segment). Using the MOT-library profiling data to predict naturally occurring mutations that confer compound DDD247 resistance, we found that only fifteen of forty-six amino acid edits linked to drug resistance above were accessible via an SNE (Fig. 5a, upper right segment, green squares); six are at the Y¹¹³ resistance ‘hotspot’, while only DNEs and TNEs were linked to resistance at the S¹³² ‘hotspot’ (Fig. 5b).

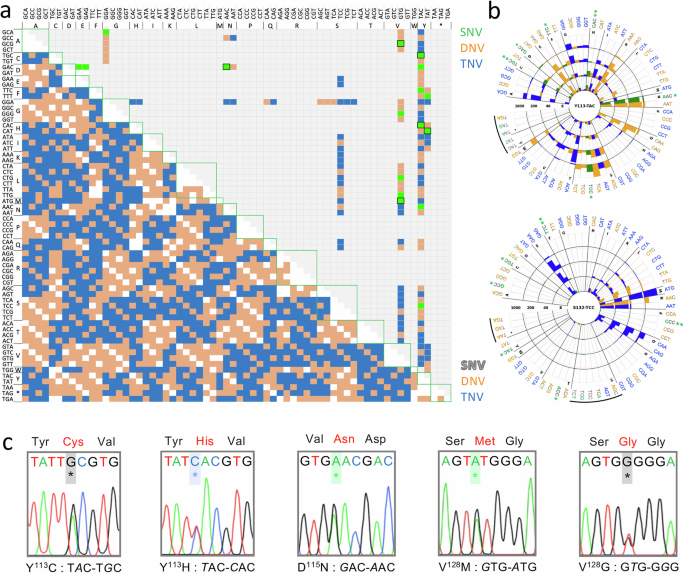

**Fig. 5: Accurate prediction of drug resistance mutations in SNP-accessible space.**

Since generation of spontaneous proteasome inhibitor-resistant trypanosomatid mutants typically takes several months^18,21,27, we took advantage of transient knockdown of mismatch-repair¹⁵ to rapidly generate a panel of resistant T. brucei mutants. We sub-cloned the inducible mismatch-repair knockdown strain, induced knockdown for 24 h, subjected each clone to either 40 nM or 100 nM drug pressure for 6-9 days, sub-cloned each resistant population, and sequenced the β5 gene in a single clone from each population. Sequence analysis revealed that twenty of twenty-three of these independent clones had mutations in the β5 gene, all of which were single nucleotide mutations (Fig. 5c), as expected. Thirteen were V¹²⁸M (GTG-ATG) mutants, which may have arisen frequently due to the presence of a native editing template; we identified a potential A-mismatched template sequence (TGAAATTTTTAGTAT) on four distinct chromosomes. Notably, this mutant also registered a particularly strong resistance signal in Fig. 2d. Although there are twice as many possible transversions (A or G - C or T) as transitions (A - G or C - T; see Fig. 5a, b), transitions, like the V¹²⁸M mutation, are more frequent. Indeed, assessment of 355,892 polymorphisms²⁸ suggested that transitions are 1.8 times more frequent than transversion in T. brucei. Accordingly, the other seven β5 subunit mutants comprised six transitions (Y¹¹³C, TAC-TGC; Y¹¹³H, TAC-CAC; D¹¹⁵N, GAC-AAC *4) and a transversion (V¹²⁸G, GTG-GGG) (Fig. 5c, Supplementary Fig. 6a), while the remaining three resistant clones had single nucleotide mutations in the proteasome β4 subunit (Tb927.10.4710), all at F²⁴L (Supplementary Fig. 6b), which also interacts with compound DDD247²¹.

The resistance-associated mutation profile observed in T. brucei using MOT-library profiling (Fig. 2d) was also predictive of spontaneous drug resistance mutations reported previously in trypanosomatid proteasome β5 subunits; Y¹¹³F in T. brucei, which conferred resistance to LXE408²⁵, D¹¹⁵N in T. cruzi, which conferred cross-resistance to DDD248, GNF6702, and TCMDC-143194²⁷, and G⁹⁸C and G⁹⁸S in Leishmania, which conferred resistance to DDD248²¹. All of these mutations are accessible via single nucleotide changes; with G⁹⁸C (GGC-TGC) and G⁹⁸S (GGC-AGC) only accessible via single nucleotide mutations in Leishmania due to distinct codon-usage at this site, which is GGA in T. brucei. In summary, all spontaneous DDD247-resistant T. brucei clones had a single nucleotide mutation in a proteasome subunit, with 87 % in the β5 subunit; all these β5 subunit mutations were predicted by MOT-library profiling (Figs. 2d and 5a); and no β5 subunit mutations were identified in residues more than 5 Å from the drug binding site (Fig. 1a). These observations, taken together, indicate that MOT-library profiling in T. brucei can facilitate accurate prospective prediction of spontaneous drug resistance mutations in multiple trypanosomatids, and for multiple anti-trypanosomal proteasome inhibitors.

Modelling ligand affinity

For computational modelling of ligand - proteasome binding affinity, we built a homology model of the T. brucei proteasome (Fig. 6a), revealing a high degree of similarity between the ligand binding sites in Leishmania²¹ and T. brucei (Fig. 6b). Docking calculations focused on the cavity formed by residues within 5 Å of the DDD247 ligand (Supplementary Fig. 7a, b) and yielded excellent correspondence with the published Leishmania - GSK3494245 structure (RMSD average: ~0.35 Å)²¹, while docking of compound DDD247 yielded a similar pose, with very good alignment to the aromatic and aliphatic rings (RMSD average: ~0.35 Å) (Supplementary Fig. 7c). Molecular dynamics simulations of the complex with compound DDD247 revealed stabilisation of ligand-protein interactions by hydrogen bonding with β5 residues, Y¹¹³, G¹²⁹, and S¹³⁰, in particular, and with other hydrophobic interactions also present along the simulation, with β5-Y¹¹³ and β4-F²⁴; while the morpholine group displays evidence of being rather flexible and solvent exposed (Supplementary Fig. 8a, b).

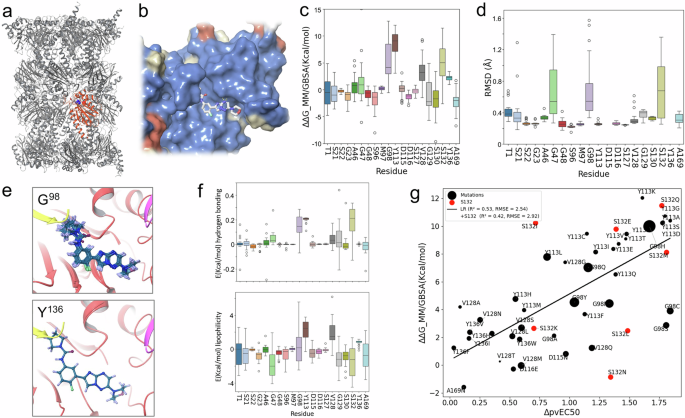

**Fig. 6: Computational modelling of ligand affinity for mutant proteasomes.**

We next considered all possible mutations in those twenty β5 subunit residues within 5 Å of the DDD247 ligand. After clustering snapshots from the molecular dynamics simulation trajectory (Supplementary Fig. 9), selected clusters were used for ΔΔG Molecular Mechanics General Born Surface Area (MM/GBSA) calculations²⁹, revealing G⁹⁸, Y¹¹³, V¹²⁸, and S¹³² as hotspots where mutations were predicted to decrease ligand affinity (Fig. 6c). Remarkably, these were the same four hotspots identified by in cellulo MOTlibrary profiling above (Fig. 2d). Among these hotspots, we observe ligand displacement at G⁹⁸ and S¹³² (Fig. 6d). Indeed, the resistance-associated mutations we observe in cellulo all increase the side-chain mass at these sites; by 58 +/− 31 Da at G⁹⁸ (n = 7) and by 35 +/− 8 Da at S¹³² (n = 7). Exemplar images illustrate how G⁹⁸ and Y¹³⁶ mutations have substantial or minimal impacts on ligand binding, respectively (Fig. 6e).

Hydrogen-bonding and lipophilicity are also predicted to have substantial impacts of protein-ligand affinity (Fig. 6f). Both features are predicted to contribute to the impact of Y¹¹³ mutations, since this residue can form a hydrogen bond with the ligand and also interact within a lipophilic environment. Mutations at G⁹⁸, although they do not form a hydrogen bond with the ligand, all disrupt hydrogen bonding between the adjacent Y¹¹³ residue and the ligand, while impacts on lipophilicity appear to be the major drivers of drug resistance for V¹²⁸ mutations. In the case of S¹³², molecular dynamics clusters often placed this residue distal from the DDD247 ligand binding pose. Cluster 8, however, indicated a direct hydrogen bond between S¹³² and the ligand, and this bond is lost in mutants associated with drug resistance. Accordingly, we suggest that this hydrogen bond does occur but is not observed in the cryo-EM structure. By comparing these ΔΔG (MM/GBSA) calculations with the full set of forty-six virtual EC₅₀ values derived using MOTlibrary profiling above, we obtained an R² value of 0.42 (Fig. 6g). As an example of excellent correlation between observation in cellulo and prediction in silico, Y¹¹³ mutations incorporating highly charged residues (Y¹¹³K, Y¹¹³D, Y¹¹³Q, Y¹¹³S) are associated with a higher degree of resistance relative to mutations that conserve hydrophobicity (Y¹¹³F, Y¹¹³L, Y¹¹³H, Y¹¹³M).

Modelling drug resistance

We elucidate above the mutational fitness space that restricts mutational resistance space at the DDD247 binding site; whereby non-functional mutant proteasomes fail to yield drug-resistant cells (Fig. 4). We, therefore, sought to combine in silico predictions of loss of protein function with our ligand affinity predictions. We used Evo 2, a DNA language model trained on >9 trillion DNA base pairs from all domains of life³⁰, to predict loss of proteasome function due to codon changes, considering the full set of 1280 mutations surveyed by MOT-library profiling above. Evo2 Δ_scores (Supplementary Fig. 10) were used to assign penalties relative to loss-of-function for each mutated β5 subunit residue. Both the affinity scores (Fig. 7a, left-hand panel) and functional scores (Fig. 7a, right-hand panel) were then combined to generate a heatmap showing resistance predictions (Fig. 7a, lower panel); for those mutations that both disrupt ligand affinity and retain fitness. The resistance hotspots described above, G⁹⁸, Y¹¹³, V¹²⁸ and S¹³², were retained, and the computationally predicted impact of each individual mutation can now be seen in the combined heatmap. Although the analysis predicted reduced ligand affinity due to mutations at A⁴⁶ and G⁴⁷, loss of proteasome function is also predicted due to these mutations, meaning that resistance is predicted to be minimal (Fig. 7a). Indeed, mutations at these sites registered a substantial loss-of-fitness in cellulo (Fig. 4c) and failed to register as resistance mutations (Fig. 2d) in our in cellulo screen. Further highlighting the potential for added value when combining affinity and function parameters to predict drug resistance, Pearson’s r for the full dataset was increased from 0.46 to 0.51 after applying penalties for loss-of-fitness; Pearson’s r for loss-of-fitness alone was 0.01. A circular plot shows the full in cellulo resistance profile and in silico predicted resistance profile side-by-side for comparison, and a correlation plot shows how effectively our in silico analyses predicted the in cellulo derived resistance hotspots (Fig. 7b, Pearson’s r = 0.9).

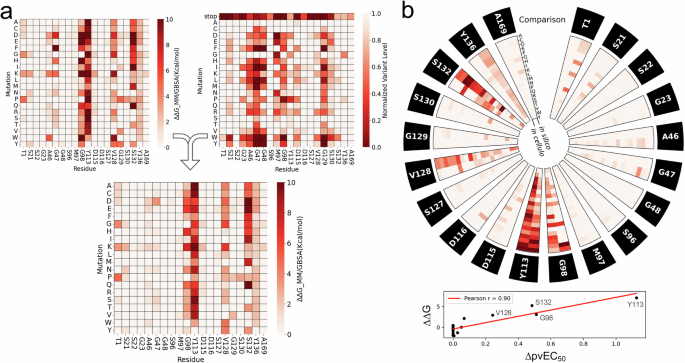

**Fig. 7: Computational modelling combining affinity and function parameters.**

Discussion

Key goals in drug discovery are to evolve potent, safe, and durable therapies. Optimisation of drug efficacy typically requires substantial investment, however, with medicinal chemistry often informed by structural data and modelling when the target is known. Despite the importance of understanding drug – target interactions, and their impacts on efficacy and resistance, the relevant interactions often remain hypothetical, speculative, and incompletely characterised; in particular, empirical in cellulo data regarding individual residues at a drug binding site are often unavailable.

To address this knowledge gap, we sought to scale the oligo targeting approach in T. brucei¹⁵. We focused on the proteasome, an established drug target in diverse cell types^{18,21,22,23,24}, and developed Multiplex Oligo Targeting for site saturation mutagenesis. Guided by cryo-electron microscopy structures of the ligand-bound proteasome²¹, we identified residues within 5 Å of the ligand and constructed libraries of cells with all possible mutations at these sites. Following drug selection, we profiled all drug resistance edits using deep sequencing and variant scoring. The genome editing approach used here is rapid and precise, allows for expression of mutants from the otherwise unperturbed native locus, and offers high fidelity multiplexed assessment of edits quantified directly at the target locus. We do not observe homozygous edits using oligo targeting here, and this may be a limitation for investigating some drug resistance mechanisms, but we note that the heterozygous edits we observe most likely reflect those potential routes to drug resistance in a clinical setting. Thus, the approach facilitates decoding of efficacy and resistance space at a given drug binding site.

The current T. brucei libraries incorporated 1280 alternative codons encoding 400 proteasome β5 subunit variants. In this case, our goal was to introduce every possible alternative codon at each of twenty targeted sites. Based on an allele replacement frequency of ~0.04% following transient suppression of mismatch repair, we estimated 26,000 edited cells among 65 million cells in a 150 ml culture volume, which equates to an average twenty-fold redundancy for each alternative codon. For comparison, a library generated recently using prime editors in human cells incorporated 2476 single nucleotide edits encoding 1726 epidermal growth factor receptor variants⁷. In terms of scaling, our results suggest that larger libraries could readily be generated and screened using the oligo targeting approach by simply using larger numbers of degenerate ssODNs. Substantial further scaling would present challenges in terms of assessing every alternative codon at each targeted site, but use of larger cell numbers and culture volumes would reduce bottlenecks and maintain library complexity.

Since drug resistance space is constrained by fitness space, we also assessed the fitness of cells exclusively expressing edited proteasomes. The majority of proteasome edits came with a fitness cost, and indeed, these edits failed to yield robust resistance. Since spontaneous drug resistance space is further constrained by accessible mutational space, a better understanding of these parameters will facilitate prediction and surveillance, as well as the prospective design of second-line therapies that bypass anticipated resistance mechanisms. Ultimately, and highlighting the potential value of such insights, compounds that target sites within highly restricted fitness space and otherwise inaccessible resistance space should deliver more durable therapies. Compounds identified as particularly vulnerable to spontaneous resistance could also be prioritised for use in combination therapies³¹.

Computational models and artificial intelligence-based approaches promise to revolutionise the design of more active and durable drugs. In silico predictions often remain unvalidated due to the limited availability of in cellulo experimental data, however. By combining empirical data with in silico predictions of drug target affinity and proteasome structure - function perturbing mutations, we demonstrated how effective these in silico approaches can be. Notwithstanding some limitations, the computational models we present yield relatively accurate predictions of drug target affinity and resistance, explained by a combination of steric effects, hydrogen-bonding and lipophilicity. Such models will require comprehensive, high-quality training data to further improve their utility in future drug design.

Resistance could undermine the efficacy of new anti-parasitic drugs currently in pre-clinical or clinical development^32,33, and bridging the knowledge gap in relation to mutations that impact drug – target interactions is consequently a priority. Although rapid advances in structural biology and computational drug design present new opportunities in this area, the empirical in cellulo data describing comprehensive sets of mutations at native drug binding sites are often lacking. We developed multiplex oligo targeting in T. brucei and used the approach to saturation edit a native drug binding site in the proteasome β5 subunit. We profiled both fitness and resistance space and identified resistance hotspots and >100 resistance-conferring mutants, which allowed us to accurately predict spontaneous resistance mutations in multiple trypanosomatids. Assessment of the empirical data using computational modelling provided unprecedented insights into anti-trypanosomal proteasome inhibitor – target interactions. By further assessing the impacts of all possible mutations at drug binding sites, we can improve our understanding of mutations associated with drug resistance, improve prospects for resistance surveillance, and enhance computational drug design strategies towards more effective and durable drugs.

Methods

T. brucei growth and manipulation

Bloodstream form Lister 427 Trypanosoma brucei wild-type and MSH2 RNAi¹⁵ strains were cultured in HMI-11 (Gibco) supplemented with 10% fetal bovine serum (Sigma) at 37 °C and with 5% CO₂ in a humidified incubator. Genetic manipulations was carried out by electroporation using a Nucleofector (Lonza), with a Human T-cell kit (Lonza), or with custom-made transfection buffer³⁴, with the Nucleofector set to Z-001 (Amaxa).

Oligo targeting

Oligo targeting was carried out using single-stranded oligodeoxynucleotides (ssODNs, Thermo Fisher Scientific) essentially as described¹⁵ (Source Data, sheet 1). Briefly, for routine assays, we used 40 μg of each ssODN in 10 μl of 10 mM Tris-Cl, pH 8.5, mixed with 25 million cells in 100 μl transfection buffer. Selection with DDD247 or DDD248, compounds 7a and 7, respectively in Wyllie et al.²¹, was applied 6 h later, as appropriate, and cells were subjected to limiting dilution in 96-well plates as required. Genomic DNA was extracted using a Qiagen DNeasy Kit followed by PCR amplification of the β5 gene (25 cycles). PCR products were purified using a PCR Purification Kit (Qiagen). To identify individual edits, amplicons were generated using Phusion polymerase (NEB) and amplicons were subjected to Sanger sequencing (Genewiz, Azenta Life Sciences).

Assembly and screening of multiplexed oligo targeting libraries

For site saturation mutagenesis using a set of twenty degenerate ssODNs, we used 40 μg of each ssODNs in 10 μl of 10 mM Tris-Cl, pH 8.5, mixed with 6.5 million cells in 100 μl transfection buffer. MSH2 knockdown was induced 24 h prior to transfection by the addition of 1 μg/mL tetracycline (Sigma). Each ssODN was transfected individually and the cultures were then pooled in 150 ml of medium to generate the library, comprising ~65 million cells based on an electroporation survival rate of ~50%. After 6 h, cells from 20 ml of the culture were cryo-preserved, cells from another 20 ml were collected for (pre-selection) DNA extraction, and the remainder were split into two cultures and subjected to selection with 8 nM compound DDD247. Following 4–5 d, 50 ml of each culture was collected for DNA extraction, and the remainder was split into three cultures that were subjected to selection with either 40 nM, 200 nM or 1 μM compound DDD247. Following 2–3 d, each culture was collected for DNA extraction.

For selection with bortezomib (Sigma), a cryo-preserved library sample was thawed, allowed to recover for 24 h, and split into two parallel cultures. Bortezomib selection was applied at 4 nM (EC₅₀ = 2.2 nM). Following 7–9 d, cultures were collected for DNA extraction and the remainder was split into three cultures that were subjected to selection with higher concentrations of bortezomib; none of these latter cultures yielded resistant cells.

For fitness profiling, we first generated a T. brucei MSH2 RNAi strain with a single β5 allele. A construct was synthesized comprising a BLA (blasticidin deaminase) selectable marker, flanked by T. brucei tubulin mRNA processing sequences and ~300 bp of β5 gene flanking sequence to promote homologous recombination. This cassette was excised from the plasmid using AscI and used to transfect MSH2 RNAi cells. BLA selection was applied at 10 μg/ml after 6 h and positive clones were assessed using PCR assays. Multiplex oligo targeting libraries were then assembled in both strains, either haploid or diploid for the β5 gene, as described above, and again using the same set of twenty degenerate ssODNs. In this case, cells were collected for DNA extraction after 6 h and 4d without any drug selection. To identify multiplexed edits, PCR amplicons from the β5 gene were generated using KOD Hot Start DNA Polymerase (Merck). We used 0.5 μg of genomic DNA template to assess library coverage and 0.1 μg of genomic DNA template to assess drug-selected samples; 25 cycles in all cases. Amplicons were purified using a PCR Purification Kit (Qiagen).

Amplicon sequencing and codon variant scoring

Amplicons were subjected to deep sequencing using DNBseq (BGI Genomics); the controls and drug-selected samples shown in Figs. 1 and 2 were sequenced in parallel. Filtering of sequencing reads was performed using the SOAPnuke software with parameters: “-n 0.001 -l 10 -q 0.4 --adaMR 0.25 --ada_trim --minReadLen150” for drug selection experiments and “-n 0.01 -l 20 -q 0.3 --adaMR 0.25 --ada_trim --polyX 50 --minReadLen 150” for the haploid v diploid experiment.

Codon variant scoring was performed with the OligoSeeker (0.0.5) Python package³⁵ designed to process paired FASTQ files and count occurrences of specific codons. To visualise codon variant scores, we performed a normalization step by dividing each codon variant score by the total reads for that position and converting the fraction of reads to a percentage. This was followed by background correction whereby we subtracted the values for the control sample. Negative values were replaced with 0, and average values for the duplicate libraries were then calculated to give the codon variant scores. Codons registering elevated read-counts in the control sample, including all single nucleotide variants, were excluded from the analyses shown in Figs. 1c and 4c. To derive virtual EC₅₀ values, we derived a weighted average of codon variant scores across the DDD247 compound dose range. Briefly, the drug concentration associated with the highest read-count was assigned a weighting of ‘1’ and relative weighting was assigned accordingly. For example, the virtual EC₅₀ for G⁹⁸A is the average of 0.48*8, 1*40, 0.34*200, and 0.02*1000 = 32 nM. To visualize relative codon frequency using the pyCirclize python package (https://github.com/moshi4/pyCirclize, v1.9.1), raw codon counts were normalized by the maximum values and replicates were then averaged.

Assembly of a panel of spontaneous drug-resistant mutants

We exploited the MSH2 RNAi strain to rapidly generate a panel of spontaneous and independent DDD247-resistant mutants. To ensure that each mutant was independent, we first used limiting dilution to isolate twenty clones from the MSH2 RNAi cell line. MSH2 knockdown was induced in each clone for 24 h, tetracycline was removed by washing in HMI-11 medium, and compound DDD247 was added at 40 nM or 100 nM. We observed cell death followed by recovery and obtained twenty-three independent DDD247-resistant cultures using this approach. We sub-cloned each culture by limiting dilution, and isolated one clone from each for DNA extraction, PCR amplification of the β5 gene and Sanger sequencing (Genewiz, Azenta Life Sciences). We also subsequently PCR amplified and sequenced the proteasome β4 gene in three clones for which no mutations were identified in the β5 gene.

Dose-response assays

To determine the Effective Concentration of drug to inhibit growth by 50% (EC₅₀), cells were plated in 96-well plates at 1 ×10³ cells/ml in a 2-fold serial dilution of selective drug. Plates were incubated at 37 °C for 72 h, 20 μl resazurin sodium salt (AlamarBlue, Sigma) at 0.49 mM in PBS was then added to each well, and plates were incubated for a further 6 h. Fluorescence was determined using an Infinite 200 pro plate reader (Tecan) at an excitation wavelength of 540 nm and an emission wavelength of 590 nm. EC₅₀ values were derived using Prism (GraphPad).

Homology modelling, docking and molecular dynamics

A T. brucei proteasome homology model was generated using a cryo-EM structure of the Leishmania proteasome in complex with the GSK3494245 inhibitor (PDB: 6qm7)²¹, and the homology modelling tool implemented in Maestro (Schrodinger inc.)³⁶. Docking was performed with Glide XP³⁷, using GSK3494245 for validation, followed by compound DDD247, with RMSD comparisons calculated using an MCS protocol. The complex was placed in a Cubic box with waters and ions (0.15 M) using Maestro and the system was subjected to 80 ns of molecular dynamics with Desmond³⁸. The trajectory was clustered by RMSD (resulting in 9 clusters), and representative frames were selected for further analysis. Those clusters were classified with interaction fingerprints³⁹.

Free energy estimations

The ensemble of conformations was generated from the clusters produced by the simulation to estimate the binding free energy. The residue scanning tool implemented in Maestro was used to compute approximate binding energy scores between the ligand and wild-type/mutant proteins³⁸. This tool implements a high-throughput workflow for testing mutations with the ΔΔG associated (calculated with the MM/GBSA method)²⁹ using wild-type as reference (baseline). MM/GBSA is a free energy method that gives an approximation of relative binding free energy between states (such as ligand bound vs unbound). The method decomposes the calculation into terms; Van der Waals, Coulombic, hydrogen bonding, solvation and hydrophobic, for contributions to the final ΔG. All residues tested experimentally were mutated to build single mutants, with minimisation around 7 Å as the final step of preparation. Results were plotted with Seaborn and Matplotlib. For virtual EC₅₀ values derived from MOT-library profiling data, a ΔpvEC₅₀ was calculated for each mutant, and plotted against the ΔΔG values.

Protein function prediction

Machine learning approaches can effectively predict the impact of mutations on protein function⁴⁰ and we used an Evo 2 model to predict loss of proteasome function here (evo2_7b_base)³⁰. Taking native nucleotide sequence for the β5 subunit gene, we considered all possible mutations in those codons surveyed by MOT-library profiling. After the inference, the native sequence was used as a reference, and sequences with mutations were scored and subtracted from the reference score to obtain Evo2 Δ_scores. These scores were then used to apply penalties to the affinity predictions. Values were normalised to allow comparison of in cellulo and in silico predictions and the results were visualised in a circular plot with Seaborn and Matplotlib.

Data availability

The high-throughput sequencing data generated for this study have been deposited at the Sequence Read Archive under accession code PRJNA1295514 (https://www.ncbi.nlm.nih.gov/bioproject/1295514). Source data for Figs. 1c, 2b–d, 3a, 4b, c and 5a, b are available as a Source Data file and for Figs. 6c, d, f, g, 7a, b, Supplementary Figs. 7c and 10a,b in the Github repository (https://github.com/velocirraptor23/Decoding-efficacy-and-resistance-space-at-a-drug-binding-site-/tree/main) and Zenodo https://zenodo.org/records/18195459. The homology model used in Figs. 6 and 7 is available in ModelArchive (https://modelarchive.org/doi/10.5452/ma-cxis8).

Code availability

The code used to develop the homology model, perform analyses and generate results in this study is publicly available and has been deposited in Github at https://github.com/velocirraptor23/Decoding-efficacy-and-resistance-space-at-a-drug-binding-site-/tree/main, under MIT license. The specific version of the code associated with this publication is archived in Zenodo and is accessible via https://zenodo.org/records/18195459⁴¹.

References

Darby, E. M. et al. Molecular mechanisms of antibiotic resistance revisited. Nat. Rev. Microbiol. 21, 280–295 (2023).
Article CAS PubMed Google Scholar
Duffey, M. et al. Combating antimicrobial resistance in malaria, HIV and tuberculosis. Nat. Rev. Drug Discov. 23, 461–479 (2024).
Article CAS PubMed Google Scholar
Vasan, N., Baselga, J. & Hyman, D. M. A view on drug resistance in cancer. Nature 575, 299–309 (2019).
Article ADS CAS PubMed PubMed Central Google Scholar
Belli, O., Karava, K., Farouni, R. & Platt, R. J. Multimodal scanning of genetic variants with base and prime editing. Nat. Biotechnol. 43, 1458–1470 (2025).
Chardon, F. M. et al. A multiplex, prime editing framework for identifying drug resistance variants at scale. bioRxiv, 2023 07, 550902 (2023).
Google Scholar
Dorighi, K. M. et al. Accelerated drug-resistant variant discovery with an enhanced, scalable mutagenic base editor platform. Cell Rep. 43, 114313 (2024).
Article CAS PubMed Google Scholar
Kim, Y., Oh, H. C., Lee, S. & Kim, H. H. Saturation profiling of drug-resistant genetic variants using prime editing. Nat. Biotechnol. 43, 1471–1484 (2025).
Article CAS PubMed Google Scholar
Nyerges, A. et al. Directed evolution of multiple genomic loci allows the prediction of antibiotic resistance. Proc. Natl. Acad. Sci. USA 115, E5726–E5735 (2018).
Article CAS PubMed PubMed Central Google Scholar
Pines, G., Fankhauser, R. G. & Eckert, C. A. Predicting drug resistance using deep mutational scanning. Molecules 25, 2265 (2020).
Lue, N. Z. & Liau, B. B. Base editor screens for in situ mutational scanning at scale. Mol. Cell 83, 2167–2187 (2023).
Article CAS PubMed PubMed Central Google Scholar
Findlay, G. M. et al. Accurate classification of BRCA1 variants with saturation genome editing. Nature 562, 217–222 (2018).
Article ADS CAS PubMed PubMed Central Google Scholar
Tabet, D., Parikh, V., Mali, P., Roth, F. P. & Claussnitzer, M. Scalable functional assays for the interpretation of human genetic variation. Annu. Rev. Genet. 56, 441–465 (2022).
Article CAS PubMed Google Scholar
Fowler, D. M. & Fields, S. Deep mutational scanning: a new style of protein science. Nat. Methods 11, 801–807 (2014).
Article CAS PubMed PubMed Central Google Scholar
Barbieri, E. M., Muir, P., Akhuetie-Oni, B. O., Yellman, C. M. & Isaacs, F. J. Precise editing at DNA replication forks enables multiplex genome engineering in eukaryotes. Cell 171, 1453–1467.e13 (2017).
Article CAS PubMed PubMed Central Google Scholar
Altmann, S. et al. Oligo targeting for profiling drug resistance mutations in the parasitic trypanosomatids. Nucleic Acids Res. 50, e79 (2022).
Article CAS PubMed PubMed Central Google Scholar
Dekker, M., Brouwers, C. & te Riele, H. Targeted gene modification in mismatch-repair-deficient embryonic stem cells by single-stranded DNA oligonucleotides. Nucleic Acids Res. 31, e27 (2003).
Article PubMed PubMed Central Google Scholar
Eadsforth, T. C. et al. Pharmacological and structural understanding of the Trypanosoma cruzi proteasome provides key insights for developing site-specific inhibitors. J. Biol. Chem. 301, 108049 (2025).
Article CAS PubMed Google Scholar
Khare, S. et al. Proteasome inhibition for treatment of leishmaniasis, Chagas disease and sleeping sickness. Nature 537, 229–233 (2016).
Article ADS CAS PubMed PubMed Central Google Scholar
Koester, D. C. et al. Discovery of novel quinoline-based proteasome inhibitors for human African trypanosomiasis (HAT). J. Med. Chem. 65, 11776–11787 (2022).
Article CAS PubMed PubMed Central Google Scholar
Thomas, M. G. et al. Structure-guided design and synthesis of a pyridazinone series of Trypanosoma cruzi proteasome inhibitors. J. Med. Chem. 66, 10413–10431 (2023).
Article CAS PubMed PubMed Central Google Scholar
Wyllie, S. et al. Preclinical candidate for the treatment of visceral leishmaniasis that acts through proteasome inhibition. Proc. Natl. Acad. Sci. USA 116, 9318–9323 (2019).
Article ADS CAS PubMed PubMed Central Google Scholar
Lawong, A. et al. Identification of potent and reversible piperidine carboxamides that are species-selective orally active proteasome inhibitors to treat malaria. Cell Chem. Biol. 31, 1503–1517.e19 (2024).
Article CAS PubMed PubMed Central Google Scholar
Allmeroth, K. et al. Bortezomib resistance mutations in PSMB5 determine response to second-generation proteasome inhibitors in multiple myeloma. Leukemia 35, 887–892 (2021).
Article CAS PubMed Google Scholar
Santos, R. L. A. et al. Structure of human immunoproteasome with a reversible and noncompetitive inhibitor that selectively inhibits activated lymphocytes. Nat. Commun. 8, 1692 (2017).
Article ADS PubMed PubMed Central Google Scholar
Nagle, A. et al. Discovery and characterization of clinical candidate LXE408 as a kinetoplastid-selective proteasome inhibitor for the treatment of leishmaniases. J. Med. Chem. 63, 10773–10781 (2020).
Article CAS PubMed PubMed Central Google Scholar
Wang, C. C. et al. Biochemical analysis of the 20 S proteasome of Trypanosoma brucei. J. Biol. Chem. 278, 15800–15808 (2003).
Article CAS PubMed Google Scholar
Lima, M. L. et al. Identification of a proteasome-targeting arylsulfonamide with potential for the treatment of Chagas’ disease. Antimicrob. Agents Chemother. 66, e0153521 (2022).
Article PubMed Google Scholar
Cosentino, R. O., Brink, B. G. & Siegel, T. N. Allele-specific assembly of a eukaryotic genome corrects apparent frameshifts and reveals a lack of nonsense-mediated mRNA decay. NAR Genom. Bioinform 3, lqab082 (2021).
Article PubMed PubMed Central Google Scholar
Genheden, S. & Ryde, U. The MM/PBSA and MM/GBSA methods to estimate ligand-binding affinities. Expert Opin. Drug Discov. 10, 449–461 (2015).
Article CAS PubMed PubMed Central Google Scholar
Brixi, G. et al. Genome modeling and design across all domains of life with Evo 2. Preprint at https://www.biorxiv.org/content/10.1101/2025.02.18.638918v1 (2025).
Hope, W. et al. Combining antibiotics to tackle antimicrobial resistance. Nat. Microbiol. 10, 813–816 (2025).
Article CAS PubMed Google Scholar
De Rycker, M., Wyllie, S., Horn, D., Read, K. D. & Gilbert, I. H. Anti-trypanosomatid drug discovery: progress and challenges. Nat. Rev. Microbiol. 21, 35–50 (2023).
Article PubMed Google Scholar
Rao, S. P. S., Manjunatha, U. H., Mikolajczak, S., Ashigbie, P. G. & Diagana, T. T. Drug discovery for parasitic diseases: powered by technology, enabled by pharmacology, informed by clinical science. Trends Parasitol. 39, 260–271 (2023).
Article CAS PubMed Google Scholar
Schumann Burkard, G., Jutzi, P. & Roditi, I. Genome-wide RNAi screens in bloodstream form trypanosomes identify drug transporters. Mol. Biochem. Parasitol. 175, 91–94 (2011).
Article CAS PubMed Google Scholar
Tinti, M. OligoSeeker. Zenodo, https://doi.org/10.5281/zenodo.15011916 (2025).
Jacobson, M. P. et al. A hierarchical approach to all-atom protein loop prediction. Proteins 55, 351–367 (2004).
Article CAS PubMed Google Scholar
Friesner, R. A. et al. Extra precision glide: docking and scoring incorporating a model of hydrophobic enclosure for protein-ligand complexes. J. Med. Chem. 49, 6177–6196 (2006).
Article CAS PubMed Google Scholar
Bowers, K. J. et al. Scalable algorithms for molecular dynamics simulations on commodity clusters. In Proceedings of the ACM/IEEE Conference on Supercomputing (IEEE, 2006).
Bouysset, C. & Fiorucci, S. ProLIF: a library to encode molecular interactions as fingerprints. J. Cheminform 13, 72 (2021).
Article PubMed PubMed Central Google Scholar
Cagiada, M., Jonsson, N. & Lindorff-Larsen, K. Decoding molecular mechanisms for loss-of-function variants in the human proteome. Preprint at https://www.biorxiv.org/content/10.1101/2024.05.21.595203v1 (2025).
Mendoza-Martinez, C. et al. Decoding efficacy and resistance space at a drug binding site. Zenodo, https://zenodo.org/records/18195459 (2026).
