Fig. 1: Structural and physicochemical characterizations of the ME-PBSCC sample.

From: A medium-entropy oxygen electrode enables high-performance and contaminant-tolerant reversible solid oxide cells

Fig. 1: Structural and physicochemical characterizations of the ME-PBSCC sample.

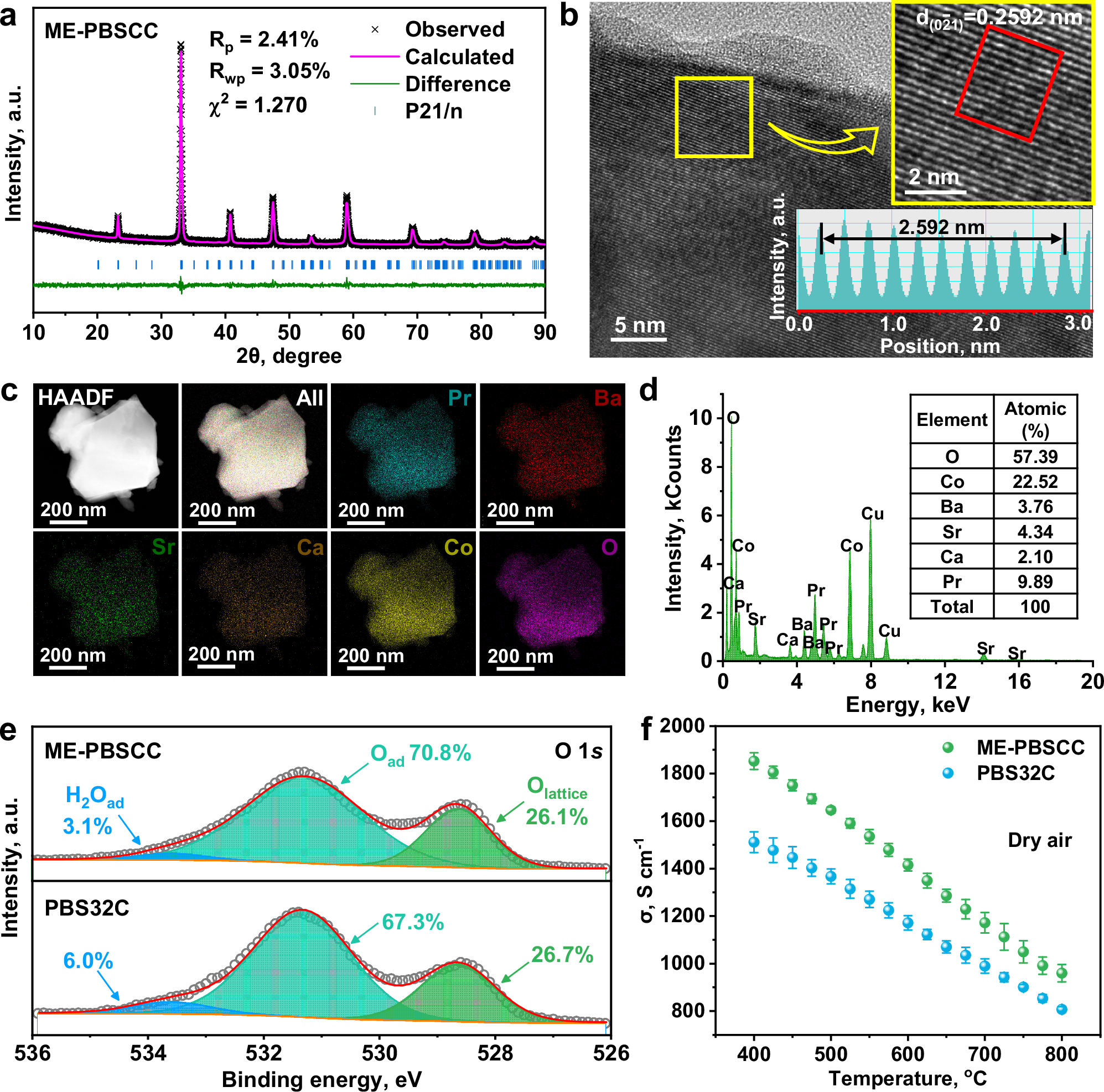

a XRD patterns of ME-PBSCC with the Rietveld refinement results. b HR-TEM images of the ME-PBSCC and a line scanning result along the red frame. c HAADF and elemental mapping images of the ME-PBSCC at a scale bar of 200 nm. d EDX spectrum and atomic percentage derived from the particle in (c). e The O 1s spectra and f the electrical conductivities of ME-PBSCC and PBS32C samples. Each test was conducted in triplicate to obtain statistical standard deviations, presented as error bars.
