Introduction

Since the Industrial Revolution, the large-scale utilization of fossil fuels has significantly propelled the development of human society. However, it has also led to a series of issues, including resource depletion, environmental pollution, and climate change1,2. Innovating and efficient utilization of renewable and clean resources constitutes a critical pathway to alleviate the current predicament3,4. Among the various energy storage and conversion technologies, reversible solid oxide cells (Re-SOCs) have garnered increasing attention during the past several decades, potentially aiding the realization of low or zero carbon emissions5,6. In particular, Re-SOCs can be operated in fuel cell (FC) mode to generate electricity and in electrolysis (EC) mode to store energy, thus having the potential capability of peak shaving and valley filling, and long-term energy storage7,8.

One of the crucial challenges to the commercial viability of Re-SOCs is the sluggish kinetics of oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) at oxygen electrodes at intermediate temperatures (IT), resulting in unsatisfactory electrochemical performance9. An ideal oxygen electrode material for IT-Re-SOCs should possess high ionic and electronic conductivity, stable phase structure, excellent chemical compatibility with typical electrolyte materials, and sufficient tolerance to contaminant poisoning (such as carbon dioxide, water vapor, and volatile Cr-containing vapor, etc.), which ensures the efficient and stable ORR/OER10. Unfortunately, although significant progress has been achieved in the development of promising oxygen electrodes for Re-SOCs, most of the electrochemical results obtained are based on relatively mild experimental conditions7,11,12,13,14. Under realistic operating conditions, the oxygen electrodes of cell stacks inevitably encounter harsh atmospheres15. For instance, gaseous Cr species volatilize from the Cr2O3 scale of metallic alloy interconnects, which are employed for electrical connections between individual cells and gas transport channels isolating the fuel electrode and the oxygen electrode16. Specifically, high-valent Cr species (e.g., representative CrO3 and CrO2(OH)2 in wet air) react with the alkaline-earth metal oxides segregated from the oxygen electrode to form inactive chromates, which are further deposited on the surface of the oxygen electrode or at the interface between the oxygen electrode and electrolyte17. On the one hand, the elemental segregation driven by the minimization of elastic energy and the electrostatic interactions alters the stoichiometry in the near-surface region of the oxygen electrode, resulting in different energy barriers for oxygen transport18. On the other hand, the deposited chromates with relatively low electrical conductivity (e.g., 2.00 × 10−5 S cm−1 of SrCrO4 and 5.14 × 10−4 S cm−1 of BaCrO4 at 700 °C, respectively)19,20 and significant surface coverage, severely hinder electron conduction and oxygen exchange at the active sites of the oxygen electrode during ORR and OER. More seriously, gaseous Cr species may directly react with the oxygen electrode, causing Cr to enter the perovskite lattice21. It is reported that Cr from volatile Cr species entered the perovskite lattice of LaNi0.6Fe0.4O3, leading to a decrease in electronic conductivity21.

A variety of feasible strategies have been employed to alleviate Cr poisoning on oxygen electrodes, such as adding protective coatings to interconnects22,23,24, placing Cr getters in the upstream airflow25,26, and surface modification and composition optimization of the oxygen electrodes14,27,28,29. Protective coatings can effectively inhibit the growth of Cr2O3 scale on the interconnect and block the outward volatilization of Cr species, mainly including reactive element oxide (e.g., La, Ce, and Y oxides), metal/alloy (e.g., Co, Ni, Cu, and NiFe2), spinel (e.g., (Mn,Co)3O4, (Mn,Cu)3O4, Mn1.25Co1.5Cu0.25O4, and CuFe2O4), and perovskite (e.g., La1−xSrxCoO3 and La1−xSrxMnO3) coatings30,31,32,33. For instance, the (Mn,Cr)3O4 layer that formed on top of the Cr2O3 scale was the key factor enabling the La0.75Sr0.25Cr0.5Mn0.5O3 coating to block Cr diffusion34. The CuMn1.8O4 coatings reduced the Cr volatilization by reacting with the Cr2O3 scale to form (Cu,Mn,Cr)3−xO4 cubic spinel phases35. However, the interdiffusion of elements and mismatched thermal expansion coefficients may cause delamination and cracking of the external coating. Different preparation methods can also affect the effectiveness of protective coatings36. Moreover, the application of protective coatings to balance-of-plant components, which likewise constitute significant sources of Cr contamination, cannot always be readily achievable. Cr getters (such as SrxNiyOz and SrMnO3) are typically fabricated by combining SrO with transition metal oxides and then loaded on ceramic supports, offering another effective route for mitigating Cr poisoning on oxygen electrodes26,37. Among them, SrO functions as the effective component, capturing gaseous Cr species and converting them into the thermodynamically stable solid SrCrO4. However, during long-term operation, the getter will inevitably become saturated with Cr deposits, necessitating frequent replenishment or replacement31. Therefore, in light of the above constraints, the development of oxygen electrodes that are tolerant to Cr contamination represents the fundamental solution to the poisoning.

Surface modification is one of the effective strategies to enhance the electrocatalytic activity and Cr tolerance of oxygen electrodes38,39,40. The nano-structured catalysts can increase the active sites of oxygen reactions and protect oxygen electrodes from being poisoned by contaminants. However, achieving commercially feasible, reproducible, and uniformly distributed surface modification in large-area cells with porous oxygen electrodes remains highly challenging41. Moreover, most reported catalysts exist as isolated nanoparticles on the oxygen electrode surface, making it difficult to achieve effective protection for the intrinsically fragile electrode under prolonged Cr exposure38,42.

Recently, high/medium-entropy oxides have attracted extensive attention in improving the structural stability (e.g., inhibiting phase transition or elemental segregation), electrocatalytic performance, and poisoning resistance of oxygen electrodes for Re-SOCs11,12,14,43. On the one hand, increasing the configurational entropy (Sconfig) could overcome the phase separation driven by enthalpy, especially during high-temperature synthesis and operation, that is, entropy-dominated stabilization44,45. On the other hand, the lattice distortion effect of high/medium-entropy oxides, resulting from irregular distribution of doped cations with varying ionic radii, may affect the physicochemical properties of the oxides46. For example, Yang et al.47 developed a high-entropy oxide La0.2Pr0.2Nd0.2Sm0.2Sr0.2MnO3−δ (Sconfig = 1.609R) based on La0.8Sr0.2MnO3−δ. The significant dispersion of A-site ions formed a disordered stress field around Sr, suppressing the surface migration of Sr47. Furthermore, a medium-entropy SrCo0.5Fe0.2Ti0.1Ta0.1Nb0.1O3−δ oxygen electrode (Sconfig = 1.359R) was constructed by Gao et al.48, demonstrating better activity and stability for ORR than the benchmark SrCo0.9Ta0.1O3−δ (Sconfig = 0.325R) under Cr-containing atmosphere. Additionally, other advanced high/medium-entropy oxygen electrodes, including La0.2Pr0.2Nd0.2Sm0.2Gd0.2BaFe2O5 + δ43, (La0.2Sr0.2Pr0.2Y0.2Ba0.2)Co0.2Fe0.8O3−δ49, Pr0.2Sm0.2Nd0.2Gd0.2La0.2BaCo2O5 + δ (PSNGLBC)14, and Ba0.4Nd0.1Sr0.5Co0.6Ni0.1Zr0.1Fe0.2O3−δ50 have also demonstrated excellent ORR activity and Cr tolerance. Regrettably, while the developed oxygen electrodes so far have achieved efficient and stable ORR in FC mode in the presence of Cr contamination, there is scant research on their effectiveness for OER in EC and reversible mode under such contamination. On the one hand, the OER during EC or reversible operation creates a more oxidized atmosphere at the oxygen electrode, which may intensify elemental segregation51. On the other hand, the elevated oxygen partial pressure may promote the volatilization of gaseous Cr species from the Cr2O3 scale. Therefore, it is also necessary to enhance the tolerance of oxygen electrodes against Cr poisoning in both EC and reversible modes.

Motivated by the aforementioned investigations, here we present a medium-entropy oxide, Pr0.5Ba0.2Sr0.2Ca0.1CoO3−δ (ME-PBSCC, Sconfig = 1.221R), as a highly active, durable, and Cr-tolerant oxygen electrode material for Re-SOCs, which displays exceptional electrochemical performance and promising stability in the absence and presence of Cr contamination. The abundant surface oxygen vacancy concentration, high electrical conductivity, and rapid and stable oxygen exchange kinetics of ME-PBSCC oxygen electrode ensure the efficient and poisoning-tolerant ORR/OER. Moreover, the enhanced structural stability and chemical compatibility of ME-PBSCC towards Cr contamination have been confirmed by detailed analyses such as X-ray diffraction (XRD), scanning electron microscopy (SEM), and Raman spectroscopy. The Re-SOCs with ME-PBSCC oxygen electrodes exhibit impressive maximum power densities (Pmax, 2.239 and 1.859 W cm−2 at 750 °C in the presence of ambient air and Cr contamination, respectively) in FC mode and outstanding water electrolysis current densities (1.10 A cm−2 at 1.3 V and 700 °C under 50% H2O humidified H2 in the presence of Cr contamination) in EC mode, demonstrating competitive performance for Re-SOCs. Furthermore, the good operating stabilities of Re-SOCs with ME-PBSCC oxygen electrode are also demonstrated in both FC and EC modes at 700 °C with/without Cr contaminants. Significantly, we have reported the highly promising reversible operation stability (25 cycles) of Re-SOCs with ME-PBSCC at 700 °C in the presence of Cr contamination. This work represents an important progress in developing high-performance and contaminant-tolerant oxygen electrode materials, which may contribute to the accelerated commercialization of Re-SOCs technologies.

Results

Structural and physicochemical characterizations of the ME-PBSCC

The crystalline properties of as-synthesized ME-PBSCC were analyzed using XRD along with Rietveld refinement and high-resolution transmission electron microscopy (HR-TEM) equipped with energy dispersive X-ray spectroscopy (EDX). As displayed in Fig. 1a, the ME-PBSCC exhibited a monoclinic perovskite structure (space group P21/n) without any impurity phases. The refined lattice parameters of the ME-PBSCC were compiled in Supplementary Table 1. Furthermore, the HR-TEM images of the ME-PBSCC sample after being calcined at 1000 °C for 5 h revealed the strong diffraction planes with a d-spacing distance of 0.2592 nm, likely corresponding to the ME-PBSCC (0\(\bar{2}\)1) plane (Fig. 1b). Figure 1c presents the high-angle annular dark-field (HAADF) image and elemental mapping images, demonstrating a uniform distribution of all constituent elements in the ME-PBSCC material at the nanoscale without any agglomeration. The atomic percentage of each element obtained from the EDX spectrum was close to the designed stoichiometric ratio (Fig. 1d). The difference between the stoichiometric ratios and the expected values mainly results from the limitations of the EDX instrument and the inhomogeneity of the powder samples. Given the limited resolution of EDX, we additionally performed inductively coupled plasma optical emission spectroscopy (ICP-OES) analysis (Supplementary Fig. 1), which confirmed that all elements were successfully incorporated into ME-PBSCC at compositions essentially matching the nominal values. The content of potential impurities in the as-synthesized ME-PBSCC powder was also evaluated. It is indicated that extremely small amounts of Al and Si were detected (Supplementary Table 2). Moreover, the ME-PBSCC exhibited excellent chemical compatibility with widely used electrolyte materials (including Gd0.1Ce0.9O2−δ (GDC) and La0.8Sr0.2Ga0.8Mg0.2O3−δ (LSGM)), as they retained their respective phase structures after co-firing at 1000 °C in air for 2 h (Supplementary Fig. 2).

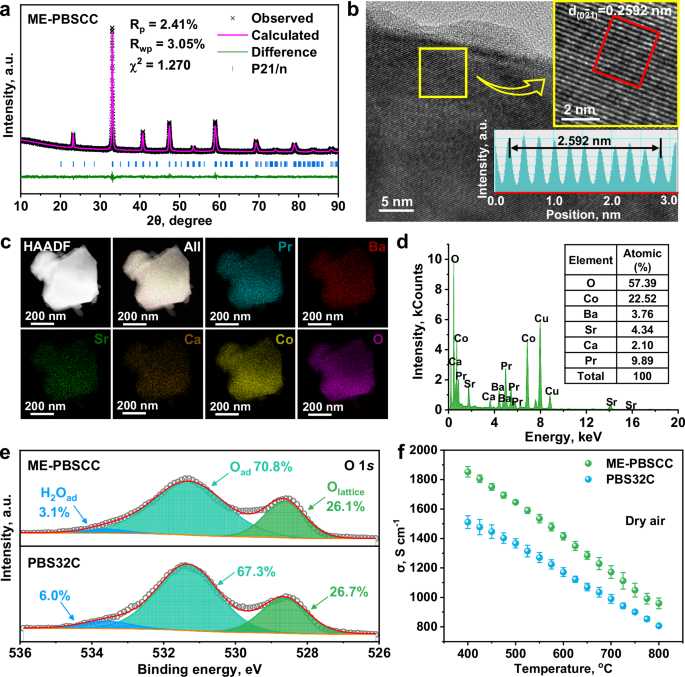

Fig. 1: Structural and physicochemical characterizations of the ME-PBSCC sample.
Fig. 1: Structural and physicochemical characterizations of the ME-PBSCC sample.
Full size image

a XRD patterns of ME-PBSCC with the Rietveld refinement results. b HR-TEM images of the ME-PBSCC and a line scanning result along the red frame. c HAADF and elemental mapping images of the ME-PBSCC at a scale bar of 200 nm. d EDX spectrum and atomic percentage derived from the particle in (c). e The O 1s spectra and f the electrical conductivities of ME-PBSCC and PBS32C samples. Each test was conducted in triplicate to obtain statistical standard deviations, presented as error bars.

To reveal how the medium-entropy structure enhances the catalytic performance for ORR and OER at the oxygen electrode, we further investigated the intrinsic oxygen properties, electrical conductivity, and the chemical state of the B-site transition metal of the samples. The surface structural property of the ME-PBSCC and Pr0.5Ba0.3Sr0.2CoO3−δ (PBS32C, Sconfig = 1.030R, served as the control) was first evaluated with X-ray photoelectron spectroscopy (XPS) analysis. The ORR and OER activities of the functional oxygen electrodes are closely related to the level of weakly bound oxygen species on the material surface52. Figure 1e presents the O 1s spectra and the corresponding deconvolution components, which can be assigned to lattice oxygen species (Olattice), weakly bound adsorbed oxygen species (Oad), and adsorbed molecular water (H2Oad) in order of increasing binding energy. It is reported that the oxygen activation capability of oxygen electrodes can be indicated by the values of Oad/Olattice53,54. The ME-PBSCC demonstrated a higher value of 2.71 for Oad/Olattice than 2.52 in the PBS32C, implying the generation of a higher concentration of extra surface oxygen vacancies on the ME-PBSCC at room temperature. Shown in Supplementary Fig. 3 are the deconvoluted results of Co 2p3/2 and Ba 3d5/2 spectra. To maintain electrical neutrality, the ME-PBSCC manifested a lower surface average Co oxidation state. Furthermore, the oxygen vacancy concentrations of ME-PBSCC and PBS32C samples at elevated temperatures were determined by iodometric titration, together with the thermogravimetric (TG) analysis. The oxygen non-stoichiometries (δ) of ME-PBSCC and PBS32C at room temperature were determined to be 0.114 and 0.144, respectively (Supplementary Fig. 4). The electron paramagnetic resonance (EPR) spectra and quantitative data of ME-PBSCC and PBS32C at room temperature are presented in Supplementary Fig. 5 and Supplementary Table 3, respectively. It is demonstrated that PBS32C exhibited a slightly higher oxygen vacancy concentration than ME-PBSCC at room temperature, consistent with the results acquired from the iodometric titration method. Before conducting the TG testing, the samples underwent thorough drying at 140 °C to reduce the impact of adsorbed species. Displayed in Supplementary Fig. 6 are the obtained TG curves and the calculated δ values. It is shown that the amount of bulk oxygen vacancy in PBS32C was higher than that in ME-PBSCC. In addition, the electrical conductivities of the samples between 400–800 °C in dry air were evaluated by a four-probe DC method. As depicted in Fig. 1f, the electrical conductivities of ME-PBSCC and PBS32C were 1172.16 ± 43.13 and 989.72 ± 30.26 S cm−1 at 700 °C, respectively. It is generally accepted that electronic conduction within the perovskite oxides occurs via electronic hopping along the B-O-B network55. The higher electrical conductivity of ME-PBSCC may suggest the formation of more Co-O-Co percolation networks and relatively lower oxygen vacancy concentrations at elevated temperatures, which is consistent with the TG analysis. Moreover, the oxygen transport capability was investigated by the electrical conductivity relaxation (ECR) method, where the transient response to a sudden change in oxygen partial pressure (pO2) from 0.21 to 0.1 atm was recorded. The fitted coefficients of surface oxygen exchange (kchem) and bulk diffusion (Dchem) from the response profile at 650–800 °C are exhibited in Supplementary Fig. 7. Markedly, at each temperature, both kchem and Dchem of ME-PBSCC demonstrated higher values compared to PBS32C. Overall, these properties of higher surface oxygen vacancy concentration, electrical conductivity, and rapid oxygen exchange and diffusion kinetics strongly indicate that the ME-PBSCC has great potential for superior ORR and OER catalytic activities, as confirmed by the electrochemical evaluation results in the next sections.

Electrocatalytic performance of ME-PBSCC in the absence/presence of Cr contamination

The oxygen electrocatalytic activities and stabilities of the ME-PBSCC electrode in different atmospheres were investigated by electrochemical impedance spectroscopy (EIS) in the LSGM-based symmetrical cells under open-circuit voltage (OCV) conditions. Similarly, the PBS32C and Pr0.5Ba0.2Sr0.3CoO3−δ (PBS23C, Sconfig = 1.030R) electrodes, which contain the same amount of alkaline-earth metal elements, were used as a comparison. As shown in Fig. 2a and Supplementary Figs. 8–10, among these electrodes, the ME-PBSCC exhibited the lowest area-specific resistances (ASRs) at 600–800 °C in air, suggesting a higher catalytic activity of ME-PBSCC, as confirmed by the measurements of electrical conductivity and ECR. Particularly, the ASRs of the ME-PBSCC oxygen electrode were only 0.010, 0.013, 0.022, 0.049, and 0.125 Ω cm2 in air at 800–600 °C, respectively, which outperformed the previously reported Co-based oxygen electrodes containing Pr, Ba, and/or Sr8,11,14,56,57,58,59 (Fig. 2a and Supplementary Table 4). Notably, although PBS23C demonstrated a similar electrical conductivity to that of PBS32C (Supplementary Fig. 11), the relatively worse performance of PBS23C could be ascribed to its slower oxygen exchange and diffusion kinetics (Supplementary Fig. 7). To explore the kinetics of oxygen reactions on the ME-PBSCC electrode, the EIS plots of symmetrical cells with ME-PBSCC oxygen electrode were measured at different pO2 and 700 °C (Fig. 2b). As the pO2 increased, the polarization resistance (Rp) showed a significant decrease. Furthermore, the distribution of relaxation time (DRT) was employed to deconvolute the overall electrode reactions into individual elementary steps. As displayed in Fig. 2c, each corresponding plot could be separated into several distinct processes, represented as low-frequency (LF), intermediate-frequency (IF), and high-frequency (HF) processes, which manifested different sensitivities to the changes in pO2. The reaction orders n for each elementary process at different pO2 were calculated based on the relationship: Rp = k(pO2)−n (Fig. 2d, Supplementary Table 5). Specifically, almost pO2-independent HF process is likely related to O2− transfer across the interfaces between oxygen electrode and electrolyte60; the IF process (n = 0.457) may correspond to the adsorption/dissociation of oxygen molecule61,62; while the LF process (n = 1.467) exhibited a significant dependence on pO2, indicating that the LF process may be connected with mass transfer of molecular oxygen27 (Supplementary Note 1, Supplementary Fig. 12). Moreover, we also conducted an identical pO2-dependent test on the symmetrical cells with PBS32C electrode at 700 °C and observed similar behavior (Supplementary Fig. 13).

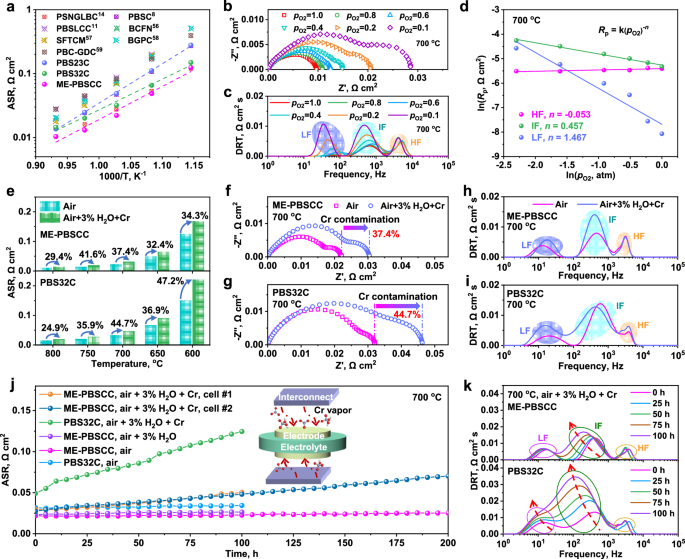

Fig. 2: Electrocatalytic performance of ME-PBSCC in the absence/presence of Cr contamination.
Fig. 2: Electrocatalytic performance of ME-PBSCC in the absence/presence of Cr contamination.
Full size image

a Temperature dependence of ASRs of LSGM-based symmetrical cells with ME-PBSCC, PBS32C, PBS23C, and other previously reported oxygen electrodes (Supplementary Table 4). b EIS plots and c corresponding DRT plots of ME-PBSCC under various pO2 at 700 °C. d pO2 dependence of each Rp of the elementary processes at 700 °C. e Comparison of the ASRs of ME-PBSCC and PBS32C at 600–800 °C in air and in the presence of Cr contamination (air+3% H2O + Cr). f, g EIS curves and h, i corresponding DRT plots of ME-PBSCC and PBS32C before and after the introduction of Cr contaminants at 700 °C. j ASRs of ME-PBSCC and PBS32C at 700 °C, as a function of time, measured in air, air+3% H2O + Cr, and air+3% H2O, respectively. Cell #1 and cell #2 were tested under identical Cr-contaminated atmosphere for 100 and 200 h, respectively. The inset is the schematic of the symmetrical cell poisoned by gaseous Cr species. k Testing time evolution of the DRT plots of ME-PBSCC and PBS32C in wet air with Cr contamination.

The electrocatalytic performance of the ME-PBSCC exposed to Cr-containing conditions (3% H2O humidified air with Crofer 22 APU foils) was also evaluated. Considering the relatively poor electrocatalytic performance of the PBS23C, only the PBS32C was used as a comparison in the subsequent experiments. Before the EIS tests, the symmetrical cells were all maintained at the target temperatures for 0.5 h to ensure a stable ambient atmosphere. As shown in Fig. 2e and Supplementary Figs. 14 and 15, the introduction of Cr contamination inevitably led to the deterioration of the electrocatalytic activity of ME-PBSCC and PBS32C, as suggested by the increased ASRs at all test temperatures. The deteriorated catalytic activity may be caused by the decrease in pO2 and the deposition of inert chromates. It should be noted that ME-PBSCC still exhibited lower ASRs than PBS32C. For example, when Cr contamination was introduced, the Rp values of the ME-PBSCC increased from 0.022 to 0.030 Ω cm2, while the Rp values of PBS32C increased from 0.032 to 0.046 Ω cm2 at 700 °C (Fig. 2f, g, Supplementary Table 6). Insightfully, the increased Rp under the Cr contamination mainly comes from the IF and LF processes (Fig. 2h, i). It is indicated that the adsorption/dissociation and mass transfer processes of oxygen molecules on the electrodes might be sensitive to Cr contamination. The intensified LF processes in both electrodes under the Cr-contaminated atmosphere may be ascribed to the continuous deposition of Cr species during the prolonged thermal start-up and to the decreased oxygen partial pressure caused by the introduction of gaseous Cr contamination. More importantly, the ME-PBSCC showed superior electrocatalytic stability and remarkable Cr tolerance, as demonstrated in the ASR stability tests at 700 °C (Fig. 2j). Specifically, the degradation rates of the ASRs for ME-PBSCC were 2.10 × 10−4 (cell #1) and 2.14 × 10−4 Ω cm2 h−1 (cell #2), respectively, both of which were lower than that of PBS32C (7.55 × 10−4 Ω cm2 h−1) and comparable to the previously reported Cr-tolerant PSNGLBC (2.60 × 10−4 Ω cm2 h−1)14. Figure 2j also indicates that the presence of 3% H2O did not significantly impair the stability of the ME-PBSCC electrode. To explore the degradation process more deeply, the EIS curves of ME-PBSCC and PBS32C over time in the presence of Cr contamination were further analyzed by DRT (Supplementary Fig. 16). As depicted in Fig. 2k and Supplementary Table 7, the increased ASRs of the ME-PBSCC electrode under the Cr contamination were mainly derived from the resistance of the IF process. However, the PBS32C electrode exhibited a more pronounced rise in the resistances connected with IF and LF processes. The increased IF resistance might be due to the deposited Cr species gradually occupying the active sites for oxygen adsorption and dissociation, while the increase in LF resistance might be caused by the continuous accumulation and agglomeration of Cr species on the surface, preventing effective gas diffusion. As a result, even under Cr-contaminated conditions, ME-PBSCC still exhibited robust electrocatalytic activity and durability.

Performance of Re-SOCs with the ME-PBSCC oxygen electrode in the absence/presence of Cr contamination

To verify the superior electrocatalytic performance of the ME-PBSCC for ORR and OER on realistic single cells, the Re-SOCs with the configuration of Ni-Zr0.84Y0.16O2−δ (YSZ)|YSZ|GDC|oxygen electrodes were fabricated and evaluated. Figure 3a presents a representative cross-sectional image of the Re-SOC with the ME-PBSCC oxygen electrode. The thicknesses of the YSZ electrolyte and the GDC buffer layer were ~10 and ~2 μm, respectively. The porous ME-PBSCC oxygen electrode was firmly attached to the GDC layer without obvious cracking or delamination. The ME-PBSCC and PBS32C electrodes exhibited similar initial microstructure (Supplementary Fig. 17). Additionally, the Brunauer-Emmett-Teller specific surface areas of as-synthesized ME-PBSCC and PBS32C powders, derived from Nitrogen adsorption/desorption isotherms (Supplementary Fig. 18), were 2.6406 and 3.7060 m2/g, respectively. As shown in Fig. 3b and Supplementary Fig. 19, the Re-SOCs were first evaluated in the FC mode using wet H2 (3% H2O) as fuel and ambient air as oxidant. The single cell with ME-PBSCC oxygen electrode demonstrated remarkable Pmax of ~2.239, 1.405, 0.795, and 0.416 W cm−2 at 750, 700, 650, and 600 °C, respectively, superior to the cell with PBS32C oxygen electrode (e.g., 1.287 W cm−2 at 700 °C). Significantly, the improved cell performance is mainly due to the smaller Rp values of ME-PBSCC (Fig. 3c, d, and Supplementary Fig. 20), indicating the superior electrocatalytic ORR activity of ME-PBSCC in ambient air (Supplementary Fig. 21 and Supplementary Note 2). When the oxygen electrodes were exposed to a Cr-containing atmosphere (air+3% H2O + Cr), the single cells with PBSCC and PBS32C experienced different degrees of decline in Pmax (Supplementary Figs. 22a, b and 23). Notably, under Cr contamination, the ohmic resistance (Ro) values of the single cells remained almost constant, and the increased Rp values dominated the degradation in cell performance at 600–750 °C (Supplementary Fig. 22c, d), which may be caused by the decrease in the surrounding pO2 and the poisoning of Cr vapor. Nevertheless, even under this Cr-contaminated atmosphere, ME-PBSCC still exhibited faster kinetics of ORR (Supplementary Fig. 24 and Supplementary Note 2). For instance, the Pmax of single cells with ME-PBSCC and PBS32C were determined to be 1.271 and 0.927 W cm−2 at 700 °C in the presence of Cr contamination (Fig. 3e). Even at a constant current of 0.5 A cm−2, the ME-PBSCC still exhibited a lower Rp value, as shown in the inset in Fig. 3e. Furthermore, after the introduction of Cr species, the ratios of attenuated Pmax could be an important factor in evaluating the Cr tolerance of oxygen electrodes (denoted as (Pmax, Cr)/(Pmax, air)). As shown in Fig. 3f, the ME-PBSCC exhibited larger ratios of (Pmax, Cr)/(Pmax, air) than those of the PBS32C, especially at reduced temperatures, implying the excellent Cr-poisoning resistance of the ME-PBSCC. More importantly, even in a Cr-containing atmosphere, the performance of our cell utilized ME-PBSCC oxygen electrode surpassed that of most state-of-the-art oxygen electrode materials reported in the air (Supplementary Table 8)14,63,64,65,66,67,68,69,70,71,72. Shown in Fig. 3g are the stabilities of Re-SOCs with ME-PBSCC and PBS32C oxygen electrodes in FC mode at 0.5 A cm−2 and 700 °C. The cells with the ME-PBSCC exhibited better operational stability than those of the PBS32C, regardless of whether the oxygen electrodes were exposed to ambient air or a Cr-containing atmosphere. In particular, the degradation rates of ME-PBSCC and PBS32C in the Cr-contaminated atmosphere were around 4.31 × 10−4 and 8.17 × 10−4 V h−1 at 700 °C, respectively. It is worth noting that the rapid degradation observed in the first 5 h for the cell with PBS32C oxygen electrode could be attributed to the rapid decline in oxygen exchange capability and electrical conductivity of PBS32C in the initial stage caused by Cr poisoning (see the next section). Additionally, exposure to water alone was evaluated in the single-cell tests (Fig. 3g). The results suggested that 3% H2O did not noticeably affect the stability of the cell, in agreement with the results obtained from the symmetrical cell with ME-PBSCC electrode in 3% H2O humidified air. Post-mortem microstructural investigations of the cells after durability tests at 700 °C were conducted by SEM. As shown in Supplementary Fig. 25, a much rougher surface was observed on the PBS32C oxygen electrode, which might be responsible for its marginally accelerated degradation in air. Supplementary Fig. 26 displays a comprehensive morphological comparison of the cells with ME-PBSCC and PBS32C oxygen electrodes after stability tests in FC mode under Cr-contaminated air. Good adhesion between the layers of the cells was maintained after the test (Supplementary Fig. 26a, b). And the volatile Cr species were mainly deposited on the surface of the oxygen electrodes. Compared with PBS32C, the relatively small amount of Cr deposition may be attributed to the entropy-dominated structural stability of ME-PBSCC, which inhibited the surface segregation of nucleating agents such as Ba2+ and Sr2+. The EDX mapping was used to further determine the composition of surface species (Supplementary Figs. 27–29). Interestingly, it is indicated that the deposits on the surface of the two oxygen electrodes after durability tests are mainly BaCrO4 rather than SrCrO4, which may be attributed to the fact that the formation of the BaCrO4 phase exhibits a more negative Gibbs free energy thermodynamically (Supplementary Fig. 30). It also reminds us that, despite the well-documented detriments of Sr segregation73,74,75, the adverse effects of Ba segregation should not be overlooked in materials containing both Ba and Sr, especially under a Cr-contaminated atmosphere.

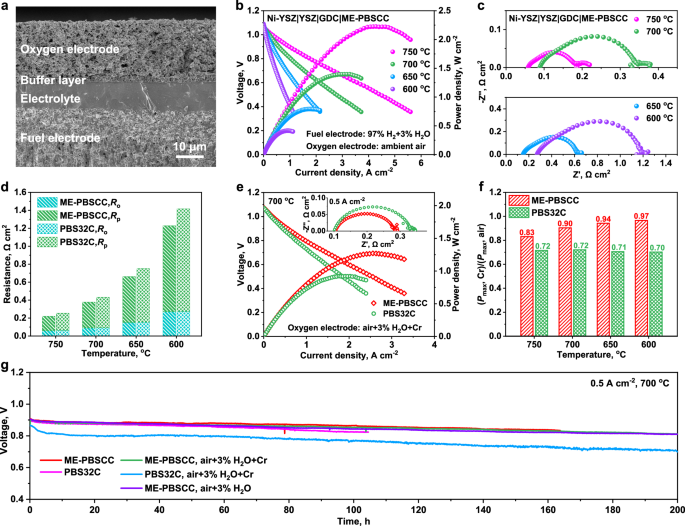

Fig. 3: Performance of Re-SOCs with the ME-PBSCC oxygen electrode in FC mode in the absence/presence of Cr contamination.
Fig. 3: Performance of Re-SOCs with the ME-PBSCC oxygen electrode in FC mode in the absence/presence of Cr contamination.
Full size image

a Cross-sectional image of the Re-SOC with ME-PBSCC oxygen electrode after electrochemical evaluation. b Typical I–V–P curves of the single cell with ME-PBSCC oxygen electrode in FC mode using wet H2 and ambient air. c EIS curves of the single cell with ME-PBSCC oxygen electrode at 750–600 °C. d Ro and Rp of the single cells with ME-PBSCC and PBS32C oxygen electrodes. e The I–V–P curves and corresponding EIS at 0.5 A cm−2 (inset) of the single cells with ME-PBSCC and PBS32C at 700 °C under Cr-containing conditions. f The ratios of attenuated Pmax after the introduction of Cr contamination. g Durability of the cells operated at 0.5 A cm−2 and 700 °C when the ME-PBSCC and PBS32C oxygen electrodes were exposed to ambient air, air+3% H2O + Cr, and air+3% H2O, respectively.

The electrocatalytic activity and stability of ME-PBSCC for OER in the presence of Cr contamination were also investigated. Figure 4a shows the electrolysis performance of Re-SOCs with the ME-PBSCC at 700 °C when the oxygen electrode was exposed to Cr contamination and the fuel electrode operated at different water vapor contents. Impressive electrolysis current densities of −1.10, −0.96, and −0.80 A cm−2 at 700 °C and 1.3 V were attained at 50, 40, and 30% water contents, respectively. When the water content increased, the increase in current densities was attributed to the decrease in Rp, as shown in Fig. 4b, Supplementary Figs. 31 and 32, and Supplementary Note 2. The fitting values of these EIS curves were summarized in Supplementary Table 9. The current density obtained for 50% H2O electrolysis at 1.3 V and 700 °C under Cr-containing conditions remains competitive with numerous previously reported results based on similar cell configurations in Cr-free atmosphere (Supplementary Table 10)8,12,76,77,78,79,80,81. The electrolysis performance at higher water contents (e.g., 70% and 90%) was also evaluated (Supplementary Fig. 33). At 700 °C and 1.3 V, the Re-SOC with ME-PBSCC oxygen electrode achieved excellent current densities of −1.48 and −1.29 A cm−2 at water contents of 90% and 70%, respectively. Furthermore, as shown in Fig. 4c, the relatively stable voltages were delivered by continuously electrolyzing 30% H2O at −0.5 A cm−2 and 700 °C in a Cr-containing atmosphere. More importantly, a good reversible operation capability of Re-SOCs should also be highlighted (Fig. 4d). The Re-SOC with the developed ME-PBSCC oxygen electrode demonstrated a promising reversible operation stability for 100 h (25 cycles) at 700 °C, which is the first reported Re-SOC operating in reversible mode under Cr-contaminated conditions. These results strongly confirmed that the ME-PBSCC has the potential to realize efficient and stable electrocatalytic capabilities for ORR and OER under realistic operating conditions. Shown in Supplementary Fig. 34 are the cross-sectional and surface SEM images of the cells with ME-PBSCC oxygen electrodes after durability tests in EC and reversible modes under Cr-contaminated air. The volatile Cr species also deposited on the surface of the oxygen electrodes in both EC and reversible modes, showing the same Cr deposition behavior as that in FC mode. Furthermore, EDX mapping demonstrated that these deposited Cr species remain predominantly in the BaCrO4 phase (Supplementary Figs. 35 and 36).

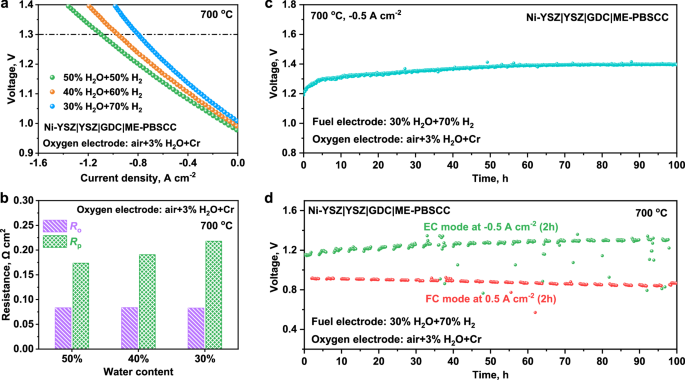

Fig. 4: Performance of Re-SOCs with the ME-PBSCC oxygen electrode in EC mode in the presence of Cr contamination.
Fig. 4: Performance of Re-SOCs with the ME-PBSCC oxygen electrode in EC mode in the presence of Cr contamination.
Full size image

a Typical I–V curves and b corresponding resistances (Ro and Rp) of the single cell with ME-PBSCC oxygen electrode in EC mode at 700 °C when the oxygen electrode was exposed to Cr contamination. Durability of the Re-SOCs with ME-PBSCC oxygen electrode operated in c EC mode (−0.5 A cm−2) and d reversible mode (±0.5 A cm−2) at 700 °C when the fuel electrodes were fueled with 30% H2O humidified H2 and the oxygen electrodes were exposed to Cr contamination.

Characterization and analysis of enhanced Cr tolerance of ME-PBSCC

To verify the chemical reactivities of ME-PBSCC and PBS32C with Cr2O3, powder samples of each material were mixed with Cr2O3 and then subjected to heat treatment at 700 °C for 100 h in air. As marked in Fig. 5a, the BaCrO4 phase was detected in the mixture of PBS32C and Cr2O3 powders. However, it was not detected in the mixtures of ME-PBSCC and Cr2O3 treated in either air or 3% H2O humidified air, presumably because their concentrations fall below the detection threshold of XRD. It is suggested that ME-PBSCC has better structural stability against the Cr contamination. Furthermore, the surface properties were investigated to gain a deeper understanding of the enhanced Cr tolerance of ME-PBSCC. Displayed in Fig. 5b are the stabilities of kchem values of ME-PBSCC and PBS32C in the absence and presence of Cr2O3 at 700 °C for 100 h, respectively. The kchem values of both ME-PBSCC and PBS32C samples exhibited significant attenuation in a Cr-containing atmosphere. As shown in Supplementary Fig. 37, the initial values measured without Cr2O3 were used as the kchem values at 0 h. After being exposed to Cr contamination for 1 h (to stabilize the atmosphere of the test system), the kchem values of ME-PBSCC and PBS32C were determined to be 6.052 × 10−4 and 3.613 × 10−4 cm s−1, respectively. When exposed to Cr contamination for 100 h, the kchem value of ME-PBSCC was 1.766 × 10−4 cm s−1, significantly higher than that of PBS32C (0.394 × 10−4 cm s−1). Shown in Supplementary Fig. 38 are the electrical conductivities as a function of time at 700 °C in the presence of Cr contamination. It is also indicated that PBS32C exhibited a more rapid decline in electrical conductivity than ME-PBSCC over 100 h in a Cr-containing atmosphere. In addition, Raman spectroscopy was utilized to analyze the accumulation and distribution of Cr deposits on the surface of oxygen electrodes after stability tests. Regardless of the operating modes, significantly weaker vibrational peaks of Cr2O3 and CrO42− were detected on the ME-PBSCC surface after stability tests (Fig. 5c). Unlike the widely reported Cr deposition behaviors of La1−xSrxMnO3−δ17,82,83,84, no chromate-related signal was observed on the surface of the GDC layers after oxygen electrode stripping in all operating modes (Supplementary Fig. 39), which further confirmed that the deposition of Cr species only occurred on the oxygen electrode surface in this work. The only observed vibrational peaks in the Raman spectra could belong to the feature of the GDC. Raman mappings of Cr2O3 and CrO42− were performed to further reveal the accumulation of Cr deposits on the surface of ME-PBSCC and PBS32C oxygen electrodes after stability tests in FC mode. As depicted in Fig. 5d, e, compared with the PBS32C, significantly lower signals of Cr2O3 and CrO42− were detected on the ME-PBSCC after stability tests. In addition, it is reported that the existence of polarization current affected the distribution and accumulation of Cr deposits51,82,85,86. To eliminate the influence of polarization current, porous ME-PBSCC and PBS32C pellet samples (with the same calcination temperature and time as the oxygen electrode) were fabricated to evaluate the Cr-poisoning behaviors of the materials (Supplementary Fig. 40a). Similarly, Raman analysis revealed more severe poisoning phenomena on the PBS32C sample after being annealed at 700 °C for 200 h in the Cr-containing atmosphere (Supplementary Fig. 40b). We also investigated the cleaved surface of the porous pellet samples after treatment (Fig. 5f–h). Notably, deeper Cr diffusion was detected in the PBS32C sample compared to ME-PBSCC (Fig. 5i, j). It may significantly affect the oxygen surface exchange and gas diffusion of the materials, which is consistent with the analytical results of EIS data based on symmetrical cells. The dense pellets of ME-PBSCC and PBS32C using a traditional sintering process were also fabricated and subjected to Cr treatment under identical conditions. The Raman results of the surface of dense samples after being annealed in the Cr-containing atmosphere are similar to those of the porous samples (Supplementary Figs. 41 and 42). Notably, no Cr-related feature was detected on the cleaved surfaces adjacent to the Cr-exposed side of the dense pellets (Supplementary Fig. 43), which further confirmed that Cr species migrated to and deposited on the electrode through gas-phase diffusion, without directly corroding or disrupting the near-surface perovskite structure in the depth direction. In general, these outcomes demonstrate the superior structural stability and outstanding Cr-poisoning tolerance of ME-PBSCC, which are consistent with the results of electrochemical evaluations.

Fig. 5: Characterization and analysis of enhanced Cr tolerance of ME-PBSCC.
Fig. 5: Characterization and analysis of enhanced Cr tolerance of ME-PBSCC.
Full size image

a The chemical compatibility of ME-PBSCC and PBS32C with Cr2O3 after being treated in air and 3% H2O humidified air at 700 °C for 100 h. b The kchem as a function of time at 700 °C in the absence and presence of Cr2O3 powder. c Raman spectra on the surface of oxygen electrodes after stability tests in different operating modes in the Cr-contaminated air. d, e Raman mapping of Cr2O3 and CrO42− on the surface of ME-PBSCC and PBS32C oxygen electrodes after stability tests at 700 °C, respectively. f Schematic diagram of Raman analysis on the cleaved surface of a pellet after poisoning by Cr contaminants. g, h Optical images of the cleaved surfaces of porous ME-PBSCC and PBS32C pellets after being annealed in the Cr-containing atmosphere at 700 °C for 200 h. i, j Raman spectra along the yellow lines in (g, h) on the cleaved surfaces.

Discussion

In summary, we developed a medium-entropy PBSCC perovskite material as an oxygen electrode for Re-SOC applications, demonstrating highly competitive electrochemical performance and Cr tolerance. The abundant surface oxygen vacancy concentration, high electrical conductivity, and rapid oxygen exchange and diffusion kinetics of the ME-PBSCC oxygen electrode ensured the excellent ORR and OER activities, as confirmed by the physicochemical characterizations and electrochemical evaluation. Furthermore, the impressive Cr tolerance of Re-SOCs with ME-PBSCC was demonstrated in multiple operating modes. The properties of the poisoned surface of materials under different test conditions were systematically analyzed by tools such as ECR and Raman spectroscopy. More importantly, the developed ME-PBSCC oxygen electrode has achieved the highly promising stable operation of Re-SOCs in FC, EC, and reversible modes in the presence of Cr contamination. This study may provide an effective strategy for the rational design of active, durable, and contaminant-tolerant oxygen electrodes for high-performance Re-SOCs and other energy storage and conversion devices.

Methods

Chemicals

PrN3O9·6H2O (99%), Co(NO3)2·6H2O (99%), ethylenediaminetetraacetic acid (EDTA, 99.5%), La2O3 (99%), SrCO3 (99%), Ga2O3 (99.8%), MgO (99.9%), triethanolamine (≥ 99%), Polyvinyl butyral (PVB), Polyvinylpyrrolidone (PVP), and ethyl cellulose were all purchased from Shanghai Macklin Biochemical Co., Ltd. BaN2O6 (99.5%), N2O6Sr (99.5%), and N-Methyl pyrrolidone (NMP, ≥99%) were purchased from Shanghai Aladdin Biochemical Co., Ltd. Ca(NO3)2·4H2O (≥99%) and acetone (≥99.5%) were purchased from Guangzhou Chemical Reagent Factory. Citric acid (CA) was purchased from Sinopharm Chemical Reagent Co., Ltd. Ammonia solution (NH4OH, 25%-28%) was supplied by Tianjin Damao Chemical Reagent Factory. Ethanol absolute was purchased from Tianjin Kemao Chemical Reagent Co., Ltd. Terpineol was purchased from Alfa Aesar (China) Chemical Co., Ltd. Silver paste was purchased from Shanghai Synthetic Resin Research Institute. The NiO, YSZ, and GDC powders were all purchased from Zhejiang H2-Bank Technology Co., Ltd.

Preparation of powders

ME-PBSCC, PBS32C, and PBS23C powders were prepared by a sol-gel complexing method. A stoichiometric amount of metal nitrates was mixed with EDTA and CA in deionized water with the molar ratio of metal ions: EDTA: CA = 1: 1: 2. Then, NH4OH was added to adjust the pH value of the solution to ~7. The gels formed after the evaporation of water were fired at 300 °C for 5 h. Finally, the precursors were further calcined at 1000 °C for 5 h to obtain the final oxygen electrode powders. The LSGM powder was prepared by a solid-state reaction method. La2O3 and MgO powders were pre-fired at 1000 °C for 2 h to remove adsorbed moisture. Stochiometric amounts of La2O3, SrCO3, Ga2O3, and MgO were mixed in absolute ethanol and ball-milled for 24 h. The mixture was thoroughly dried and calcined at 1250 °C for 5 h to obtain raw LSGM powder. All the prepared powders should be stored in a sealed condition.

Fabrication of symmetrical cells

LSGM pellets were prepared by uniaxially pressing the raw LSGM powders, followed by being calcined at 1450 °C for 5 h. The oxygen electrode powders (1 g) were ball-milled at 450 rpm for 2 h and then mixed and ground with terpineol (0.76 g) and ethyl cellulose (0.04 g) to prepare the oxygen electrode slurries. LSGM-based symmetrical cells were prepared by painting the oxygen electrode slurries onto both sides of LSGM pellets. The active area of the single side is 0.2826 cm2. The cells (with a configuration of oxygen electrode|LSGM|oxygen electrode) were then sintered at 1000 °C for 2 h to form porous oxygen electrodes.

Fabrication of single cells

The configuration of the fuel electrode-supported single cell was NiO-YSZ|YSZ|GDC|oxygen electrode. The NiO-YSZ fuel electrode-supported substrate was prepared via a modified phase inversion method. PVP, polyethersulfone (PESf), and NMP with a weight ratio of 1: 4: 24 were mixed to form an organic solution. The fuel electrode slurry was prepared by mixing NiO (27 g), YSZ (18 g), and organic solution (21.75 g) and then ball milling for 48 h. The graphite layer slurry was prepared by mixing graphite (7 g) and organic solution (18.125 g) for at least 48 h. The obtained graphite layer slurry and fuel electrode slurry were cast onto the smooth glass in sequence, followed by immediately immersing in deionized water for 10 h. Phase inversion took place as mass exchange between the slurries and water. After drying overnight in ambient air, the obtained substrate was punched into pellets. The raw pellets were first pre-fired at 1000 °C for 2 h to remove the organic components and graphite layers and to enhance their mechanical strength. The dispersant was prepared from 1 g PVB, 1 g triethanolamine, and 8 g anhydrous ethanol. To prepare electrolyte/functional layer slurries, 1 g YSZ or 0.5 g YSZ with 0.5 g NiO were separately mixed with 0.5 g dispersant and 10 g anhydrous ethanol and then ball-milled for 24 h. The NiO-YSZ functional layer and the YSZ electrolyte slurries were successively dripped onto the calcined fuel electrode pellets. After drying, these pellets were calcined at 1350 °C for 5 h to form NiO-YSZ fuel electrode-supported half cells. The slurry of the GDC buffer layer was prepared by mixing GDC (0.5 g), acetone (10 g), terpineol (1.9 g), and ethyl cellulose (0.1 g), and ball milling for 24 h. The GDC slurry was dripped onto the half-cell and co-fired at 1300 °C for 2 h in air. Finally, the oxygen electrode slurries were painted onto the surface of the GDC layer (with an active area of 0.196 cm2) and then sintered at 1000 °C for 2 h. After that, two pieces of Ag mesh, coated with a thin layer of Ag paste, were attached to the fuel electrode and oxygen electrode of single cells and then dried to solidify the Ag paste.

Material characterizations

Phase structures of prepared powders were examined by XRD (Bruker D8 Advance). The microstructure and morphology of the cells were examined using a cold field emission SEM (Hitachi SU8010). The actual atomic ratios of each element in the as-synthesized powders were measured by ICP-OES (Agilent 7700). The TEM (Thermo Talos F200X G2) equipped with an EDX was employed to obtain the high-resolution images and elemental distribution. The XPS (Thermo Scientific K-Alpha) was employed to explore the chemical states of elements on the surface of the samples. The EPR (Bruker EMXplus-6/1) measurement was employed to compare the oxygen vacancy concentrations. The weight changes of the samples from room temperature to 800 °C in air were detected using TGA (Netzsch TG 209 F3). Raman spectroscopy (Renishaw RM1000) was applied with a wavelength of 514 nm. The prepared oxygen electrode powders were mixed with 1% PVB and then pressed into circular pellets and rectangular bars. Afterward, the green pellets and bars were calcined at 1200 °C for 10 h to form dense pellets and bars. The electronic conductivity and ECR were measured using dense rectangular bars. The dense pellets treated with Cr vapor were used for Raman testing.

Electrochemical measurements

The symmetrical cells were tested under OCV conditions at 600–800 °C in air and Cr-containing atmosphere (air+3% H2O + Cr), respectively. The different oxygen partial pressures were realized by adjusting the flow rates of pure O2 and pure Ar. The single cell was mounted on an alumina supporting tube by the ceramic adhesive (Aremco 552) for electrochemical tests. The Crofer 22 APU foils with no protective coating were used to create a Cr-containing atmosphere, which was placed about 2 mm away from the oxygen electrodes. The Cr vaporization rates from uncoated Crofer 22 APU were likely in the order of 2.0–6.0 × 10−10 kg m−2 s−1 at 800 °C87. The partial pressures of gaseous CrO3 and CrO2(OH)2 are approximately 1.0 × 10−10 and 3.0 × 10−7 atm (700 °C, 21% pO2, and 3% pH2O), respectively31,88. For the tests in FC mode, the fuel electrode was supplied with 3% H2O humidified H2, and the oxygen electrode was exposed to ambient air or the Cr-containing atmosphere. For the tests in EC mode, the fuel electrode was supplied with 50%, 40%, and 30% H2O humidified H2, and the oxygen electrode was exposed to the Cr-containing atmosphere. Particularly, for the stability tests in electrolysis and reversible modes, the fuel electrode was fed with 30% H2O humidified H2, and the oxygen electrode was exposed to the Cr-containing atmosphere. It is worth noting that, unlike single cells, the Crofer 22 APU foils are placed adjacent to oxygen electrodes as a Cr source on both sides of symmetrical cells. The EIS and I–V curves were measured by a multi-channel electrochemical workstation (Parstat MC200, Princeton Applied Research). All voltage was not iR corrected. The frequency range for all EIS curves was measured from 105 Hz to 0.1 Hz with an AC amplitude of 10 mV. All electrochemical data were collected and processed using VersaStudio software. Apart from the conductivity test, all other electrochemical tests and comparisons were conducted only once.
