T cells engineered against Dickkopf-1-A2 complex can be used to treat HLA-A2⁺ solid and hematologic cancers

Nature Communications volume 17, Article number: 2818 (2026) Cite this article

7001 Accesses
25 Altmetric
Metrics details

Subjects

Abstract

Although chimeric antigen receptor (CAR)-T cells are promising effector cells to treat hematologic tumors, developing effective CAR-T cells for solid tumors remains challenging. Dickkopf-1 (DKK1) protein is widely expressed by human hematologic and solid tumors. Using the sequence of murine or humanized monoclonal antibody recognizing DKK1-A2 complexes (DKK1-P20 peptide in the context of HLA-A*0201) that are detected on all examined HLA-A2⁺ tumor samples but not normal tissues except tonsils, we generate DKK1-A2 CAR-T cells that specifically and effectively lyse HLA-A2- and DKK1-expressing tumor cells but not blood or bone marrow cells from HLA-A2⁺ healthy donors. In xenograft models of human myeloma, pancreatic, lung, and breast cancers and patient-derived xenograft of pancreatic cancer, DKK1-A2 but not CD19 CAR-T cells effectively control or eradicate established tumors without detectable toxicities in NSG or human DKK1 and HLA-A2-trangenic mice. This study indicates that DKK1-A2 CAR-T cells may be used to treat human cancers.

Selective HLA knockdown and PD-L1 expression prevent allogeneic CAR-NK cell rejection and enhance safety and anti-tumor responses in xenograft mice

Article Open access 08 October 2025

CAR-T and CAR-NK as cellular cancer immunotherapy for solid tumors

Article Open access 12 August 2024

Suppression of 4.1R enhances the potency of NKG2D-CAR T cells against pancreatic carcinoma via activating ERK signaling pathway

Article Open access 21 September 2021

Introduction

Chimeric antigen receptor (CAR)-T cells have demonstrated remarkable clinical success in the treatment of hematologic tumors, especially those targeting antigens such as CD19 and BCMA^1,2,3,4,5,6. These therapies have significantly advanced the management of blood cancers, including lymphomas, some forms of leukemia, and most recently multiple myeloma (MM)⁷. However, developing effective CAR-T cell therapies for solid tumors remains challenging⁸. Although some tumor antigens, such as Mucin-1⁹, Glypican-3¹⁰ and Claudin 18.2¹¹ have been explored in research, identifying safe and effective antigens for CAR-T cell therapies for both hematologic and solid tumors continues to be a major hurdle¹².

Dickkopf-1 (DKK1) is a secreted protein that acts as an antagonist of the Wnt/β-catenin signaling pathway¹³. DKK1 binds to LRP5/6 co-receptors on the cell surface, preventing them from interacting with Wnt proteins^14,15. DKK1 overexpression has been observed in various cancers, including MM¹⁶, pancreatic cancer¹⁷, lung cancer¹⁸, breast cancer¹⁹, and hepatocellular cancer²⁰. In MM, elevated DKK1 level leads to bone lesions and osteoporosis due to the imbalance in bone remodeling²¹. In certain tumors, DKK1 also promotes tumor progression by creating a microenvironment that supports cancer growth, affects immune response, and facilitates metastasis^22,23. Conversely, DKK1 has limited expression in normal tissues, with the exception of the placenta and testis^24,25. This reciprocal expression makes DKK1 an attractive target for cancer immunotherapy²⁶, particularly in developing CAR-T cell therapies for both MM and solid tumors.

To target DKK1 for cancer immunotherapy, we identified a DKK1 peptide, P20 (ALGGHPLLGV), that showed an excellent binding affinity to HLA-A*0201 (for short, HLA-A2 or A2), which is a widely distributed HLA serotype found in 30–50% of the human population^25,27. We developed a T cell receptor-like monoclonal antibody (C2) that recognizes DKK1-P20 peptide in the context of HLA-A2 molecules (thereafter, referred as DKK1-A2 complex)²⁸. This C2 antibody can directly induce apoptosis in DKK1-A2 positive cancer cells and indirectly lyse DKK1-A2 positive cancer cells by mediating antibody-dependent cellular cytotoxicity and complement-dependent cytotoxicity. Furthermore, C2 antibody was therapeutic against established cancers in human xenograft mouse models. Notably, C2 antibody did not bind to or kill HLA-A2 positive blood or bone marrow cells in vitro, nor caused tissue damage in tumor-free or tumor-bearing HLA-A2-transgenic mice. The exceptional specificity and safety profile make the C2 antibody a promising candidate for developing CAR-T cell therapy.

In this study, we developed a DKK1-A2 CAR, incorporating the single-chain variable fragment (scFv) of C2 antibody along with 4-1BB and CD3ζ costimulatory domains to generate human DKK1-A2 CAR-T cells. We hypothesized that this CAR-T cell therapy could effectively target HLA-A2 positive MM and a broad range of solid tumors, including pancreatic cancer, lung cancer, and breast cancers that express DKK1. Our results clearly showed that DKK1-A2 CAR-T cells have a strong anti-tumor effect in vitro and in vivo against established hematologic and solid tumors with a favorable safety profile, and DKK1-A2 CAR-T cells may be a promising therapeutic tool to treat DKK1-A2 positive human cancers.

Results

DKK1 and DKK1-A2 expression profiles in different cancers and normal tissues

To evaluate DKK1 expression in hematologic tumors, three gene sequencing datasets from myeloma²⁹, lymphoma³⁰, and leukemia³¹ were analyzed. DKK1 mRNA was highly expressed in many hematologic tumors, particularly in MM and acute leukemia originated from B cells (Fig. 1a). MM exhibited the highest DKK1 expression among various hematologic tumors, reaching up to around 70-fold higher than plasma cells from healthy donors (Fig. 1a). To determine DKK1 expression in solid tumors, its gene expression profiles across all tumor samples from GEPIA2 database³² were utilized for analysis (Fig. 1b). Most TCGA solid tumor types highly expressed DKK1 mRNA compared to paired normal tissues, particularly in pancreatic adenocarcinoma (PAAD)³³ that expressed more than 90-fold DKK1 than normal pancreatic tissues (Fig. 1b). Pancreatic ductal adenocarcinoma (PDAC) patients with a higher expression of DKK1 had inferior overall and disease-free survivals than patients with a lower expression of DKK1 (Fig. 1c, d). Similarly, poor prognosis was also found in other solid tumors with higher DKK1 expression, such as lung adenocarcinoma (LUAD), lung squamous cell carcinoma (LUSC), stomach adenocarcinoma (STAD), and head and neck squamous cell carcinoma (HNSC) (Supplementary Fig. 1a–d). Oncomine datasets were used to validate DKK1 expression in tumor types of interest. PDAC³⁴, non-small cell lung cancer (NSCLC)³⁵, and triple negative breast cancer (TNBC)³⁶ exhibited higher DKK1 mRNA expression compared to normal tissues (Fig. 1e). Immunohistochemistry was utilized to determine the expression of DKK1 protein and DKKI-A2 complex by tumor tissues. Our results showed that DKK1 protein was not detected in normal pancreatic, lung, or breast tissues from HLA-A2 positive donors (Fig. 1f). However, all tumor tissues from 10 randomly selected PDAC (Fig. 1g), NSCLC (Fig. 1h), or TNBC (Fig. 1i) patients expressed high levels of DKK1 protein. Among these patients, 4/10, 6/10, and 6/10, respectively, are HLA-A2 positive, and tumor samples from all these HLA-A2 positive patients expressed DKK1-A2 complexes stained by C2 antibody (Fig. 1g–i). Similarly, tissue array analysis showed that all of 40 NSCLC tumor tissues but none of 10 normal lung tissues highly expressed DKK1 protein, and 8 out of the 40 NSCLC patients were HLA-A2 positive and stained positive with C2 antibody (Supplementary Fig. 1e). One DKK1 negative and HLA-A2 positive TNBC sample was included and stained negative for C2 antibody (Supplementary Fig. 1f). Immunochemistry staining of DKK1, HLA-A2 and DKK1-A2 complex was controlled by isotype controls (Supplementary Fig. 1g). Together, these data revealed that DKK1 protein is highly expressed by multiple tumors, its expression is associated with poor survival of some cancer patients, and all HLA-A2-positive tumors express high levels of DKK1-A2 complexes recognized by C2 antibody.

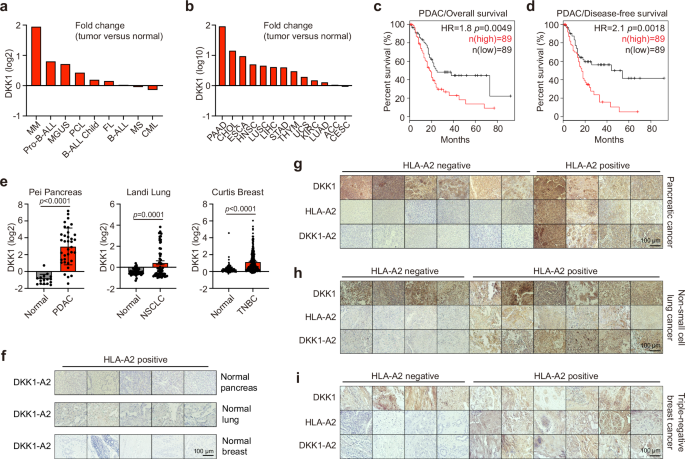

**Fig. 1: Expression profiles of DKK1 and DKK1-A2 complex in human tumors and normal tissues.**

DKK1-A2 CAR-T cells display strong anti-tumor activity in vitro

As C2 antibody recognizes DKK1-A2 complex on tumor cells but not normal tissues, we generated DKK1-A2 CAR-T cells to target tumor cells that express DKK1-A2 complex (Fig. 2a). DKK1-A2 CAR consisted of the scFv derived from C2 antibody, 4-1BB, and CD3ζ intracellular domains. Herein, both of murine C2 antibody (mC2) and humanized C2 antibody (hC2) were used to generate DKK1-A2 CAR-T cells. If not otherwise specified, DKK1-A2 CAR-T cells refer to mC2 CAR-T cells. CD19 CAR-T cells were generated and utilized as a control. Enhanced green fluorescent protein (eGFP) was co-expressed with CAR to track CAR-T cells (Fig. 2b). The average transduction efficiency of activated human T cells was around 70% (Fig. 2c). To evaluate the anti-tumor activity of DKK1-A2 CAR-T cells, MM, PDAC, NSCLC, and TNBC cell lines were used. As DKK1 is widely expressed by the tumor cell lines, C2 antibody could bind to HLA-A2 positive tumor cell lines, including JeKo-1, U266, KMS-26, CFPAC-1, PANC-1, NCI-H441, and MDA-MB-231 (Fig. 2d), but not HLA-A2 negative tumor cell lines (Supplementary Fig. 2a). CD19 expression on the tumor cells was also determined by flow cytometry. JeKo-1 and Daudi but not MM cell lines expressed CD19 (Supplementary Fig. 2b). The proliferation of CAR-T cells was corroborated by Celltrace dilution assay, as DKK1-A2 CAR-T cells exhibited a strong proliferation in response to HLA-A2 positive tumor cells compared to CD19 or control CAR-T cells (Fig. 2e). Cytolytic activity of DKK1-A2 CAR-T cells against tumor cells was determined by a firefly luciferase (Luc)-based cytotoxicity assay. DKK1-A2 CAR-T cells significantly lysed HLA-A2 positive tumor cells in a dose-dependent manner (Fig. 2f). We also assessed the anti-tumor activity of DKK1-A2 CAR-T cells against HLA-A2-transduced tumor cell lines (Supplementary Fig. 2c) and observed significant cytolytic activity and enhanced proliferation of DKK1-A2 CAR-T cells against MM.1S-A2, KMS-12-BM-A2, or PL45-A2 tumor cells (Supplementary Fig. 2d, e). DKK1-knockout (KO) JeKo-1 cells were generated by CRISPR-Cas9 (Supplementary Fig. 2f) and cytolytic activity and proliferation of DKK1-A2 CAR-T cells were not observed against JeKo-1-KO cells (Supplementary Fig. 2g, h). The anti-tumor activity of DKK1-A2 CAR-T cells was further supported by IFN-γ and TNF-α production by both CD4⁺ and CD8⁺ DKK1-A2 CAR-T cells in their co-culture with tumor cell lines by flow cytometry (Fig. 2g, h) and ELISA (Supplementary Fig. 2i, j). Overall, DKK1-A2 CAR-T cells exhibit strong target-specific anti-tumor activity against HLA-A2 positive tumor cells in vitro.

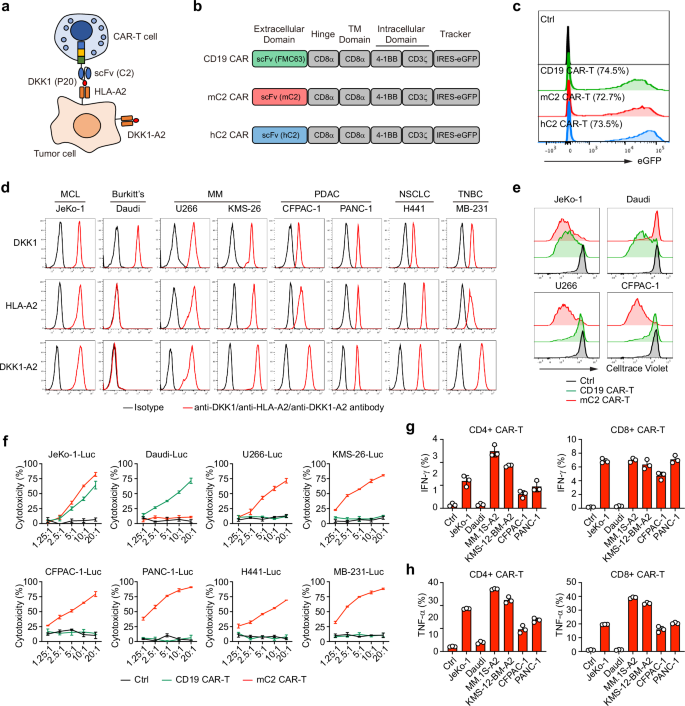

**Fig. 2: In vitro cytolytic activity of DKK1-A2 CAR-T cells against human tumor cells.**

Therapeutic efficacy of DKK1-A2 CAR-T cells in human MM xenograft models

To evaluate the in vivo anti-tumor effects of DKK1-A2 CAR-T cells, we first established and used MM xenograft tumor models. U266 MM cells were implanted intravenously into NSG mice. Four weeks later, mice were infused intravenously with either control, CD19, or DKK1-A2 CAR-T cells, and tumor burden, determined by measuring the amounts of human immunoglobulin lambda (Igλ) chain secreted by MM cells, was monitored weekly by ELISA (Fig. 3a). DKK1-A2 CAR-T cells effectively controlled U266 cell growth, and all mice remained alive at 7 weeks post CAR-T cell infusion, while CD19 CAR-T cells failed to do so (Fig. 3b, c). The body weight of all treated mice was not significantly changed after CAR-T cell therapy (Fig. 3d). Similar data were obtained from DKK1-A2 positive and CD19 negative KMS-26³⁷ MM model (Supplementary Fig. 3a–d).

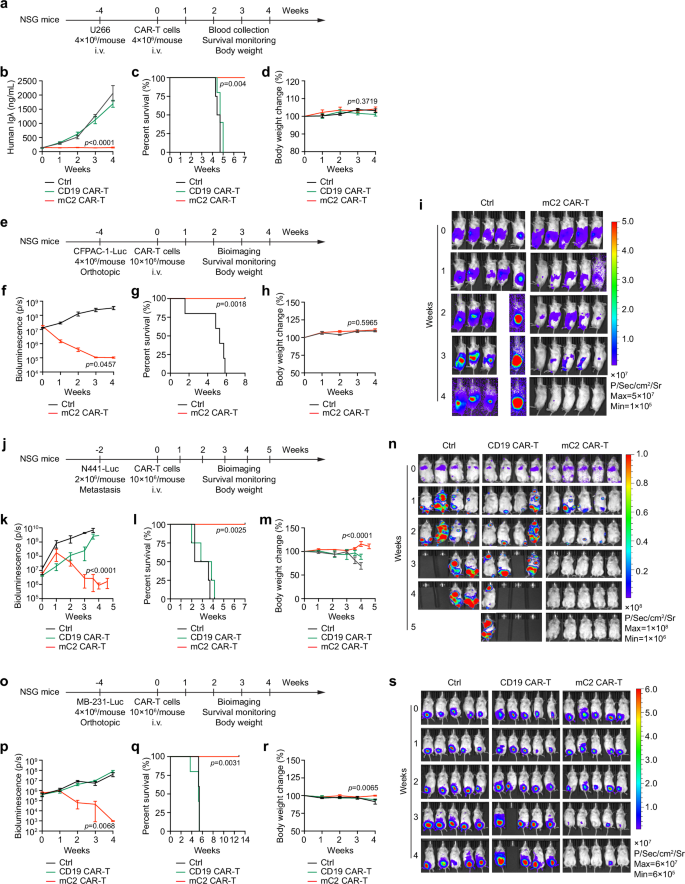

**Fig. 3: In vivo anti-tumor effects of DKK1-A2 CAR-T cells in human tumor xenograft mouse models.**

Therapeutic efficacy of DKK1-A2 CAR-T cells in human solid tumor xenograft models

We then assessed the anti-tumor efficacy of DKK1-A2 CAR-T cells against human solid tumors in their xenograft mouse models. First, firefly luciferase-transduced CFPAC-1 PDAC tumor cells were implanted subcutaneously 1 week before CAR-T cells infusion, and tumor volume and bioluminescence intensity were monitored weekly (Supplementary Fig. 3e). DKK1-A2 CAR-T cells effectively controlled tumor growth, evidenced by bioluminescence and survival rate, and body weight was not significantly changed after CAR-T cell therapy (Supplementary Fig. 3f–i). More importantly, we developed and used a PDAC orthotopically xenografted model by implanting CFPAC-1-Luc tumor cells into mice pancreas³⁸ (Fig. 3e). Again, DKK1-A2 CAR-T cells exhibited effective and safe anti-tumor activity, evidenced by bioluminescence, survival, and body weight monitoring (Fig. 3f–i). Second, we used an NSCLC metastatic model by injecting Luc-transduced NCI-H441 tumor cells intravenously into NSG mice (Fig. 3j). DKK1-A2 CAR-T cells significantly reduced metastatic tumor burden, and all DKK1-A2 CAR-T cell-treated mice achieved a superior survival rate. Body weight was decreased after control, and CD19 CAR-T cell therapy, mainly due to tumor progression, and body weight was not significantly changed after DKK1-A2 CAR-T cell therapy (Fig. 3k–n). Third, the anti-tumor efficacy of DKK1-A2 CAR-T cells was examined in orthotopic (Fig. 3o) and subcutaneous (Supplementary Fig. 3j) Luc-transduced MDA-MB-231 TNBC models. Again, DKK1-A2 CAR-T cell treatment effectively controlled MDA-MB-231 tumor growth and resulted in long-term survival in all mice in the orthotopic model. DKK1-A2 CAR-T cell therapy did not significantly affect the body weight of all mice (Fig. 3p–s). Similarly, DKK1-A2 CAR-T cells exhibited strong anti-tumor efficacy in the subcutaneous model (Supplementary Fig. 3k–n). Also, the TUNEL assay was performed in CFPAC-1 orthotopic, NCI-H441 metastatic, and MDA-MB-231 orthotopic models after CAR-T cell therapy. We observed CAR-T cell infiltration coupled with tumor apoptosis in the tumor tissues after DKK1-A2 CAR-T cell but not control or CD19 CAR-T cell treatment (Supplementary Fig. 4a–c). In most of these studies, CD19 CAR-T cells were used as a control, and no anti-tumor effect was observed.

Therapeutic efficacy of DKK1-A2 CAR-T cells in PDAC patient-derived xenograft model

Patient-derived xenograft (PDX) models effectively replicate the histology and genetic profile of the original patient tumors³⁹. In collaboration with our surgical oncologists, we obtained fresh tumor samples from 7 PDAC patients. Primary PDAC tumors were expanded in the flanks of NSG mice for 1–3 passages, allowing for greater expansion of tumor tissues⁴⁰ (Supplementary Fig. 5a, b). All primary PDAC tumor tissues expressed a high level of DKK1 protein, and DKK1-A2 complexes were detected in two HLA-A2 positive patients (PDAC #1 and #14; Fig. 4a). Proliferation of DKK1-A2 CAR-T cells was found in their co-culture with PDAC #1 and #14 tumor cells but not with HLA-A2 negative PDAC cells (Fig. 4b). Celltrace Violet-labeled primary PDAC cells were co-cultured with control, CD19, or DKK1-A2 CAR-T cells for 3 days, and DKK1-A2 but not CD19 CAR-T cells eliminated nearly all HLA-A2 positive PDAC #1 tumor cells but not HLA-A2 negative PDAC #2 cells (Fig. 4c, d). Activation of DKK1-A2 CAR-T cells was also supported by higher levels of IFN-γ, TNF-α, and Granzyme B production by both CD4⁺ and CD8⁺ CAR-T cells in co-culture with PDAC #1 cells (Fig. 4e–g). To characterize primary and passage tumors of PDAC #1 PDX model, tumor tissues were digested and analyzed by flow cytometry (Supplementary Fig. 5c). Tumor cells were distinguished by carcinoembryonic antigen (CEA) staining. The primary and F3 passage tumors retained the same cellular composition, and nearly all the tumor cells were CEA, DKK1, and DKK1-A2 positive (Supplementary Fig. 5d). The results were also confirmed by immunochemistry staining with both low and high magnifications (Supplementary Fig. 5e, f). To evaluate the anti-tumor efficacy of DKK1-A2 CAR-T cells in the PDX model, expanded PDAC #1 tumor fragments were implanted subcutaneously into NSG mice, and CAR-T cells were infused intravenously 2 weeks post tumor inoculation (Fig. 4h). DKK1-A2 CAR-T cells effectively controlled tumor growth in vivo, and all mice achieved superior survival up to 8 weeks (Fig. 4i, j). Flow cytometry analysis showed that large numbers of circulating and resident (in spleen and bone marrow) DKK1-A2 but not control or CD19 CAR-T cells were detected at the end of the experiment (Fig. 4k). Collectively, these results showed that DKK1-A2 CAR-T cells are highly therapeutic against established hematologic and solid tumors, including primary tumors from HLA-A2 positive patients in vivo.

**Fig. 4: In vivo anti-tumor effects of DKK1-A2 CAR-T cells in human PDAC PDX model.**

Generation of DKK1-A2 CAR-T cells using a humanized C2 antibody

For future clinical application of DKK1-A2 CAR-T cells, we generated CAR-T cells with the scFv of the hC2 antibody constructed from the mC2 antibody. To compare the cytolytic activity of mC2 and hC2 CAR-T cells, U266, CFPAC-1, or primary PDAC tumor cells were used as targets and co-cultured with the CAR-T cells at different E:T ratios in a luciferase-based cytotoxicity assay. Both mC2 and hC2 CAR-T cells showed strong cytolysis against U266 and CFPAC-1 tumor cells (Fig. 5a, b), and both mC2 and hC2 CAR-T cells exhibited similar cytolytic activity against primary PDAC #1 cells at 24- or 72-h co-culture (Fig. 5c, d). To evaluate the anti-tumor activity of the CAR-T cells in vivo, U266, KMS-12-BM-A2, or MM.1S-A2 MM cell lines were utilized to establish xenograft models by tail vein injection into NSG mice (Fig. 5e and Supplementary Fig. 6a, e). Although both mC2 and hC2 CAR-T cells effectively controlled tumor growth, hC2 CAR-T cells, compared to mC2 CAR-T cells, showed a superior anti-tumor ability in U266 MM model evidenced by relatively lower human Igλ (tumor burden) (Fig. 5f) and better mouse survival (Fig. 5g). All mice treated with hC2 CAR-T cells displayed long-term survival and remained tumor free at the end of the experiment (week 12) (Fig. 5g). In MM.1S-A2 (Supplementary Fig. 6a–d) and KMS-12-BM-A2 (Supplementary Fig. 6e–h) mouse models, hC2 CAR-T cells also showed better anti-tumor activities evidenced by long-term survival rate up to 8 weeks post CAR-T cell infusion. Moreover, we evaluated the therapeutic efficacy of mC2 and hC2 CAR-T cells in PDAC mouse models (Fig. 5h and Supplementary Fig. 6i). mC2 and hC2 CAR-T cells showed comparable anti-tumor activities in CFPAC-1 xenograft model (Fig. 5i–k). However, in the primary PDAC #1 PDX model, hC2 CAR-T cells showed a better anti-tumor activity compared to mC2 CAR-T cells, and all hC2 CAR-T cell-treated mice achieved long-term survival over 10 weeks (Supplementary Fig. 6j, k). Hence, while both mC2 and hC2 CAR-T cells exhibit comparable cytolytic ability in vitro, hC2 CAR-T cells show a better anti-tumor activity in vivo.

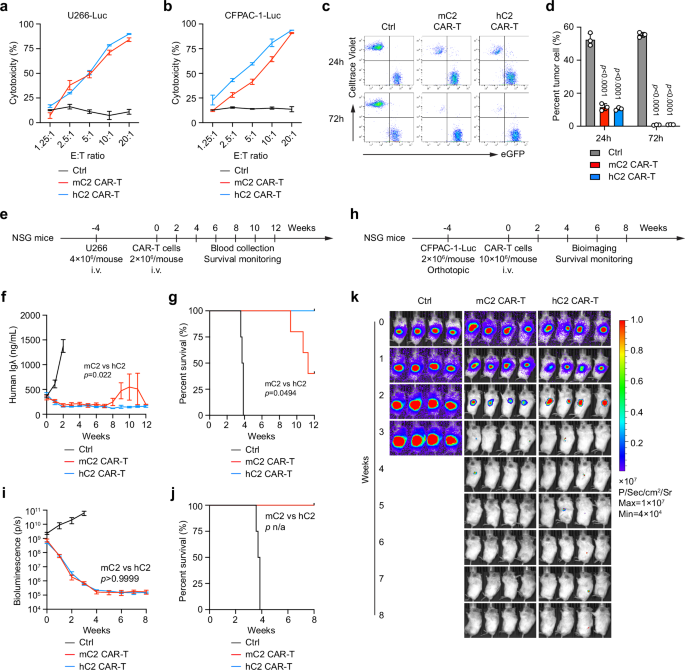

**Fig. 5: Anti-tumor effects of DKK1-A2 CAR-T cells generated from a humanized C2 antibody.**

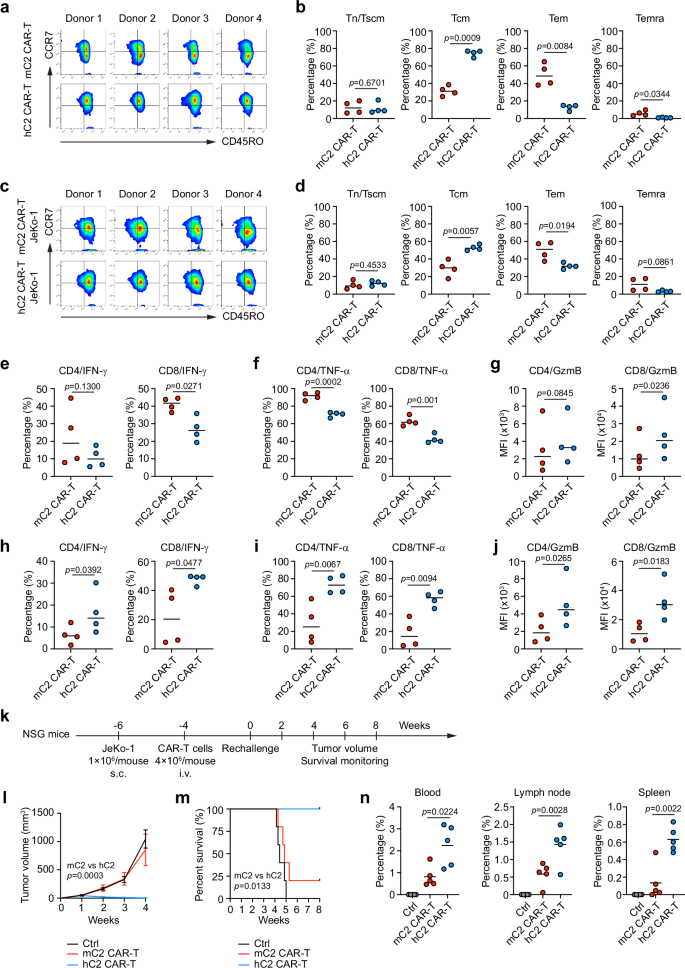

hC2 CAR-T cells display central memory phenotype and exert better anti-tumor effects in vivo

Multiple mechanisms and clinical studies have shown that less differentiated memory T cells are required for a sustained CAR-T cell persistence in vivo^41,42,43. To evaluate whether mC2 and hC2 CAR-T cells display distinct memory phenotypes, CAR-T cells generated from 4 healthy donors were analyzed for CCR7 and CD45RO expression by flow cytometry. hC2 CAR-T cells contained a higher percentage of cells (70%) that were CCR7⁺ and CD45RO⁺ (central memory phenotype), while mC2 CAR-T cells had a large population of CCR7^– and CD45RO⁺ effector memory cells compared to their counterpart (Fig. 6a, b). In co-culture with DKK1-A2 positive JeKo-1 tumor cells, hC2 CAR-T cells rapidly differentiated into effector memory phenotype to execute cytolysis activity, while the memory phenotype of mC2 CAR-T cells had not significantly changed (Fig. 6c, d). mC2 and hC2 CAR-T cells were infused into JeKo-1 bearing mice for 7 days, and CCR7 expression on hC2 CAR-T cells was much higher than that of mC2 CAR-T cells, indicating hC2 CAR-T cells as less differentiated memory T cells in vivo (Supplementary Fig. 7a, b). Central memory-like hC2 CAR-T cells secreted lower amounts of IFN-γ and TNF-α in both CD4 and CD8 positive subsets in response to JeKo-1, but Granzyme B secretion was similar to mC2 CAR-T cells (Fig. 6e–g). Notably, re-stimulation of the CAR-T cells by adding more tumor cells to the co-culture led to significantly higher IFN-γ, TNF-α, and Granzyme B production by hC2 CAR-T cells compared to mC2 CAR-T cells (Fig. 6h–j). To further evaluate the long-term response of the CAR-T cells, we performed tumor rechallenge experiments. CAR-T cell-infused JeKo-1-bearing NSG mice were rechallenged with JeKo-1 tumor cells at 4 weeks post CAR-T cell infusion (Fig. 6k). In hC2 CAR-T cell-treated mice, tumor volumes were much lower, and more mice remained alive post tumor rechallenge (Fig. 6l, m). Improved hC2 CAR-T cell persistence was found in blood, lymph node, and spleen post tumor rechallenge (Fig. 6n). We also observed similar results in U266-rechallenge model that was controlled with naïve mice (Supplementary Fig. 7c–e). In CFPAC-1 rechallenge model, although all mice remained alive post-tumor rechallenge, tumor burdens in hC2 CAR-T cell-treated mice were significantly lower than those treated with mC2 CAR-T cells (Supplementary Fig. 7f–i). Together, these findings showed that hC2 CAR-T cells display a less-differentiated central memory phenotype that may have contributed to the long-term anti-tumor immunity against both MM and PDAC.

DKK1-A2 CAR-T cells do not cause damage to normal tissues

We assessed the expression of DKK1-A2 complex on human normal tissues with commercially available tissue arrays. Thirty-five different types of normal tissues from three HLA-A2 positive donors were stained with DKK1, HLA-A2, and DKK1-A2 (C2) antibodies. Although some normal human tissues expressed DKK1 protein, all human normal tissues were stained negative for DKK1-A2 complex except the tonsil tissues (Fig. 7a and Supplementary Fig. 8a, b), indicating that the target for DKK1-A2 CAR-T cells is not present on most human tissues. To evaluate the potential hematological toxicity of DKK1-A2 CAR-T cells, peripheral blood mononuclear cell (PBMC) and bone marrow mononuclear cells (BMMC) from HLA-A2 positive donors were co-cultured with CAR-T cells and cell apoptosis was analyzed by flow cytometry (Supplementary Fig. 8c). CD19 CAR-T cells effectively lysed B cells in both PBMC and BMMC, while mC2 or hC2 CAR-T cells did not cause significant cell death, evidenced by Annexin V and Caspase 3 staining in cell populations of PBMC or BMMC (Supplementary Fig. 8d–g). We then established a tripartite co-culture model⁴⁴ consisting of CAR-T cells, autologous monocytes and JeKo-1 cells for 24 h (Fig. 7b). In co-culture with hC2 CAR-T cells, significantly lower levels of human IFN-γ and IL-6 were observed in comparison to co-culture with mC2 CAR-T cells (Fig. 7c). To further assess the safety profile, we utilized a cytokine release syndrome model⁴⁵ by infusing a large dose (50 × 10⁶ per mouse) of CAR-T cells intraperitoneally into JeKo-1 bearing mice (Fig. 7d). Similar to what was observed in vitro, CD19 and mC2 CAR-T cells expressed a comparable level of human IFN-γ and mouse IL-6, while hC2 CAR-T cells had attenuated cytokine release detected in peritoneal lavage fluid of treated mice (Fig. 7e). Body weight loss was also monitored as a readout. Both mC2 CAR-T cells and positive control CD19 CAR-T cells induced a more serious body weight loss compared to hC2 CAR-T cells (Fig. 7f).

**Fig. 7: Tissue toxicity studies of DKK1-A2 CAR-T cells.**

Finally, we investigated the potential efficacy and toxicity of DKK1-A2 CAR-T cells in immunocompetent mice. We generated transgenic C57BL/6 mice expressing human DKK1 and HLA-A2 molecules (hDKK1-A2 mice) and developed murine CAR-T cells using mouse splenocytes targeting murine CD19 or human DKK1-A2 complex for in vivo tests. We first examined the potential hematological toxicity of the murine CAR-T cells. After intravenous infusion, murine CD19 CAR-T cells led to depletion of mouse B cells, while murine DKK1-A2 CAR-T cells did not affect cell populations in blood, spleen, or bone marrow (Fig. 7g–i). Moreover, we utilized the MM 5TGM1 and pancreatic cancer Pan02 syngeneic mouse models^46,47 by transducing murine 5TGM1 and Pan02 cells with human DKK1 and HLA-A2 molecules. After the tumor developed, mice were infused with CD19 or DKK1-A2 murine CAR-T cells. The results showed that DKK1-A2 but not CD19 CAR-T cells effectively controlled tumor growth in murine 5TGM1- and Pan02-bearing mice without obvious body weight change (Supplementary Fig. 9a–f). Since platelets were reported to express both DKK1 and MHC molecule⁴⁸, we evaluated platelet cell count in hDKK1-A2 mice post CAR-T cell treatment. No significant change in platelet count was observed 7 days after CAR-T cell infusion, suggesting that DKK1-A2 CAR-T cells do not cause substantial depletion of circulating platelets (Supplementary Fig. 9g). Overall, these results clearly showed that DKK1-A2 CAR-T cells display a favorable safety profiles and may be less or non-toxic in human patients.

Discussion

In this study, we investigated whether DKK1 is a clinically relevant target for cancer immunotherapy for both hematologic and solid tumors. We analyzed the gene datasets of MM, lymphoma and leukemia from Oncomine database, and found that MM patients expressed the highest level of DKK1 among all types of hematologic tumors. We also analyzed gene datasets from GEPIA2 database for solid tumors and observed that most solid tumors highly expressed DKK1 compared to normal tissues. These tumor types include pancreatic, lung, and esophagus cancer, and squamous head and neck cell carcinoma. Notably, although breast cancer expressed relatively lower levels of DKK1 compare to the normal tissue, DKK1 was highly expressed by TNBC, which is the most invasive type of breast cancer, accounting for 10–15% of all breast cancer cases⁴⁹. Survival analysis from the GEPIA2 database showed that a higher expression of DKK1 in patients had inferior overall and disease-free survivals in multiple solid tumors, indicating that DKK1 serves as a clinically relevant target for cancer immunotherapy.

Since DKK1 is a soluble protein participating in the Wnt/β-catenin signaling pathway, antibodies binding directly to DKK1 protein have a limited effect for cancer treatment⁵⁰. We screened C2 antibody that recognizes DKK1-A2 complex on tumor cells and showed that C2 antibody displayed a high specific binding to DKK1-expressed HLA-A2 positive tumors including PDAC, NSCLC, and TNBC using IHC. The specificity of C2 antibody was confirmed by binding to multiple HLA-A2 positive tumor cell lines by flow cytometry. We also reported that C2 antibody had the ability to directly induce tumor cell apoptosis and lyse tumor cells by mediating antibody-dependent cellular cytotoxicity and complement-dependent cytotoxicity²⁸. One limitation of C2 antibody is the restriction to HLA-A2, and the prevalence does not provide universal coverage to all patients. Exploring other DKK1-derived peptides presented by additional HLA alleles would be an important future direction. Such studies could expand to a broader patient population and enhance the translational potential.

Based on the specificity and efficacy of C2 antibody, we translated C2 antibody into CAR-T cell immunotherapy for both hematologic and solid tumors. DKK1-A2 CAR-T cells showed strong anti-tumor activity against multiple tumor cell lines in vitro and in human xenograft models of MM and solid tumors, as well as in primary PDAC patient-derived tumor models. In vitro tumor cytolytic activity was confirmed by a luciferase-based cytotoxicity assay, proliferation and cytokine release by the CAR-T cells, and in vivo anti-tumor activity against MM and solid tumors was demonstrated by subcutaneous, orthotopic, and metastatic xenograft models. To recapitulate the histology and genetic profile of human PDAC tumors, primary PDAC cells and PDX model were established and the efficacy of DKK1-A2 CAR-T cells was confirmed. There are limitations about these tumor models. In the CFPAC-1 PDAC orthotopic models, CD19 CAR-T cell control was not included mainly because of the difficulty in establishing the tumor model and limited number of mice. In addition, NSG mice are deficient in a fully functional immune system, which neglects the impact of the host immune system on CAR-T cell response. To validate the results in more physiologically relevant models, we performed CAR-T cell treatment in murine syngeneic models using 5TGM1 and Pan02 tumor cell lines. Another limitation is that only one primary PDAC patient sample underwent three passages and was used for in vivo efficacy testing, mainly due to difficulties and the long time to establish stable PDX models.

CAR-T cell therapies are being widely developed and have proven to be efficacious in clinical studies⁵¹. Hematologic tumors typically involve uniform and well-characterized antigen targets, such as BCMA for MM⁵², CD19 for B-cell leukemia and lymphoma⁵³, and CD30 for Hodgkin lymphoma and some T-cell lymphomas⁵⁴. Solid tumors present more challenges due to antigen heterogeneity and expression on normal tissues, such as HER2 for breast cancer and glioma^55,56, claudin 18.2 for gastric cancer^11,57, and GPC3 for hepatocellular cancer⁵⁸. Since limited overlapping antigens are expressed on hematologic and solid tumor cells, CAR-T cells targeting both hematologic and solid tumors have been rarely studied or developed. Dual-targeting CAR-T cells offer significant potential for across multiple cancer therapies, but the complexity in design and manufacturing, as well as high risk of off-target effects, are still huge obstacles to be sovled^59,60. To our knowledge, our studies offer a potential well-defined DKK1-A2 target across multiple tumors, including MM, pancreatic, lung, and breast cancer for CAR-T cell therapies.

Besides the original C2 antibody generated from mice, we also engineered a humanized C2 antibody with the human constant regions. CAR-T cells generated from the scFv of hC2 antibody showed similar cytolytic activity with mC2 CAR-T cells against MM and PDAC cell lines in vitro but exhibited superior anti-tumor ability in vivo. These surprising results sparked our curiosity to explore the underlying mechanisms. Our results showed that hC2 CAR-T cells displayed a CCR7⁺ and CD45RO⁺ central memory-like phenotype and responded more intensely than mC2 CAR-T cells to tumor cell rechallenge in vitro^61,62. Notably, this memory phenotype of hC2 CAR-T cells contributed to long-term tumor control, evidenced by the protective effect post-tumor rechallenge in vivo. Increasing evidence suggests that the affinity of the antibody may play a significant role in regulating the anti-tumor activity of CAR-T cells. Ghorashian and coworkers generated a CD19 CAR with a lower affinity than FMC63, and showed increased proliferation and cytotoxicity in vitro, as well as enhanced anti-tumor activity compared with FMC63 CAR-T cells⁶³. Shabaneh and co-workers also showed that low-affinity HER2 CAR-T cells mediated an enhanced anti-tumor immunity and attenuated on-target off-tumor toxicity⁶⁴. Multiple explanations demonstrated that low-affinity of CAR molecules provided physiological receptor signaling and prevented exhaustion and induction of early memory phenotype⁶⁵. Based on our data of C2 antibody characteristics, the binding affinity of hC2 antibody to DKK1-A2 complex (KD = 19 nM) was lower than that of mC2 antibody (KD = 1.82 nM), which may provide a reasonable explanation of the difference between mC2 and hC2 CAR-T cells.

Although our studies demonstrated the anti-tumor efficacy of DKK1-A2 CAR-T cells in various tumor models, the on- and off-target toxicities against normal tissues remain a concern. Immunohistochemistry staining of normal tissue arrays demonstrated the absent expression of DKK1-A2 complex on almost all human normal tissues but tonsil tissues. The possible reason for DKK1-A2 complex expression on tonsil could be tonsil-related inflammation, as DKK1 serves as an immunomodulator in tissue inflammation and could be upregulated under these conditions⁶⁶. Flow cytometry analysis also showed that DKK1-A2 CAR-T cells did not display detectable toxicities towards cellular subsets of blood and bone marrow in vitro. In addition, DKK1-A2 CAR-T cells did not induce significant killing of blood, spleen, and bone marrow cells in vivo. Together, these results demonstrated a favorable safety profile of DKK1-A2 CAR-T cells. However, the current off-target screening strategy was limited in scope, as broader panels of HLA-A2⁺ primary human cells or iPSC-derived tissues were not evaluated. Incorporating such models in future studies will be important to assess potential off-target toxicities more comprehensively and to further support the translational potential of DKK1-A2 CAR-T cells.

Since hC2 CAR-T cells presented a central memory phenotype, we speculated that this phenotype would contribute to mitigating cytokine release syndrome. Data from an in vitro tripartite co-culture experiment⁴⁴ and a cytokine release syndrome mouse model⁴⁵ were performed to test our hypothesis. Arcangeli’s data illustrated that naive/stem memory-like CAR-T cell manufacturing showed an enhanced anti-tumor immunity while curtailing cytokine release syndromes⁴⁴. Similarly, our studies demonstrated that hC2 CAR-T cells exhibited a central memory-like phenotype and conferred an enhanced anti-tumor activity with long-term immunological protection.

Overall, we developed DKK1-A2 CAR-T cells for the treatment of human hematologic and solid tumors. DKK1-A2 CAR-T cells exhibit a favorable safety profile without detectable on- or off-target toxicities against normal tissues. Thus, our results suggest the applicability of DKK1-A2 CAR-T cells in the treatment of human cancer.

Methods

Ethical statement

Our research complies with all relevant ethical regulations. The use of primary tumor tissues was approved by the Institutional Review Board at the Houston Methodist Research Institute. All animal studies were approved by the Institutional Animal Care and Use Committee of the Houston Methodist Research Institute.

Human and mouse cell lines

Human mantle cell lymphoma cell line JeKo-1, Burkitt’s lymphoma cell line Daudi, MM cell lines U266, KMS-26, ARP-1, KMS-11, KMS-12-BM, and MM.1S, PDAC cell lines CFPAC-1, PANC-1, MIA PaCa-2, and PL45, NSCLC cell lines NCI-H441 and NCI-H266, and TNBC cell lines MDA-MB-231 and MDA-MB-468 were purchased from American Type Culture Collection or obtained from Arkansas Cancer Research Center. KMS-12-BM-A2, KMS.1S-A2, and PL45-A2 were generated by transducing with the human gene HLA-A*0201. JeKo-1-KO was generated by CRISPR/Cas9 gene-editing technology. Firefly Luciferase stably transduced-JeKo-1, Daudi, U266, KMS-26, CFPAC-1, PANC-1, NCI-H441, MDA-MB-231, KMS-12-BM-A2, KMS.1S-A2, and PL45-A2 were generated by transducing with luciferase gene. Murine MM 5TGM1-DKK1-A2 and Pan02-DKK1-A2 cells were generated by transducing the cells with human HLA-A2 and DKK1 genes. All cell lines were cultured in complete RPMI 1640 medium or Dulbecco modified Eagle’s medium supplemented with 10% FBS and 1% penicillin and streptomycin.

Animals

NSG and SCID mice were purchased from the Jackson Laboratory. hDKK1-A2 mice were generated by crossing HLA-A2 transgenic mice with DKK1 transgenic mice by Cyagen Biosciences. Male and female 6-8-week-old mice were used in the studies. Mice were maintained in American Association of Laboratory Animal Care-accredited facilities, and all studies were approved by the Institutional Animal Care and Use Committee of Houston Methodist Research Institute. We have complied with all relevant ethical regulations. For MM mouse models, the maximal tumor burden permitted by our ethics committee is the point when they develop signs of hind limb paralysis. For solid tumor mouse models, the maximal tumor burden permitted by our ethics committee is no more than 20 mm in diameter. In our study, the maximal tumor burden was not exceeded.

Human samples

Human whole peripheral blood was purchased from the Gulf Coast Regional Blood Center, Houston, Texas. Human PDAC, NSCLC, and TNBC tissues were obtained from surgical resections of patients at Houston Methodist Hospital. Human tumor tissues were used for establishment of primary patient-derived tumor cells and xenograft model, as well as immunohistochemistry and tissue microarray studies. Utility of human samples in this study was approved by the institutional review board at the Houston Methodist Research Institute.

Plasmid construction and retrovirus preparation

Plasmid construction and retrovirus preparation were described previously⁶⁷. Gene sequence of light and heavy chain of murine or humanized C2 antibody were obtained from cDNA of C2 hybridomas amplified by using PCR. mC2, hC2, or FMC63 scFv-based chimeric antigen receptor were cloned into SFG retroviral vector, followed by CD8α hinge and transmembrane, 4-1BB intracellular costimulatory domain, CD3ζ intracellular signaling domain and eGFP. 293T cells were seeded in 100 mm cell culture dish and transfected with a plasmid mixture of chimeric antigen receptor retroviral vector, packaging plasmid encoding Gag/Pol, and envelope plasmid encoding RD114 by using Lipofectamine 3000 transfection reagent. Culture supernatant was collected 48 and 72 h after transduction, and retrovirus was precipitated by PEG-400.

Retrovirus transduction and CAR-T cell culture

Transduction of T cells was described previously^68,69. Peripheral blood mononuclear cells were obtained by Ficoll density gradient centrifugation. CD3⁺ T cells were isolated by immunomagnetic negative selection kit from STEMCELL Technologies. T cells were activated with CD3/CD28 Dynabeads or 10 μg/mL anti-CD3/CD28 antibodies for 24 h and transduced with retrovirus on RetroNectin-coated plates. Three days later, T cells were expanded in complete RPMI 1640 medium supplemented with human IL-2. Two weeks after transduction, T cells were collected for in vitro or in vivo experiments. Transduction efficiency was determined by the percentage of eGFP expression analyzed by flow cytometry.

Flow cytometry

Tumor cell lines were harvested and resuspended in FACS buffer (PBS with 1% FBS and 1 mM EDTA). First, tumor cells were stained with FcR blocker and surface-stained with BUV395-conjugated HLA-A2 antibody (BD Bioscience, 1 µg/mL) and Alexa Fluor 647-conjugated mC2 antibody (1 µg/mL). After wash with FACS buffer, tumor cells were fixed and permeabilized by using BD Cytofix/Cytoperm Fixation/Permeabilization Kit. Tumor cells were intracellularly stained with DKK1 antibody (Santa Cruz Biotechnology, 1 µg/mL), and then Alexa Fluor 488-conjugated goat anti-mouse IgG1 antibody (Life Technologies, 1 µg/mL). For the PDX model, tumor tissues were digested with Collagenase and DNase I. Tumor cells were harvested and stained with purified CEA antibody (NeoBiotechnologies, 1 µg/mL), followed by staining with Alexa Fluor 594-conjugated goat anti-mouse IgG antibody (Life Technologies, 1 µg/mL), along with anti-DKK1, HLA-A2, or mC2 antibodies as described above. All fluorescent antibodies were controlled by corresponding isotype control (1 µg/mL). After wash with permeabilization buffer, tumor cells were resuspended in FACS buffer and analyzed by flow cytometry.

Cytotoxicity assay

Luciferase reporter assay was used to evaluate the cytotoxicity of CAR-T cells. Firefly luciferase stably transduced tumor cells were seeded onto a 96-well plate overnight at 0.05 million per well. The next day, serial dilutions of CAR-T cells were prepared according to the effector to target (E:T) ratio and incubated with target cells for the indicated time. The supernatant was gently discarded, D-luciferin was added to each well for 5-min incubation, and data was measured by a microplate reader. The cytotoxicity of CAR-T cells was quantified by converting the obtained values to percentage of specific lysis by the following equation: [1-(S-E)/(T-B)]*100%, where S is the value of luminescence of the sample well, E is the value of luminescence of the effector cell well, T is the mean value of luminescence of target cell well, and M is the mean value of luminescence of blank well. Flow cytometry-based cytotoxicity assay was also used to evaluate lysis ability of CAR-T cells⁷⁰. Briefly, target cells were stained with Celltrace Violet and co-cultured with effector cells at an E:T ratio of 1:1 for 24–72 h. After that, percentages of tumor cells and CAR-T cells were analyzed by flow cytometry.

Proliferation assay

CAR-T cells were stained with Celltrace Violet at the concentration of 1 μM and then co-cultured with tumor cells at a E:T ratio of 1:1 for 72 h. Proliferation of CAR-T cells was determined by dilution of Celltrace Violet in CAR-T cells. Data were obtained with flow cytometry and analyzed by FlowJo software.

Cytokine assay

Cytokine secretion analysis was performed using flow cytometry-based techniques⁷¹. Briefly, CAR-T cells were incubated with target tumor cells in 96-well plates overnight in the presence of phorbol myristate acetate, ionomycin, and brefeldin A. After that, cells were harvested then stained with FcR blocker and fluorescent antibodies specific to CD3, CD4, and CD8 on ice. After fixation and permeabilization, cells were intracellularly stained with fluorescent antibodies specific to IFN-γ, TNF-α, or Granzyme B. Data were acquired with flow cytometry and analyzed with FlowJo software. Cytokine secretion was also analyzed by ELISA according to the manufacturer’s instructions.

Human xenograft mouse models

Luciferase stably transduced human myeloma U266, KMS-26, KMS-12-BM, and MM.1S, pancreatic cancer CFPAC-1 and PANC-1, lung cancer NCI-H441, and breast cancer MDA-MB-231 xenograft models were used to evaluate the therapeutic efficacy of CAR-T cells in vivo. For MM models, tumor cells were inoculated intravenously into NSG mice. For subcutaneous solid tumor models, tumor cells were inoculated subcutaneously into NSG mice. For metastatic tumor models, tumor cells were inoculated intravenously into NSG mice. For orthotropic PDAC or breast tumor models, tumor cells were implanted into the pancreas or mammary pad of NSG mice, respectively. Control, CD19, mC2, or hC2 CAR-T cells were intravenously transferred into tumor-bearing mice. For the JeKo-1 rechallenge experiment, JeKo-1 tumor cells were inoculated subcutaneously into the contralateral side of the mouse back relative to the primary tumor. For the U266 rechallenge experiment, U266 tumor cells were inoculated intravenously into the mice. For the CFPAC-1-Luc rechallenge experiment, CFPAC-1-Luc tumor cells were inoculated subcutaneously into the contralateral side of the mouse back relative to the primary tumor. The numbers of rechallenge tumor cells were the same as the primary tumor inoculation. Tumor burdens were evaluated weekly by bioluminescence on IVIS imaging system and images were processed by Living Image software⁷². For MM models, serum levels of human Igλ secreted by MM cells were determined by ELISA⁷³. Survival and body weight of tumor bearing mice were monitored. Tumor volume was calculated by the formula: tumor volume = 0.5 * length * width². Mice were sacrificed when undergoing cancer cachexia, or tumor diameter exceeded more than 20 mm, or tumor volume exceeded more than 2000 mm³. Mice were sacrificed at the indicated time point for ex vivo analysis.

Patient-derived tumor cells and xenograft model

Human PDAC tumor tissues were obtained from surgical resections of PDAC patients at Houston Methodist Hospital. Necrotic tissue and non-tumor tissue were removed under sterile conditions, and tumor tissues were cut into small pieces (2–4 mm³). Primary PDAC tumors were expanded in the flanks of NSG mice for 1–3 passages, allowing for greater expansion of tumor tissues⁴⁰. For primary patient-derived tumor cells, tumor fragments from xenograft mice models were digested by DNase I and collagenase IV. Single tumor cell suspension was filtered for cytotoxicity, proliferation, and cytokine assay in vitro as described previously⁷⁴. Tumor fragments were implanted into subcutaneous space of 6–8 weeks NSG mice. Fourteen days post-tumor implantation, mice were treated with CAR-T cells intravenously. Tumor volume and body weight were monitored weekly, and survival was monitored daily. Tumor volume was calculated by the formula: tumor volume = 0.5 * length * width². Mice were sacrificed when undergoing cancer cachexia, tumor diameter exceeded more than 20 mm, or tumor volume exceeded more than 2000 mm³. Mice were sacrificed at the indicated time point for ex vivo analysis.

Immunohistochemistry, immunofluorescence, and tissue microarray

Human PDAC, NSCLC, and TNBC tumor and normal tissues were obtained from Houston Methodist Hospital. Immunohistochemistry was described before⁷⁵. Formalin-fixed, paraffin-embedded tissue sections (4–5 µm) were deparaffinized in xylene and rehydrated through graded ethanol. Slides were treated with a heat-induced epitope retrieval solution for 10–20 min. Endogenous peroxidase activity was blocked with 3% hydrogen peroxide, followed by incubation with a blocking solution to prevent non-specific binding. Sections were incubated with the primary antibody of DKK1 (Santa Cruz Biotechnology, 10 µg/mL), HLA-A2 (Santa Cruz Biotechnology, 10 µg/mL), DKK1-A2 (mC2/hC2, 10 µg/mL), or CEA (NeoBiotechnologies, 10 µg/mL) overnight at 4 °C. All samples were controlled with corresponding isotype control at the same concentrations. A secondary antibody conjugated to horseradish peroxidase was applied, and the signal was visualized using diaminobenzidine as the chromogen. Slides were analyzed under a microscope. Immunofluorescence was described before⁷⁶. Mouse tumor tissues were collected, embedded into OCT compound, and rapidly frozen in dry ice. The frozen blocks were then mounted on a cryostat and sectioned. Sections were collected on glass slides, fixed, and then stained with the TUNEL assay kit (Thermo Fisher) and DAPI. Slides were analyzed under a microscope. Tissue microarray was purchased from Tissue Array company. Slides were stained with an antibody against DKK1, HLA-A2, and DKK1-A2 as described above and analyzed under a microscope. Quantitative data of the DKK1-A2 complex of tissue microarray were analyzed and obtained by ImageJ software.

Cytokine release syndrome model

For the cytokine release syndrome model in vitro, a tripartite coculture of CAR-T cells, autologous monocytes, and JeKo-1 tumor cells were performed for 24 h at a ratio of 1:1:1⁴⁴. Supernatants were collected, and human IFN-γ and IL-6 were measured by ELISA. For cytokine release syndrome model in vivo⁴⁵, SCID mice were inoculated with JeKo-1 tumor cells intraperitoneally for 2 weeks followed by a large dose (50 × 10⁶ per mouse) of CAR-T cells infusion intraperitoneally. Peritoneal lavage was collected 3 days post CAR-T cells infusion, and human IFN-γ and murine IL-6 were measured by ELISA.

Hematologic toxicity assay

For in vitro hematologic toxicity assay, CAR-T cells were co-cultured with PBMC or BMMC for 4 h at a ratio of 1:1. Cultured cells were stained with anti-human CD11b, CD11c, CD3, CD4, CD8, CD19, NK1.1, CD34, and CD71 antibodies. Cell apoptosis was determined by staining the cells with anti-human Annexin V or Caspase 3 antibodies and analyzed by flow cytometry. For in vivo hematologic toxicity assay, hDKK1-A2 mice were infused with murine CAR-T cells intravenously. Blood, spleen, and bone marrow were collected on 7 days post CAR-T cell infusion. Single cell suspension was prepared and stained with anti-mouse CD11b, CD11c, CD3, CD4, CD8, CD19, and NK1.1 antibodies. Cell counts were normalized by counting beads and analyzed by flow cytometry. For the platelet cell count experiment, hDKK1-A2 mice were transferred with control, CD19, mC2, or hC2 CAR-T cells. One week after CAR-T cell transfer, whole blood was collected, and platelets were stained with CD41 and CD61 antibodies. Platelet cell count was analyzed by flow cytometry.

Statistical analysis

All graphs and statistical analysis were generated by GraphPad Prism software. Student’s t test or ANOVA analysis was performed for statistical analysis. Log-rank test was performed for survival analysis. Simple linear regression was performed for correlation analysis. A p value < 0.05 was considered statistically significant. Results are presented as mean ± SEM unless otherwise indicated.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

This paper does not report any sequencing or proteomics data. Other previous published patient datasets used in the study can get access with the following accession numbers: GSE13591, GSE2350, GSE13159, GSE16515, GSE10072, EGAS00000000083 and GEPIA2. All the other data supporting the findings of this study are available with in the article, supplementary information and source files. Source data are provided with this paper.
