Fig. 6: A model of Lem17-mediated facilitation of L. pneumophila intracellular growth.

From: A bacterial YopJ-family acetyltransferase suppresses host immune response by Nε-acetylation of JAK1

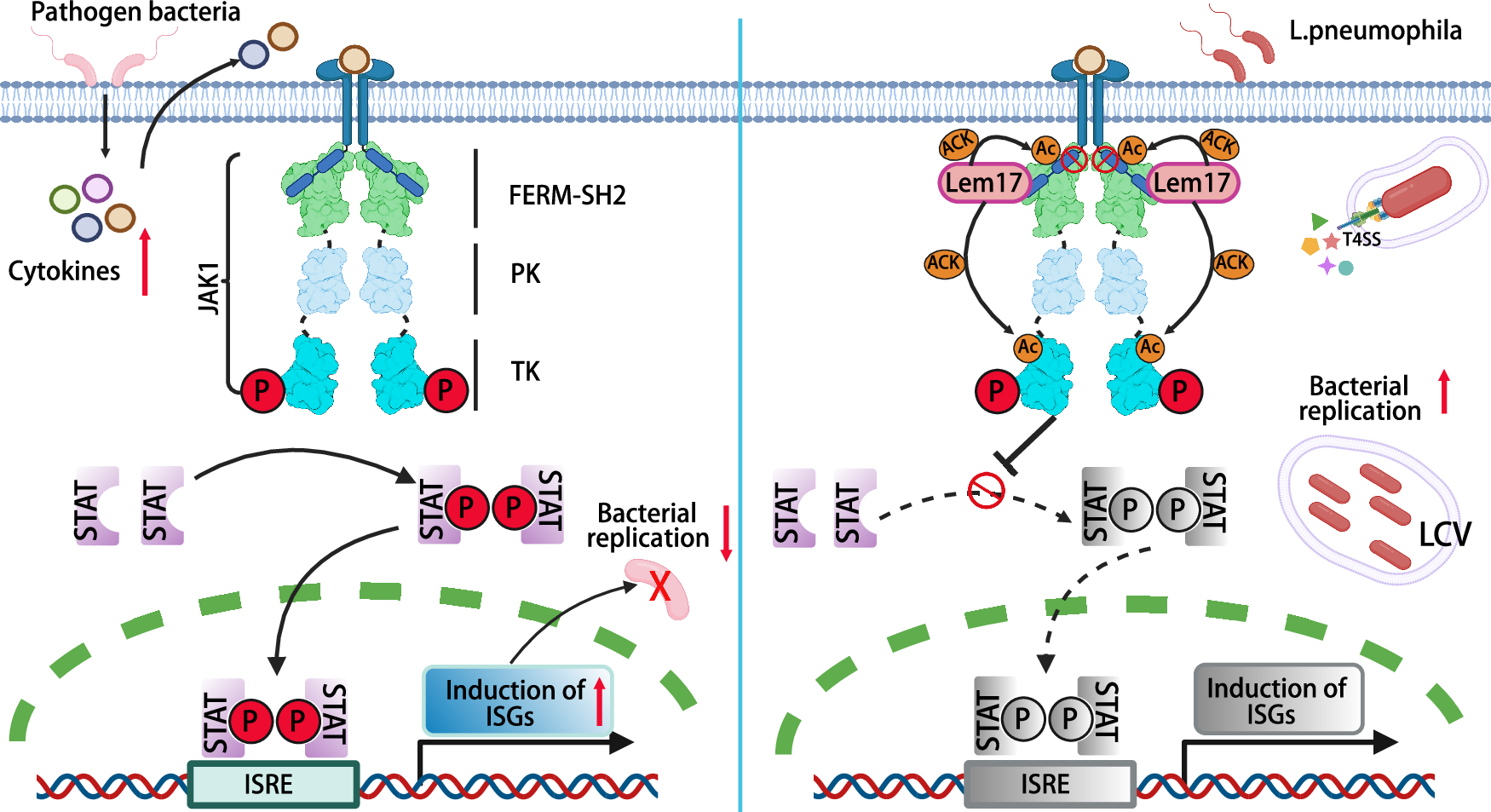

Fig. 6: A model of Lem17-mediated facilitation of L. pneumophila intracellular growth.The alternative text for this image may have been generated using AI.

ACK: Acetyl-CoA; Ac: Acetylation; P: phosphorylation; LCV: Legionella-containing vacuole; T4SS: Type IV Secretion System of Legionella. TK: Kinase domain; PK: Pseudokinase domain. ISGs: Interferon-stimulated genes. ISRE: Interferon-Stimulated Response Element. This Figure was created in BioRender. Yang, Y. (2026) https://BioRender.com/o2d84se.
