Introduction

Isotopic labeling of organic compounds remains critical for advancements in life sciences and is heavily utilized in drug discovery, agricultural science, and medical imaging1,2,3,4. Replacing a common isotope with a rare or radioactive counterpart enables scientists to trace biological pathways and processes through mass spectrometry or radiation detection5,6. Although isotope labeling is common for small active pharmaceutical ingredients, studies on isotopically labeled biologics are not as advanced7,8, despite these larger biologics becoming increasingly prevalent in the pharmaceutical industry as life changing treatment for patients9. The reported methods to synthesize isotopically labeled antibodies, peptides, proteins, polysaccharides, and RNAs are notably sparse and are either resource intensive or based on conjugation chemistry10. Bypassing the requirement for lengthy multiple step syntheses, Hydrogen Isotope Exchange (HIE)11,12,13,14,15,16,17,18,19,20,21, considered as the most basic form of C-H functionalizations22,23,24,25,26, has emerged as a common method for introducing deuterium or tritium into complex molecules. While HIE methods for small molecules typically target aromatic structures, aliphatic C-H positions27 common in biologics remain challenging, particularly for selective labeling in aqueous buffers28,29. Strategic isotopic placement is crucial as hydrogen’s involvement in all metabolic processes30 increases the risk of losing tritium labels compared to carbon-14. For this reason, methods targeting inactivated C-H positions are valuable for creating tritium tracers with broader applications in life sciences, especially for in vivo experiments.

Over the past decade, numerous research teams have reported significant advancements in HIE labeling by incorporating deuterium into amino acids and peptides (Fig. 1A). There was limited success or evidence in adapting these methods to tritium applications. Early HIE deuteration methods utilized strongly acidic conditions; in 2013 for example, Hashimoto developed a method for HIE on aromatic α-amino acids and related peptides using deuterated trifluoromethanesulfonic acid (TfOD)31. The process showed consistent hydrogen/deuterium substitution with retention of stereochemistry for phenylalanine for all aromatic C-H positions, while tyrosine exhibited specific substitution at the ortho-C-H sites of its phenol component. Recently, Kim reported the enantionselective deuteration of α-amino acids by base catalysis using only sodium ethoxide (NaOEt) in deuterated ethanol (EtOD) and no external chiral source. The protocol is especially noteworthy because it shows chirality retention on optically active α-amino acid derivatives when α-deuteration is obtained in protic solvents32. In 2015, Pieters devised a selective heterogeneous catalyzed method for enantiospecific C(sp3)-H bond activation and subsequent deuteration, utilizing deuterium gas as the deuterium source and heterogeneous RuPVP coated nanoparticles as catalysts33. The fully stereoretentive HIE was observed selectively only at the C-H α-position of primary amine moieties. Even though no protecting groups were applied, the reaction could not be transferred to tritium conditions. Ligated iridium and ruthenium nanoparticles were reported by Chaudret and Lippens to deuterate l-lysine predominantly at the α-nitrogen positions34,35. In this context Roche reported similar selectivity in a scalable method for the stereoretentive deuteration of amino acids and amines at C-H-α amino positions applying Ru/C and deuterium oxide (D2O)36. An eco-friendly Pd/C-Al-D2O catalytic system for the chemo/regioselective H/D exchange of amino acids was showcased by Török in 2022. This method leverages the in situ generation of D2 gas through aluminum and D2O interaction and the palladium catalyst facilitating the reaction37. Gunanathan applied the homogeneous catalyst monohydrido-bridged ruthenium complex [{(η6-pcymene) RuCl}2(μ-H-μ-Cl)] in selective HIE of primary and secondary α-amines, amino acids, and drug molecules using D2O as deuterium source38. Takeda, Moriwaki, and Soloshonok enhanced the method by achieving enantioconvergent deuteration of amino acids using a chiral nickel complex via dynamic kinetic resolution and MeOH-d4 as an isotope source. With the appropriate choice of ligand configuration, the α-deuterated amino acids could be synthesized in both l- and d-enantiomers. However, a significant constraint of this approach is the need for stoichiometric amounts of the chiral nickel complex, where the deuterated products are released after being treated with hydrochloric acid39. In 2018 Atzrodt and Derdau demonstrated the use of iridium(I)-catalyst in HIE of aliphatic C-H positions of protected amino acids and smaller peptides with up to four amino acids40. The method was transferred to tritium, with protected amino acids and aprotic, organic solvents were used at elevated temperatures. In 2017 the MacMillan group reported the direct installation of deuterium or tritium at α-amino C(sp3)-H bonds by a photoredox-mediated hydrogen atom transfer (HAT) protocol utilizing an iridium(III)photo-catalyst and D2O/T2O as isotope sources under mild conditions (room temperature)41. While the initial report focused on tertiary amines, Derdau could extend the conditions to primary and secondary amines including amino acids by modifying the base and reported one tritium reaction with l-lysine with THO as the isotope source42. Recently, enzyme catalysis was applied to selectively achieve a racemization-free α-deuteration of l-amino esters by using a pyridoxal phosphate (PLP)-dependent enzyme (SxtA AONS)43. In 2023, Hai discovered that PLP Mannich Cyclase has shown proficiency in incorporating deuterium in the alpha-position of various l-amino acids applying D2O as D-source44. Moreover, Buller reported the site-selective deuteration of amino acids using a dual-protein catalytic system. Interestingly, an aminotransferase (DsaD) can be used in combination with a small partner protein (DsaE) to obtain H/D exchange on the C-H α- and C-H β - positions of amino acids, while reactions that involve only DsaD yield exclusively Cα-deuteration45. In selective HIE conditions, the catalyst typically coordinates with a heteroatom like nitrogen or oxygen, making most HIE methods adjacent to the amine group. Even though there are already significant advances in the field, there is currently no selective method in buffers for deuteration or tritiation of unprotected amino acids or peptides which is needed for preparation of radiotracer biologics in a single reaction step in aqueous media. In this work we report a method for selective HIE reactions on unprotected amino acids and oligopeptides by the formation of in situ catalytic system using D2 and T2 gas as isotope sources. Mechanistic investigations were experimentally initiated and assisted by DFT calculations, revealing a complex path leading to the formation of the active species and the consequent selective labeling on the aliphatic C-H positions.

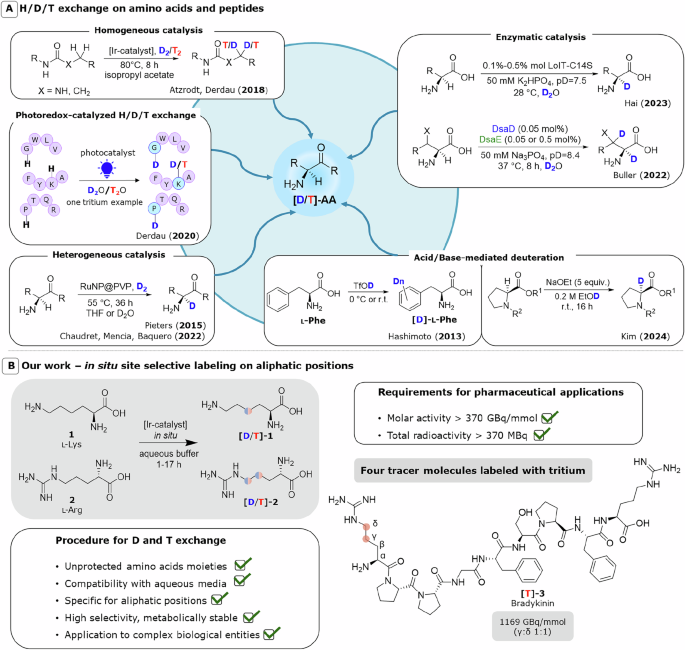

Fig. 1: HIE applied to amino acids.
Fig. 1: HIE applied to amino acids.
Full size image

A representative methods for HIE applied to amino acids. B selective HIE labeling of unprotected amino acids on aliphatic positions and its application to tritium labeling of peptides in buffer, red/blue dot = isotope labeling position.

Results and Discussion

We started our search for a catalytic system for aliphatic C-H positions by testing various metal precursors and ligands in an HIE reaction with a 2-piperidyl-pyrimidine derivative 4 in water, using D2 as the D-source, at 90 °C (Fig. 2A). The groundwork for our research stemmed from earlier studies on aliphatic HIE in organic solvents46 and aromatic HIE in water28,29. We were delighted to discover that our modular in situ approach47,48, employing various transition metal pre-catalysts along with nitrogen, phosphorus, or carbene ligands, was able to generate an active HIE catalyst producing promising results with deuteration at C(sp3) positions in aqueous buffers. While the in situ formed catalytic systems, comparable to iridium(I) catalysts reported by Crabtree49, Kerr50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66 or Heys67,68,69,70,71,72, resulted only in low aliphatic deuterations under the tested reaction conditions, we found a significant HIE activity for iridium cyclooctadiene (COD) pre-catalysts, [Ir(COD)Cl]2 or [Ir(COD)(OMe)]2 with phosphine ligand L5 and rhodium pre-catalyst [Rh(COD)OH]2 with NHC carbene ligand L3 (Fig. 2A). Even though iridium and rhodium catalysts showed both significant HIE for the model substrate 4, we also observed saturation of the pyrimidine ring under rhodium catalysis (Figure S10, page 14 of Supplementary Information). Nevertheless, we decided to screen substrate specificity of the rhodium pre-catalyst with NHC carbene L3 and both iridium pre-catalysts with phosphine ligand L5 against five different amino acids AAs such as lysine (basic), histidine (aromatic, basic), glutamic acid (acidic), serine (neutral), and tryptophane (neutral, aromatic). We were interested to see if our discovered C(sp3)-HIE activity could be transferred to monomeric building blocks of biologicals (Fig. 2B). While we found no HIE product for most tested amino acids, we observed deuterium incorporation in l-lysine 1 with 1.1 D/molecule. In the next optimization round, we screened 15 different phosphine ligands L5-L19 in the HIE reaction of l-lysine 1 in a 1:2 ratio with pre-catalyst [Ir(COD)Cl]2 in pH 9 borax buffer at 90 °C (Fig. 2C). We found that tris-(ortho-methoxyphenyl)phosphine L11 showed the best results and increased the deuterium incorporation to 1.5 D/molecule. Finally, we further examined reaction parameters such as time, catalyst loading, phosphine equivalents or temperature (Section 4, pages 17–25 of Supplementary Information) and optimized the conditions to reach 1.7 D/molecule for l-lysine 1. We observed that all parameters are crucial for the success of the reaction. Prolonging of the reaction time over 60 min or higher amounts of catalyst loading than 2.5 mol% yielded a significant decrease of deuterium content in the product. When the amount of the catalyst was increased to 7.5 mol% the formation of less reactive metal clusters was detected (Table S7, page 19 of Supplementary Information). While it is described that in organic media these metal particles precipitate with pre-catalyst [Ir(COD)Cl]273 or [Ir(COD)(OMe)]274 under reductive conditions (H2/D2) within seconds, this process is inhibited in low catalyst concentrations in the presence of the lysine substrate in water. We concluded that without the stabilization of the metal complex due to the substrate, metal particles were likely formed, which are known to catalyze side reactions with water that decrease the amount of deuterium in the gas phase75.

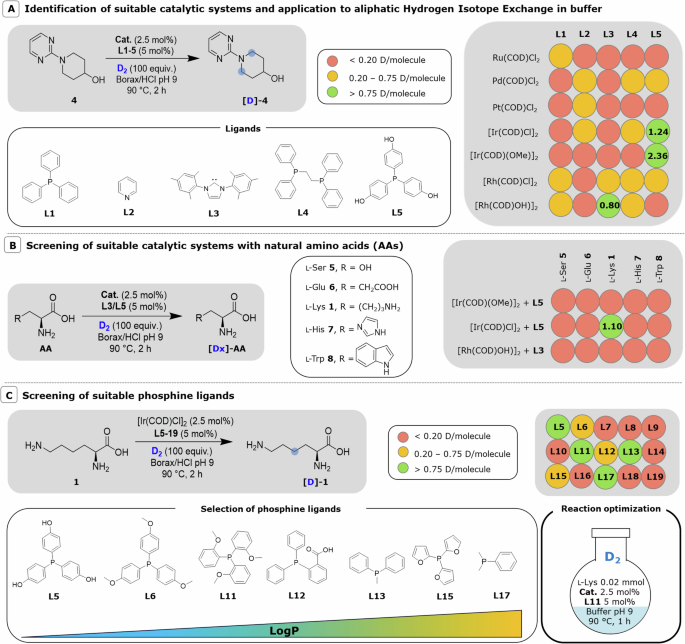

Fig. 2: Reaction optimization.
Fig. 2: Reaction optimization.
Full size image

A catalyst system identification; B screening of identified catalytic systems with different amino acids; C phosphine ligands screening. General conditions: 0.02 mmol substrate, 2.5 mol% pre-catalyst (Cat.), 5 mol% ligand, Borax/HCl buffer pH 9, 90 °C, 2 h. Deuterium content analyzed by LC-MS. Color coding: red for <0.20 D/molecule, orange 0.20−0.75 D/molecule, green > 0.75 D/molecule. LogP chart: from less (blue) to more lipophilic (yellow); blue dot = deuterium labeling position.

As optimized HIE conditions we identified for 0.02 mmol scale lysine substrate: 2.5 mol% [Ir(COD)Cl]2, 5 mol% phosphine L11, 100 equiv. D2, 3 mL of Borax/HCl buffer pH 9, 90 °C, 1 h.

Interestingly, proton and deuterium NMR studies disclosed a unique label position for lysine at the γ-CH2 group. As this HIE selectivity for iridium(I) catalysis was surprising, it triggered further experiments to understand the reactivity and the reaction mechanism. Experimentally we examined HIE reactions with simplified analogs based on lysine (Fig. 3A). Amino- or/and carboxylic-substituted mono- and di-functionalized hydrocarbons were tested. Mono-functionalized compound 12 showed no HIE activity at all, indicating the need for two functional groups. Diamines 13-14 gave selective deuteration in the γ-position with 1.0–1.1 D/molecule. The HIE reaction with 6-aminopentanoic acid 15 showed a significant decrease in deuterium incorporation (0.2 D/molecule) compared to lysine 1 and diamines 13-14. Cyclic diamines such as compound 17 resulted in decreased deuterium incorporation as well. Interested by the obtained result with compound 17, used as mixture of cis- and trans-isomers, we explored the reaction outcome when the pure 17-cis and 17-trans isomers were used. Only compound 17-cis was deuterated in the reaction conditions (Figures S52–S55, pages 57–60 of Supplementary Information), showing the need of having both amino-groups on the same side of the plane represented by the cyclic core of the molecule. Enlargement of the carbon chain by one carbon yielded the HIE product 18 with deuterium in both the 3- and 4-position. Interestingly, diamine 9 with four carbons in the chain resulted the HIE product with deuterium at all C-positions. No deuterated product was observed for prolongated chains of seven (19) or eight (20) carbons. Besides lysine 1, we also found arginine 2 as suitable substrate under the HIE reaction conditions, however with lower deuterium incorporation of 0.8 D/molecule and a slightly changed selectivity, resulting in a 1:1 ration between positions γ and δ. Amidine 10 was selectively deuterated on one position resulting in 0.2 D/molecule. Interestingly, when the amine moiety was substituted with a carboxylic acid (11), no deuterium incorporation was obtained.

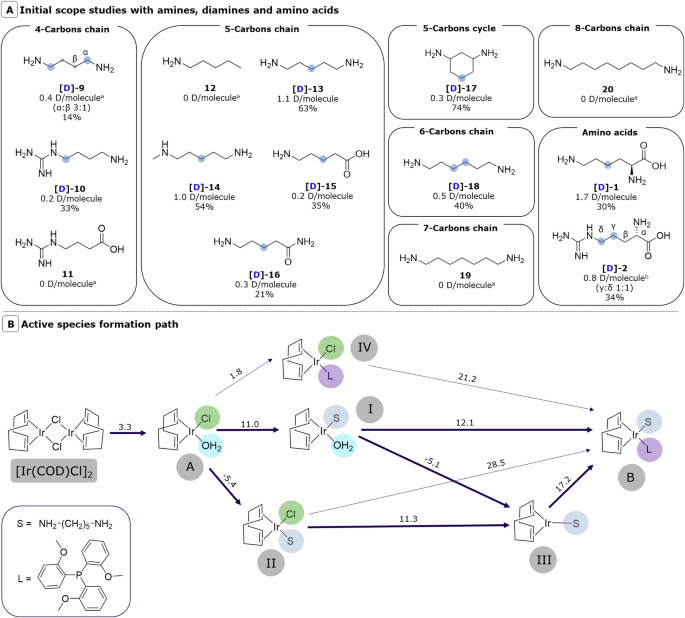

Fig. 3: Mechanistic studies.
Fig. 3: Mechanistic studies.
Full size image

A initial scope of deuteration with functionalized hydrocarbons and amino acids (blue dot = deuterium). Conditions: 0.02 mmol substrate, 2.5 mol% [Ir(COD)Cl]2, 5 mol% ligand L11, Borax/HCl buffer pH 9, 90 °C, 1 h when not indicated otherwise. Deuterium content analyzed by 1H-NMR when not indicated otherwise. Yield obtained with quantitative NMR. a) deuterium content analyzed by LC-MS; b) conditions for l-Arg: 0.02 mmol substrate, 5 mol% [Ir(COD)Cl]2, 10 mol% ligand L11, Borax/HCl buffer pH 9, 90 °C, 17 h; (B) DFT calculations for the pathways leading to the active species formation. Reaction free energies ΔGr (kcal/mol) are given above the corresponding reaction arrows, most energetically favorable pathways are represented with thick arrows.

The unexpected experimental results triggered intensive theoretical investigations using Density Functional Theory (DFT) calculations where a great number of plausible intermediate species were investigated in terms of their thermodynamic profile within a reaction network. For this, we applied the M06-2X level of theory which provides good accuracy for thermochemistry and kinetics at reasonable computational cost76.

Interestingly, only [Ir(COD)Cl]2 instead of [Ir(COD)OMe]2 was leading to the deuterated product. Calculations indicated that the different results are due to different energetics of the breakdown of the dimeric complex in water. We found the breakdown to be mildly endergonic (ΔGr = +3.3 kcal/mol) for [Ir(COD)Cl]2, while it was strongly endergonic (ΔGr = +23.1 kcal/mol) for [Ir(COD)OMe]2. These unexpected findings provide an explanation for the different experimentally obtained HIE outcomes. Within the reaction conditions used, different pathways can happen simultaneously leading to a complex reactivity network for the active species formation. However, the success of the selective HIE reaction is attributed to the stabilization of the iridium species by the substrate at room temperature and throughout the catalytic cycle at elevated temperatures. The excess substrate ensures coordination, preventing catalyst inactivation or nanoparticle formation. Notably, calculations indicate that the phosphine ligand is not essential for stabilization post-COD hydrogenation, as coordination with two or more substrates provides similar complexation energies. However, the phosphine ligand is critical for facilitating HIE during the C-H pincer insertion product step. As well, the ortho-methoxy substituent could facilitate the exchange of water and substrate at the ligand sphere of the catalyst due to supporting polar interactions between the methoxy group and positively polarized hydrogens of water and substrate molecules.

Based on the experimental results and the DFT calculations we propose the following mechanism for the formation of the catalytic active species (Fig. 3B). Upon introduction of the [Ir(COD)Cl]2 pre-catalyst in the aqueous solution at pH 9, the iridium atom coordinates with the one molecule of water, breaking the dimeric complex and forming complex A in a mildly endergonic step (ΔGr = +3.3 kcal/mol). From the resulting complex A, heating up to 90 °C promotes that substrate and ligands compete at the Ir(I)-center giving rise to multiple reaction paths leading to d8 square planar Ir(I) complexes with COD and up to two ligands and/or substrates. We found an energetically reasonable path where in a first endergonic step (ΔGr = +11.0 kcal/mol) chlorine is replaced by the substrate (I), in this case represented as compound 13, to form a N-coordination with the iridium atom. Subsequently, an endergonic displacement of water by one ligand molecule leads to the active species B (ΔGr = +12.1 kcal/mol). However, it cannot be ruled out that other pathways leading to B can simultaneously occur through the formation of different intermediates (II, III, IV). The postulated mechanism upon addition of D2 gas (Fig. 4A) starts with the reduction of the COD and the direct coordination of the iridium atom with deuterium and two additional molecules of water (C). This is an exergonic reaction (ΔGr = −10.5 kcal/mol) to form a d10 octahedral complex as observed in earlier studies28,29. At the same time, heating at 90 °C promotes the displacement of one molecule of solvent by another substrate molecule (D) (ΔGr = −0.8 kcal/mol), which is removed from the complex due to a bidentate coordination between the iridium metal and the two amino groups of the same substrate molecule (E) in an exergonic fashion (ΔGr = −0.7 kcal/mol). Upon loss of one molecule of water, the coordination complex (F) is formed in an exergonic process (ΔGr = −4.1 kcal/mol). This is followed by the formation of the CH insertion product (G) where the iridium is coordinated with both the γ carbon atom on the molecule and its C-H bond. Overall, the formation of the CH insertion product (G) on the energetically favorable γ position is obtained in an endergonic step (ΔGr = +13.7 kcal/mol), representing the rate determining step of the catalytic cycle. Successive H/D exchange yields intermediate H (ΔGr = −0.1 kcal/mol). The H/D exchange that occurs between the insertion products G and H is due to the fluxionality of the dihydrogen hydride that allows he cis-position orientation of the isotopic hydrogen in relation to the Ir–C bond58 77. This complex then undergoes C − D bond formation, obtaining coordination complex I, with the introduction of the deuterium atom on the molecule. Upon rehydration, complex J is generated (ΔGr = 4.0 kcal/mol), maintaining the bidentate coordination of the iridium with the labeled substrate. Liberation of HD gas and introduction of water and D2 gas leads to the regeneration of active complex C (ΔGr = +0.3 kcal/mol), being coordinated to only one molecule of substrate and ready to start the cycle again. The release of the labeled compound is not immediate and is subordinated to the formation of the bidentate complex E. The significance of the pincer-type CH insertion products G and H is further supported by our investigations into alternative insertion pathways. We examined reaction paths via single-dentate insertion products, as well as insertion products without ligands and with two ligands. In all cases, the reaction energies for these alternative CH insertion products were higher than those in our proposed mechanism.

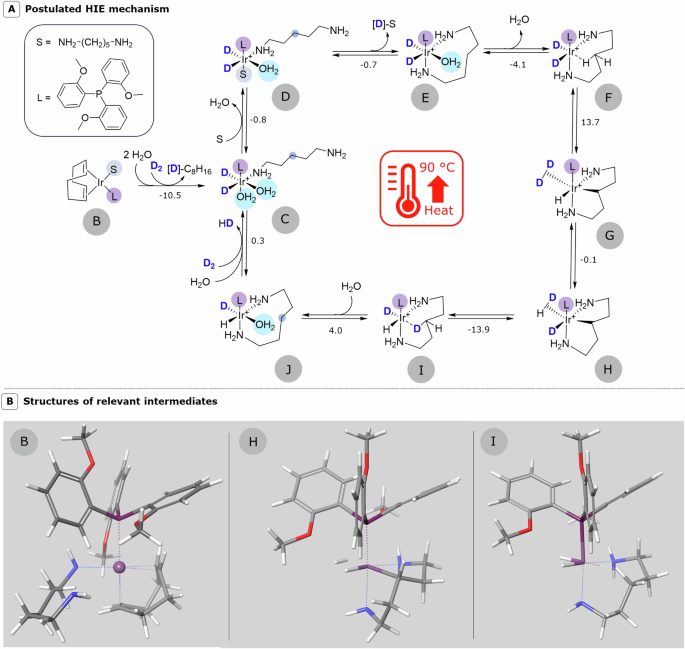

Fig. 4: Postulated mechanism.
Fig. 4: Postulated mechanism.
Full size image

A Postulated HIE mechanism upon introduction of D2 and heating at 90 °C. The numbers below the arrows stand for the calculated energy ΔGr (kcal/mol); (B) Structures of intermediate complexes involved in the H/D exchange. Blue dot = deuterium labeling position.

DFT calculations were conducted for the insertion step for each of the carbon atoms in the model compound to explain the selectivity in deuteration (Section 11.8, page 189 of Supplementary Information). Although the reaction energies for iridium insertion into the CH bond in the alpha, beta, or gamma positions were strongly positive, the lowest barrier was identified at the gamma position with ΔGr = +9.4 kcal/mol. Despite heating the reaction mixture to 90 °C, the energy was insufficient to enable deuteration at the alpha and beta positions, respectively. For diaminobutane 9 or diaminohexane 18, selectivity was partially lost due to ring strain in the chelation complex either simplifying coordination with iridium or making it impossible as seen with diaminoheptane 19 or diaminooctane 20. Moreover, we examined the impact of carboxy or carbonamide functions on coordination and complex formation. Lower HIE results in specific compounds showed that replacing an amine group with a carboxy derivative reduces deuteration. We propose that this happens because the carboxy anion strongly complexes with iridium, increasing electron density and making CH insertion less likely. Moreover, further investigation was carried out on the different energies between hydroxy and amino-mediated coordination in the catalytic system. One striking difference was identified, however, and this concerns the elimination of water from E to form the reactant complex F. While this step is exergonic (−4.1 kcal/mol) for amino, it is endergonic for hydroxy (+3.0 kcal/mol). We explain this with a stronger coordinating ability for NH2 compared to OH where excess of electrons makes water leaving more feasible. Furthermore, this is supported further by the finding that the formation of insertion product G requires more energy for NH2 (+13.7 kcal/mol) compared to OH (+12.2 kcal/mol). On the other hand, we found that the regioselectivity in pincer-type species is not affected by electronics, but most probably due to intrinsic geometric constraints. Lysine and arginine compete for iridium coordination at their alpha amino- or carboxy groups. The HIE reaction involves key processes like iridium substrate complexation, CH activation, and substrate exchange at the catalyst sphere, making it difficult to predict the most influential parameter due to complex kinetic and energetic factors. This challenge is significantly greater for larger peptides.

To study the scope of the method, we have performed HIE reactions on peptides 21–27, containing 2-7 different amino acids (Fig. 5A). In full alignment with the results in Fig. 3, we found deuteration only in the γ-position of the N-terminal lysine (23–27) with up to 1.2 D/molecule. For small peptides containing N-terminal arginine (21–22), we observed deuteration up to 1.0 D/molecule in the γ- and δ-positions in a 1:1 ratio. Due to the complexity of the 1H-NMR spectra of several peptides, the quantitative analysis of deuteration was done by HR-MS. Nevertheless, we confirmed the labeling position with deuterium NMR. Under the basic reaction conditions deamidation can occur if asparagine or glutamine are present in the peptide. However, in some cases (e.g., compound 27), glutamine was stable. Furthermore, analysis of the crude deuteration reaction of bradykinin 3, showed only low decomposition side products (Figures S64, S65, page 68 of Supplementary Information). Therefore, to transfer the deuteration method to tritium, the reactions were optimized at low pressure (100–300 mbar) with 8–10 equiv. of deuterium in a pressure-controlled manifold system (Table S12, page 140 of Supplementary Information). Finally, the tritium reactions (with 130–149 GBq tritium gas) yielded the corresponding peptides in a single reaction step with specific activities of 455–1865 GBq/mmol (corresponding to up to 1.7/T molecule). Highly sensitive tritium NMR experiments demonstrated the high selectivity of the method on bradykinin 3 and in complex peptides 28-29 with up to 13 amino acids (Fig. 5B). Interestingly, HIE reactions with deuterium or tritium showed no significant difference in the hydrogen isotope exchange outcome. This is in line with our studies of the kinetic isotope effect with lysine 1 at 90 °C (Table S13, pages 183–184 of Supplementary Information). We calculated the Ki for the H/D exchange to be close to 1 (1.24 precisely). We propose that under the same reaction conditions, the Ki of H/T exchange is not significantly increased, which makes the deuteration reactions suitable simulations for later tracer reactions with tritium.

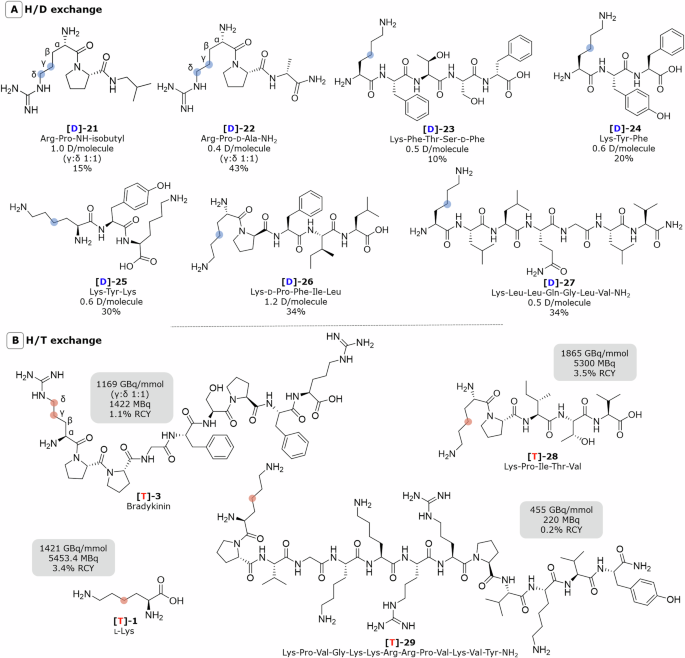

Fig. 5: HIE on complex peptides.
Fig. 5: HIE on complex peptides.
Full size image

A Deuterium labeling of peptides (blue dot). Conditions for [D]−21 and [D]−22: 0.02 mmol substrate, 2.5 mol% [Ir(COD)Cl]2, 5 mol% ligand L11, Borax/HCl buffer pH 9, 90 °C, 17 h. Conditions for [D]−23 to [D]−27: 0.02 mmol substrate, 2.5 mol% [Ir(COD)Cl]2, 5 mol% ligand L11, Borax/HCl buffer pH 9, 90 °C, 1 h followed by second addition of 2.5 mol% [Ir(COD)Cl]2 and 5 mol % ligand L11. The reaction was left running for at 90 °C for 1 h. B Tritium labeling of amino acids and peptides (red dot). Conditions: optimized for each substrate, detailed information in Section 9, pages 141–182 of Supplementary Information).

We have developed a selective HIE method in buffers to introduce deuterium and tritium into unprotected oligopeptides. Through this achievement, radioactive tracer molecules can be produced in a single step with specific activities of up to 1865 GBq/mmol. The labeling positions in lysine and arginine are non-activated and potentially metabolically stable, opening the possibility to study the behavior of labeled complex peptide-based drugs in in vitro or in vivo experiments in the future. This is particularly interesting as isotopically labeled biologics are often overlooked, despite these larger biologics becoming increasingly prevalent in the pharmaceutical industry and serving as life-changing treatments for patients. Furthermore, we have gained insights into the complexation mechanism of the in situ formed catalytic system. DFT calculations revealed the complexation of only one phosphine ligand and the protective nature of the substrate, which prevents heterogeneous metal particle formation.

Methods

Detailed methods for reaction optimization, HIE reactions and data analysis can be found in the Supplementary Information document with their related.

Analytical methods

LC-MS spectra were obtained on Agilent 1200 Series (Agilent Technologies), Column: Luna C18(2) 10 × 2 mm, particle size: 5 µm, Mobile phase A: H2O + 0.05% TFA, Mobile phase B: ACN + 0.05% TFA, Flow rate: 0.5 mL/min, Detection: UV 254 nm and UV 210 nm.

HR-MS spectra were obtained on a Vanquish (Thermo Fisher) couple with a Bruker Compact QTOF, Column: CSH Peptide C18-N11, 150 × 2.1 mm, particle size: 1.7 µm, Mobile phase A: H2O/ACN/TFA 900:100:0.5, Mobile phase B: H2O/ACN/TFA 100:900:0.375, Flow rate: 0.25 mL/min, Detection: UV 10 nm, UV 220 nm, UV 254 nm and UV 280 nm.

Purification of peptides done by RP-HPLC, Column: HyPURITY C18 150 × 21.2 mm, particle size: 5 µm, Mobile phase A: H2O + 0.05% TFA, Mobile phase B: ACN + 0.05% TFA, Detection: UV 210 nm.

Stability test run by UHPLC. UHPLC spectra were obtained on a Vanquish instrument from Thermo Fischer Scientific, Column: Waters Acquity Peptide CSH 130 C18 150 × 2.1 mm, particle size: 1.7 µm, Mobile phase A: H2O/ACN/TFA 900:100:0.5, Mobile phase B: H2O/ACN/TFA 100:900:0.375, Flow rate: 0.5 mL/min, Detection: UV 220 nm and radiodetection.

1H NMR, 31P NMR, deuterium 2H NMR and tritium 3H NMR spectra were obtained on Bruker 300 UltraShieldTM spectrometer (Bruker BioSpin AG). The chemical shifts (δ) are expressed in ppm and are adapted to the proton signal of the respective solvent. The blue dots reported in the chemical structures as well as the blue arrows reported in the NMR spectra indicate the position(s) of hydrogen-deuterium exchange and are determined by 2H NMR run in non-deuterated solvent. For determination of NMR yields, a 39 mM stock solution of maleic acid (purchased from Sigma-Aldrich) in D2O was prepared. Each sample was solubilized in 0.7 mL of the prepared solution and analyzed by 1H NMR. All spectra were recorded at room temperature.

pH was measured using the Orion Star A211 pH meter (Thermo Fisher Scientific), and the pH meter was calibrated with pH 4/7/10 technical pH buffer solutions (VWR Chemicals).

General method for HIE reactions

A 6 mM stock solution of catalyst [Ir(COD)Cl]2 and a 30 mM stock solution of ligand L11 were prepared using dioxane as solvent.

The substrate (0.02 mmol, 1 equiv.) was dissolved in 3 mL of Borax/HCl Buffer pH 9, catalyst [Ir(COD)Cl]2 (2.5 mol%, 0.025 equiv.) and ligand L11 (5 mol%, 0.05 equiv.) were dispensed as the previously prepared stock solution. A stirring bar was added to each reaction flask, which was closed properly and connected to the gas inlet. The flask was evacuated until slight bubbling of the solution and then refilled with deuterium gas. This procedure was repeated three times. The reaction was stirred under D2 atmosphere (100 equiv.) at 90 °C for 1 h. For some of the l-Lys containing complex peptides after 1 h, catalyst (2.5 mol%, 0.025 equiv.) and ligand L11 (5 mol%, 0.05 equiv.) were dispensed in 0.5 mL of dioxane and added to the reaction mixture, which was left stirring for another 1 h. For l-Arg and peptides where this amino acid is contained, the reaction time was prolonged to 17 h. The reaction mixture was filtered through a syringe filter (0.45 µm) and one aliquot was analyzed by LC-MS. Additionally, water was removed by lyophilization. The filtered or purified sample was analyzed by 1H and 2H NMR.
