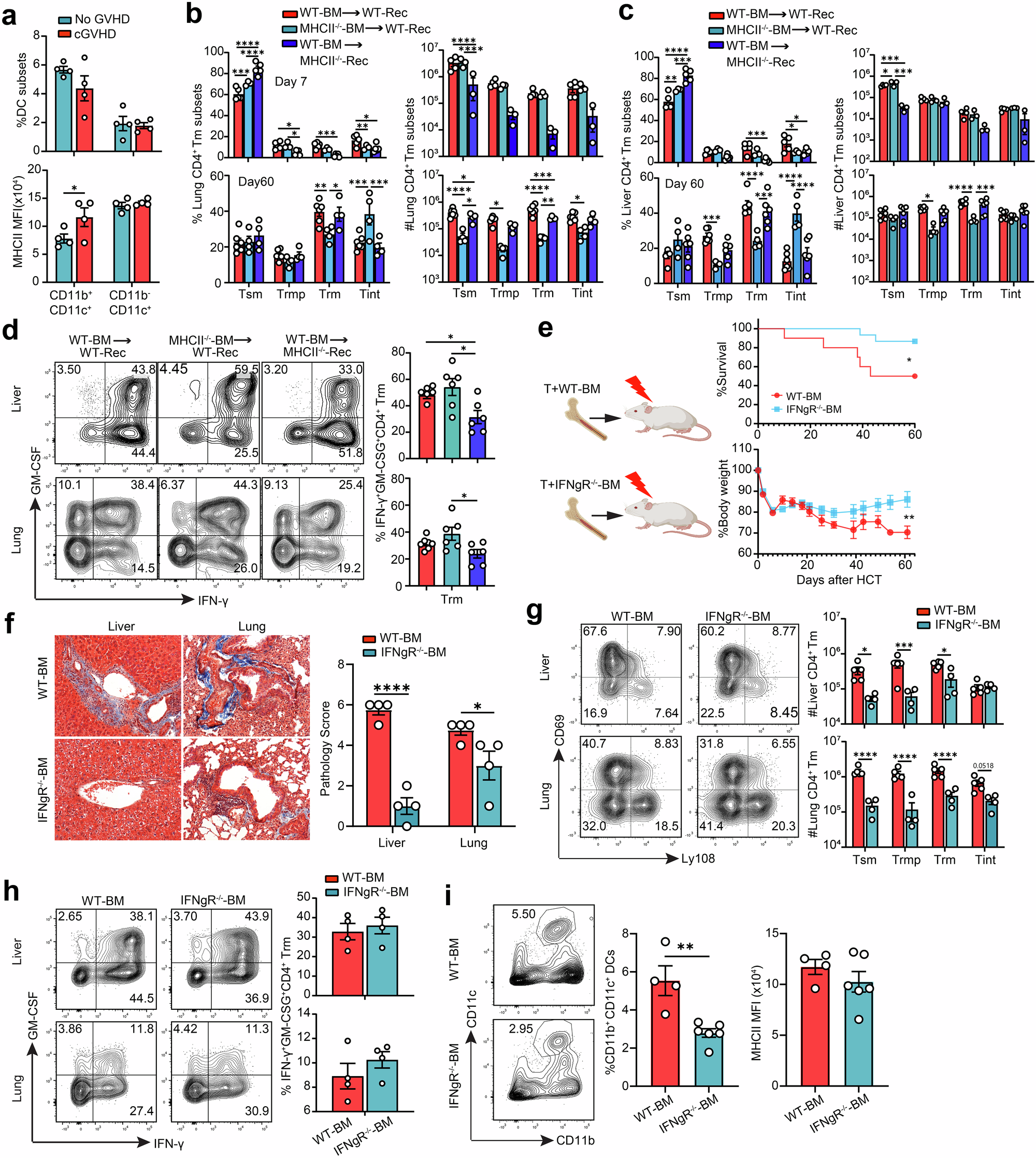

Fig. 6: Donor MHCII-mediated indirect antigen-presentation was required to maintain the pools of stem-like Tm and their progeny in GVHD target tissues.
