Fig. 5: Nonlinearity-enhanced dynamical backaction with dissipative coupling.

From: Tunable and nonlinearity-enhanced dispersive-plus-dissipative coupling in photon-pressure circuits

Fig. 5: Nonlinearity-enhanced dynamical backaction with dissipative coupling.

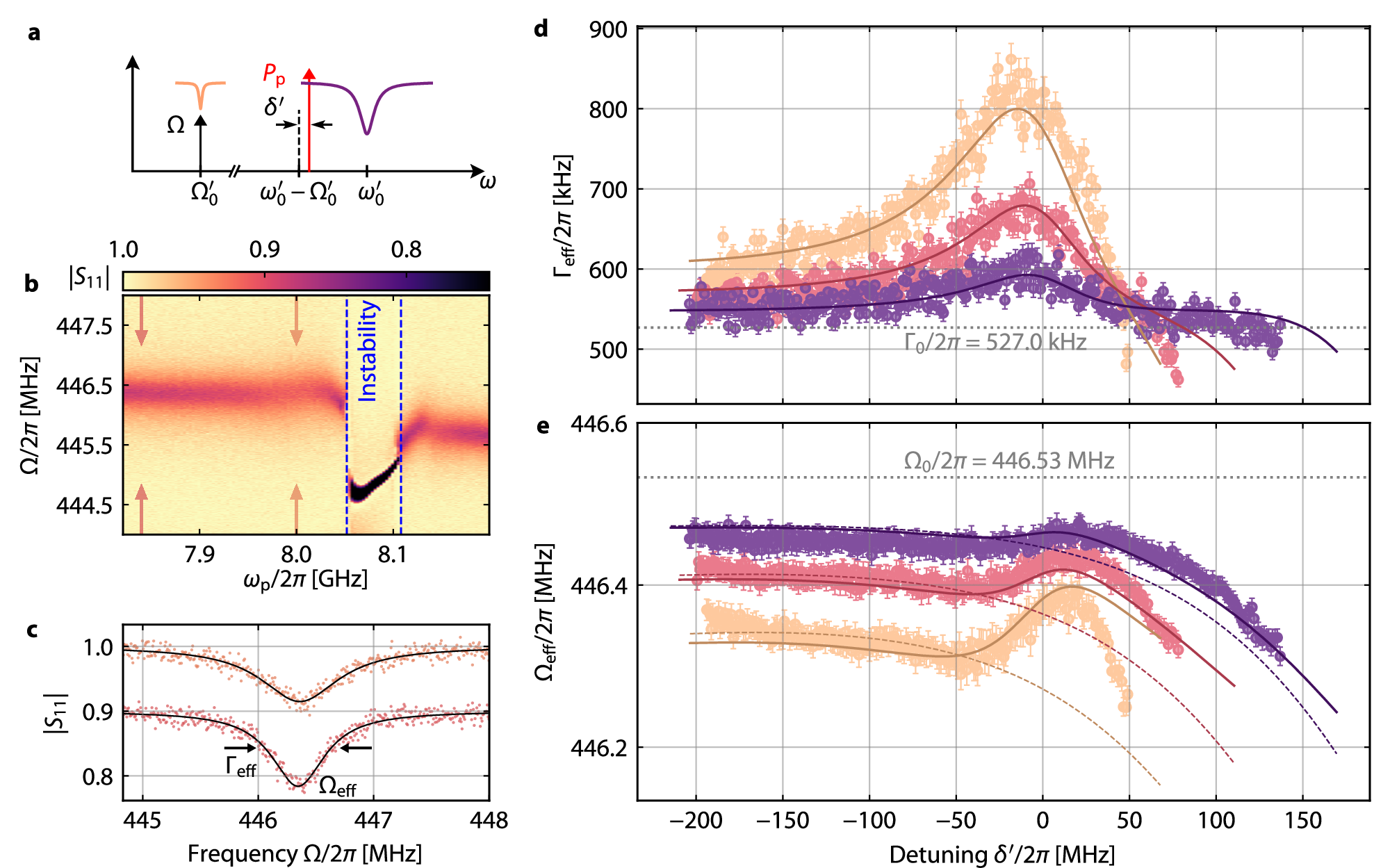

a Schematic of the experiment. A pump tone (red arrow) with frequency ωp and power Pp is applied around the red sideband of the HF mode. Detuning of pump from the red sideband is \(\delta^{\prime}={\omega }_{\mathrm{p}}-({\omega }_{0}^{{\prime} }-{\Omega }_{0}^{{\prime} })\). For each pair (ωpPp), the LF mode reflection is probed directly around \({\Omega }_{0}^{{\prime} }\) using the LF feedline and a VNA (black arrow). b Color-map of the LF reflection S11 vs. pump frequency ωp. When the pump is far red-detuned from the HF mode red-sideband, the resonance is nearly unmodified compared to the pump-free case. Just below \(\delta^{\prime}=0\) or ωp/2π ≈ 8.0 GHz, the absorption gets wider and shallower and slightly shifts in frequency; both effects indicate dynamical backaction at work. Strikingly, for ωp/2π ≈ 8.05 GHz, which is still around the cavity red-sideband, a parametric instability region appears, which is experimentally identified by a strongly deformed resonance feature in S11, and the simultaneous disappearance of the HF mode in the HF reflection54. The two pairs of arrows indicate the linescans shown in c. Top curve in c shows S11 at ωp/2π ≈ 8.0 GHz, the point of maximum photon-pressure damping, bottom curve is manually offset by  − 0.1 for clarity and is for ωp/2π ≈ 7.84 GHz. Symbols are data, lines are fits, from which we extract Ωeff and Γeff. d, e Effective LF mode linewidth Γeff and effective resonance frequency Ωeff vs. detuning \(\delta^{\prime}\) for three different Pp, color code for Pp identical to Fig. 4, cf. Supplementary Fig. 15 for the corresponding nc. Symbols are data and error bars are standard errors obtained from the fit routine, lines are theory curves. Note the two clearest signatures for dissipative coupling: first, the maximum for the photon-pressure damping is at negative detunings from the red sideband. And second, for positive detunings from the red sideband the total damping rate is smaller than the intrinsic damping rate Γeff < Γ0, where Γ0 is shown as dashed line. This indicates negative backaction damping with a red-detuned pump, and is the precursor for the approaching parametric instability. To fully model the data, we included a cross-Kerr frequency shift to the LF frequency \({\Omega }_{0}^{{\prime} }={\Omega }_{0}+{{{\mathcal{K}}}}_{\mathrm{c}}{n}_{\mathrm{c}}\) with \({{{\mathcal{K}}}}_{\mathrm{c}}=2\pi \times -130.8\,{\mathrm{Hz}}\), and a small nonlinear cross-damping \({\Gamma }_{0}^{{\prime} }={\Gamma }_{0}+{\kappa }_{\mathrm{c}}{n}_{\mathrm{c}}\) with κc = 2π × 38.4 Hz. Dashed lines in e show \({\Omega }_{0}^{{\prime} }\).
