Tunable and nonlinearity-enhanced dispersive-plus-dissipative coupling in photon-pressure circuits

Abstract

Photon-pressure circuits are the circuit implementation of the cavity optomechanical Hamiltonian and discussed for qubit readout, low-frequency quantum photonics and dark matter axion detection. Due to the enormous design flexibility of superconducting circuits, photon-pressure systems provide fascinating possibilities to explore unusual parameter regimes of the optomechanical Hamiltonian. Here, we report the realization of a photon-pressure platform, in which a GHz circuit interacts with a MHz circuit via a magnetic-flux-tunable combination of dispersive and dissipative photon-pressure. In addition, both coupling rates are considerably enhanced by nonlinearities of the GHz-mode, which leads to the multi-photon coupling rates scaling stronger with the pump photon number n_c than the usual $\sqrt{{n}_{\mathrm{c}}}$ dependence. We demonstrate that interference of the two interaction paths leads to a Fano-like response in photon-pressure induced transparency, and that the dynamical backaction is considerably modified compared to the dispersive case, including a parametric instability caused by a red-detuned pump tone.

Introduction

Superconducting microwave circuits have developed into one of the most exciting and versatile platforms for emerging technologies in both the quantum and the classical domain^1,2. Quantum processors^3,4, quantum simulators^5,6, frequency transducers^7,8, electron-spin-resonance detectors^9,10, or quantum-limited signal amplifiers^11,12,13 are just a few of the many groundbreaking results of the recent decade. Being highly flexible in frequency, linewidth and nonlinearity, it seems one can engineer a superconducting circuit implementation for any imaginable application on demand. One of the more recent developments in superconducting microwave platforms are photon-pressure circuits, i.e., the circuit quantum electrodynamics implementation of the optomechanical Hamiltonian, in which two oscillators are parametrically interacting through a radiation-pressure-like nonlinear coupling^14,15,16. Compared to cavity optomechanics¹⁷, photon-pressure circuits provide a large degree of designability and possess orders of magnitude larger single-photon coupling rates^18,19, which makes them not only interesting for applications, but also to study new regimes of radiation-pressure physics. Beyond a high-quality replication of optomechanical gold-standard experiments such as photon-pressure induced transparency^15,16, parametric strong coupling¹⁶ or sideband-cooling into the quantum regime¹⁸, photon-pressure circuits have allowed the realization of more sophisticated experiments with parametrically amplified coupling rates, nonreciprocal bath dynamics or effective negative mass modes based on their intrinsic Kerr nonlinearity^20,21.

All the existing experiments to date are based on dispersive photon-pressure, which is realized when the amplitude of one LC oscillator modulates the resonance frequency of a second. However, this is not the only possible interaction type, the amplitude of one oscillator might also modulate the decay rate of the other. The latter then corresponds to so-called dissipative photon-pressure, a type of radiation-pressure that has attracted considerable attention in optomechanical systems^{22,23,24,25,26,27,28,29,30,31,32,33,34}, especially from the theoretical viewpoint^{22,23,24,25,26,27,28,29,30} since it is not as straightforward to realize experimentally as its dispersive counterpart^31,32,33,34. Dissipative coupling would for instance allow groundstate-cooling in the sideband-unresolved limit²², i.e., to extend the quantum regime to lower photon frequencies, or to enable alternative protocols for squeezing and quantum-limited sensing^25,26,27. Therefore, the implementation of dissipative coupling would greatly enrich the capabilities of photon-pressure circuits, constitute a flexible testbed for dissipative optomechanics and enable kHz to MHz quantum photonics as e.g. required for dark matter axion detection with radio-frequency upconverters^35,36,37.

Here, we report the implementation of niobium-based photon-pressure circuits with both a dispersive and a dissipative interaction. The two participating LC circuits are coupled to each other through an asymmetrically shared nano-constriction-based superconducting quantum interference device (SQUID). The dissipative single-photon coupling rate of the system is flux-tunable with large values up to g_0κ/2π ~ 150 kHz, and—in contrast to earlier experiments with dissipative radiation-pressure in optomechanical systems—it is solely attributed to a modulation of the internal decay rate. As a consequence of the interference between the dispersive and the dissipative interactions, we observe a Fano-like modification of photon-pressure induced transparency, that provides an independent and simple measure to quantify the ratio between the two coupling rates. Since the GHz SQUID circuit possesses both a flux-dependent Kerr nonlinearity and nonlinear damping, we furthermore observe that the multi-photon coupling rates are not scaling $\propto \sqrt{{n}_{\mathrm{c}}}$ with the pump photon number n_c, but have contributions $\propto \sqrt{{n}_{\mathrm{c}}^{3}}$ and $\propto \sqrt{{n}_{\mathrm{c}}^{7}}$. Finally, we characterize the generalized dynamical backaction of the high-frequency (HF) intracavity fields to the low-frequency (LF) circuit in the presence of a red-sideband pump field. We find characteristic signatures of dissipative coupling contributions as well as a pump-power scaling in agreement with the nonlinearity-enhanced cooperativities. Our results lay the foundation for the experimental investigation of dissipative and nonlinearity-enhanced interactions in photon-pressure systems and related platforms like SQUID optomechanics^{38,39,40,41,42,43,44,45}, and constitute a stepping stone towards photon-photon backaction-cooling in the unresolved sideband regime and kHz quantum photonics. Facilitated by the use of niobium, all experiments presented here could be conducted at liquid helium temperatures, also opening the door for investigating radiation-pressure physics in the thermal regime and for photon-pressure experiments without the need for dilution refrigerators.

Results

Device and setup

Our photon-pressure device, discussed in Fig. 1 and Supplementary Notes 2 and 3, comprises a low-frequency LC circuit with a sweetspot resonance frequency Ω₀ = 2π × 446.7 MHz and a high-frequency quantum interference circuit with a sweetspot resonance frequency ω₀ = 2π × 8.497 GHz. Both circuits are composed of linear capacitors and multiple linear inductors (cf. Supplementary Note 2) and share as nonlinear inductance and central coupling element a rectangular SQUID. The Josephson elements in the SQUID are monolithic 3D nano-constriction junctions, fabricated by focused neon-ion-beam milling^46,47. For maximized photon-pressure coupling rates, the SQUID is galvanically shared by the two circuits, and the LF zero-point-fluctuation currents induce a zero-point-fluctuation flux Φ_zpf ≈ 198.3 μΦ₀ in the SQUID loop (containing both magnetic and kinetic contributions) with the flux quantum Φ₀ ≈ 2.068 × 10⁻¹⁵ T m², cf. Supplementary Note 3. Each of the two circuits is capacitively coupled to an individual coplanar waveguide (CPW) feedline with characteristic impedance Z₀ ≈ 50 Ω for driving and readout. Due to the galvanic coupling, the circuits can also be considered a single circuit with a LF and a HF mode, and we will use the words circuit and mode interchangeably in this manuscript.

Fig. 1: Niobium photon-pressure circuits based on a monolithic nano-constriction SQUID and operated in liquid helium.

a Simplified circuit equivalent. The HF mode (left half, purple and pink) combines two interdigitated capacitors C_idc with the inductors L₁, L₂ and L_c. The LF mode (right half, orange and pink) comprises a parallel-plate capacitor C₀ with an inductance composed of L₂, L_l and L_c. Both modes share the SQUID and parts of the linear inductance (in pink), and each mode is coupled to an individual feedline by coupling capacitors C_c and C_c0, respectively. b False-color scanning electron microscopy image of the device. Colored and light gray parts are Nb, dark gray and transparent parts are Si substrate and Si₃N₄ dielectric of the LF capacitor, respectively. Color-code equivalent to a. White box inset shows a magnification of the interaction part. The rectangle is the SQUID loop, and the LF zero-point-fluctuation current I_zpf flows through the SQUID from top to bottom, hereby threading the loop with a zero-point-fluctuation flux Φ_zpf. Black box inset shows one of the monolithic 3D nano-constrictions with inductance L_c (image rotated by 90^∘). c Simplified experimental setup. The device under test (DUT) is immersed in liquid helium (LHe) and connected to two coaxial lines for readout of the individual modes by a vector network analyzer (VNA). A HF sideband-pump field with frequency ω_p from a signal generator (SG) is combined with the HF VNA signal in a directional coupler. Input and output of each readout line are combined by means of further directional couplers and the HF return signal is amplified by a cryogenic amplifier depicted as triangle; the LF mode return signal is amplified by a room-temperature amplifier. A small magnetic-field coil is driven with a direct current (dc) source to induce a bias flux Φ_b into the SQUID. Gray rectangles represent attenuators. For more details cf. Supplementary Note 1. d Reflection S₁₁ from both circuits (Φ_b = 0) measured through their individual feedlines. Colored symbols are experimental data, black lines are fit curves. From the fits, we extract the resonance frequencies ω₀ = 2π × 8.497 GHz and Ω₀ = 2π × 446.7 MHz, as well as the total decay rates κ₀ = 2π × 44.9 MHz and Γ₀ = 2π × 525 kHz.

As superconducting material for all the metallic parts we chose dc-magnetron sputtered niobium with a critical temperature T_c ≈ 9 K, and as substrate we use high-resistivity intrinsic silicon with a substrate thickness t_Si = 525 μm. The bottom niobium layer – defining the HF circuit, the HF CPW feedline center conductor, the SQUID and the bottom electrode of the LF circuit capacitance – has a thickness t_Nb1 = 120 nm and the top layer – defining the top electrode of the LF capacitance, the LF CPW feedline center conductor, and all ground planes – has t_Nb2 = 300 nm. As dielectric for the LF parallel-plate capacitors C₀ and C_c0 we deposited 200 nm of silicon-nitride by means of plasma-enhanced chemical vapour deposition. All layers have been patterned by maskless optical lithography and reactive-ion-etching (bottom Nb layer) or liftoff (Si₃N₄ and top Nb layer). Further details regarding device fabrication can be found in “Methods—Device fabrication”.

For the experiments, the 10 × 10 mm²-large chip is wire-bonded to a microwave printed circuit board (PCB) and enclosed in a radiation-tight copper housing. A small electromagnetic coil is mechanically attached to the copper housing in order to apply a dc magnetic field perpendicular to the chip surface and to flux-bias the SQUID. For microwave control and response measurements, both on-chip feedlines are connected via CPWs on the PCB and PCB-SMP connectors to two individual coaxial cables, which combine both input and output (I/O) for each of the circuits by means of a directional coupler. The HF coaxial input line is highly attenuated to equilibrate the feedline thermal noise to the experiment temperature T_s = 4.2 K, and the HF output line is equipped with a cryogenic high-electron-mobility transistor (HEMT) amplifier to maximize the signal-to-noise ratio. On the LF side, both input and output line are slightly attenuated and the returning signal is amplified by a room-temperature HEMT. The two I/O line pairs are connected to individual vector network analyzers (VNAs), and the HF input line is additionally connected to a microwave signal generator, which provides the sideband-pump tone. All experiments reported here were conducted with the sample directly immersed in liquid helium.

As first experiment, we characterize the reflection scattering matrix element S₁₁ of the two circuits via their individual feedlines around their respective resonance frequencies. From fits to the absorption dips, cf. Fig. 1d and “Methods—Resonance fitting”, we extract the resonance frequencies of both modes (given above) as well as their internal and external decay rates κ_int = 2π × 38.2 MHz, κ_ext = 2π × 6.7 MHz for the HF circuit and Γ_int = 2π × 489 kHz, Γ_ext = 2π × 36 kHz for the LF circuit; data were taken at the flux sweetspot. Both circuits are undercoupled with κ_int/κ_ext > 1 and Γ_int/Γ_ext > 1. The high value for κ_int can be attributed to the nano-constrictions, which have been shown to have a suppressed critical temperature and therefore considerable quasiparticle losses at 4.2 K^46,47. However, this is not detrimental for the current experiment, but rather desired, since the high κ_int is directly related to the dissipative coupling contribution. The large Γ_int/Γ_ext has the advantage that the LF circuit does not need much attenuation in addition to the cable-attenuation to reach an effective mode temperature T_LF ≲ 10 K, which is a big advantage if a cryogenic LF amplifier is not available (as was the case for our experiment).

Flux-tunable photon-pressure interactions

The dispersive and dissipative single-photon coupling rates of a photon-pressure system are given by

$${g}_{0\omega }=-\frac{\partial {\omega }_{0}}{\partial {\Phi }_{{\rm{b}}}}{\Phi }_{{\rm{zpf}}}$$

(1)

$${g}_{0\kappa }=-\frac{\partial {\kappa }_{0}}{\partial {\Phi }_{{\rm{b}}}}{\Phi }_{{\rm{zpf}}},$$

(2)

respectively, with the bias flux though the SQUID Φ_b. Hence, to characterize the system and to select a good working point for the further experiments, as a next step we investigate the response of the HF resonance frequency and linewidth with respect to applied flux Φ_b. We sweep the current through the attached coil, and for each current value we take a trace of both the HF and the LF reflection with the VNAs. Although the LF circuit is also weakly flux dependent (cf. Supplementary Note 3), we focus our discussion on the HF mode here, since its properties determine the interaction between the circuits. Our findings are summarized in Fig. 2.

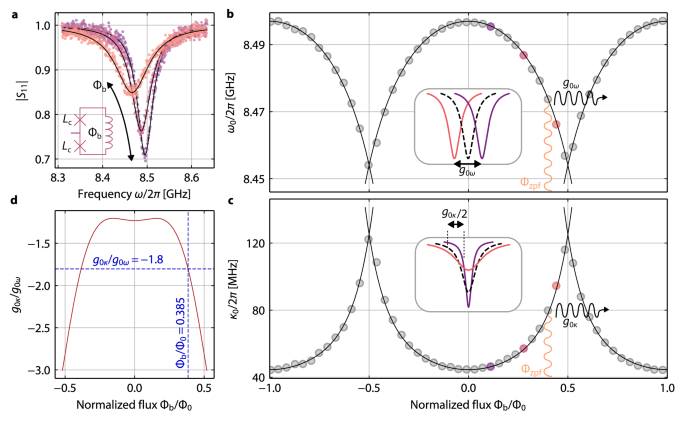

Fig. 2: Dispersive and dissipative photon-pressure coupling rates and their tuning with bias flux through the SQUID.

a Reflection ∣S₁₁∣ of the HF mode for three different bias-flux values 0.1 ≲ Φ_b/Φ₀ ≲ 0.45. With increasing bias flux, the resonance frequency shifts to lower values and the total linewidth increases. Symbols are data, lines are fits. The frequency-shift can be understood as an increase of the nonlinear constriction inductance L_c with increasing flux through the SQUID loop (cf. inset), the increase in linewidth by current-induced quasiparticles. b Resonance frequencies ω₀(Φ_b), extracted from fits to reflection data S₁₁ (cf. a), which show a periodic modulation with period Φ₀. Circles are data, line is a fit (cf. Supplementary Note 3). If the SQUID is biased to a constant value Φ_b/Φ₀ ≈ 0.385 and additional oscillating zero-point-fluctuation flux from the LF mode Φ_zpf ≈ 198.3 μΦ₀ threads the SQUID, this leads to a modulation of the HF resonance frequency. The total frequency-modulation induced by Φ_zpf is equivalent to the dispersive single-photon coupling rate g_0ω = 2π × 27.1 kHz. Inset schematic visualizes g_0ω. c Analogous to panel b, but for the total HF linewidth κ₀, which periodically modulates between  ~ 44.5 MHz and  ~ 125 MHz, revealing that despite the large decay rates the device is in the sideband-resolved limit with Ω₀/κ₀ ≳ 3.5 for all Φ_b. Circles are data, line is a polynomial fit (cf. Supplementary Note 3). At the operation point Φ_b/Φ₀ = 0.385, the LF flux Φ_zpf induces a dissipative photon-pressure interaction with single-photon coupling rate g_0κ = − 2π × 48.8 kHz. Inset schematic visualizes g_0κ. d Ratio of dissipative to dispersive single-photon coupling rate g_0κ/g_0ω vs. Φ_b, which is calculated from the fit curves in b and c. At the operation point for this work (marked by the crossing point of the blue dashed lines), we find g_0κ/g_0ω ≈ − 1.8.

Upon increasing Φ_b starting at the sweetspot Φ_b = 0, we observe a redshift of the HF resonance frequency and an increase of the linewidth. Over a larger flux range, we observe that both quantities periodically modulate with period Φ₀ as expected for a SQUID due to fluxoid quantization. Note however, that ω₀ and κ₀ = κ_int + κ_ext modulate with opposite trend, i.e., when ω₀ decreases κ₀ increases and vice versa. The maximum resonance frequency is found at the sweetspots Φ_b/Φ₀ = n with $n\in {\mathbb{Z}}$, while this is the flux of the lowest decay rate. The modulation range for the resonance frequency is ${\omega }_{0}^{\max }-{\omega }_{0}^{\min }\approx 2\pi \times 43\,{\mathrm{MHz}}$ and for the linewidth ${\kappa }_{0}^{\max }-{\kappa }_{0}^{\min }\approx 2\pi \times 81\,{\mathrm{MHz}}$, i.e., κ₀ changes by about twice the amount ω₀ does. From fits to the data points (for details see Supplementary Note 3), we determine the derivatives for both parameters to calculate the single-photon coupling rates g_0ω and g_0κ. Additionally, we obtain the ratio of the derivatives as a function of Φ_b, which is equal to the flux-dependent ratio of the coupling rates g_0κ/g_0ω.

As a good compromise between low circuit nonlinearity, medium total decay rate and maximum slope of both the tuning arcs, we choose the operation point Φ_b/Φ₀ ≈ 0.385. Combining all parameters, we determine the dispersive and dissipative single-photon coupling rates at this flux point as g_0ω = 2π × 27.1 kHz and g_0κ = 2π × − 48.8 kHz, respectively, which correspond to a large ratio g_0κ/g_0ω ≈ − 1.8. Note that depending on the exact flux-bias point, this ratio can be tuned between  − 1.2 and  − 3, cf. Fig. 2d. The HF resonance frequency and linewidth at the working point are ω₀ ≈ 2π × 8.476 GHz and κ₀ ≈ 2π × 73.9 MHz; the LF parameters are Ω₀ ≈ 2π × 446.3 MHz and Γ₀ ≈ 2π × 601 kHz. The external decay rates are nearly constant as a function of flux, and so all the variation of κ₀ with Φ_b and Φ_zpf can be attributed to κ_int, cf. Supplementary Note 3. Note though, that in general it is important to discriminate between internal and external dissipative photon-pressure, since they can lead to qualitatively and quantitatively different consequences; here ${g}_{0{\kappa }_{\mathrm{int}}}={g}_{0\kappa }$ and ${g}_{0{\kappa }_{\mathrm{ext}}}\approx 0$. Combined with the self-Kerr nonlinearity of the HF mode ${{\mathcal{K}}}\approx 2\pi \times -5.4\,{\mathrm{kHz}}$ (the LF self-Kerr is negligibly small), cf. Supplementary Note 7, the device is well in the sideband-resolved regime with Ω₀/κ₀ ≈ 6 while in principle allowing for strong sideband pump tones due to ${{\mathcal{K}}}/{\kappa }_{0}\ll 1$.

Photon-pressure induced Fano-transparency

To experimentally investigate the effects of the dissipative coupling contribution to the overall dynamics of the circuits, we begin with the protocol of photon-pressure induced transparency (PPIT). Here, a strong, fixed-frequency sideband-pump field is sent to the HF cavity around its red sideband ${\omega }_{\mathrm{p}}={\omega }_{0}^{{\prime} }-{\Omega }_{{\mathrm{eff}}}+{\delta }_{{\mathrm{eff}}}$ with $| {\delta }_{{\mathrm{eff}}}| \le {\kappa }_{0}^{{\prime} }/4$, and a much weaker VNA probe tone with frequency $\omega \sim {\omega }_{0}^{{\prime} }$ is used to characterize the modified HF reflection response in a frequency span of few ${\kappa }_{0}^{{\prime} }$ around ${\omega }_{0}^{{\prime} }$, cf. Fig. 3a. We prime all HF mode quantities here to indicate that they shift with the intracavity pump photon number n_c due to the Kerr nonlinearity and a nonlinear damping. The effective LF mode frequency ${\Omega }_{\mathrm{eff}}={\Omega }_{0}^{{\prime} }+\delta {\Omega }_{\mathrm{pp}}$ contains both, the power-shifted LF frequency due to a potential cross-Kerr effect ${\Omega }_{0}^{{\prime} }$ and possible dynamical backaction contributions δΩ_pp, which we do not know at this point and therefore choose Ω_eff as reference for the cavity red sideband. However, for all our data Ω_eff − Ω₀ < Γ₀, hence the difference is very small.

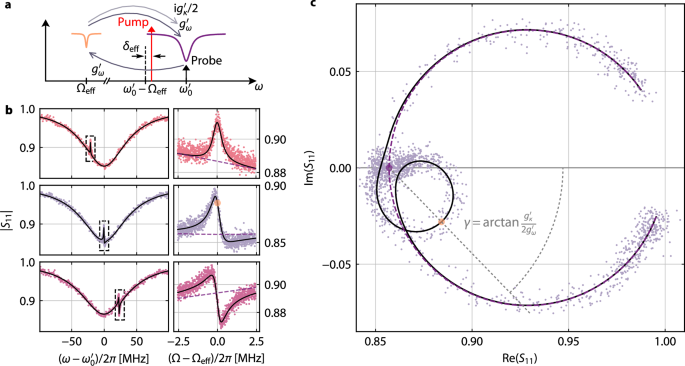

Fig. 3: Fano-transparency indicates interference of dispersive and dissipative photon-pressure.

a Schematic of the experimental setting for the observation of photon-pressure induced transparency (PPIT). A strong microwave pump tone (red vertical arrow) with power P_p and frequency ${\omega }_{\mathrm{p}}={\omega }_{0}^{{\prime} }-{\Omega }_{{\mathrm{eff}}}+{\delta }_{{\mathrm{eff}}}$ is sent to the device around the red sideband of the HF cavity. A small VNA probe tone (black vertical arrow) with relative frequency Ω = ω − ω_p scans the HF reflection around ${\omega }_{0}^{{\prime} }$. The beating of the pump and probe tones coherently drives the LF mode with a strength proportional to the dispersive coupling rate ${g}_{\omega }^{{\prime} }$. The resulting LF amplitude in turn induces both a dispersively and a dissipatively generated sideband to the pump tone at ω_p + Ω, which are $\propto \,{g}_{\omega }^{{\prime} }$ and $\propto \, {\mathrm{i}}{g}_{\kappa }^{{\prime} }/2$, respectively, and which both interfere with the original probe tone. b HF cavity reflection ∣S₁₁∣ in the presence of a pump tone for three different pump detunings ${\delta }_{{\mathrm{eff}}}={( - {\kappa }_{0}^{{\prime} }/4, 0 ,+ {\kappa }_{0}^{{\prime} }/4)}$ (from top to bottom). Data in left graphs are vs. detuning from HF cavity resonance $\omega -{\omega }_{0}^{{\prime} }$, and clear PPIT signatures can be identified when $\omega -{\omega }_{0}^{{\prime} }\approx {\delta }_{{\mathrm{eff}}}$. The smaller graphs on the right show zooms to the transparency resonances (dashed boxes in left graphs) plotted vs. detuning from ω_p + Ω_eff. Symbols are data, lines are fits. The point of PPIT resonance in the zoom for δ_eff ≈ 0 is marked with an orange disk, and the cavity reflection for ${g}_{\omega }^{{\prime} }={g}_{\kappa }^{{\prime} }=0$ is added as dashed purple line in all zooms. c The dataset for δ_eff ≈ 0 in complex representation. Points are data, black line is a theory curve with all parameters from the fit and δ_eff = 0. The cavity resonance traces a large circle anchored at (1, 0), the PPIT signature traces a smaller circle anchored on the resonance point of the bare cavity (purple disk); the resonance point of the PPIT is marked with the orange disk. For ${g}_{\kappa }^{{\prime} }=0$, the PPIT circle would point towards (1, 0) and the dashed line connecting the two resonance points would be the real axis. However, the presence of dissipative coupling leads to a rotation of the PPIT circle around its anchor point by an angle $\gamma=\arctan (g_\kappa^{\prime} /2{g}_{\omega }^{{\prime} })$. Here, we obtain γ ≈ − 46 ^∘, which corresponds to ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }\approx -2.1$.

The beating of the pump and probe tones in the PPIT protocol coherently drives the LF circuit into oscillation, which in turn generates a sideband field to the pump tone, that interferes with the original probe tone with a phase-relation determined by the interaction and the detuning. As a consequence, a narrow transparency window with the shape of the effective LF susceptibility appears within the HF cavity resonance, a phenomenon closely related to EIT in atomic systems⁴⁸ and OMIT in optomechanical devices⁴⁹. An interesting question is now whether and how the presence of dissipative coupling alters the usual, purely dispersive PPIT signature.

To model and understand the experiment, we derive the linearized equations of motion for the HF cavity field $\hat{c}$ and the LF mode field $\hat{d}$, which are given by

$${\dot{\hat{c}}}=\left[-{{\rm{i}}}\Delta ^{\prime}_{{\rm{p}}} -\frac{{\kappa }_{0}^{{\prime} }}{2}\right]\hat{c}-{{\rm{i}}}\left[{g}_{\omega }^{{\prime} }+{{\rm{i}}}\frac{{g}_{\kappa }^{{\prime} }}{2}\right]\left(\hat{d}+{\hat{d}}^{{\dagger} }\right)+{\mathrm{i}}\sqrt{{\kappa_{{\rm{ext}}} ^{\prime}} }{\hat{c}}_{\mathrm{in}}$$

(3)

$$\dot{\hat{d}}=\left[{\mathrm{i}}{\Omega }_{0}^{{\prime} }-\frac{{\Gamma }_{0}^{{\prime} }}{2}\right]\hat{d}-{\mathrm{i}}{g}_{\omega }^{{\prime} }\left(\hat{c}+{\hat{c}}^{{\dagger} }\right)$$

(4)

where $\Delta^{\prime}_{\mathrm{p}}={\omega}_{\mathrm{p}}-{\omega}_{0}^{{\prime}}$, ${\hat{c}}_{\mathrm{in}}$ represents the input probe tone, and ${g}_{\omega }^{{\prime} }$ and ${g}_{\kappa }^{{\prime} }$ are the dispersive and dissipative multiphoton coupling rates. We omit any input noise here, since it can be neglected to first order in a PPIT experiment, that is only considering the response to a coherent input tone. A complete derivation of the equations of motion can be found in Supplementary Notes 4 and 5.

One very interesting detail in the equations of motion is an asymmetry in the coupling terms. While the HF mode is coupled to the LF mode with a term $\propto g^{\prime}={g}_{\omega }^{{\prime} }+{\mathrm{i}}{g}_{\kappa }^{{\prime} }/2$, only the dispersive interaction ${g}_{\omega }^{{\prime} }$ contributes explicitly to changes of the LF mode field. In other words, the LF mode is driven proportional to ${g}_{\omega }^{{\prime} }$ only, while the HF sideband is generated via ${g}_{\omega }^{{\prime} }+{\mathrm{i}}{g}_{\kappa }^{{\prime} }/2$. By solving the equations of motion using Fourier transformation, combining the results, and applying the high-Q limit for the LF mode (cf. Supplementary Note 5), we arrive at an expression for the HF reflection, when probed around resonance

$${S}_{11}=1-\kappa_{{\rm{ext}}}^{\prime} {\chi ^{\prime}_{\mathrm{c}}} \left[1-{g}_{\omega }^{{\prime} }\left({g}_{\omega }^{{\prime} }+{\mathrm{i}}\frac{{g}_{\kappa }^{{\prime} }}{2}\right){\chi ^{\prime}_{\mathrm{c}}} {\chi }_{0}^{{\mathrm{eff}}}\right]$$

(5)

with the HF susceptibility ${\chi}^{\prime}_{\mathrm{c}}=[{\kappa }_{0}^{{\prime}}/2+{\mathrm{i}}({\Delta}^{\prime}_{\mathrm{p}}+\Omega )]^{-1}$, the effective LF susceptibility ${\chi }_{0}^{{\mathrm{eff}}}={[{\Gamma }_{0}^{{\prime} }/2+{\mathrm{i}}(\Omega -{\Omega }_{0}^{{\prime} })+\Sigma ]}^{-1}$, the dynamical backaction $\Sigma={g}_{\omega }^{{\prime} }(g^{\prime} \chi^{\prime}_{{\mathrm{c}}0} -g^{\prime*}\overline{\chi}^{\prime}_{{\mathrm{c}}0})$, $\chi^{\prime}_{{\mathrm{c}}0}=\chi^{\prime}_{\mathrm{c}} ({\Omega }_{0}^{{\prime} })$, $\overline{\chi}^{\prime}_{{\mathrm{c}}0}=\chi^{\prime*}_{\mathrm{c}}(-{\Omega }_{0}^{{\prime} })$ and the probe frequency relative to the pump Ω = ω − ω_p. Note that without dispersive coupling ${g}_{\omega }^{{\prime} }=0$ there would be no PPIT at all and no dynamical backaction, but both effects are nevertheless considerably modified by the presence of ${g}_{\kappa }^{{\prime} }$ in $g^{\prime}$. If we had an external-dissipative interaction instead of (or in addition to) the internal-dissipative one, the equations of motion and the reflection expression would contain additional terms and neither the dynamical backaction nor the PPIT signature would vanish for ${g}_{\omega }^{{\prime} }=0$³⁴.

As a consequence of ${g}_{\kappa }^{{\prime} }\ne 0$, experiment and theory both reveal an interference-based and Fano-like modification of the PPIT resonance within the HF cavity resonance, cf. Fig. 3b. Most striking are two features. First, we have an asymmetric PPIT lineshape when the pump is directly on the effective red sideband ${\delta }_{{\mathrm{eff}}}={\omega }_{\mathrm{p}}-({\omega }_{0}^{{\prime} }-{\Omega }_{{\mathrm{eff}}})\approx 0$ in contrast to dispersive coupling only. And secondly, the usual mirror symmetry for  + δ_eff and  − δ_eff is not preserved anymore. In the complex representation of S₁₁, cf. Fig. 3c, the origin of this additional tilt becomes apparent. Usually (i.e. for ${g}_{\kappa }^{{\prime} }=0$), the PPIT describes a small circle within the much larger HF cavity resonance circle, but both have their anchor points and their centers on the real axis for the pump on the red sideband. Due to the additional phase shift of π/2 of the dissipative coupling term (i = e^iπ/2), however, the PPIT circle gets rotated around its anchor point.

Evaluating Eq. (5) at the corresponding frequency points (cf. “Methods—Fano-angle in transparency experiment” and Supplementary Note 6) reveals that in fact the angle γ between the two circle axes is given by

$$\tan \gamma=\frac{{g}_{\kappa }^{{\prime} }}{2{g}_{\omega }^{{\prime} }}.$$

(6)

For the dataset discussed in Fig. 3, we find γ = − 46^∘, which is equivalent to ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }\approx -2.1$. Observing this tilt is therefore not only a clear confirmation for the presence of internal-dissipative photon-pressure coupling, but also might be a very useful and extraordinarily fast and simple method to quantify internal-dissipative coupling rates in the first place. It only requires a single complex resonance measurement and especially in devices, which do not provide the possibility to tune a system parameter p to extract the derivatives of ∂ω₀/∂p and ∂κ₀/∂p (e.g. in most optomechanical systems), the transparency rotation angle can be of high relevance. In this context it is also noteworthy, that external-dissipative photon-pressure does not result in the same Fano-interference in the sideband-resolved limit and with a pump tone around one of the sidebands, since its main consequence is a detuning-dependent re-scaling of ${g}_{\omega }^{{\prime} }$ instead of adding an imaginary component to the total coupling rate³⁴.

The value of ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }\approx -2.1$ we find here from the PPIT data is only close to the single-photon equivalent g_0κ/g_0ω ≈ − 1.8 obtained in the context of Fig. 2, but not exactly the same. The latter, i.e., ${g}_{0\kappa }/{g}_{0\omega }={g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }$, would be expected if the multiphoton coupling rates scaled with pump photon number n_c as usual as ${g}_{\omega }^{{\prime} }=\sqrt{{n}_{\mathrm{c}}}{g}_{0\omega }$ and ${g}_{\kappa }^{{\prime} }=\sqrt{{n}_{\mathrm{c}}}{g}_{0\kappa }$. The difference found here is not caused by inaccuracies, however, it rather points towards another highly interesting effect, which will be addressed in the next section.

Nonlinearity-enhanced coupling rates

When performing the PPIT experiment with varying pump power and detuning, we observe that resonance frequencies, linewidths and coupling rates, and surprisingly even ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }$, depend on pump power. The shift of ${\omega }_{0}^{{\prime} }$ is explained by the Kerr anharmonicity of the HF mode, which stems from the nonlinear superconducting inductances. The origin of the nonlinear linewidth broadening, which is clearly faster than linear in pump photon number, cf. Fig. 4b, are ac-current-induced quasiparticles and an ac-current-induced suppression of the superconducting gap in the constrictions. We observe, consistent with that interpretation, that $\kappa^{\prime}_{\mathrm{ext}}$ is not significantly modified by the pump. The pump-broadened linewidth is phenomenologically modeled using ${\kappa }_{0}^{{\prime} }={\kappa }_{0}+2{\kappa }_{1}{n}_{\mathrm{c}}+3{\kappa }_{2}{n}_{\mathrm{c}}^{2}+4{\kappa }_{3}{n}_{\mathrm{c}}^{3}$ with κ₀ = 2π × 70.7 MHz and the nonlinear-damping coefficients κ₁ ≈ 2π × 3.7 kHz, κ₂ ≈ 0, and κ₃ ≈ 2π × 0.37 mHz; all values are obtained from a fit to the data. For the origin of the prefactors 2, 3 and 4 in the nonlinear contributions, cf. Supplementary Note 4.

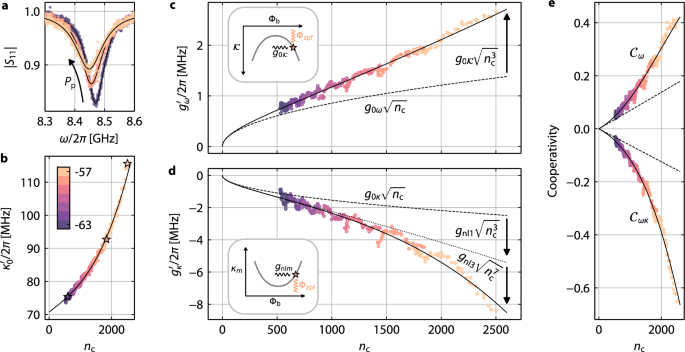

Fig. 4: Nonlinear damping and nonlinearity-enhanced photon-pressure coupling.

a HF cavity reflection ∣S₁₁∣ for fixed ω_p = 2π × 8.031 GHz and increasing sideband pump-power P_p, measured by a small VNA probe tone. With increasing pump power, the cavity shifts to lower frequencies due to its Kerr anharmonicity, and its linewidth increases due to nonlinear damping. Symbols are experimental data, lines are fits. b Total HF mode linewidth ${\kappa }_{0}^{{\prime} }$ for seven different pump powers (color-coded as given by the color bar in units of dBm) and multiple detunings between $-{\kappa }_{0}^{{\prime} }/4$ and $+{\kappa }_{0}^{{\prime} }/4$ in pump-frequency steps of 2 MHz, all plotted vs. their corresponding intracavity pump photon-number n_c. Symbols are data, star symbols correspond to the datasets in a. Line is a fit with ${\kappa }_{0}^{{\prime} }={\kappa }_{0}+2{\kappa }_{1}{n}_{\mathrm{c}}+ 3{\kappa }_{2}{n}_{\mathrm{c}}^{2}+ 4{\kappa}_{3}{n}_{\mathrm{c}}^{3}$. c Dispersive multiphoton coupling rate ${g}_{\omega }^{{\prime} }$ vs. n_c as extracted from PPIT. Pump powers and detunings are identical to b. Symbols are data, solid line is a fit with ${g}_{\omega }^{{\prime} }={g}_{0\omega }\sqrt{{n}_{\mathrm{c}}}+{g}_{0{{\mathcal{K}}}}\sqrt{{n}_{\mathrm{c}}^{3}}$; dashed line shows ${g}_{\omega }={g}_{0\omega }\sqrt{{n}_{\mathrm{c}}}$ without the Kerr enhancement. Inset: Schematic of the HF self-Kerr nonlinearity ${{\mathcal{K}}}$ as a function of bias flux and how the LF zero-point-fluctuation flux modulates it by ${g}_{0{{\mathcal{K}}}}=-{\Phi }_{\mathrm{zpf}}\partial {{\mathcal{K}}}/\partial {\Phi }_{\mathrm{b}}$. d Dissipative multiphoton coupling rate ${g}_{\kappa }^{{\prime} }$ vs. n_c as extracted from PPIT. Pump powers and detunings are identical to b. Symbols are data, solid line is a fit with ${g}_{\kappa }^{{\prime} }={g}_{0\kappa }\sqrt{{n}_{\mathrm{c}}}+{g}_{\mathrm{nl}1}\sqrt{{n}_{\mathrm{c}}^{3}}+{g}_{\mathrm{nl}2}\sqrt{{n}_{\mathrm{c}}^{5}}+{g}_{\mathrm{nl}3}\sqrt{{n}_{\mathrm{c}}^{7}}$; dashed line shows ${g}_{\kappa }={g}_{0\kappa }\sqrt{{n}_{\mathrm{c}}}$ without nonlinearity-enhancement, dotted line shows ${g}_{0\kappa }\sqrt{{n}_{\mathrm{c}}}+{g}_{\mathrm{nl}1}\sqrt{{n}_{\mathrm{c}}^{3}}$. From the fit, we obtain g_nl2 ≈ 0. Inset: Schematic of a generic nonlinear damping coefficient κ_m, $m\in {\mathbb{N}}$, as a function of bias flux and how the LF zero-point-fluctuation flux modulates it by g_nlm = − Φ_zpf∂κ_m/∂Φ_b. e Dispersive cooperativity ${{{\mathcal{C}}}}_{\omega }=4{g}_{\omega }^{{\prime} 2}/{\kappa }_{0}^{{\prime} }{\Gamma }_{0}$ and cross-cooperativity ${{{\mathcal{C}}}}_{\omega \kappa }=2{g}_{\omega }^{{\prime} }{g}_{\kappa }^{{\prime} }/{\kappa }_{0}^{{\prime} }{\Gamma }_{0}$ vs. n_c. Symbols are derived from data, solid lines follow from the fits in b--d with Γ₀ = 2π × 601 kHz, dashed line is the reference without the nonlinearity-enhancement and with constant ${\kappa }_{0}^{{\prime} }={\kappa }_{0}$. The effects from increasing ${\kappa }_{0}^{{\prime} }$ and nonlinearity-enhanced ${g}_{\omega }^{{\prime} },{g}_{\kappa }^{{\prime} }$ compete, but overall still lead to a significant enhancement of both cooperativities by factors up to  ~ 2.4 and  ~ 4.1, respectively.

Finally, we investigate ${g}_{\omega }^{{\prime} }$ and ${g}_{\kappa }^{{\prime} }$ as a function of pump photon number. A description of how we obtained the values from PPIT data is given in “Methods—Extracting the multiphoton coupling rates”. In Fig. 4, we show all the multiphoton coupling rates obtained for multiple pump powers and detunings vs. n_c, and what we observe is surprising and exciting. Both coupling rates do not scale $\propto \sqrt{{n}_{\mathrm{c}}}$ as expected from a simple first-order theory, but they increase considerably faster. While ${g}_{\omega }^{{\prime} }$ seems to grow almost linearly, but with a finite value at n_c = 0, ${g}_{\kappa }^{{\prime} }$ grows even faster, in particular at the highest photon numbers, similar to the increase of ${\kappa }_{0}^{{\prime} }$ with n_c. For the lowest pump powers, the ratio ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{\prime}$ is very close to g_0κ/g_0ω = − 1.8, for the highest photon numbers though ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }\to -3.1$. The PPIT data in Fig. 3 are in the intermediate ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }$-regime (taken at P_p = − 58 dBm, i.e., n_c ≈ 1570 for δ_eff ≈ 0), which explains the discrepancy between g_0κ/g_0ω = − 1.8 and ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }=-2.1$ found from γ.

Nonlinearity-enhanced multiphoton coupling rates are an intriguing and potentially very useful observation, which can be explained as follows. Each of the nonlinearity parameters ${{\mathcal{K}}}$, κ₁, κ₂ and κ₃ is flux-dependent⁴⁶, i.e., modulated by Φ_zpf, and hence each can be the origin of an additional type of photon-pressure coupling. To first order, these additional coupling rates on the single-photon level are

$${g}_{0{{\mathcal{K}}}}=-\frac{\partial {{\mathcal{K}}}}{\partial {\Phi }_{{\rm{b}}}}{\Phi }_{{\rm{zpf}}},\,{g}_{{\rm{nl}}m}=-\frac{\partial {\kappa }_{m}}{\partial {\Phi }_{{\rm{b}}}}{\Phi }_{{\rm{zpf}}},\,m\in {\mathbb{N}}$$

(7)

and intrinsically they are several orders of magnitude smaller than g_0ω and g_0κ. In the framework of the linearized equations of motion, however, they get integrated into the multiphoton coupling rates as

$${g}_{\omega }^{{\prime} }={g}_{0\omega }\sqrt{{n}_{\mathrm{c}}}+{g}_{0{{\mathcal{K}}}}\sqrt{{n}_{\mathrm{c}}^{3}}$$

(8)

$${g}_{\kappa }^{{\prime} }={g}_{0\kappa }\sqrt{{n}_{{\rm{c}}}}+{g}_{{\rm{nl1}}}\sqrt{{n}_{\mathrm{c}}^{3}}+{g}_{\mathrm{nl}2}\sqrt{{n}_{\mathrm{c}}^{5}}+{g}_{\mathrm{nl}3}\sqrt{{n}_{\mathrm{c}}^{7}},$$

(9)

which means that despite their smallness on the single-photon level they can be very significant in the high-pump-power regime. Interestingly, also here we find a vanishing second order g_nl2 ≈ 0 from a corresponding fit, and for the finite coupling rates we get ${g}_{0{{\mathcal{K}}}} \approx 2\pi \times 10.0\,{\mathrm{Hz}}$, g_nl1 ≈ 2π × − 22.1 Hz and g_nl3 ≈ 2π × − 3.5 μHz. Table 1 summarizes all the relevant nonlinearity coefficients for ${\omega }_{0}^{{\prime} }$, ${\kappa }_{0}^{{\prime} },{g}_{\omega }^{{\prime} }$ and ${g}_{\kappa }^{{\prime} }$.

Table 1 Nonlinearity coefficients for ${\omega }_{0}^{{\prime} },{\kappa }_{0}^{{\prime} },{g}_{\omega }^{{\prime} }$ and ${g}_{\kappa }^{{\prime} }$

For the Kerr constant, this effect has been predicted by theoretical work^50,51, and a related observation of much smaller magnitude has been reported in a multi-tone driven photon-pressure experiment²⁰. The dissipative case, however, is even more impactful in our work than the dispersive one. While ${g}_{\omega }^{{\prime} }$ is roughly doubled in the high-power regime compared to ${g}_{0\omega }\sqrt{{n}_{\mathrm{c}}}$, which is already impressive, the dissipative multiphoton coupling ${g}_{\kappa }^{{\prime} }$ gets boosted by up to a factor  ~ 3.4 compared to ${g}_{\kappa }={g}_{\kappa 0}\sqrt{{n}_{\mathrm{c}}}$, cf. Fig. 4. Often, it is insightful to consider the cooperativity instead of the coupling rates, especially, when also the mode linewidth is a function of n_c as is the case here. Unfortunately, the purely dissipative cooperativity ${{{\mathcal{C}}}}_{\kappa }={g}_{\kappa }^{{\prime} 2}/{\kappa }_{0}^{{\prime} }{\Gamma }_{0}$ plays no role in this experiment due to the nonreciprocity of the interaction, but it would be enhanced by almost one order of magnitude. The dispersive cooperativity ${{{\mathcal{C}}}}_{\omega }=4{g}_{\omega }^{{\prime} 2}/{\kappa }_{0}^{{\prime} }{\Gamma }_{0}$ and the cross-cooperativity ${{{\mathcal{C}}}}_{\omega \kappa }=2{g}_{\omega }^{{\prime} }{g}_{\kappa }^{{\prime} }/{\kappa }_{0}^{{\prime} }{\Gamma }_{0}$, on the other hand, are important for e.g. dynamical backaction (see below) and perspectively for sideband-cooling or parametric amplification. Those two cooperativities are still enhanced by a factor  ~ 2.4 and  ~ 4.1, respectively, which shows that the enhancement of the coupling rates by far overcompensates the increase of ${\kappa }_{0}^{{\prime} }$.

Potentially, such cooperativity enhancements could lead to low-power groundstate-cooling or increased flux/displacement sensitivity, with a particular usefulness in optomechanics, where single-photon coupling rates are often very small compared to photon-pressure circuits and where device or setup heating by large pump powers is sometimes a limiting factor. Especially in superconducting circuits, it is furthermore possible to design ${{\mathcal{K}}}$ and correspondingly $\partial {{\mathcal{K}}}/\partial {\Phi }_{{\rm{b}}}$ by carefully considered junction arrays⁵², which might facilitate ${g}_{0{{\mathcal{K}}}}$ to be increased further by orders of magnitude in future systems.

The data in Fig. 4c and d also confirm once more, that the external-dissipative coupling rate plays no role here. If a significant contribution from ${g}_{{\kappa }_{\mathrm{ext}}}$ was present in the device, this would lead to a dependence of the effective ${g}_{\omega }^{{\prime} }$ on the detuning between pump and HF resonance $\Delta^{\prime}_{\mathrm{p}}$³⁴, which would have two notable consequences. First, not all the data for ${g}_{\omega }^{{\prime} }$ in c would fall onto a single line, but within each color the values for high photon numbers would be pushed down (up), if ${g}_{0{\kappa }_{\mathrm{ext}}} < 0$ (${g}_{0{\kappa }_{\mathrm{ext}}} > 0$), and the values for low photon numbers would be pushed up (down). And secondly, the ratio ${g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }$ would deviate considerably from the flux arc-based values even for very small n_c, cf. also Supplementary Note 6. Even though some scattering of both coupling rates is visible, none of the two effects is observed within the experimental accuracy.

Dynamical backaction

Finally, we analyze the dynamical backaction exerted from the HF intracavity fields to the LF circuit as a function of power and detuning. This is not only an essential quantity for future experiments and applications like sideband-cooling with dissipative interactions, but an agreement with theoretical predictions will also serve as independent confirmation of our above conclusions, including the existence and strength of the dissipative coupling, the nonlinear enhancement of ${{{\mathcal{C}}}}_{\omega }$ and ${{{\mathcal{C}}}}_{\omega \kappa }$, and the photon-number dependent ratio of ${g}_{\omega }^{{\prime} }/{g}_{\kappa }^{{\prime} }$. Dynamical backaction arises from the time-delayed adjustments of the pump fields in the HF mode to changes of ω₀^17,53, here in our system caused by a change of flux through the SQUID. Hence, it depends on detuning between pump and cavity and on the cavity decay rate, which determines the time scale, on which this adjustment will happen. The effect can be separated into an in-phase and an out-of-phase component relative to the change of flux in the SQUID, which are equivalent to a change of effective LF frequency and a change of the LF decay rate.

Since ${g}_{\kappa }^{{\prime} }$ comes with an additional phase-lag compared to ${g}_{\omega }^{{\prime} }$, the dynamical backaction will likely be modified considerably in the presence of dissipative photon-pressure. And indeed, on a formal level we can directly see that the photon-pressure damping Γ_pp and the photon-pressure frequency shift δΩ_pp, which are given by

$${\Gamma }_{{\rm{pp}}}=2{{\rm{Re}}}\left[{g}_{\omega }^{{\prime} }\left(g^{\prime} {\chi }^{\prime} _{c0} -g^{{\prime} {*}}\overline{{\chi }}^{\prime} _{c0} \right)\right]$$

(10)

$$\delta {\Omega }_{{\rm{pp}}}=-{\mathrm{Im}}\left[{g}_{\omega }^{{\prime} }\left(g^{\prime} {\chi }^{\prime} _{c0} -g^{{\prime} {*}}\overline{{\chi }}^{\prime} _{c0} \right)\right]$$

(11)

deviate from the purely dispersive case, where the PP damping and PP frequency shift just encode the real and imaginary part of the cavity susceptibility, i.e., they are described by a complex Lorentzian. Strictly speaking, this is only completely true in the sideband-resolved regime, where $\chi^{\prime}_{\mathrm{c}0} -\overline{\chi}^{\prime}_{\mathrm{c}0} \approx \chi^{\prime}_{\mathrm{c}0}$, but our device falls well within that approximation. With the phase-shifted dissipative coupling and the complex valued $g^{\prime}$, the two backaction effects mix, i.e., they are rotated and scaled in the complex plane, which is no different to saying they acquire a Fano-like modification, very similar to what occurred in PPIT.

In Figure 5 we present the results of the experimental characterization of ${\Gamma }_{{\mathrm{eff}}}={\Gamma }_{0}^{{\prime} }+{\Gamma }_{\mathrm{pp}}$ and ${\Omega}_{{\mathrm{eff}}}={\Omega}_{0}^{{\prime} }+ \delta {\Omega }_{\mathrm{pp}}$ and indeed find a significant deviation from the Lorentzian-like shape in the dispersive-only case. The data were acquired differently to the photon-pressure experiments discussed above. Here, we directly probe the LF mode via its own feedline, while stepping the HF red-sideband pump tone through various powers and detunings. The LF on-chip probe power was  − 97 dBm, which – except for few data points very close to instability – is below the power required to observe LF nonlinearities, more details can be found in Supplementary Notes 7 and 8. One of the main advantages of this approach is the ability to investigate far more detunings, since, in contrast to the PPIT resonance, the LF mode visibility does not depend on the pump detuning and can be probed for small pump photons numbers n_c, i.e., for large detunings between HF cavity and pump.

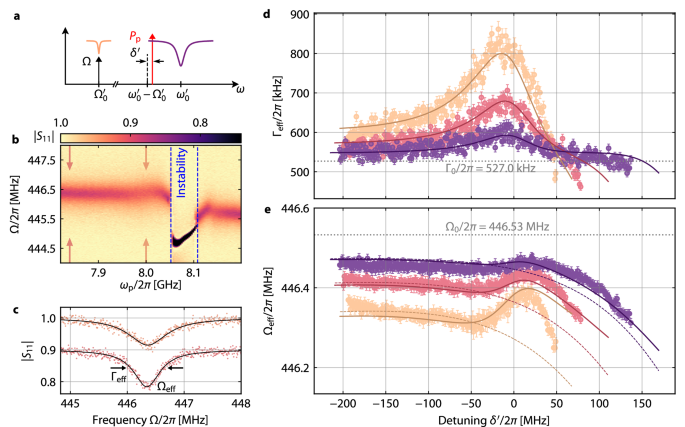

Fig. 5: Nonlinearity-enhanced dynamical backaction with dissipative coupling.

a Schematic of the experiment. A pump tone (red arrow) with frequency ω_p and power P_p is applied around the red sideband of the HF mode. Detuning of pump from the red sideband is $\delta^{\prime}={\omega }_{\mathrm{p}}-({\omega }_{0}^{{\prime} }-{\Omega }_{0}^{{\prime} })$. For each pair (ω_p, P_p), the LF mode reflection is probed directly around ${\Omega }_{0}^{{\prime} }$ using the LF feedline and a VNA (black arrow). b Color-map of the LF reflection ∣S₁₁∣ vs. pump frequency ω_p. When the pump is far red-detuned from the HF mode red-sideband, the resonance is nearly unmodified compared to the pump-free case. Just below $\delta^{\prime}=0$ or ω_p/2π ≈ 8.0 GHz, the absorption gets wider and shallower and slightly shifts in frequency; both effects indicate dynamical backaction at work. Strikingly, for ω_p/2π ≈ 8.05 GHz, which is still around the cavity red-sideband, a parametric instability region appears, which is experimentally identified by a strongly deformed resonance feature in S₁₁, and the simultaneous disappearance of the HF mode in the HF reflection⁵⁴. The two pairs of arrows indicate the linescans shown in c. Top curve in c shows ∣S₁₁∣ at ω_p/2π ≈ 8.0 GHz, the point of maximum photon-pressure damping, bottom curve is manually offset by  − 0.1 for clarity and is for ω_p/2π ≈ 7.84 GHz. Symbols are data, lines are fits, from which we extract Ω_eff and Γ_eff. d, e Effective LF mode linewidth Γ_eff and effective resonance frequency Ω_eff vs. detuning $\delta^{\prime}$ for three different P_p, color code for P_p identical to Fig. 4, cf. Supplementary Fig. 15 for the corresponding n_c. Symbols are data and error bars are standard errors obtained from the fit routine, lines are theory curves. Note the two clearest signatures for dissipative coupling: first, the maximum for the photon-pressure damping is at negative detunings from the red sideband. And second, for positive detunings from the red sideband the total damping rate is smaller than the intrinsic damping rate Γ_eff < Γ₀, where Γ₀ is shown as dashed line. This indicates negative backaction damping with a red-detuned pump, and is the precursor for the approaching parametric instability. To fully model the data, we included a cross-Kerr frequency shift to the LF frequency ${\Omega }_{0}^{{\prime} }={\Omega }_{0}+{{{\mathcal{K}}}}_{\mathrm{c}}{n}_{\mathrm{c}}$ with ${{{\mathcal{K}}}}_{\mathrm{c}}=2\pi \times -130.8\,{\mathrm{Hz}}$, and a small nonlinear cross-damping ${\Gamma }_{0}^{{\prime} }={\Gamma }_{0}+{\kappa }_{\mathrm{c}}{n}_{\mathrm{c}}$ with κ_c = 2π × 38.4 Hz. Dashed lines in e show ${\Omega }_{0}^{{\prime} }$.

A non-intuitive result of these experiments is that we observe a parametric instability, when the pump has a slightly higher frequency than ${\omega }_{0}^{{\prime} }-{\Omega }_{0}^{{\prime} }$, but is still far red-detuned. This is also predicted by theory, cf. Supplementary Note 6, and it is an intrinsic signature for the presence of dissipative coupling, which has also been studied in related optomechanical systems^24,33. We can understand it from Eq. (10), which includes (for simplicity again in the sideband-resolved limit) that the photon-pressure damping ${\Gamma }_{\mathrm{pp}}={g}_{\omega }^{{\prime} 2}{\kappa }_{0}^{{\prime} }| \chi^{\prime}_{\mathrm{c}0} {| }^{2}+{g}_{\omega }^{{\prime} }{g}_{\kappa }^{{\prime} }\delta^{\prime} | \chi^{\prime}_{\mathrm{c}0} {| }^{2}$ has two contributions, the second of which changes sign with the pump detuning from the red sideband $\delta^{\prime}={\omega }_{\mathrm{p}}-({\omega }_{0}^{{\prime} }-{\Omega }_{0}^{{\prime} })$ and is  < 0 for $\delta^{\prime} > 0$. So it enhances the dispersive PP damping for $\delta^{\prime} < 0$, and counteracts it for $\delta^{\prime} > 0$. In our case it even overcompensates it to $\Gamma_{{\rm{eff}}} \le 0$ (theoretical instability criterion) around $\delta^{\prime} \approx+{\kappa }_{0}^{{\prime} }$ due to the large $| {g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }|$ ratio for large n_c. Similar considerations are valid for δΩ_pp. An additional signature for backaction interference is that the maximum of Γ_eff occurs at $\delta^{\prime} < 0$, cf. Fig. 5d, instead of at $\delta^{\prime} \approx 0$ as expected for ${g}_{\kappa }^{{\prime} }=0$. The slight shift of the maximum Γ_eff to lower frequencies with incressing P_p on the other hand reflects the increasing ratio $| {g}_{\kappa }^{{\prime} }/{g}_{\omega }^{{\prime} }|$. A more detailed comparison between purely dispersive and mixed photon-pressure can be found in Supplementary Note 6.

To quantitatively model Γ_eff and Ω_eff, we include also a cross-nonlinear damping and a cross-Kerr frequency shift, i.e.,

$${\Gamma }_{{\mathrm{eff}}}={\Gamma }_{0}+{\kappa }_{\mathrm{c}}{n}_{\mathrm{c}}+{\Gamma }_{\mathrm{pp}}$$

(12)

$${\Omega }_{{\mathrm{eff}}}={\Omega }_{0}+{{{\mathcal{K}}}}_{\mathrm{c}}{n}_{\mathrm{c}}+\delta {\Omega }_{\mathrm{pp}},$$

(13)

where both nonlinear effects are occurring naturally due to the constrictions being part of the LF mode in the galvanic coupling scheme. We fit the backaction data using all the HF mode and photon-pressure parameters obtained independently, and with the free parameters Γ₀, Ω₀, ${{{\mathcal{K}}}}_{\mathrm{c}}$ and κ_c. The cross-parameters we obtain from this are rather small with ${{{\mathcal{K}}}}_{\mathrm{c}}=2\pi \times -130.8\,{\mathrm{Hz}}$ and κ_c = 2π × 38.4 Hz, but the shift due to ${{{\mathcal{K}}}}_{\mathrm{c}}$ is still dominating the total pump-induced LF frequency shift. The cross-nonlinear damping on the other hand only contributes less than 10% to the deviations of Γ_eff from Γ₀ at the maximum of Γ_eff, and the biggest part is due to Γ_pp. With the cross-nonlinearities included, we find good agreement between theory and data. The remaining deviations we attribute to uncertainties in the frequency-dependent pump-photon number, higher-order nonlinearities for the largest photon numbers and the onset of the parametric instability for the points close to the instability threshold. The recovery of the LF mode from the instability regime at ω_p/2π ≳ 8.1 GHz, which is visible in Fig. 5b but not predicted by theory, is accompanied by the absence of the HF mode in the HF reflection⁵⁴, which we believe is due to the pump photon number being so large that the cJJ SQUID is driven into the voltage state by overcritical peak HF currents. Overall though, the agreement between backaction data and model clearly confirms our above conclusions regarding Fano-like effects by dissipative coupling contributions and the nonlinearity-enhanced coupling rates, without which the datasets would lie much closer together for the pump powers used in Fig. 5d, e.

Discussion

In this work, we have reported the realization of niobium-based superconducting photon-pressure circuits, which are operated at liquid helium temperature in the highly dissipative circuit regime. Due to the elevated temperature and dissipation compared to earlier implementations, we obtained a device with a considerable flux-tunable dissipative interaction g_0κ in addition to the usual dispersive coupling g_0ω, and with − 1.2 ≳ g_0κ/g_0ω ≳ − 3. Furthermore, we observed at least three additional photon-pressure coupling terms due to the flux-modulation of inherent device nonlinearities, namely a Kerr-anharmonicity interaction and both a first- and a third-order nonlinear-damping-based interaction. The additional coupling terms were shown to lead to a strong multiphoton enhancement of the original interaction terms by up to a factor 3.4 and of the cooperativities by up to a factor 4.1. We have revealed with both our experiments and our theoretical description that the presence of dissipative photon-pressure leads to a nonreciprocal interaction between the modes, and to a Fano-like distortion of photon-pressure induced transparency due to the phase-shifted interference of the two coupling types, which can be used to determine g_κ/g_ω from a single response trace in frequency. A related Fano-like distortion is present in the frequency-dependence of dynamical backaction, when g_κ ≠ 0, which leads to enhanced photon-pressure damping when the sideband-pump is red-detuned from the cavity red-sideband and to a counter-intuitive instability when the pump tone is placed between the red cavity sideband and the cavity resonance.

In summary, our results reveal and describe several unexplored types of interaction between two superconducting circuits and demonstrate a series of experimental consequences of the presence of a purely-internal-dissipative radiation-pressure coupling. This work opens the door for the investigation and application of dissipative photon-pressure in circuit QED, for unexplored low-frequency photon control protocols, and for photon-pressure experiments in the thermal and dissipative regime due to its compatibility with liquid helium. Such tools are relevant for research fields like dark matter axion detection, since they provide new possibilities for LF photon-sensing and control, potentially down to the kHz frequency range. Our report also confirms that photon-pressure circuits are an ideal testbed for general radiation-pressure systems. It is directly relevant for and applicable to optomechanical systems, in particular to SQUID optomechanics, where similar effects can be expected to be observed and utilized in the future.

Finally, the experiments presented here suggest interesting questions and directions for future developments. The most immediate question is how the dissipative contribution modifies sideband-cooling. Generally, it will furthermore be very interesting to lower the LF mode resonance frequency to investigate the unresolved-sideband regime and corresponding effects like cooling on resonance or novel squeezing protocols, since in this regime dissipative coupling is predicted to have its biggest strengths. Engineering an external-dissipative coupling by a modulation of κ_ext remains an open challenge, that would provide an additional degree of freedom and would bring new dynamics into play, since in such a system the LF mode directly couples to the pump tone on the HF feedline, while simultaneously not necessarily requiring a low Q of the HF mode. Once such an external-dissipative coupling can be realized, i.e., a flux-dependent coupling between the HF mode and a CPW feedline, the same approach could be used to implement effective internal-dissipative couplings even in the case of flux-independent constriction losses, e.g. at mK temperatures, by using a second “internal” feedline or on-chip resistor which is coupled to the SQUID circuit in a flux-dependent fashion. Lastly, the observed nonlinearity-enhancements suggest that it might be worth to target stronger or even different types of nonlinearities both in photon-pressure circuits and in optomechanics.

Methods

Device fabrication

Step 1: Bottom niobium layer. The fabrication starts with dc-magnetron-sputtering of 120 nm thick niobium (Nb) on top of a high-resistivity (ρ > 10 kΩ cm at room temperature) intrinsic two inch silicon wafer. The wafer has a thickness of 525 μm, and after Nb deposition it is covered with a positive photoresist (ma-P 1205) by means of spin coating (resist thickness  ~ 0.5 μm). The bottom niobium layer design is transferred to the photoresist using maskless photolithography (λ_litho = 365 nm). The irradiated resist is developed with ma-D 331/S for 25 s, and then the excess Nb film is removed by SF₆ reactive ion etching. Finally, the wafer is cleaned with multiple subsequent baths of acetone and isopropanol.

Step 2: Dielectric layer. The second step is to deposit a dielectric layer on the patterned first layer of Nb, where the parallel-plate-capacitors (PPCs) will be formed. Before deposition, the wafer is covered with the same photoresist as in step 1, and the areas where the PPCs are formed are defined again by maskless optical lithography. After the resist is developed, the wafer is completely covered by plasma-enhanced chemical vapor deposition (PECVD) with 200 nm of silicon nitride (Si₃N₄) in a low-temperature process (T ~ 100^∘C). Then, a lift-off procedure is performed in acetone for $15\,\min$ to remove the resist and all the excess Si₃N₄. Finally, the wafer is rinsed in multiple baths of acetone and isopropanol.

Step 3: Top niobium layer. The third step in the fabrication procedure is similar to step 2, but instead of Si₃N₄, 300 nm of Nb is deposited onto the resist-covered and patterned wafer, again by dc-magnetron sputtering. After lift-off of the excess Nb in acetone, the second Nb layer forms the PPC top plate, the transmission line of the low-frequency (LF) resonator, and the ground planes of both high-frequency (HF) and LF resonators.

Step 4: Mounting and pre-characterization. After fabrication, the wafer is diced into individual 10 × 10 mm² large chips. Then, a single chip is mounted into a matching cutout of a microwave printed circuit board (PCB), and is wirebonded to the microwave feedlines and ground plane of the PCB. Both chip and PCB are packed in a radiation-tight copper housing. Finally, the chip is mounted into the measurement setup, and the device is pre-characterized in liquid helium by means of microwave reflectometry. Here, each of the modes is characterized via its own CPW feedline.

Step 5: Constriction fabrication. To cut the constriction Josephson junctions (cJJs) into the pre-characterized device, the sample is removed from the PCB and mounted onto an aluminum stub; it is wirebonded to the stub to prevent any charging of the sample during the ion irradiation. The mounted sample is placed in the neon ion microscope, which allows high-precision milling with a focused neon ion beam (Ne-FIB). The cJJs are of the monolithic 3D-type^46,47. They are formed by cutting two  ~ 40 nm narrow slot-shaped rectangles from both sides into the 3 μm wide bridges with a dose of 20000 ions/nm² and an accelerating voltage of 20 kV. In addition, the constrictions are milled from the top with a third rectangle, but with a lower dose of 3000 ions/nm².

Step 6: Mounting and experiments. After the Ne-FIB cutting process, the sample is mounted again into the measurement setup, similar to step 4, but this time a small coil for the application of a magnetic field perpendicular to the chip surface is added. Then, the photon-pressure experiments begin.

Resonance fitting

In this Methods part, we describe the fitting routine, which we used to fit all pumped and unpumped HF and LF resonances as well as the PPIT zoom measurements. We will generically use the unprimed HF quantities here ω₀, κ_ext, κ_int, and κ₀ to do so, but the same formalism is valid for the primed quantities and the capitalized LF quantities. Some more details and a corresponding figure can be found in Supplementary Note 7.

The ideal reflection-response function of a high-Q (Q ≫ 10) parallel RLC circuit, which is capacitively coupled to a feedline with characteristic impedance Z₀, is given by

$${S}_{11}^{{\rm{ideal}}}=1-\frac{2{\kappa }_{{\rm{ext}}}}{{\kappa }_{0}+2{{\rm{i}}}(\omega -{\omega }_{0})}$$

(14)

with the angular excitation frequency ω, the corresponding resonance frequency ω₀, the external linewidth κ_ext and the total linewidth κ₀ = κ_int + κ_ext.

Due to the cabling and all the microwave components in between the vector network analyzer and the circuit, the ideal transmission is not what we measure though. To take frequency-dependent attenuation, the electrical cable length and possible interferences (e.g. parasitic transmission through the directional coupler or parasitic reflections) into account, we model the actual reflection as

$${S}_{11}^{{\rm{real}}}=({a}_{0}+{a}_{1}\omega+{a}_{2}{\omega }^{2})\left(1-\frac{2{\kappa }_{\mathrm{ext}}{\rm{e}}^{{\mathrm{i}}{\theta} }}{{\kappa }_{0}+2{\mathrm{i}}(\omega -{\omega }_{0})}\right){{\rm{e}}}^{{\mathrm{i}}({\phi }_{0}+{\phi }_{1}\omega )}.$$

(15)

The factors a₀, a₁, a₂, ϕ₀, ϕ₁ and θ are real-valued fit parameters. Before we apply this equation to the large-linewidth HF data, however, we divide the experimental ${S}_{11}^{\exp }$ data by a corresponding high-power background dataset ${S}_{11}^{{\mathrm{bg}},\exp}$, that has been taken in a VNA power-regime, in which the resonance is completely suppressed due to its nonlinearity. As a result, we obtain ${S}_{11}^{\mathrm{cor}}={S}_{11}^{\exp }/{S}_{11}^{{\mathrm{bg}},\exp}$, details are described in Supplementary Note 7. Afterwards, the background reflection is sufficiently smooth to apply Eq. (15).

During our automated data fitting routine we first remove the absorption resonance from the dataset (leaving a gapped S₁₁-dataset) and fit the remaining S₁₁-response in an appropriate frequency window (typically five to ten times κ₀) with the background function

$${S}_{11}^{{\rm{bg}}}=({a}_{0}+{a}_{1}\omega+{a}_{2}{\omega }^{2}){\rm{e}}^{{\mathrm{i}}({\phi }_{0}+{\phi }_{1}\omega )}.$$

(16)

We obtain preliminary values for a₀, a₁, a₂, ϕ₀ and ϕ₁. Then, we calculate ${S}_{11}^{\mathrm{cor}}/{S}_{11}^{\mathrm{bg}}$ for the complete dataset and fit the resulting data with

$${S}_{11}^{\theta }=1-\frac{2{\kappa }_{\mathrm{ext}}{\rm{e}}^{{\mathrm{i}}\theta }}{{\kappa }_{0}+2{\mathrm{i}}{(\omega -{\omega }_{0})}},$$

(17)

from which we obtain a preliminary set of values for ω₀, κ₀, κ_ext and θ. Finally, we use all the preliminary values for a₀, a₁, a₂, ϕ₁, ϕ₂, ω₀, κ, κ_ext and θ as starting parameters to re-fit the original dataset with the complete Eq. (15). Here, we find that θ is small and nearly constant and during the last step, we keep θ = θ₀ = 0.08 constant to improve the quality of the fits and the values of the remaining parameters. All the HF S₁₁-datasets after constriction cutting, which are shown in the manuscript and Supplementary Material figures, as well as their corresponding fit curves have been background-corrected using this method. Additionally, we have rotated off the interference angle θ₀.

Fano-angle in transparency experiment

The reflection response of the PPIT experiment is modeled using Eq. (5) (for the derivation see Supplementary Note 5)

$${S}_{11}=1-{\kappa ^{\prime}_{{\rm{ext}}}} {\chi ^{\prime}_{\mathrm{c}}} \left[1-{g}_{\omega }^{{\prime} }g^{\prime} \chi ^{\prime}_{\mathrm{c}} {\chi }_{0}^{{\mathrm{eff}}}\right]$$

(18)

with the multi-photon coupling rates ${g}_{\omega }^{{\prime} },{g}_{\kappa }^{{\prime} }$ and $g^{\prime}={g}_{\omega }^{{\prime} }+{\mathrm{i}}\frac{{g}_{\kappa }^{{\prime} }}{2}$, the HF cavity susceptibility

$${\chi}^{\prime}_{{{\rm{c}}}}=\frac{1}{\frac{{\kappa}^{\prime}_{0}}{2}+{{\rm{i}}}({\Delta}_{{{\rm{p}}}}^{\prime}+{\Omega})}$$

(19)

and the effective LF susceptibility

$${\chi }_{0}^{{\mathrm{eff}}}=\frac{1}{\frac{{\Gamma }_{{\rm{eff}}}}{2}+{{\rm{i}}}(\Omega -{\Omega }_{{\mathrm{eff}}})}.$$

(20)

Exactly on resonance of both HF cavity and PPIT, i.e., when $\Delta ^{\prime}_{\mathrm{p}}+\Omega=\Omega -{\Omega }_{{\mathrm{eff}}}=0$ (imaginary parts of both susceptibilities vanish) or alternatively $\Delta^{\prime}_{\mathrm{p}}=-{\Omega }_{{\mathrm{eff}}}$, we get for the reflection at Ω = + Ω_eff

$${S}_{11}^{{\rm{res}}}=1-2\frac{\kappa ^{\prime}_{{\rm{ext}}} }{{\kappa }_{0}^{{\prime} }}\left[1-4\frac{{g}_{\omega }^{{\prime} }g^{\prime} }{{\kappa }_{0}^{{\prime} }{\Gamma }_{{\mathrm{eff}}}}\right].$$

(21)

For vanishing coupling $g^{\prime}={g}_{\omega }^{{\prime} }=0$, the resulting cavity resonance point is the usual one

$${S}_{11}^{{\rm{HF}}}=1-2\frac{\kappa ^{\prime}_{{\rm{ext}}} }{{\kappa }_{0}^{{\prime} }},$$

(22)

i.e., exactly on the real axis.

To find the angle between the real axis and the connecting line between that point and the PPIT resonance, we shift the PPIT reflection by this value and get

$${S}_{11}^{{{\rm{res}}},{{\rm{shift}}}}=8\frac{\kappa ^{\prime}_{{\rm{ext}}} }{{\kappa }_{0}^{{\prime} }}\frac{{g}_{\omega }^{{\prime} }g^{\prime} }{{\kappa }_{0}^{{\prime} }{\Gamma }_{{\mathrm{eff}}}}.$$

(23)

The angle is then obtained via

$$\gamma=\arctan \frac{{{\rm{Im}}}[{S}_{11}^{{{\rm{res}}},{{\rm{shift}}}}]}{{{\rm{Re}}}[{S}_{11}^{{{\rm{res}}},{{\rm{shift}}}}]}$$

(24)

$$=\arctan \frac{{g}_{\kappa }^{{\prime} }}{2{g}_{\omega }^{{\prime} }}.$$

(25)

Extracting the multiphoton coupling rates

To study the scaling of the multiphoton coupling rates with intracavity pump photon number, we perform the experiment described in Fig. 3 for several different pump powers and detunings in the range ${\delta }_{{\mathrm{eff}}}\in [-{\kappa }_{0}^{{\prime} }/4,{\kappa }_{0}^{{\prime} }/4]$. The PPIT data and fits for the resonant cases δ_eff ≈ 0 are presented for all P_p in Supplementary Note 8. The range of detunings within the ${\kappa }_{0}^{{\prime} }/2$-wide interval around the red sideband is chosen to ensure a clear PPIT signature for all δ_eff and P_p, while simultaneously avoiding parametric instabilities. For the analysis, we first fit the cavity resonance only of each dataset by removing the narrow PPIT window from it and obtain as fit parameters ${\omega }_{0}^{{\prime} }$ and ${\kappa }_{0}^{{\prime} }$, which fully determine $\chi^{\prime}_{\mathrm{c}}$; additionally, we obtain $\kappa^{\prime}_{\mathrm{ext}}$. Secondly, we fit the isolated high-resolution PPIT resonance in its narrow frequency span and obtain as fit parameters Γ_eff and Ω_eff, i.e., the effective LF linewidth and resonance frequency including dynamical backaction effects, which together determine ${\chi }_{0}^{{\mathrm{eff}}}$. In a last step, we fit the combined cavity-plus-PPIT data using Eq. (5) with all parameters fixed from the individual fits except for ${g}_{\omega }^{{\prime} }$ and ${g}_{\kappa }^{{\prime} }$. The deviations of ${g}_{\omega }^{{\prime} }$ and ${g}_{\kappa }^{{\prime} }$ from the fit lines in Fig. 4 seem to increase with ∣δ_eff∣, and we attribute them to a frequency-dependence of the cavity background parameters such as θ, which are not completely accounted for.

The intracavity pump photon number n_c, which is required to analyze ${g}_{\omega }^{{\prime} }({n}_{\mathrm{c}})$ and ${g}_{\kappa }^{{\prime} }({n}_{\mathrm{c}})$, we obtain from the experimental ac Stark shift of the HF mode $\delta {\omega }_{0}={\omega }_{0}^{{\prime} }-{\omega }_{0}$ in combination with the theoretical value for g_0ω. A detailed description is presented in Supplementary Notes 4 and 7.

Fit approach for dynamical backaction

To model the dynamical backaction curves in Fig. 5, we use Eqs. (10) and (11) to calculate Γ_pp and δΩ_pp without any free parameters. The scaling of ${g}_{\omega }^{{\prime} }$, ${g}_{\kappa }^{{\prime} }$ and ${\kappa }_{0}^{{\prime} }$ with n_c we obtain from the corresponding fits shown in Fig. 4, while the HF mode frequency ${\omega }_{0}^{{\prime} }$ as a function of n_c we calculate as

$${\omega }_{0}^{{\prime} }={\omega }_{{\rm{p}}}+\sqrt{({\Delta }_{\mathrm{p}}-{{\mathcal{K}}}{n}_{\mathrm{c}})({\Delta }_{\mathrm{p}}-3{{\mathcal{K}}}{n}_{\mathrm{c}})-\frac{{\kappa }_{{\rm{aux}}}^{2}}{4}}$$

(26)

and ${\kappa }_{\mathrm{aux}}={\kappa }_{1}{n}_{\mathrm{c}}+2{\kappa }_{2}{n}_{\mathrm{c}}^{2}+3{\kappa }_{3}{n}_{\mathrm{c}}^{3}$, cf. Supplementary Notes 4 and 7. The only missing ingredient then is n_c(ω_p), which we calculate by numerically solving the characteristic polynomial of a superconducting circuit with a dispersive Kerr nonlinearity and up to third order nonlinear damping

$$\begin{array}{l}\frac{{\kappa }_{3}^{2}}{4}{n}_{\mathrm{c}}^{7}+\frac{{\kappa }_{2}{\kappa }_{3}}{2}{n}_{\mathrm{c}}^{6}+\frac{{\kappa }_{2}^{2}+2{\kappa }_{1}{\kappa }_{3}}{4}{n}_{\mathrm{c}}^{5}\\+\frac{{\kappa }_{0}{\kappa }_{3}+{\kappa }_{1}{\kappa }_{2}}{2}{n}_{\mathrm{c}}^{4}+[{{{\mathcal{K}}}}^{2}+\frac{{\kappa }_{1}^{2}+2{\kappa }_{0}{\kappa }_{2}}{4}]{n}_{\mathrm{c}}^{3}\\+[\frac{{\kappa }_{0}{\kappa }_{1}}{2}-2{{\mathcal{K}}}{\Delta }_{\mathrm{p}}]{n}_{\mathrm{c}}^{2}+[{\Delta }_{\mathrm{p}}^{2}+\frac{{\kappa }_{0}^{2}}{4}]{n}_{\mathrm{c}}-{\kappa }_{\mathrm{ext}}{n}_{\mathrm{in}}=0\end{array}$$

(27)

cf. Supplementary Note 4. The input photon flux

$${n}_{{\rm{in}}}={{{\mathcal{G}}}}_{{\rm{att}}}({\omega }_{\mathrm{p}})\frac{{P}_{{\rm{sg}}}}{\hslash {\omega }_{\mathrm{p}}}$$

(28)

contains the experimentally determined pump-attenuation ${{{\mathcal{G}}}}_{\mathrm{att}}({\omega }_{\mathrm{p}})$ and the output power of the signal generator P_sg, cf. Supplementary Note 7.

Finally, we fit the total effective linewidth and resonance frequency for all pump powers simultaneously, using Eqs. (12) and (13) with Ω₀, Γ₀, κ_c and ${{{\mathcal{K}}}}_{\mathrm{c}}$ as fit parameters. Notably, the fit values for Γ₀ and Ω₀ obtained from this fit deviate a bit from the ones obtained from the flux arc fits given in “Results—Flux-tunable photon-pressure interactions”, cf. also Supplementary Note 4. To be more precise, they differ by  ~ 70 kHz and  ~ 190 kHz, respectively. A good part of the deviation in Ω₀ can be attributed to the LF flux arc fit (and the data extracted from it) slightly deviating from the data points, which accounts for  ~ 100 kHz in Ω₀. We believe the remaining mismatches are mainly due to a 5 dB difference in probe powers used for the LF reflection measurements during the flux arc sweep (higher probe power) and the dynamical backaction experiment (lower probe power). The latter would also be consistent with probe-power dependence measurements of the LF circuit during another cooldown, where we observed slight shifts of Ω₀ and Γ₀ as function of probe power even below the onset of significant self-Kerr nonlinearities.
