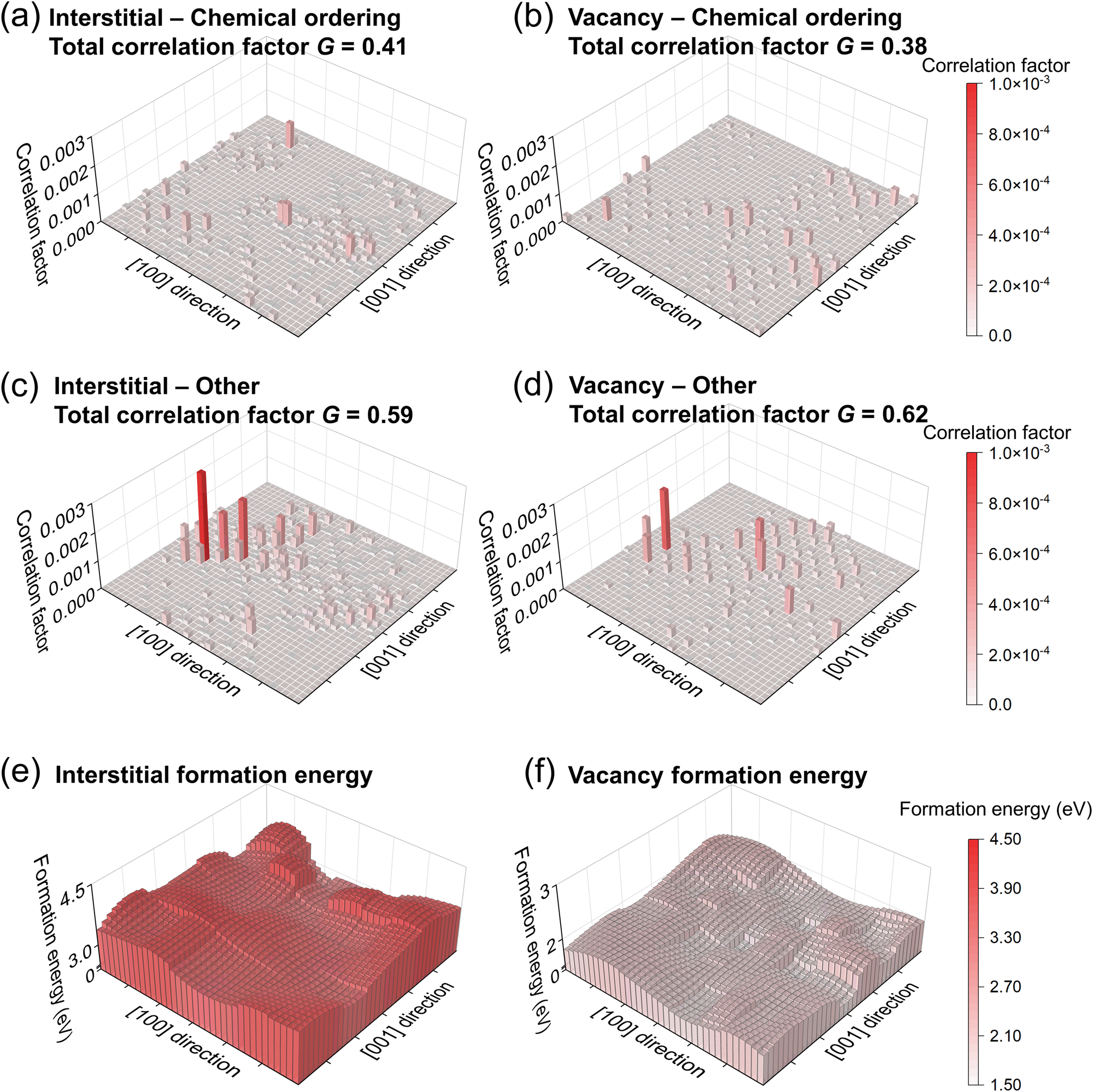

Fig. 6: Correlation between chemical ordering degree and defects residence density.

From: Tunable interstitial and vacancy diffusivity by chemical ordering control in CrCoNi medium-entropy alloy

Fig. 6: Correlation between chemical ordering degree and defects residence density.

a, b Correlation factor distribution of interstitial and vacancy for chemical ordering structures (type I + type II + type III) in the Model_AN 5 on the (010) plane, respectively. c, d Correlation factor distribution of interstitial and vacancy for “other” structures in the Model_AN 5 on the (010) plane, respectively. The total correlation factors between chemical ordering degree of chemical ordering structures and “other” structures and interstitial (vacancy) residence density were calculated as 0.41 (0.38) and 0.59 (0.62), respectively. e, f Distribution of interstitial and vacancy formation energy in the Model_AN 5 on the (010) plane, respectively.
