Fig. 3: Evaluation in unrolled prediction scenarios in the case of c+/c- tip-induced domain switching. | npj Computational Materials

Fig. 3: Evaluation in unrolled prediction scenarios in the case of c+/c- tip-induced domain switching.

From: Machine learning surrogate for 3D phase-field modeling of ferroelectric tip-induced electrical switching

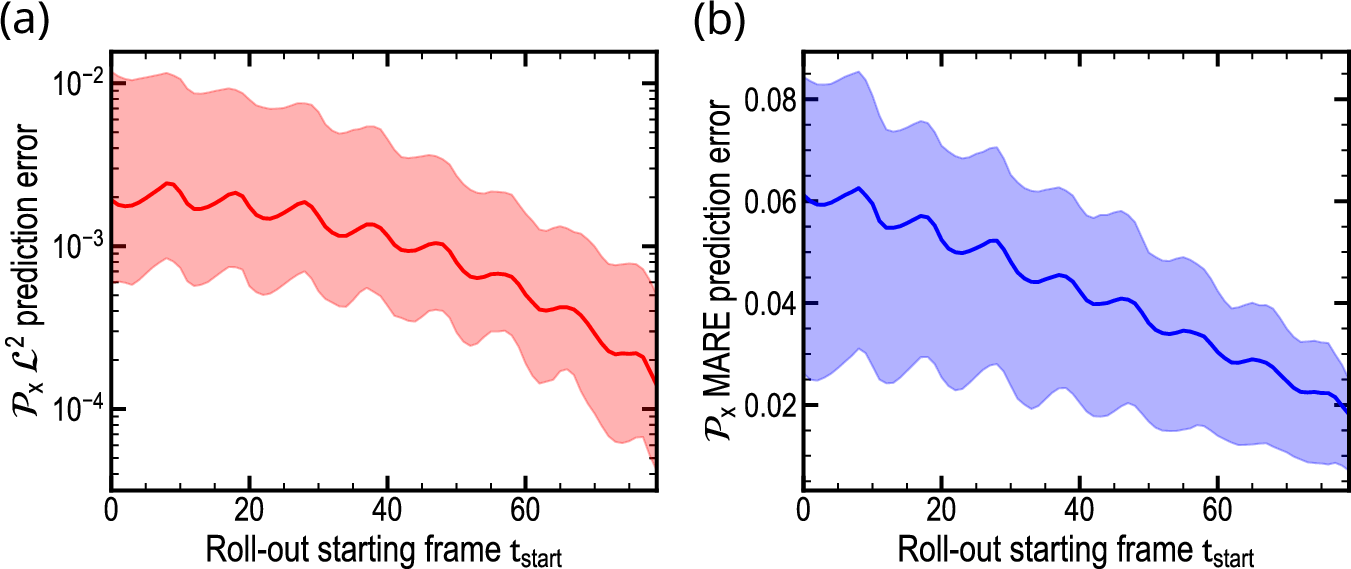

Fig. 3

a Evolution of the \({{\mathcal{L}}}_{2}\) error and b MARE during the unrolled trajectory. For each starting frame, complete domain switching trajectories are performed until the final frame at time t100. Results are averaged over 200 test dataset simulations, with the solid line indicating the mean and the shaded region representing the interquartile range between the 25th and 75th percentiles.
