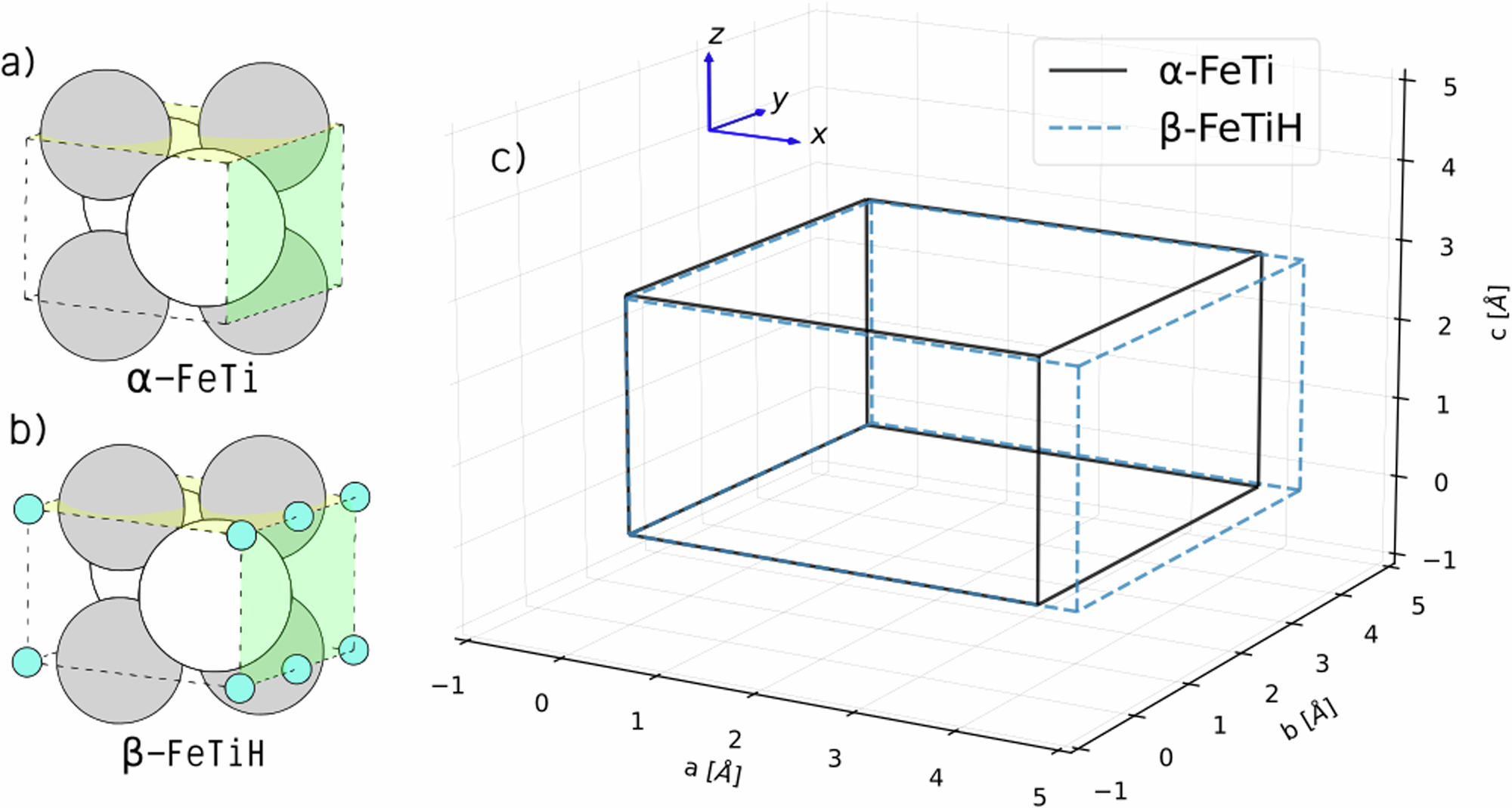

Fig. 8: Representation of the relationship between the β hydride and the α matrix.

a The α phase within tetragonal lattice structure, (b) the orthorhombic β phase, and (c) superimposition of the tetrahedral α and orthorhombic β unit cells. Gray: Fe atoms; white: Ti atoms; cyan: H atoms.
