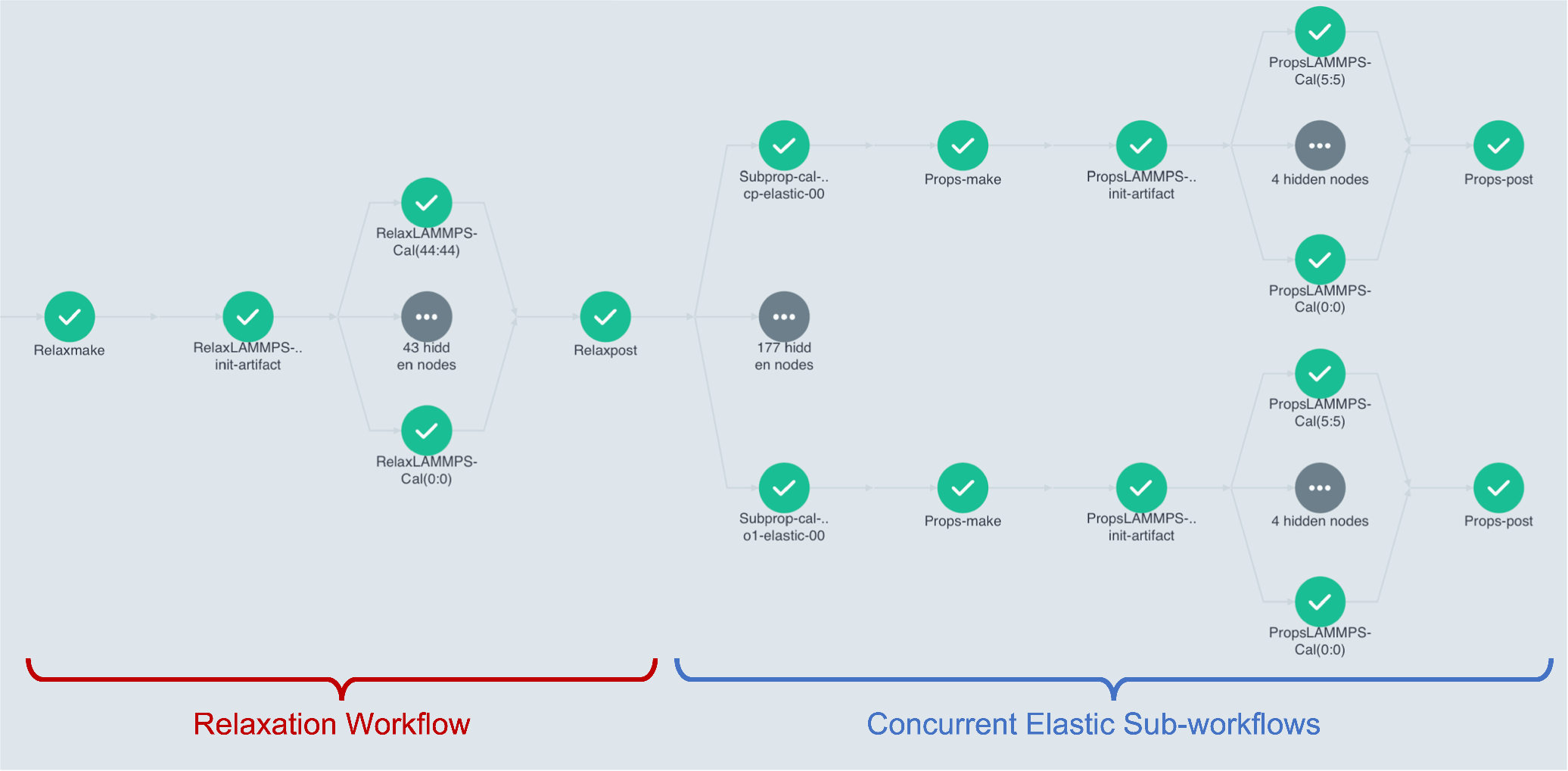

Fig. 6: A completed exploration joint workflow from the process monitoring panel.
From: APEX: an automated cloud-native material property explorer
The left side (Relaxation Workflow) is for structure optimization, and the right side is for (all) 179 concurrent sub-workflows for determining elastic constants.
