Orbital torques and orbital pumping in two-dimensional rare-earth dichalcogenides

Abstract

The design of spin-orbit torque properties in two-dimensional (2D) materials presents one of the challenges of modern spintronics. In this context, 2D layers involving rare-earth ions − which give rise to robust magnetism, exhibit pronounced orbital polarization of the states, and carry strong spin-orbit interaction—hold particular promise. Here, we investigate ferromagnetic Janus H-phase monolayers of 4f-Eu rare-earth dichalcogenides EuSP, EuSSe, and EuSCl using first-principles calculations. We demonstrate that all compounds exhibit significant spin-orbit torques which originate predominantly in the colossal current-induced orbital response on the Eu f-electrons. Moreover, we demonstrate that the corresponding orbital torques can be used to drive strong in-plane currents of orbital angular momentum with non-trivial direction of orbital polarization, constituting the effect of in-plane orbital pumping. We provide an interpretation of this effect in terms of orbital-to-orbital-curent conversion, and draw a simple qualitative picture of orbital pumping by magnetization dynamics in two dimensional systems. Our findings promote f-orbital-based 2D materials as a promising platform for in-plane orbital pumping and spin-orbit torque applications, and motivate further research on educated design of orbital properties for orbitronics with 2D materials.

Introduction

Orbitronics, holding significant potential to shape information technology, has emerged as a field capable of developing eco-friendly electronic devices¹. By harnessing the unique properties of electron’s orbital angular momentum (OAM), which can be generated in a highly efficient manner by the direct transfer of angular momentum from the lattice, orbitronics opens up new possibilities for energy-efficient technologies that can reduce environmental impact and optimize device performance². The study of OAM offers the opportunity to explore novel data storage and processing mechanisms, which could revolutionize modern computing^3,4. The OAM is the pivotal degree of electronic freedom, which can result in various phenomena such as the orbital Hall effect (OHE)^5,6, orbital magnetoelectric effects, and orbital torques^7,8,9. In this context, orbital torque and orbital pumping emerge as critical mechanisms in orbitronics. Orbital torque, akin to spin torque in spintronics ^8,10,11, allows for efficient manipulation of magnetization via the transfer of angular momentum. Similarly, orbital pumping facilitates the generation of orbital currents through dynamic coupling between orbitals and magnetization. Together, these mechanisms bridge theoretical insights with practical applications, advancing the potential of orbitronics in modern technology.

In broad terms, the current-induced magnetization dynamics involves the transfer of angular momentum, extending beyond spin alone. The key role of the OAM as a source of torque on the magnetization has been firmly established in the past years, both theoretically and experimentally^{8,10,12,13,14}. The fundamental mechanism of exchange among the non-equilibrium OAM and spin via the process of spin-orbit coupling (SOC) mediated spin-orbital, or simply, orbital torque, has been recently deduced from quantum mechanical formulations and first principles calculations¹⁵. As a result, this provided a key to understanding of various experiments where the excess of OAM is believed to be generated via the mechanisms of OHE or orbital Rashba–Edelstein effect^16,17. In such cases, strong spin-orbit torques on the magnetization are generated, and they often exhibit an unusual behavior distinctly different from that expected from purely spin-mediated torques^18,19.

Reciprocal to spin-orbit torque process, the magnetization dynamics generates a flow of charge, with the correlation between the direct and inverse process governed by the very same spin-orbit torkance tensor²⁰. Given the observed role of OAM in mediating the spin-orbit torque, it was postulated that, in addition to the effect of spin pumping, the magnetization dynamics is able to create an excess of OAM^21,22, with the corresponding effect of orbital pumping observed very recently²³. Despite clear successes in promoting and exploiting the OAM for magnetization dynamics, still very little is understood concerning the basic ingredients of the orbital torque and orbital pumping. In this context, the design of material families where various contributions to the spin-orbit torque and pumping can be suppressed and promoted in an educated way, is pertinent. In a recent work, Ding et al.²⁴ demonstrated that tuning the concentration of heavy Gd in a GdCo alloy can be used to effectively enhance the strength of orbital-to-spin conversion, which has direct impact on the magnitude and sign of the torque. Strong spin-to-orbital conversion leading to THz emission has been also recently demonstrated in heterostructures containing Nd, Gd and Ho²⁵. This suggests that employing heavy rare-earth elements for orbital torque and orbital current design can aid in gaining deeper insights into the interplay of spin and orbital degrees of freedom out of equilibrium.

Among novel material classes, two-dimensional (2D) materials present an exciting platform for various novel phenomena, such as the OHE, valley-dependent orbital transport, and spin-orbit torque effects^26,27,28,29. The confined geometry and intrinsic anisotropy of these compounds especially promote the orbital degree of freedom^30,31, which makes 2D materials a fruitful ground for testing and realizing various flavors of orbital effects. For example, it was found that in transition-metal dichalcogenides such as MoS₂ and WS₂, the OHE, see Fig. 1a, acquires exotic properties, and can even exhibit quantization^32,33, leading to a formulation of a concept of orbital Chern insulator^32,34. It was shown that the valley degree of freedom, which naturally emerges in transition-metal dichalcogenides^35,36,37 is closely correlated with orbital transport out of equilibrium^32,38. Additionally, it was demonstrated that utilizing rare-earth elements such as Gd and Eu to form 2D layers of rare-earth metal dichalcogenides, can give rise to strong magnetism, promote large orbital Hall response of p- and f-electrons, and result in robust quantum spin, anomalous and orbital Hall phases^39,40.

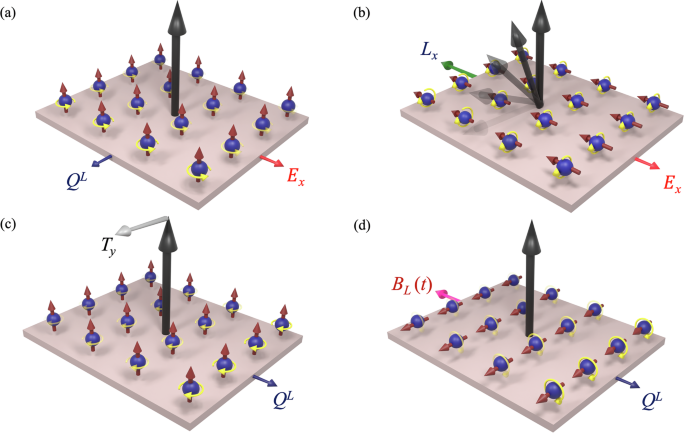

Fig. 1: Orbital torque and orbital pumping in 2D Janus dichalcogenides.

a In 2D magnetic dichalcogenides (magnetization out of the plane along z, indicated with a black arrow), application of an electric field E_x along x (red arrow) leads to generation of a current of orbital angular momentum Q^L along y, polarized along z (small red arrows and yellow circular arrows) via the mechanism of the orbital Hall effect (OHE). b At the same time, due to broken z-reflection symmetry in Janus geometry, the electric field will give rise to a current-induced orbital polarization L_x (green arrow, as well as small red arrows and yellow circular arrows), which mediates an orbital torque on the magnetization along y (depicted with fading arrows). c In a reciprocal process, perturbing the magnetization with a torque T_y along y (grey arrow) will result in a generation of an orbital current along x polarized along y and z (shown with small yellow and red arrows), which constitutes the effect of in-plane orbital pumping. d For rare-earth dichalcogenides, the effect of orbital pumping is equivalent to the effect of orbital-to-orbital-current conversion, where the orbital current arises in response to an increasing linearly in time orbital field B_L(t) applied along x (pink arrow). While the OHE can be used to generate orbital currents in 2D materials, the effect of orbital pumping mediated by orbital torque can be used to achieve orbital current generation by magnetization dynamics in 2D geometry.

The design of spin-orbit torque in two dimensions is one of the actively explored areas of 2D magnetism⁴¹. Following the continuity equations for the redistribution of angular momentum, it has been suggested that in purely 2D systems the spin-orbit torque should be entirely attributed to the orbital contribution^15,42. It was also found that in 2D layers of finite thickness the spin and orbital nature of the torque can be controlled by the magnetization direction⁴³. In particular, the so-called Janus 2D layers have attracted significant attention recently^44,45 due to the combined properties of low-dimensionality, anisotropy, valley-spin coupling, and the Rashba coupling. The hexagonal phase of Janus layers has been predicted and experimentally realized in nonmagnetic TMDs MoSSe and WSSe^45,46,47. Magnetic Janus 2D materials, meanwhile, have been the subject of extensive theoretical predictions, including Cr-, Fe-, and V-based dichalcogenide and halide monolayers with strong SOC and magnetic anisotropy^48,49. Recently, the first experimental realization of a magnetic Janus monolayer was reported in CrTeSe⁵⁰, fabricated via molecular beam epitaxy, establishing a promising platform for exploring symmetry-driven spin-orbit effects in 2D magnets. Low symmetry of these materials promotes phenomena such as the spin Hall effect⁵¹ and the quantized transport due to nontrivial Z₂ band topology^52,53. The Janus layers were found to possess a high level of electrical conductivity, mechanical strength^54,55, and thermal stability⁵⁶, making them a promising material class for applications in electronics, energy storage, and spintronic devices^57,58,59. The Janus structure has also attracted significant research in the context of spin-orbit torque switching⁶⁰.

In this work, taking as an example low-symmetry rare-earth dichalcogenides of Janus type, which combine strong magnetism with large SOC and orbital polarization, we explore the role of orbital magnetism in mediating spin-orbit torque and orbital pumping in 2D magnets based on f-electrons. First of all, we demonstrate that the current-induced torque acting on the f-states can reach an order of magnitude observed in most optimal representatives of the 2D magnets^61,62. We find that the f-torque is purely orbital in nature, that is, it is directly proportional to the current-induced local orbital moment of rare-earth atoms, Fig. 1b. Second, we predict that igniting magnetization dynamics by external means will result in the effect of two-dimensional orbital pumping, with the pumped in-plane currents of angular momentum dominated by the orbital contribution, Fig. 1c. Moreover, our prediction is that, due to the low symmetry of the structure, the response of pumped current is non-trivial in terms of direction and polarization, which may find direct applications in spintronic architectures based on an in-plane spin and OAM injection. Finally, we uncover the origin of the orbital pumping in the effect of orbital-to-orbital-current conversion mechanism, Fig. 1d, where a perturbation of the Hamiltonian by the time-dependent orbital field can fully replace the dynamical term in predicting the response, thus postulating an equivalence between the torque and OAM operators within the subspace of f-electrons. At the end of the manuscript, we discuss the implications of our findings in the discipline of 2D magnetism and spintronics research and experimental methods to confirm our predictions.

Results

Electronic and magnetic properties

We summarize in Table 1 of the “Methods” section the optimized structure lattice parameters, magnetic moments of Eu, S, and X atoms, and the band gaps calculated for considered systems with the magnetization along z, which we find to be the easy axis for all systems. Here, we consider only the case of out-of-plane magnetized EuSX, leaving the aspect of anisotropy of various effects with respect to the magnetization direction for future work. We find that for all cases the Eu spin moment is close to 7 μ_B, reflecting the half-filled f-shell configuration (4f⁷6s²), while X spin moment is opposite in sign, ranging in magnitude between 0.02 μ_B for Se and 0.64 μ_B for Cl. The orbital moments are always negative with respect to Eu spin moment, ranging between −0.01 μ_B and −0.19 μ_B for all atoms.

Table 1 Optimal lattice parameters and magnetic properties of EuSX for out-of-plane magnetization: lattice constant (a), buckled height between Eu–S/X atoms plane Δ(Eu–S/X), and the magnetic moment (S) of atom Eu and S/X, as well as the orbital magnetic moment (L) of Eu, in addition to the bandgap

We first analyze the evolution of the electronic structure and magnetic properties when increasing the number of electrons in the system by going from EuSP, to EuSSe, and EuSCl. Note that the valence shell configurations for P, S, and Cl are 3s²3p³, 3s²3p⁴, and 3s²3p⁵, respectively. The bandstructures and spin-resolved density of states (DOS) for EuSX monolayers computed with SOC are shown in Fig. 2. Starting with the case of EuSP, Fig. 2b, we find that the system is a metal with states at the Fermi energy dominated by p-orbitals of P, and Eu-f states located 1–2 eV below.

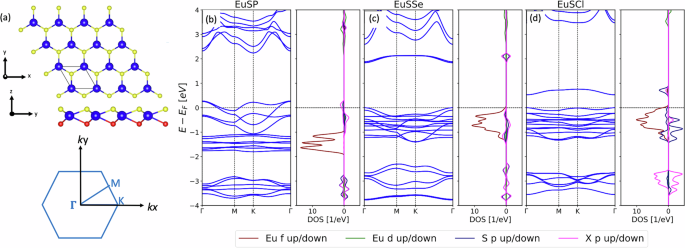

Fig. 2: Electronic structure of EuSX.

a Top and side views of the Janus H-phase EuSX monolayers (X = P, Se, and Cl) are shown. The dark blue balls represent Eu atoms, and the yellow/red balls represent S and X atoms, respectively, with the axes shown with black arrows. The first Brillouin zone is shown at the bottom. Right: b–d The band structures and the corresponding spin-resolved density of states (DOS) are shown. The left and right parts of the DOS correspond to the majority and minority spin, respectively. The DOS of Eu-f, Eu-d, S-p, and X-p states is shown with dark red, green, blue, and pink, respectively.

Remarkably, the f-states of Eu and the p-states of S or P atoms are always separated in energy, so that their hybridization is minimal. In contrast, the p-states of S and P atoms exhibit a strong hybridization, particularly between −3 and −4 eV. Turning to EuSSe, Fig. 2c, we observe that it is a semiconductor with a large band gap of 1.84 eV. The valence band maximum and the conduction band minimum are both located at the Γ point, with the former dominated by the 4f majority states of the Eu atom, and the latter originating in the p states of S/P atoms, with both orbital types hybridizing strongly near the Fermi energy.

The results for the case of EuSCl are shown in Fig. 2d. This system has a direct semiconducting band gap of 0.534 eV at Γ, which is generated by the flat band of majority 4f-state of the Eu atom and the minority 3p of the Cl atom. It also exhibits the largest in magnitude spin moment of the S atom among all layers of 0.64 μ_B, originating in the partial occupation of spin-split flat S p-bands at the Fermi energy. In contrast to other systems, there is a clear imbalance in the hybridization of the p- and f-states: Eu states bond much stronger with the p-states of S, while the group of states at around −3 eV is predominantly of Cl character. The latter group of p-states also looks qualitatively different from the other two compounds.

Orbital torque in EuSX

The geometry of EuSX is of Janus type, where the structural inversion symmetry and the mirror reflection symmetry with respect to z (${{\mathcal{M}}}_{z}$) are naturally broken, which allows for the effect of spin-orbit torque for the out of plane magnetization.

To investigate the torque that is exerted on the magnetization upon application of an electric field, we utilize the spin continuity equation for the time evolution of spin density¹⁵:

$$\frac{\partial {\bf{S}}}{\partial t}={\Phi }^{{\bf{S}}}+{T}_{{\rm{SO}}}^{{\bf{S}}}+{T}_{{\rm{XC}}}^{{\bf{S}}},$$

(1)

where Φ^S stands for the spin flux contribution, T_SO is what we refer to as the spin-orbital, or, simply orbital torque, and T_XC is the torque on the magnetization due to transfer of angular momentum from the spin of excited electronic states.

For the total Hamiltonian H, the spin flux coming into an atom defined by the projection P is given by

$${\Phi }^{{\bf{S}}}=\frac{1}{2i\hslash }\left\{[P,H],\,{\bf{S}}\right\},$$

(2)

where [A, B] = AB − BA and {A, B} = AB + BA are the commutator and anti-commutator for the pair of operators A and B. The spin-orbital torque and exchange torque are given as

$${T}_{{\rm{SO}}}^{{\bf{S}}}=\frac{1}{2i\hslash }\left\{[{\bf{S}},{H}_{{\rm{SO}}}],\,P\right\},$$

(3)

$${T}_{{\rm{XC}}}^{{\bf{S}}}=\frac{1}{2i\hslash }\left\{[{\bf{S}},{H}_{{\rm{XC}}}],\,P\right\},$$

(4)

respectively, where H_SO and H_XC stand for the spin-orbit and spin-dependent exchange-correlation part of the single-particle Kohn-Sham Hamiltonian, respectively. That is, the total Hamiltonian is given by

$$H={H}_{0}+{H}_{{\rm{SO}}}+{H}_{{\rm{XC}}},$$

(5)

where H₀ incorporates the spin-independent part of the Hamiltonian, including the kinetic energy and the crystal-field potential generated by the lattice and the mean-field of electron cloud. Note that the exchange Hamiltonian is given as H_XC = (2μ_B/ℏ)S ⋅ V_XC, where ${{\boldsymbol{V}}}_{{\rm{XC}}}={\hat{\boldsymbol{M}}}\cdot {V}_{{\rm{XC}}}({\bf{r}})$ is the so-called exchange field which determines the magnitude of the magnetic moments and spatial properties of the spin density, and ${\hat{\boldsymbol{M}}}$ is the unit vector along the magnetization direction.

In the steady state, the torque on the magnetization is given by

$$\left\langle -{T}_{{\rm{XC}}}^{{\bf{S}}}\right\rangle \approx \left\langle {\Phi }^{{\bf{S}}}\right\rangle +\left\langle {T}_{{\rm{SO}}}^{{\bf{S}}}\right\rangle ,$$

(6)

where 〈 ⋯ 〉 stands for the statistical average in the steady state. In a purely 2D system, periodic in the xy plane, the flux is absent by construction, and the exchange torque is purely given by the spin-orbital torque, the angular momentum transfer from the OAM to the spin, $\left\langle -{T}_{{\rm{XC}}}^{{\bf{S}}}\right\rangle \approx \left\langle {T}_{{\rm{SO}}}^{{\bf{S}}}\right\rangle$. Under an external electric field E_x applied along x, the response of the torque along y in the steady state is given by the Kubo formula

$$\begin{array}{rcl}{\left\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\right\rangle }_{y}&=&\frac{e\hslash {E}_{x}}{{N}_{{\boldsymbol{k}}}}\sum\limits_{nm}\sum\limits_{{\boldsymbol{k}}}({f}_{n{\boldsymbol{k}}}-{f}_{m{\boldsymbol{k}}})\\ &&\times \frac{{\rm{Im}}\left[\left\langle {\psi }_{n{\boldsymbol{k}}}\right\vert {T}_{{\rm{XC}},y}^{{\bf{S}}}\left\vert {\psi }_{m{\boldsymbol{k}}}\right\rangle \left\langle {\psi }_{m{\boldsymbol{k}}}\right\vert {v}_{x}\left\vert {\psi }_{n{\boldsymbol{k}}}\right\rangle \right]}{{({E}_{n{\boldsymbol{k}}}-{E}_{m{\boldsymbol{k}}}+i\eta )}^{2}}\end{array}$$

(7)

$$\equiv {t}_{yx}{E}_{x},$$

(8)

where e > 0 is the unit charge, N_k is the number of k-points used for the summation such that the response is given in the unit per unit cell, v_x is the x-component of the velocity operator, ψ_nk is an eigenstate of the total Hamiltonian with band index n, E_nk is its energy eigenvalue, and t_yx is the yx-component of the torkance tensor. Here, f_nk is the corresponding Fermi-Dirac distribution function, where we set the temperature T = 300K. The broadening parameter η effectively describes the degree of disorder, which also help numerical convergence. We set η = 25 meV in all the calculations shown below. The calculation for the spin-orbital torque is done by replacing ${T}_{{\rm{XC}}}^{{\bf{S}}}$ by ${T}_{{\rm{SO}}}^{{\bf{S}}}$ in Eq. (7). In the following, for brevity, we skip the explicit reference to the distibution function in the summation, referring thus to the zero temperature limit expressions for computed quantities.

We present the results of our calculations for the y-component of the total exchange torque, i.e., t_yx component of the torkance tensor, and spin-orbital torque in Fig. 3a–c for EuSP, EuSSe, and EuSCl, respectively, as a function of the Fermi energy, keeping the magnetization aligned along z in all cases. First, we find that the overall magnitude of the exchange torque is very large, almost reaching −2 eÅ, far exceeding that in transition metal heterostructures⁶³. This is comparable to the magnitude exhibited by some representative 2D materials^{29,64,65,66,67}. For EuSCl, large values of the torque can be achieved in direct proximity of the Fermi level, which underlines the promise of this particular material for spin-orbit torque applications. Expectedly, the total summed over all atoms exchange torque in these systems is equivalent to the orbital torque, which is also apparent from the fact that it is very difficult to distinguish the curves for the orbital and exchange torques in the whole interval of energies, Fig. 3a–c.

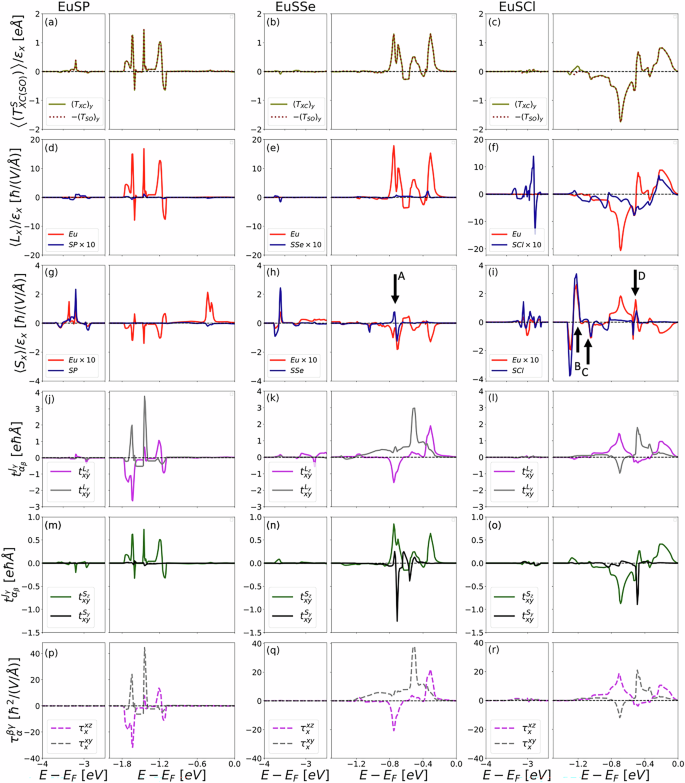

Fig. 3: Orbital torque and orbital pumping in EuSX.

a–c Band-filling dependence of the y-component of spin-orbital ($\langle {T}_{{\rm{SO}}}^{{\bf{S}}}\rangle$) and exchange ($\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$) torque normalized to the strength of an electric field E_x applied along x. The band-filling of the x-component of the normalized current-induced OAM (〈L_x〉), d-f and spin (〈S_x〉), g-i, resolved into Eu and SX contributions, is shown for comparison. In (j-l), the distribution of orbital currents arising in response to the exchange torque along y, as given by tensor components ${t}_{xy}^{{L}_{z}}$ and ${t}_{xy}^{{L}_{y}}$ defined by Eq. (14), is shown. In m–o, the respective tensors are shown for the case of spin current. The band filling dependence of the orbital-to-orbital-current conversion strength, as given by tensors ${\tau }_{x}^{xz}$ and ${\tau }_{x}^{xy}$ defined by Eq. (15), is shown for comparison in (p–r). The case of EuSP, EuSSe, and EuSCl corresponds to the left, middle, and right columns, respectively.

By relating the regions in energy, where the exchange torque is non-zero, to the band-resolved contributions shown in Fig. 4a–c, we identify the largest torque with the region of 4f-states, observing that a much smaller torque also arises in the region of p-states below the f-region (for EuSP). Correspondingly, we identify Eu atoms as contributing predominantly to the orbital “f”-torque, although at some energies within the f-band of EuSCl the contributions of S and Cl atoms are also non-zero (not shown), owing to the p-d-f hybridization taking place in that region of energy. The origin of the torque in near band degeneracies becomes apparent after a careful analysis of band-resolved contributions: for example, while the two flat p-bands positioned at about −3.2 eV in EuSP contribute only at the points where they cross the more dispersive bands, the latter provide a contribution over a larger part of the k-path as they are nearly degenerate around −3 eV. The roles of these two groups of p-states are interchanged in EuSSe, with flat bands being nearly degenerate resulting in a small but finite torque, while the more dispersive bands are split off from each other almost everywhere giving a vanishing torque signal.

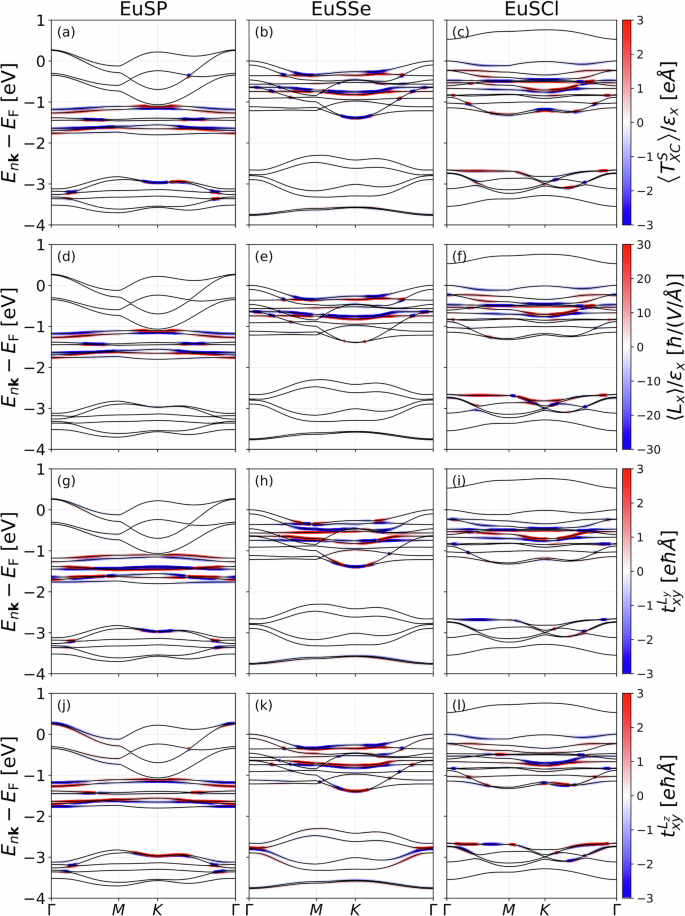

Fig. 4: Anatomy of orbital torques and orbital pumping in k-space.

For each compound, the k-resolved distribution is shown for (a–c) exchange torque $\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$ normalized to the field E_x, d–f current induced orbital moment 〈L_x〉 normalized to the field E_x, and pumped by the torque along y orbital current density along x polarized along y (${t}_{xy}^{{L}_{y}}$, (g-i), and along z (${t}_{xy}^{{L}_{z}}$, (j–l). For all cases, the colored circles represent the expectation value of the plotted quantity with the color code shown on the left.

Next, to gain further insight into the origins of the torque, we analyze the non-equilibrium interband spin and orbital accumulation induced by an external electric field and calculated according to the linear response theory from the following expression:

$$\frac{\left\langle {\bf{J}}\right\rangle }{e\hslash {E}_{x}}=2\mathop{\sum }\limits_{n{\boldsymbol{k}} < {E}_{F}}^{m{\boldsymbol{k}} > {E}_{F}}{\rm{Im}}\left[\frac{\left\langle {u}_{n{\boldsymbol{k}}}| {\bf{J}}| {u}_{m{\boldsymbol{k}}}\right\rangle \left\langle {u}_{m{\boldsymbol{k}}}| {v}_{x}| {u}_{n{\boldsymbol{k}}}\right\rangle }{{N}_{{\boldsymbol{k}}}{({E}_{n{\boldsymbol{k}}}-{E}_{m{\boldsymbol{k}}}+i\eta )}^{2}}\right],$$

(9)

where J stands either for the operator of spin or OAM, S or L. The latter is computed using the atom-centered approximation⁶⁸. The results are presented in Fig. 4(d-i) for the only non-vanishing components 〈L_x〉 and 〈S_x〉, decomposed into Eu and SX contributions. The exchange f-torque observed in the monolayers of EuSX systems, as shown in Fig. 3, can be primarily attributed to orbital physics, which clearly manifests in a remarkable one-to-one correspondence in the band filling behavior of 〈L_x〉 on Eu atoms and $\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$ in the region of f-states. This observation highlights the key role played by nonequilibrium OAM generation in mediating the overall torque in 2D limit. Note that the 〈L_x〉 of SX atoms is non-vanishing only for the case of EuSCl, where it is still an order of magnitude smaller than that on Eu atoms. In particular, for EuSCl, the non-equilibrium orbital magnetism is of purely p-origin in the p-region of states below −3 eV, see also Fig. 4f. The impact of the p-states in the f-region on the Eu-〈L_x〉 is also significant for EuSCl, as the behavior of 〈L_x〉 and the torque for this material is distinctly different from the other two materials—something, which can be clearly observed also in Fig. 4d–f.

Owing to the atom-centered approximation that we use for assessing orbital properties, the values of current-induced orbital moments on Eu atoms are sensitive to the angular expansion of Bloch states with respect to the Eu center, and are thus mostly determined by the f-orbital character of the states, being much less sensitive to the admixture of the states originated from chalcogen atoms. The situation is different for the current-induced spin moment inside Eu atoms, which can be qualitatively decomposed into a spin-orbit contribution originated from the localized around the core f-states, as well as contribution from more delocalized parts of the wavefunctions which may contain a significant weight from the chalcogen states within Eu atoms.

The analysis of current-induced spin polarization, 〈S_x〉, in Fig. 3g–i confirms the origin of the non-equilibrium spin density on Eu atoms in the current-induced orbital magnetization by SOC. Indeed, although the magnitude of Eu 〈S_x〉 is about one order of magnitude smaller than that of 〈L_x〉, the close correlation between the two quantities in the f-region is obvious. At the same time, isolated regions, indicated by small black arrows (marked as A, B, C, and D) in Fig. 3h, i, where the correlation among Eu 〈S_x〉 and 〈L_x〉 is violated, are also present. These contributions to 〈S_x〉 can be traced back to points of strong hybridization among Eu-f and SX-p states, which drives spin density response inside europia with large admixture of chalcogen states.

Note that the current-induced spin moments originated from chalcogen states are much larger in magnitude than the 〈S_x〉 coming from the f-states. This can be explained as follows. The generation of transverse to magnetization spin density along x relies on non-vanishing matrix elements of S_x among the states of opposite spin. Among the f-states, this corresponds to transitions among states which are separated in energy by more than 6 eV, which suppresses the effect significantly. On the other hand, the states of chalcogen atoms are slightly exchange split by interaction with magnetic europia, see Fig. 2, which in contrast, counter-intuitively, promotes the magnitude of 〈S_x〉 on nominally non-magnetic atoms.

The p-originated spin density does not give rise to noticeable exchange torque, neither within calcogen atoms nor in europia. Recall that the exchange torque is given by ${T}_{{\rm{XC}}}^{{\bf{S}}}=-(2{\mu }_{B}/\hslash ){\bf{S}}\times {{\boldsymbol{V}}}_{{\rm{XC}}}$, which is expressed in terms of the operator of spin and exchange field⁶³. The exchange field of Eu atoms is predominantly determined by the localized f-states, which results in the strong localization of the exchange field around the cores, and corresponding to f-states orbital structure. This means that the overlap of the exchange field with current-induced spin density S_x(r), which has a significant weight of p-states of chalcogen atoms is overwhelmed by the contribution due to the overlap of V_XC with spin-orbit induced spin density, with the latter not only being localized around Eu cores, but also consistent in symmetry with the angular expansion of the f-electron driven exchange field. Indeed, the local orbital response 〈L_x〉 on Eu atoms is very localized as well, and it stems predominantly from the f-states which ensures the locality and suitable symmetry of the SOC-induced spin density. This explains the observation that the current-induced orbital magnetization correlates with the exchange torque much stronger than the non-equilibrium spin density, despite the fact that the operator of OAM does not participate in ${T}_{{\rm{XC}}}^{{\bf{S}}}$ explicitly. Our findings thus establish the local current-induced OAM as the key factor in mediating spin-orbit torques in f-systems.

Orbital pumping in EuSX

Next, we focus on the spin and orbital current generation by magnetization dynamics. To model the effect of the magnetization dynamics, we asumme that the exchange field becomes time-dependent via the time-dependence of the magnetization direction:

$${{\boldsymbol{V}}}_{{\rm{XC}}}(t)={\hat{\boldsymbol{M}}}(t)\cdot {V}_{{\rm{XC}}}({\bf{r}}).$$

(10)

It can be shown²⁰ that this results in the following rate of change of the Hamiltonian of the system:

$$\frac{dH}{dt}={T}_{{\rm{XC}}}^{{\bf{S}}}\cdot \left({\hat{\boldsymbol{M}}}(t)\times \frac{d{\hat{\boldsymbol{M}}}(t)}{dt}\right).$$

(11)

In terms of the torkance tensor t_αβ, by using perturbation theory, one can arrive at the expression for the so-called inverse spin-orbit torque effect, i.e., an effect of charge pumping by magnetization dynamics:

$${j}_{\alpha }(t)=\frac{1}{V}\sum _{\beta }{t}_{\beta \alpha }\left({\hat{\boldsymbol{M}}}(t)\right){\left({\hat{\boldsymbol{M}}}(t)\times \frac{d{\hat{\boldsymbol{M}}}(t)}{dt}\right)}_{\beta },$$

(12)

where V is the volume and j_α is the α’th component of charge current density generated by magnetization dynamics²⁰. Thus, following Onsager’s reciprocity principle, the torkance tensor describes both the response of torque to the current, and the response of current to the magnetization dynamics.

In this context, one can also ask a question whether the time-dependent magnetization can give rise to the non-vanishing spin and orbital currents, arising in addition to the currents of charge. In the past, Kubo linear response formalism has been used to compute the effect of spin pumping—i.e., spin current driven by magnetization dynamics − into the substrate by a deposited thin ferromagnet, e.g.,²⁰ with the effect being extensively studied experimentally⁶⁹. In a similar geometry, the twin effect of orbital pumping has been also recently observed²³. In contrast to the previous works where the currents of spin and OAM propagate into the bulk of the film, here, we consider a situation where the corresponding currents are lying in the plane of our EuSX systems, see Fig. 3c, constituting thereby the effect of in-plane orbital pumping.

To assess the effects of orbital and spin pumping, we introduce the inverse spin and orbital torkance tensors ${t}_{\beta \alpha }^{{J}_{\gamma }}$ according to

$${Q}_{\alpha }^{{J}_{\gamma }}(t)=\frac{1}{V}\sum _{\beta }{t}_{\beta \alpha }^{{J}_{\gamma }}\left({\hat{\boldsymbol{M}}}(t)\right){\left({\hat{\boldsymbol{M}}}(t)\times \frac{d{\hat{\boldsymbol{M}}}(t)}{dt}\right)}_{\beta },$$

(13)

where J_γ stands for the γ-component of either spin (S_γ) or orbital (L_γ) angular momentum, and ${Q}_{\alpha }^{{J}_{\gamma }}$ is the current density of J_γ along direction α. Within the Kubo linear response the intrinsic contribution to the inverse spin (orbital) torkance tensor reads:

$$\frac{{t}_{\alpha \beta }^{{J}_{\gamma }}}{e\hslash }=2\mathop{\sum }\limits_{n{\boldsymbol{k}} < {E}_{F}}^{m{\boldsymbol{k}} > {E}_{F}}{\rm{Im}}\left[\frac{\left\langle {u}_{n{\boldsymbol{k}}}| {j}_{\alpha }^{{J}_{\gamma }}| {u}_{m{\boldsymbol{k}}}\right\rangle \left\langle {u}_{m{\boldsymbol{k}}}| {T}_{{\rm{XC}},\beta }^{{\bf{S}}}| {u}_{n{\boldsymbol{k}}}\right\rangle }{{N}_{{\boldsymbol{k}}}{({E}_{n{\boldsymbol{k}}}-{E}_{m{\boldsymbol{k}}}+i\eta )}^{2}}\right],$$

(14)

where ${j}_{\alpha }^{{J}_{\gamma }}=\frac{1}{2}({v}_{\alpha }{J}^{\gamma }+{J}^{\gamma }{v}_{\alpha })$ is the operator of spin (orbital) velocity.

For our compounds, the symmetry dictates that for the case of the torque along y (β = y), the only non-vanishing components are ${t}_{xy}^{{J}_{z}}$, ${t}_{xy}^{{J}_{y}}$, and ${t}_{yy}^{{J}_{x}}={t}_{xy}^{{J}_{y}}$, while for the torque along x (β = x) the non-vanishing components are ${t}_{yx}^{{J}_{z}}=-{t}_{xy}^{{J}_{z}}$, ${t}_{yx}^{{J}_{y}}=-{t}_{xy}^{{J}_{y}}$, and ${t}_{xx}^{{J}_{x}}=-{t}_{yx}^{{J}_{y}}$.

We can understand it based on the example of a current of angular momentum arising in response to the torque along y. In our Janus layers with magnetization M along z, a symmetry operation which leaves the system invariant is a combination of time-reversal ${\mathcal{T}}$ with ${{\mathcal{M}}}_{x}$. As far as the torque operator along y, which is proportional to the vector product of S_x with M_z, is concerned, the application of ${\mathcal{T}}{{\mathcal{M}}}_{x}$ flips it sign. On the other hand, among different components of angular momentum current operators, ${j}_{x}^{{J}_{z}}$, and ${j}_{y}^{{J}_{x}}$ remain invariant, while ${j}_{x}^{{J}_{x}}$, ${j}_{y}^{{J}_{y}}$, and ${j}_{y}^{{J}_{z}}$ change the sign. Taking into account the fact that ${\mathcal{T}}{{\mathcal{M}}}_{x}$ is anti-unitary, which introduces an additional minus sign in the intrinsic Kubo response $\sim {\rm{Im}}[\cdots \,]$, non-vanishing response is expected for ${j}_{x}^{{J}_{y}}$, ${j}_{x}^{{J}_{z}}$, and ${j}_{y}^{{J}_{x}}$ under the perturbation by the torque along y. These correspond to ${t}_{xy}^{{J}_{z}}$, ${t}_{xy}^{{J}_{y}}$, and ${t}_{yy}^{{J}_{x}}$. Analogously, since the torque along x is proportional to a product between S_y and M_z, it does not change sign under ${\mathcal{T}}{{\mathcal{M}}}_{x}$, which results in non-vanishing ${t}_{yx}^{{J}_{z}}$, ${t}_{xx}^{{J}_{x}}$, and ${t}_{yx}^{{J}_{y}}$ components. The rest of the relations can be obtained by invoking the C_3v symmetry of the lattice with out-of-plane magnetization.

In short, we find that when a torque is applied on the magnetization, this results in a generation of two types of currents of angular momentum: (i) A current which is polarized along the direction of the magnetization and propagates together with the pumped flow of charge; (ii) An in-plane current of angular momentum with an in-plane propagation-direction-dependent polarization, whose properties can be controlled by the direction of the applied torque. It is important to realize that were our atoms arranged in a square lattice with both mirror symmetries ${{\mathcal{M}}}_{x}$ and ${{\mathcal{M}}}_{y}$ present, only one conventional component ${t}_{xy}^{{J}_{z}}$ would survive, driving the current of type (i). The complexity of the pumped currents of angular momentum is thus a direct consequence of the complex structural symmetry of considered Janus rare-earth dichacogenides.

The tensor components ${t}_{xy}^{{S}_{z}}$ and ${t}_{xy}^{{S}_{y}}$ for the case of spin, and ${t}_{xy}^{{L}_{z}}$ and ${t}_{xy}^{{L}_{y}}$ for the case of orbital channel are shown for EuSX in Fig. 3j–l and Fig. 3m–o, respectively, as a function of band filling. By first looking at the pumped spin currents, we immediately realize that for all compounds, in case of the z-polarization, the spin current in the f-region is directly proportional to the generated by E_x distribution of $\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$ and 〈L_x〉, and not to the corresponding values of 〈S_x〉, Fig. 3a–i. This can be easily understood from the fact that in the ground state the localized f-states are almost pure eigenstates of S_z. This means that when we consider matrix elements of spin velocity $\frac{1}{2}\langle {u}_{n{\boldsymbol{k}}}| {S}_{z}{v}_{x}+{v}_{x}{S}_{z}| {u}_{m{\boldsymbol{k}}}\rangle$, which enter expression (14) for ${t}_{xy}^{{S}_{z}}$, they become proportional to the matrix elements of v_x when evaluated among the f-states. To good approximation this manifests an equivalence of ${Q}_{x}^{{S}_{z}}$ and $\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$, see Eq. (6). On the other hand, for the same reason, ${Q}_{y}^{{S}_{y}}$ is vanishing almost everywhere since the matrix elements of S_y are zero when evaluated among the eigenstates of S_z. The only exclusion can be seen at the “spin-flip" points at the electronic structure, where the spin-up and spin-down bands of SX and Eu atoms meet (see for example vanishing ${t}_{xy}^{{S}_{y}}$ for EuSP where f-states are well-separated from p-states). These spin-flip points allow for the non-vanishing matrix elements of S_y among the states of opposite z-spin polarization, and are also responsible for the pronounced response in current-induced S_x mediated by hybridization among the p- and f-states, as discussed above.

The behavior of the pumped orbital currents is, however, very different. We first discuss the case of out-of-plane polarized pumped orbital currents. Let us recall that for the considered here out-of-plane magnetization the f-states, to a large degree, can be considered as eigenstates of L_z, spreading in energy from negative to positive values of 〈L_z〉, according to Hund’s rules. This implies that when the Fermi energy is in the middle of the lower band with negative 〈L_z〉 (or in the middle of the upper band with positive 〈L_z〉), the matrix element of the orbital velocity $\frac{1}{2}\langle {u}_{n{\boldsymbol{k}}}| {L}_{z}{v}_{x}+{v}_{x}{L}_{z}| {u}_{m{\boldsymbol{k}}}\rangle$ approximately equals the matrix element of v_x times an effective averaged value of L_z, which is negative (positive) within the lower (upper) f-band. This effective value should be much smaller in the middle of the f-band, as it is determined as an average of positive and negative eigenvalues of L_z above and below the Fermi energy. Respectively, we observe in Fig. 3j–l that, qualitatively, in the f-region the z-polarized orbital current can be reconstructed from the behavior of the $\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$, Fig. 3a–c, multiplied with a negative (positive) factor in lower (upper) f-subband, while being suppressed in the middle of the f-band. If we recall that $\langle {T}_{{\rm{XC}}}^{{\bf{S}}}\rangle$ is directly proportional to the density of charge current driven by magnetization dynamics by the inverse spin-orbit torque effect, we can perceive pumped orbital current ${Q}_{x}^{{L}_{z}}$ as an orbital filtering effect, where the pumped charge current becomes orbitally polarized along z as it is generated by an application of a torque.

When inspecting the in-plane polarized OAM current, we find that it is peaking in the middle of the f-band, where z-polarized current is suppressed. Moreover, in contrast to ${Q}_{x}^{{S}_{y}}$, ${Q}_{x}^{{L}_{y}}$ is spread over wider regions of energy. This can be understood based on a observation that in contrast to L_z, operator L_y couples the states with different orbital m-character, which gives rise to ${Q}_{x}^{{L}_{y}}$ in wider regions of energy by feeding on high complexity in the orbital composition of the bands. The effect is maximized in the middle of the f-band, which corresponds to the excess of states with m = 0, coupling with which across the Fermi energy provides largest matrix elements of L_y in the basis of f-states.

On the other hand, when looking at the k-space behavior of the two types of orbital currents, shown in Fig. 4g–l, we find two clear distinctions. First, ${Q}_{x}^{{L}_{z}}$ is more often originating from narrower regions in the reciprocal space, which is reflected in a larger number of monopole-like features where the bands cross each other. Second, aside from monopole-like contributions, we find that ${Q}_{x}^{{L}_{y}}$ exhibits a much richer behavior in k-space with contributions of various sign spread over larger regions in energy, in contrast to ${Q}_{x}^{{L}_{z}}$ which is much more uniform when staying within a given narrow energy interval of a given flat band.

Origin of orbital pumping in 2D

Above, we have observed that for f-electrons the effect of the current-induced torque on the exchange field is equivalent to the effect of current-induced orbital magnetization. Therefore, it seems rewarding to explore whether the same holds true for the inverse process: i.e., whether the pumping of the OAM currents by the torque is equivalent to an OAM current arising in response to an induced orbital magnetization. In other words, we have to assess the properties of pumped OAM current when the orbital magnetization is increasing in time. This effect can be modelled by considering an additional orbital term in the Hamiltonian, B_L(t)L, with linearly increasing in time orbital exchange field, B_L(t) ~ t. Introducing such a term on the level of spin has been used in the past to study the phenomena of inverse (spin) Edelstein effect⁷⁰ and its magnetic counterpart⁷¹, associated with the pumping of charge currents. By considering this term as a perturbation, we are interested in the response of the orbital currents, proportional to the rate of change in the orbital magnetic field, which is governed by the following orbital-to-orbital-current conversion tensor:

$$\frac{{\tau }_{\alpha }^{\beta \gamma }}{e\hslash }=2\mathop{\sum }\limits_{n{\boldsymbol{k}} < {E}_{F}}^{m{\boldsymbol{k}} > {E}_{F}}{\rm{Im}}\left[\frac{\left\langle {u}_{n{\boldsymbol{k}}}| {j}_{\beta }^{{L}_{\gamma }}| {u}_{m{\boldsymbol{k}}}\right\rangle \left\langle {u}_{m{\boldsymbol{k}}}| {\hat{L}}_{\alpha }| {u}_{n{\boldsymbol{k}}}\right\rangle }{{N}_{{\boldsymbol{k}}}{({E}_{n{\boldsymbol{k}}}-{E}_{m{\boldsymbol{k}}}+i\eta )}^{2}}\right].$$

(15)

The calculations for the ${\tau }_{x}^{xz}$ and ${\tau }_{x}^{xy}$ components—corresponding to a generation of y- or z-polarized OAM currents along x in response to the orbital field applied along x—are shown in Fig. 3p–r. From this data we make a remarkable observation: as far as pumped orbital currents in the region of the f-states are concerned, the effect of the magnetization dynamics represented by a torque along y is quantitatively completely equivalent to the effect of L_x via the application of a time-dependent orbital field, since the two types of tensors exhibit an almost identical to each other behavior in the region of corresponding energies. Conceptually, this is similar to the picture of the origin of the inverse spin Edelstein effect in a linearly increasing magnetic field acting on spin⁷⁰. The effect of the OAM current generation by inverse orbital torque that we uncover here can be correspondingly qualitatively considered as an intrinsic version of the inverse orbital Rashba effect for the orbital current, see Fig. 1.

The established equivalence of the perturbation by an increasing in time orbital field and torque allows to draw a simple picture of the origin of orbital pumping in 2D systems with broken z-mirror symmetry. When the magnetization dynamics is ignited by the torque along y, the equivalent process of increasing in time B_L(t)L_x can be seen as a source of an electromotive force along + y at the upper and along −y at the lower surfaces of the 2D film, following the principle of Faraday’s induction law. This can be also qualitatively understood as follows: recalling the definition of L_x operator, we can write the time-dependent perturbation as being proportional to v_xzB_L(t). Assuming a picture of localized perturbation we can roughly replace z with the positions of the upper and lower surfaces, z_up ≈ z₀ and z_down ≈ −z₀, arriving at the perturbation by a staggered time-dependent term +z₀v_xB_L(t) and −z₀v_xB_L(t), acting and accelerating electrons on upper and lower surfaces, respectively, thereby contributing to formation of an orbital moment along y. The latter can be envisaged as an action of a staggered electromagnetic vector potential A^±(t) ~ ±z₀B_L(t), which generates a staggered electric field E^± = ∓z₀dB_L(t)/dt at the opposite surfaces of the film. Following the principle of local OHE, the staggered E^± will generate an orbital Hall current flowing along x at the opposite surfaces of the system. However, owing to locally different electronic structure and locally different orbital Hall conductivities, the corresponding generated orbital Hall currents at the two surfaces of the slab are not equivalent, and will not compensate each other. This ultimately gives rise to a net orbital current pumped along x, underlining the microscopic mechanism behind orbital pumping. While this mechamism relies on a correspondce between torque and orbital perturbation mediated by SOC, which we have established for f-electrons, it can probably be in part used also to understand orbital pumping phenomena in 3d magnetic systems, where the exchange field is much more delocalized, and the effect of interatomic hybridization among the states of s, p, d-character on the orbital response is more prominent. We leave the exploration of the orbital pumping effects in 2D systems of 3d electrons for future work.

Discussion

Our study provides unique insights into the structural, electronic, magnetic, and transport properties of Janus H-phase monolayers of 4f-Eu rare-earth dichalcogenides. The observation of substantial magnetic moments, distinct electronic hybridization channels, and non-trivial response to an applied current highlights the potential of these materials for spintronic device applications. The understanding gained from this research opens new avenues for designing and optimizing orbitronics devices based on 4f-Eu rare-earth dichalcogenides and generally 2D materials hosting strongly orbitally polarized states.

One of our key findings is the observation of pronouncedly orbital character of the response to the electrical current which is mediated by f-electrons. The close correlation between the orbital magnetism and torques in f-systems suggest that the orbital torque properties can be engineered by carefully crafting the crystal field around rare-earth atoms due to surrounding cage of sp-atoms. The latter is susceptible to strong changes in 2D geometry which signifies a powerful channel for spin-orbit torque design. The found correlation between the orbital magnetism and torque within the f-shell is so strong that the torque operator acting on f-states can be replaced by the local OAM operator within the same sub-shell in the linear response expressions for the response properties. We attribute this to the properties of the exchange field of f-atoms, which is closely interlinked with the strong orbital polarization of the f-states by very large spin-orbit interaction. Since the properties of the f-states, their orbital polarization and degree of localization are very sensitive to the degree of correlation of valence electrons, one possible way to tune the response properties in considered classes of systems lies in alloying with other rare-earth or transition metals.

Another remarkable property that we uncovered is the effect of in-plane orbital pumping, i.e. pumping of currents of OAM by magnetization dynamics. Intuitively, one would expect that this effect can be attributed to the OAM polarized along the magnetization direction and carried by the pumped current of charge. However, we find this picture to be too naive to reflect the complexity that we observe in the magnitude, direction and polarization of the generated current. We speculate that this complexity may be exploited for the purpose of orbital current injection into a planar adjacent material, with a controllable polarization of the current. We predict that this is a generic effect which occurs in 2D magnetic materials of Janus type owing to their lowered crystal symmetry. While we leave the exploration of exact microscopic mechanisms for the orbital pumping to future work, we make the first step in this direction by discovering that orbital pumping realized by f-electrons can be considered as an effective orbital-to-orbital-current conversion, where changing in time orbital polarization relaxes via a generation of an orbital current. Our findings open new possibilities for generating diverse flavors of orbital currents in 2D materials which go beyond the protocol of the OHE. We thus declare that the peculiarities of 2D geometry combined with the specifics of f-electron magnetism may provide as robust and efficient platform for orbital current generation.

Methods

General DFT setup

We performed our density functional theory (DFT) calculations of Janus H-phase monolayers of EuSX (X = P, Se, Cl) using the full-potential linearized augmented plane wave method (FLAPW), as implemented in the Jülich DFT code FLEUR⁷², with the Perdew-Burke-Ernzerhof⁷³ parametrization of the exchange-correlation potential. The structural optimization was carried out using the FLEUR code with DFT+U method. For the self-consistent calculations, a 16 × 16 k-point mesh was used to sample the first Brillouin zone. All calculations included SOC self-consistently within the second variation scheme. To account for the effect of strongly correlated electrons of the highly localized 4f-electrons of Eu, the GGA+U method was applied within a self-consistent DFT cycle. The on-site Coulomb and Hund exchange parameters were set to U = 6.7 eV and J = 0.7 eV, which are values commonly used for the treatment of f electrons in chemical elements with half-filled 4f shells such as Eu and Gd^74,75.

Table 1 summarizes the relaxed structure lattice parameters, magnetic moments of Eu, S, and X atoms, and the band gaps calculated using the GGA+U method. Regarding the computational parameters, we set the muffin-tin radii to 2.80 a₀ for Eu and 1.69, 1.84, and 2.35 a₀ for S, and 2.16, 2.35, and 2.95 a₀ for X, where a₀ is the Bohr radius. The cut-off for the plane-wave basis functions was chosen as ${K}_{\max }$ = 3.7, 4.3, and 3.9 ${a}_{0}^{-1}$ for the wave functions and ${G}_{\max }$ = 11.1, 12.9, and 11.7 ${a}_{0}^{-1}$ for the charge density and potential for EuSP, EuSSe and EuSCl, respectively. The upper limit of angular momentum inside of the muffin-tin sphere was set to ${l}_{\max }$ = 10 for Eu and ${l}_{\max }$ = 6, 8, and 10 for S and 8, 8, and 10 for X. The magnetic anisotropy energy of EuSP, EuSSe, and EuSCl was estimated to be 0.73 meV, 0.047 meV, and 2.341 meV, respectively, favoring an out-of-plane direction of magnetization.

Wannier functions construction

From DFT calculations, we extracted 36 maximally localized Wannier functions (MLWFs) by using Eu-d, Eu-f and S,X-p orbitals as initial projections, as these orbitals dominate the band structure in a wide energy window around the Fermi energy, with the frozen window maximum set to 2 eV above the Fermi energy. The electronic band structure was compared to the band structure obtained by constructing MLWFs in the FLAPW formalism⁷⁶ and the open-source WANNIER90⁷⁷. Based on the tight-binding Wannier Hamiltonian constructed from the Wannier functions, we performed the calculations on a 500 × 500 interpolation k-mesh. The orbital pumping and orbital torque were computed using the Kubo formula and the Wannier interpolation technique, capturing the dominant contributions from the specified orbitals.
