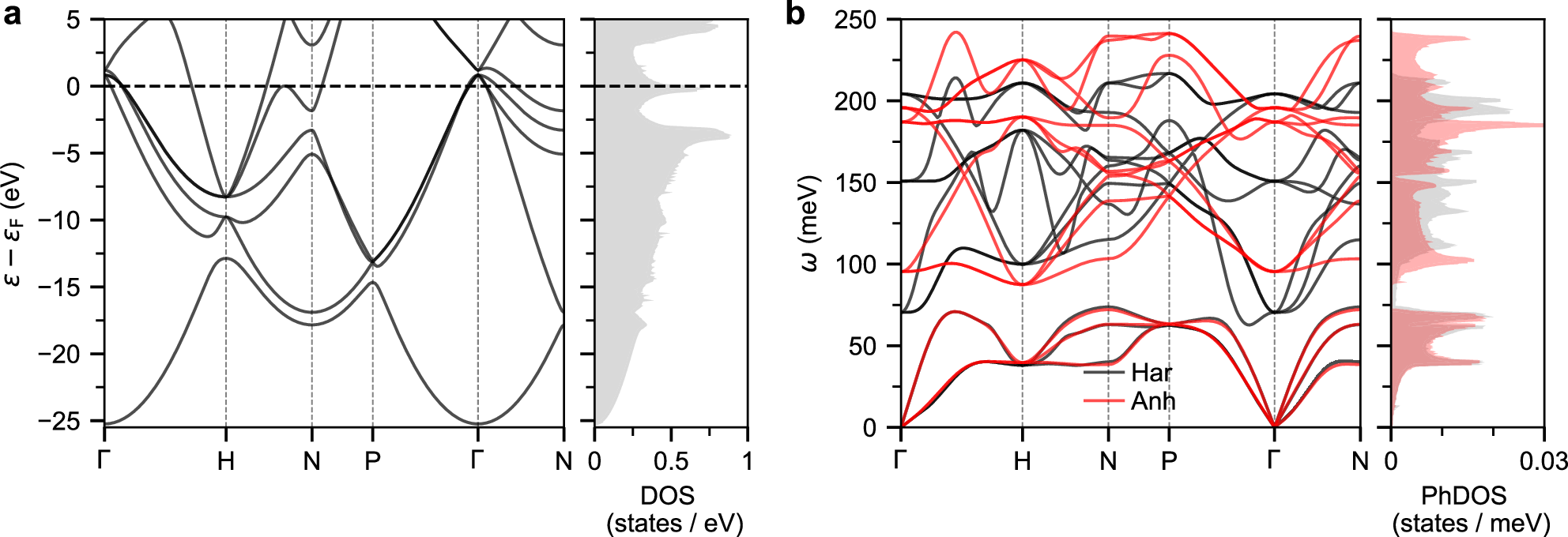

Fig. 2: Electronic structure and phonon properties of H3S.
From: Electron–phonon vertex correction effect in superconducting H3S
a Electronic band structure and total density of states (DOS), showing the vHs peak near the Fermi energy εF. b Phonon dispersion and phonon density of states (PhDOS) computed within the harmonic (black lines) and anharmonic approximations (red lines) for H3S at 200 GPa.
