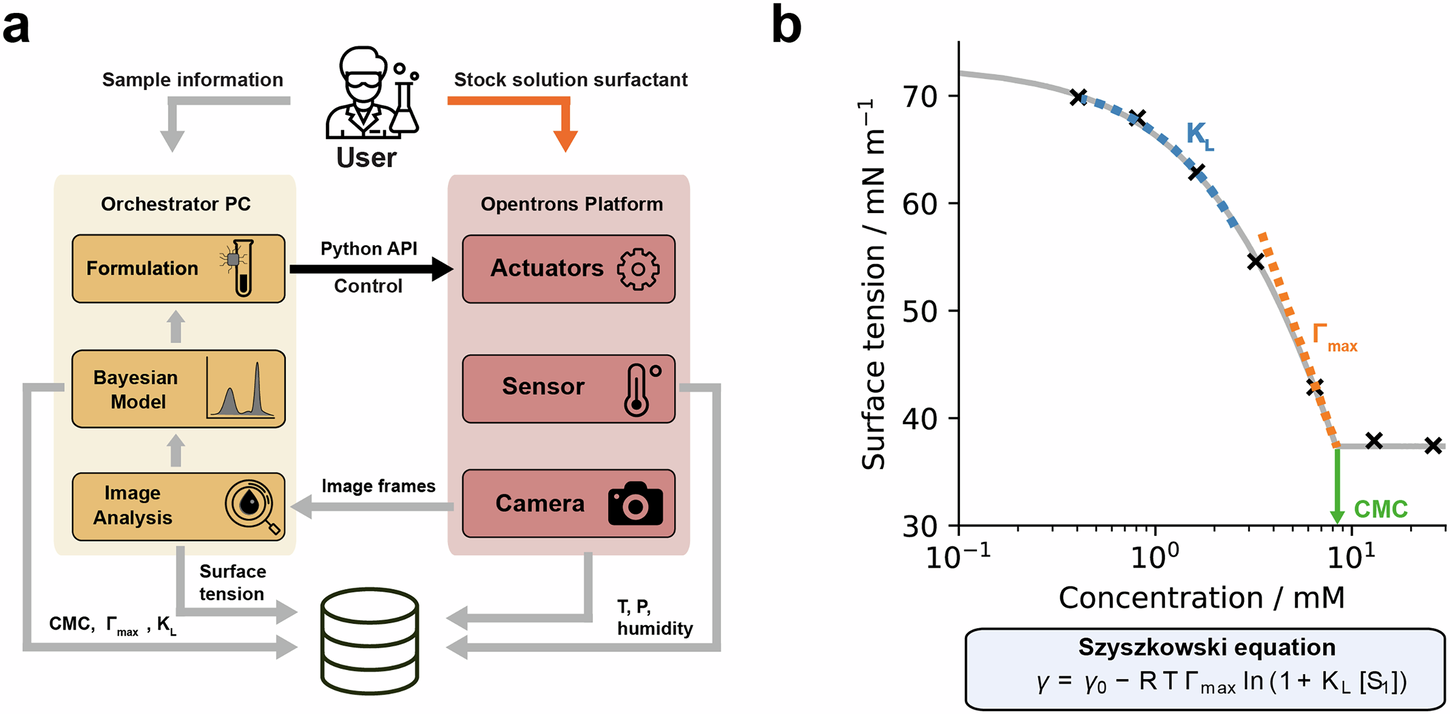

Fig. 1: Overview of the self-driving surfactant characterisation using the robotic module.
From: An autonomous robotic module for efficient surface tension measurements of formulations
