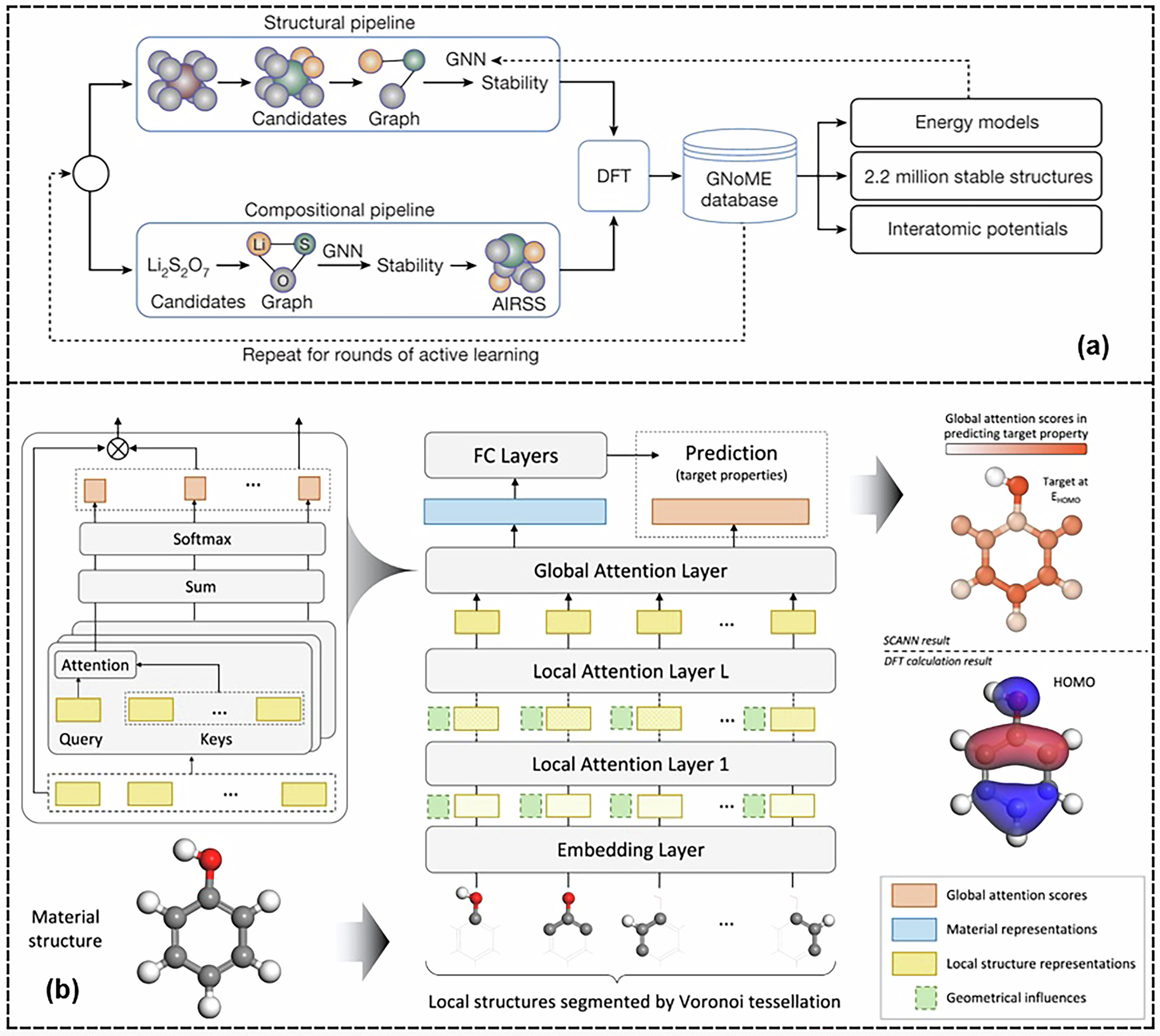

Fig. 9: Schema of DL algorithms and quantum computation for the reconstruction of material structure discovery.

a A schematic representation of the GNoME-based discovery demonstrates how DFT and model-based filters work together as a data flywheel to enhance forecasts, Reproduced with permission ref. ¹²³ Copyright 2023, Springer Nature Limited; b A schema view of the SCANN technique to how a local structure is represented recursively. To learn the representations of different local structures in a material, the SCANN is created by stacking local attention layers and embedding layers. These local structures’ attention scores are evaluated at the readout stage using a global attention layer. The attention score shows how much focus should be placed on a local structure to effectively depict the material and forecast its physical characteristics. Based on the representations of its local structures and the accompanying attention ratings, the material representation is blended linearly. The material representation is subjected to fully connected (FC) layers to estimate the material’s properties, Reproduced with permission ref. ¹⁶⁸ Copyright 2023, Springer Nature Limited.
