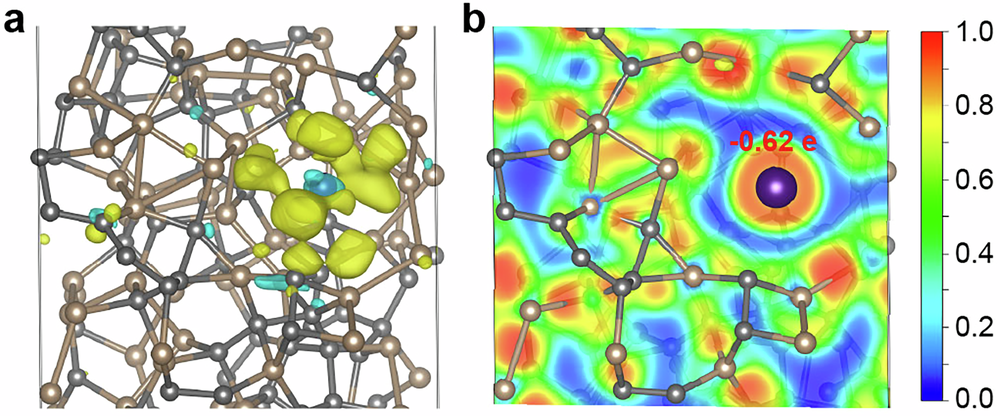

Fig. 9: Electronic structure analysis of Cs in the cage structure.
a Charge density difference (CDD) plot of Cs in cage structure. The isosurface value is 0.0015 e/Å3. b Electron localization function (ELF) plot of Cs in cage structure. The value on Cs atom indicates the Bader charge of Cs atom.
