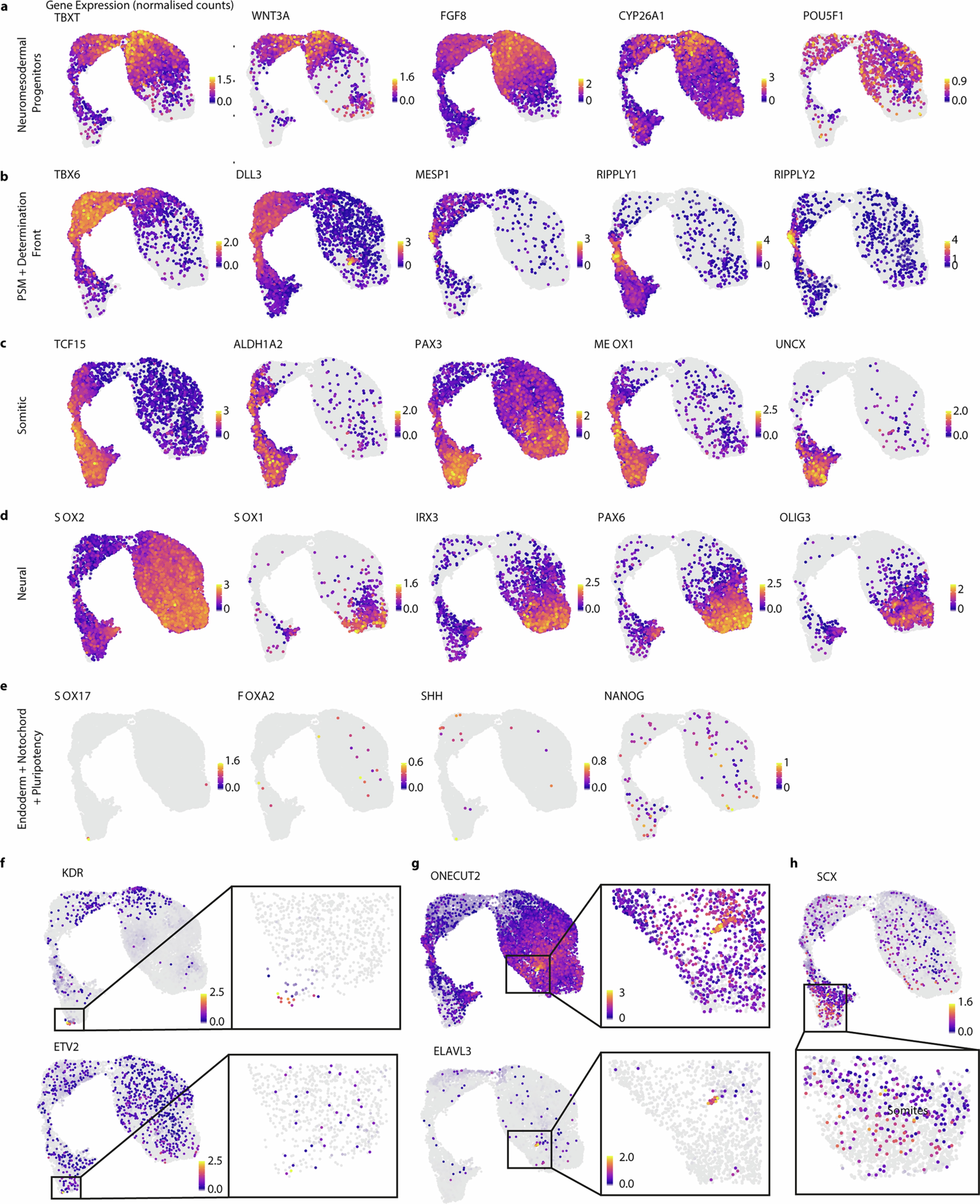

Extended Data Fig. 3: Gene expression signature of hTLS single cells.
From: Modelling co-development between the somites and neural tube in human trunk-like structures
Cells in UMAP space coloured by gene expression for markers of neuromesodermal progenitors (a), the presomitic mesoderm (PSM) and determination front (b), somitic mesoderm (c), neural tissue (d), and markers of endoderm (SOX17, FOXA2), notochord (SHH) and pluripotency (NANOG; e). Zoomed-in regions are also shown for small sub-populations of cells expressing endothelial markers (KDR, ETV2; f), neural differentiation markers (ONECUT2, ELAVL3; g) and sclerotome (SCX, h).
