Modelling co-development between the somites and neural tube in human trunk-like structures

Komal Makwana¹^na1,
Louise Tilley¹^na1^nAff2,
Probir Chakravarty¹,
Jamie Thompson¹,
Peter Baillie-Benson¹,
Ignacio Rodriguez-Polo¹ &
…
Naomi Moris ORCID: orcid.org/0000-0003-1910-5454¹

Nature Cell Biology volume 27, pages 2049–2062 (2025)Cite this article

15k Accesses
65 Altmetric
Metrics details

Subjects

Abstract

Human stem cell-based embryo models provide experimentally amenable in vitro systems for developmental research. A key feature of embryo models is their multi-lineage differentiation, which allows for the study of tissue co-development. Here we develop human trunk-like structures that have morphologically organized somites and a neural tube that form through self-organized, endogenous signalling. Transcriptomic comparison with human embryo datasets suggests that human trunk-like structure cells approximate Carnegie stage 13–14 (28–35 days after fertilization). The absence of a notochord leads to a dorsal identity, but exogenous Sonic Hedgehog signalling activation ventralizes both the somites and the neural tube in a dose-dependent manner. We further identify reciprocal signalling: neural tube-derived cues induce medial ALDH1A2 in somites, which in turn generate retinoic acid signals that drive spontaneous neural-tube patterning. Together, our data highlight the value of modularity in embryo models, which we leverage to explore human trunk co-development.

Self-organizing models of human trunk organogenesis recapitulate spinal cord and spine co-morphogenesis

Article 14 September 2023

Periodic formation of epithelial somites from human pluripotent stem cells

Article Open access 28 April 2022

Cellular and molecular control of vertebrate somitogenesis

Article 28 February 2024

Main

In the embryo, tissues and organs mature alongside neighbouring tissues, using local interactions that are important for correct development and downstream function. For example, neighbouring tissues may provide positional information through spatially localized cues or provide signalling feedback that balances the proportions of cell fates. Inter-tissue interactions are also important for ensuring synchronized developmental timing, so that the embryo keeps a consistent pace. We refer to this inter-dependency between tissues as ‘co-development’.

There is therefore a need to investigate organogenesis at the multi-tissue level. This has been challenging using embryos because signalling pathway convergence and overlapping communication across many tissues can make it difficult to identify reciprocal interactions between any two tissues of interest. Classical experimental embryology provides a route to explore tissue interactions through manipulations including explants, transplants and excisions (see, for instance, refs. ^{1,2,3,4,5,6,7,8}). However, these approaches are not feasible in humans owing to ethical and technical constraints, including limited long-term human embryo culture⁹.

Stem cell-based embryo models offer a practical alternative¹⁰. Their multi-lineage potential enables exploration of inter-tissue interactions, while bottom-up generation of specific tissues in the presence or absence of others can determine the necessity and sufficiency of these interactions¹¹. Importantly, human pluripotent stem (PS) cell-derived models provide scalability, experimental flexibility and species-specific relevance that cannot be achieved with embryos alone.

Several models of early embryogenesis have now been developed. Human gastruloids are self-organized aggregates of PS cells that spontaneously break symmetry, differentiate to all three germ layers and undergo axial elongation and spatiotemporal gene expression along an anteroposterior (AP) axis¹². However, they lack morphological complexity, including somitic epithelialization. Mouse gastruloids can form axially organized morphological somites through embedding in an extracellular matrix gel¹³ and even form integrated somite- and neural tube-containing structures called trunk-like structures (TLSs)¹⁴. Likewise, three-dimensional (3D) human models of somitogenesis^15,16,17, the caudal neural tube^18,19, structures that contain both neural and somitic mesoderm^20,21,22, neuromuscular junctions^23,24 and notochord progenitors²⁵ have been described. These models showcase the remarkable modularity of embryo models to include or exclude particular tissues, in a building block-like manner. We reasoned that this could be harnessed to explore co-development, focusing particularly on the tissue interactions during axial extension.

Somitic and neural tube development needs to be coordinated to form functional organ systems, for instance, the innervation of muscles to form circuits. There is evidence of co-development between these tissues, such that signals from the neural tube promote myogenesis^3,5,6,7,26 and prevent medial Sim1 expression in the somites², while somitic signals to the neural tube promote neurogenesis^8,27. However, the exploration of these interactions in humans has been hampered by a lack of appropriate experimental systems. Here, we modify a somite-only axioloid protocol to develop robust and reproducible human TLSs (hTLSs) that allow us to explore trunk development in the presence or absence of the neural tube.

We find that, owing to the absence of a notochord, the hTLS exhibits dorsal bias, but exogenous activation of Sonic hedgehog (SHH) signalling induces ventralization in a dose-dependent manner. Notably, even without a localized SHH source, we observed neural tube patterning orthogonal to the anterior–posterior (AP) axis, mediated by somite-derived retinoic acid (RA) signalling, which we validate through an RA responsive element (RARE) reporter system. This RA signalling is required for localized PAX6 expression in the neural tube and for neurogenesis. Moreover, the neural tube was able to induce ALDH1A2 expression specifically in medial somites, a finding that we validated in mouse embryos. Our findings highlight the potential of stem cell-based embryo models to uncover the regulatory logic of co-development and show that the modular nature of embryo models can offer insights into the coordination of tissue interactions during early human organogenesis.

Results

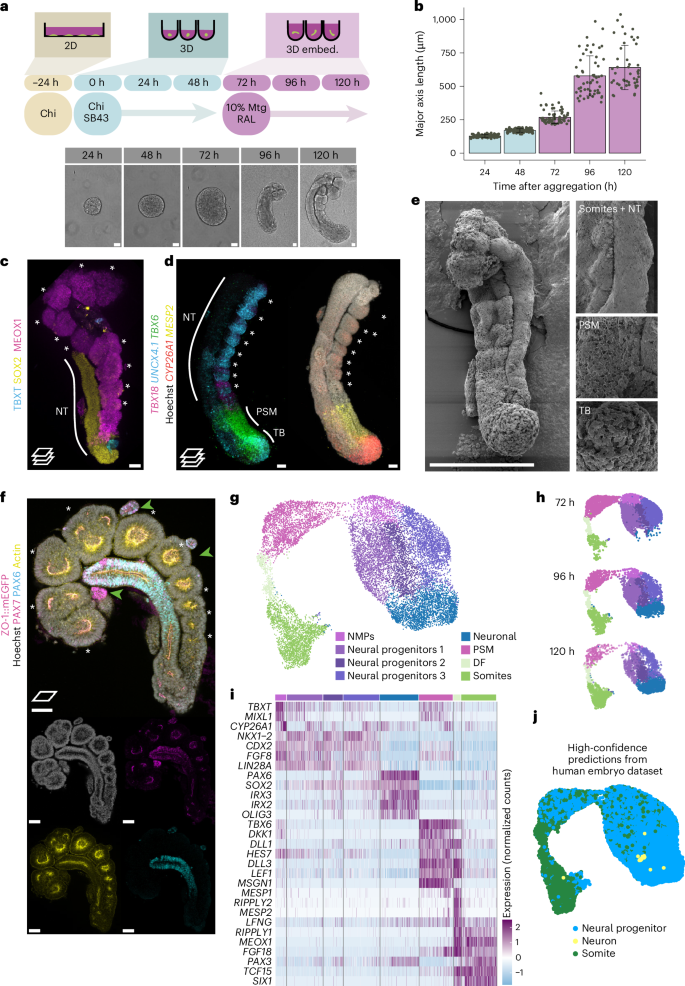

Establishing an hTLS protocol

While mouse gastruloids embedded in low percentage Matrigel can develop organized epithelial somite structures^13,14, human gastruloids had to be exposed to the Nodal signalling inhibitor SB431542 (hereafter, SB43) during pre-treatment¹², to generate segments when embedded in 20% Matrigel (Extended Data Fig. 1a). These segments formed sequentially from the posterior, but they did not form rounded, epithelial structures characteristic of somitic morphology in the embryo. Instead, a protocol combining the Wnt–β-catenin activator CHIR99021 (hereafter, Chi) and SB43 at aggregation with embedding in 10% Matrigel enabled morphologically organized somitic tissue formation as axioloids¹⁵ (similar to in refs. ^16,17). We adapted this protocol from induced pluripotent stem (iPS) cells to human embryonic stem (ES) cells (Extended Data Fig. 1b) by adjusting the Chi concentration according to cell line requirements (Methods). In doing so, we noticed that higher concentrations of Chi biased the cultures towards the mesodermal fate, as expected²⁸, while lower concentrations enabled the coformation of a morphologically organized neural tube alongside the somites (Fig. 1a). These structures increased in somite number, were elongated and displayed an organized somitic and neural tube morphology in 79% of aggregates (Fig. 1b and Extended Data Fig. 1c–g). Marker gene expression confirmed the presence of somitic (MEOX1+) and neural (SOX2+) identities with a pool of progenitors (SOX2+ and TBXT+) at the posterior and a presomitic mesoderm (PSM) domain (TBX6+ and MESP2+) in the tailbud region (Fig. 1c,d). Somites expressed TBX18 anteriorly, particularly in the first one to two newly formed somites, and UNCX4.1 posteriorly (Fig. 1d). As such, the structures were similar to recently described hTLSs^20,21,22, with the important distinction that the protocol could be ‘fine-tuned’ by adjusting the level of Chi to give somite-only or combined somite- and neural tube-containing structures, thereby allowing direct comparison between structures with the presence or absence of the neural tube.

Similar to in other in vitro models of somitogenesis^15,21, we noted that the morphological organization of the hTLS was critically dependent on embedding in Matrigel and exposure to retinal, as time-matched structures without these had some degree of gene expression organization along an AP axis but no or little morphological organization of somites or the neural tube (Extended Data Fig. 1h,i). We were also able to adapt the protocol to a total of ten cell lines (from five parental backgrounds), including both human ES and iPS cells, which showcases the versatility of the protocol beyond intrinsic line-to-line variability (Methods; Extended Data Fig. 2). Detailed step-by-step instructions for forming hTLSs are available at https://doi.org/10.17504/protocols.io.e6nvw4d59lmk/v1 (ref. ²⁹).

Characterizing hTLS formation

To better understand the morphological organization of hTLSs, we performed scanning electron microscopy (SEM) to visualize the surface morphology. This showed cell compaction differences, with loosely arranged cells in the posterior tailbud, medium compaction in the PSM and tightly compacted epithelialization in both the neural tube and somite domains (Fig. 1e), in keeping with descriptions in vertebrate embryos^30,31. Likewise, the hTLS generated with a ZO-1::mEGFP line showed that both the somites and neural tube had internal ZO-1- and actin-rich lumina, with cells organized as epithelia (Fig. 1f). We therefore wanted to better understand how these epithelial tissues formed in the hTLS.

This question is particularly interesting for the neural tube because it is known to form through two modes of morphogenesis in mammals: primary and secondary. Primary neurulation involves the folding of the neural ectoderm³² and has been extensively studied because malformations are the leading cause of neural tube defects (NTDs) in humans³³. By contrast, secondary neurulation—when neural cells condense to form rods that later epithelialize to form a contiguous tube—is much less understood because it accounts for only the caudal-most portion of the axis³⁴. Exactly how secondary neurulation occurs in humans, how the two modes are coordinated and whether the human embryonic neural tube is branched at early stages or contiguous³⁵ are still open questions in the field. Using the ZO-1::mEGFP cell line, we sometimes saw multiple or branched neural tubes, particularly at the posterior pole (Extended Data Fig. 1j). With live imaging, we observed epithelial cysts that progressively merged to generate a contiguous tract (Extended Data Fig. 1k and Supplementary Video 1). Therefore, it seems that the mode of neural tube formation in hTLS structures is similar to secondary neurulation and may prove useful in establishing the cell biological mechanisms of such phenomena in vitro.

To further characterize hTLSs over time, we collected samples at 72 h, 96 h and 120 h and performed 10× single-cell RNA sequencing. We detected populations including a neuromesodermal progenitor (NMP) cell state (expressing SOX2 and TBXT), PSM (TBX6, HES7 and DLL1), determination front (RIPPLY1/2 and MESP1/2), somitic (MEOX1 and TCF15) and neural (SOX2 and PAX6) clusters (Fig. 1g and Extended Data Fig. 3a–e). Cells from early timepoints mostly populated the progenitor populations, while those from later timepoints populated more mature states (Fig. 1h). In addition, we detected sub-clusters including endothelial cells (KDR+ and ETV2+; Extended Data Fig. 3f) that match previous reports of a somite-derived endothelial population in mouse TLSs¹⁴, human axioloids¹⁵ and embryos^36,37. In addition, we observed a small population of mature neural cells (ONECUT2 and ELAVL3; Extended Data Fig. 3g), indicating that neurogenesis starts at 120 h in the hTLS. By contrast, we saw no evidence of notochord, non-neural ectoderm, neural crest, endoderm or lateral plate mesoderm fates, corroborating the observation that the hTLSs contain only neural tube and somitic progenitors (Fig. 1i). Bioinformatic projection onto an existing axioloid dataset¹⁵ confirmed that the hTLSs contain neural cell types not present in the somite-only version and also showed some differences in terms of gene expression in the two overlapping somitic clusters, indicating that, while comparable, hTLSs are indeed distinct entities from axioloids (Extended Data Fig. 4a–g). The hTLSs also showed similarities with other somite- and neural tube-containing models^21,22 but with some notable differences, such as the absence of a notochord or endoderm (Extended Data Fig. 4h–m).

To further examine whether our annotated clusters had equivalents to the corresponding in vivo states, we projected our dataset onto a human embryonic atlas ranging from Carnegie stage (CS) 12 to CS16 (ref. ³⁸). Our data clearly mapped to the somitic and neural progenitor populations, highlighting that the in vitro populations observed in the hTLS match the expected cell types in the human embryo (Fig. 1j and Extended Data Fig. 5a,b). Interestingly, when we performed label transfer for our dataset, the vast majority of cells were called as CS13–14 equivalent (day 28–35 of human development; Extended Data Fig. 5c–g), which is notably later than that predicted for human gastruloids (approximately CS8–9; day 17–21 of human development)¹², indicating the substantial step forwards achieved by the hTLS protocol.

We also integrated the hTLS dataset with other in vitro protocols^15,21,22 alongside the embryonic CS12–16 dataset³⁸ for systematic comparison. We observed clear separation between in vitro and in vivo data in uniform manifold approximation and projection (UMAP) state space, particularly at early stages (Extended Data Fig. 5h), but overall unity of neural and somitic cell types across samples (Extended Data Fig. 5i), suggesting that, in general, these cell states approximated the embryonic identities of somitic and neural populations.

Axial elongation in hTLS is maintained by an NMP population

We next examined the spatial and temporal regulation of Hox gene expression, as these genes are known to be critical in the regulation of axial identity along the AP axis of vertebrate embryos³⁹. We observed expression of HOXC6/8 along the full AP axis of the hTLS, while HOXC10 was only present in the posterior portion (Extended Data Fig. 6a). Temporally, there was progressive expression of HOX gene paralogues across the timepoints sampled (Extended Data Fig. 6b,c). Together with the lack of expression of HOX11–13, this suggests that the hTLS model approximates the thoracic and lumbar regions of the AP axis but not the sacral or caudal-most regions⁴⁰. Given that termination of axial elongation is thought to be triggered by the expression of HOX13 in embryos^41,42, we wondered what was mediating the extension and then termination of axial elongation in our hTLS model.

In the embryo, axis extension is supported by a population of NMPs: bipotential progenitors that give rise to both the neural and somitic cell fates^43,44,45 (Fig. 2a). One basic characterization of NMPs is the co-expression of TBXT and SOX2⁴⁶ that is thought to underlie their bipotency, and we observed cells co-expressing these markers in the posterior of the hTLS (Fig. 2b,c). Using the RUES2-GLR cell line⁴⁷, which contains TBXT-mCerulean and SOX2-mCitrine fluorescent reporters, we live-imaged the hTLS under conditions that promoted co-development of the neural tube and somites (hTLS) or conditions that biased towards somite-only (high pre-treatment Chi conditions; for example, 3 μM Chi before treatment and 1 μM Chi at aggregation) or neural tube-only fates (low pre-treatment Chi conditions; for example, 2 μM Chi before treatment and 3 μM Chi at aggregation; Fig. 2d). We observed an early bias (between 78 and 90 h) towards SOX2-only or TBXT-only expression in neural tube-only and somite-only structures, respectively, with co-developing structures maintaining a TBXT and SOX2 co-expressing domain for the longest duration, consistent with the role of NMPs in contributing to both fates.

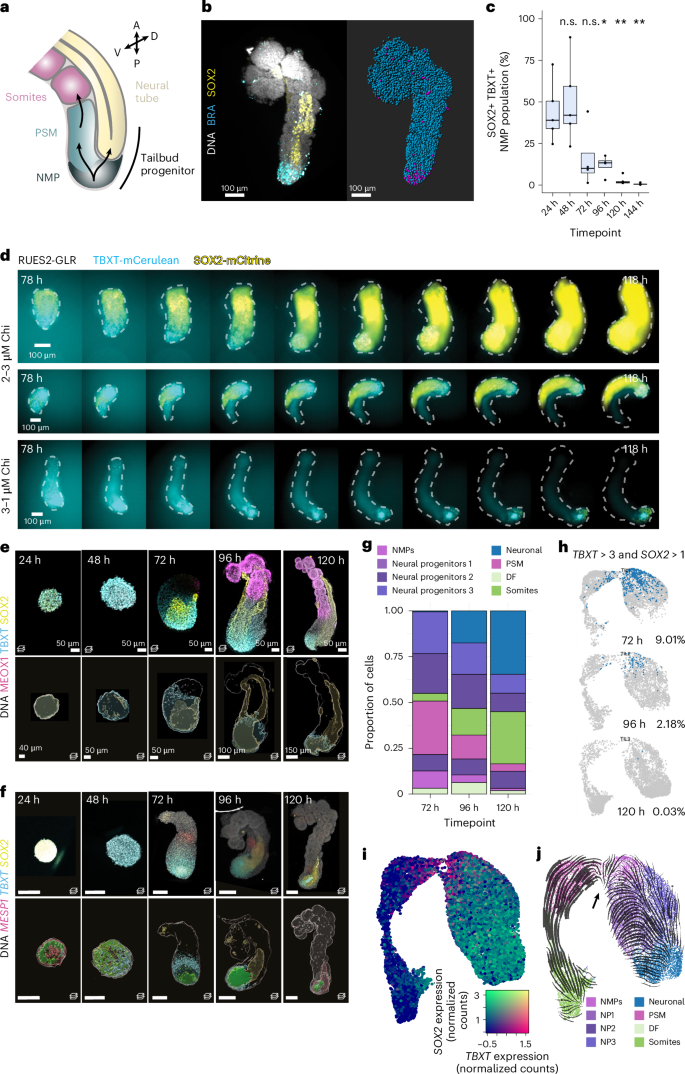

**Fig. 2: Dynamic NMP population in hTLS.**

However, the NMP domain showed a clear decrease in volume over the hTLS time course, as was confirmed by staining at the messenger RNA and protein level (Fig. 2e,f) and by our single-cell RNA sequencing data (Fig. 2g–i). Indeed, RNA velocity analysis showed evidence of bi-directional fates predicted from this population (Fig. 2j), and trajectory analysis rooted in the NMP cluster predicted endpoints in both somites and neural tube populations (Supplementary Fig. 1). Together, these data suggest that hTLSs contain an NMP population capable of bipotential cell fate differentiation, and its gradual depletion may be responsible for the resultant maximum axial length and number of somites observed in hTLSs.

Endogenous signalling patterns in hTLSs

In vertebrate embryos, the sequential addition of somites from the posterior unsegmented region is determined by a combination of local intrinsic oscillations of gene expression and a global signalling landscape⁴⁸. Using a HES7::Achilles iPS cell line⁴⁹, we observed oscillatory expression in the PSM of hTLSs, which moved posterior to anterior and stopped at the site of emergent somite formation (Fig. 3a,b and Supplementary Video 2), as has been described in embryos^50,51. The time period of these oscillations comprised an average of 298 min (±17.2 s.d.; 4.96 h; Fig. 3c) which is consistent with in vitro measurements performed in alternative human systems (~5 h in somitoids¹⁶ and axioloids¹⁵ and 4.6 h in segmentoids¹⁷). However, an increased period of oscillations was observed for subsequent peaks, indicating that the clock is slowing down over time. This could be due to the exhaustion of the tailbud domain at these timepoints, similar to that seen in embryos at late somitogenesis^52,53. Further research would be necessary to investigate the mechanism of this slowing.

**Fig. 3: Characterizing signalling in hTLS models.**

We then turned our attention to the signalling landscape of the hTLS along the AP axis. In the embryo, the signalling gradients primarily responsible for the wavefront are thought to be fiboblast growth factor (FGF) and Wnt signalling in the posterior region and RA at the level of the somites (Fig. 3d). We observed FGF8 and FGF4 in the posterior region^54,55; FGF18 expression in the first three to five newly formed somites, the determination front and the anterior PSM⁵⁶; and FGFR1 in the neural tube and the determination front^54,57 (Fig. 3e). We also saw posterior expression of WNT3A and AXIN2 in the tailbud (Fig. 3f), consistent with a posteriorly localized Wnt signalling gradient^58,59,60,61.

Likewise, we observed strong expression of Notch signalling ligands DLL3 and DLL1 in the anterior PSM and determination front and in a salt-and-pepper organization in the neural tube (Fig. 3g–i), matching descriptions in the embryo, where a Notch-dependent mutual inhibition mechanism leads to neural differentiation^62,63,64. In addition, expression of LFNG and NOTCH1 in the anterior PSM and newly formed somite is consistent with the role of Notch signalling in mediating the dynamic control of somitogenesis⁶⁵ (Fig. 3g).

The crucial anterior signalling gradient that opposes the Wnt and FGF gradients is RA, which inhibits posterior FGF signalling and fine-tunes the progenitor-to-differentiated neuron gradient along the neural tube^8,66. Typically, ALDH1A2 (an alcohol dehydrogenase involved in the synthesis of RA) and CYP26A1 (which degrades RA) have been used as a proxy for RA signalling status in chick⁶⁷ and mouse embryos⁶⁸. In the hTLS, CYP26A1 is strongly expressed in the most posterior tip of the tailbud, with ALDH1A2 expressed in the somites (Fig. 3i,j), which is indicative of a ‘source and sink’ pattern creating an AP gradient of RA signalling. As such, it is likely that self-organized signalling along the AP axis provides endogenous signals that establish the clock-and-wavefront mechanism of somitogenesis in hTLSs.

Exogenous SHH defines the DV identity of hTLS structures

In the embryo, signals from the surrounding tissues, including the notochord, lateral plate mesoderm and surface ectoderm, are all integrated to provide positional information to cells within the neural tube and somites⁶⁹. In embryo models, the presence or absence of such tissues can allow us to investigate the extent of positional information in a simplified system. For instance, SHH signals from the notochord play a key role in setting up the dorsoventral (DV) axis in both the neural tube and somites (see ref. ⁷⁰ for review). We therefore wondered what DV identity our hTLS structures assumed in the absence of these tissues.

On the basis of transcriptomic data analysis, we found that the hTLS neural tube has a dorsal identity (PAX6, OLIG3 and IRX3), with no detectable ventral (OLIG2 and NKX2-2/8), floor plate (FOXA2 and SHH) or roof plate markers (Fig. 4a,b). Indeed, comparison of the hTLS neural clusters with human embryonic spinal cord data⁷¹ showed that they aligned the most strongly to progenitor dorsal cell identities, excluding the roof plate (Extended Data Fig. 7a).

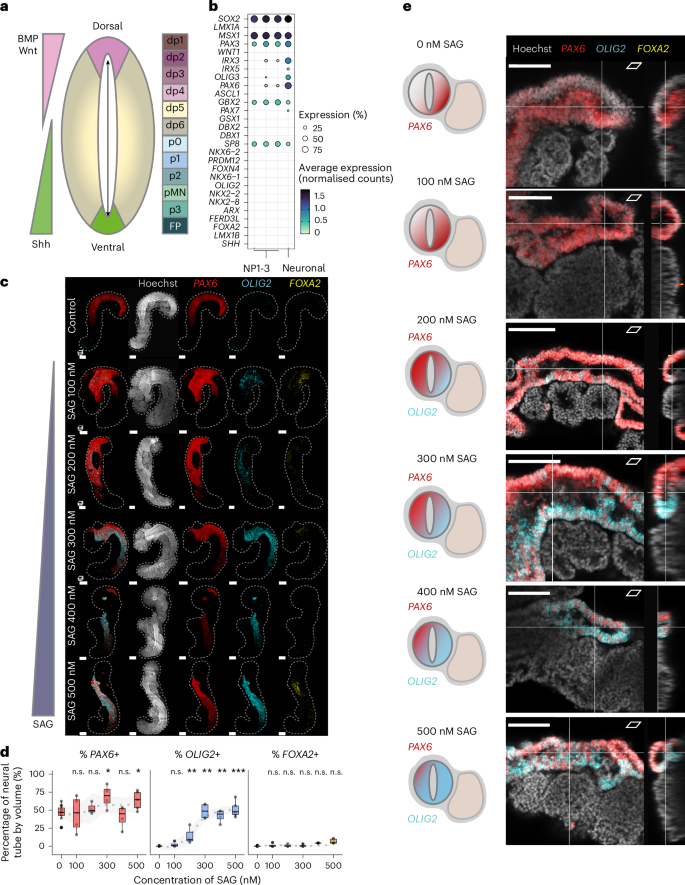

**Fig. 4: DV patterning in hTLS structures.**

Likewise, the somitic identity (Extended Data Fig. 7b) of hTLS show expression of pan-somite markers (TCF15, MEOX1 and FOXC2), dorsal markers of dermomyotome (PAX3, PAX7, SIX1, SIX4 and EYA1) and syndetome (SCX; Extended Data Fig. 3c,h), with very few or no late dermatome or myotome markers (MYF5; Extended Data Fig. 7c; MYOD and MYOG not expressed). We observed few cells expressing markers of ventral somitic identity, the sclerotome, with only a handful expressing detectable PAX1 or PAX9 (Extended Data Fig. 7c). Together, this suggests that the lack of notochord leads to an overall dorsalization of both the somites and the neural tube in hTLSs.

To test whether hTLSs do still have the capacity to ventralize, we exposed the structures to varying concentrations of Smoothened agonist (SAG), which promotes SHH signalling, as well as to the small molecule cyclopamine that inhibits SHH signalling⁷² as a control (Extended Data Fig. 7d). Upon SAG addition, we observed increasing ventralization of hTLS structures in a dose-dependent manner, with increased expression of ventral neural tube (OLIG2 and FOXA2; Fig. 4c) and ventral somite (PAX1 and TWIST1) markers (Extended Data Fig. 7e). In addition, the morphology of hTLSs appeared to be altered under increasing SAG exposure with less compacted anterior somites (Extended Data Fig. 7f), suggesting that epithelial-to-mesenchymal transition associated with ventral (sclerotome) fates could be occurring, while cyclopamine had no observable effect on hTLSs (Extended Data Fig. 7g). However, the dose-dependent ventralization of hTLSs exposed to SHH signalling was not simply all-or-nothing. Surprisingly, we observed that at high concentrations of SAG exposure, not only did proportions of OLIG2+ cells increase in the neural tube (Fig. 4d), but these were organized across an axis orthogonal to the AP axis (Fig. 4e). In the embryo, it is known that negative feedback between transcription factors acts to establish discrete domains of neural progenitor identity along the continuous SHH gradient⁷³, and the same is probably happening in the hTLS model. However, because the hTLSs are exposed to a single, exogenous concentration of SAG throughout (rather than a localized source), the appearance of a consistent axis was surprising. In this case, we reasoned that the juxtaposition of the somites next to the neural tube may establish some aspects of an axis because the OLIG2+ domain was localized adjacent to the somites (Fig. 4c–e). We therefore set out to investigate the nature of this communication between the somites and the neural tube.

Signalling interactions between tissues

One of the primary benefits of a co-developing system such as the hTLS is the ability to use it to probe the interactions between tissues, which would otherwise present challenges in an embryonic context. Beyond the difficulties of accessing human embryonic material at these stages of development, the complexity of the signalling landscape—with signals emanating from diverse tissues and organs, across multiple spatial axes and dynamically changing over time—makes it complicated to unravel the contribution of a single tissue. In this case, we were interested in the signalling interactions between the neural tube and somites, in the absence of all other tissues (Fig. 5a).

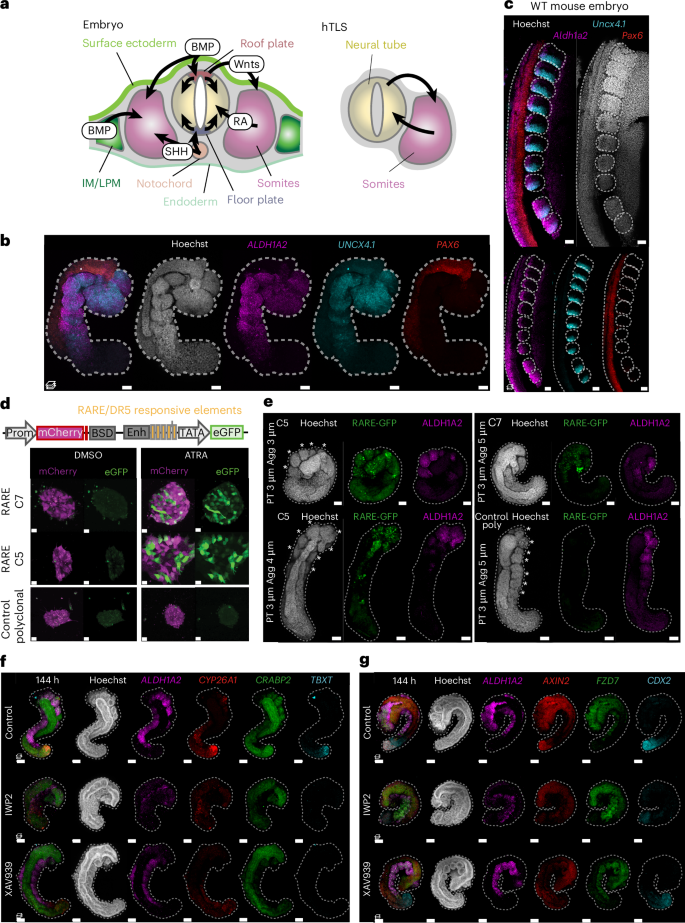

**Fig. 5: Interactions between somites and the neural tube in hTLS and embryos.**

We turned first to unbiased, computational approaches to interrogate the putative signalling ligand–receptor interactions predicted between the two tissues. Building on the expression profile of ligands and receptors of known pathways, we used CellChat⁷⁴ to identify statistically significant, unidirectional interactions specifically from the somitic to the neural tissues (combining neural progenitor populations 1–3 and neuronal clusters) or the inverse interaction. This identified several putative signalling interactions, including RA, Notch, IGF, fibronectin and EphA signalling from somites to neural tissue and cholesterol, GDF, non-canonical Wnt, SEMA6 and SLITRK pathway signalling from neural to somitic tissues (Extended Data Fig. 8).

We validated the expression signatures of somite-derived RA and neural tube-derived non-canonical Wnt signalling by examining the localization of the gene corresponding to an RA-binding protein, CRABP2 (alongside ALDH1A2 and CYP26A1), which was expressed in the neural tube, as predicted, and by expression of ligands WNT5A and WNT5B in the neural tube and receptor FZD7 in the somites (Extended Data Fig. 8c). We therefore hypothesized that signalling between the two tissues in the hTLS is responsible for setting positional identity.

Mediolateral ALDH1A2 expression in somites

An additional surprise came on closer examination of the somites, where we noticed that ALDH1A2 was not uniformly localized across the somite but instead was most strongly expressed adjacent to the neural tube (Fig. 5b and Extended Data Fig. 9a). This is in direct contrast with somite-only axioloid structures, where ALDH1A2 was shown to instead have an AP polarity¹⁵, consistent with our own experiments in axioloids (Extended Data Fig. 9). This hinted that the presence of the neural tube may bias the localization of ALDH1A2 expression to the neural tube-adjacent side, with important implications for the mechanism of mediolateral polarization in somites. Although this phenomenon does seem to be apparent from closer inspection of existing data⁷⁵, we examined the same gene expression in E9.5 mouse embryos (Fig. 5c), where we likewise observed a clear medial bias of ALDH1A2 expression in the somites (Supplementary Video 3).

To verify that endogenous RA signalling was indeed occurring in hTLSs, we engineered a RARE/DR5–eGFP reporter line (where DR5 is direct-repeat-5) that contains five RARE/DR5 responsive element repeats that promote eGFP expression as a result of RA binding (FCI-GM25256-RARE), or control reporters without the RARE binding sequence (FCI-GM25256-Ctrl; Fig. 5d and Extended Data Fig. 9f). Although spontaneous reporter silencing led to a salt-and-pepper pattern of fluorescence, clear signal could be seen in both the neural tube and somites, indicating that active RA signalling is indeed occurring in the system (Fig. 5e). We also made use of an ALDH1A2 antibody to confirm protein-level expression of the enzyme in the somites of hTLS structures, although the medial bias was less clear at the protein level (Fig. 5e).

Together, these data suggest that the neural tube biases the localization of ALDH1A2 to the medial somite domain in both embryos and models, which leads to active RA signalling exposure within both the somites and the neural tube.

Non-canonical Wnt signalling establishes ALDH1A2 expression in somites

It remained unclear how the medially localized ALDH1A2 expression was established in somites. We reasoned that it was probably due to signalling from the neural tube, given the localization adjacent to the tube, and so turned to the other significantly enriched pathway proposed via CellChat analysis (Extended Data Fig. 8), the non-canonical Wnt (ncWnt) signalling pathway through WNT5A and WNT5B. To investigate whether ncWnt might act upstream of ALDH1A2 localization, we inhibited signalling using either IWP2 (a porcupine inhibitor targeting both canonical and ncWnt) or XAV939 (a tankyrase inhibitor targeting only canonical Wnt signalling) or activated it with recombinant WNT5A or WNT5B. While XAV393 had a mild effect on hTLS structure at 120 h (Extended Data Fig. 9b,c), this had fully resolved by 144 h, which was equivalent to the control structures (Fig. 5f,g). However, IWP2 had a sustained impact on both ALDH1A2 expression and hTLS morphology, with a lack of somitic epithelialization that mirrored the effect of the lack of retinal (Fig. 5f,g and Extended Data Fig. 1i). WNT5A and WNT5B had little discernible effect on either the morphology or patterning of hTLS structures (Extended Data Fig. 9d,e). While we cannot rule out that the lack of epithelialization could be a cause rather than a consequence of the lack of ALDH1A2 expression, it is possible that ncWnt is the signal originating in the neural tube that leads to localized ALDH1A2, which in turn drives endogenous RA signalling and subsequent epithelialization.

Somite-to-neural tube RA signalling in hTLS

We next turned our attention to the downstream role of localized ALDH1A2. In the embryo, RA signalling from the somites to the neural tube is thought to have three main functions: (1) AP axis organization and morphogenesis of the neural tube, (2) promoting cellular neurogenesis and (3) mediating the DV patterning of neural tube populations (see ref. ⁷⁶ for review). In addition, in the absence of RA signalling, there is an expanded domain of ventral gene expression in the neural tube⁷⁷, suggesting that it has a dorsalizing influence on the neural tube.

To test whether similar effects were also occurring in hTLS structures, we prevented RA signalling either by removal of the exogenous retinal or by exposure to the pan-RA receptor (RAR) inhibitor, BMS493⁷⁸. Following early (72–120 h) exposure to BMS493, hTLS structures were morphologically impaired, with a smaller overall area, and were composed of fewer organized somites, a smaller neural tube and an increased tailbud size (Extended Data Fig. 10a,b). This is consistent with the role of RA signalling in axial organization and morphology, as Raldh2^−/− mouse embryos die mid-gestation with aberrant morphology that includes a truncated posterior axis, small somites and an irregularly folded neural tube⁷⁹. However, when hTLSs were exposed to BMS493 at later timepoints (96–120 h), there was a significant reduction in area but overall morphology was comparable to controls (Extended Data Fig. 10a,b). This suggests that at this point, morphology had already been established and blocking the RA signalling might specifically affect the ongoing interactions between somites and the neural tube. Indeed, hTLS structures exposed to BMS493 at either timepoint showed much lower or no CYP26A1 in the neural tube, in contrast to control structures (Extended Data Fig. 10c) consistent with published data from chick embryos⁷⁷. We therefore further investigated the proposed role of somite-derived RA signalling on the neural tube by focussing on the latter timepoint.

To investigate the role of somite-derived RA on early neurogenesis, we examined marker expression in hTLS structures, including DLL1 and NGN1 (Fig. 3g and Extended Data Fig. 10d–f). Upon RA signalling inhibition, we observed significantly fewer DLL1+ cells in the neural tube (Fig. 5f). In vitamin A deficient (VAD) quails that lack the precursor to RA, retinal, Delta-1 expression is depleted from the caudal neural tube in 9–19 somite-stage embryos⁸, but in the Raldh2^−/− mouse model, Delta-1 expression is comparable to wild type (WT) at the 14–15 somite stage⁸⁰. As such, the observation that hTLSs show RA-dependent neurogenesis hints that there may be additional species-specific differences in how RA signalling affects the neurogenesis cascade.

We next examined the role of somite-derived RA signalling on patterning in the neural tube. It is known that Raldh2^−/− mice and VAD quails have depleted expression of Pax6 in the neural tube compared with WT embryos^75,77. We therefore examined the expression of PAX6 in the hTLS with late RA signalling inhibition and observed a substantial depletion of this neural marker from the neural tube (Fig. 6a). Conversely, the addition of all-trans RA (ATRA) onto hTLS structures increased the expression of CYP26A1 in the neural tube, with no obvious difference in DLL1 expression and with broad expression of PAX6 across the neural tube (Extended Data Fig. 10g). Taken together, this suggests that somite-derived RA signalling is required for PAX6 expression in hTLS and, given the spontaneous neural tube patterning observed (Fig. 4), makes it likely that RA signalling is responsible for establishing this patterning. Similar SHH-independent RA signalling effects on neural progenitor identity have been shown in chick embryos⁸¹ but not in a human system.

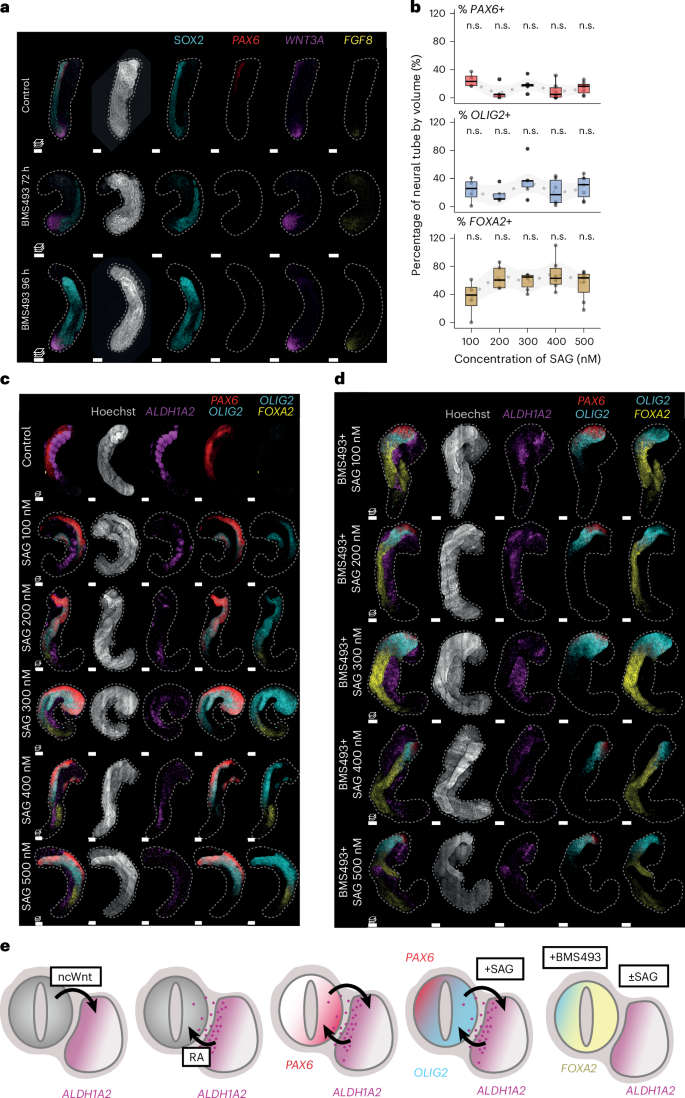

**Fig. 6: Effect of combined RA and SAG modulation on hTLS.**

To test this hypothesis, we performed an experiment in which we varied the concentration of SAG exposure in the presence of BMS493 to inhibit RA signalling. The logic was that if endogenous RA signalling from somites was responsible for the localized induction of OLIG2 with dose-dependent exposure to SAG, these expression patterns should be abrogated when an RA signalling inhibitor was added. Indeed, we observed decreased PAX6 expression and a marked increase in FOXA2 expression under BMS493 treatment (compare Figs. 4d and 6b) across all SAG exposures, while OLIG2 was no longer dose-responsive to SAG (Fig. 6b–d). As transcription factor networks composed of negative feedback motifs have been well described in the patterning of the neural tube^82,83, it is likely that the concomitant increase in FOXA2 and decrease in PAX6 is the direct result of feedback mechanisms due to the lack of RA-responsive gene expression. The lack of dose-responsiveness to SAG also indicates that RA is necessary for fine-tuning the neural identities, while the consistent presence of PAX6+ and OLIG2+ cells always at the anterior part of the neural tube (Fig. 6d) indicates that timing of exposure to, or inhibition of, RA/SHH signalling likewise plays a role in patterning. This result showcases the flexibility of using an in vitro model to explore the interplay between endogenous signalling, intrinsic regulatory networks and exposure to external signalling factors, to better understand patterning dynamics, especially in a human context.

Taken together, these data suggest that initial ncWnt signalling from the neural tube to the somites results in the medial somitic localization of ALDH1A2 adjacent to the neural tube, which, in turn, leads to RA signalling from somites to the neural tube that promotes PAX6/OLIG2 expression specifically at the side adjacent to the somites (Fig. 6e). Integration with the SHH pathway leads to progressive ventralization while maintaining the self-organized patterning in the neural tube established by localized signalling from the somites, due at least in part to endogenous RA signalling. This reciprocal signalling between the somites and the neural tube may therefore play an important role in ensuring that correct axial patterning is coordinated between tissues and suggests that elements of a mediolateral or DV axis can be established, even in the absence of signalling centres such as the notochord or lateral plate mesoderm.

Discussion

Our system has revealed several features associated with the development of the paraxial mesoderm and neural tube. Interestingly, although hTLSs represent the thoracic and lumbar region, the neural tube structures develop through a process similar to secondary neurulation, which is characteristic of the tail region³². This suggests that, in the embryo, the mode of neurulation is dependent on the early morphology at gastrulation, and because the hTLS model bypasses these morphological stages, they utilize secondary neurulation mechanisms instead. This may also explain why different species evolutionarily rely on primary and secondary neurulation to different extents⁸⁴, as a function of their early morphological constraints. It would be interesting to explore in subsequent research whether this substitution in the mode of neurulation plays a role on the cell biology or fate decisions in the neural tube.

The most noteworthy findings from this work concerns signalling interactions between the paraxial mesoderm and the neural tube. For instance, the hTLS model revealed medially localized ALDH1A2 in the early somites of both hTLS and E9.5 mouse embryos. It could be that this organized gene expression is necessary for subsequent differentiation into the epaxial and hypaxial muscles⁸⁵ and may represent the earliest distinction of mediolateral identity in the somites. It also demonstrates that neural tube-derived signals are sufficient to initiate mediolateral patterning in the somites, even in the absence of the intermediate or lateral plate mesoderm that would normally be localized laterally.

We also identified spontaneous patterning of the neural tube orthogonal to the AP axis, on the basis of somite-adjacent localization and due to RA-induced signalling emanating from the somites. While this is likely to reflect RA dependency rather than DV axis patterning per se, somite-derived signals in the human embryo could certainly contribute to DV axis patterning alongside the influence of the notochord. Previous research in animal models has suggested that RA signalling indeed plays an important role in DV patterning, but its precise function is often difficult to isolate owing to the complex interactions with other signalling pathways, including the SHH, Wnt and FGF pathways. For instance, VAD quail embryos exhibit a ‘dorsal shift’ in neural tube patterning, with expanded domains of genes associated with a ventral identity compared with WT⁷⁷, suggesting a dorsalizing role for RA signalling. This is complementary to the results we describe following RA signalling inhibition under SAG exposure, where hTLS neural tubes are ventralized. Embryo models such as hTLSs may therefore allow us to isolate pathways, disentangling the roles of different signalling mechanisms in tissue patterning.

However, while the hTLS model offers many advantages, it is important to recognize its limitations. For example, our data suggest that the notochord is not strictly required for neural tube-derived signalling to the somites, but we cannot exclude the possibility that additional relay interactions, such as notochord-induced floor plate maturation, may additionally occur in the embryo. We also cannot rule out that some of the differences between somite-only (axioloids) and somite and neural tube-containing hTLS might be partially due to differences in Chi concentration exposure. Dissection experiments where tissues are removed after specification may resolve this by decoupling the signalling induction from tissue presence or absence but would be technically challenging. These considerations highlight the distinction between embryo models and embryos, emphasizing the complementary role of such models in developmental research.

Moreover, we anticipate that hTLS models could be of value in disease modelling in the future, given their origin from human iPS cells. One notable observation from our study is the formation of the hTLS neural tube via a secondary neurulation-like process, which could prove valuable for investigating rare NTDs.

Overall, we have shown that interactions between the somites and the neural tube leads to patterning events including mediolateral ALDH1A2 expression in somites and patterning in the neural tube, mediated through localized RA signalling. These events are spontaneous and self organized, and they can enable us to explore how feedback and relay mechanisms combine to enable co-development across tissues in a human developmental context.

Methods

Ethical statement

The hTLS model as described in this manuscript represents a human stem cell-based embryo model of post-gastrulation stages. However, the model lacks extraembryonic tissues (and is therefore ‘non-integrated’ by 2021 International Society for Stem Cell Research (ISSCR) terminology on embryo models⁸⁶) and additionally lacks tissues including the anterior neural, intermediate and lateral mesoderm; notochord; endoderm and non-neural ectoderm, among others. No human embryos were used in this research. All research with human ES cells was performed at the Francis Crick Institute under approval from the UK Stem Cell Bank Steering Committee (approval no. SCSC21-06). This work has been conducted in accordance with the 2021 ISSCR Guidelines.

Mouse work

All experiments carried out on mice (Mus musculus) were conducted according to the UK Animal (Scientific Procedures) Act under licence no. PP6551133. The CD-1 animals were held within a Techniplast individually ventilated cage Green Line system, and the air movement in the cages was regulated by a Techniplast air management unit on negative pressure, 75 ACH/−20%, with all cages placed on automatic watering. The humidity and temperature were regulated at room level, set at code-of-practice standard levels of 20–24 °C and 55% (±10%) humidity. The light cycle was 7 a.m. to 7 p.m., including dawn and dusk settings. The animals were kept on Datesand Eco Pure Chips sawdust, Bed-r’Nest nesting and smart homes enrichment, with sterilized Teklad Global 18% Protein Rodent Diet (2018S).

Embryos were obtained from five pregnant adult female mice at E9.5 and were dissected from maternal and extraembryonic tissues. Before fixation, embryos were washed in PBS for a few minutes. Mouse embryos were fixed overnight in 4% paraformaldehyde (PFA; v/v; Alfa Aesar, 43368.9 M) in RNase-free PBS (Invitrogen, AM9625) at 4 °C, then dehydrated gradually into methanol by incubating them for 5 min in a series of increasing concentrations (0%, 25%, 50%, 75% and 100% by volume, respectively) in RNase-free PBS with 0.1% (v/v) Tween20 (Sigma-Aldrich, P1379) (PBST) on ice.

Human stem cell lines

The cell lines used in this study include the human iPS cell lines HES7::Achilles⁴⁹, SOX2::mEGFP (FCI-AICS-0074-026)⁸⁷, ZO-1::mEGFP (FCI-AICS-0023)⁸⁷, β-catenin::mEGFP (FCI-AICS-0058 cl.67)⁸⁷, LaminB1::mTagRFP-T (FCI-AICS-0034 cl.62)⁸⁷ and H2B::mEGFP (FCI-AICS-0061 cl.36)⁸⁷; and the human ES cell lines RUES2-GLR⁴⁷ and H9 SOX2::H2B-tdTomato/T::H2B-GFP dual reporter⁸⁸ (H9-SBR). Cell lines engineered to report RA activity and associated control cell lines were derived from the parental WTC-11 cell line (Coriell Institute, GM25256) expanded at the Francis Crick Institute (FCI-GM25256). This research used Crick Human Embryo and Stem Cell Unit (now Human Biology) core facility expanded cell lines made possible through the Allen Cell Collection (NIGMS Human Genetic Cell Repository), available from the Coriell Institute for Medical Research (repository ID nos. AICS-0074-026, AICS-0023, AICS-0058, AICS-0034, AICS-0061 and GM25256). The HES7::Achilles iPS cell line was a gift from Olivier Pourquie. The H9-SBR ES cell line was a gift from Ting Zhou. The RUES2-GLR ES cell line was a gift from Ali Brivanlou. All cells were cultured in incubators at 37 °C and 5% CO₂. Human PS cells were cultured routinely in either StemFit Basic 02 (Ajinomoto, discontinued in the European Union) supplemented with 80 ng ml⁻¹ bFGF (PeproTech, 100-18B) or mTeSR 1 (STEMCELL Technologies, 85850) on 0.25 µg cm⁻² recombinant Laminin iMatrix-511 silk E8-coated plates (AMSbio, AMS892 021). Cultures of 80–90% confluency were routinely passaged using Accutase (STEMCELL Technologies, 07922), and single cells were seeded with medium supplemented with 10 µM Y-27632 (ROCK inhibitor; Tocris Biosciences, 1254). Fresh medium was exchanged daily. Cells were regularly tested for mycoplasma contamination by PCR.

Generation of RA activity reporting cell lines

Human cell lines genetically engineered to contain the RARE were established from FCI-GM25256 cells by transfection with the RARE/DR5 Lentiviral Dual-Reporter System (Fluorescence) (TRS-0043-2, LipExoGen Biotech). Two sets of cell lines were generated via lentiviral transfection, one reporting RA activity and the other as a negative control. In both systems, the lentiviral vector contains a dual fluorescent reporter system, containing (1) mCherry, constitutively expressed, and (2) eGFP, of which the expression is controlled by RA signalling. Specifically, eGFP expression is activated when RAR–RXR heterodimers bind to tandem direct-repeat-5 (DR5) response elements in the presence of the ligand ATRA. The control cell lines contain the eGFP sequence but lack the DR5 elements and therefore do not respond to ATRA.

FCI-GM25256 cells were transduced via lentiviral particles with the addition of polybrene 9 μg ml⁻¹ (Sigma; TR-1003-G). Infection efficiency, as assessed by the proportion of mCherry+ cells, was evaluated 48–72 h later. A few days after infection, monoclonal and polyclonal cell lines for each construct were generated by fluorescence-activated cell sorting (BD FACSAria Fusion flow cytometer) sorting 1 or 100 mCherry+ cells, respectively, per well. Newly generated cell lines were expanded and cultured in mTeSR1 supplemented with 10 µg ml⁻¹ blasticidin (Gibco, R21001) for selection. Functional validation of the reporter cell lines to 100 nM ATRA (Sigma-Aldrich, R2625) was evaluated after exposing the cells to ATRA for 24 h. Requests for use of this reporter line should be directed to the corresponding author.

Human gastruloids

RUES2-GLR human ES cells grown routinely in NutriStem hPSC XF were first plated as single cells at a density of 5.2–6.7 × 10³ cells cm⁻² on a layer of vitronectin (ThermoFisher, A14700; 5 μg ml⁻¹, 0.5 μg cm⁻²) with 5 µM Y-27632 (Tocris Biosciences, 1254) for the first 24 h after plating. After further culture, they were pre-treated on the fourth day (96 h) with 4 µM CHIR99021 (Chiron; Tocris Biosciences, 4423) and 10 µM SB431542 (Stratech (Selleck Chemicals), S1067; TGFβ inhibitor) in NutriStem hPSC XF for 24 h. After this, they were dissociated in StemPro Accutase (Gibco Thermo Fisher Scientific, A1110501), and 700 cells were seeded into each well of an ultralow-adherence 96-well plate (Greiner Bio-One, 650970) in 50 μl Essential 6 medium (Gibco Thermo Fisher Scientific, A1516401) supplemented with 5 µM Y-27632 and 3 µM Chiron. The medium was replaced daily with fresh Essential 6. At 76 h, the structures were embedded in 20% (v/v) Corning Matrigel growth factor-reduced basement membrane matrix, phenol red free, lactate dehydrogenase-elevating virus free (Corning, 356231) or Corning Matrigel human ES cell-qualified matrix, lactate dehydrogenase-elevating virus free (Corning, 354277) in Essential 6 medium to a final protein concentration of 1.96 mg ml⁻¹. The 20% (v/v) Matrigel solutions were prepared on ice with ice-cold Essential 6, before plating as 5-μl droplets onto tissue-culture treated plastic on ice. Human gastruloids were collected and transferred individually into separate 5-μl droplets with a micropipette. After transfer, droplets were left to gelate for 1 h in the incubator at 37 °C and 5% CO₂, before covering gently with excess Essential 6 medium pre-warmed to 37 °C.

Generating hTLS

The full protocol is available on https://www.protocols.io (ref. ²⁹). In brief, once human PS cells were around 70–80% confluent, cells were dissociated in Accutase and seeded at a density dependent on the cell line (2–3.5 × 10⁴ cells per well; see protocol) per well of a laminin-coated six-well plate with 2 ml StemFit 02 with 80 ng ml⁻¹ bFGF supplemented with 10 µM Y-27632. After 5 or 6 days, cultures were pre-treated in StemFit 02 with 20 ng ml⁻¹ bFGF supplemented with CHIR99021 (Chiron; Tocris Biosciences, 4423). Alternatively, cultures maintained in mTeSR1 were pre-treated with N2B27 supplemented with CHIR99021. N2B27 medium was prepared from a 1:1 mix of Advanced DMEM/F12 (Gibco, 12634028) and Neurobasal medium (Gibco, 21103049) supplemented with N-2 Supplement (100×; Gibco, 17502048), B27 supplement (50×) without vitamin A (Gibco, 12587010) and 1% GlutaMAX supplement (v/v; Gibco, 35050061). The optimal concentration of Chiron for pre-treatment needed to be adjusted depending on the cell line and medium used but ranged between 2 and 5 µM. The concentrations for the lines used in this study are presented in Supplementary Table 1.

After 24 h of pre-treatment, cells were dissociated with Accutase. Cell numbers were determined using an automated cell counter (NuceloCounter NC-202, ChemoMetec), and 500 cells were seeded into one well of an ultralow-adherence 96-well plate (Greiner Bio-One, 650970) with 50 μl of either StemFit medium with 20 ng ml⁻¹ bFGF or N2B27 (depending on the medium used for pre-treatment) and supplemented with 10 µM Y-27632, 10 µM SB431542 (TGFβ inhibitor) and a cell line-dependent concentration of Chiron (Supplementary Table 1). The plate was centrifuged at 160g at room temperature (RT) for 2 min to form a cell pellet at the bottom of the well. The following day, 150 μl fresh StemFit 02 or N2B27 was added to each well and exchanged again after 24 h with 150 μl medium. At 72 h after aggregation, 150 μl medium was removed from aggregates and they were embedded into medium containing 10% (v/v) growth factor-reduced Matrigel (Corning, 356231; protein concentration 7.3–8.8 mg ml⁻¹) and 1 µM all-trans Retinal (Merck Sigma-Aldrich, R2500-100MG), unless stated otherwise. No further medium changes were required from this point.

SEM

hTLSs, made from the LaminB1::mTagRFP-T line at 120 h after aggregation, were recovered from Matrigel using Cell Recovery Solution (Corning, 354253) for 30 min at 4 °C, washed twice with Dulbecco’s PBS without Mg²⁺ or Ca²⁺ (Gibco, 14190144) and fixed overnight in 4% PFA (v/v) in PBS at 4 °C.

They were then additionally fixed in 4% PFA/2.5% glutaraldehyde (v/v) in 0.1 M phosphate buffer (PB) for 1 h at RT, washed three times for 5 min in 1% bovine serum albumin (BSA, v/v) in 0.1 M PB, post-fixed in 1% reduced osmium (1% OsO₄/1.5% K₃Fe(CN)₆; v/v) for 1 h at 4 °C, washed three times for 5 min in PB and then dehydrated with a graded ethanol series (70%, 90% and 2 × 100% by volume) for 20 min each at RT. The samples were then critical point dried (Leica EM CPD300 Critical Point Dryer), mounted on stubs, sputter coated with 5 nm of platinum (Quorum 150RS) and then imaged on the Quanta 250 FEG SEM (Thermo Fisher Scientific).

The SEM was operated between a chamber pressure of 4.0 and 4.38 Pa, with 30 μm aperture inserted using an accelerating voltage of 2.5 kV (Fig. 1e, top right), 3 kV (Fig. 1e, left) and 5 kV (Fig. 1e, middle and bottom right); a dwell time of 20 μs; and a working distance of 7.4 mm (Fig. 1e, bottom right), 7.6 mm (Fig. 1e, middle right), 9.2 mm (Fig. 1e, left) and 11.6 mm (Fig. 1e, top right). A 90° tilt sample holder was used for Fig. 1e (top right).

Immunostaining

Pre-embedded structures were transferred into 1.5-ml tubes for fixation. Some structures were first recovered from Matrigel using Cell Recovery Solution for 30 min at 4 °C (Figs. 4c,e and 6a and Extended Data Figs. 7g (top), 8c and 10c,e,g), although we noticed some lack of morphological integrity upon exposure, so this was not used routinely. They were then washed with PBS twice, fixed overnight in 4% PFA (v/v) at 4 °C and then washed again three times for 10 min in PBS. Then, samples were washed three times for 10 min each in PBS with 0.2% Triton X-100 (v/v) and 3% BSA (w/v) (PBS-BT) at RT and blocked for 2 h in PBS-BT at 4 °C. Primary antibodies were diluted in blocking solution and incubated overnight at 4 °C, with gentle rocking. Following several washes in PBS-BT (2 × 5 min at RT, 3 × 10 min at 4 °C and 4 × 30 min at 4 °C), samples were incubated with Alex-Fluor-conjugated secondary antibodies with 1:500 Phalloidin CruzFluor 647 (Santa Cruz, sc-363797) or 1:800 Hoechst 33342 (Invitrogen, H3570) in PBS-BT with 10% normal donkey serum (v/v) overnight at 4 °C, with gentle rocking away from light. After additional washes (3 × 10 min in PBS-BT at RT, 2 × 5 min in PBS with 0.2% Triton X-100 (Merck, T8787) and 0.2% BSA (PBT) and 3 × 15 min in PBT at RT), samples were mounted in Vectashield (Vector Labs, H-1900-10) or RapiClear 1.52 (SunJin Lab, #RC152001:10 ml) onto either a Superfrost microscopy slide (Epredia, AA00008032E01MNZ10) or coverslip (VWR, 631-0138).

The antibodies used in this study were 1:200 rabbit anti-Brachyury (Abcam, ab209665); 1:500 mouse anti-MEOX1 (ThermoFisher, TA-804716); 1:200 goat anti-SOX2 (R&D Systems, AF2018-SP), 1:200 rat anti-SOX2 (Invitrogen, 14-9811-82), 1:400 rabbit anti-PAX6 (ThermoFisher, 42-6600) and 1:500 rabbit anti-ALDH1A2 (Sigma-Aldrich, HPA010022). The mouse anti-PAX7 monoclonal antibody (1:10) developed by A. Kawakami, Tokyo Institute of Technology, was obtained from the Developmental Studies Hybridoma Bank, created by the National Institute of Child Health and Human Development of the National Institutes of Health and maintained at the Department of Biology of the University of Iowa. All secondary antibodies were raised in donkey and diluted 1:500, and included Alexa Fluor 488-, 594- and 647-conjugated antibodies (Jackson ImmunoResearch). All primary antibodies were validated for sensitivity and specificity by the manufacturers, are reactive to human proteins and have been previously published.

HCR

Custom probe sets (all probe set sizes, 20 pairs), hybridization chain reaction (HCR) amplifiers and buffers (hybridization, wash and amplification buffers) were purchased from Molecular Instruments. Pre-embedded structures were fixed in 4% PFA (v/v) in RNase-free PBS overnight, as described above. Samples were dehydrated gradually into methanol by incubating them for 5 min in a series of increasing concentrations (0%, 25%, 50%, 75% and 100% by volume, respectively) in PBST and stored at −20 °C. For the HCR, samples were rehydrated gradually by incubating them for 5 min in a series of decreasing concentrations of methanol (75%, 50%, 25% and 0% by volume, respectively) in PBST. Samples were washed once more in PBST, incubated for 5 min with hybridization buffer at RT and then for a further 30 min at 37 °C, alongside a combination of probes (8 nM final), in hybridization buffer. Samples were then incubated with the probe solution overnight at 37 °C. To remove excess probes, samples were washed with probe wash buffer four times for 15 min each at 37 °C, followed by a further three washes in 5× SSCT three times for 5 min at RT. Samples were pre-amplified in amplification buffer for 30 min at RT, gently rocking. Amplifier hairpins h1 and h2 were snap-cooled separately by first heating at 95 °C for 90 s and then cooling down at RT for 30 min in the dark. Hairpin amplifiers were diluted to 6 nM in amplification buffer, added to samples and then incubated overnight in the dark at RT. Next, samples were washed in 5 × SSCT four times for 5 min, then two times for 30 min, with a final wash in PBST for 2 min. Samples were counterstained 1:1000 with Hoechst 33342 overnight at 4 °C. The next day, samples were washed three times with PBST for 5 min and post-fixed with 4% PFA (v/v) in RNase-free PBS for 20 min. Thereafter, they were washed a further three times with PBST for 5 min at 4 °C with gentle rocking. Samples were mounted in Vectashield or Prolong Glass Antifade Mountant (Invitrogen, P36980) onto either a Superfrost microscopy slide or coverslip, then coverslipped. The HCR probe targets and the associated amplifiers used are presented in Supplementary Table 2.

For HCR of mouse embryos, samples were rehydrated gradually by incubating them for 5 min in a series of decreasing concentrations of methanol (75%, 50%, 25% and 0% by volume, respectively) in PBST. Embryos were bleached in 6% H₂O₂ (v/v) in PBS for 15 min and were washed three times for 5 min each in PBST at RT. Samples were treated with 10 μg ml⁻¹ Proteinase K (Roche, 3115879001) for 10 min (no rocking) and then washed twice for 5 min in PBST (no rocking). Afterwards, embryos were post-fixed for 20 min with 4% PFA (v/v) in RNase-free PBS at RT, gently rocking, and then washed three times for 5 min with PBST. To equilibrate embryos, samples were washed in 1:1 pre-warmed hybridization buffer and PBST for 5 min. Embryos were washed with pre-warmed hybridization buffer for 5 min before following the HCR protocol as described above.

Imaging

Full details of imaging hardware and settings are provided in Supplementary Table 3.

Confocal imaging

Confocal imaging was performed using a Zeiss Invert880 with Airyscan 2014 or Zeiss Invert880 NLO OPO, using a Zeiss Pan-Apochromat 20×/0.8 objective. Z-stacks were obtained with 5-µm steps, averaging each slice four times, unless stated otherwise. Any tiled images were acquired with a 10% overlap. Spectral unmixing was used for imaging HCR samples, unless stated otherwise (track method used for Figs. 1d, 2f, 3i,j and 5b,c and Extended Data Figs. 1h and 9a). In brief, spectra were set up for all HCR amplifiers by imaging droplets of snap-cooled mixed-hairpin pairs using lambda mode, and then areas were selected to save each spectrum to a spectral database. HCR images were recorded using lambda mode and linear unmixing was run with saved spectra of amplifiers, nuclear signal and autofluorescence spectra of the hTLS. Imaging data were acquired with Zeiss ZEN Black 2.3 SP1 software. Confocal images are presented either as optical slices or maximum intensity projections, generated using FIJI (2.14.0/1.54f) or Imaris (10.1.1, Oxford Instruments), unless stated otherwise. For Fig. 5g, XY images and YX optical slices were taken of hTLSs imaged in Fig. 5e using average mode in Imaris.

Live imaging

Brightfield, widefield or confocal spinning disk images on live samples were obtained on an ImageXpress Confocal HT.ai system with Nikon 10× S Plan Apo Lambda objective. Time-lapse imaging was acquired with intervals between 20 and 30 min under environmental control at 37 °C and 5% CO₂. Data were acquired using MetaXpress (6.7.1.157) software.

Lightsheet imaging

After post-fixation following the HCR protocol, mouse embryos for lightsheet imaging were embedded in a cryomold in warm 1% ultralow melting agarose (Sigma, A5030) and placed on ice to polymerize. Samples were then prepared for clearing with a 1:2 solution of benzyl alcohol (Sigma, 24122) and benzyl benzoate (ThermoFisher, 105860010) (BABB). All steps were carried out in a glass vial, which was covered with foil. Mouse embryos were dehydrated gradually into methanol by incubating them for 1 h at RT with gentle rocking in a series of increasing concentrations (50%, 70%, 80%, 90%, and twice in 100% by volume, respectively) in deionized water. Embryos were then incubated in a solution of 1:1 100% methanol and BABB for 1 h at RT with gentle rocking. Samples were then transferred into a 100% solution of BABB and left overnight. The next day, BABB was removed and the samples were washed in ethyl cinnamate (ECi; Sigma, 112372) for 5 min before transferring samples into fresh ECi for storage. Mouse embryos were imaged using Miltenyi-Lavision UM II with ECi as the imaging solution. Z-stacks were obtained with 1.88–4 µm steps with dynamic focus. Imaging data were collected with Imspector (7.5.4) software. Lightsheet images and videos were generated with Imaris.

Image analysis

NMP colocalization analysis (whole volume segmentation)

Confocal images of hTLS stained with Hoechst, TBXT and SOX2 were processed through Imaris. Surfaces of whole hTLSs were generated from the Hoechst, TBXT and SOX2 channels. A new channel of the colocalized region was generated using the colocalization package in Imaris, and then a new surface was generated from this channel.

NMP quantification

Confocal images of hTLSs stained with Hoechst, TBXT and SOX2 were processed through Imaris. Spots of nuclei were generated from the Hoechst channel and then subset to those that co-expressed TBXT and SOX2 above set thresholds that were the same across all conditions (TBXT >7,927; SOX2 >7,625). The numbers of NMP spots were then normalized to the total number of spots (nuclei).

Polarization of gene expression

Confocal images were imported into Imaris, and the Hoechst channel was used to create a manual surface rendering of the whole hTLS, the individual somites and the neural tube. New channels were created for fluorescent HCR signal within each structure, and this was then used to generate surfaces corresponding to positive signals within each somite.

Quantification of DLL1+ cells

Confocal images were imported into Imaris before using either the SOX2 channel automatically or the Hoechst channel manually to create a surface rendering of the neural tube. DLL1 expression was masked within this surface, and spots were created corresponding to the DLL1 signal within the neural tube.

Morphometric analysis

The pixel classification tool Ilastik (1.4.1rc2)⁸⁹ was used to label hTLS (24–144 h) in transmitted light images to generate probability maps, distinguishing the hTLS from background. CellProfiler (4.2.8)⁹⁰ was used to obtain basic morphometry through the generation and measurement of objects using these probability maps. Objects touching the edge of the image and those below a pixel threshold were automatically discarded. Images were then manually checked, and sample images containing fibres and debris were discarded. The medial length was obtained through CellProfiler via ImageJ⁹¹: objects were skeletonized, and the largest, shortest branch length was selected. Quantification of somite number was measured through manual counting of segmented structures on 96–144 h hTLSs.

Oscillation quantification

HES7-Achilles samples were imaged on the ImageXpress Confocal HT.ai system from 100 to 115.75 h in the hTLS protocol. Initial image analysis was performed in FIJI⁹², where regions of interest for HES7 oscillations and background were selected. Integrated density, mean pixel intensity and area were measured and inputted into the following formula: corrected total fluorescence = integrated density – (area of selected cell × mean fluorescence of background readings). De-trending was then performed in terminal on MacOS, and peaks and valleys were calculated in Microsoft Excel (16.101.2) and plotted in RStudio (2023.06.0+421).

Signalling manipulation

For RA signalling manipulation of hTLSs, retinal was replaced with either dimethylsulfoxide or ATRA (100 nM) or treated with BMS493 (2.5 µM; Tocris 3509) at 72 h during embedding. In addition, for 96-h RA inhibition of hTLS, BMS493 was added to 20 µl medium containing 10% growth factor-reduced Matrigel (v/v) and 1 µM all-trans retinal and gently added to each well for a final concentration of 2.5 µM.

For SHH signalling activation of hTLS models, SAG (Tocris, 4366) was added to 20 µl medium containing 10% growth factor-reduced Matrigel (v/v) and 1 µM all-trans retinal and gently added to each well for the following final concentrations: 100 nM, 200 nM, 300 nM, 400 nM and 500 nM at 96 h. For RA inhibition of Shh signalling-activated hTLS, BMS493 was added to 20 µl medium containing 10% growth factor-reduced Matrigel (v/v) and 1 µM all-trans retinal for a final concentration of 2.5 µM BMS493 with final SAG concentrations of 100 nM, 200 nM, 300 nM, 400 nM and 500 nM at 96 h.

For Wnt signalling manipulation of 96 h hTLS, Wnt inhibitors, IWP 2 (PORCN inhibitor; Tocris, 3533) and XAV-939 (Selleck Chemicals, S1180) and Wnt activators, WNT5A (Bio-techne, 645-WN) and WNT5B (Bio-techne, 7347-WN), were added to 20 µl medium containing 10% growth factor-reduced Matrigel (v/v) and 1 µM all-trans retinal for final concentrations of 5 µM, 5 µM, 100 ng ml⁻¹ and 100 ng ml⁻¹, respectively.

Single-cell RNA sequencing

Samples from each timepoint were collected from 96-well plates and pooled together. TrypLE Select was added to the samples and they were incubated at 37 °C for 15–20 min. Samples were gently pipetted up and down until the hTLSs were dissociated into single cells. The cells were then spun in the centrifuge at 170g for 4 min and resuspended in PBS^−/− + 0.04% BSA (v/v) and kept on ice until further processing. The concentration and viability of the single-cell suspension was measured using acridine orange and propidium iodide with a Luna-FX7 Automatic Cell Counter. A total of 13,200 cells were loaded onto a chromium chip and partitioned in nanolitre scale droplets using the Chromium Controller and Chromium Next GEM Single Cell Reagents (where GEM is Gel Bead-in Emulsion; CG000315 Chromium Single Cell 3′ Reagent Kits User Guide (v3.1, Dual Index)). Within each droplet, the cells were lysed and the RNA was reverse transcribed. All of the resulting complementary DNA within a droplet shared the same cell barcode. Illumina-compatible libraries were generated from the cDNA using Chromium Next GEM Single Cell library reagents in accordance with the manufacturer’s instructions (10x Genomics, CG000315 Chromium Single Cell 3′ Reagent Kits User Guide (v3.1, Dual Index)). Final libraries were quality controlled using the Agilent TapeStation and sequenced using the Illumina NovaSeq 6000. The sequencing read configuration was 28–10–10–90.

Bioinformatic analysis

FASTQ files were aligned to the hg38 transcriptome, and count matrices were generated, filtering for GEM cell barcodes (excluding GEMs with free-floating mRNA from lysed or dead cells) using CellRanger (version 6.0.1). Count matrices were imported into R (version 4.1.0) and processed using the Seurat library (version 4.4.0) following the standard pipeline⁹³. Low-quality cells were removed, with cells kept for further analysis if they met the following criteria: the mitochondrial content was within three standard deviations from the median, more than 500 genes were detected and more than 1,000 RNA molecules were detected. DoubletFinder was used to identify doublets, assuming a theoretical doublet rate of 7.5%, which were removed from subsequent analysis⁹⁴. In total, 18,405 cells were sequenced, of which 17,661 cells passed the quality control and 15,808 passed subsequent doublet filtration for downstream analysis (5,979 cells from the 72 h sample, 3,669 cells from the 96 h sample and 6,160 cells from the 120 h sample).

All samples were integrated using the reciprocal principal component analysis (RPCA) method, implemented by Seurat’s functions FindIntegrationAnchors() and IntegrateData(), using the top 3,000 variable features and the first 25 principal components as determined using the ‘maxLikGlobalDimEst’ function from the intrinsicDimension package (version 1.2.0). Effects of cell cycle heterogeneity was calculated using cell cycle phase scores on the basis of canonical markers and regressed out of the data using ScaleData. Eight clusters were identified at a resolution of 0.5.

For RNA velocity analysis, loom files containing spliced and unspliced matrices were calculated, from BAM files generated by CellRanger, using the package velocyto (version 0.17.8) and Python 3.6.4. The matrices were used as input to scVelo (version 0.2.4) to calculate the RNA velocity values for each gene of each cell using the package loompy (version 3.0.6) and scanpy (version 1.8.2). scVelo was used in the dynamical mode with default settings. The resulting RNA velocity vector was overlaid onto the UMAP space by translating the RNA velocities into likely cell transitions using cosine correlation to compute the probabilities of one cell transitioning into another cell.

Lineages for trajectory analyses were identified separately for the somite and neural fates with the NMP cluster as the starting population using Monocle3 (version 1.3.0)⁹⁵. Differentially expressed genes along each of the lineages were identified with the ‘graph_test’ function using the Morans I test. The top 100 genes were used to draw smoothed heat maps using Tradeseq (version 1.7.07)⁹⁶ and ComplexHeatmap (version 2.2.0)⁹⁷.

Cell-to-cell crosstalk was inferred using the R library CellChat (version 2.1.2)⁷⁴ and the CellChat human database. Clusters designated NP1, NP2, NP3 and neuronal were merged to create one cluster. Only the somites and the merged neuronal clusters were considered for Cellchat analysis. The CellChat analysis was performed as outlined in the CellChat vignette, with the ‘population.size’ parameter set to ’true’ when computing the communication probability between clusters. Significant interactions were filtered on inter-cluster and intra-cluster interactions were removed.

Published datasets were reprocessed using Seurat⁹³ (version 4.4.0) from either the counts matrix of a Seurat object or downloaded outputs of CellRanger from the Gene Expression Omnibus (GEO) repository of the National Center for Biotechnology Information (NCBI).

Four samples (comprising hAxioloid_48h, hAxioloid_72h, 96h_MG_RAL and 120h_MG_RAL from the axioloid dataset (GSE199576)¹⁵) were downloaded as count matrices and processed using Seurat version 4.4.0. Samples were integrated using methods highlighted in the authors’ publication and cells assigned clusters according to published cell metadata. Cells from this dataset were projected onto our integrated dataset using the functions ‘FindTransferAnchors’ (using the first 30 dimensions of the principle component analysis space) and ‘MapQuery’. To determine the similarity between axioloid clusters and hTLS-integrated clusters, a two-tailed Spearman’s rank correlation was calculated on the aggregated cell expression using the mean gene expression per cluster and per sample, after filtering on the basis of common genes between datasets.

The full human embryo dataset (GSE157329)³⁸ was downloaded and processed using scripts provided by the authors (https://github.com/zhirongbaolab/heoa) with Seurat 4.4.0. Cells were annotated using published annotation. Predicted cell type cluster and stage annotation scores were filtered using a threshold of >0.5.

The human neural tube dataset⁷¹ was used to look for similarity of clusters within our integrated neuronal clusters (labelled NP1, NP2, NP3 and neuronal). A two-tailed Spearman’s rank correlation test was used on aggregated cell expression per cluster using common genes between both datasets.

Single-cell datasets from refs. ^15,21,22,38 and our hTLS data were integrated using harmony (https://github.com/immunogenomics/harmony) to account for experimental batch effects with the following parameters (group.by.vars = experiment; reduction.used = pca, nclust = 100). The normalized expression for the integrated multi-experiment dataset was aggregated per cluster. To look for similarities between clusters, a Spearman’s correlation coefficient was calculated using the normalized aggregated expression for genes, which was identified as the union of the top 50 markers per cluster per dataset. The Spearman’s correlations are shown as a tile plot, where the rows and columns are hierarchically clustered, using the ‘ward.d2’ method.

Statistics and reproducibility

No statistical method was used to pre-determine the sample size, but our sample sizes are similar to those reported in previous publications¹⁵. Statistical testing included tests of normality to guide the use of appropriate statistical methods. Data were excluded from morphometric analyses where images were of empty wells or debris, where structures were partially out of the field of view, where pixel values fell beneath a threshold for object detection or where manual validation identified poor segmentation. In bioinformatic analyses, low-quality cells or doublets (identified by DoubletFinder with a theoretical rate of 7.5%) were removed from downstream analysis. Cells were only retained if they met the following criteria: the mitochondrial content was within three standard deviations from the median, more than 500 genes were detected and more than 1,000 RNA molecules were detected. The experiments were not randomized. The investigators were not blinded to allocation during the experiments and outcome assessment. Data collection and analyses were not performed blinded to the conditions of the experiments.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Sequencing data that support the findings of this study have been deposited in the Gene Expression Omnibus (GEO) repository (GSE268451). Previously published single cell transcriptomic data that were re-analysed here are available under accession codes GSE157329, GSE199576, GSE220563 and GSE208369. All other data supporting the findings of this study are available from the corresponding author on reasonable request. Source data are provided with this paper.
