Extended Data Fig. 1: Validation analyses for SLC2A1 correlations with ICB therapy responsiveness.

From: SLC2A1+ tumour-associated macrophages spatially control CD8+ T cell function and drive resistance to immunotherapy in non-small-cell lung cancer

Extended Data Fig. 1

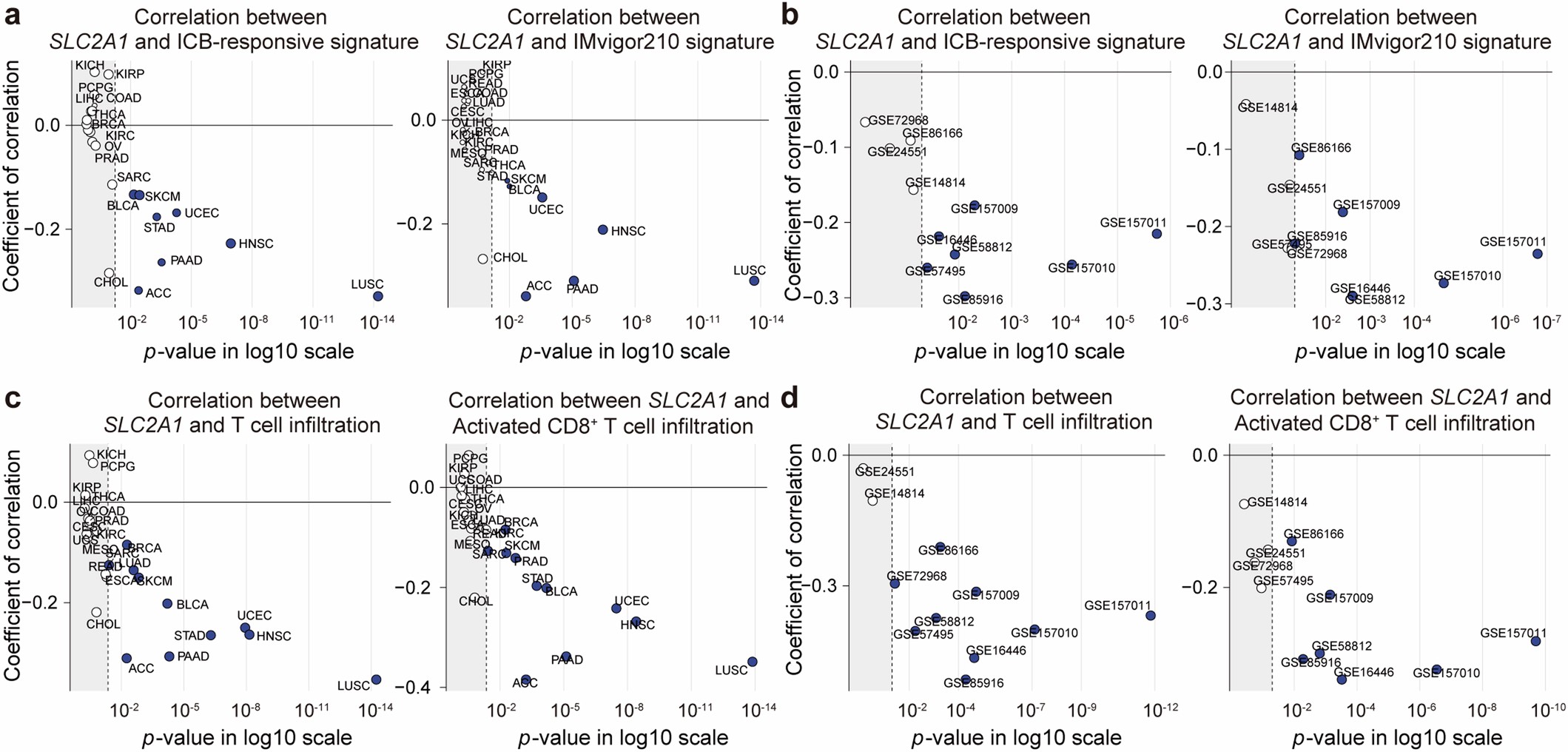

a,b, Association patterns of SLC2A1 with the ICB-responsive and IMvigor210 gene signatures in TCGA (a) and GEO datasets (b). c,d, Analysis of immune infiltration demonstrating the correlation between SLC2A1 and total T cell or CD8+ T cell-specific infiltration levels across TCGA (c) and GEO datasets (d). p-values were calculated using a two-sided Pearson’s correlation coefficient.

Source data
