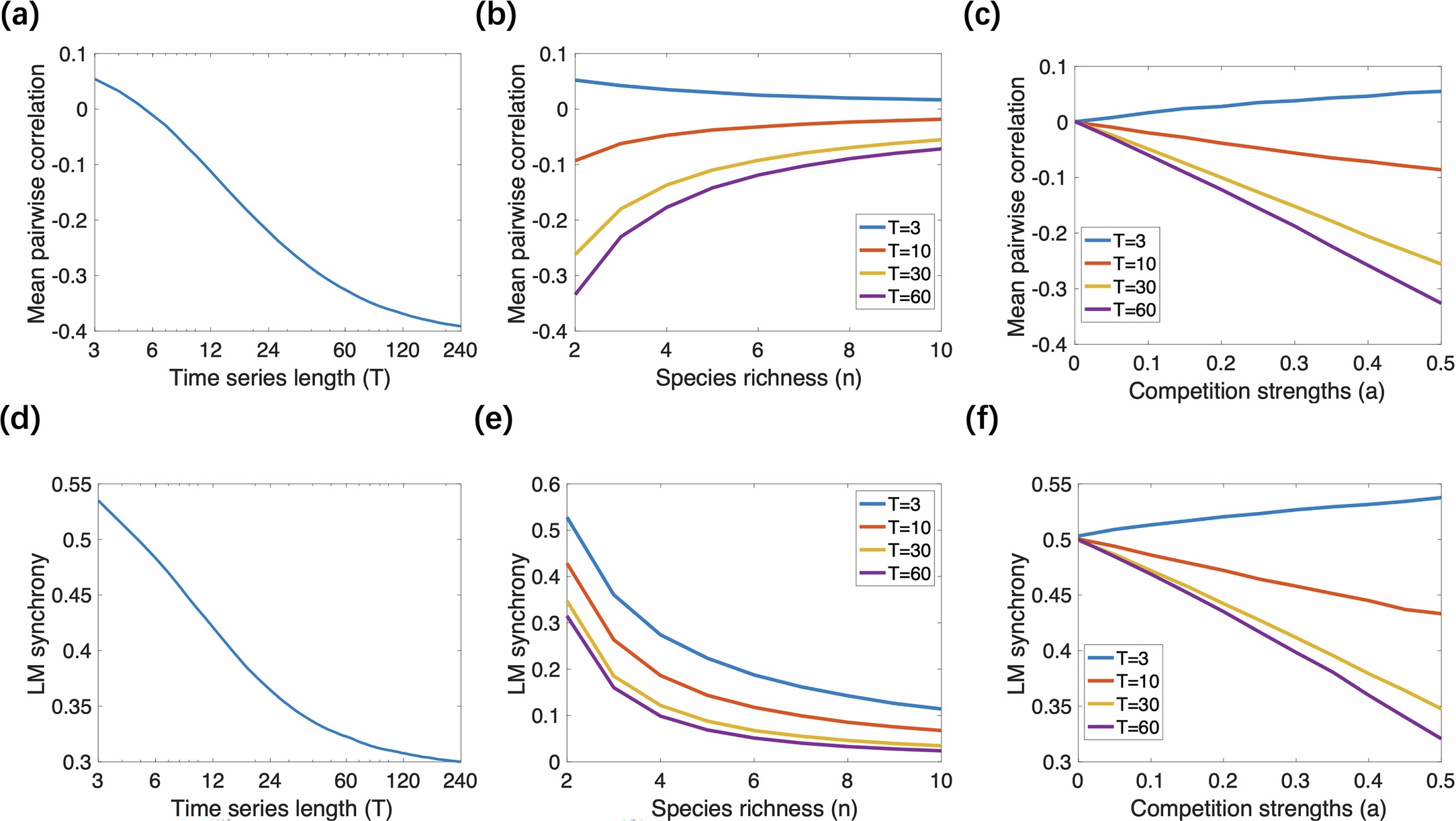

Extended Data Fig. 5: Effects of time series length on two alternative synchrony metrics.
From: Short time series obscure compensatory dynamics in ecological communities
Effects of time series length on two alternative synchrony metrics: the mean pairwise correlation coefficients (a-c), and the LM synchrony metric developed by ref. 14 (b-d). (a,d) show the change in synchrony with increasing time series length. (b,c) show the relationship of synchrony with species richness, and (c,f) show the relationship of synchrony with competition strengths. In (a,d), competition strength = 0.5 and species richness = 2; in (b,e), species richness = 2; in (c,f), competition strength = 0.5. Other parameters are same as in Fig. 2.
