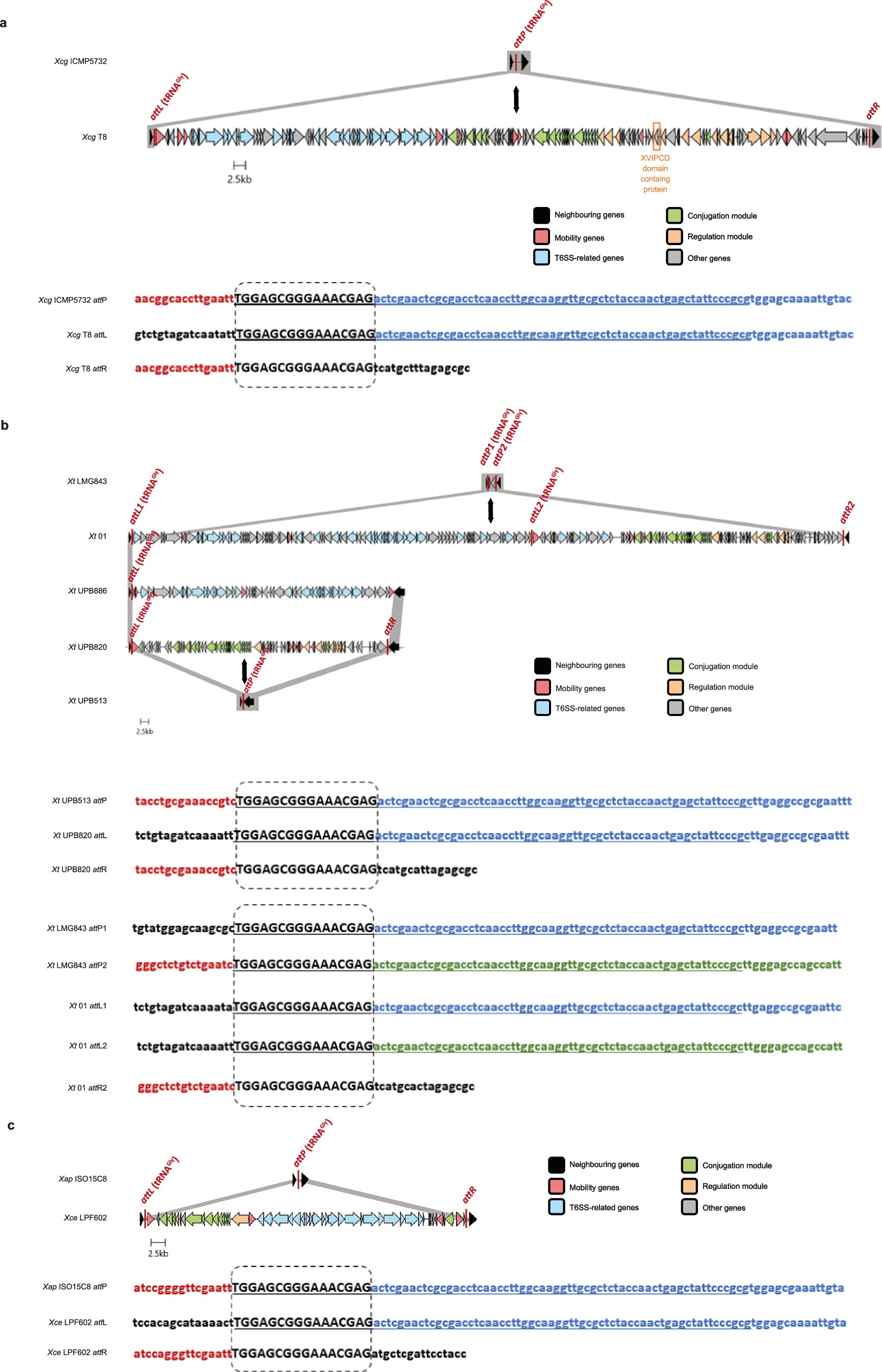

Extended Data Fig. 9: T6SS-i4 and ICE in type-2 neighborhood are flanked by att sites in strains (a) Xcg T8, (b) Xt 01, Xt UPB886, Xt UPB820 and (c) Xce LPF602.
From: Functional replacement of ancestral antibacterial secretion system in a bacterial plant pathogen
(Upper panel) Genes corresponding to the same ICE modules are represented in similar colors. Genes with unknown functions are indicated in gray. attL and attR sites flanking the GI and attP in the T6SS-i4 lacking strain are pointed with red bars. (Lower panel) attL, attR and attP sites sequences are shown, 16-bp direct repeat sequences are boxed with dashed lines and tRNA-Gly sequences are underlined.
