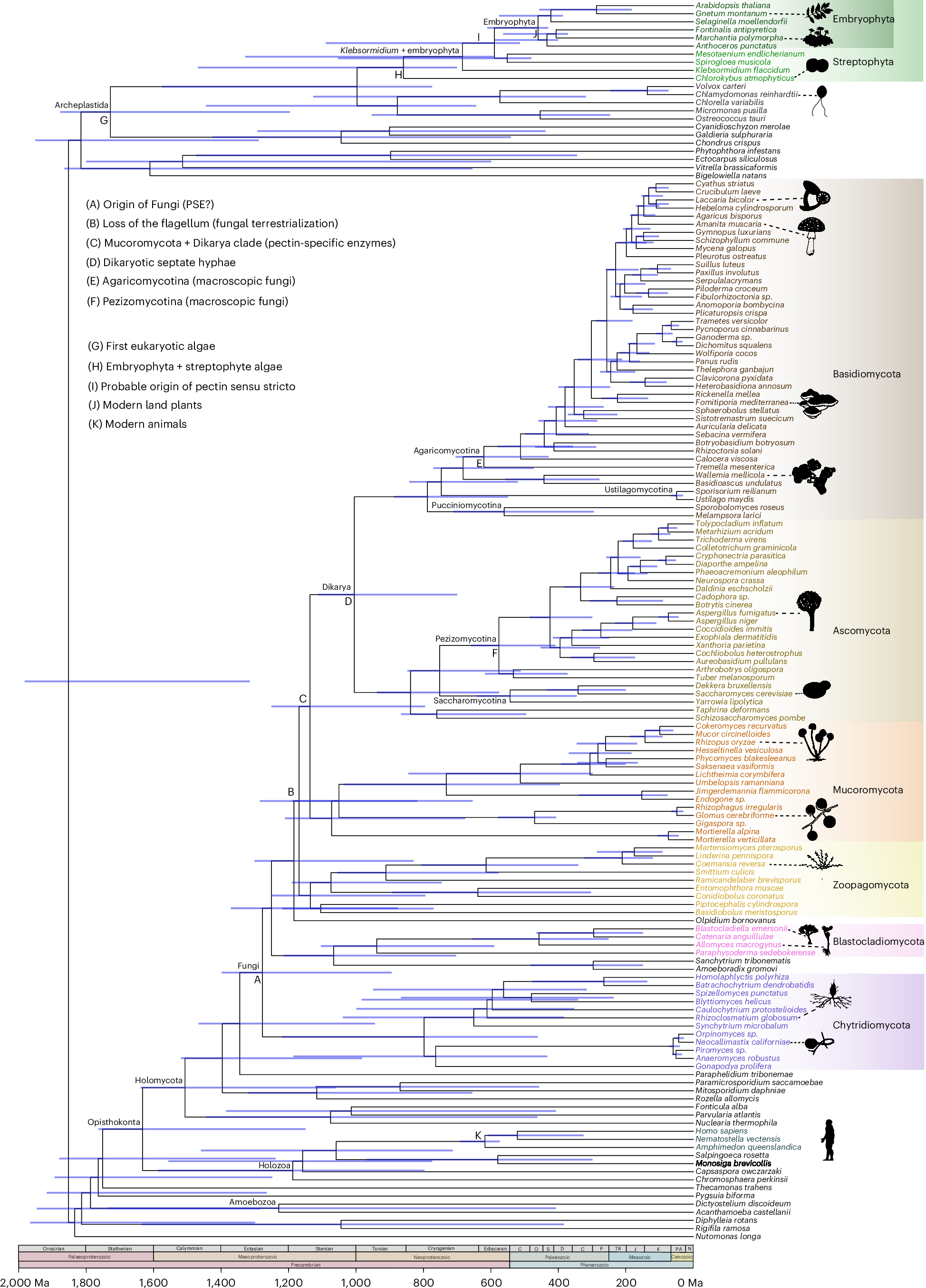

Fig. 3: A dated ToF, including 110 fungi and 43 representatives from other eukaryotic groups.
From: A timetree of Fungi dated with fossils and horizontal gene transfers
Four chronogram sets were produced: ‘Default’ (based on a core set of 24 calibration points and 17 relative constraints), and three other chronogram sets that incorporated calibrations and relative constraints based on plausible scenarios related to the evolutionary history of pectin and pectin specific-enzymes (PSE) in Fungi (see Fig. 4). To be conservative and to account for node age uncertainty, the branch lengths of this figure correspond to mean divergence times from ‘Default’, while node age bars show the oldest and the lowest among the 95% high posterior density (HPD) credibility interval values retrieved from the four chronogram sets reconstructed. Consensus chronograms obtained separately from each of these four analyses are available in the extended data Fig.s 3, 6, 7 and 8. Supplementary Fig. 2 includes cumulative probability distributions for node ages. Supplementary Data includes more detailed information on node age probabilities and pairwise node age orderings to complement the summary HPD data displayed in this figure. Silhouettes are from PhyloPic (see Supplementary Information section 6 for credit and license details).
