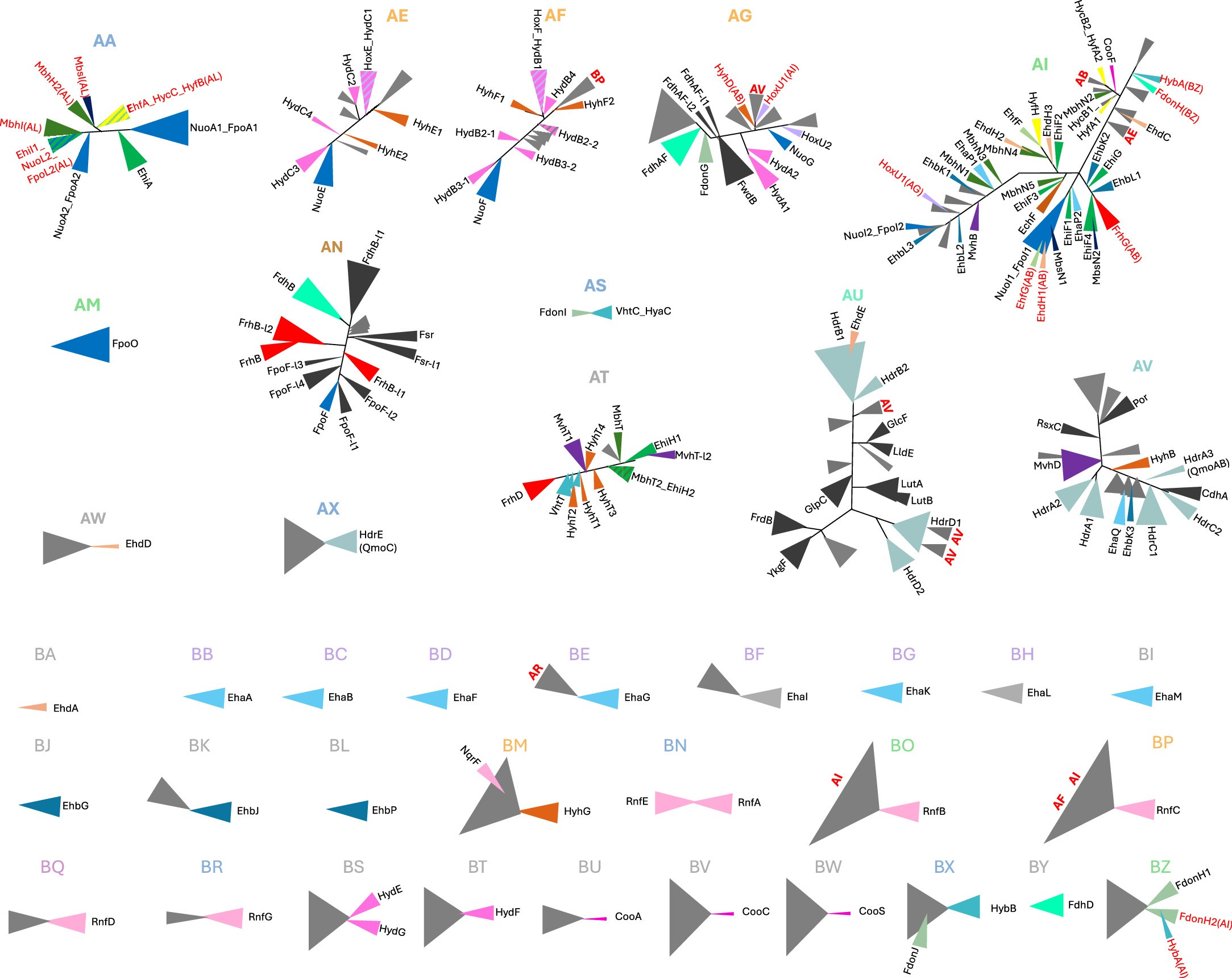

Extended Data Fig. 1: Schematic representation of phylogenetic relationships between components among HORBEC homologue families.
From: Evolution and diversity of oxidoreductases involved in redox balance and energy conservation
Each schematic corresponds to a homologue family, from AA to BZ. AB, AC, AD, AH, AJ, AK, AL, AO, AP, AQ, AR families are represented in Fig. 3. The schematics are based on unrooted consensus of multiple trees and subtrees, inferred using Fasttree. Each triangle corresponds a component, colored by the HORBEC it belongs to. Light gray triangles correspond to non-classified sequences, dark gray to unrelated families. The size of triangles represents approximatively the size of the subfamilies. The length of branches is not proportional to real phylogenetic branches. The names in red indicate that several sequences are fused with another family, indicated between parentheses.
