Large moiré superstructure of stacked incommensurate charge density waves

Abstract

Advances in heterostructure fabrication have opened new frontiers in moiré physics. Here we extend moiré engineering from artificially assembled thin flakes with mismatched lattice parameters to materials that host incommensurate orders, presenting a long-period moiré superlattice in a layered charge-density-wave compound, EuTe4. Using high-momentum-resolution X-ray diffraction, we found two coexisting incommensurate charge density waves with slightly mismatched in-plane wavevectors. The interaction between these two charge density waves leads to joint commensuration with the lattice and a moiré superstructure with a period of ~13.6 nm, offering key insights into the unique properties of EuTe4, such as the temperature-invariant incommensurate wavevectors and unconventional in-gap states. Owing to interlayer phase shifts, the moiré superstructure exhibits a clear thermal hysteresis, accounting for the large hysteresis in electrical resistivity and numerous metastable states. Our findings open new directions for moiré engineering based on incommensurate lattices and highlight the important role of interlayer ordering in stacked structures.

This is a preview of subscription content, access via your institution

Access options

Buy this article

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

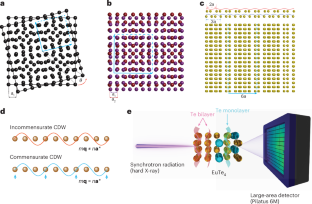

Fig. 1: Moiré superlattices formed by stacking two CDWs.

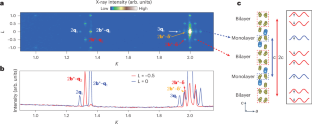

Fig. 2: XRD pattern and refined CDW structure of EuTe4.

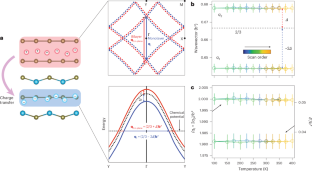

Fig. 3: Jointly commensurate CDW orders induced by charge transfer.

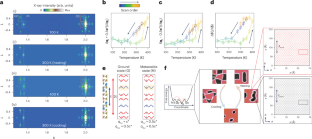

Fig. 4: Giant thermal hysteresis in EuTe4 due to metastable domains of CDW stacking disorder.
