How charge frustration causes ion ordering and microphase separation at surfaces

Nature Materials (2026)Cite this article

Subjects

Abstract

Ion interactions with charged surfaces are fundamental to electrochemical, geochemical and biological systems, yet the impact of charging on interfacial structure and dynamics is poorly understood. Here we investigate the adsorption and precipitation of multivalent ions on mica using molecularly resolved atomic force microscopy. Although divalent ions form continuous hydroxide monolayers in a manner consistent with classical models, trivalent ions adopt complex states associated with strong overcharging, including ordered ion networks, cluster arrays and microphase-separated films not predicted by those models. Monte Carlo simulations show that such states emerge from charge frustration arising when restrictions on repelling charges prevent the minimization of electrostatic forces. Due to their universal nature across cation types, the results provide general principles underlying charge-driven nanostructure formation and insights for using electric fields to direct materials synthesis.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

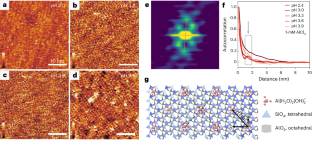

Fig. 1: Evolution of the ordered ion arrays at mica–AlCl3 interfaces.

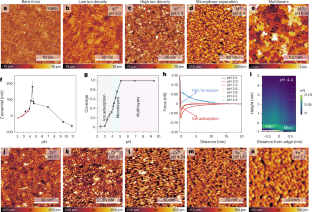

Fig. 2: Interfacial structure of mica in electrolytes containing trivalent ions.
Fig. 3: Charge-frustrated lattice simulations of ion adsorption.

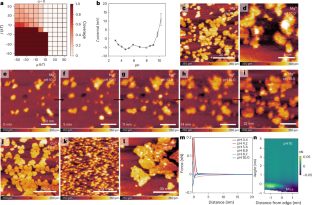

Fig. 4: Interfacial structure of mica in electrolytes containing divalent ions.

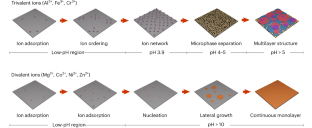

Fig. 5: Schematic of the interfacial structure of mica in electrolytes containing multivalent ions.

Similar content being viewed by others

Data availability

All data in this paper are presented in the Article and its Supplementary Information. Source data are provided with this paper. Additional data are available from the corresponding authors upon request.

Code availability

The code that supports the results within this Article and the other findings of this study are available from the corresponding authors upon request.

References

  1. Gonella, G. et al. Water at charged interfaces. Nat. Rev. Chem. 5, 466–485 (2021).

    Article  CAS  PubMed  Google Scholar

  2. Banuelos, J. L. et al. Oxide- and silicate-water interfaces and their roles in technology and the environment. Chem. Rev. 123, 6413–6544 (2023).

    Article  CAS  PubMed  Google Scholar

  3. Wang, S., Walker-Gibbons, R., Watkins, B., Flynn, M. & Krishnan, M. A charge-dependent long-ranged force drives tailored assembly of matter in solution. Nat. Nanotechnol. 19, 485–493 (2024).

  4. Okur, H. I., Tarun, O. B. & Roke, S. Chemistry of lipid membranes from models to living systems: a perspective of hydration, surface potential, curvature, confinement and heterogeneity. J. Am. Chem. Soc. 141, 12168–12181 (2019).

    Article  CAS  PubMed  Google Scholar

  5. Li, L., Salvador, P. A. & Rohrer, G. S. Photocatalysts with internal electric fields. Nanoscale 6, 24–42 (2014).

    Article  PubMed  Google Scholar

  6. Sambur, J. B. et al. Sub-particle reaction and photocurrent mapping to optimize catalyst-modified photoanodes. Nature 530, 77–80 (2016).

    Article  CAS  PubMed  Google Scholar

  7. Chao, D. et al. Roadmap for advanced aqueous batteries: from design of materials to applications. Sci. Adv. 6, eaba4098 (2020).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  8. Gouy, M. Sur la constitution de la charge électrique à la surface d’un électrolyte. J. Phys. Theor. Appl. 9, 457–468 (1910).

    Article  CAS  Google Scholar

  9. Chapman, D. L. A contribution to the theory of electrocapillarity. Philos. Mag. 25, 475–481 (1913).

    Article  Google Scholar

  10. Legg, B. A., Voïtchovsky, K. & De Yoreo, J. J. Hydroxide films on mica form charge-stabilized microphases that circumvent nucleation barriers. Sci. Adv. 8, eabn7087 (2022).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  11. Lyklema, J. Overcharging, charge reversal: chemistry or physics?. Colloids Surf. A 291, 3–12 (2006).

    Article  CAS  Google Scholar

  12. Besteman, K., Zevenbergen, M. A., Heering, H. A. & Lemay, S. G. Direct observation of charge inversion by multivalent ions as a universal electrostatic phenomenon. Phys. Rev. Lett. 93, 170802 (2004).

    Article  CAS  PubMed  Google Scholar

  13. James, R. O. & Healy, T. W. Adsorption of hydrolyzable metal ions at the oxide—water interface. II. Charge reversal of SiO2 and TiO2 colloids by adsorbed Co(II), La(III), and Th(IV) as model systems. J. Colloid Interface Sci. 40, 53–64 (1972).

    Article  CAS  Google Scholar

  14. Grosberg, A. Y., Nguyen, T. T. & Shklovskii, B. I. Colloquium: the physics of charge inversion in chemical and biological systems. Rev. Mod. Phys. 74, 329–345 (2002).

    Article  CAS  Google Scholar

  15. Jimenez, M. L., Delgado, A. V. & Lyklema, J. Hydrolysis versus ion correlation models in electrokinetic charge inversion: establishing application ranges. Langmuir 28, 6786–6793 (2012).

    Article  CAS  PubMed  Google Scholar

  16. Wang, W., Park, R. Y., Travesset, A. & Vaknin, D. Ion-specific induced charges at aqueous soft interfaces. Phys. Rev. Lett. 106, 056102 (2011).

    Article  PubMed  Google Scholar

  17. Lee, S. S., Koishi, A., Bourg, I. C. & Fenter, P. Ion correlations drive charge overscreening and heterogeneous nucleation at solid–aqueous electrolyte interfaces. Proc. Natl Acad. Sci. USA 118, e2105154118 (2021).

  18. Wang, J. et al. Ions adsorbed at amorphous solid/solution interfaces form Wigner crystal-like structures. ACS Nano 18, 1181–1194 (2024).

    Article  CAS  PubMed  Google Scholar

  19. van der Heyden, F. H., Stein, D., Besteman, K., Lemay, S. G. & Dekker, C. Charge inversion at high ionic strength studied by streaming currents. Phys. Rev. Lett. 96, 224502 (2006).

    Article  PubMed  Google Scholar

  20. Legg, B. A. et al. Visualization of aluminum ions at the mica water interface links hydrolysis state-to-surface potential and particle adhesion. J. Am. Chem. Soc. 142, 6093–6102 (2020).

    Article  CAS  PubMed  Google Scholar

  21. Lee, S. S., Schmidt, M., Sturchio, N. C., Nagy, K. L. & Fenter, P. Effect of pH on the formation of gibbsite-layer films at the muscovite (001)–water interface. J. Phys. Chem. C 123, 6560–6571 (2019).

    Article  CAS  Google Scholar

  22. Stubbs, J. E. et al. Epitaxial growth of gibbsite sheets on the basal surface of muscovite mica. J. Phys. Chem. C 123, 27615–27627 (2019).

    Article  CAS  Google Scholar

  23. Min, Y., Pesika, N., Zasadzinski, J. & Israelachvili, J. Studies of bilayers and vesicle adsorption to solid substrates: development of a miniature streaming potential apparatus (SPA). Langmuir 26, 8684–8689 (2010).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  24. Fukuma, T. & Garcia, R. Atomic- and molecular-resolution mapping of solid-liquid interfaces by 3D atomic force microscopy. ACS Nano 12, 11785–11797 (2018).

    Article  CAS  PubMed  Google Scholar

  25. Alberstein, R. G. et al. Discrete orientations of interfacial waters direct crystallization of mica-binding proteins. J. Phys. Chem. Lett. 14, 80–87 (2023).

    Article  CAS  PubMed  Google Scholar

  26. Tuladhar, A. et al. Direct observation of the orientational anisotropy of buried hydroxyl groups inside muscovite mica. J. Am. Chem. Soc. 141, 2135–2142 (2019).

    Article  CAS  PubMed  Google Scholar

  27. Sakuma, H. & Kawamura, K. Structure and dynamics of water on muscovite mica surfaces. Geochim. Cosmochim. Acta 73, 4100–4110 (2009).

    Article  CAS  Google Scholar

  28. Lee, S. S. et al. Structural characterization of aluminum (oxy)hydroxide films at the muscovite (001)-water interface. Langmuir 32, 477–486 (2016).

    Article  CAS  PubMed  Google Scholar

  29. Scales, P. J., Grieser, F. & Healy, T. W. Electrokinetics of the muscovite mica-aqueous solution interface. Langmuir 6, 582–589 (2002).

    Article  Google Scholar

  30. Kosmulski, M. pH-dependent surface charging and points of zero charge. IV. Update and new approach. J. Colloid Interface Sci. 337, 439–448 (2009).

    Article  CAS  PubMed  Google Scholar

  31. Martin-Jimenez, D., Chacon, E., Tarazona, P. & Garcia, R. Atomically resolved three-dimensional structures of electrolyte aqueous solutions near a solid surface. Nat. Commun. 7, 12164 (2016).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  32. Zhang, M. et al. A molecular view of peptoid-induced acceleration of calcite growth. Proc. Natl Acad. Sci. USA 121, e2412358121 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  33. Su, S. et al. Nanometer-resolved operando photo-response of faceted BiVO4 semiconductor nanoparticles. J. Am. Chem. Soc. 146, 2248–2256 (2024).

  34. Deem, M. W. & Chandler, D. Charge-frustrated model of bicontinuous phases. Phys. Rev. E 49, 4268–4275 (1994).

    Article  CAS  Google Scholar

  35. Pekalski, J., Ciach, A. & Almarza, N. G. Periodic ordering of clusters and stripes in a two-dimensional lattice model. I. Ground state, mean-field phase diagram and structure of the disordered phases. J. Chem. Phys. 140, 114701 (2014).

    Article  PubMed  Google Scholar

  36. Almarza, N. G., Pekalski, J. & Ciach, A. Periodic ordering of clusters and stripes in a two-dimensional lattice model. II. Results of Monte Carlo simulation. J. Chem. Phys. 140, 164708 (2014).

    Article  CAS  PubMed  Google Scholar

  37. Frink, C. R. & Peech, M. Hydrolysis of the aluminum ion in dilute aqueous solutions. Inorg. Chem. 2, 473–478 (1963).

    Article  CAS  Google Scholar

  38. Deželić, N., Bilinski, H. & Wolf, R. H. H. Precipitation and hydrolysis of metallic ions—IV: studies on the solubility of aluminum hydroxide in aqueous solution. J. Inorg. Nucl. Chem. 33, 791–798 (1971).

    Article  Google Scholar

  39. Stefánsson, A. Iron(III) hydrolysis and solubility at 25 °C. Environ. Sci. Technol. 41, 6117–6123 (2007).

    Article  PubMed  Google Scholar

  40. Baes, C. F. & Mesmer, R. E. The Hydrolysis of Cations (Wiley, 1976).

  41. Henry, M., Jolivet, J. P. & Livage, J. in Chemistry, Spectroscopy and Applications of Sol-Gel Glasses (eds R. Reisfeld & C. K. Jjørgensen) 153–206 (Springer, 1992).

  42. James, R. O. & Healy, T. W. Adsorption of hydrolyzable metal ions at the oxide–water interface. III. A thermodynamic model of adsorption. J. Colloid Interface Sci. 40, 65–81 (1972).

    Article  CAS  Google Scholar

  43. James, R. O. & Healy, T. W. Adsorption of hydrolyzable metal ions at the oxide–water interface. I. Co(II) adsorption on SiO2 and TiO2 as model systems. J. Colloid Interface Sci. 40, 42–52 (1972).

    Article  CAS  Google Scholar

  44. De Yoreo, J. J. & Vekilov, P. G. Principles of crystal nucleation and growth. Rev. Mineral. Geochem. 54, 57–93 (2003).

    Article  Google Scholar

  45. Pouvreau, M., Greathouse, J. A., Cygan, R. T. & Kalinichev, A. G. Structure of hydrated gibbsite and brucite edge surfaces: DFT results and further development of the ClayFF classical force field with metal–O–H angle bending terms. J. Phys. Chem. C 121, 14757–14771 (2017).

    Article  CAS  Google Scholar

  46. Nečas, D. & Klapetek, P. Gwyddion: an open-source software for SPM data analysis. Open Phys. 10, 181–188 (2012).

    Article  Google Scholar

  47. Scales, P. J., Grieser, F., Healy, T. W., White, L. R. & Chan, D. Y. C. Electrokinetics of the silica-solution interface: a flat plate streaming potential study. Langmuir 8, 965–974 (1992).

    Article  CAS  Google Scholar

  48. Walker, S. L., Bhattacharjee, S., Hoek, E. M. V. & Elimelech, M. A novel asymmetric clamping cell for measuring streaming potential of flat surfaces. Langmuir 18, 2193–2198 (2002).

    Article  CAS  Google Scholar

  49. Payam, A. F., Martin-Jimenez, D. & Garcia, R. Force reconstruction from tapping mode force microscopy experiments. Nanotechnology 26, 185706 (2015).

    Article  PubMed  Google Scholar

Download references

Acknowledgements

We thank E. Nakouzi (Pacific Northwest National Laboratory (PNNL)) for helpful discussions on the 3D AFM data. We thank G. E. Johnson (PNNL) for help with the SPA measurements. This work was primarily supported by the US Department of Energy (DOE), Office of Basic Energy Sciences (BES), Division of Materials Science and Engineering (MSE), Synthesis and Processing Science Program, PNNL, through FWP-67554. PNNL is a multiprogram national laboratory operated for the DOE by Battelle under contract number DE-AC05–76RL01830. Initial development of the charge-frustrated Monte Carlo model to predict the ion configurations at mica interfaces was supported by DOE BES MSE under FWP-77246 at PNNL. SPA measurements for AlCl3 solutions were supported by the DOE, BES, Geosciences Program under award numbers DE-SC-00021389 and DE-AC02-05CH11231 at the University of California, Riverside. SPA measurements for MgCl2 and other electrolyte solutions were supported by he US DOE, BES, Chemical Sciences, Geosciences and Biosciences Division, Separation Science program, through FWP-81462 at PNNL. BES-FWP-67554: to M.Z., B.A.L., B.A.H., P.J.P., C.J.M. and J.J.D.Y. BES-FWP-77246: to M.Z., B.A.L. and J.J.D.Y. BES-DE-SC-00021389: to Y.Z., R.K.Y., M.I. and Y.M. BES-FWP-81462: to S.T. and V.P.

Author information

Author notes

  1. Benjamin A. Helfrecht

    Present address: Laboratory of Computational Science and Modeling, EPFL, Lausanne, Switzerland

Authors and Affiliations

  1. Physical Sciences Division, Pacific Northwest National Laboratory, Richland, WA, USA

    Mingyi Zhang, Benjamin A. Legg, Benjamin A. Helfrecht, Shuai Tan, Venkateshkumar Prabhakaran, Peter J. Pauzauskie, Christopher J. Mundy & James J. De Yoreo

  2. Department of Chemical and Environmental Engineering, University of California, Riverside, Riverside, CA, USA

    Yuanzhong Zhang, Rae Karell Yodong, Monica Iepure & Younjin Min

  3. Department of Materials Science and Engineering, University of Washington, Seattle, WA, USA

    Ying Xia, Peter J. Pauzauskie & James J. De Yoreo

  4. Materials Science and Engineering Program, University of California, Riverside, Riverside, CA, USA

    Younjin Min

  5. Department of Chemical Engineering, University of Washington, Seattle, WA, USA

    Christopher J. Mundy

Authors
  1. Mingyi Zhang
    View author publications

    Search author on:PubMed Google Scholar

  2. Benjamin A. Legg
    View author publications

    Search author on:PubMed Google Scholar

  3. Benjamin A. Helfrecht
    View author publications

    Search author on:PubMed Google Scholar

  4. Yuanzhong Zhang
    View author publications

    Search author on:PubMed Google Scholar

  5. Shuai Tan
    View author publications

    Search author on:PubMed Google Scholar

  6. Ying Xia
    View author publications

    Search author on:PubMed Google Scholar

  7. Rae Karell Yodong
    View author publications

    Search author on:PubMed Google Scholar

  8. Monica Iepure
    View author publications

    Search author on:PubMed Google Scholar

  9. Venkateshkumar Prabhakaran
    View author publications

    Search author on:PubMed Google Scholar

  10. Peter J. Pauzauskie
    View author publications

    Search author on:PubMed Google Scholar

  11. Younjin Min
    View author publications

    Search author on:PubMed Google Scholar

  12. Christopher J. Mundy
    View author publications

    Search author on:PubMed Google Scholar

  13. James J. De Yoreo
    View author publications

    Search author on:PubMed Google Scholar

Contributions

M.Z., B.A.L. and J.J.D.Y. conceived and designed the study. M.Z. performed the AFM experiments with the help of B.A.L. and Y.X. M.Z., Y.Z., S.T., R.K.Y. and M.I. performed the SPA measurements with the help of V.P. and Y.M. B.A.L. developed the charge-frustrated model. M.Z., B.A.L., B.A.H. and C.J.M. performed the Monte Carlo simulations. M.Z. and B.A.L. conducted the AFM data analysis with the help of P.J.P. M.Z., B.A.L. and J.J.D.Y. wrote the manuscript with input from other authors.

Corresponding authors

Correspondence to Benjamin A. Legg or James J. De Yoreo.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Materials thanks Ricardo García and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Evolution of an ordered ion network at the mica-AlCl3 interface revealed by in-situ AFM.

a-f, A time series showing the mica surface in a 1 mM AlCl3 solution at pH 3.9 is shown at various time points: (a) t0, (b) t0 + 65.5 s, (c) t0 + 131.0 s, (d) t0 + 196.5 s, (e) t0 + 262.1 s, (f) t0 + 495 s. The small light spots, corresponding to hydrolyzed Al ions, cover the entire surface, forming a network. Additionally, some larger particles can be seen fluctuating on top of the network.

Extended Data Fig. 2 Dynamics of the interfacial structure on mica surface in 1 mM AlCl3 at mild pH conditions (pH 4 to pH 5) revealed by in-situ AFM.

a, At pH 3.9, an ordered ion network forms. b, As the pH reaches 4, the ions begin to crosslink, forming small clusters and breaking the initial symmetry. c, Above pH 4, these clusters transition into a microphase separated monolayered Al(OH)3 film with a network of gaps. Insets display autocorrelation patterns to illustrate the symmetry of the surface structure. d,e, High resolution AFM images of the structure of the lamella patterned microphase separated Al(OH)3 films. f-j, in-situ AFM images show the transition from Al ion clusters to discontinuous Al(OH)3 films. k-n, in-situ AFM images show the coarsening of the films with increasing pH, where the average size of the islands increases from 2.36 to 60.5 nm2. o, An AFM image shows the monolayered Al(OH)3 films after a week of incubation.

Extended Data Fig. 3 Dynamics of the interfacial structure on mica surface in 1 mM AlCl3 at high pH conditions (above pH 5) revealed by in-situ AFM.

a, b, The growth of the upper layered Al(OH)3 films on the top of the first layer at pH 5.1 and at pH 6.9. c, At higher pH levels (above PZC), these films begin to dissolve. d, e, A high-resolution AFM image and FFT pattern reveal that these upper-layered films are well crystalline with a lattice structure consistent with gibbsite. f-j, in-situ AFM images capture the nucleation of the upper-layered films. k-o, in-situ AFM images capture the growth of the upper-layered films. These films exhibit distinct dynamics compared to the first layer and follow the expectations by the classical nucleation model.

Extended Data Fig. 4 Zeta potential of mica in various electrolytes measured by SPA.

a-f, Zeta potential of mica surface at (a) 1 mM KCl, (b) 1 mM FeCl3, (c) 1 mM CrCl3, (d) 0.1 mM NiCl2, (e) 1 mM CoCl2, (f) 1 mM ZnCl2. g-i, Proposed models of the zeta potential versus pH on mica in different electrolytes. Both divalent and trivalent ions reverse the zeta potential, but the potentials in trivalent ion electrolytes can be 10-fold higher than in divalent ion electrolytes. Additionally, the potential is strongly correlated with the interfacial structure. For divalent ions, the overcharging at high pH is related to the formation of hydroxide films. For trivalent ions, the strong overcharging is associated with the observed ordered ions/clusters and microphase separation phenomena. Data are presented as mean ± one standard deviation, each derived from three independent measurements.

Source data

Extended Data Fig. 5 Dynamics of the interfacial structure on mica surface in 1 mM CrCl3 at various pH values.

a, b, AFM images display the adsorption of Cr3+ ions/clusters on the mica surface into ordered patterns at pH 2.1 and pH 3.1. c, At pH 4.5, the clusters cross-link and form a discontinuous film with nanometer-sized gaps in between. The insets in each image show autocorrelation patterns, revealing that the clusters exhibit near-hexagonal symmetry, which breaks when the films form. d, 1D autocorrelation plots, indicating that the distance between clusters and nearby films is consistently 2.5 to 3 nm during the transition. e-i, in-situ AFM images of the dynamics of Cr3+ clusters on mica at pH 3, with an averaged frame in (j). k-o, in-situ AFM images of the dynamics of the Cr(OH)3 films at pH 4.5, with an averaged frame in (p).

Source data

Extended Data Fig. 6 Phase diagrams in q-µ space at various J values simulated by the Charge-Frustrated Model.

a–e, 2D phase diagrams show the change of surface coverage as a function of q and µ is plotted at J = 4 kT, J = 0 kT, J = -4 kT, J = -8 kT, J = -12 kT. f-j, 2D phase diagrams show the change of surface potential as a function of q and µ is plotted at J = 4 kT, J = 0 kT, J = -4 kT, J = -8 kT, J = -12 kT. k-m, Three groups of the simulated interfacial structure at J = 0 kT, J = -4 kT, and J = -10 kT, respectively.

Extended Data Fig. 7 Phase diagrams in J-µ space at various q values simulated by the Charge-Frustrated Model.

a-g, Heatmaps show the change of surface coverage versus J and µ at q = 0 e, q = 0.5 e, q = 1.0 e, q = 1.5 e, q = 2 e, q = 2.5 e, q = 3.0 e.

Extended Data Fig. 8 Dynamics of the interfacial structure on mica surface in 20 mM MgCl2 at various pH values.

a, b, Before pH 10, there is very weak adsorption observed on the mica surface, as shown in (a) at pH 3.4 and (b) at pH 6.9. c,d, Once the pH is raised to 10, where Mg(OH)2 becomes supersaturated, monolayered Mg(OH)2 films start to form on the mica surface. The thickness of the film is around 0.5 nm, which is close to the thickness of a layer of brucite, but the film is not well-crystalline, as shown in (d). e, A high-resolution AFM image of the mica surface in 20 mM MgCl2, where some contrasts are observed, but no obvious interfacial structure due to ion adsorption is seen, unlike in trivalent ion electrolytes. f, A time averaged image of over 100 frames (shown in Movie S5). It is likely that the brighter spots correspond to regions with a higher probability of Mg2+ adsorption. g, A space-correlated averaged image showing the mica lattice structure. h-l, A time series of the nucleation of the Mg(OH)2 films on mica in 20 mM MgCl2 at pH 10. Combined with the AFM data showing the growth kinetics in Fig. 4, the formation of these films is consistent with the prediction of classical nucleation theory for two-dimensional systems.

Extended Data Fig. 9 Interfacial structure of mica in electrolytes containing divalent cations.

a, An AFM image of the mica surface in 0.1 mM NiCl2 solution at pH = 6.8. b-d, Monolayered Ni(OH)2 films form on the mica surface when the pH is increased to 9.4. e, An AFM image show the mica surface in 1 mM CoCl2 solution at pH = 6.4. f-h, Monolayered Co(OH)2 films form on the mica surface when the pH is increased to 8.6. i, An AFM image of the mica surface in 1 mM ZnCl2 at pH 6.0. j-l, Monolayered Zn(OH)2 films form on the mica surface when the pH is increased to 7.7. All three ions show similar behaviors to Mg2+.

Extended Data Fig. 10 Speciation calculation of aqueous ions as a function of pH in bulk solutions.

The concentrations of the solution species for (a) Co(II), (b) Ni(II), (c) Zn(II), (d) Al(III), (e) Fe(III), (f) Cr(III) are plotted in solid lines while the average charge of the species is plotted in dashed lines. The calculation is based on 1 mM concentration for all ions using VisualMinteq.

Source data

Supplementary information

Supplementary Information

Supplementary Figs. 1–10, captions to Supplementary Videos and Text.

Supplementary Video 1

In situ AFM images show the transition from Al ion clusters to Al(OH) discontinuous films, corresponding to the interfacial structure of mica in 1 mM of AlCl from pH 4 to pH 4.4 (left, unregistered stack; right, registered stack; frame: 39.3 s).

Supplementary Video 2

In situ AFM images show the nucleation of multilayered Al(OH) films on mica (frame, 39.3 s).

Supplementary Video 3

In situ AFM images show the growth of multilayered Al(OH) films on mica (frame, 39.3 s).

Supplementary Video 4

In situ AFM images show the dynamic of Cr(OH) films on mica (frame, 39.3 s).

Supplementary Video 5

In situ AFM images show the dynamics of mica interface in 20 mM of MgCl solutions (frame, 19.7 s).

Supplementary Video 6

In situ AFM images show the nucleation of Mg(OH) films on mica (frame, 19.7 s).

Supplementary Video 7

In situ AFM images show the growth of Mg(OH) films on mica (frame, 65.6 s).

Source data

Source Data Fig. 1

Statistical source data.

Source Data Fig. 2

Statistical source data.

Source Data Fig. 3

Statistical source data.

Source Data Fig. 4

Statistical source data.

Source Data Extended Data Fig. 4

Statistical source data.

Source Data Extended Data Fig. 5

Statistical source data.

Source Data Extended Data Fig. 10

Statistical source data.

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Zhang, M., Legg, B.A., Helfrecht, B.A. et al. How charge frustration causes ion ordering and microphase separation at surfaces. Nat. Mater. (2026). https://doi.org/10.1038/s41563-025-02467-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • Version of record:

  • DOI: https://doi.org/10.1038/s41563-025-02467-5

Search

Advanced search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
