Skip to main content

Thank you for visiting nature.com. You are using a browser version with limited support for CSS. To obtain the best experience, we recommend you use a more up to date browser (or turn off compatibility mode in Internet Explorer). In the meantime, to ensure continued support, we are displaying the site without styles and JavaScript.

  • Article
  • Published:

Ferroelectric transistors for low-power NAND flash memory

Nature volume 648, pages 320–326 (2025)Cite this article

Subjects

Abstract

NAND flash memory is essential in modern storage technology, amid growing demands for low-power operation fuelled by data-centric computing and artificial intelligence1,2. Its unique ‘string’ architecture3, where multiple cells are connected in series, requires high-voltage pass operation that causes a large amount of undesired power consumption4. Lowering the pass voltage, however, poses a challenge: it leads to an associated reduction in the memory window, restricting the multi-level operation capability. Here, with a gate stack composed of zirconium-doped hafnia and an oxide semiconductor channel, we report ultralow-power ferroelectric field-effect transistors (FeFETs) that resolve this dilemma. Our FeFETs secure up to 5-bit per cell multi-level capability, which is on par with or even exceeds current NAND technology, while showing nearly zero pass voltage, saving up to 96% power in string-level operations over conventional counterparts. Three-dimensional integration of FeFET stacks into vertical structures with a 25-nm short channel preserves robust electrical properties and highlights low-pass-voltage string operation in scaled dimensions. Our work paves the way for next-generation storage memory with enhanced capacity, power efficiency and reliability.

This is a preview of subscription content, access via your institution

Access options

Fig. 1: Pathway to optimize power efficiency for ultralow-power FeNAND.

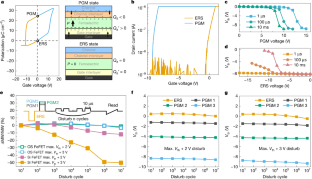

Fig. 2: Memory operation and pass disturbance characteristics.
Fig. 3: Enhanced memory window and multi-bit operation capability.
Fig. 4: Implementation in 3D structure.

Similar content being viewed by others

Data availability

The data that support the findings of this study are available from the corresponding authors upon request.

References

  1. Decadal plan for semiconductors. Semiconductor Research Corporation https://www.src.org/about/decadal-plan/ (2021).

  2. Generative AI spurs new demand for enterprise SSDs. McKinsey & Company https://www.mckinsey.com/industries/semiconductors/our-insights/generative-ai-spurs-new-demand-for-enterprise-ssds (2024).

  3. Yoon, C.-W. The fundamentals of NAND flash memory: technology for tomorrow’s fourth industrial revolution. IEEE Solid State Circuits Mag. 14, 56–65 (2022).

    Article  Google Scholar

  4. Mohan, V. et al. Modeling power consumption of NAND flash memories using FlashPower. IEEE Trans. Comput. Aided Des. Integr. Circuits Syst. 32, 1031–1044 (2013).

    Article  ADS  Google Scholar

  5. LeCun, Y., Bengio, Y. & Hinton, G. Deep learning. Nature 521, 436–444 (2015).

    Article  ADS  CAS  PubMed  Google Scholar

  6. Kim, K. & Park, M. Present and future, challenges of high bandwith memory (HBM). In 2024 IEEE International Memory Workshop (IMW) 1–4 (IEEE, 2024); https://doi.org/10.1109/IMW59701.2024.10536972.

  7. Mehonic, A. & Kenyon, A. J. Brain-inspired computing needs a master plan. Nature 604, 255–260 (2022).

    Article  ADS  CAS  PubMed  Google Scholar

  8. Jones, N. How to stop data centres from gobbling up the world’s electricity. Nature 561, 163–166 (2018).

    Article  ADS  CAS  PubMed  Google Scholar

  9. Tanaka, H. et al. Bit cost scalable technology with punch and plug process for ultra high density flash memory. In 2007 IEEE Symposium on VLSI Technology 14–15 (IEEE, 2007); https://doi.org/10.1109/VLSIT.2007.4339708.

  10. International Roadmap for Devices and Systems. Mass Digital Storage (IEEE, 2023); https://doi.org/10.60627/4hs9-2098.

  11. Dayarathna, M., Wen, Y. & Fan, R. Data center energy consumption modeling: a survey. IEEE Commun. Surv. Tutor. 18, 732–794 (2016).

    Article  Google Scholar

  12. Kim, S. S. et al. Review of semiconductor flash memory devices for material and process issues. Adv. Mater. 35, 2200659 (2023).

    Article  ADS  CAS  Google Scholar

  13. Du, P.-Y. et al. an extremely scaled hemi-cylindrical (HC) 3D NAND device with large Vt memory window (>10V) and excellent 100K endurance. In 2020 IEEE Symposium on VLSI Technology 1–2 (IEEE, 2020); https://doi.org/10.1109/VLSITechnology18217.2020.9265078.

  14. Mo, F. et al. Experimental demonstration of ferroelectric HfO2 FET with ultrathin-body IGZO for high-density and low-power memory application. In 2019 Symposium on VLSI Technology T42–T43 (IEEE, 2019); https://doi.org/10.23919/VLSIT.2019.8776553.

  15. Kim, M.-K., Kim, I.-J. & Lee, J.-S. CMOS-compatible ferroelectric NAND flash memory for high-density, low-power, and high-speed three-dimensional memory. Sci. Adv. 7, eabe1341 (2021).

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

  16. Florent, K. et al. Vertical ferroelectric HfO2 FET based on 3-D NAND architecture: towards dense low-power memory. In 2018 IEEE International Electron Devices Meeting (IEDM) 2.5.1–2.5.4 (IEEE, 2018); https://doi.org/10.1109/IEDM.2018.8614710.

  17. Chen, C.-K. et al. First demonstration of ultra-low Dit top-gated ferroelectric oxide-semiconductor memtransistor with record performance by channel defect self-compensation effect for BEOL-compatible non-volatile logic switch. In 2022 International Electron Devices Meeting (IEDM) 6.1.1–6.1.4 (IEEE, 2022); https://doi.org/10.1109/IEDM45625.2022.10019440.

  18. Ali, T. et al. A multilevel FeFET memory device based on laminated HSO and HZO ferroelectric layers for high-density storage. In 2019 IEEE International Electron Devices Meeting (IEDM) 28.7.1–28.7.4 (IEEE, 2019); https://doi.org/10.1109/IEDM19573.2019.8993642.

  19. Aabrar, K. A. et al. BEOL-compatible superlattice FEFET analog synapse with improved linearity and symmetry of weight update. IEEE Trans. Electron Devices 69, 2094–2100 (2022).

    Article  ADS  CAS  Google Scholar

  20. Lim, S. et al. Comprehensive design guidelines of gate stack for QLC and highly reliable ferroelectric VNAND. In 2023 International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2023); https://doi.org/10.1109/IEDM45741.2023.10413820.

  21. Kim, I.-J. & Lee, J.-S. Unlocking large memory windows and 16-level data per cell memory operations in hafnia-based ferroelectric transistors. Sci. Adv. 10, eadn1345 (2024).

    Article  CAS  PubMed  PubMed Central  Google Scholar

  22. Kim, G. et al. In-depth analysis of the hafnia ferroelectrics as a key enabler for low voltage & QLC 3D VNAND beyond 1K layers: experimental demonstration and modeling. In 2024 IEEE Symposium on VLSI Technology and Circuits (VLSI Technology and Circuits) 1–2 (IEEE, 2024); https://doi.org/10.1109/VLSITechnologyandCir46783.2024.10631559.

  23. Yoon, S. et al. QLC programmable 3D ferroelectric NAND flash memory by memory window expansion using cell stack engineering. In 2023 IEEE Symposium on VLSI Technology and Circuits (VLSI Technology and Circuits) 1–2 (IEEE, 2023); https://doi.org/10.23919/VLSITechnologyandCir57934.2023.10185294.

  24. Yoo, S. et al. Highly enhanced memory window of 17.8V in ferroelectric FET with IGZO channel via introduction of intermediate oxygen-deficient channel and gate interlayer. In 2024 IEEE Symposium on VLSI Technology and Circuits (VLSI Technology and Circuits) 1–2 (IEEE, 2024); https://doi.org/10.1109/VLSITechnologyandCir46783.2024.10631534.

  25. Kim, K. et al. Gate-stack optimization to mitigate the cylindrical effect in ferroelectric VNAND. In 2024 IEEE International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2024); https://doi.org/10.1109/IEDM50854.2024.10873530.

  26. Kuk, S.-H. et al. Superior QLC retention (10 years, 85 °C) and record memory window (12.2 V) by gate stack engineering in ferroelectric FET: from “MIFIS” to”MIKFIS”. In 2024 IEEE International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2024); https://doi.org/10.1109/IEDM50854.2024.10873472.

  27. Joh, H. et al. Oxide channel ferroelectric NAND device with source-tied covering metal structure: wide memory window (14.3 V), reliable retention (> 10 years) and disturbance immunity (ΔVth ≤ 0.1 V) for QLC oOperation. In 2024 IEEE International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2024); https://doi.org/10.1109/IEDM50854.2024.10873376.

  28. Qin, Y. et al. Clarifying the role of ferroelectric in expanding the memory window of ferroelectric FETs with gate-side injection: isolating contributions from polarization and charge trapping. In 2024 IEEE International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2024); https://doi.org/10.1109/IEDM50854.2024.10873569.

  29. Das, D. et al. Experimental demonstration and modeling of a ferroelectric gate stack with a tunnel dielectric insert for NAND applications. In 2023 International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2023); https://doi.org/10.1109/IEDM45741.2023.10413697.

  30. Lee, H. J. et al. Laminated ferroelectric FET with large memory window and high reliability. IEEE Trans. Electron Devices 71, 2411–2416 (2024).

    Article  ADS  CAS  Google Scholar

  31. Venkatesan, P. et al. Demonstration of robust retention in band engineered FEFETs for NAND storage applications using tunnel dielectric layer. IEEE Electron Device Lett. 46, 397–400 (2025).

    Article  ADS  CAS  Google Scholar

  32. Ichihara, R. et al. Re-examination of Vth window and reliability in HfO2 FeFET based on the direct extraction of spontaneous polarization and trap charge during memory operation. In 2020 IEEE Symposium on VLSI Technology 1–2 (IEEE, 2020); https://doi.org/10.1109/VLSITechnology18217.2020.9265055.

  33. Deng, S. et al. Examination of the interplay between polarization switching and charge trapping in ferroelectric FET. In 2020 IEEE International Electron Devices Meeting (IEDM) 4.4.1–4.4.4 (IEEE, 2020); https://doi.org/10.1109/IEDM13553.2020.9371999.

  34. Kim, I.-J., Kim, M.-K. & Lee, J.-S. Design strategy to improve memory window in ferroelectric transistors with oxide semiconductor channel. IEEE Electron Device Lett. 44, 249–252 (2023).

    Article  ADS  CAS  Google Scholar

  35. Yoo, S. et al. An analytical interpretation of the memory window in ferroelectric field-effect transistors. Appl. Phys. Lett. 123, 222902 (2023).

    Article  ADS  CAS  Google Scholar

  36. Jiang, Z. et al. On the origin of holes during polarization reset in floating body ferroelectric FETs towards improving switching efficiency. In 2024 IEEE International Electron Devices Meeting (IEDM) 1–4 (IEEE, 2024); https://doi.org/10.1109/IEDM50854.2024.10873452.

  37. Suh, K.-D. et al. A 3.3 V 32 Mb NAND flash memory with incremental step pulse programming scheme. IEEE J. Solid State Circuits 30, 1149–1156 (1995).

    Article  ADS  Google Scholar

  38. Ni, K. et al. Critical role of interlayer in Hf0.5Zr0.5O2 ferroelectric FET nonvolatile memory performance. IEEE Trans. Electron Devices 65, 2461–2469 (2018).

    Article  ADS  CAS  Google Scholar

  39. Monzio Compagnoni, C. et al. Reviewing the evolution of the NAND flash technology. Proc. IEEE 105, 1609–1633 (2017).

    Article  ADS  Google Scholar

  40. Cheong, W. et al. A flash memory controller for 15μs ultra-low-latency SSD using high-speed 3D NAND flash with 3μs read time. In 2018 IEEE International Solid-State Circuits Conference - (ISSCC) 338–340 (IEEE, 2018); https://doi.org/10.1109/ISSCC.2018.8310322.

  41. Cai, Y., Luo, Y., Ghose, S. & Mutlu, O. Read disturb errors in MLC NAND flash memory: characterization, mitigation, and recovery. In 2015 45th Annual IEEE/IFIP International Conference on Dependable Systems and Networks 438–449 (IEEE, 2015); https://doi.org/10.1109/DSN.2015.49.

  42. Mulaosmanovic, H., Mikolajick, T. & Slesazeck, S. Accumulative polarization reversal in nanoscale ferroelectric transistors. ACS Appl. Mater. Interfaces 10, 23997–24002 (2018).

    Article  CAS  PubMed  Google Scholar

  43. Jung, T.-S. et al. A 3.3 V 128 Mb multi-level NAND flash memory for mass storage applications. In 1996 IEEE International Solid-State Circuits Conference. Digest of TEchnical Papers, ISSCC 32–33 (IEEE, 1996); https://doi.org/10.1109/ISSCC.1996.488501.

  44. Kim, B. et al. A high-performance 1Tb 3b/cell 3D-NAND flash with a 194MB/s write throughput on over 300 layers. In 2023 IEEE International Solid-State Circuits Conference (ISSCC) 27–29 (IEEE, 2023); https://doi.org/10.1109/ISSCC42615.2023.10067666.

  45. Resnati, D. et al. Characterization and modeling of temperature effects in 3-D NAND flash arrays—Part I: Polysilicon-induced variability. IEEE Trans. Electron Devices 65, 3199–3206 (2018).

    Article  ADS  CAS  Google Scholar

  46. Lee, S.-T. & Lee, J.-H. Review of neuromorphic computing based on NAND flash memory. Nanoscale Horiz. 9, 1475–1492 (2024).

    Article  ADS  CAS  PubMed  Google Scholar

  47. Haque, R. & Mossa, S. F. On-chip charge pump design for 3D non-volatile flash memory: from industry perspective. Integration 94, 102093 (2024).

    Article  Google Scholar

  48. Jeong, W. et al. A 128 Gb 3b/cell V-NAND flash memory with 1 Gb/s I/O rate. IEEE J. Solid State Circuits 51, 204–212 (2016).

    Article  ADS  Google Scholar

  49. Wong, O. Y., Wong, H., Tam, W. S. & Kok, C. W. A comparative study of charge pumping circuits for flash memory applications. Microelectron. Reliab. 52, 670–687 (2012).

    Article  ADS  Google Scholar

  50. Mossa, S. & Haque, R. Application of negative pump for higher bits/cell in circuit-under array 3D NAND flash memory. Preprint at Authorea https://doi.org/10.22541/au.169822443.30652906/v1 (2023).

  51. Khakifirooz, A. et al. A 1.67Tb, 5b/cell flash memory fabricated in 192-layer floating gate 3D-NAND technology and featuring a 23.3 Gb/mm2 bit density. IEEE Solid State Circuits Lett. 6, 161–164 (2023).

    Article  Google Scholar

  52. Toprasertpong, K., Takenaka, M.& Takagi, S. Direct observation of interface charge behaviors in FeFET by quasi-static split C-V and Hall techniques: revealing FeFET operation. In 2019 IEEE International Electron Devices Meeting (IEDM) 23.7.1–23.7.4 (IEEE, 2019); https://doi.org/10.1109/IEDM19573.2019.8993664.

  53. Toprasertpong, K., Takenaka, M. & Takagi, S. On the strong coupling of polarization and charge trapping in HfO2/Si-based ferroelectric field-effect transistors: overview of device operation and reliability. Appl. Phys. A 128, 1114 (2022).

    Article  ADS  CAS  Google Scholar

  54. Schroeder, U., Park, M. H., Mikolajick, T. & Hwang, C. S. The fundamentals and applications of ferroelectric HfO2. Nat. Rev. Mater. 7, 653–669 (2022).

    Article  ADS  Google Scholar

  55. Hoffmann, M. et al. Fast read-after-write and depolarization fields in high endurance n-type ferroelectric FETs. IEEE Electron Device Lett. 43, 717–720 (2022).

    Article  ADS  CAS  Google Scholar

  56. Mativenga, M., Haque, F., Billah, M. M. & Um, J. G. Origin of light instability in amorphous IGZO thin-film transistors and its suppression. Sci. Rep. 11, 14618 (2021).

    Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

  57. Frickey, R. et al. Comparing the reliability of solid-state drives based on TLC and QLC NAND flash memories (invited). In 2024 IEEE International Reliability Physics Symposium (IRPS) 3 A.1-1–3 A.1-7 (IEEE, 2024); https://doi.org/10.1109/IRPS48228.2024.10529487.

  58. Hur, J. et al. Characterizing ferroelectric properties of Hf0.5Zr0.5O2 from deep-cryogenic temperature (4 K) to 400 K. IEEE J. Explor. Solid State Comput. Devices Circuits 7, 168–174 (2021).

    Article  ADS  Google Scholar

  59. Zhou, D. et al. Electric field and temperature scaling of polarization reversal in silicon doped hafnium oxide ferroelectric thin films. Acta Mater. 99, 240–246 (2015).

    Article  ADS  CAS  Google Scholar

Download references

Acknowledgements

We gratefully acknowledge the support provided by the staff of SAIT’s 200-mm line.

Author information

Authors and Affiliations

  1. Thin Film Technical Unit, Device Research Center, Samsung Advanced Institute of Technology (SAIT), Samsung Electronics, Suwon, Korea

    Sijung Yoo, Taek Jung Kim, Seung-Geol Nam, Donghoon Kim, Kihong Kim, Yunseong Lee, Moonil Jung, Kwang-Hee Lee, Seokhoon Choi, Seung Dam Hyun, Min-Hyun Lee, Seogwoo Hong, Haesung Kim, Ki Deok Bae, Sanghyun Jo, Yoonsang Park, Kyung Mee Song, Kyooho Jung, Jee-Eun Yang, Seung-Yeul Yang, Sangwook Kim, Jinseong Heo & Duk-Hyun Choe

  2. Analytical Engineering Group, Material Research Center, Samsung Advanced Institute of Technology (SAIT), Samsung Electronics, Suwon, Korea

    Hyangsook Lee, Jung Yeon Won, Dong-Jin Yun & Byeong Gyu Chae

  3. Semiconductor Research and Development Center, Samsung Electronics, Hwaseong, Korea

    Wook Ghee Hahn, Chang Hyun Joo, Suhwan Lim, Kwangyou Seo, Kwangsoo Kim, Wanki Kim & Daewon Ha

Authors
  1. Sijung Yoo
    View author publications

    Search author on:PubMed Google Scholar

  2. Taek Jung Kim
    View author publications

    Search author on:PubMed Google Scholar

  3. Seung-Geol Nam
    View author publications

    Search author on:PubMed Google Scholar

  4. Donghoon Kim
    View author publications

    Search author on:PubMed Google Scholar

  5. Kihong Kim
    View author publications

    Search author on:PubMed Google Scholar

  6. Yunseong Lee
    View author publications

    Search author on:PubMed Google Scholar

  7. Moonil Jung
    View author publications

    Search author on:PubMed Google Scholar

  8. Kwang-Hee Lee
    View author publications

    Search author on:PubMed Google Scholar

  9. Seokhoon Choi
    View author publications

    Search author on:PubMed Google Scholar

  10. Seung Dam Hyun
    View author publications

    Search author on:PubMed Google Scholar

  11. Min-Hyun Lee
    View author publications

    Search author on:PubMed Google Scholar

  12. Seogwoo Hong
    View author publications

    Search author on:PubMed Google Scholar

  13. Haesung Kim
    View author publications

    Search author on:PubMed Google Scholar

  14. Ki Deok Bae
    View author publications

    Search author on:PubMed Google Scholar

  15. Hyangsook Lee
    View author publications

    Search author on:PubMed Google Scholar

  16. Jung Yeon Won
    View author publications

    Search author on:PubMed Google Scholar

  17. Dong-Jin Yun
    View author publications

    Search author on:PubMed Google Scholar

  18. Byeong Gyu Chae
    View author publications

    Search author on:PubMed Google Scholar

  19. Wook Ghee Hahn
    View author publications

    Search author on:PubMed Google Scholar

  20. Chang Hyun Joo
    View author publications

    Search author on:PubMed Google Scholar

  21. Sanghyun Jo
    View author publications

    Search author on:PubMed Google Scholar

  22. Yoonsang Park
    View author publications

    Search author on:PubMed Google Scholar

  23. Kyung Mee Song
    View author publications

    Search author on:PubMed Google Scholar

  24. Kyooho Jung
    View author publications

    Search author on:PubMed Google Scholar

  25. Suhwan Lim
    View author publications

    Search author on:PubMed Google Scholar

  26. Kwangyou Seo
    View author publications

    Search author on:PubMed Google Scholar

  27. Kwangsoo Kim
    View author publications

    Search author on:PubMed Google Scholar

  28. Wanki Kim
    View author publications

    Search author on:PubMed Google Scholar

  29. Daewon Ha
    View author publications

    Search author on:PubMed Google Scholar

  30. Jee-Eun Yang
    View author publications

    Search author on:PubMed Google Scholar

  31. Seung-Yeul Yang
    View author publications

    Search author on:PubMed Google Scholar

  32. Sangwook Kim
    View author publications

    Search author on:PubMed Google Scholar

  33. Jinseong Heo
    View author publications

    Search author on:PubMed Google Scholar

  34. Duk-Hyun Choe
    View author publications

    Search author on:PubMed Google Scholar

Contributions

S.Y. designed the research and conducted the electrical measurements and TCAD simulations. T.J.K. and D.-H.C. developed the in-house numerical simulator and carried out the numerical simulations. S.Y., S.-G.N., D.K., Y.L., M.J., K.-H.L., S.C., S.D.H., M.-H.L., S.H., H.K. and K.D.B. designed and optimized the device fabrication process. Kihong Kim performed the X-ray diffraction measurements. H.L. performed the transmission electron microscopy measurements. J.Y.W., D.Y. and B.G.C., performed the chemical analysis. W.G.H., C.H.J., S.J., Y.P., K.M.S., K.J., S.L., K.S., Kwangsoo Kim, W.K. and D.H. contributed to the discussion and revision of the paper. J.-E.Y., S.-Y.Y., S.K., J.H. and D.-H.C. supervised the project. S.Y. and D.-H.C. co-wrote the paper.

Corresponding authors

Correspondence to Sangwook Kim or Duk-Hyun Choe.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature thanks Jiezhi Chen, Asif Khan, Kai Ni and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data figures and tables

Extended Data Fig. 1 Numerical simulation of PGM and ERS characteristics.

a, Evolution of Vth, extracted internal charge density parameters, and electric field captured at 1 μs PGM operation. b, Evolution of Vth, extracted internal charge density parameters, and electric field captured at 10 ms ERS operation. During the ISPP operation, unhindered polarization switching and charge injection facilitate a substantial Vth shift toward the negative direction as the PGM voltage increases. In contrast, during the ISPE operation, the polarization and trapped charge density are constrained to zero upon switching to the ERS state and remain unchanged even at elevated ERS voltages. c, Electric field applied to the gate IL during the PGM / ERS operation. Notably, for the ERS operation, depletion and floating of the channel limit the voltage drop across the gate stack, resulting in a saturated electric field across the gate IL and negligible electron injection. d, Band diagram captured at 15 V, 1 μs PGM operation. e, Band diagram captured at −11 V, 10 ms ERS operation.

Extended Data Fig. 2 Necessity of the channel IL and its impact on the device characteristics.

a, Electric field applied to the ferroelectric layer at the threshold condition. Solid line indicates the coercive field of conventional hafnia-based ferroelectric materials. b, TCAD simulation results for read operation without channel IL (uncompensated ratio = 1). c, TCAD simulation results for read operation with high-k IL (uncompensated ratio = 0.5). d, Read-after-write-delay characteristics of the device incorporating a 3-nm-thick SiO2 layer. e, SIMS analysis comparing oxygen distribution at the HZO / IGZO interface. f, Transfer curve and memory characteristics of the device with (the proposed structure in this study) and without a Ta2O5 channel IL.

Extended Data Fig. 3 Structure analysis of the fabricated device.

a, Schematic structure and detailed process flow of device fabrication. b, High-angle annular dark-field scanning transmission electron microscopy image of the fabricated device. c, EDS mapping results for the device stack. d, Detailed stack configuration and sample preparation process for XRD measurements. Samples 1 and 2 were fabricated to investigate the role of the metal stressor, and sample 3 was designed to examine the influence of the channel IL on the crystallinity of the HZO film. e, XRD results for the device stack. f, Extracted relative portions of the o/t and m phases. A comparison between samples 1 and 2 highlights the critical role of the metal stressor in promoting the ferroelectric phase, because its absence results in a dominant m-phase. Conversely, the results for sample 3 indicate that the deposition of the Ta2O5 IL has no discernible effect on the crystallinity of the HZO film.

Extended Data Fig. 4 Negative read disturbance characteristics of the device incorporating a 3-nm-thick SiO2 gate IL.

a, Disturbance observed under consecutive read pulses of −8 V with a pulse width of 10 μs b, Disturbance observed under consecutive read pulses of −8 V with 5 μs. The dashed line indicates the predicted maximum number of read operations for a single cell.

Extended Data Fig. 5 Electrical characteristics of the Si FeFET for comparison.

a, Typical memory characteristics of the Si FeFET. b, c, Disturbance characteristics of the Si FeFET showing the threshold voltage variation under accumulated disturbance stress.

Extended Data Fig. 6 Pass disturbance characteristics at elevated temperature (85 °C).

a, b, Pass disturbance characteristics of the device incorporating a 3-nm-thick SiO2 layer. c, d, Pass disturbance characteristics of the device incorporating a 5-nm-thick SiO2 layer. e, Measurement scheme for pass disturbance of the 3D device. f, g, Pass disturbance characteristics of the 3D device.

Extended Data Fig. 7 Numerical simulation for the analysis of relationship between the memory window and PGM voltage.

a, Simulated PGM operation with varying gate IL thicknesses, which is in good agreement with the measured data (Fig. 3b). b, Extracted P, Qit, and Qit′ from the numerical simulation demonstrating that the relationship between memory window and PGM voltage arises from the reduced capacitance of gate IL, which enhances the memory window at a given P, Qit, and Qit′ while requires higher voltage to achieve the same values via charge tunnelling.

Extended Data Fig. 8 ISPP characteristics of 100 devices incorporating a 5-nm-thick SiO2 for Vth distribution evaluation.

The incremental step for the ISPP operation is 0.1 V. The delay between PGM and verify operation was 100 μs. The read-after-write-delay characteristics of our device (Extended Data Fig. 2d) confirm that data stability remains unaffected irrespective of the duration between PGM and verify operation. The ERS state is defined as Vth after an ERS operation, corresponding to the topmost Vth distribution marked with a red dotted line. A total of 31 verification voltages are defined at equally spaced intervals. The subsequent 31 states are determined by their respective verification voltages, where the Vth state that first exceeds the nth verification voltage is designated as the nth state.

Extended Data Fig. 9 Reliability characteristics of the device incorporating a 5-nm-thick SiO2 layer.

a, Retention characteristics of ERS, PGM and intermediate states measured at 25 °C, and b, 85 °C. Each state was achieved using a pulse condition based on the ERS and PGM operation shown in Fig. 2. The memory window slightly increases over time at 85 °C. Although this is not ideal, it is a more favourable behaviour compared to memory window degradation. Importantly, this expansion does not lead to overlap between logical states, which would otherwise compromise data integrity. c, Endurance characteristics measured at 25 °C with QLC-level operation condition (memory window > 6.5 V) and d, PLC-level operation condition (memory window > 11 V). e, Endurance characteristics measured at 85 °C with QLC-level operation condition (memory window > 6.5 V) and f, PLC-level operation condition (memory window > 11 V).

Extended Data Fig. 10 Numerical simulator framework.

a, Workflow of the numerical simulator. b, c, d, Simulated data which are in accordance with the measured data presented in Fig. 2.

Supplementary information

Supplementary Information (download PDF )

This Supplementary Information file contains Supplementary Table 1 and References. Supplementary Table 1: Benchmark comparison of charge-trap-based NAND flash and reported ferroelectric NAND devices, including this work.

Peer Review File (download PDF )

Rights and permissions

Springer Nature or its licensor (e.g. a society or other partner) holds exclusive rights to this article under a publishing agreement with the author(s) or other rightsholder(s); author self-archiving of the accepted manuscript version of this article is solely governed by the terms of such publishing agreement and applicable law.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Yoo, S., Kim, T.J., Nam, SG. et al. Ferroelectric transistors for low-power NAND flash memory. Nature 648, 320–326 (2025). https://doi.org/10.1038/s41586-025-09793-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • Version of record:

  • Issue date:

  • DOI: https://doi.org/10.1038/s41586-025-09793-3

Search

Advanced search

Quick links

Nature Briefing

Sign up for the Nature Briefing newsletter — what matters in science, free to your inbox daily.

Get the most important science stories of the day, free in your inbox. Sign up for Nature Briefing
