Abstract

Cranial nerves densely innervate the heart and vasculature, with sensory neurons reporting on blood pressure, respiratory gases and tissue damage¹. The roles of arterial baroreceptors in systemic physiology are well appreciated², but the functions of vagal cardiac mechanoreceptors have been more difficult to parse, in part due to the closed-loop structure of the cardiovascular system. Here we use genetic tools in mice to identify a small group of neurons that are acutely sensitive to circulating blood volume and initiate a reflex that compensates for decreased filling of the heart in an upright posture and haemorrhage. Vagal PIEZO2 neurons form characteristic end-net endings in the heart, lower blood pressure in response to optogenetic stimulation and display blood-volume-dependent responses with every heartbeat that are time-locked to atrial and ventricular systole. Knockout of Piezo2 and/or ablation of PIEZO2 neurons in vagal ganglia eliminates this heartbeat-coupled nerve activity, causes orthostatic hypotension and compromises cardiovascular stability during trauma-induced blood loss. Together, these findings demonstrate that vagal mechanoreceptors monitor the cardiac cycle and initiate a blood-volume-dependent reflex that defends the constancy of circulation.

Integrating transfer learning with scalogram analysis for blood pressure estimation from PPG signals

Article Open access 12 November 2025

Cardiac parasympathetic denervation reduces hypoxic tachycardia, baroreflex sensitivity and heart rate variability in humans

Article Open access 24 February 2025

Piezo ion channels: long-sought-after mechanosensors mediating hypertension and hypertensive nephropathy

Article 05 August 2024

Main

The brain supervises the physiology of our internal organs to ensure bodily homeostasis. Sensory signals from the body provide constant feedback to the brain about the ongoing performance of each major physiological system³. Within the cardiovascular system, specialized sensory neurons report on the pressure, volume and chemical composition of blood to ensure appropriate cardiac output and tissue perfusion^1,4,5,6. Neuronal surveillance helps to enable adaptation to environmental stressors such as reduced oxygen during a high-altitude hike or the effect of gravity on blood circulation when standing up. Failure to regulate blood pressure, even for a moment, can lead to dizziness, fainting and injury⁷. Moreover, cardiovascular signals can drive some of our most basic emotions, as optogenetic induction of a racing heart can cause anxiety⁸. The heart–brain axis therefore provides essential control over physiology, behaviour and mood.

The vagal and glossopharyngeal nerves provide the dominant sensory innervation of the heart and nearby vasculature and mediate four major cardiovascular reflexes: the baroreceptor reflex, the hypoxic ventilatory response, the Bezold–Jarisch reflex and the Bainbridge reflex^1,4,5,6. The baroreceptor reflex detects momentary changes in arterial blood pressure, providing feedback to stabilize cardiovascular output in real time^2,9. Baroreceptor terminals are strategically located in the great arteries, at the carotid sinus and aortic arch, and detect stretch of the blood vessel wall with every heartbeat. Knockout of both Piezo1 and Piezo2 in baroreceptor neurons, but not either one alone, eliminates the baroreceptor reflex². The hypoxic ventilatory response is mediated by arterial chemoreceptors located in the carotid body and aortic arch, which detect low oxygen levels through tissue-resident glomus cells, and trigger a neural arc that increases respiration¹⁰. Other receptors in the heart mediate the Bainbridge and Bezold–Jarisch reflexes. The Bezold–Jarisch reflex is a defensive reflex that may be evoked by cytokines, injury-associated chemicals and/or abnormal ventricular contraction, leading to bradycardia and hypotension¹¹. The Bainbridge reflex is a reported mechanical reflex whereby rapid infusion of saline evokes a reflexive heart rate increase through vagal fibres in heart atria¹². However, the Bainbridge reflex is weak or non-apparent in some species, including humans^13,14, so the physiological roles of cardiac mechanoreceptors have remained obscure.

Recent single-cell RNA-sequencing studies have enabled genetic access to a variety of vagal and glossopharyngeal sensory neuron types^15,16. For example, different genetically defined sensory neurons in the respiratory system detect airway stretch¹⁷, airway closure¹⁸, irritants that cause cough¹⁹, and pathogen- and inflammation-induced cytokines²⁰. Other sensory neurons in the digestive system detect nutrients, osmolarity changes, toxins, cytokines, and stretch of the stomach or intestine^15,21,22,23. Expression atlases and genetic approaches have also revealed orphan neuron types whose sensory properties and functions are not understood^9,16. Neuronal responses to blood volume changes have been difficult to parse because the cardiovascular system is a closed loop and volume changes simultaneously impact sensors at different locations. Here we used genetic tools for selective loss of function to distinguish the roles of different vagal mechanoreceptors in the cardiovascular system. We first focused on sensation of mechanical signals during posture change, which can cause widespread effects on blood volume and blood pressure throughout circulation.

Neuronal compensation to posture change

When we stand up, gravity exerts powerful effects on the cardiovascular system, reducing venous return to the heart as well as blood flow to the head and upper body²⁴. A prolonged reduction in carotid blood pressure upon standing up (called orthostatic hypotension) can cause dizziness and fainting. Several sensory pathways have been proposed to help compensate for the effects of gravity on the cardiovascular system during posture change^25,26,27, but their relative importance is unclear.

Orthostatic hypotension is assessed clinically using a tilt-table test²⁸, in which blood pressure and heart rate are measured while patients are rotated from a horizontal to an upright position. Here we adapted the tilt-table test for mice to assess posture-dependent blood pressure changes after genetic manipulation of different sensory pathways. Anaesthetized mice were placed securely onto a platform that allowed for 180 degrees of rotation from supine to upright to prone position. During rotation, arterial blood pressure (carotid and femoral) and heart rate were continuously monitored. Rotation to an upright position caused an immediate drop in arterial blood pressure through gravity that was rapidly corrected for and accompanied by a sustained heart rate increase (Fig. 1a,b and Extended Data Fig. 1a). Conversely, rotation to a supine or prone position caused an increase in arterial blood pressure that was also rapidly corrected for and accompanied by a sustained heart rate decrease. The compensation setpoint was primarily determined by the original carotid blood pressure, as overcompensation of femoral blood pressure was observed during recovery (Extended Data Fig. 1b). Aligning the systemic setpoint with carotid blood pressure presumably prioritizes the constancy of blood flow to the brain. Together, these data indicate that mice, like humans on a tilt table²⁴, have a robust feedback control mechanism that compensates for the effects of gravity on the cardiovascular system.

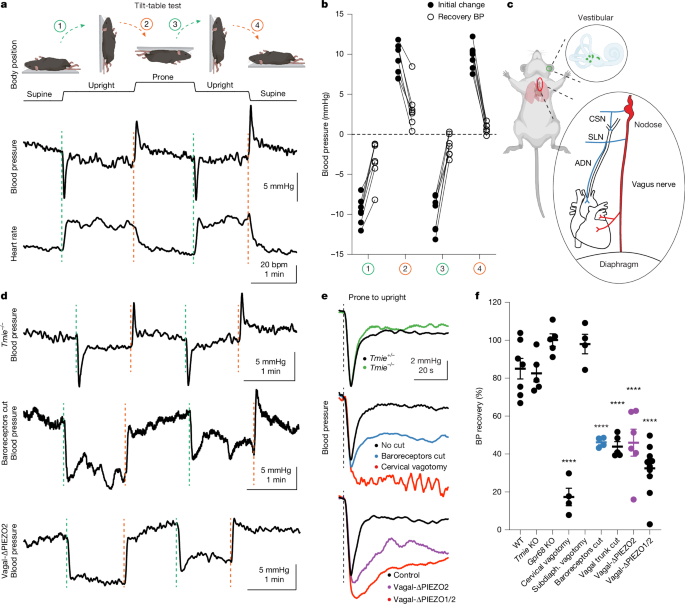

**Fig. 1: PIEZO2 mediates a vagal reflex to posture change.**

We next used various surgical and genetic manipulations to define sensory pathways for gravity compensation (Fig. 1c–f and Extended Data Fig. 1c). We first examined a candidate role for the vestibular system in the inner ear, which has an important role in maintaining balance and stabilizing the visual field during motion and position changes. However, mutant mice that lack vestibular sensation (through Tmie²⁹ or Otop1³⁰ knockout) displayed normal haemodynamic responses on the tilt table. We next performed surgical nerve transections to examine the roles of different peripheral nerves. Complete cervical transection of both vagal and glossopharyngeal nerves proximal to the ganglia (cervical vagotomy), which eliminates all sensory and motor fibres, abolished compensation to posture change, resulting in sustained hypotension after upright rotation. Vagus nerve transection below the diaphragm (subdiaphragmatic vagotomy) had no effect, while partial responses were observed after transection of (1) both the glossopharyngeal nerve and superior laryngeal nerve (SLN), which eliminates arterial baroreceptors, or (2) the vagus nerve trunk below the SLN departure point (vagal trunk cut), which preserves arterial baroreceptors but eliminates fibres to the heart. The partial effect observed following baroreceptor transection suggested a second residual sensory pathway important for gravity compensation.

PIEZO ion channels and posture change

PIEZOs are mechanosensory ion channels that directly sense force, mediate our sense of gentle touch³¹, and contribute to internal organ sensations such as airway stretch¹⁷, airway closure¹⁸, bladder fullness³² and the baroreceptor reflex^2,9,33. Global knockout of Piezo2 is lethal¹⁷, but targeted knockout of Piezo2 in PHOX2B cells (Phox2b-cre;loxP-Piezo2, hereafter Vagal-ΔPiezo2), which includes petrosal and nodose ganglia, is tolerated and mice can survive to adulthood. We note that Phox2b-cre does not drive detectable reporter expression in intrinsic cardiac neurons, dorsal root ganglia or other intrinsic cells of the heart, while reporter expression was observed in stellate ganglia and brainstem neurons that do not express PIEZO2^17,34 (Extended Data Fig. 2). These findings are consistent with previous work indicating that the intersection of Piezo2 expression and Phox2b-cre-based reporters is largely or exclusively confined to placode-derived cranial sensory neurons^2,17,35,36.

Phox2b-cre-driven knockout of Piezo2 eliminates the vagal sensation of airway stretch¹⁷ but not the baroreceptor reflex², which instead is lost only after knockout of both Piezo1 and Piezo2 (Phox2b-cre;loxP-Piezo1;loxP-Piezo2; hereafter Vagal-ΔPiezo1/2). Here we confirmed that the baroreceptor reflex is normal in Vagal-ΔPiezo2 mice across a wide range of stimulus conditions (Extended Data Fig. 3). We next analysed both Vagal-ΔPiezo2 and Vagal-ΔPiezo1/2 mice using the tilt-table test. Notably, we observed a significant impairment in gravity compensation after knockout of Piezo2 alone (Fig. 1d–f), even though these mice have a normal baroreceptor reflex, as additionally evidenced by quantitative analysis of baroreflex sensitivity (Δheart rate/Δblood pressure or ΔHR/ΔBP) on the tilt table (Extended Data Fig. 1c). Knockout of both Piezo1 and Piezo2 also caused a response characteristic of orthostatic hypotension. Tilt-table responses were normal in mice lacking another candidate mechanoreceptor, GPR68³⁷. Together, these findings indicate a collaborative role for at least two neuron types in gravity compensation: the baroreceptors and a separate neuron type dependent only on PIEZO2. Moreover, nerve transection experiments suggested that the residual PIEZO2-dependent pathway resides in the vagus nerve trunk below the SLN departure point, consistent with a role for sensory neurons that innervate the heart.

PIEZO2 neurons in the heart

We next examined whether vagal PIEZO2 neurons project to the heart. To map the anatomical projections of Cre-defined vagal sensory neurons, we injected vagal ganglia of cre knock-in mice with an adeno-associated virus (AAV) containing a Cre-dependent tdTomato reporter (AAV-flex-tdTomato)^9,38,39. Initial experiments involved Vglut2-ires-cre mice to label all vagal sensory neurons, followed by whole-mount light-sheet imaging of the entire heart (Fig. 2a). We observed extensive innervation across all four cardiac compartments (left and right atria and ventricles), as well as dense innervation of the nearby aortic arch and carotid sinus. Major vagal nerve branches approach and innervate the dorsal side of the heart, with finer nerve fibres ramifying across the entire cardiac surface toward the ventral side. Injection of different reporters in the left and right vagal ganglia showed no obvious difference in heart innervation (Extended Data Fig. 4), although the left and right vagal ganglia accessed different arterial sites with a similar repertoire of terminal types⁹.

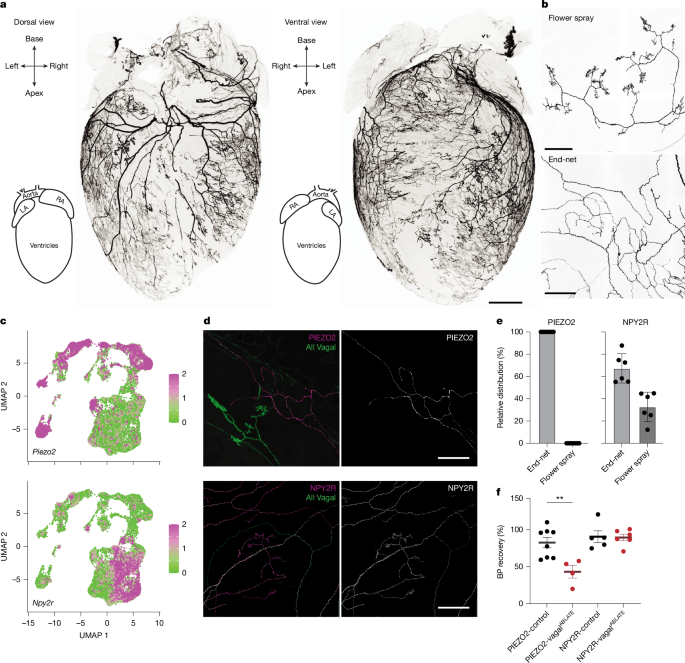

**Fig. 2: Anatomy of vagal sensory neurons in the heart.**

We observed two morphologically distinct types of vagal terminals within the heart: large arrays of interconnected end-net endings and complex arborizations called flower sprays, consistent with previous reports^39,40,41 (Fig. 2b). It has been speculated that these endings may have different sensory functions, but the lack of selective genetic tools has hindered investigation.

Anatomical mapping experiments were similarly performed using Cre lines that mark smaller groups of vagal sensory neurons. We used Piezo2-ires-cre and Npy2r-ires-cre mice, which mark predominantly discrete populations of sensory neurons according to vagal cell atlases^16,38 (Fig. 2c). PIEZO2 neurons densely innervated the heart, and exclusively formed end-net endings; PIEZO2-containing flower-spray terminals were not readily observed (Fig. 2d,e). In the atrium, PIEZO2 terminals were enriched near the junction with the vena cava (Extended Data Fig. 5). Vagal NPY2R neurons represent a substantial fraction of vagal sensory neurons¹⁶, and were previously shown to form a variety of terminals throughout the body, including free endings in the lung³⁸ and intraganglionic laminar endings in the stomach and intestinal wall²³. NPY2R neurons evoke rapid and shallow breathing, and also elicit cardiovascular responses underlying the Bezold–Jarisch reflex^11,38. Here we observed that NPY2R neurons mark a large cohort of heart-innervating sensory neurons, including separate neurons that form end-net endings and flower sprays (Fig. 2d,e); we note that a previous report described some NPY2R terminals as varicose surface endings or ventricular intramuscular arrays³⁹, and we have summarized them both as end-net endings due to structural differences between atrial and ventricular muscles. NPY2R-containing end-net terminals were 4.0-fold more abundant than end-net endings containing PIEZO2, and were more distributed across the heart atria and ventricles (Extended Data Fig. 5). These findings suggest that there are probably at least three types of vagal neurons in the heart: NPY2R-containing flower sprays, NPY2R-containing end-net endings and PIEZO2-containing end-net endings.

Next, we examined which terminal type might contribute to cardiovascular compensation during the tilt-table test. We ablated vagal PIEZO2 and NPY2R neurons using a previously established approach involving diphtheria toxin (DT)^9,20. In brief, the DT receptor (DTR) was expressed in PIEZO2-expressing cells (Piezo2-ires-cre;lsl-DTR) or NPY2R-expressing cells (Npy2r-ires-cre;lsl-DTR), and vagal ganglia were then injected bilaterally with DT to achieve efficient and selective neuronal ablation; the resulting mice are termed PIEZO2-vagal^ABLATE and NPY2R-vagal^ABLATE mice. Note that the ablation of PIEZO2 neurons also eliminates baroreceptors, as reported previously⁹, presumably because PIEZO1 and PIEZO2 are co-expressed in baroreceptor neurons. Ablation of vagal PIEZO2 neurons reduced neuronal compensation during posture change, while ablation of NPY2R neurons had no effect (Fig. 2f and Extended Data Fig. 6). The different phenotypes of NPY2R-vagal^ABLATE and PIEZO2-vagal^ABLATE mice suggest that end-net endings marked by PIEZO2 and NPY2R are functionally different, with only PIEZO2 endings required for normal posture compensation.

Heartbeat-coupled vagal responses

We investigated the response properties of vagal PIEZO2 fibres in the heart to understand how their activity patterns might vary with posture. Classical studies have reported that some myelinated vagal sensory neurons fire at particular phases of the cardiac cycle^42,43,44; we therefore performed electrophysiological recordings of the mouse vagus nerve while simultaneously recording cardiac activity by electrocardiogram. In some animals, we additionally measured right atrial and left ventricular pressure as well as left ventricular volume through sensors introduced by a cardiac catheter. We excluded contributions from arterial baroreceptors, which display heartbeat-coupled responses with each arterial pressure pulse⁴², by recording from the sensory end of the vagus nerve trunk below the SLN departure point (Fig. 3a). We also excluded contributions from airway stretch receptors by subtraction of breathing-coupled responses (Methods).

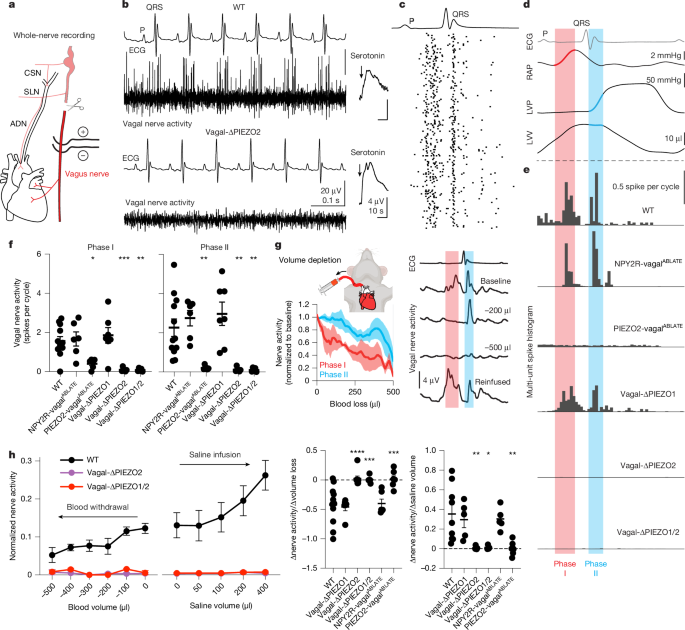

**Fig. 3: Vagal mechanosensors fire during atrial and ventricular systole and report on blood volume.**

In wild-type (WT) mice, we observed that the vagus nerve trunk fired with every heartbeat at two specific phases of the cardiac cycle, just after the P wave and after the QRS complex in the electrocardiogram (Fig. 3b–f). The first peak (phase I) was synchronous with atrial systole, matching Paintal type A atrial receptors^43,45, while the second peak (phase II) was synchronous with ventricular systole⁴⁴. We did not observe prominent activity during the V wave of atrial pressure, which occurs during atrial filling and would have corresponded to Paintal type B fibres^5,43.

We next examined whether and how PIEZO2 neurons might contribute to heartbeat-coupled vagal responses by measuring vagal responses across the cardiac cycle after targeted neuron ablation. Phase I and phase II responses were intact in NPY2R-vagal^ABLATE mice, but were lost in PIEZO2-vagal^ABLATE mice (Fig. 3e,f). Paired with anatomical data in Fig. 2, these findings demonstrate that vagal mechanoreceptors responsible for physiological responses during the cardiac cycle form end-net terminals and not flower sprays.

PIEZO2 marks about a third of vagal sensory neurons³⁸, including different cell types that express P2ry1, Pvalb, Oxtr or Glp1r. We ablated subsets of vagal PIEZO2 neurons marked in P2ry1-ires-cre, Pvalb-t2a-cre, Oxtr-t2a-cre and Glp1r-ires-cre mice using genetic ablation approaches involving DT, but heartbeat-coupled responses remained partly (P2RY1) or completely (PVALB, OXTR, GLP1R) intact (Extended Data Fig. 7). These studies provide exclusionary data that help to refine which transcriptome-defined PIEZO2 neurons fire across the cardiac cycle.

To examine a role for PIEZO proteins themselves, we analysed heartbeat-coupled vagal responses in Vagal-ΔPiezo1 (Phox2b-cre;loxP-Piezo1), Vagal-ΔPiezo2 and Vagal-ΔPiezo1/2 mice (Fig. 3b–f). Heartbeat-coupled vagal trunk responses were normal after deletion of Piezo1 alone, but were lost after deletion of Piezo2 or Piezo2 together with Piezo1. These findings indicate a key difference between mechanoreceptors activated during cardiac contractions, which require only PIEZO2, and arterial baroreceptors, which require either PIEZO1 or PIEZO2².

PIEZO2 neurons measure blood volume

Baroreceptors fire with every heartbeat⁴², and the intensity of activity informs about changing blood pressure⁴⁶. Given the key role for vagal PIEZO2 neurons in posture responses, we reasoned that the intensity of cardiac mechanoreceptor activity across the cardiac cycle might vary with posture. Electrophysiological recordings on the tilt table were not technically achievable; we therefore measured how key cardiovascular parameters changed with posture to examine how such parameters may influence phase I and phase II nerve responses.

We obtained a pressure–volume (PV) loop of WT mice on the tilt table. Rotation to an upright position caused a transient decrease in systolic pressure in the left ventricle that returned to the baseline, similar to changes in arterial pressure (Extended Data Fig. 8a). However, the stroke volume of the left ventricle was reduced to 70% and did not recover, similar to human clinical data²⁴ and consistent with a sustained decrease in venous return due to gravitational pull. These findings raised the possibility that central blood volume might be a key variable that influences the firing of cardiac mechanoreceptors.

To test this idea, we measured vagal trunk responses during the cardiac cycle while changing circulating blood volume by withdrawing blood or adding saline across a broad physiological range (Fig. 3g). Integrated vagal nerve activity decreased as blood was withdrawn and increased as saline was introduced, and the magnitude of the nerve response varied with the extent of blood volume change. Smaller volumes of blood withdrawal impacted phase I nerve responses more substantially than phase II nerve responses, suggesting differential tuning of atrial and ventricular mechanoreceptors to blood loss. We note that, in some species, increasing blood volume evokes the Bainbridge reflex¹³, but we did not observe a heart rate increase after saline infusion (Extended Data Fig. 8b). Knockout of Piezo2 or ablation of PIEZO2 neurons caused a striking reduction in heartbeat-coupled responses, and this low activity level was not changed further by volume manipulations (Fig. 3h). Knockout of Piezo1 alone or ablation of NPY2R had no effect on the volume-dependent modulation of heartbeat-associated vagal responses. These findings indicate that the magnitude of PIEZO2 neuron activity during atrial and ventricular systole provides information on circulating blood volume.

We used vagal ganglion calcium imaging to understand the cellular relationship between blood volume sensors and other PIEZO2 neurons in the lung that respond to airway stretch. Real-time calcium transients were recorded after airway distension or intravenous saline infusion in individual vagal sensory neurons of Vglut2-cre;lsl-SALSA mice, which express a GCaMP6f–tdTomato fusion protein in all vagal sensory neurons, or Snap25-GCamp6s;Piezo2-ires-cre;lsl-tdTomato mice in which PIEZO2⁺ and PIEZO2⁻ neurons can be imaged in parallel (Fig. 4a). We note that calcium imaging does not provide sufficient temporal resolution to distinguish the timing of responses across the cardiac cycle, but does resolve the responses of single cells. Small groups of vagal neurons responded (Fig. 4b,c) to either airway stretch (92 out of 1,842 neurons, 5.0%) or venous saline infusion (116 out of 1,842 neurons, 6.3%), and these populations were largely non-overlapping (10 out of 1,842 neurons (0.5%) responded to both). The majority of neurons responsive to each stimulus expressed PIEZO2 (Fig. 4d and Extended Data Fig. 9; airway stretch: 28 out of 37; venous saline infusion: 21 out of 28). Previous work showed that some PIEZO2⁻ neurons receive mechanosensory signals from neuroepithelial bodies; these neurons are not relevant for the Hering–Breuer reflex or breathing-coupled responses, mediate responses to airway closure and display high-threshold and rapidly adapting responses to large distensions of the conducting airways¹⁸. In electrophysiological experiments, PIEZO2⁻ neurons do not respond with every heartbeat, so the responses observed by calcium imaging in PIEZO2 negative neurons may represent another sensory pathway or be due to a secondary physiological change. Taken together, these findings indicate that separate cohorts of PIEZO2 neurons mediate the major responses to airway stretch and blood volume infusion.

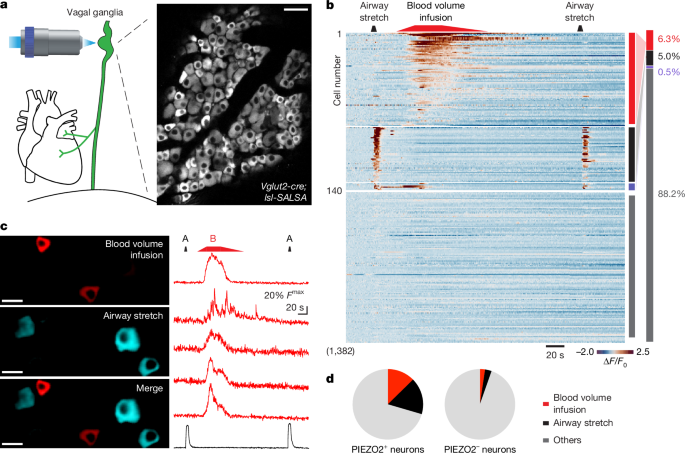

**Fig. 4: Different PIEZO2 neurons detect changes in blood and airway volume.**

PIEZO2 neurons evoke hypotension

In previous studies, optogenetic activation of all vagal PIEZO2 neurons caused a robust decrease in heart rate and blood pressure characteristic of the baroreceptor reflex. However, little or no effect was observed after optogenetic activation of PIEZO2 neurons in the vagus nerve trunk below the SLN², which included vagal fibres to the heart. We revisited these studies by varying optogenetic stimulus conditions in mice (Piezo2-ires-cre;lsl-ChR2) expressing channelrhodopsin (ChR2) in PIEZO2 neurons. We observed no effect of vagal nerve illumination at frequencies between 1 and 5 Hz, but did observe a significant drop in blood pressure and heart rate at illumination frequencies between 10 and 50 Hz (Extended Data Fig. 10). This frequency range matches the natural heart rhythm, so we also used a closed-loop optogenetic stimulation paradigm in which illumination was time-locked to each P and QRS peak of the cardiac cycle, and observed a similar reduction in blood pressure (Extended Data Fig. 10). The effect magnitude was smaller than that observed after optogenetic stimulation of baroreceptors, but was comparable to physiological changes observed during the tilt-table test. We note that optogenetic stimulation of PIEZO2 neurons in the distal vagus nerve trunk caused a mild bradycardia, not a tachycardia, which would have been expected for the Bainbridge reflex.

Vagal reflex compensation for blood loss

In addition to posture changes, other physiological challenges also alter blood volume. Acute trauma and injury can cause massive blood loss, and subsequent unloading of blood volume receptors. To examine whether vagal volume receptors trigger physiological responses that compensate for blood loss, we developed a model involving tail-bleeding-induced haemorrhage. Mice were anaesthetized and treated with heparin to block clotting, and the tail was transected. Within the first 30 min of haemorrhage, WT mice lost 20–25% of their blood volume on average (Extended Data Fig. 8c). During this time, blood pressure was sustained, presumably through increased vascular resistance and heart rate was increased, which would help to preserve cardiac output with a lower circulating blood volume; the survival rate was 58% (11 out of 19 mice) at 2 h and 0% at 4 h (Fig. 5). Vagal-ΔPiezo2 mice lost blood at a similar rate (Extended Data Fig. 8c) but lacked appropriate physiological compensation (Fig. 5), as they were unable to maintain blood pressure or a similarly elevated heart rate and died more rapidly. Similarly, acute blood withdrawal from the jugular vein caused a rapid blood pressure drop which was corrected for in WT mice but not Piezo2-knockout mice (Extended Data Fig. 8d). These findings reveal a protective role for vagal volume receptors during traumatic haemorrhage.

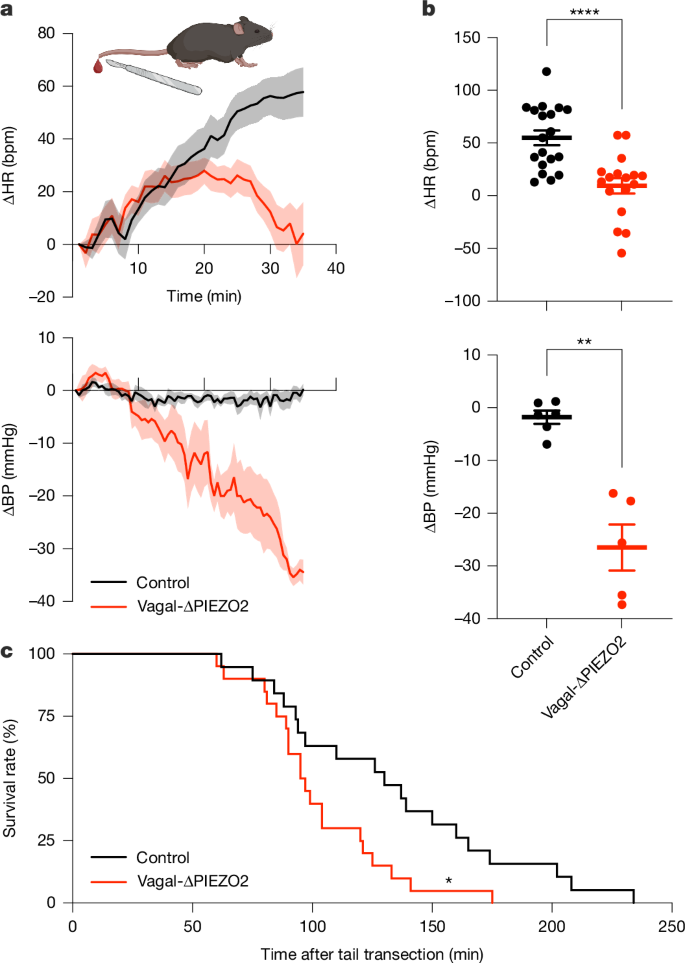

**Fig. 5: Physiological compensation for blood loss requires PIEZO2.**

Discussion

The functions of cardiac mechanoreceptors have remained obscure, with blood volume changes proposed to elicit the Bainbridge reflex through vagal afferents¹². However, we did not observe a vagally mediated tachycardia response in mice to volume infusion or optogenetic stimulation of thoracic PIEZO2 neurons that would be characteristic of a Bainbridge reflex. Instead, using genetic tools, we report that thoracic PIEZO2 neurons evoke a reflex that tunes vascular resistance and heart rate in accordance with central blood volume. Loss of this reflex causes orthostatic hypotension and a compromised ability to sustain tissue perfusion after traumatic blood loss.

Effective neural control of circulation is achieved through an intricate interplay between classes of mechanoreceptors located at different strategic hotspots in the cardiovascular system. The brain receives collaborative information from at least three classes of mechanoreceptors that fire at different stages of the cardiac cycle: atrial systole (cardiac mechanoreceptors phase I), ventricular systole (cardiac mechanoreceptors phase II) and the arterial pressure pulse (baroreceptors). Using these receptors, the nervous system can track blood flow through key central sites in the circulatory system.

Despite many similarities, there are important functional differences between blood volume receptors and arterial baroreceptors. While both neuron types fire with every heartbeat and, therefore, provide information about heart rate, their response intensities report on different haemodynamic features. Baroreceptor activity changes with blood pressure while cardiac mechanoreceptor activity changes with central blood volume. These features are often correlated, which, together with anatomical challenges that prevent selective denervation of cardiac sensory fibres, has hindered physiological analysis of the cardiac mechanoreceptors. Here we find that optogenetic stimulation of thoracic PIEZO2 neurons causes hypotension and mild bradycardia, while unloading them, as occurs during upright tilt and haemorrhage, evokes a compensatory drive to increase blood pressure and heart rate. Thus, like the baroreceptors, the blood volume receptors can, in principle, act bidirectionally, with loss-of-function approaches so far revealing a required role for these neurons during hypovolemic challenge. The complete absence of PIEZO2 and the blood volume reflex is not reflected in long-term setpoint dysfunction but, instead, in the loss of shorter-term volume-dependent modulation; in analogy, the major phenotype of baroreceptor ablation is acute, causing increased blood pressure variability (labile hypertension). Genetically guided anatomical mapping revealed that cardiac mechanoreceptors form end-net endings in the heart, not flower-spray terminals, and, similarly, arterial baroreceptors form end-net endings in the aorta⁹. However, the baroreceptors and blood volume receptors have a key genetic difference. Arterial baroreceptors and blood volume receptors can be genetically distinguished through selective Piezo2 knockout, as arterial baroreceptors but not volume receptors can use either PIEZO1 or PIEZO2². Knockout of Piezo2 alone eliminated heartbeat-synchronized responses in the thoracic vagus nerve trunk, and compromised physiological responses to decreased central blood volume associated with posture change and haemorrhage, even though the baroreceptors were intact. As baroreceptor denervation also accelerates the decompensatory phase of haemorrhage⁴⁷ and causes orthostatic hypotension (Fig. 1), the baroreceptors and volume receptors closely collaborate to maintain cardiovascular homeostasis. In future studies, it will be interesting to examine contributions from volume receptors during hypervolemic challenges, and other aspects of fluid regulation, including thirst, urination and kidney function^4,48.

On the basis of these and previous findings, the vagus and glossopharyngeal nerves contain at least six types of terminals in the cardiovascular system: (1) arterial baroreceptors that sense blood pressure; (2) arterial chemoreceptors that mediate the hypoxic ventilatory response; (3) arterial flower sprays of unknown function; (4) blood volume receptors that mediate the reflex described here; (5) cardiac end-net endings marked in Npy2r-ires-cre mice of unknown function; and (6) cardiac flower sprays marked in Npy2r-ires-cre mice of unknown function. PIEZO2 neurons measure blood volume and respond with every heartbeat to atrial and ventricular contraction, and PIEZO2 neurons innervate the heart; a parsimonious interpretation is that these are the same neurons and heart-innervating neurons mediate the blood volume response. This interpretation is consistent with classical single-unit recordings showing that neurons responsive to particular phases of the cardiac cycle are also directly responsive to mechanical probing or stretching of heart tissue^1,5,43. At least some NPY2R neurons mediate the Bezold–Jarisch reflex¹¹, but there remain at least two orphan populations of vagal cardiovascular neurons, as well as heart-innervating spinal neurons, whose functions remain unclear.

Optogenetic stimulation of the Bezold–Jarisch reflex in mice induces a massive bradycardia and blood pressure drop, which is sufficient to cause fainting¹¹. Here we find an alternative cause for low carotid blood pressure that involves dysfunction rather than gain-of-function within vagal afferents. Neurogenic orthostatic hypotension has been attributed to baroreceptor deficits, which we find can be one cause. Moreover, we find that inefficient gravity compensation after loss of PIEZO2-containing blood volume receptors also leads to orthostatic hypotension, a prominent cause of dizziness, fainting and injury upon standing or rising from bedrest in susceptible patients.

Methods

Animals

All animal procedures followed ethical guidelines outlined in the NIH Guide for the Care and Use of Laboratory Animals, and all procedures were approved by the Institutional Animal Care and Use Committee at Harvard Medical School. Mice were maintained under constant environmental conditions (23 ± 1 °C, 46 ± 5% relative humidity) with food and water provided ad libitum under a 12 h–12 h light–dark cycle. All of the studies used adult male and female mice (aged 6–24 weeks) in comparable numbers from mixed genetic backgrounds. Tmie-, Gpr68- and Otop1-knockout mice were gifts from J. Holt, A. Patapoutian and E. Liman. All of the other mice were purchased from Jackson Laboratory, made in the laboratory and then deposited at Jackson Laboratory, or received as gifts and later deposited in the Jackson Laboratory: C57BL/6J (00664), Vglut2-ires-cre (16963), Npy2r-ires-cre (29285), Piezo2-ires-cre (27719), Phox2b-cre (16223), P2ry1-ires-cre (29284), Pvalb-t2a-cre (12358), Glp1r-ires-cre (29283), Oxtr-t2a-cre (31303), lsl-ChR2 (12569), lsl-DTR (07900), lsl-SALSA (31968), lsl-tdTomato (07914), loxP-Piezo2 (27720), loxP-Piezo1 (29213) and Snap25-GCamp6s (25111).

Physiological measurements

Arterial blood pressure was measured in anaesthetized mice (1.5–2% isoflurane in oxygen). The carotid artery or femoral artery was cannulated through a custom-built fluid catheter (Braintree Scientific RPT015, MRE033, MRE065) attached to a pressure transducer (BioPac, TSD104A; Sensor, RX104A) amplified by the Biopac DA100C system. Right atrial pressure was measured by inserting a catheter through the external jugular vein to access the atrium. Electrocardiograms were performed using needle electrodes placed subcutaneously on the right forepaw and left hindpaw, amplified using the Biopac ECG100C system. Breathing was measured using a pressure transducer (Harvard Apparatus, Differential Pressure Transducers MPX) within the isoflurane delivery device, amplified by the Biopac DA100C system. For some experiments, the jugular or femoral veins were cannulated for blood withdrawal or saline (0.9% NaCl) infusion manually or with a syringe pump (NE-1000, New Era Pump Systems). Data were acquired using the Biopac MP160 system with the Acknowledge software.

Tilt-table test

Anaesthetized mice (1.5–2% isoflurane in oxygen) were immobilized on a surgical platform with adhesive, and prepped for measurements of blood pressure, heart rate and breathing. The isoflurane concentration was then reduced to 1.2–1.5% until the breathing rate stabilized at around 60 breaths per minute. The blood pressure transducer was kept level with the catheter site to avoid a hydrostatic effect during rotation. The surgical platform with the mouse was magnetically secured to a tilt table, which was connected to an accelerometer for movement recording. The mouse was manually tilted to different positions, remaining in each position for at least 1 min while the physiological parameters were recorded (Biopac).

Haemorrhage model

Mice were anaesthetized (1.5–2% isoflurane in oxygen) and placed onto a heating pad to maintain the body temperature above 35°C. Heparin (200 U kg⁻¹ in PBS) was administered through the right external jugular vein or tail vein and isoflurane was lowered (1.2–1.5%) until the breathing rate stabilized at around 60 breaths per minute. After 10 min, the tail was transected (2 cm from the tip) with a scalpel to induce bleeding. Blood was collected in an Eppendorf tube and weighed at 30 min and at the survival end point. Survival was continuously assessed by detectable breathing. Animals of different genotypes were used in a random order to which the experimenter was blinded for analyses of survival and heart rate.

Neuron ablation

Vagal sensory neurons were ablated as previously described by serial injection (10–20 injections of 10 nl) of DT (Sigma-Aldrich, D0564) solution (5–20 μg ml⁻¹ DT, 0.05% Fast Green FCF Dye with PBS) into surgically exposed nodose/jugular/petrosal (NJP) superganglia with a Nanoject III injector (Drummond). Control mice were injected with PBS lacking DT. Mice were allowed to recover for at least 3 weeks after injection, and nodose ganglia were collected and immunostained for DTR after experiments to determine the extent of ablation.

AAV injection

The AAVs AAV-flex-tdTomato (Addgene, 28306-AAV9), AAV-eGFP (Addgene, 105542-AAV9) and AAV-flex-eGFP (Addgene, 51502-AAV9) were purchased. For the experiments in Fig. 2a,b and Extended Data Figs. 4 and 5, surgically exposed NJP superganglia were serially injected (20 injections of 10 nl) with AAV-flex-tdTomato (AAV titre > 1 × 10¹³ vg per ml, 0.05% Fast Green FCF Dye, Sigma-Aldrich). For Fig. 2d, NJP superganglia were injected (30 injections of 10 nl) with a 2:1 injection solution of AAV-flex-tdTomato (AAV titre > 1 × 10¹³ vg per ml and 0.05% Fast Green FCF Dye, Sigma-Aldrich) and AAV-eGFP (AAV titre > 1 × 10¹³ vg per ml and 0.05% Fast Green FCF Dye, Sigma-Aldrich). For Extended Data Fig. 4, the left NJP superganglion was injected with AAV-flex-eGFP (AAV titre > 1 × 10¹³ vg per ml, 0.05% Fast Green FCF Dye, Sigma-Aldrich) and the right NJP superganglion was injected with AAV-flex-tdTomato (AAV titre > 1 × 10¹³ vg per ml, 0.05% Fast Green FCF Dye, Sigma-Aldrich). All injections were performed using the Nanoject III injector (Drummond).

Whole-tissue clearing and immunostaining

Mice were anaesthetized (avertin, 1 ml, 12.5 mg ml⁻¹) and perfused with PBS (20 ml) and paraformaldehyde (10 ml, 4%, PBS) administered through the left ventricle. The heart and attached vasculature were removed by dissection, fixed (4% PFA, PBS, overnight, 4 °C) and washed twice in PBS with 0.05% NaN₃ (2 h at room temperature). For Fig. 2a, whole-heart clearing with Adipo-Clear was performed as previously described with modifications⁴⁹. In brief, refractive index matching was conducted using ethyl cinnamate (Sigma-Aldrich 112372). After clearing, the samples were degassed in a vacuum desiccator for several hours to remove bubbles trapped in the heart chambers. The samples were imaged using light-sheet microscopy (UltraMicroscope II by LaVison, ImSpector v.7.1.4). For Fig. 2b,d and Extended Data Figs. 4 and 5, thick section clearing was performed on intact left atria, intact right atria, intact aorta and thick ventricle slices (1 mm, Zivic Instruments, Mouse Heart Slicer Matrix, HSMA001-1). Thick tissue samples were cleared using the CUBIC protocol as previously described^50,51. Tissues were incubated (2 h, 37 °C) in blocking solution (2% normal donkey serum (Jackson ImmunoResearch, 017-000-121), 0.1% Triton X-100 (Sigma-Aldrich, X100), 0.1% Tween-20 (Sigma-Aldrich, P1379) in PBS). All heart and ganglion samples were incubated with primary antibody in blocking solution (1:1,000 rabbit anti-RFP, Rockland, 600-401-379; 1:1,000 chicken anti-GFP, Aves Labs, GFP-1020; 1:1,000 chicken anti-PGP9.5, Novus Biologicals, NB110-58872; 5 μg ml⁻¹ goat anti-HB-EGF (human), R&D Systems, AF-259-NA), and secondary antibody in blocking solution (1:500 donkey anti-rabbit Cy3, Jackson ImmunoResearch, 711-165-152; 1:500 donkey anti-chicken 647, Jackson ImmunoResearch, 703-605-155; 1:500 donkey anti-chicken 488, Jackson ImmunoResearch, 703-545-155; 1:500 anti-goat 647, Jackson ImmunoResearch, 705-605-147) for 3 days at 37 °C. Stained samples were imaged by confocal microscopy (Nikon Ti2).

Whole-nerve electrophysiology

Whole-vagus-nerve electrophysiology recording was performed in anaesthetized mice (1.5–2% isoflurane in oxygen) as previously described with modifications^2,18,38. In brief, the left vagus nerve was exposed and then transected below the SLN branching point. The nerve stump proximal to the heart was desheathed and placed onto a bipolar electrode (platinum–iridium). A ground electrode was placed on nearby muscle, and the nerve was immersed in halocarbon oil. The nerve activity was amplified (CP511, Grass Technologies), digitized (MP160, Biopac) and recorded (AcqKnowledge software, Biopac). Serotonin (1 mM, 50 µl, saline) was infused (intravenously) at the end of every experiment. Stimulus-induced responses were calculated as the percentage change from the baseline activity and normalized to the serotonin response. For serotonin responses (Fig. 3b) and nerve responses after blood withdrawal (Fig. 3g), nerve activity was integrated over a moving window (serotonin: 5 s, Fig. 3g: 5 ms) using the root-mean-squared method.

PV loop measurement

Left ventricular pressure and volume were measured using a Millar PV catheter (SPR-839) inserted into the carotid artery and advanced into the left ventricle. Data were acquired on the Millar MPVS-300 system with the LabChart software. After the measurements, volume calibration was performed with injection of hypertonic saline into the jugular vein and dip-well cuvettes. Analysis was performed with PV loop module in LabChart.

Optogenetics

Optogenetics experiments were performed as described with minor modifications^16,18,38. The vagus nerve trunk was exposed near the carotid bifurcation, and isolated from the carotid artery and jugular vein. The nerve was transected below the SLN close to the heart above the thoracic wall, and the nerve stump proximal to the brain was illuminated to exclude motor efferent contribution (10 mW, 1 min, 10 ms pulse duration, frequencies indicated, controlled by a pulse train generator from Prizmatix). For ECG entrainment, real-time peak detection of the ECG signal (OpenEphys, crossing detector module) was coupled to optic fibre illumination at the P and QRS waves.

Two-photon calcium imaging

In vivo imaging of vagal ganglia was performed using an Olympus FVMPE resonant-scanning two-photon microscope equipped with a piezoelectric objective Z-stepper (P-915, Physik Instrumente) as previously described with minor modifications^18,23. In brief, mice were anaesthetized with urethane (2 mg per g, intraperitoneal, at least 30 min before surgery) and tracheostomized to allow constant low-level air flow (40 ml min⁻¹; 100% oxygen) delivered by a ventilator in freely breathing mice. The left vagal ganglion was surgically exposed with branches superior to the ganglion and trunk transected, and immobilized on an imaging platform attached to a manipulator. Airway stretch was achieved by increasing airflow through a ventilator (15–25 ml min⁻¹ g⁻¹ body weight, 5 s). For blood volume manipulation, intravenous saline was administered in the jugular vein (0.9% NaCl, 30% of total blood volume estimated by body weight or 24 µl saline infused per g body weight). Saline was administered slowly over 20 s, volume was held for 30 s and then an equal blood volume was withdrawn over 1 min. The number of healthy neurons imaged was defined by responses to stepwise electrical stimulation of the cervical vagus nerve trunk (2 ms pulses at 5 Hz over around 5 s; Grass Stimulator) of increasing current (stepwise from 0.1 mA to 5 mA). Two-channel images were processed, analysed and classified as previously described using Fiji ImageJ and Microsoft Excel¹⁸. Non-responsive neurons were selected for inclusion in heat maps based on computer randomization.

Data analysis

Haemodynamic quantification

Haemodynamic signals were analysed using custom scripts in MATLAB (MathWorks). The mean arterial blood pressure (BP) was computed from systolic (SBP) and diastolic (DBP) pressures as BP = (1/3 × SBP) + (2/3 × DBP). The heart rate (HR) was derived from beat-to-beat intervals, either from R–R intervals when ECG was available, or from the intervals between successive systolic peaks of the arterial pressure waveform when ECG was unavailable. BP and HR traces were then smoothed with a 3 s moving window, and sometimes downsampled and smoothed with a 30 s moving window for long recordings. For tilt-table experiments, each mouse underwent at least three prone-to-upright tilt trials, and each tilt onset was determined by the onboard accelerometer. The BP and HR were temporally aligned to tilt onset, and trials from multiple tilts were averaged. The baseline was the mean value during the 5 s preceding tilt. The initial BP response was defined as the maximum deviation within the first <5 s after tilt; the recovered response was the 5 s mean at 1 min after tilt. BP recovery (%) was calculated as 100 × (Δinitial BP − Δrecovered BP)/Δinitial BP, where Δ denotes the change from the baseline. For tail-bleeding experiments, BP and HR were quantified as the mean response after tail transection, expressed relative to the pretransection baseline.

Anatomical quantification

Nerve fibre innervation was quantified in confocal images (maximum intensity projection) of whole atria and ventricle slices. Nerve fibres were assigned by image segmentation using Ilastik (Ilastik, Pixel Classification) and smoothened (Otsu’s method). Nerve fibre skeletons were created using scikit-image (Python v.3.9), and nerve terminal locations were defined as branch endpoints of the skeletons. Data were curated to remove noise, including small objects (<1,500 µm²) and short branches (<17 µm). Terminal structures (defined within an 86 µm × 86 µm square centred around branch end points) were classified as end-net and flower-spray endings using a machine-learning program (Ilastik, Object Classification) after manual entrainment. A relative distribution of terminal types was calculated using a denominator of total terminals identified in a given mouse.

Nerve signal quantification

Whole-nerve electrophysiology recordings were analysed using custom-written MATLAB codes. Spikes were identified using a derivative method in which a time-shifted (250 µs) trace was subtracted from the original trace to identify acute changes in activity (events) of which the magnitude was over three times the s.d. of activity in the entire trace. Once events were identified, the difference between the minimum and maximum values in the original trace within 500 µs of the event was defined as event amplitude. An additional noise-exclusion threshold was applied to include only events of which the amplitude was over four times the s.d. of the activity in the original trace.

Removal of breathing-coupled responses in nerve recordings

The vagus nerve trunk responds both with every heartbeat and with every breath. To isolate heartbeat-coupled responses, breathing was measured using a pressure transducer within the isoflurane delivery device. The breathing trace was smoothened over a rolling 2 s window, peak inspiratory and expiratory events were identified, and inter-breath intervals (IBIs) calculated. The breathing window was defined to start 10% IBI before peak expiration and end 30% IBI after peak expiration, and all spike events within the breathing window were excluded from further analysis.

Temporal alignment to ECG recordings

To control for variations in cardiac cycle duration during nerve recordings and physiological measurements, the time axis of each cardiac cycle was normalized to the PR interval.

UMAP plots

UMAP plots were generated by analysis of published single-cell transcriptomic data of vagal sensory neurons¹⁶ using Seurat in R.

Statistics and reproducibility

Data in the graphs are presented as the mean ± s.e.m. unless otherwise indicated. Statistical analyses were performed using Prism (GraphPad), and statistical tests and sample sizes are reported in figures and legends. All replicates were biological and statistical tests were two-sided. Sample sizes were chosen based on previous studies of the vagus nerve^23,38.

Materials availability

All reagents that are not commercially available will be made freely available on reasonable request.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Raw microscopy images and calcium imaging data are large files, and are available on request. Source data are provided with this paper.

Code availability

Custom-written codes used in analyses of haemodynamic responses, electrophysiological recordings and histology are posted at GitHub (https://github.com/zhikai-liu/posture_project).

Change history

06 March 2026
