Astrocytes connect specific brain regions through plastic networks

Cooper, Melissa L.; Selles, Maria Clara; Cammer, Michael; Redd, Chase; Gildea, Holly K.; Sall, Joseph; Chiurri, Katelyn E.; Cheung, Philip; Wheeler, Damian G.; Saab, Aiman S.; Liddelow, Shane A.; Chao, Moses V.

doi:10.1038/s41586-026-10426-6

Download PDF

Article
Open access
Published: 22 April 2026

Astrocytes connect specific brain regions through plastic networks

Nature (2026)Cite this article

77k Accesses
1 Citations
455 Altmetric
Metrics details

Subjects

Abstract

Neuronal axons have traditionally been considered to be the primary mediators of functional connectivity among brain regions. However, the role of astrocyte-mediated communication has been largely underappreciated. Astrocytes communicate with one another through gap junctions, but the extent and specificity of this communication remain poorly understood. Astrocyte gap junctions are necessary for memory formation^1,2, synaptic plasticity^3,4,5, coordination of neuronal signalling⁶, and closing the visual and motor critical periods^7,8. These findings indicate that this form of communication is essential for proper central nervous system development and function. Despite the importance of astrocyte gap junctional networks, studying them has been challenging. Current methods such as slice electrophysiology disrupt network connectivity and introduce artefacts due to tissue damage. Here, we developed a vector-based approach that labels molecules as they are fluxed by astrocyte gap junctions in awake, behaving animals to overcome these limitations. We then used whole-brain tissue clearing^9,10 to image these intact, three-dimensional astrocyte networks. We show that multiple astrocyte networks traverse the mouse brain. These networks selectively connect specific regions, rather than diffusing indiscriminately, and vary in size and organization. We observe local networks that are confined to single brain regions and long-range networks that robustly interconnect multiple regions across hemispheres, often exhibiting patterns distinct from known neuronal networks. We also demonstrate that astrocyte networks undergo structural reorganization in the adult brain after sensory deprivation. These findings reveal a mode of communication between distant brain regions that is mediated by plastic networks of gap junction-coupled astrocytes.

Astrocytes actively support long-range molecular clock synchronization of segregated neuronal populations

Article Open access 24 March 2023

Unveiling the functional connectivity of astrocytic networks with AstroNet, a graph reconstruction algorithm coupled to image processing

Article Open access 24 January 2025

OXTR-mediated signaling in astrocytes contributes to anxiolysis

Article Open access 19 December 2024

Main

Astrocyte intercellular communication is critical to proper CNS function. This communication occurs through gap junctions—membrane channels that connect the cytoplasm of neighbouring cells, enabling them to redistribute resources and share biochemical signals. Studies using mice lacking astrocyte gap junctions have shown that these gap junctions are necessary for memory formation^1,2, synaptic plasticity^3,4,5, coordination of neuronal signalling⁶, and closing the visual and motor critical periods^7,8. In disease, networks of gap junction-linked astrocytes redistribute metabolic resources across the CNS to protect degenerating neurons^11,12. Despite these insights, our understanding of the spatial architecture and functional topology of astrocyte networks remains limited. Existing methods, such as dye diffusion in acute slices or reporter activation in injury models, are inherently constrained to local environments and often disrupt native connectivity. As a result, it remains unclear whether astrocytes form a continuous brain-wide syncytium or operate through discrete, region-specific subnetworks. It is also unclear whether their anatomical connectivity aligns with neuronal networks or establishes an independent framework for long-range, non-neuronal signalling.

Tracing astrocyte gap junction networks

To address this knowledge gap, we developed a vector-based approach to express a fusion protein comprising connexin 43 (Cx43, encoded by Gja1), the main gap junction protein used by astrocytes, and TurboID (TID), a rapid and promiscuous biotinylating enzyme^13,14,15, under the shortened Gfap promoter^16,17,18 (AAV5-GfaABC1D-Cx43:TID:HA; Fig. 1a). When this fusion protein incorporates into a connexon as any one of its six constituent connexins (Fig. 1b), molecules that flux through the infected astrocyte’s gap junctions are rapidly tagged with small, inert biotin (Fig. 1c). This enables us to detect the infected astrocyte population (through the haemagglutinin (HA) tag on the fusion protein), the in-network astrocytes (by staining biotinylated moieties with streptavidin) and cells that are not in-network with the infected population (gaps in astrocyte tiling; Fig. 1d). As the mouse CNS has minimal-to-no native biotin^13,14,15, streptavidin staining provides little background. Moreover, each biotin can bind to only a single streptavidin, eliminating variability introduced through antibody multiplexing and making images more quantitative.

**Fig. 1: Visualizing astrocyte gap junctional communication using the astrocyte network tracer.**

To validate the construct, we first infected cultures of primary immunopanned serum-free rat astrocytes (Fig. 1e; purity confirmation is shown in Extended Data Fig. 1a, and full blots are provided in Supplementary Fig. 1). When around 10% of cells expressed Cx43–TID, over 80% of cells in the plate were identifiably in-network (Fig. 1e; quantification and controls are shown in Extended Data Fig. 2). Streptavidin staining beyond the infected astrocyte population was confirmed to be gap junction-dependent in primary astrocyte cultures from mice with inducible knockout (KO) of astrocyte gap junctions (Extended Data Figs. 1 and 3).

We next confirmed that, when incorporated into a gap junction, the tertiary structure of the fusion protein was optimized. Fusion of TID to the C terminus of Cx43 through a linker that places the enzyme within the gap junction vestibule ensures that only molecules that can fit into the vestibule and are primed for gap junction flux are biotinylated, meaning that the system should be more precise than a cytoplasmically expressed TID. To determine that TID resides within the gap junction vestibule and was therefore proximal to molecules staged for gap junction flux¹⁹, we used a combination of expansion microscopy²⁰ (Fig. 1f) and super-resolution imaging (Zeiss Elyra 7 SIM²). This approach enabled us to visualize the fusion protein incorporated within a gap junction in expanded primary cultured rat astrocytes²¹ (Fig. 1g). It also enabled us to measure the distance between the Cx43 vestibule and the HA tag on the N terminus of TID (Fig. 1h,i). The 20.73 Å median distance indicates that the HA tag lies immediately outside the approximately 15 Å gap junction vestibule¹⁹. While the 3D structure of TID has not been solved, the labelling radius of biotin ligases throughout the TID family of enzymes has been estimated at around 10–30 nm (100–300 Å)^13,22,23, well within all measured intrafluorophoric distances.

After our in vitro validation, we moved to in vivo experiments (Fig. 1j). For each in vivo experiment, mice were unilaterally injected with AAV5-GfaABC1D-Cx43:TID:HA (hereafter, astrocyte network tracer) in a single defined brain region. Then, 3 weeks later, biotin was administered in the drinking water for 1 week. On day 28, the mice were perfused and the brains carefully dissected. The brains were then delipidated, stained, cleared and imaged using light-sheet microscopy. In cleared brains, infected cells expressed Cx43–TID–HA in a punctate pattern on the cell membrane, characteristic of gap junctions (Fig. 1k). Streptavidin staining revealed an adjacent in-network, uninfected cell (Fig. 1l); while this cell was negative for Cx43–TID–HA, it contained biotinylated molecules that had passed through the infected astrocyte’s gap junctions (Fig. 1m).

Astrocyte networks vary regionally

To visualize in vivo astrocyte networks, assess their reproducibility across mice and examine regional differences in connectivity, we injected male, 3-month-old C57BL/6 mice with astrocyte network tracer in one of three brain regions: motor cortex (Fig. 2 (top row) and Supplementary Video 1), hypothalamus (Fig. 2 (middle row) and Supplementary Video 2) or prefrontal cortex (Fig. 2 (bottom row) and Supplementary Video 3). Dorsal, sagittal and oblique views of the light-sheet datasets illustrate distinct network morphologies across regions and reveal the specificity of astrocytic connectivity. Infected cells displayed the canonical stellate morphology of astrocytes as well as the expected punctate HA-tag staining pattern (Extended Data Fig. 4). We found consistent patterns of regional connectivity among mice injected in the same area (Extended Data Figs. 5–7 and Supplementary Video 4), suggesting that astrocyte networks are conserved among mice.

**Fig. 2: Multiple astrocyte networks varying in size and organization traverse the mouse brain.**

To further probe the structure and consistency of astrocyte networks, we registered our samples to the Allen Reference Atlas and quantified the average streptavidin signal intensity per region (Fig. 3a). Networks in the hemispheres ipsilateral and contralateral to the injection site were then compared with one another to determine significantly enriched regions in each network and to begin to pull out similarities and differences among networks. Most of the motor cortex network regions were exclusively enriched in that network (Fig. 3b,c and Extended Data Fig. 8), meaning that the motor cortex network was largely distinct among the networks quantified. By contrast, most regions enriched in the frontal cortex and hypothalamic networks were enriched in both networks, indicating that these two networks may in fact represent bidirectional communication across the same sequence of brain regions. There are a few regions that exhibit robust bilateral signal in all networks, such as the superior colliculus these regions may serve as local hubs of astrocyte network connectivity. Multiple other regions contain signal only on either the ipsilateral or contralateral side of the brain (Fig. 3d and Supplementary Video 5). Thus, a contralateral network is not necessarily a smaller reflection of its corresponding ipsilateral network.

**Fig. 3: Astrocyte networks link specific brain regions.**

Virtual coronal sections of the raw data mapped²⁴ to the Allen Brain Atlas further illustrate the specificity and local complexity of astrocyte networks (Extended Data Fig. 9). Regions with robust connectivity are often directly adjacent to areas that lack any detectable signal. Within a single astrocyte network, different brain regions can display distinct patterns of network-linked cells (Extended Data Fig. 10). While some regions remain largely unilaterally connected (Extended Data Fig. 10a′′), others show robust bilateral connectivity (Extended Data Fig. 10a′). In rare instances, specific neuronal populations contain biotinylated molecules. When present, this labelling typically occurs at the terminus of an interconnected chain of astrocytes and is restricted to neurons within a localized area (Extended Data Fig. 10c). Most cells (and, in many networks, all cells) that contain biotinylated molecules exhibit the characteristic stellate morphology of astrocytes (Supplementary Video 6).

Astrocyte networks can link multiple astrocyte subtypes. In bilateral networks, chains of interconnected astrocytes originating in the grey matter before spanning white-matter tracts such as the corpus collosum are clearly visible (Extended Data Fig. 11). Rather than filling the entire corpus callosum, these chains of astrocytes appear to follow specific neuronal axons. Networks can also include both parenchymal astrocytes and glia limitans superficialis astrocytes²⁵ located at the brain’s surface (Extended Data Fig. 12). These two astrocytic populations contact one another, although the glia limitans superficialis astrocytes are not necessarily directly coupled.

Gap junctions link distant astrocytes

To examine whether non-gap-junctional mechanisms could account for biotinylated molecules beyond the initially infected cells, we used tamoxifen-inducible, astrocyte-specific Gjb6 (encoding Cx30) and Gja1 double KO mice (Slc1a3:cre-ERT2^+/ × Gja1^fl/fl × Gjb6^fl/fl, hereafter, conditional KO (cKO) mice)¹. KO of Gja1 alone is insufficient, as astrocytes also express connexin 30 (Cx30), albeit at lower levels¹. We designed our vector to biotinylate molecules fluxed by Cx43 because it is the most permissive connexin²⁶. However, we knocked out both Gja1 and Gjb6 in this cKO to control for the possibility that a subset of small molecules might still pass through Cx30 in the absence of Cx43.

We first used immunohistochemistry (Fig. 4 and Extended Data Fig. 3) and quantitative PCR (qPCR) (Extended Data Fig. 1) to confirm reduction of connexin expression in cKO mouse astrocytes. One week after tamoxifen gavage, immunoreactivity for Cx43 (Fig. 4a,c,e) and Cx30 (Fig. 4b,d,f) was diminished in cKO mice relative to in the littermate controls. As expected for Cx43, a small degree of immunoreactivity was retained around vasculature in cKO mice (vasculature marked in Fig. 4c–f using Lycopersicon esculentum (tomato) lectin (TL), red). Pericytes and a subset of endothelial cells both express Cx43^27,28 and are not Cre⁺ in this model. The persistence of connexins adjacent to vasculature, but not elsewhere, confirms that our gap junction KO was specific to astrocytes. We quantified this by determining the fluorescence intensity relative to the distance from the nearest blood vessel in two-dimensional sections. Immunoreactivity in cKO brains (n = 3 per group) was significantly reduced compared with the littermate controls at all locations except for around 3 µm from vessel walls, as expected (Fig. 4i).

**Fig. 4: Non-gap-junctional mechanisms do not compensate for astrocyte gap junctional KO.**

We infected four cKO and four littermate control mice per condition in the hippocampus, prefrontal cortex or barrel cortex. Astrocyte networks originating in each region were significantly smaller in cKO mice than in the control mice (Fig. 4j). The network volume within each brain region was consistent among animals in the same condition, even among networks of different sizes, such as the relatively small barrel cortex astrocyte network. This internal consistency parallels that observed in C57BL/6 mice injected in the motor cortex, prefrontal cortex and hypothalamus (Extended Data Figs. 5–7 and Supplementary Video 4). After KO, the network volume in each brain region was restricted to the infected astrocytes, which had Cx43 reintroduced through the astrocyte network tracer. These cells could form a network with one another, but not with neighbouring uninfected astrocytes lacking Cx43 and Cx30.

We next examined whether endothelial- or pericyte-expressed Cx43, or other vasculature-related mechanisms, could compensate for the loss of astrocyte gap junctions and support the distribution of biotinylated molecules in this system. After infection with the astrocyte network tracer and 1 week of biotin-supplemented water, mice were perfused with TL. Brains were subsequently stained and cleared. We found no evidence that the streptavidin signal followed the vasculature in cKO brains (Fig. 4k), indicating that vasculature-related mechanisms did not compensate for the loss of astrocyte gap junctions.

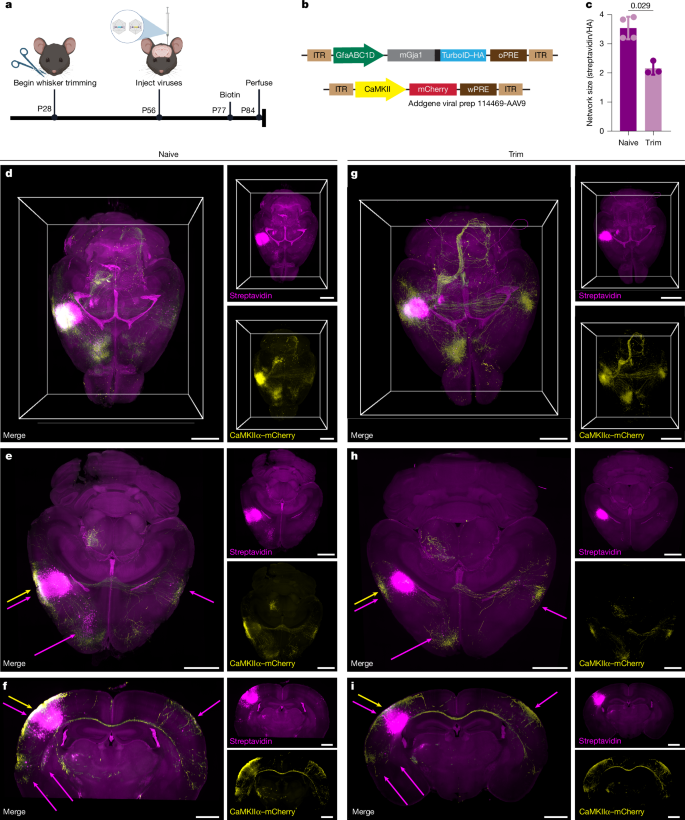

Astrocyte networks are plastic

The barrel cortex is a pliable and accessible forebrain region that is commonly used to investigate neuroplasticity^29,30,31. To test whether astrocyte networks, like neurons, exhibit structural plasticity, the whiskers of 4-week-old mice were unilaterally trimmed for 28 days (Fig. 5a). This manipulation is known to induce robust structural remodelling in neurons^{29,30,31,32,33}. At day 28, a viral mixture containing the astrocyte network tracer and CaMKIIα-driven mCherry (to label excitatory neurons) was injected into the barrel cortex corresponding to the trimmed whiskers (Fig. 5b). Whiskers were trimmed for an additional 4 weeks, with biotin administered in the drinking water during the final week.

We quantified the network size in both trimmed and naive conditions by calculating the ratio of streptavidin-positive to HA-positive cells in a cohort with reduced injection volumes to improve measurement precision (Fig. 5c and Extended Data Fig. 13). Mice with unilaterally trimmed whiskers had significantly smaller astrocyte networks in the corresponding barrel cortex (P = 0.002; naive 3.54 ± 0.39 versus trim 2.16 ± 0.22), indicating that astrocyte networks are indeed structurally plastic.

Astrocyte and neuronal networks differ

We next increased the injection volume to assess commonalities and differences among long-range astrocytic networks and neuronal projections. While the astrocyte streptavidin signal occasionally overlapped with neuronal projections, this was not uniformly the case. Figure 5d shows a three-dimensional rendering of astrocyte networks and neuronal projections in naive barrel cortex. While local connections and some long-range projections were shared among astrocytes and neurons, many neuronal projections lacked corresponding astrocyte connectivity. This divergence became more pronounced after whisker trimming. As shown in Fig. 5g, the astrocyte network contracted markedly, particularly in prefrontal cortex. Virtual horizontal (Fig. 5e,h) and coronal (Fig. 5f,i) sections of these brains reveal the extent of this effect. In the naive brain, barrel cortex astrocyte networks project to prefrontal cortex and show limited contralateral signal, both of which are largely absent after whisker trimming. By contrast, midbrain connectivity remained relatively stable. These findings demonstrate that long-range astrocyte networks are structurally plastic, and that their architecture can diverge significantly from that of the neuronal connectome.

Conclusion

Here we demonstrate that multiple astrocyte networks traverse the mouse brain, each selectively connecting and omitting brain regions rather than diffusing indiscriminately (Fig. 2). These networks vary in size and organization, with some local networks limited to a single brain region and other long-range networks robustly interconnecting multiple regions across hemispheres. Interconnected astrocytes display region-specific patterns of connectivity within the same network (Fig. 3). In some regions, such as prefrontal cortex in the motor cortex-derived astrocyte network, nearly all astrocytes contain biotinylated molecules. In other regions, only subsets of astrocytes are linked, sometimes in linear chains and other times in honeycomb-like patterns that exclude scattered astrocytes. The morphology of networks in different regions may provide clues about their local functions. In brain regions that are fully interconnected, we hypothesize that the network buffers ions across as many astrocytes as possible. In regions with honeycomb-like patterns, we propose that multiple interleaved astrocyte networks may occupy distinct functional niches for the same neuronal population.

Astrocyte networks can directly link brain regions that are not connected by neurons, suggesting that previously unassociated brain regions communicate with one another through gap junction-coupled astrocytes. The physiological role that such an overlapping multicellular network might have in the brain is likely to be multifaceted and is beyond the scope of this study. However, it is tantalizing to hypothesize that, under physiological conditions, these networks facilitate the redistribution of metabolic and antioxidant support from regions of low neuronal activity to those with high demand. Glutathione and phosphocreatine could mediate such support by serving antioxidant and energetic buffering roles, respectively, and both are small enough to diffuse through Cx43 gap junctions^26,34,35,36. By contrast, during pathology, astrocyte networks may help to dissipate locally accumulated metabolic byproducts or pathogenic molecules by redistributing them across the network for degradation or clearance from the CNS^37,38,39.

Some networks also exhibit streptavidin labelling in small, specific populations of neurons. Connexin 36, the canonical neuronal connexin⁴⁰, is a delta-type connexin and is therefore incompatible for heterodimerization with the alpha-type Cx43 or beta-type Cx30 expressed by astrocytes—explaining why neuronal streptavidin staining is so rare. A notable exception is motor neurons, which have been reported to express Cx43 during development or in response to injury^41,42,43. Although we did not induce a substantial injury and studied only adult mice, we observed streptavidin-positive motor neurons projecting through the spinal cord one month after astrocyte network tracer injection into the motor cortex (Extended Data Fig. 10). While this signal could have originated from astrocyte–oligodendrocyte–neuron communication, the continuous linear signal and lack of distinguishable cell bodies in the white matter imply that is not the case, at least at the moment of sample collection. Rather, this observation suggests that connexin-mediated astrocyte–neuron communication in motor neurons may be more prevalent than previously appreciated.

The reason for astrocyte-to-neuron molecular transfer is unclear, but there are several potential explanations. Neurotransmitters have been shown to flux gap junctions⁴⁴, raising the possibility that astrocyte networks resupply neurons with neurotransmitters, allowing them to conserve energy. This may be particularly important for neurons with long, energetically intensive projections. Moreover, highly active neuronal populations may also receive antioxidants such as glutathione (~307 Da) from astrocytes to mitigate oxidative stress without incurring the metabolic cost of de novo antioxidant production. Future work should use mass spectrometry to identify the specific biotinylated molecules that are transferred through astrocyte networks, which will help us to understand the functional roles of astrocyte networks across conditions.

Crucially for future experimentation, astrocyte networks link both hemispheres, typically including at least the contralateral counterpart of the infected region. This raises critical considerations: internally controlled experiments must be interpreted cautiously, as astrocyte connectivity may undermine the assumption of regional independence. Moreover, gap junction expression and coupling are known to change through injury—even in localized injury models such as traumatic brain injury^45,46, ischaemia⁴⁷ and focal seizure⁴⁸. We may therefore need to modify our interpretations of previous work that used an internal control, particularly if it was the contralateral counterpart of an injured region. Regions that are functionally linked to an experimental region by astrocyte networks are unlikely to remain biologically naive.

This bilateral connectivity may also explain other contralateral astrocytic responses to unilateral stressors. For example, ischaemic stroke in somatosensory cortex causes an array of astrocytic responses in the contralateral hemisphere after ipsilateral limb stimulation⁴⁹. Similarly, a unilateral model of glaucoma elicits astrocytic responses in both the contralateral retina and the contralateral hemisphere of the brain^11,50. Importantly, these contralateral responses are not restricted to a single sensory system, suggesting that astrocyte-mediated interhemispheric communication may represent a broader feature of neurodegenerative progression.

We also find that astrocyte networks are plastic. Barrel cortex astrocyte networks shrink in response to whisker trimming (Fig. 5). To mirror the canonical timeline of neuronal remodelling, we trimmed the whiskers for a month before astrocyte infection³⁰. However, both astrocyte gap junctions and the fine processes that house them can remodel on much shorter timescales. The half-life of Cx43 is estimated to be between 1.5 and 5 h (refs. ^51,52), and astrocyte process remodelling occurs over similarly rapid intervals⁵³. Our whisker barrel experiments indicate that astrocyte networks can reconfigure in a stable manner, but it is also likely that rapid remodelling occurs on a smaller scale during more acute perturbations. Future studies should explore whether acute energetic stress triggers dynamic reorganization of astrocyte networks to meet varied metabolic demands across the CNS.

A strength of this method is the ability to implement the astrocyte network tracer in numerous models, but it is true that the five allele modifications on the cKO mice used herein as controls are not feasible to add to other genetic models. To strengthen reliability in future experiments where cKO mice may be unfeasible, there are two control experiments that should be considered. First, fusion of TID to the amino terminus of Cx43 would generate a fusion protein expected to block the channel function of endogenously expressed Cx43 when incorporated into gap junctions. This would be a complimentary and more definitive test of whether the biotin transfer requires open Cx43 gap junction channels, rather than simply the presence of Cx43 protein. Second, cytoplasmic (unfused) TID expression could be a useful control for specificity of biotinylation in the original construct. This experiment should generate lower, but still detectable, biotin across a network but would be more likely to also mark other methods of cell–cell communication—a potentially useful tool for looking at combinations of mechanisms of cell–cell transfer for specific molecules.

While our approach visualizes astrocyte networks through a binary lens (connected or not through viral labelling), it is important to recognize that a diverse array of molecules may flux through these networks, and their distribution is unlikely to be uniform. Local and long-distance astrocyte networks may have distinct physiological roles, even within the same interconnected chain of cells. Occasionally, biotin-containing astrocytes that appear to be unconnected to the rest of a network are visible. We hypothesize that this may represent cells previously connected to the network, perhaps earlier in the day, that are no longer linked but still contain biotinylated molecules that have not yet been degraded. Identifying the specific dynamics of different fluxed molecules and how these dynamics are shaped by the molecular identity and subtypes of each astrocyte will be a complex task. However, such studies may ultimately reveal a rich array of functional niches that astrocyte networks occupy across the brain.

Here we define the specificity and spatial extent of astrocyte networks across brain regions, demonstrate how they differ from neuronal networks and reveal their ability to remodel. These findings establish a foundation for future exploration of how astrocyte network structure and function are shaped by injury, disease, development, ageing and experience-dependent processes such as learning and memory.

Methods

Mice

Animal procedures were performed in accordance with National Institutes of Health guidelines with the approval of NYU Grossman School of Medicine’s Institutional Animal Care and Use Committee (IACUC). All animals were housed at 22–25 °C with 50–60% humidity. Animals had access to food and water ad libitum and were housed under a 12 h–12 h light–dark cycle. Experiments in Figs. 2 and 3 were on male 12-week-old C57BL/6J mice. For experiments in Fig. 4, the Saab laboratory crossbred mice¹ expressing the tamoxifen-sensitive Cre recombinase cre-ERT2 under the control of the mouse Slc1a3 (encoding GLAST) promoter⁵⁴ with mice carrying floxed Gjb6 (Gjb6^fl/fl)⁵⁵ and floxed Gja1 (Gja1^fl/fl)⁵⁶. Mice hemizygous for Slc1a3:cre-ERT2 were bred to noncarriers to generate Slc1a3:cre-ERT2^+/ × Gja1^fl/fl × Gjb6^fl/fl experimental mice and Gja1^fl/fl × Gjb6^fl/fl littermate controls for in vivo experiments; in vivo experiments on this genotype were balanced for sex. When primary mouse astrocytes were isolated, Slc1a3:cre-ERT2 was kept homozygous to obtain a culture in which all astrocytes could be induced through 4-hydroxytamoxifen. All mice were on a C57BL/6 background. The primer sequences used for genotyping were as follows: for Gjb6 flox: 5′-TTCCCTATGCTGGTAGAGTGCTTGT-3′ and 5′-GCAGTAACTTATTGAAACCCTTCACCT-3′; for Gja1 flox: 5′-GGGATACAGACCCTTGGACTCC-3′ and 5′-TCACCCCAAGCTGACTCAACCG-3′; and for Slc1a3-creERT2: 5′-GAGGCACTTGGCTAGGCTCTGAGGA-3′, 5′-GAGGAGATCCTGACCGATCAGTTGG-3′ and 5′-GGTGTACGGTCAGTAAATTGGACAT-3′. The Saab laboratory previously analysed Cre reporter function¹ by crossing with ROSA26-floxed-STOP-GCaMP6s (Ai96, JAX, 024106). After shipment, mice were rederived by NYU Grossman School of Medicine’s Rodent Genetic Engineering Laboratory.

Tamoxifen treatment

Tamoxifen treatment was performed as previously described¹¹. For 3 consecutive days, both Slc1a3:cre-ERT2^+/ × Gja1^fl/fl × Gjb6^fl/fl experimental and littermate control mice received daily (between 15:00 and 17:00) gavage of a tamoxifen solution (20 mg ml⁻¹ dissolved in corn oil). The solution was prepared 2 h before administration, during which it was shaken at 37 °C in the dark. Any further experimental manipulations were performed at least 7 days after the last dose of tamoxifen.

Primary rat astrocyte cultures

Isolation of primary rat astrocytes by immunopanning was performed as previously described²¹. In brief, cortices of postnatal day 6/7 Sprague–Dawley rats (Charles River) were blunt dissected, the meninges were removed and the cortices were enzymatically dissociated at 37 °C and 10% CO₂ using papain (Worthington Biochemical, LS003126). Tissue was then triturated using a 5 ml serological pipette to generate a single cell suspension, resuspended in Dulbecco’s PBS (VWR, SH30264.FS) with BSA (BSA, Sigma-Aldrich, A4161) and DNase (Worthington Biochemical, LS002007), and filtered using a 20 µm nitex filter. The suspension was negatively panned for non-specific secondary antibody binding, endothelial cells (BSL-1, Vector Labs L-1100), microglia (CD45, BD Pharmingen, 553076) and oligodendrocyte lineage cells (O4 hybridoma, generated in house), and positively panned for astrocytes (ITGB5, Thermo Fisher Scientific, 14-0497-82). Astrocytes were removed from the positive panning plate using TrypLE (Thermo Fisher Scientific, 12-605-010) and plated at 10,000 cells per well in an eight-well chamber slide precoated with poly-l-lysine (Ibidi 80804). Astrocytes were cultured in serum-free medium containing 50% neurobasal, 50% DMEM, 100 U ml⁻¹ penicillin, 100 μg ml⁻¹ streptomycin, 1 mM sodium pyruvate, 292 μg ml⁻¹ l-glutamine, 1× SATO, 5 μg ml⁻¹ N-acetylcysteine and 5 ng ml⁻¹ HBEGF (Sigma-Aldrich, E4643-50UG). After 7 days, AAV was added to the medium change, resulting in an effective titre of 10⁵. Cells were incubated for a further 7 days, with biotin (effective concentration, 250 µM) added to the medium 2 days before fixation.

Expansion microscopy

Expansion microscopy was performed based on published protocols²⁰. Primary astrocytes were quickly washed in PBS, then fixed in 4% PFA in PBS at room temperature for 15 min. After three 5-min washes in PBS, the cells were permeabilized for 15 min in PBS with 0.5% Triton X-100, then blocked for 1 h in 5% BSA and 0.2% Tween-20 in PBS with shaking at room temperature. They were then incubated in primary antibody solution overnight at 4 °C (3% BSA, 0.2% Tween-20 in PBS containing mouse monoclonal anti HA-tag (Cell Signaling, 2367) directly conjugated to ATTO488-NHS (ATTO-TEC AD 488-31), rabbit polyclonal anti-Cx43 (Cell Signaling, 3512) directly conjugated to ATTO565-NHS (ATTO-TEC AD 565-31) and ATTO643-streptavidin (ATTO-TEC, AD 643-61)). Dye conjugation was performed according to the manufacturer’s protocol. Antibodies were added for an effective concentration of 2 µM for anti-Cx43 and 10 µM for anti-HA, and streptavidin (stock concentration 2 μg ml⁻¹) was added at 1:1,000. Cells were then washed three times for 5 min in PBS and incubated for 10 min in 300 nM DAPI in PBS, then imaged on a spinning-disk confocal microscope (CrestOptics X-LIGHT V3 Confocal on Nikon Ti2) with a ×60/1.4 NA oil lens to later establish an expansion coefficient. Then, 250 µl Acryloyl-X, SE (Invitrogen, A20770) was added for overnight incubation at room temperature.

Cells were washed twice for 15 min in PBS, then incubated in 300 µl Gelation Solution per well (for 2 ml: 542 µl 4 M Na acrylate (VWR, S03880), 1 ml PROTOGEL (Thermo Fisher Scientific, 50-899-90119), 200 µl 10× PBS, 198 µl H₂O (MQ), 30 µl 10% ammonium persulfate (Thermo Fisher Scientific, 17874), 30 µl tetramethylethylenediamine (TEMED, Thermo Fisher Scientific, 17919)) for 1 h at 37 °C. Then, 300 μl digestion buffer was added to each well and the gels were carefully outlined with a needle to facilitate detachment; once the gels detached, they were each transferred to one well of a 12-well plate for the remainder of the 4 h incubation at 37 °C (volume per gel/well of 12-well plate: 1,550 µl Tris-acetate-EDTA buffer, 100 µl 10% Triton X-100 in PBS, 320 µl 5 M NaCl with 26 µl proteinase K (Thermo Fisher Scientific, EO0491) added immediately before use). The gels were then each transferred to 15 cm Petri dishes filled with room-temperature H₂O (MQ) and incubated for 30 min at room temperature. H₂O (MQ) was then replaced and the gels were left overnight at room temperature to expand. The gels were then stored at 4 °C until imaging.

Single-molecule imaging and localization

Gels were mounted into 35 mm dishes with #1.5 coverslip bottoms (Ibidi, 81158) with SlowFade Glass soft-set antifade mountant (RI 1.52; Invitrogen, S36917) immediately before imaging. For lattice-SIM imaging, we used the ZEISS Elyra 7 system with an Alpha Plan Apochromat ×63/1.46 NA oil total internal reflection fluorescence microscopy objective. Dual PCO.Edge 4.2 sCMOS cameras collected data (1,280 × 1,280 pixels) with a Dual Camera Beam Splitter (SBS LP 560) used for channel separation on Zen Black 3.0 SR software corresponding to 15 phases of a 27.5 µm grating period for both 488 and 561 channels. SIM² (structured illumination microscopy) 3D Leap processing was run using the following parameters: input SNR, low; Iterations, 25; regularization weight, 0.01; processing sampling and output sampling, 2. At least 10,000 frames with a 30 ms acquisition time were collected from each sample for each wavelength channel and processed using the Localization Microscopy processing function in 3D. All single- and multi-emitter events were fitted as single emitter events.

Primary mouse astrocyte cultures

Mouse astrocytes were obtained from Slc1a3:cre-ERT2^+/+ × Gja1^fl/fl × Gjb6^fl/fl (note the homozygous Cre, opposed to hemizygous for in vivo experiments where mice could be genotyped). Cortices of postnatal day 3 mice were blunt dissected, meninges were removed, and the cortices were enzymatically dissociated at 37 °C and 10% CO₂ by papain (Worthington Biochemical, LS003126). Tissue was then triturated using a 5 ml serological pipette to generate a single-cell suspension, resuspended in Dulbecco’s PBS (VWR, SH30264.FS) with BSA (Sigma-Aldrich, A4161) and DNase (Worthington Biochemical, LS002007), and filtered using a 20 µm nitex filter. The suspension was negatively panned for non-specific secondary antibody binding, microglia (CD45, BD Pharmingen, 553076), oligodendrocyte lineage cells (O4 hybridoma⁵⁷, generated in house) and L1 (Millipore, rat anti-L1, MAB5272), and positively panned for astrocytes (HepaCAM⁵⁸; human HepaCAM antibody, MAB4108, R&D Systems). Astrocytes were removed from the positive panning plate using TrypLE (Thermo Fisher Scientific, 12-605-010) and plated at 10,000 cells per well in an eight-well chamber slide pre-coated with poly-l-lysine (Ibidi 80804). Astrocytes were cultured in serum-free medium containing 50% neurobasal, 50% DMEM, 100 U ml⁻¹ penicillin, 100 μg ml⁻¹ streptomycin, 1 mM sodium pyruvate, 292 μg ml⁻¹ l-glutamine, 1× SATO, 5 μg ml⁻¹ N-acetylcysteine and 5 ng ml⁻¹ HBEGF (Sigma-Aldrich, E4643-50UG). On day 6, 4-hydroxytamoxifen (Sigma-Aldrich, SML1666) was added at 1:5,000 (or concentration appropriate for gradient experiments); ethanol:isopropanol (95:5) was added to control wells at the same concentration. On day 7, AAV was added to the medium change, resulting in an effective titre of 1.5 × 10⁴. Cells were incubated for a further 7 days, with biotin (effective concentration 250 µM) added to the medium 2 days before fixation. Cells were washed twice in PBS, then fixed in 4% PFA in PBS for 15 min before immunocytochemistry.

Immunocytochemistry

Fixed cells were washed twice in PBS/azide, then blocked for 2 h in 5% normal donkey serum (NDS) with 0.1% Tween-20 in PBS/azide. They were then incubated overnight at 4 °C with shaking in 3% NDS, 0.1% Triton X-100 in PBS/azide with corresponding primary antibodies (rabbit polyclonal Anti-HA: Cell Signaling, 3724, 1:500; goat polyclonal anti-GFAP, Abcam, ab53554, 1:500). Cells were washed three times for 5 min in PBS/azide, then incubated for 2 h at room temperature with shaking in 1% NDS, 0.1% Triton X-100 in PBS/azide with the corresponding secondary antibodies (donkey anti-goat conjugated to Alexa Fluor 488, Invitrogen, A-110055, 1:500; donkey anti-rabbit conjugated to Alexa Fluor 555, Invitrogen, A-31572, 1:500) and streptavidin conjugated to Alexa Fluor 647 (Thermo Fisher Scientific, S32357, 1:500). Cells were washed three times for 5 min in PBS/azide, then imaged (2,048 × 2,048) on the Zeiss 880 laser-scanning confocal microscope using a ×20/0.8 NA plan apochromat air objective.

Western blotting

Cells were lysed in ice-cold 1× RIPA buffer (diluted in double-distilled H₂O from 10×, Cell Signaling, 9806) with 1 mM PMSF (Cell Signaling, 8553) and Halt Protease & Phosphatase Single-Use Inhibitor Cocktail (Thermo Fisher Scientific, 78440). The samples were sonicated and the lysates were separated from insoluble material by centrifugation at 20,000g. Then, 1.5 mm 10% acrylamide gels (Running gel: 4 ml PROTOGEL (Thermo Fisher Scientific, 50-899-90119), 3 ml 1.5 M Tris pH 8.8 + SDS, 5 ml double-distilled H₂O, 120 µl 10% ammonium persulfate (Thermo Fisher Scientific, 17874) and 12 µl TEMED (Thermo Fisher Scientific, 17919); stacking gel: 780 µl PROTOGEL (Thermo Fisher Scientific, 50-899-90119), 1.5 ml 0.5 M Tris pH 6.8 + SDS, 3.75 ml double-distilled H₂O, 60 µl 10% ammonium persulfate (Thermo Fisher Scientific, 17874) and 18 µl TEMED (Thermo Fisher Scientific, 17919)). The gels were loaded with 10 µg protein per well and run at 120 V; transfers onto PVDF membranes (Immoblion-FL, IPFL00010; pore size 0.45 µm) occurred overnight at 4 °C at 20 V with stirring. After a 1 h block (LI-COR Intercept PBS blocking buffer (LI-COR 927-70001)), the blots were incubated with rabbit anti-Cx43 (1:1,000; Cell Signaling, 3512) and mouse anti-actin (1:1,000; Abcam, ab8226) antibodies in LI-COR Intercept PBS blocking buffer (LI-COR 927-70001) with 0.1% Tween-20 (Sigma-Aldrich, P9416) for 4 h, then washed four times for 5 min with PBST. They were then incubated for 1 h in LI-COR Intercept PBS blocking buffer (LI-COR 927-70001) containing 0.1% Tween-20 and 0.1% SDS with donkey anti-mouse IRDye 680LT (1:20,000, LI-COR, 926-68072) and donkey anti-rabbit IRDye 800CW (1:20,000, LI-COR, 926-32213). After three 5 min PBST washes and one 5 min PBS wash, the blots were imaged on the ChemiDoc MP (Bio-Rad) system using Image Lab v.2.4 (Bio-Rad). The band peaks were quantified in FIJI (ImageJ) using the Gels function.

qPCR

RNA was obtained from cultures using the Qiagen RNeasy Micro Kit (74004) and converted to cDNA using the Qiagen QuantiTect Reverse Transcription Kit (205311) according to the manufacturer’s instructions. qPCR was performed using SYBR Green Universal Master Mix (Thermo Fisher Scientific, 4309155) on the StepOne Plus Real-Time PCR System (Applied Biosystems) using the following primers: Gja1 (F: TCATTGGGGGAAAGGCGTGA, R: CATGTCTGGGCACCTCTCTTTCA), Aldh1l1 (F: TCCCGTCTTTGACCTTGGGT, R: CGCCACCGAGGGAACTTAAA), Slc1a3 (F: CCCCTTACAAAATCAGAAAAGTTGT, R: CCCATCTTGGGCTCTTCTCC), Sox10: (F: GAAGAAGGCTCCCCCATGTC, R: TTGGGTGGCAGGTATTGGTC), Mog (F: GCAGGTCTCTGTAGGCCTTG, R: CCCTCAGGAAGTGAGGATCAAA), Aif1 (F: CTGGGCAAGAGATCTGCCAT, R: ACCAGTTGGCCTCTTGTGTT), Cd14 (F: ACTGAAGCCTTTCTCGGAGC, R: TGAAAGCGCTGGACCAATCT), Tubb3 (F: ACCATGGACAGTGTTCGGTC, R: ACACTCTTTCCGCACGACAT) and Syp (F: CGGCTACCAGCCTGACTATG, R: CTGGGCTTCACTGACCAGAC).

Perfusion and tissue preparation

Mice were always perfused between 14:00 and 17:00 to control for circadian effects. Mice were heavily anaesthetized with an overdose of pentobarbital (Euthasol: 390 mg pentobarbital, 50 mg phenytoin per ml at 2 μl g⁻¹) and transcardially perfused with PBS containing 10 mg l⁻¹ heparin (Sigma-Aldrich, heparin sodium salt from porcine intestinal mucosa, H3393) until the liver and right ventricle were clear of blood. Perfusion solution was then switched to 4% PFA in PBS; all solutions were administered at room temperature at 70% cardiac perfusion pressure. Brains were immediately dissected, taking care to leave the surface fully intact, and then post-fixed in 4% PFA in PBS overnight to stabilize protein tertiary structures. The fixed samples were washed in PBS with 0.01% sodium azide (NaN₃) three times for 1 h, then stored in PBS/azide at 4 °C.

When L. esculentum (tomato) lectin was used to image vasculature, 100 µg of TL conjugated to DyLight 649 diluted in 100 µl PBS was injected directly into the left ventricle of the heart before perfusion. After circulating through the beating heart for 1 min, transcardial perfusion resumed as above.

Slice immunohistochemistry

Hemibrains were delipidated (see the ‘Clearing’ section), rehydrated through the same methanol gradient to B1n, then washed three times in PBS/azide. The samples were then sectioned sagittally at 200 µm on a vibrating microtome (Leica, VT1000 S). Floating sections were blocked for 2 h in 5% NDS with 0.1% Tween-20 in PBS/azide, then incubated overnight at 4 °C with shaking in 3% NDS, 0.1% Triton X-100 in PBS/azide with corresponding primary antibodies (rabbit polyclonal anti-Cx43, Cell Signaling, 3512, 1:500; or rabbit polyclonal anti-Cx30, Invitrogen, 71-2200, 1:250; goat polyclonal anti-GFAP, Abcam, ab53554, 1:500). The sections were washed five times for 10 min in PBS/azide, then incubated overnight at 4 °C with shaking in 1% NDS, 0.1% Triton X-100 in PBS/azide with the corresponding secondary antibodies (donkey anti-goat conjugated to Alexa Fluor 488, Invitrogen, A-110055, 1:500; donkey anti-rabbit conjugated to Alexa Fluor 555, Invitrogen, A-31572, 1:500). The sections were washed five times for 10 min in PBS/azide and mounted in ProLong Diamond Antifade Mountant with DAPI (Invitrogen, P36962) to obtain a close refractive index match to the delipidated sections.

Confocal imaging

Sections were imaged on the Zeiss 800 confocal microscope; montages were obtained using a ×20 plan apochromat NA 0.75 air objective at 512 × 512 per image and high-resolution inset images were obtained using a ×63 plan apochromat NA 1.4 oil objective at 2,048 × 2,048 resolution. z stacks were obtained at a step size of 8.2 µm (×20) or 4.4 µm (×63) using Zen Blue 3.2 (Zeiss). All directly compared sections were obtained at the same magnification and were imaged using the same settings. Maximum z projections were rendered using FIJI (ImageJ v.1.54f).

Connexin and vasculature relative localization analysis

Confocal images were analysed in FIJI/ImageJ (v.1.54m). Three confocal micrographs for each of three mice per condition were analysed using ImageJ’s Plot Profile function for three equally spaced line segments perpendicular to imaged vasculature. Line segments were placed so that they began on the edge of a vessel, completely transected it and then passed through the remainder of the micrograph. Profile values for each line were averaged to represent one micrograph. The graph is presented as the distance from the far end of each blood vessel with the average in-vessel portion of all images demarcated.

Intracerebral viral injections

Surgeries were performed under aseptic conditions in accordance with NYU Grossman School of Medicine’s institutional biosafety guidelines. A glass micropipette was pulled to a tip diameter of approximately 20 μm, filled with mineral oil and attached to a Nanoject III microinjector (Drummond Scientific, 3-000-207). The micropipette was then backfilled with 1 μl of adeno-associated Virus (AAV) at a titre of 10¹¹ genomic units per μl. Mice were anaesthetized with 0.7–2.5% isoflurane (adjusted on the basis of scored reflexes and breathing rate during surgery) and placed into a stereotaxic apparatus (Kopf), and a single craniotomy was performed over the experimental brain region (coordinates are provided below); the micropipette was inserted and 200 nl of virus was injected (40 cycles, 5 s delay between cycles, 5 nl injected per cycle and 5 nl s⁻¹). Then, 10 min after injection, the micropipette was withdrawn and the wound was sutured closed. Buprenorphine (0.1 mg per kg) was subcutaneously administered immediately after surgery and twice daily for the next 72 h. We used the following stereotaxic coordinates: motor cortex (anteroposterior (AP), −2.6 mm; mediolateral (ML), 1.3 mm; dorsoventral (DV), −0.8 mm), hippocampus (AP, −2.0 mm; ML, 1.5 mm; DV, −1.5 mm), paraventricular nucleus (AP, 0.12 mm; ML, −0.71 mm; DV, −4.8 mm), prefrontal cortex (AP, 0.35 mm; ML, 1.9 mm; DV, −2.5 mm), barrel cortex (AP, −1.5 mm; ML, 3.5 mm; DV, −0.7 mm). The astrocyte network tracer (AAV5-GfaABC1D-Cx43:TID:HA, Addgene, 252501) was constructed and packaged by VectorBuilder. The AAV9-CaMKIIa-mCherry was obtained from Addgene as a gift from K. Deisseroth (Addgene, 114469-AAV9). All vectors were injected at a titre of 1 × 2¹¹.

Biotin administration

Biotin (Sigma-Aldrich,B4639) stocks were diluted to 100 mM in DMSO, aliquoted for single-use and stored frozen at −20 °C. Then, 21 days after intracerebral injections, biotin stock was diluted in distilled water to 160 µM (400 µl of 100 mM stock per 250 ml of distilled water) and provided ad libitum for 7 days, after which the mice were perfused (always between 14:00 and 17:00 to control for circadian effects).

Whisker trimming

Every other day from P28 to P84, mice were lightly anaesthetized with 0.7–1.5% isoflurane (adjusted on the basis of scored reflexes and breathing rate). All whiskers one side of the face were trimmed with scissors. On P56, whisker trimming coincided with intracerebral viral injections (see above). For P77–P84, mice received biotin-supplemented drinking water (see above); perfusion occurred on P84 (see above).

Clearing

The clearing protocol uses similar principles to the iDISCO¹⁰ or AdipoClear⁹ protocol with several adjustments specific to brain tissue and astrocyte morphological maintenance. To delipidate, fixed samples were washed in B1N buffer (H₂O, 0.1% Triton X-100, 0.3 M glycine, 0.01% sodium azide, pH 7) for 1 h, followed by 1 h washes each in 20%, 40%, 60% and 80% methanol in B1N. The samples were fully dehydrated in 100% methanol for three 1 h washes, then delipidated in 2:1 dichloromethane (DCM; Sigma-Aldrich, SHBR8133) overnight. Delipidation resumed the next day in three 1 h washes in 100% DCM. The samples were then washed twice in 100% methanol for 1 h. Residual fluorescence was quenched through an overnight incubation in 80% methanol, 5% H₂O₂ and 15% H₂O at 4 °C. The brains were then rehydrated by 1 h incubations in each 60%, 40% and 20% methanol in B1N. The samples were then washed in B1N overnight.

The samples were permeabilized in PTxwH buffer (PBS, 0.1% Triton X-100, 0.05% Tween-20, 2 µg ml⁻¹ heparin, 0.02% sodium azide) with added 45 g l⁻¹ glycine and 50 ml l⁻¹ dimethyl sulfoxide (DMSO), two times for 1 h each. The samples were then washed three times in PTxwH for 1 h.

The samples were incubated in primary antibody (HA-tag, Cell Signaling, 3724, 1:2,000) and conjugated streptavidin (Alexa Fluor 647 streptavidin, Thermo Fisher Scientific, S32357, 1:800) for 1 week at 37 °C with rotation. After primary incubation, the samples were washed in PTxwH with eight solution changes over a period of 3 days. The samples were then incubated in secondary antibody (donkey anti-rabbit conjugated to Alexa Fluor Plus 555, Thermo Fisher Scientific, A32794) and conjugated streptavidin (1:800) for 1 week at 37 °C with rotation. As after secondary incubation, the samples were washed in PTxwH with 8 solution changes over a period of 3 days.

For tissue clearing, the samples were dehydrated in a 20%, 40%, 60%, 80%, 100%, 100%, 100% methanol/H₂O series for 45 min each. After dehydration, samples were washed in 2:1 DCM:methanol overnight followed by three 1 h washes in 100% DCM. The samples were cleared overnight in dibenzyl ether (Sigma-Aldrich) and stored at room temperature in the dark in amber glass vials until imaging.

Light-sheet imaging

Whole, cleared brains were imaged on a light sheet microscope (Zeiss Z1) equipped with a ×5 EC plan neofluar NA 0.16 objective lens and ×20 Clr plan neofluar NA 1.0 objective lens. The images were collected with two 1,920 × 1,920 pixel sCMOS cameras and acquired using Zen Blue 3.1 LS (Zeiss). The samples were staged in a custom imaging chamber (Translucence Biosystems) filled with dibenzyl ether and illuminated from both sides by the laser light sheet (5× light sheet thickness, 13.08 µm; step size, 4.5 µm; ×20 light sheet thickness, 4.35 µm; step size, 0.61 µm).

Light-sheet image analysis

For cKO experiments, Imaris (v.9.9) was used to generate surfaces around the positive signal (calculated by thresholding) in the HA and streptavidin channels. The total volume of streptavidin signal divided by the total volume of HA signal was used to generate a relative network volume representing each brain. For whisker-trimming experiments, individual astrocytes were counted in FIJI (ImageJ v.1.54b) after background thresholding. The number of streptavidin-positive astrocytes was divided by the number of HA positive astrocytes to generate a network size value representing each brain.

For the analyses in Fig. 3, image tiles were stitched into full-volume 3D TIFF stacks using Stitchy v.1.15.0 (Translucence Biosystems)—proprietary software that performs automated tile registration by aligning overlapping regions to generate seamless volumetric reconstructions. Stitching was performed on Windows workstations with a sigmoidal blending algorithm applied across overlapping tiles to minimize boundary artifacts. Each reconstructed brain volume averaged approximately 280 GB in size. In some instances, the software reoriented spatial axes as needed to maintain a consistent anatomical orientation across samples.

Segmentation and quantification were performed using Voxels v.1.10.0 (client) and v.1.9.1 (server) (Translucence Biosystems), a cloud-ready image-analysis platform for large-scale processing. Raw fluorescence volumes were converted into 3D voxel-wise probability maps using a random-forest pixel classifier trained on manually annotated crops from seven representative brain volumes to classify voxels as signal of interest or background. Probability maps were refined with threshold- and morphology-based filters to generate binary total-signal masks at full imaging resolution, which were then used to exclude background voxels during downstream regional quantification and atlas registration.

Each sample was registered to the Allen Reference Atlas 2, based on the Allen Mouse Common Coordinate Framework (CCFv3), using the 647 nm fluorescence channel as the reference. The resulting full-resolution total-signal masks were resampled to the atlas voxel resolution for non-linear registration, preserving segmentation fidelity and quantitative accuracy. After alignment, masked signal volumes were partitioned by the midline into left and right hemispheres to assess potential lateralization.

A hierarchical atlas annotation encompassing >500 regions enabled multiscale quantification, allowing integrated intensity values to be aggregated from fine substructures (for example, dentate gyrus) to parent structures (for example, hippocampal formation) and to whole-hemisphere levels. All samples met quality-control criteria for registration accuracy, confirmed by visual inspection of anatomical landmarks relative to the reference atlas and annotation boundaries.

Statistical analysis and reproducibility

Data are presented as mean ± s.d. Mice were assigned at random to groups. Experiments were not performed in a blinded manner. Sample sizes were determined through reference to previous literature. Statistical significance for each experiment was determined as described in the respective figure legend. In the figure legends, n values represent the number of biologically independent animals per group. For data in all figures other than Fig. 3 and Extended Data Fig. 8, statistical analyses were performed in Prism 10 software (GraphPad). For Fig. 3 and Extended Data Fig. 8, regions smaller than 10,000 voxels were excluded owing to potential variance in atlas registration. Student’s t-tests assess regional differences and the Benjamini–Hochberg procedure was used to control the false discovery rate. No datapoints were excluded.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Owing to size constraints and hosting difficulties, light-sheet data are available from the corresponding authors. Source data are provided with this paper.
