Main

The debate between nature and nurture is a long-standing discussion in both biology and society. It centers around the relative impact of genetic inheritance (nature) versus environmental factors (nurture) on human development. While inherited epigenetic marks are passed down through generations, acquired features arise from environmental influences and can alter gene expression without changing the underlying DNA sequence. Understanding the contributions of these two sources of epigenetic variation is crucial for comprehending how genes and environments together shape biological outcomes.

The interplay between genetic predispositions and environmental factors shapes biological outcomes1. Previous twin studies based on bulk tissues have estimated that the average heritability of methylation levels at cytosine–guanine dinucleotides (CpGs) across the genome ranges from 5% to 19% in different tissues2,3,4,5. Methylation quantitative trait locus (meQTL) studies have shown associations between genetic variation and methylation at individual CpG sites6,7,8,9,10,11. However, these studies rely on bulk tissues and often use arrays to profile the methylome. The genome-wide, cell-type-specific relationship between genetic variation and methylation has yet to be fully elucidated.

To investigate the cell-type-specific contributions of genetic and environmental factors on the human immune cell epigenome, we analyzed 171 peripheral blood mononuclear cell (PBMC) samples from 110 individuals with defined exposures to pathogens (human immunodeficiency virus 1 (HIV-1), influenza A virus (IAV), methicillin-resistant Staphylococcus aureus (MRSA), methicillin-susceptible Staphylococcus aureus (MSSA), anthrax vaccine and severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2)) and chemicals (organophosphates (OPs)). Seven major immune cell types were isolated using fluorescence-activated cell sorting (FACS), followed by snmC-seq2 and single-nucleus ATAC–seq (snATAC–seq) profiling. We identified exposure-associated differentially methylated regions (eDMRs) and genotype-associated DMRs (gDMRs), which showed distinct genomic enrichments—eDMRs were enriched at enhancers, whereas gDMRs were predominantly found in gene bodies, highlighting divergent regulatory mechanisms. Exposure-specific DMRs exhibited unique epigenomic signatures, with several implicating master transcription factor (TF) binding sites. HIV-1-induced changes in DNA methylation and chromatin accessibility were significantly correlated. Moreover, we observed substantial colocalization between meQTLs and GWAS variants, providing cell-type-resolved insights into disease-associated loci. This comprehensive atlas of exposure- and genetics-associated epigenomic features in human immune cells provides a valuable resource for mechanistic studies of infectious and genetic disease.

Results

An exposures-driven single-cell epigenomic atlas of human immune cells

We collected 171 PBMC samples from 110 individuals who were exposed or not exposed to seven major exposures (Fig. 1 and Supplementary Table 1). HIV-1-exposed samples were collected from the iPrEx cohort, a phase 3 clinical trial12, which was designed to evaluate the efficacy of pre-exposure prophylaxis (PrEP) for HIV-1 prevention. We analyzed PBMC samples from nine donors at three distinct time points—approximately 200 days before HIV-1 positivity (pre), the day of HIV-1 diagnosis (acu) and approximately 200 days after initiating treatment (cro). For IAV exposure, the BARDA-Vaccitech FLU010 study13 evaluated the VTP-100 vaccine against the H3N2 influenza virus strain. We studied prechallenge and 28 days postchallenge (with live H3N2 influenza virus) PBMC samples from 18 donors who received the placebo vaccine. Additionally, we also analyzed PBMC samples from donors who were exposed to SARS-CoV-2 and had severe or nonsevere coronavirus disease 2019 (COVID-19) symptoms.

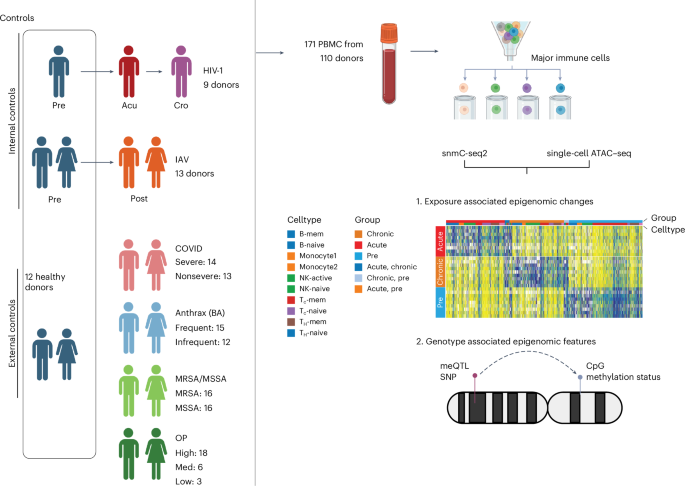

Fig. 1: Overview of the study.
Fig. 1: Overview of the study.
Full size image

For HIV-1 and IAV, we have internal control samples that are from the same set of donors before infection and collected samples from them after exposure. We also collected PBMC from 12 healthy donors as external controls. For exposures without internal controls (COVID, anthrax vaccine, MRSA/MSSA and OP), all healthy samples were used as controls. We performed snATAC–seq and snmC-seq2 on the PBMCs and identified the eDMRs associated with exposures and genotypes. We also identified the gDMRs using this dataset. BA, B. anthracis. The figure is created with BioRender.com.

For bacterial exposure, PBMCs from 19 patients who tested positive for MRSA or MSSA were analyzed, yielding a total of 27 samples. We also obtained PBMC samples from 27 vaccinated participants who handled Bacillus anthracis in a controlled Biosafety Level 3 (BSL3) facility while wearing appropriate personal protective equipment. These individuals were trained scientists working in a BSL3 laboratory who had received either BioThrax, an inactivated acellular vaccine primarily composed of the nonpathogenic protective antigen (PA) protein or the anthrax vaccine adsorbed, in accordance with the facility’s safety protocols. OPs are a class of pesticides known to have a severe impact on the dopaminergic and serotonergic systems. A common form of this pesticide, that is, chlorpyrifos, has been widely used in the United States. As part of this study, samples were collected from farm workers and nearby residents. By tracking the levels of TCPY over four months, samples from 27 donors were classified as exposed to high, moderate or low levels of OP.

PBMCs from these samples were FAC-sorted into major immune cell types (Extended Data Fig. 1) and processed through the snmC-seq2 pipeline as previously described14. A total of 96 cells per sample and cell type were sorted to ensure adequate coverage. To control for potential batch effects, all cell types were sorted onto the same 384-well plate (Extended Data Fig. 1). Single-nucleus methylation data were analyzed using in-house pipelines, as previously described14. After filtering out low-quality cells, individual cells exhibited 5–10% genome coverage (Extended Data Fig. 2a). A total of 104,000 cells were then clustered using the average CG methylation score in 5-kb bins across the autosomes. Pseudobulk profiles demonstrated high genome coverage and sufficient depth at single-CpG resolution (Extended Data Fig. 2b–e). snATAC–seq data from our companion study were integrated with the methylation data and cell-type labels were transferred.

Heterogeneity in methylation profiles reveals exposure-specific immune cell clusters

To assess whether exposures are associated with the methylome of each immune cell type, we performed within-cell-type clustering for the major sorted immune cell types. The t-distributed stochastic neighbor embedding (t-SNE), with or without harmony integration, showed similar embedding (Extended Data Fig. 3a). This analysis revealed heterogeneity in methylation profiles, resulting in more than ten distinct clusters for each cell type (Fig. 2a). We observed significant bias of cells from each exposure in each cell type. Of note, HIV-1, SARS-CoV-2 and MRSA/MSSA exposures were associated with distinct monocyte, CD4 and CD8 naive T cell profiles (Fig. 2a and Extended Data Fig. 3b). The proportion of immune cells from each exposure in these clusters varied substantially (Fig. 2b). For example, we observed a cluster of monocytes enriched in both severe and nonsevere COVID samples. Considering that the biased distribution among clusters of different exposures might also be caused by heterogeneity between individuals rather than the specific exposures, we focused on proportional changes in HIV-1 and IAV samples collected from the same donors before and after infections. While IAV samples have comparable proportions in each cluster across the cell types, HIV-1 infection markedly changed the cell proportions among clusters, indicating that HIV-1 remodeled the global methylome and functional states of these immune cells, particularly NK cells, CD8 memory and naive T cells (Fig. 2c).

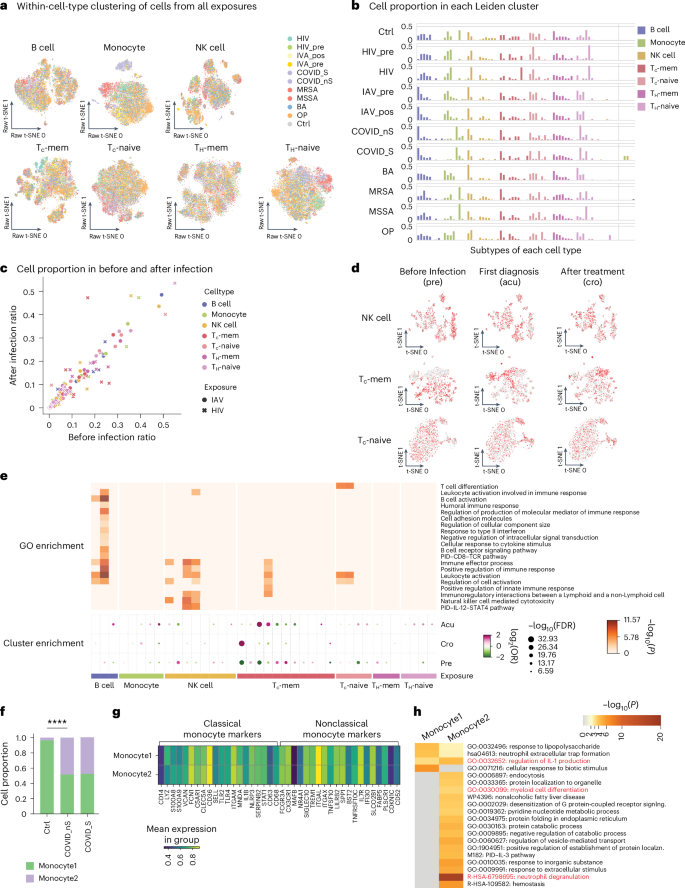

Fig. 2: Within-cell-type changes are associated with each exposure.
Fig. 2: Within-cell-type changes are associated with each exposure.
Full size image

a, UMAP of cells in each cell type from FACS using snmC-seq2 data. The cells are colored according to exposure (HIV, exposure to HIV; HIV_pre, before HIV infection from the same donors; Flu_pos, after IAV infection; Flu_pre, before IAV infection from the same donors; COVID_S, severe COVID patient samples; COVID_nS, nonsevere COVID patient samples; MRSA, samples exposed to MRSA; MSSA, samples exposed to MSSA; BA, samples from the donors that have taken anthrax vaccine and work frequently or infrequently in a controlled BSL3 facility handling B. anthracis; OP, samples from the donors that are exposed to OP). b, Bar plots show the proportions of cells from each group and cell type in the Leiden clusters, colored by the FACS cell types. The x axis is the Leiden clusters and the y axis shows the proportions of cells in each Leiden cluster in each group. c, Scatter plot shows the cell proportional changes before and after infection with HIV and IAV in each Leiden cluster. Dots represent clusters with IAV exposures and crosses indicate HIV exposures. Color shows the FACS cell types. d, UMAP of cells from HIV exposure donors in the cell types that have the most cell proportion changes. The three rows are UMAP of cells from NK cell, Tc-mem and Tc-naive, and the columns are the cells from ‘pre’, ‘acu’ and ‘cro’ stages. Cells from the stage are shown in red and cells from other stages are shown in gray. e, The dot plot shows the odds ratio using two-sided Fisher’s exact test on cells from the three HIV infection stages (‘pre’, ‘acu’, ‘cro’) in the Leiden clusters. The heatmap shows the GO enrichment of DMGs of the corresponding Leiden cluster. The dot plot and heatmap have the same x axis. f, Two clusters of monocytes were identified. The bar plot depicts the cell proportions of the two monocyte clusters in controls, severe and nonsevere COVID-19 samples. Statistical tests were done using the two-sided chi-square test. (Asterisk indicates that P = 1.32 × 10−278). g, Gene body methylation levels at classical and nonclassical monocyte markers in the two clusters of monocytes. h, GO enrichment using the hypergeometric test with Benjamini–Hochberg FDR correction (implemented in Metascape) for DMGs between the two clusters of monocytes.

To further validate the changes in functional states of different immune cell types associated with HIV-1 infection, we performed within-cell-type clustering of HIV-1 samples. The clustering revealed that cells from the three stages of HIV-1 infection (pre, acu and cro) were unevenly distributed among the clusters, with biased clusters exhibiting different global methylation levels (Fig. 2d and Extended Data Fig. 4a). To further characterize the identity of each subtype that is significantly differentially distributed among the three stages (false discovery rate (FDR) < 0.05, Fisher’s exact test), we identified differentially methylated genes (DMGs) in each cluster compared to all other clusters and performed functional enrichment analysis of these genes. Immune cell activation and differentiation-related functions are enriched among these clusters (Fig. 2e). The CD8 memory T cell cluster, specifically enriched in ‘acu’ stage cells, is enriched in positive regulation of immune response.

The monocyte cluster uniquely enriched with COVID samples and depleted in controls and other exposures is likely associated with this specific exposure (Fig. 2f). Almost half of the monocytes from both severe and nonsevere COVID-19 samples are separated in these two clusters (Fig. 2f), significantly more than the control samples (P = 2.05 × 10−237, Fisher’s exact test). Gene body methylation levels are highly similar between classical and nonclassical monocyte markers (Fig. 2g). We identified 321 DMGs between ‘monocyte1’ and ‘monocyte2’ (Extended Data Fig. 4b). Functional enrichment of these genes showed that genes hypomethylated in both monocyte clusters are enriched in pro-inflammation functions like ‘IL-18 signaling pathway’ and ‘regulation of interleukin-1 (IL-1) production’ (Fig. 2h). Both IL-18 and IL-1 have been reported to have protective roles during mouse coronavirus infection15, whereas IL-1 has a pivotal role in the induction of cytokine storm as a result of uncontrolled immune responses in SARS-CoV-2 infection16. Moreover, in addition to IL-1 and IL-18 production-related functions, DMGs in ‘monocyte2’ are also enriched for ‘phagocytosis’ and ‘endocytosis’ (Fig. 2h), indicating the antigen presentation function of this cluster, which is specifically enriched in COVID-19 monocytes.

Cell-type-specific epigenomic responses to exposures

We refined our cell types by integrating methylation information with FACS. B cells and NK cells can be separated into two clusters by global CG methylation level (Fig. 3a). The higher methylated clusters were annotated as a naive state (B-naive and NK-naive), while the cluster with lower methylation level of B cells is annotated as memory B cells (B-mem) and a lower methylated cluster of NK cells is defined as the active state (NK-active)17. We observed some inconsistency between FACS and methylation profile clustering, with some naive T cells clustered together with memory T cells, indicating a transition of cell states in some naive T cells (Fig. 3a). These cells were still labeled as naive T cells based on cell-surface marker CCR7+ and CD45RA+. Some sorted NK cells (CD56+ or CD16+ and CD14−) exhibited methylation profiles similar to monocytes, suggesting that they may represent CD16+ monocytes. These cells were excluded from the downstream analysis. We also observed bias among different exposures in the Uniform Manifold Approximation and Projection (UMAP) representation (Extended Data Fig. 5a), which may reflect exposure-specific effects. Nevertheless, our clustering results remained highly consistent following integration-based correction for donor and batch effects (Extended Data Fig. 5b,c). In the following analysis, we dissected the contributions of exposures and genetics to the epigenome in these nine immune cell types.

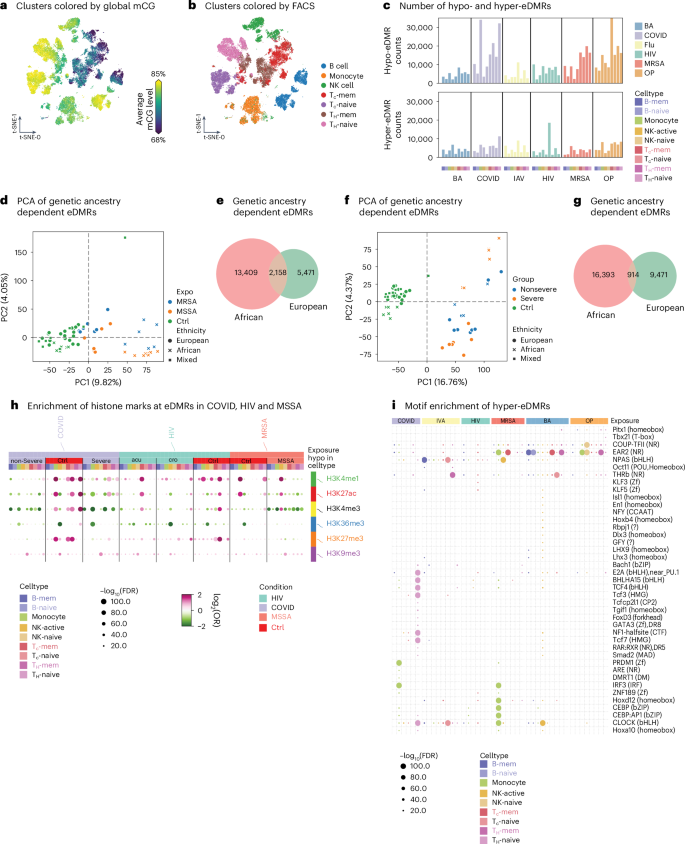

Fig. 3: Identification of eDMRs and their features.
Fig. 3: Identification of eDMRs and their features.
Full size image

a, UMAP of all cells from all exposures using single-nucleus methylation profiles. Cells are colored by the global methylation level of each cell. b, UMAP of all cells from all exposures using single-nucleus methylation profiles. Cells are colored by the FACS cell types. c, The bar plots show the hypomethylated (top plot) and hypermethylated (bottom plot) eDMR counts. ‘Hypo’ indicates the eDMRs are hypomethylated in exposures compared to controls. ‘Hyper’ is the other way around. The colors represent the exposures and the x axis denotes cell type, which is colored and sorted in the same order for all exposures. d, Scatter plot shows the two top PCs of ethnicity-dependent MRSA/MSSA eDmRs. e, Venn diagram shows the overlap of ethnicity-dependent MRSA/MSSA eDMRs between individuals of African and European genetic ancestry. f, Scatter plot shows the two top PCs of ethnicity-dependent COVID-19-associated eDmRs. g, Venn diagram shows the overlap of ethnicity-dependent COVID-19-associated eDMRs between individuals of African and European genetic ancestry. h, Dot plot shows the enrichment of eDMRs from COVID, HIV and MSSA in histone modification peaks. Each column shows the hypo-eDMRs in that condition. The color of the dots shows the enrichment or depletion in the corresponding histone modification. i, Dot plot shows the motif enrichment from HOMER, which uses the one-sided cumulative hypergeometric test on eDMRs from each exposure and cell type. The dot size indicates the P values of enrichment and the color shows the cell type from which the eDMRs are.

We aimed to dissect the impact of different exposures on the epigenome in these cell types by identifying the eDMRs. Given the difficulty of controlling other exposures each individual may have experienced and the donors’ diverse genomes, we used internal controls for HIV-1 and IAV exposures, for which we have cells before and after exposure. We used a stringent pipeline to identify the eDMRs of other exposures (Methods), in which the external controls are used. These eDMRs were not significantly different between any two sets of controls, minimizing the contribution of individual genetic variation and baseline exposures to these eDMRs.

We identified 756,575 eDMRs across all exposures and cell types, including 517,698 hypomethylated and 238,877 hypermethylated eDMRs (Fig. 3c and Supplementary Table 2). On average, each exposure and cell type exhibited approximately 10,000 eDMRs. SARS-CoV-2, OP and MRSA/MSSA showed the most abundant eDMRs across the majority of the cell types, highlighting their pronounced impact on the epigenetic profiles (Fig. 3c). To control for the false positive rate, we performed sample label shuffling and found that our identified eDMRs were substantially more significant than DMRs detected in shuffled samples (Extended Data Fig. 5d). Of note, the majority of eDMRs in each exposure and cell type consist of single CpG sites (Extended Data Fig. 5e).

We examined the effect-size distributions of exposure-associated eDMRs to assess the magnitude of methylation change (Extended Data Fig. 5f–k). HIV-1 induced broad, multimodal shifts, particularly during early infection. MRSA/MSSA and anthrax vaccine exposures had distinct peaks, while OP caused highly variable changes. COVID responses were skewed by severity and IAV showed a symmetric, trimodal pattern. These distributions illustrate the magnitude of methylation changes associated with each exposure.

Although the externally controlled exposures involved sizable cohorts, donor variability in genetic background, sex and age could still confound the results. To address this, methylation levels were adjusted for these covariates and eDMRs significantly associated with them were excluded, resulting in 271,592 hypomethylated and 138,551 hypermethylated eDMRs that more likely reflect exposure-specific effects. To examine genetic-ancestry-related responses, we identified genetic-ancestry-related eDMRs after regressing out sex and age. Notably, in both MRSA/MSSA and SARS-CoV-2 exposures, individuals of African genetic ancestry showed stronger methylation effects (Fig. 3d,e), with most eDMRs unique to each group (Fig. 3f,g), consistent with reports of greater disease severity in individuals of African genetic ancestry Americans18,19,20.

We further examined the association between eDMRs and histone modification peaks from ENCODE21 in each cell type. We found that both hypomethylated and hypermethylated eDMRs across all exposures are slightly enriched in heterochromatin regions marked by H3K9me3 (Fig. 3h and Extended Data Fig. 6a). Notably, COVID-19-associated hypermethylated eDMRs in monocytes, naive T cells and NK-naive cells showed significant enrichment in enhancer marks like H3K27ac and H3K4me1, as well as the promoter mark H3K4me3, across all immune cell types (Fig. 3h). Similar patterns were observed for HIV-1, with hypomethylated eDMRs in CD8 memory T cells and hypermethylated eDMRs in CD8 naive T cells showing enrichment in these active histone marks (Fig. 3h). Furthermore, MSSA monocyte hypermethylated eDMRs were enriched in H3K27ac. In contrast, NK-active cells from MSSA-infected individuals (but not MRSA-infected ones) showed enrichment in enhancer regions. Interestingly, naive T cells from severe COVID-19 patients had hypomethylated eDMRs with greater enrichment in active histone marks than those from nonsevere patients (Fig. 3h). These eDMRs are generally depleted at CG islands, promoters and short interspersed nuclear elements but slightly enriched in DNA, long interspersed nuclear elements and long terminal repeat transposable elements (Extended Data Fig. 6b).

DNA methylation influences TF binding to DNA22,23, potentially altering gene expression. We observed that master TF motifs were enriched in COVID-19 monocytes and CD4 naive T cells. For example, PRDM1 (encoding BLIMP-1) in monocytes24 and TCF family TFs (including TCF7) motifs in CD4 naive T cells are uniquely enriched in COVID-19 samples24,25. Similarly, CEBP family TF motifs are specifically enriched in MRSA/MSSA monocytes26 (Fig. 3i). These results suggest that methylomes associated with exposures might be able to inhibit the binding of master TFs. On the other hand, hypomethylated eDMRs across the exposures share many similarly enriched motifs (Extended Data Fig. 6c). Although further validation is needed, ChIP-seq profiles from previous studies27 showed significant enrichment of eDMRs within relevant TF binding sites (Extended Data Fig. 6d). To assess functional relevance, we examined their overlap with differentially expressed genes from prior HIV-1 and SARS-CoV-2 studies28,29 and found significant enrichment, especially in monocytes and T cells, compared to random genes or CpGs (Extended Data Fig. 6e–h).

Linking DNA methylation and chromatin accessibility in exposures

We integrated snATAC–seq data from paired and unpaired donors across all exposure groups, except for MRSA and MSSA. For the HIV-1 exposure, in which samples were collected at different time points from the same donors, we integrated snDNA methylation data with snATAC–seq data using 5-kb bins on autosomes. UMAP plots generated before integration showed clear batch effects between the two modalities, which were partially mitigated following integration (Extended Data Fig. 7a,b). We mapped cells from single-cell ATAC–seq to methylation clusters and transferred cell-type labels via canonical correlation analysis30 (Fig. 4a,b). We observed a strong genome-wide correlation between the two modalities across all cell types, with the highest correlation observed in monocytes (Extended Data Fig. 7c). Interestingly, we detected a loss of methylation and an increase in accessibility after HIV-1 infection in memory CD8 T cells at the intron of DGKH (Fig. 4c), a gene previously reported to exhibit differential methylation between elite controllers and individuals receiving antiretroviral therapy31. Although this region experienced a loss of chromatin accessibility, the methylation level remained unchanged between the ‘acute’ and ‘chronic’ stages (Fig. 4c). We found a considerable fraction of eDMRs are consistent with changes in chromatin accessibility (Fig. 4d). The highest overlap (25.6%) between these two modalities was observed in ‘pre’ stage hypo-eDMRs in CD8 naive T cells.

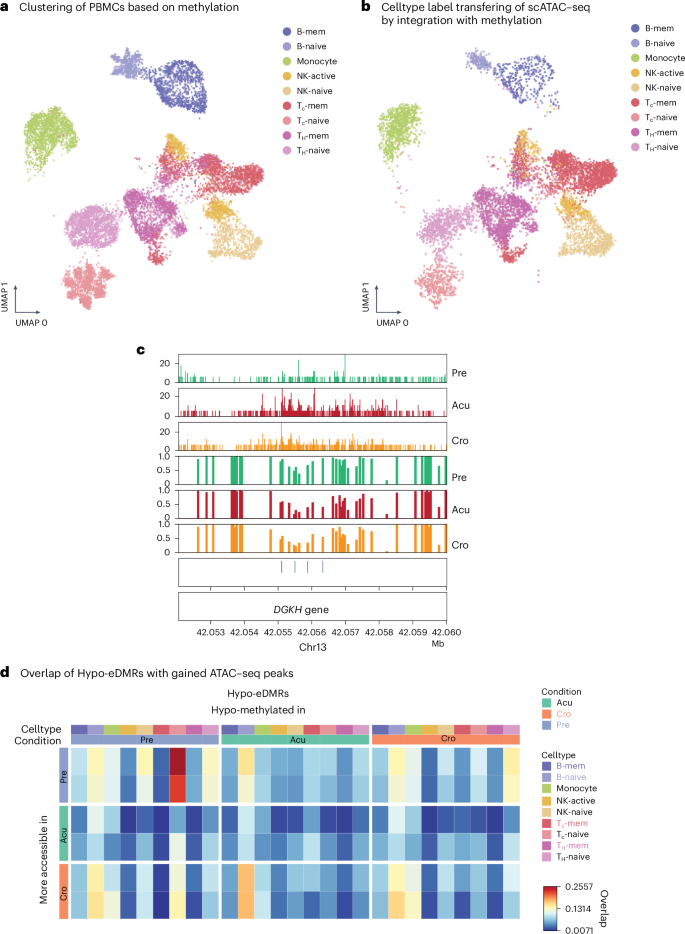

Fig. 4: Consistent changes in DNA methylation and chromatin accessibility in HIV exposure.
Fig. 4: Consistent changes in DNA methylation and chromatin accessibility in HIV exposure.
Full size image

a, UMAP of cells from HIV exposure using single-nucleus methylation when integrating with snATAC–seq data. The color shows the cell types identified from FACS and DNA methylation. b, UMAP of cells from one HIV donor sample after integration with single-nucleus methylation data. The color indicates the cell-type labels transferred from DNA methylation data in integrating the two modalities. c, A genome browser view of a region at the DGKH gene that has consistent changes after HIV exposure in DNA methylation and chromatin accessibility in CD8 memory T cells. The top three panels are normalized ATAC–seq reads and the DNA methylation panels show the methylation levels in each bin at this locus. The eDMRs are shown in the blue bars. d, The overlap between hypo-eDMRs and gained ATAC–seq peaks in each condition in the corresponding cell types. The more accessible peaks are from pairwise comparisons, so each condition has two comparisons. The color of the heatmaps shows the proportion of overlaps between hypo-eDMRs and gained peaks.

We extended our analysis to additional exposures and found that exposure-associated differentially accessible regions overlapped with corresponding exposure-associated eDMRs by approximately 1–6% (Extended Data Fig. 7d–g). The lower concordance between the two modalities—compared to what we observed for HIV-1—may be attributed to the use of internal controls in both assays for the HIV-1 samples. These findings underscore the importance of longitudinal data for robust identification of exposure-associated epigenomic changes.

Genotype-associated DMRs reveal the influence of genetics on immune cell epigenomes

We also used this single-cell epigenomic atlas to identify gDMRs. We identified the SNPs of each individual using the DNA methylation data with biscuit32, followed by imputation and filtering (Methods). To confirm the accuracy of the SNP calls obtained using this strategy, we compared the SNPs from whole-genome sequencing (WGS) and methylation data from a previous study33. The results showed a strong agreement with WGS SNPs in a 10-Mb region, with low rates of false positives and false negatives (Extended Data Fig. 8a) and high correlation in alternate allele frequency at the overlapped SNPs (Extended Data Fig. 8b). Running SNP calls on methylation on GM12878 also show high accuracy compared to the true set (Extended Data Fig. 8c).

We first identified differentially methylated regions (DMRs) at CpG sites within each cell type and quantified methylation levels for each individual. DMRs and SNPs were filtered, followed by performing meQTL analysis as described (Methods). Principal component analysis (PCA) of the genotypes further confirmed the high quality of the SNPs derived from bisulfite reads (Extended Data Fig. 8d).

After stringent filtering of the meQTL–DMR pairs (Supplementary Tables 3–11), we identified 275,283 gDMRs across all nine cell types, of which 214,933 were cis-correlated with SNP and 60,350 were trans-correlated (Supplementary Table 12). The number of cis-gDMRs is comparable across different cell types except CD8 memory T cells, which have more gDMRs compared to other cell types (Fig. 5a). The trans-gDMRs are mostly identified in various T cell types (Fig. 5a). The cis-gDMRs and trans-gDMRs in T cells are mostly single-CpG sites (Extended Data Fig. 8e). The number of gDMRs is correlated with the number of cells sequenced in each cell type (Extended Data Fig. 8f). We did an enrichment analysis between these two sets of DMRs on different histone marks. In contrast to eDMRs at enhancer marks, gDMRs are predominantly enriched at gene body mark H3K36me3 peaks, especially in memory state lymphocytes (B cell, CD4 and CD8 T cells; Fig. 5b), while eDMRs are enriched at enhancer and promoter regions in naive lymphocytes. We also did enrichment analysis of them at the loop anchors in different immune cells from ENCODE, which showed that gDMRs are more enriched at loop anchors in memory state lymphocytes and eDMRs are more associated with naive lymphocytes (Fig. 5c). This indicates that eDMRs and gDMRs might regulate gene expression in different cell types through distinct mechanisms. This differential enrichment underscores the complexity of epigenetic control, with eDMRs and gDMRs contributing uniquely to the gene-expression landscape depending on the cell type and the nature of the environmental or genetic input. Both eDMRs and gDMRs exhibit similar genomic feature enrichment regarding genes and transposable elements (Extended Data Fig. 8g).

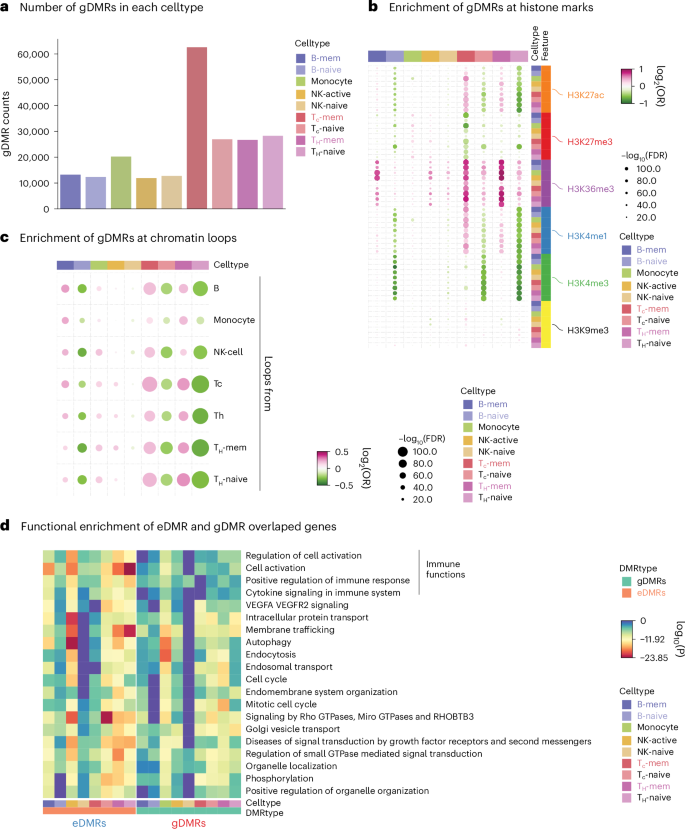

Fig. 5: Identification of gDMRs and their features.
Fig. 5: Identification of gDMRs and their features.
Full size image

a, Bar plot shows the counts of gDMRs in each cell type. The colors of the bars show the cell types. b, Dot plot shows the enrichment from Fisher’s exact test of gDMRs in histone modification peaks from each cell type. Each column represents a cell type and each row contains one histone modification peak for that cell type. The color of the dots indicates the enrichment or depletion of gDMRs in the corresponding histone modification. c, Dot plot shows the enrichment using Fisher’s exact test of gDMRs in chromatin loops. Each column is a cell type and each row is the chromatin loop in each cell type. The color of the dots shows the enrichment or depletion of gDMRs in the corresponding chromatin loop. d, Metascape using one-sided hypergeometric test, GO enrichment of the genes that overlap with eDMRs or gDMRs. The color of the heatmap shows the log10(P) of the enrichment. Results for eDMRs and gDMRs in all cell types are sorted in the same order.

We performed a functional enrichment analysis on genes with DMRs that overlap H3K36me3 peaks. Both eDMRs and gDMRs were significantly enriched in housekeeping and immune-related functions, with immune functions more significant in eDMRs (Fig. 5d). This distinction highlights the specific impact of environmental and genetic factors on immune-related gene regulation through epigenetic modifications.

Besides chromatin states, the enriched motifs also differ between eDMRs and gDMRs. While both hypomethylated and hypermethylated eDMRs are enriched mainly in immune-related TF motifs, gDMRs do not exhibit enrichment of immune TF motifs (Extended Data Fig. 8h). Using gDMRs as the background in Homer analysis, we identified significant enrichment of RUNX and ETS family TF motifs—including PU.1, ETS1 and Fli1—within eDMRs. In contrast, no significant motif enrichment, except for ETS motifs, was observed in the gDMRs using eDMRs as background in CD8 memory T cells. These results suggest that eDMRs are primarily enriched with key TF binding sites in immune cells, potentially having a role in regulating gene expression through TF binding.

Cell-type-specific colocalization of gDMRs and GWAS SNPs links to immune diseases

To investigate the association of gDMRs with human diseases and immune-related traits, we performed colocalization analysis between our meQTLs and GWAS SNPs (Methods) linked to various traits (Supplementary Table 13). We identified many colocalized GWAS SNPs and meQTLs within these immune cell types, suggesting potential cell-type-specific regulatory connections between methylation changes and genetic variants associated with immune functions. Enrichment analysis of GWAS SNPs within the meQTLs of each cell type revealed a predominant enrichment in CD8 naive T cells, as well as in CD4 memory and naive T cells (Extended Data Fig. 9a). This suggests that these specific immune cell types are particularly influenced by genetic variants associated with immune-related traits and diseases. For example, GWAS SNPs associated with Gallstone disease and Eczema are enriched in CD8 naive T cells and CD4 memory T cells meQTLs that colocalize with the GWAS SNPs (Extended Data Fig. 9a). We further linked the gDMRs to specific diseases and phenotypes (Extended Data Fig. 9b) through colocalization analysis between meQTLs and phenotype-associated GWAS SNPs. The analysis revealed that most gDMRs are associated with only a single phenotype (Extended Data Fig. 9b). Gallstone disease and Eczema showed the highest number of associated gDMRs, particularly in T cells, highlighting the potential role of T cell–specific epigenetic regulation in mediating genetic risk for these immune-related diseases. We further linked the gDMRs with gene expression (Methods) by performing summary-based Mendelian randomization (SMR)34 analysis and identified 252,598 substantial associations (Supplementary Table 14).

This analysis enabled us to uncover cell-type-specific regulatory connections between gDMRs and various diseases and phenotypes. For instance, SNPs associated with eczema disease showed colocalization with multiple meQTLs across various immune cell types in a cell-type-specific manner. Most of the GWAS SNPs only colocalize with meQTL in one cell type (Fig. 6a), indicating a high degree of cell-type specificity in the regulatory effects of these GWAS SNPs on the epigenome. This suggests that the impact of genetic variants on DNA methylation, and consequently on gene regulation, can be highly specialized and confined to particular immune cell types. Notably, the top eczema-associated SNP, rs10791824, colocalizes with both a meQTL and an expression QTL (eQTL; Fig. 6b). SMR analysis further reveals that the SNP-associated DMR is significantly correlated with the expression of the EFEMP2 gene, which has been implicated in eczema pathogenesis. This cell-type-specific colocalization information will greatly facilitate the mechanistic studies on the diseases.

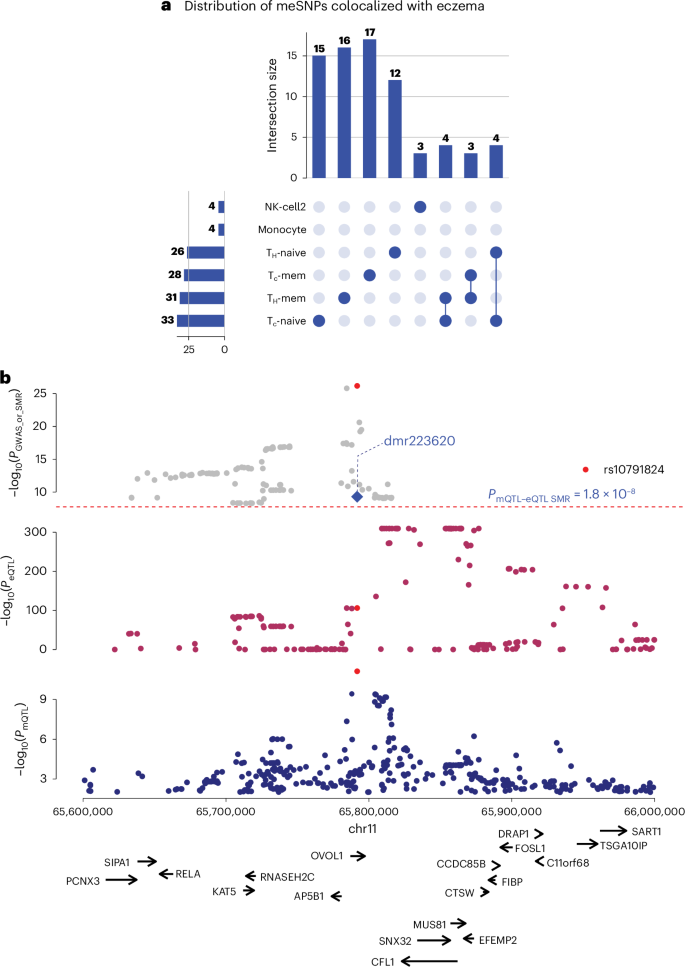

Fig. 6: Colocalization of gDMRs with immune-related disease (eczema) GWAS SNPs.
Fig. 6: Colocalization of gDMRs with immune-related disease (eczema) GWAS SNPs.
Full size image

a, Upset plot shows the number of meQTLs that are colocalized with GWAS SNPs in each cell type or multiple cell types. b, Genotype-disease association P values in the eczema GWASs (top) at EFEMP2 locus, eQTL (middle) associated with EFEMP2 expression and meQTL signal associated with a DMR in naive T cell (bottom), P values are from GWAS associations (Wald test), eQTL test (empirical P values via permutations) and meQTL test (empirical P values via permutations).

Discussion

Our study provides a comprehensive, exposure-driven atlas of human immune cells, revealing how genetic and environmental factors shape the epigenomes. We constructed an intricate epigenomic atlas using snmC-seq2 and ATAC–seq, revealing the epigenomic features associated with different exposures. This comprehensive approach enabled us to identify eDMRs and gDMRs, dissecting the roles of these two factors in shaping the epigenome of human immune cells. We also identified significant colocalization between meQTLs and GWAS-associated disease SNPs, uncovering potential cell-type-specific epigenetic mechanisms underlying these SNPs.

Genetic factors and exposome have long been recognized to shape epigenomes1. While previous studies have identified DNA methylation changes associated with genetic1,6,7,8 or environmental exposures1,35,36, our study uniquely examines both eDMRs and gDMRs within the same group of donors. This approach allows for a more reliable comparison of changes driven by these two factors. The differential enrichment of eDMRs and gDMRs on the chromatin indicates that genetics and environments may regulate gene expression differently. Although we cannot fully disentangle the effects of genetics from different exposure histories in our donors, genetic factors exert a stronger regulatory influence on the gene body in memory lymphocytes. In contrast, exposome regulation has a more pronounced effect on enhancers/promoters in naive lymphocytes.

Our study highlights the intricate contributions of both genetic and environmental factors in shaping the immune cell epigenome. We identified distinct, exposure-specific eDMRs that reflect how immune cells respond to various pathogens and chemicals, while accounting for genetic background. These findings improve our understanding of immune regulation and provide a valuable resource for investigating the molecular mechanisms of environmental exposures. The eDMRs may also serve as biomarkers for specific exposures, with potential diagnostic and therapeutic applications. However, the mechanisms by which genetics and environment interact to influence the epigenome remain incompletely understood. Addressing this gap will be essential for fully elucidating how gene–environment interactions shape immune function and contribute to disease, fully addressing the ‘nature and nurture’ question in human disease.

Our study has several limitations. Some exposure groups had relatively small sample sizes, which may limit statistical power and generalizability. In addition, the absence of information on other environmental exposures or longitudinal data for certain exposures restricts our ability to assess temporal dynamics and causality. Future studies with larger, more balanced cohorts and longitudinal designs will be essential to validate and extend our findings.

Methods

Data generation

FACS of immune cell types

Cells were sorted into 384-well plates using FACS based on their specific antibody labeling. The FACS antibody cocktail allowed for the identification of seven different immune cell types in blood (Extended Data Fig. 1). The sorted cell types included naive helper T cells (CD3+, CD4+, CCR7+, CD45RA+), memory helper T cells (CD3+, CD4+, CD45RA−), naive cytotoxic T cells (CD3+, CD8+, CCR7+, CD45RA+), memory cytotoxic T cells (CD3+, CD8+, CD45RA−), B cells (CD3−, CD19+), monocytes (CD3−, CD19−, CD14+), NK cells (CD3−, CD19−, CD14−, CD16+, CD56+) and other cells (CD3−, CD19−, CD14−, CD16−, CD56−). The SONY Multi-Application Cell Sorter LE-MA900 Series was used to isolate single cells in 384-well PCR plates containing protein kinase. After cell sorting, the plates were centrifuged to collect the cells at the bottom of the wells, and the wells were then subjected to thermocycling at 50 °C for 20 min. The plates containing the DNA from the cells were subsequently stored at −20 °C or moved directly to library preparation.

snmC-seq2 library preparation and Illumina sequencing

For library preparation, we followed the previously described methods for bisulfite conversion and library preparation in snmC-seq2 (refs. 14,37). The snmC-seq2 libraries generated from isolated immune cells were sequenced on an Illumina Novaseq 6000 using S4 flow cells in 150-bp paired-end mode. Freedom EVOware (v2.7) was used for library preparation, while Illumina MiSeq control software (v3.1.0.13) and NovaSeq 6000 control software (v1.6.0) and Real-Time Analysis (RTA; v3.4.4) were used for sequencing.

snATAC–seq

snATAC–seq was performed as previously described38, using either the Chromium Next GEM Single Cell ATAC Library & Gel Bead Kit v1.1 (10x Genomics, 1000175) with the Chromium Next GEM Chip H (10x Genomics, 1000161) or the Chromium Single Cell ATAC Library & Gel Bead Kit (10x Genomics, 1000110). Libraries were sequenced on an Illumina NovaSeq 6000 system (1.4 pM loading concentration) using a 50 × 8 × 16 × 49 bp read configuration, targeting an average of 25,000 reads per nucleus.

Quantification and statistical analysis

Single-cell methylation data processing (alignment, quality control (QC))

For alignment and QC of the single-cell methylation data, we used the same mapping strategy used in our previous single-cell methylation projects in our lab39. Specifically, we used our in-house mapping pipeline, YAP (https://hq-1.gitbook.io/mc/), for all the mapping-related analysis. The pipeline includes the following main steps: (1) demultiplexing FASTQ files into single cells with Trim Galore (v4.4), (2) reads-level QC, (3) mapping with bismark (v0.20.0), (4) BAM file processing and QC with samtools (1.17) and Picard MarkDuplicates (v3.0.0), and (5) generation of the final molecular profile. Detailed descriptions of these steps for snmC-seq2 can be found in ref. 14. All the reads were mapped to the human hg38 genome, and we calculated the methylcytosine counts and total cytosine counts for two sets of genomic regions in each cell after mapping.

We filtered out low-quality cells based on three metrics generated during mapping—mapping rate >50%, final mC reads >500,000 and global mCG >0.5. Chromosomes X, Y and M were excluded from the analysis and the remaining genome was divided into 5-kb bins to create a cell-by-bin matrix. In this matrix, each bin was assigned a hypomethylation score (hyposcore) calculated from the P values of a binomial test, which indicates the probability of hypomethylation of that bin. The matrix was further binarized for downstream analysis using a hyposcore cutoff ≥0.95.

Hyposcore measures the likelihood of observing greater than m methylated reads under the assumption that methylation follows the binomial distribution with parameters c and p.

$$p=\mathop{\sum }\limits_{i=1}^{n}{m}_{i}{c}_{i}$$

where m is the observed number of methylated count for region i, c is the coverage (total count) covering region i, n is the total number of 5-kb bin regions and p is the expected probability of methylation for this cell.

Let’s assume

$$P(X=x)=\left(\begin{array}{l}c\\ x\end{array}\right){p}^{x}{(1-p)}^{c-x}$$

then for each 5-kb bin,

$$\mathrm{Hyposcore}=1-\mathop{\sum }\limits_{k=0}^{m}\left(\begin{array}{l}c\\ k\end{array}\right){p}^{k}{(1-p)}^{c-k}$$

The calculation of hyposcore was implemented in ALLCools (v1.1.1, https://lhqing.github.io/ALLCools/intro.html) using SciPy40.

Bins covered by fewer than five cells and those with any absolute z score (the number of cells with nonzero values) >2 were filtered out. Additionally, we excluded bins that overlapped with the ENCODE blacklist using ‘bedtools intersect’ (Dale, Pedersen and Quinlan 2011; Quinlan and Hall 2010).

Unsupervised clustering

To perform unsupervised clustering, we used ALLCools39, which first conducted PCA on the 5-kb bin matrix. For each exposure, we selected the top 32 principal components (PCs) for clustering using the modules in scanpy. In the HIV-1 and influenza cohorts, we observed a donor effect in the clustering results with these PCs. Therefore, we applied harmony41 to correct the donor effect on these PCs. We performed clustering separately for control samples (‘HIV_pre’, ‘Flu_pre’ and ‘Ctrl’) and samples from the ‘MRSA/MSSA’, ‘BA’, ‘COVID-19’ and ‘OP’ groups, allowing for better comparison between the exposures and control samples.

To annotate the cells, we used both the single-cell methylation clustering results and cell-surface markers. In almost every cohort, we observed two clusters of B cells and NK cells, which were distinguished by their global mCG levels. Therefore, we assigned these clusters as naive and memory B cells, naive and active NK cells. We also merged clusters with cell-surface markers indicating memory CD4 and CD8 T cells, even if they exhibited multiple clusters in the t-SNE embedding.

eDMRs identification

To identify DMRs associated with each immune cell type, we analyzed PBMCs from healthy donors. Based on single-cell methylation and FACS, we identified nine cell types through clustering. These cell types were grouped based on their global mCG levels, and DMRs were called separately within high-mCG and low-mCG cell types. We used methylpy (v1.4.6, https://github.com/yupenghe/methylpy) for DMR calling and the resulting DMRs were further annotated with genes and promoters.

To identify DMRs associated with each exposure, we merged the control samples and samples from each exposure group. We used methylpy (https://github.com/yupenghe/methylpy) to identify DMRs between the control and exposure groups and between different exposure groups. Once we obtained the primary set of DMRs, we calculated the methylation levels of all samples at these DMRs using ‘methylpy add-methylation-level’.

Additional filtering of the DMRs was performed by comparing methylation levels across sample groups using Student’s t test. Only DMRs with a minimum P value <0.05 between any two groups were retained. For DMRs associated with MRSA/MSSA, BA, OP and SARS-CoV-2, where external controls were used for DMR calling, we compared the methylation levels of exposure samples and control samples, as well as different cohorts of controls (HIV, Flu and commercial controls). DMRs that showed significant differences (P < 0.05) between the exposure group and all three control cohorts, but no significant differences (P > 0.05) between any two control cohorts, were retained.

To visualize complex heatmaps, we used PyComplexHeatmap (https://github.com/DingWB/PyComplexHeatmap)38,42. Hypomethylated DMRs in the corresponding sample groups and cell types were labeled for better visualization. The heatmap rows were split according to sample groups and the columns were split based on DMR groups and cell types. Within each subgroup, rows and columns were clustered using Ward linkage and the Jaccard metric.

Validation of DMRs by shuffling the samples

To validate that the identified DMRs for each exposure were not confounded by batch effects or other factors, we shuffled the group labels of the samples within each exposure and identified DMRs among the randomly assigned groups. We quantified the methylation levels of all samples at the DMRs from the random groups and performed t tests on the methylation levels between each pair of groups.

Effect-size calculation

To quantify the magnitude of methylation differences across exposure groups, we calculated Cohen’s d effect sizes for each DMR using pairwise comparisons. For each DMR, methylation values were extracted across the three defined groups. Cohen’s d was computed using the pooled standard deviation formula:

$$d=({\mathrm{mean}}_{1}-{\mathrm{mean}}_{2})/{\rm{s}}\_\mathrm{pooled}$$

where mean1 and mean2 are the group means and s_pooled is the square root of the weighted average of group variances. The pooled variance was calculated with Bessel’s correction to account for sample size differences. For each DMR, three pairwise d values were computed—Group1 versus Group2, Group1 versus Group3 and Group2 versus Group3. These effect sizes provide an interpretable measure of methylation divergence independent of sample size or statistical significance.

SNP calling

We merged the BAM files from the same donors and SNP calling was performed using Biscuit’s32 variant calling function. This process identifies SNPs in both CpG and nonCpG contexts by analyzing the bisulfite-treated reads. Biscuit distinguishes between methylated cytosines and actual C/T polymorphisms, reducing the risk of false positives. To increase variant density and coverage, we imputed SNPs using Minimac4, referencing the 1,000 Genomes Phase 3 panel. Postimputation, only high-confidence SNPs present in dbSNP were retained to ensure reliability and compatibility with downstream analyses.

Standard variant filtering was applied to remove low-confidence SNPs. We excluded SNPs with a minor allele frequency (MAF) below 0.05. Additionally, SNPs overlapping with regions in the blacklist were filtered out.

Genetic PCA analysis

We performed PCA of genotypes following standard best practices to control for population structure as follows:

  1. 1.

    Linkage disequilibrium (LD) pruning—we used PLINK 2 to filter variants to high-quality, common biallelic SNPs (--snps–only just-a–t, --max-alleles 2, --geno 0.02 and --maf 0.05) and excluded regions of extended LD (high-LD-regions-hg38.bed). We then applied LD pruning with a 200-SNP window, step size of 50 SNPs and an r2 threshold of 0.1 (--indep-pairwise 200 50 0.1).

  2. 2.

    Preparation of input genotypes—the pruned SNP set was extracted to generate a reduced variant call format (VCF) for PCA, ensuring that only informative and independent variants were retained.

  3. 3.

    PCA computation:

    1. (a)

      The primary analysis was conducted using QTLtool with the options --center, --scale, --maf 0.05 and --distance 0, which ensures mean centering, scaling and consistent handling of pruned SNPs.

    2. (b)

      For cross-validation, we also performed PCA with PLINK 2 (--pca 20 approx var-wts), which produced highly concordant results.

This approach ensured robust inference of genetic PCs, minimizing the impact of LD and technical artifacts and provided reliable covariates for downstream QTL and association analyses.

Identification of gDMR–meQTL pairs

To identify meQTLs associated with DMRs, we used QTLtools (v2.0-7-g61a04d2c5e)43. The analysis was conducted using two approaches—nominal and permutation-based methods—both designed to account for the statistical significance of the association between SNPs and methylation levels. DMRs for each cell type were identified across the 110 donors using methylpy.

meQTL mapping

Nominal analysis

We used QTLtools in nominal mode to calculate the association between genotype (SNP) and methylation levels within DMRs. This method tests all SNP–DMR pairs within a specified genomic window (1 Mb) around the DMRs, reporting nominal P values for each pair. Associations were considered significant at an FDR threshold <0.01.

Permutation-based analysis

To assess the bias in the proportion of COVID-19 samples across different monocyte clusters, a chi-square test was applied. This test helped determine whether the distribution of samples from severe and nonsevere COVID-19 patients differed significantly from that of control samples, with results indicating a strong statistical difference (P = 2.05 × 10−237, Fisher’s exact test).

Trans-meQTL mapping

We used TensorQTL in trans mode to efficiently test large-scale genotype–methylation associations. By default, TensorQTL computes parametric P values using linear regression and applies Benjamini–Hochberg FDR correction.

Covariates and adjustment

In both analyses, we included covariates such as age, sex, the first five PCs of genotypes and exposures. Covariate adjustment was performed using the QTLtools built-in method for linear model regression.

Motif enrichment

We obtained the hypo- and hyper-DMRs reported by methylpy from the columns ‘hypermethylated_samples’ and ‘hypomethylated_samples’. HOMER (v5.1) was used to identify enriched motifs within these different sets of DMRs for each exposure. The results from HOMER’s ‘knownResults.txt’ output files were used for downstream analysis. Only motif enrichments with a P value <0.01 were retained. Motif enrichment results were visualized using scatter plots generated with Seaborn.

DMG identification

Pairwise DMG analysis for each exposure was performed using ALLCools, following the tutorial (https://lhqing.github.io/ALLCools/cell_level/dmg/04-PairwiseDMG.html). Significantly DMGs were selected based on an FDR < 0.01 and a delta mCG > 0.05. The functional enrichment analysis of the DMGs was conducted using Metascape44 (v3.5, https://metascape.org/). We also used linear regression (mCG ~ annotation + age + sex + ethnicity) to identify the genes associated with the two clusters of monocytes, regressing out age, sex and ethnicity of the donors.

Integration with single-cell ATAC

We integrated our single-cell methylation data with single-cell ATAC–seq data from HIV-1. This integration was performed using canonical correlation analysis based on 5-kb bins, where we transferred our methylation cell annotations to the cells from the other modality. To generate the peaks and BigWig files for each cell type, we used SnapATAC2 (refs. 45,46).

Correlation of single-cell methylation and single-cell ATAC

To assess the correlation between single-cell methylation and single-cell ATAC, we calculated the correlation between the hyposcore of each 5-kb bin and Tn5 insertions in each bin. This correlation was performed both across different cell types and within matched cell types.

Colocalization of meQTL with GWAS traits

Summary statistics of GWAS were downloaded from the NHGRI-EBI GWAS Catalog (https://www.ebi.ac.uk/gwas/)47, including 29,401 studies and 25,111 traits. We performed colocalization analysis with coloc48 (v5.2.3) using default priors to calculate the probability that both the meQTL and GWAS traits share a common causal variant. The posterior probability (PP4) of a single causal variant associated with both DMR and GWAS traits was used to identify significant colocalizations (PP4 > 0.50). A high PP4 value indicates strong evidence for shared causality. R packages locuscomparer (v1.0.0)49 and locuszoomr (v0.3.1)50 were used to visualize the colocalization results. To assess whether meQTL and GWAS SNPs were significantly overlapping for each DMR–trait pair, we performed chi-squared tests using the ‘stats.chi2_contingency’ function from the Python package SciPy40. Resulting P values were adjusted for multiple testing using the Benjamini–Hochberg method.

SMR analysis

To investigate the relationship of eDMRs and gDMRs on gene expression, we performed SMR (v1.0) analysis34 by integrating our unfiltered meQTLs with the eQTLs derived from whole-blood gene-expression levels generated from the eQTLGen consortium34,51.

By setting the exposure as DMR and outcome as gene expression in the SMR analysis, we tested whether genetic variants associated with DMRs are also associated with expression levels of nearby genes, providing evidence for associations between the two. We did not conduct HEIDI analysis due to the differences between the two sample populations. This does not rule out the possibility that some of the DMR–gene associations identified in our SMR analysis are due to linkage rather than pleiotropy or causality. SMR associations with a P value below the Bonferroni-adjusted alpha level (α = 0.05/n) were considered significant. Default parameters were used to run SMR. We further filtered out associations in the HLA region (chr6: 28,477,797–33,448,354).

Statistics

Enrichment tests

Enrichment tests were conducted using Fisher’s exact test to evaluate the distribution of DMRs across exposures and cell types. This statistical approach was selected due to the small sample sizes in some groups and the need for exact calculations without relying on large-sample approximations.

Bias analysis of COVID samples in monocyte clusters

To assess the bias in the proportion of COVID-19 samples across different monocyte clusters, a chi-square test was applied. This test helped determine whether the distribution of samples from severe and nonsevere COVID-19 patients differed significantly from that of control samples, with results indicating a strong statistical difference (P = 2.05 × 10−237, Fisher’s exact test).

Effect-size calculation

For each DMR, effect sizes were calculated using Cohen’s d to quantify the magnitude of methylation differences among exposure groups. This measure allows for an understanding of the biological relevance of the observed methylation changes, independent of sample size. Cohen’s d was computed for pairwise comparisons across groups (for example, exposure versus control), using the pooled standard deviation formula.

Differential methylation analysis

We performed pairwise differential methylation analysis between exposure groups using the methylpy package. Statistical significance was determined by calculating P values for each comparison, with a threshold of 0.05. Further, we applied FDR correction to adjust for multiple comparisons.

Ethics

The study was conducted with approval from the Salk Institutional Review Board (IRB) under protocol 18-0015 titled ’Single Cell Analysis for Forensic Epigenetics (SAFE)’. Research activities were covered under Salk’s Federalwide Assurance (FWA) for the Protection of Human Subjects (FWA00005316).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
