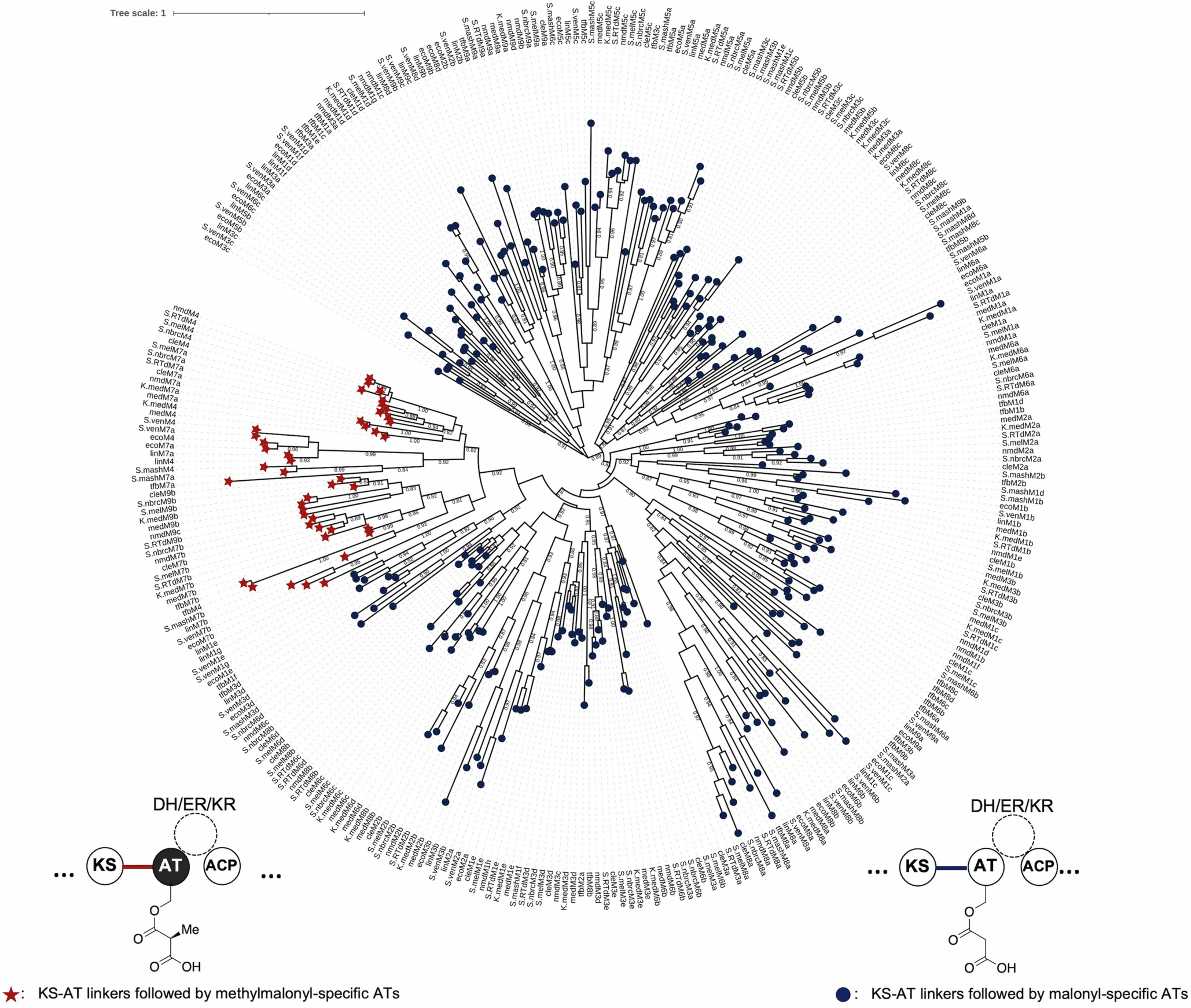

Extended Data Fig. 9: Phylogenetic analysis of KS-AT linkers from aminopolyol PKSs according to the types of the downstream AT.
From: Plug-and-play engineering of modular polyketide synthases
Phylogenetic analysis of KS-AT linkers according to the types of the downstream AT. The data is identical to Extended Data Fig. 8 but differently labeled. The tree shows a clear separation of KS-AT linkers associated with downstream methylmalonyl-CoA specific AT (red star) and malonyl-CoA specific AT (blue circle), suggesting a conserved interaction between the linker and the downstream AT.
