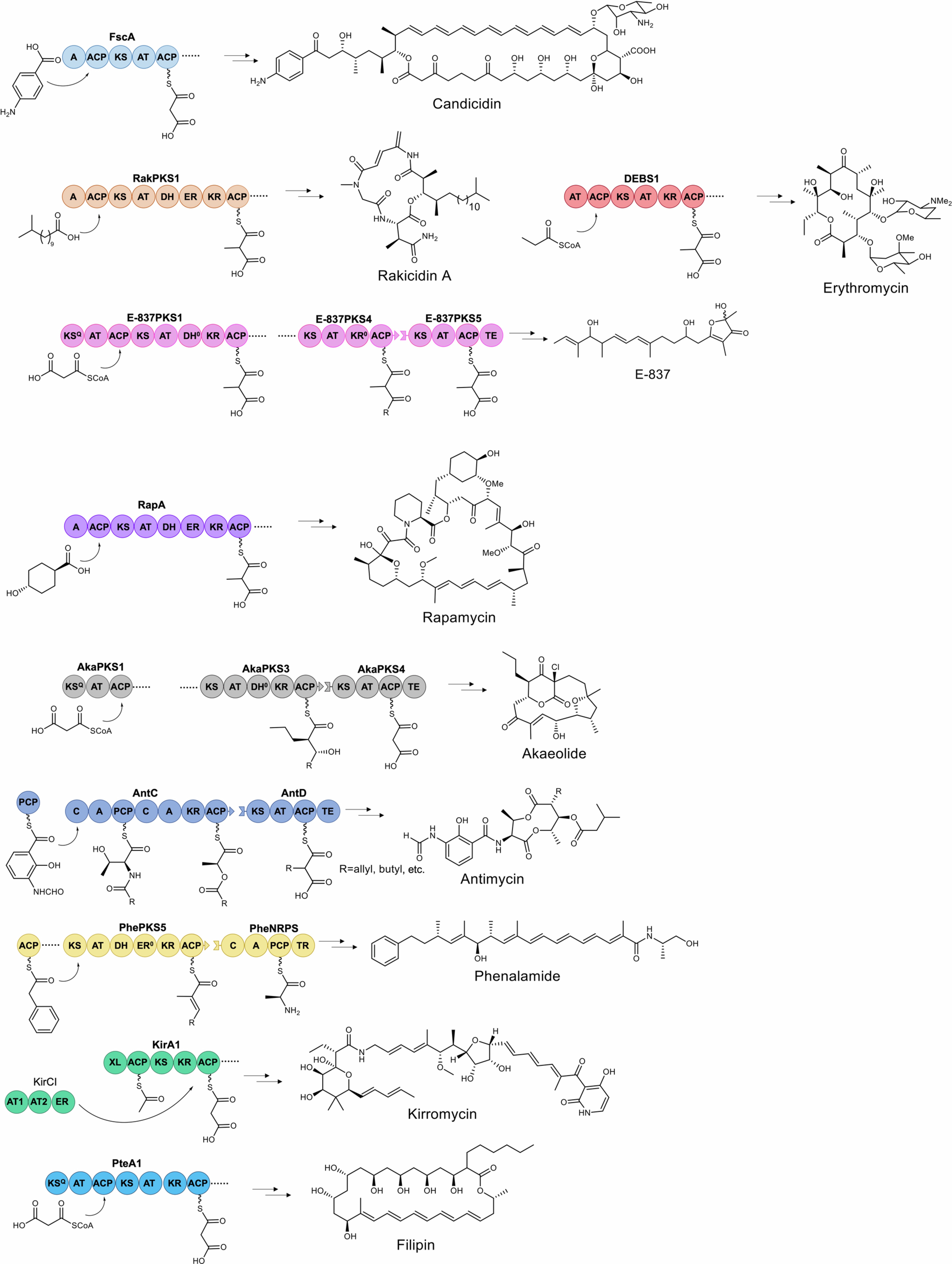

Extended Data Fig. 2: Abbreviated biosynthetic pathways and the products of the 10 PKS/NRPS pathways used in this study other than the venemycin PKS.
From: Plug-and-play engineering of modular polyketide synthases
The enzymes not used in this study are omitted for clarity. For the FscA, RakPKS1, E837PKS1, DEBS1, RapA, KirA1 and PteA1, the starter units and the extender units are shown on the corresponding ACP. For AkaPKS3, AntC, and PhePKS5, the polyketide intermediates being translocated to the downstream enzyme are shown on the corresponding ACP. The superscript 0 indicates inactive domains.
