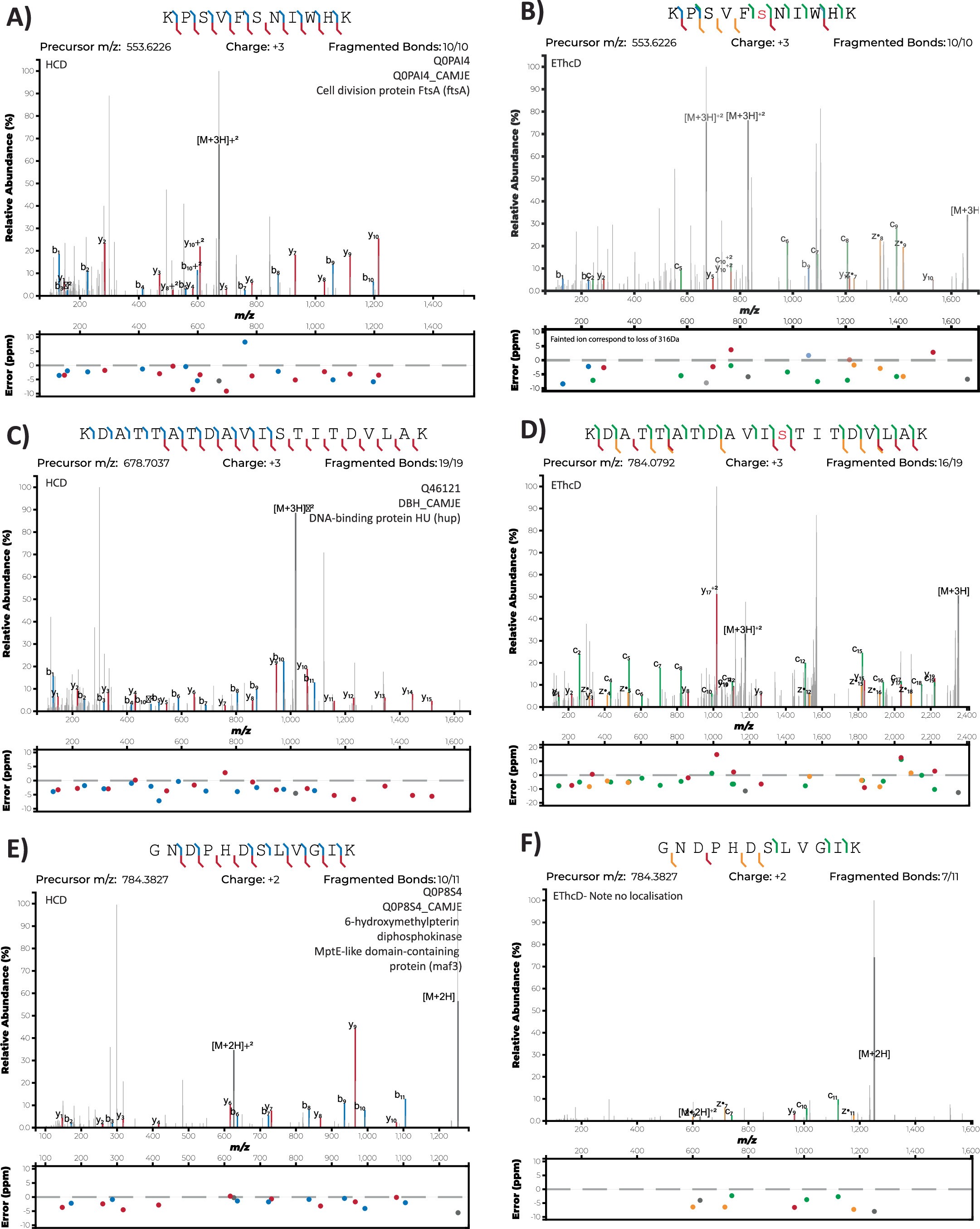

Extended Data Fig. 6: Pseudaminylation of C. jejuni glycoproteins.
From: Uncovering bacterial pseudaminylation with pan-specific antibody tools
MS/MS EThcD and HCD spectra of (A-B) 447KPSVFSNIWHK457 from FtsA (Q0PAI4_CAMJE) with pseudaminylation localised to Ser452; (C-D) 19KDATTATDAVISTITDVLAK38 from Hup (Q46121_CAMJE) with pseudaminylation localised to Ser30 and (E-F) 191GNDPHDSLVGIK202 from Maf3 (Q0P8S4_CAMJE) with pseudaminylation inferred to Ser197 by the absence of other hydroxyl containing amino acids.
