PD-1 is requisite for skin TRM cell formation and specification by TGFβ

Devi, K. Sanjana P.; Wang, Eric; Jaiswal, Abhinav; Konieczny, Piotr; Kim, Tae-Gyun; Nirschl, Christopher J.; Verma, Akanksha; Liu, Yong; Milczanowski, Julia; Christo, Susan N.; Gandolfo, Luke C.; Haitz, Karyn; Vardam, Trupti D.; Wu, Pinru; King, Sandra L.; Tse, Sze-Wah; Pradhan, Komal; Jiang, Xiaodong; Tian, Tian; Fuhlbrigge, Robert C.; Schmults, Chrysalyne D.; Clark, Rachael A.; Kupper, Thomas S.; Freeman, Gordon J.; Mackay, Laura K.; Naik, Shruti; Newell, Evan W.; Elemento, Olivier; Suarez-Farinas, Mayte; Anandasabapathy, Niroshana

doi:10.1038/s41590-025-02228-1

Download PDF

Article
Open access
Published: 29 July 2025

PD-1 is requisite for skin T_RM cell formation and specification by TGFβ

Nature Immunology volume 26, pages 1339–1351 (2025)Cite this article

18k Accesses
15 Citations
67 Altmetric
Metrics details

Subjects

Abstract

Tissue-resident memory T (T_RM) cells provide infectious, cancer and vaccine-trained immunity across barrier sites. T_RM cells are implicated in autoimmunity, successful response to immune checkpoint blockade in the tumor microenvironment and toxicities that occur after immune checkpoint blockade in peripheral tissues. Here, we identified that signaling through the immune checkpoint programmed death receptor 1 (PD-1) strongly impacts the early specification of CD8⁺ T_RM cells in the skin. PD-1 is expressed broadly across mouse and human skin T_RM cells, in the absence of persistent infection, and is retained on skin T_RM cells in aged mice. PD-1 supports early T_RM cell colonization, skin-specific programming and silencing of other differentiation programs and promotes TGFβ responsivity and skin engraftment. Thus, PD-1 signaling mediates skin T_RM cell specification during immune initiation. These findings may inform therapeutic PD-1 agonist and antagonist use to modulate successful peripheral memory.

Transient regulatory-T-cell interruption promotes skin-resident memory T cells mediated tumor protection

Article Open access 05 July 2023

PD-1 maintains CD8 T cell tolerance towards cutaneous neoantigens

Article 21 June 2023

The precursors of CD8⁺ tissue resident memory T cells: from lymphoid organs to infected tissues

Article 03 September 2021

Main

Generating and maintaining immune memory is essential to protecting pathogen- and injury-exposed barrier sites. Tissue-resident memory T (T_RM) cells are immune sentinels generated after infection (for example, herpes simplex virus (HSV)¹, vaccinia virus² and lymphocytic choriomeningitis virus³) and inflammation⁴ in barrier tissues, including the skin^5,6, lung⁷ and mucosa⁸. T_RM cells provide long-lived protection against pathogen re-encounter. T_RM cells contribute to antitumoral immunity⁹ and cancer–immune equilibrium^9,10 and may limit metastases¹¹. For continuous tissue surveillance, T_RM cells home, engraft, persist and renew locally. Governed T_RM cell formation may enforce homeostasis and limit autoinflammation. Understanding instructive pathways regulating T_RM cell formation, repertoire, niche selection, maintenance and recall is requisite to therapeutically modulating T_RM cell activity, for example, by vaccination or adoptive cell therapy. This would enable strategies to improve cancer, vaccine and antiviral immunity or limit T_RM cell recall-driven tissue pathology.

Programmed death receptor 1 (PD-1) restrains T cell effector activity and is expressed during exhaustion/dysfunction due to chronic T cell antigen receptor (TCR) engagement¹². Less appreciated roles include shaping stemness, metabolism¹³ and regulatory T cell activity by blocking the AKT–mTOR pathway¹⁴. T_RM cells express PD-1 (ref. ¹⁵), but how PD-1 signaling shapes T_RM cell biology is unknown. Drugs inhibiting the immune checkpoint receptor PD-1 and its ligands PD-L1 (CD274) and PD-L2 (CD273) have transformed cancer care. In individuals with cancer, CD3⁺ tumor-infiltrating lymphocytes (TILs) with RNA transcriptomes similar to late T_RM cell and circulating memory T cell programs expand after therapy in metastatic melanoma sites responsive to inhibitory anti-PD-1 therapy. This suggests that anti-PD-1 efficacy depends on successful memory formation and expansion¹⁶. High T_RM cell signature tumor scoring predicts melanoma survival in 15-year cohorts naive to immune checkpoint blockade and 5-year survival in recipients of anti-PD-1 (ref. ¹⁶). How PD-1 signaling impacts memory-like TIL formation, why memory differentiation and PD-1 associate with improved outcomes and how and why anti-PD-1 treatment expands these populations remains unknown. Knowledge of PD-1 biology during T_RM cell and memory differentiation could inform strategies to improve immunity in nonresponders, chimeric antigen receptor T cells and adoptive T cell strategies. PD-1 modulation could also improve immunity from personalized vaccines.

Although inhibitory anti-PD-1 boosts antitumoral immunity, disrupted peripheral tolerance also occurs. Off-target inflammatory immune-related adverse events (irAEs) occur in the tissues of recipients of anti-PD-1 therapy, which limit cancer care. irAEs occur more frequently after anti-PD-1 treatment than in the general population¹⁷. T_RM cells drive the same autoimmune/inflammatory diseases in the general population^4,18. irAEs manifest in T_RM cell-rich tissues, raising the possibility that T_RM cells instigate these reactions. In individuals with solid tumors, the skin is the earliest and most common tissue site affected in roughly 40% of individuals with melanoma receiving anti-PD-1 and 70% when combined with anti-CTLA-4 (refs. ^19,20). Moreover, recipients of anti-PD-1 with rash have improved clinical outcomes²¹. This suggests a relationship between peripheral tissue reactivity and tumor response that is yet undefined.

Defining PD-1 function on T_RM cells may illuminate why anti-PD-1 targets these cells. Here, we observed a critical role for PD-1 in establishing skin CD8⁺ T_RM cells early after infection, whereas effects on circulating memory CD8⁺ T cells occurred later after infection. Using pharmacologic inhibition and genetic loss, we observed that PD-1 enforced early viral skin CD8⁺ T_RM cell specification, lineage fate commitment, tissue niche engraftment and transforming growth factor-β (TGFβ) responsivity.

Results

PD-1 is expressed in mouse and human skin T_RM cells

To identify anti-PD-1-responsive populations, we performed high-resolution mass cytometry (CyTOF) on skin from individuals undergoing abdominoplasty or mastectomy (n = 5, 2 men and 3 women; age = 26–52 years) and peripheral blood mononuclear cells (PBMCs) from healthy individuals (n = 4; 2 men; age = 38 and 39, 2 unknown)²². T_RM cells express CD69, which enables tissue residence by suppressing the functions of the lymphocyte trafficking regulator S1P1 (ref. ²³) and CD103, which binds E-cadherin²⁴. We observed PD-1 cell-surface enrichment on human skin CD4⁺ and CD8⁺CD69⁺ (skin-resident), CLA⁺ (skin homing) and CD45RO⁺ (antigen-experienced) T_RM cells from the epidermis (CD103⁺) and dermis (CD103⁻; Fig. 1a–c and Extended Data Fig. 1a,b). Skin PD-1⁺ T_RM cells expressed CD49a¹⁸, the chemokine receptors CXCR3 and CXCR6 (ref. ²⁵) and low levels of CD62L and CX3CR1 (Fig. 1d and Extended Data Fig. 1c), supporting a resident memory phenotype. Across human tissues, we compared PD-1 CyTOF intensity in CD45RO⁺CD45RA⁻CD69⁺CD49a⁺CD8⁺ T_RM cells or all antigen-experienced CD45RO⁺CD45RA⁻CD8⁺ T cells against PBMCs. Expression of PD-1 was higher on human skin, lung and tonsil CD8⁺ T_RM cells than on PBMCs (Fig. 1e).

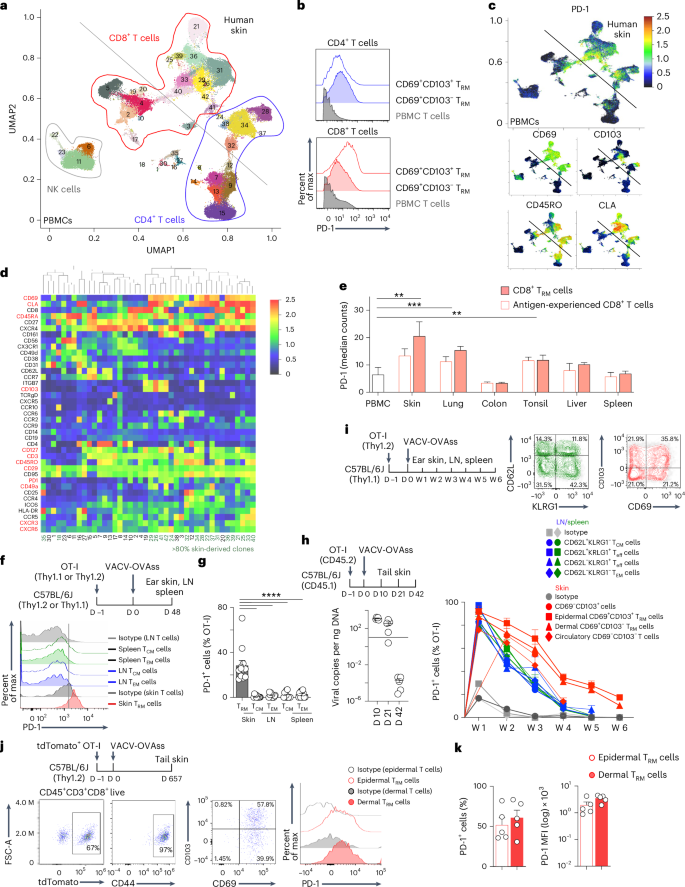

Fig. 1: PD-1 is retained on mouse and human CD8+ TRM cells in the absence of persistent antigen. — **Fig. 1: PD-1 is retained on mouse and human CD8⁺ T_RM cells in the absence of persistent antigen.**

PD-1 restrains early T cell activation²⁶. To determine when PD-1 was expressed during CD8⁺ T_RM cell specification, we immunized C57BL/6J mice by skin scarification using vaccinia virus expressing ovalbumin (OVA) protein (VACV-OVAss) 1 day after intravenous transfer of 200,000 antigen-specific OVA-reactive CD8⁺ OT-I cells. PD-1 was rapidly expressed on activated OT-I cells (Extended Data Fig. 1d,e)²⁶ and retained on skin T_RM cells at week 6 after infection (late memory, after virus clearance; Fig. 1f–h and Extended Data Fig. 1f,g). The fraction of PD-1-expressing KLRG1⁺ OT-I effector T (T_eff) cells underwent rapid contraction in lymph nodes (LN) and spleen (Fig. 1i). Unlike the rapid decline of PD-1-expressing KLRG1⁻CD62L⁺ circulating memory (T_CM) and KLRG1⁻CD62L⁻ effector memory (T_EM) OT-I cells at week 1 after infection in LNs and spleen (Fig. 1i and Extended Data Fig. 1h), we observed a gradual contraction between weeks 1 and 6 of PD-1⁺CD69⁺CD103^+/−CD8⁺ T_RM cells in the skin (Fig. 1i, Extended Data Fig. 1h and Supplementary Fig. 1a,b). Both epidermal CD69⁺CD103⁺ and dermal CD69⁺CD103⁻ CD8⁺ T_RM cells expressed PD-1 (Fig. 1i). Over 80% of skin OT-I cells were KLRG1⁻ at week 3 (Supplementary Fig. 1c,d), consistent with CD8⁺ T_RM cells deriving from KLRG1⁻ progenitors²⁵. Skin KLRG1⁻ OT-I cells retained PD-1 at week 6 (Supplementary Fig. 1c–e). We observed that PD-1 was expressed on epidermal and dermal CD8⁺ T_RM cells in both virally immunized sites and distal, nonimmunized skin sites (Extended Data Fig. 1i,j), reflecting broad CD8⁺ T_RM cell seeding. PD-1 was also expressed on epidermal and dermal CD8⁺ T_RM cells at day 657 after infection in five of six immunized aged mice (Fig. 1j,k). Collectively these data suggest that PD-1 is broadly expressed in human skin CD4⁺ and CD8⁺ T_RM cells and on mouse T_RM cells long after infection is cleared and at sites that were never infected.

PD-1 supports T_RM cell formation in skin

To test if PD-1 signaling impacted the formation of skin CD8⁺ T_RM cells, we transferred an equal mix of 100,000 wild-type Pdcd1^+/+ (hereafter PD-1^+/+) CD45.2⁺Thy1.2⁺ and Pdcd1^−/− (hereafter PD-1^−/−) CD45.2⁺Thy1.1⁺ OT-I cells into CD45.1 Thy1.2 C57BL/6J mice intravenously, followed by VACV-OVA_SS 1 day later (Fig. 2a and Supplementary Fig. 2a). At day 10 after infection, the number of PD-1^+/+ OT-I cells was 2.5-fold higher than PD-1^−/− OT-1 cells in infected skin (Fig. 2a). At day 21 after infection, PD-1^+/+ OT-I cells contributed preferentially to T_RM cell numbers (5.8-fold more than PD-1^−/− OT-I T_RM cells; Fig. 2a), indicating that PD-1 expression offered a competitive advantage in the skin. After viral clearance, at day 42 after infection, 90% of total skin CD69⁺ OT-I cells were derived from the PD-1^+/+ donor (mean total of 680 PD-1^+/+ versus 60 PD-1^−/− OT-I cells) with 6.8-fold more donor T_RM cells deriving from the PD-1^+/+ donor than the PD-1^−/− donor (Fig. 2a). This impacted both dermal and epidermal T_RM cells (86% of CD69⁺ skin OT-I cells from the PD-1^+/+ donor rather than the PD-1^−/− donor, mean total of 260 PD-1^+/+ versus 38 PD-1^−/− CD69⁺ OT-I T_RM cells; Fig. 2a–c and Supplementary Fig. 2b–d). We also observed higher numbers of PD-1^+/+ than PD-1^−/− KLRG1⁻CD62L⁺CD69⁻CD103⁺ OT-I T_CM cells in the skin, which are known to be TGFβ dependent²⁷, at days 21 and 42 after infection (Supplementary Fig. 2d). To control for any minor major histocompatibility complex mismatch driving this effect, we also co-transferred 100,000 PD-1^+/+ CD45.2⁺Thy1.2⁺ OT-I cells with 100,000 PD-1^+/+ CD45.2⁺Thy1.1⁺ OT-I cells derived as littermates of the PD-1^−/− OT-I donor mice into CD45.1 Thy1.2 C57BL/6J mice, followed by VACV-OVAss (Fig. 2a). No differences in quantitation of mixed PD-1^+/+ and PD-1^+/+ CD69⁺ OT-I cells were seen at day 10, 21 or 42 after infection (Fig. 2a). However, the number of PD-1^+/+ OT-I cells at day 42 was twice as high when mixed with PD-1^−/− OT-I cells than when mixed with PD-1^+/+ littermate OT-I cells (mean ± s.e.m.: 680 ± 150 cells versus 215 ± 62 cells; Fig. 2a, and data not shown), suggesting a strong selection bias toward PD-1 sufficiency. There was no difference in the number of circulating naive PD-1^+/+ and PD-1^−/− CD69⁻CD103⁻CD8⁺ T cells at days 10 and 21 after infection, with slightly higher numbers of PD-1^+/+ CD69⁻CD103⁻CD8⁺ naive T cells noted at day 42 than PD-1^−/− cells, when the number of circulating T cells in skin was low (Supplementary Fig. 2d). Analysis of fractional differences of PD-1^+/+ or PD-1^−/− OT-I cells in epidermal and dermal T_RM cells and circulating memory and naive CD8⁺ T cells indicated variance in individual mice, as expected during a live viral infection, but no major distribution differences were seen between groups (Supplementary Fig. 2e,f). The numbers of PD-1^−/− circulating total OT-I cells and KLRG1⁻CD62L⁺ T_CM cells were higher than the numbers of PD-1^+/+ counterparts at day 10 after infection in the LNs, but PD-1^−/− OT-I cells underwent rapid contraction to below PD-1^+/+ OT-I cell numbers in the spleen for total OT-I, KLRG1⁻CD62L⁺ T_CM and KLRG1⁻CD62L⁻ T_EM cells by day 42 after infection (Extended Data Fig. 2a–c). Thus, at week 6, we observed higher numbers of PD-1^+/+ OT-I cell-derived KLRG1⁻CD62L⁺CD8⁺ T_CM and KLRG1⁻CD62L⁻CD8⁺ T_EM cells in the LN and spleen (Extended Data Fig. 2a–d).These data suggest that spleen and LN CD8⁺ T_CM cells are also PD-1 dependent, but their formation is impacted much later after infection than skin T_RM cells.

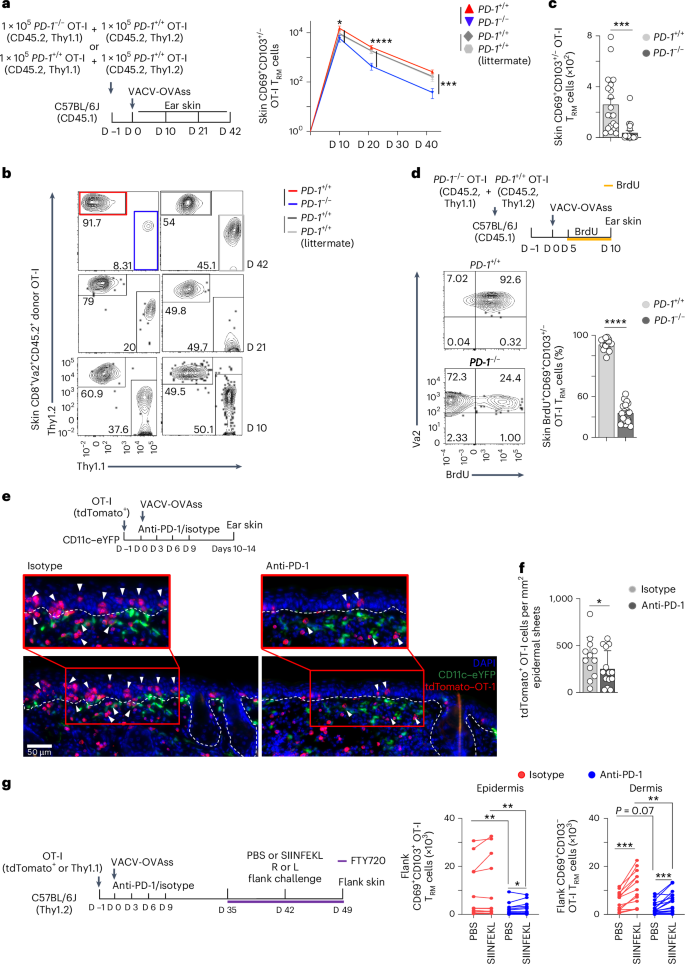

Fig. 2: PD-1 is required for epidermal and dermal TRM cell formation and specifies TRM cell fate. — **Fig. 2: PD-1 is required for epidermal and dermal T_RM cell formation and specifies T_RM cell fate.**

To investigate whether the low number of PD-1^−/− OT-I-derived skin T_RM cells was caused by differences in cell proliferation or death in the draining LNs (dLNs) at days 3, 5 and 7, we mixed PD-1^+/+ and PD-1^−/− OT-I cells and transferred them intravenously into wild-type C57BL/6J mice that were immunized by VACV-OVAss 1 day later and injected intravenously with BrdU at days 0–2, 0–4 or 0–6 after infection. At days 3, 5 and 7 after infection, we assessed BrdU DNA incorporation, which replaces thymidine during S phase and Ki67 staining of G1, S, G2 and M cell cycle stages, to assess cell division and live/dead blue uptake to measure cell death. Ki67 counts were higher than BrdU counts, as it encompassed more cell cycle stages (Extended Data Fig. 3a–c). A ratio of roughly 60% PD-1^−/− to 40% PD-1^+/+ OT-I cells was observed in dLNs at days 3, 5 and 7 after infection, with a small but significant increase in PD-1^−/− OT-I cell numbers on days 5 and 7 (Extended Data Fig. 3a). BrdU incorporation was slightly higher in PD-1^+/+ OT-I cells than in PD-1^−/− OT-I cells at day 3 after infection, and live/dead counts were slightly higher in PD-1^−/− OT-I cells than in PD-1^+/+ OT-I cells at day 7 in the dLNs (Extended Data Fig. 3a–d). However, we did not detect major differences in BrdU uptake, Ki67 staining or live/dead blue staining between PD-1^+/+ and PD-1^−/− OT-I cells in the dLNs at 3, 5 and 7 days after infection (Extended Data Fig. 3b–d).

Next, we tested if tissue engraftment or persistence differences drove the higher number of PD-1^+/+ versus PD-1^−/− OT-I cells observed in the skin at days 10, 21 and 42. Skin PD-1^−/− OT-I T_RM cells showed 75% lower BrdU incorporation than PD-1^+/+ OT-I cells at days 5–10 after infection (91% in PD-1^+/+ OT-I cells versus 23% in PD-1^−/− OT-I cells; Fig. 2d), the window of T_RM cell engraftment and local expansion. To test epidermal occupancy, isolate PD-1 activity during T_RM cell specification and visualize where T_RM cell loss occurred in the absence of PD-1 signaling, we used inhibitory anti-PD-1 and ex vivo imaging. Anti-PD-1 inhibited signaling in cells expressing intermediate, but not high, levels of PD-1, and pharmacologic blockade is less complete than genetic loss²⁸. We transferred 200,000 tdTomato-labeled OT-I cells into CD11c–eYFP mice, in which enhanced yellow fluorescent protein (eYFP) marks dendritic cells (DCs), immunized them by VACV-OVAss 1 day later and injected them intraperitoneally with anti-PD-1 or isotype control at days 0–9 after infection. Cross-sectional skin imaging at days 10–14 after infection indicated loss of tdTomato⁺ OT-I cells near eYFP⁺ DCs in the epidermis and dermis of anti-PD-1-treated mice (Fig. 2e). Epidermal sheets, which allow a robust quantification of epidermal T_RM cells by imaging, showed a 32% drop in mean numbers of epidermal tdTomato⁺ OT-I cells in anti-PD-1-treated mice compared to isotype control-treated mice (Fig. 2f and Supplementary Fig. 2g), indicating that PD-1 promotes the formation of T_RM cells at days 0–9 after infection.

To test the effect of early inhibition of PD-1 on T_RM cell accumulation in skin, we immunized C57BL/6J mice transferred with OT-I cells with VACV-OVAss and administered anti-PD-1 or isotype control by intraperitoneal injection at days 0–9 after infection. Mice treated with anti-PD-1 showed a significant (81%) reduction in the number of epidermal T_RM cells and a 56–57% reduction in the mean number of dermal T_RM cells at week 7 after infection compared to isotype-treated controls (Fig. 2g, Extended Data Fig. 3e and Supplementary Fig. 2h,i). To test if early PD-1 inhibition affected late T_RM cell recall, we treated both groups with the S1P-modifying drug fingolimod (FTY720)²³, which leads to S1PR1 internalization and blocks T cell circulation, starting at week 5 after infection. One week after FTY720 initiation, the right and left flanks were shaved and treated with PBS (left) or SIINFEKL (right) to induce skin T_RM cell activation. Based on flow cytometry analysis, SIINFEKL treatment drove an increase in dermal, but not epidermal, T_RM cells in all groups 1 week after SIINFEKL recall (Fig. 2g). Fewer total dermal T_RM cells expanded 1 week post-SIINFEKL versus PBS challenge on the flank of mice that had received anti-PD-1 than isotype antibody during formation (Fig. 2g). However, the relative SIINFEKL-induced expansion of dermal OT-I T_RM cells was equivalent in isotype- and anti-PD-1-treated groups at day 49 (96% versus 90% expansion, respectively; Fig. 2g). Thus, PD-1 blockade during days 0–9 after infection drove a reduction in the number of T_RM cells at day 49 in PBS-challenged (81% reduction in epidermal T_RM cells and 56% reduction in dermal T_RM cells; Fig. 2g) and SIINFEKL-challenged (81% reduction in epidermal T_RM cells and 57% reduction in dermal T_RM cells; Fig. 2g) flank skin. However, the recall potential of skin OT-I T_RM cells remained intact (90% versus 96% expansion). Likely due to drainage from skin, KLRG1⁻CD62L⁺ OT-I T_CM cells from SIINFEKL dLNs showed a minor recall expansion (Extended Data Fig. 3e), suggesting that antigen recall is largely restricted to skin. Collectively, genetic and pharmacologic data indicate a role for PD-1 signaling in promoting the formation of peripheral skin CD8⁺ T_RM cells.

PD-1 promotes CD8⁺ T_RM cell skin-specific programming

Next, we adoptively transferred a mix of 100,000 PD-1^+/+ and PD-1^−/− OT-1 cells derived from littermates into C57BL/6J mice and used RNA sequencing (RNA-seq) to assess the transcriptomes of PD-1^+/+ and PD-1^−/− CD69⁺CD103^+/- OT-I cells sorted from the skin of recipient mice at day 14 after infection with VACV-OVAss (Fig. 3a, Extended Data Fig. 4a and Supplementary Fig. 3a,b). Differential gene expression analysis (false discovery rate (FDR) = 0.05, | log (fold change) | ≥ 1.5) revealed enrichment of extracellular matrix (ECM)-related transcripts (Col4a1, Col1a1 and Vwf) in PD-1^+/+ OT-I T cells (Fig. 3a). The skin T_RM cell ECM signature enrichment was also detected in other HSV- and VACV-generated skin T_RM cell transcriptomes (Extended Data Fig. 4b,c). PD-1^−/− T cells expressed higher levels of pyrogens (IL1b and Mefv (encoding pyrin)), apoptosis-related proteases (Casp3 and Casp4), actin and cytoskeletal binding proteins (Acta2, Tagln and Vcl), ECM degradation (Ecm1) and urokinase plasminogen activator (Plaur) transcripts than PD-1^+/+ (Fig. 3a and Supplementary Tables 1 and 2). PD-1^−/− OT-I cells showed higher expression of Tox, which is associated with terminal differentiation, interleukin-15 (IL-15)-resistant programming and exhaustion^29,30 (Fig. 3a), suggesting that PD-1 expression may enforce stemness^31,32.

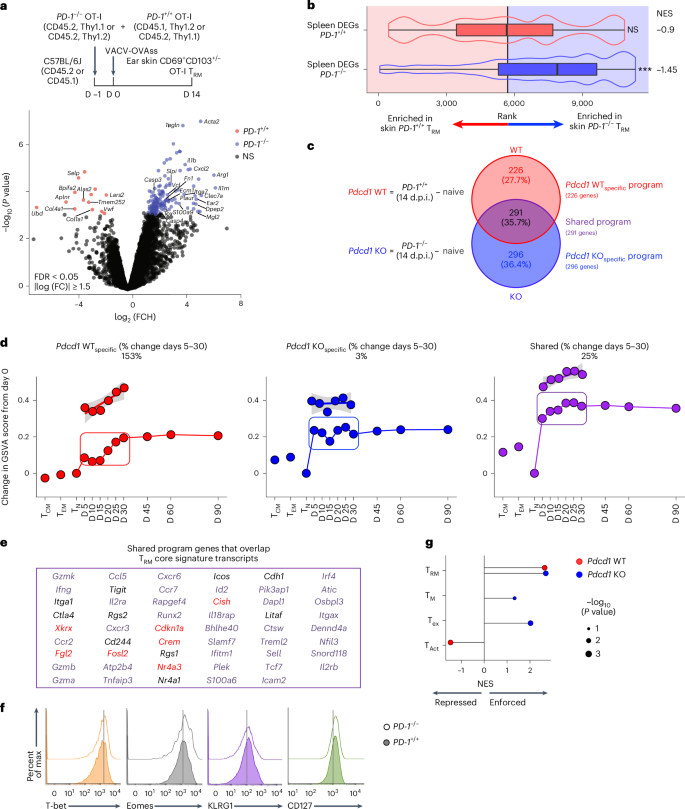

Fig. 3: PD-1-dependent programming is skin specific and highly enforced during skin TRM cell formation. — **Fig. 3: PD-1-dependent programming is skin specific and highly enforced during skin T_RM cell formation.**

To test whether the PD-1-dependent programs were skin specific, we compared differentially expressed genes (DEGs) between skin PD-1^+/+ OT-I cells and PD-1^−/− CD69⁺CD103^+/− T_RM cells to DEGs from spleen PD-1^+/+ versus PD-1^−/− CD8⁺CD44^hiCD62L^hi T_CM cells obtained from published datasets (E-MTAB-1569)³³. The transcriptional signature of skin PD-1^+/+ OT-I cells did not associate with that of spleen PD-1^+/+ DEGs (Fig. 3b). By contrast, skin PD-1^−/− OT-I transcripts were enriched for DEGs also found in spleen PD-1^−/− T cells, with 53% shared genes (Fig. 3b and Extended Data Fig. 4d). These data suggest that PD-1-enforced transcripts are likely skin specific. To define how PD-1 influences early T_RM cell specification, we subtracted naive OT-I transcripts to yield Pdcd1-wild-type (Pdcd1-WT; day 14 PD-1^+/+ minus naive OT-I) or Pdcd1-knockout (Pdcd1-KO) programs (day 14 PD-1^−/− minus naive OT-I; Fig. 3c). We compared unique and shared transcripts in each program by Venn overlap (Fig. 3c). This analysis yielded a PD-1-dependent, 226-transcript program specific to PD-1^+/+ OT-1 cells, which we refer to hereafter as Pdcd1 WT_specific (Fig. 3c, Supplementary Fig. 3c and Supplementary Tables 3 and 4), 296 transcripts that were specific to PD-1^−/− OT-I cells, which we refer to hereafter as Pdcd1 KO_specific (Fig. 3c, Supplementary Fig. 3d and Supplementary Tables 5 and 6), and 291 transcripts that were expressed in both PD-1^+/+ and PD-1^−/− OT-I cells (hereafter ‘shared’; Fig. 3c). We tested whether these signatures were expressed during OT-I skin T_RM cell differentiation during days 0–90 after infection with VACV-OVA using a public dataset (GSE79805)³⁴. Expression of the Pdcd1 WT_specific program increased 153% between days 5 and 30 of skin T_RM cell development (Fig. 3d), suggesting that PD-1-enforced transcripts are highly expressed during skin T_RM cell specification. Expression of the Pdcd1 KO_specific program increased slightly (3%) between days 0 and 5, but not further (Fig. 3d), whereas expression of shared genes increased 25% between days 5 and 30 of T_RM cell development (Fig. 3d). Shared transcripts overlapped with core T_RM cell genes, including G-protein-coupled receptors (GPCRs) Cxcr3 and Cxcr6, and type 1 helper T cell-programming genes (Gzmb, Gzmk and Ifng; Fig. 3e and Supplementary Fig. 3e,f¹⁶). Skin PD-1^+/+ and PD-1^−/− T_RM cells expressed 53 of 121 transcripts, respectively, that were shared by T_RM cells isolated from multiple tissues (Fig. 3e and Supplementary Fig. 3e,f¹⁶). Shared transcripts included transcripts specific to T_RM cells (compared to transcripts from naive T cells and T_CM cells), such as immune checkpoint (Tigit, Ctla4, 2b4 (CD244), Icos (CD278)) and integrin (Itga1 (CD49a)) transcripts, and transcripts distinct from exhaustion, activation and circulating memory cells, such as Nr4a3, Fgl2, Crem, p21/Cdkn1A, Fosl2 and Cish (Fig. 3e). Collectively, these data suggest that PD-1 signaling enforces unique skin-specific programs and that skin PD-1^−/− OT-I T_RM cells retain a sizeable fraction of T_RM cell core program transcripts.

PD-1 modulates terminal CD8⁺ T_eff cell differentiation²⁶, preventing terminal differentiation after immediate antigen re-encounter³⁵. Therefore, we tested whether PD-1 promotes longevity for T_RM cells and exhausted T (T_ex) cells during antigen re-encounter. We detected increased protein expression of the transcription factors T-bet and eomesodermin in LN and spleen PD-1^−/− OT-I cells compared to PD-1^+/+ OT-I cells at day 10 after infection (Extended Data Fig. 4e), consistent with differentiation toward CD8⁺ T_eff cells. However, we did not detect differences in the expression of T-bet, eomesodermin, CD8⁺ T_eff cell-specific KLRG1 or memory-specific CD127 in skin PD-1^−/− versus PD-1^+/+ OT-I cells at day 10 after infection (Fig. 3f and Extended Data Fig. 4e).

To better define how PD-1 signaling impacts T_RM cell lineage commitment, we compared PD-1-dependent and PD-1-independent programs to state-specific signatures from early and late activated CD8⁺ T_eff cells, CD8⁺ T memory (T_M) cells, CD8⁺ T_ex cells and CD8⁺ T_RM cells^16,25,36,37. Shared, PD-1-independent programs most highly overlapped with T_RM cell signatures (Fig. 3g), suggesting that loss of PD-1 did not abrogate T_RM cell specification, whereas Pdcd1 KO_specific programs included transcripts from other T cell differentiation states, which were not present in the Pdcd1 WT_specific programs from PD-1-sufficient skin T_RM cells (Fisher exact test P ≤ 0.05; Fig. 3g and Extended Data Fig. 4f,g). These data suggest that PD-1 signaling both reinforces the skin T_RM cell transcriptional program and represses transcripts associated with other CD8⁺ T cell activation or differentiation states.

PD-1-deficient T cells have impaired TGFβ responsivity

To identify upstream programmatic drivers of PD-1-dependent and PD-1-independent signatures, we performed pathway analysis on Pdcd1 WT_specific, shared and Pdcd1 KO_specific signatures (Fig. 4a). The PD-1-independent shared program included cytokine, chemokine and GPCR signaling (Fig. 4a), consistent with the importance of pertussis-sensitive GPCRs in early T_RM cell formation³⁸. Some Pdcd1 KO_specific pathways (for example, TCR, CD28 co-stimulation and fatty acid metabolism; Fig. 4a) were consistent with known PD-1-dependent pathways¹³. Pdcd1 KO_specific programs also included loss of SMAD2/SMAD3 signaling (Fig. 4a), suggesting deficient upstream TGFβ signaling. In parallel, Pdcd1 WT_specific PD-1-enforced pathways included integrins and ECM (Fig. 4a), which typify a TGFβ signature because ECM sequesters TGFβ³⁹ through small ECM-abundant proteoglycans. Pdcd1 WT_specific pathways included early cell cycle pathways (mitotic G1–G1/S phases; Fig. 4a).

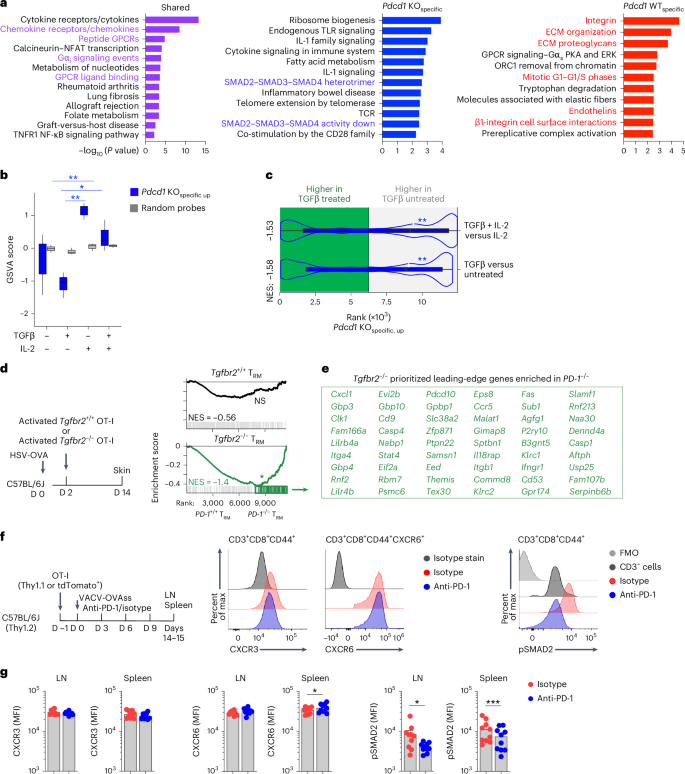

Fig. 4: Pdcd1-KO-specific loss of TGFβ pathway programs. — **Fig. 4: *Pdcd1-*KO-specific loss of TGFβ pathway programs.**

TGFβ is a T_RM cell differentiation cue^25,27,40,41 that preconditions naive T cells to form T_RM cells⁴², increase CD103 expression^25,40 and remain in the epidermis⁴³. To examine if PD-1 promotes TGFβ signaling, we scored Pdcd1 WT_specific, shared and Pdcd1 KO_specific against those from HSV-specific CD8⁺ gBT splenocytes activated in vitro with IL-2, TGFβ or both (GSE125471 (ref. ⁴⁴)). CD8⁺ T cells activated with IL-2 alone induced upregulation of the expression of transcripts from the Pdcd1 KO_specific program (Pdcd1 KO_{specific up}; Fig. 4b), whereas those activated with TGFβ alone dampened the expression of Pdcd1 KO_{specific up} transcripts (Fig. 4c), suggesting that Pdcd1 KO_specific programs might reflect T cell activation and IL-2-induced transcripts opposed by TGFβ. HSV-specific gBT CD8⁺ T cells activated with TGFβ and IL-2 induced the PD-1-independent, upregulated transcripts from the shared program (shared_up) individually or synergistically (Extended Data Fig. 5a). PD-1-dependent upregulated transcripts from the WT_specific program (WT_{specific up}) transcripts were induced only by TGFβ + IL-2 (Extended Data Fig. 5a), suggesting that PD-1 supported their synergy.

Next, we performed comparative genomic analysis between skin PD-1^+/+ and PD-1^−/− CD69⁺CD103^+/− OT-I T_RM cells isolated at day 14 after infection with VACV-OVAss and a publicly available dataset (GSE178769)⁴⁵ of skin Tgfbr2^+/+ or Tgfbr2^−/− T_RM cells, which expressed or lacked expression of the TGFβ receptor 2 (TGFβR2), isolated at day 14 after infection with HSV modified to express OVA (HSV-OVA; Fig. 4d and Supplementary Table 7). Genes enriched in skin PD-1^−/− OT-I T_RM cells compared to skin PD-1^+/+ OT-I T_RM cells, which were highly enriched for transcripts from Tgfbr2^−/− T_RM cells (Fig. 4d,e). A high proportion (96 of 297, 32%) of Tgfbr2^−/− leading-edge genes drove enrichment of PD-1^−/− programs (Fig. 4d,e). These data suggest that PD-1^−/− OT-I cells lack sensitivity to TGFβ and express transcripts detected in T cells activated in vitro without TGFβ or in T_RM cells induced in vivo without TGFβR2.

To validate these transcriptome observations, we assessed the protein expression of PD-1-independent (CXCR3, CXCR6) or dependent (PSMAD2/PSMAD3 pathway) transcripts in OT-I cells isolated at days 14–15 after infection from the spleens and LNs of mice infected with VACVss and treated with anti-PD-1 or isotype control at days 14–15 after infection. CXCR3 and CXCR6 protein expression in dLN or spleen OT-I cells was equivalent in anti-PD-1-treated or isotype control-treated mice (Fig. 4f,g), although expression of pSMAD2 in LN and spleen OT-I cells was lower in anti-PD-1-treated mice than in isotype-treated mice (Fig. 4f,g). These data suggest lower TGFβ signaling in anti-PD-1-treated T cells and that PD-1 sensitizes T cells to TGFβ utilization.

TGFβ signaling compensates for anti-PD-1-induced loss of T_RM cells

To test whether TGFβ signaling compensates for anti-PD-1-driven T_RM cell loss, we assessed T_RM cell formation in anti-PD-1- or isotype-treated mice with or without TGFβ addition. Anti-PD-1 treatment between days 0 and 9 after infection with VACVss drove a 32% reduction in the number of skin CD8⁺ T_RM cells compared to isotype control treatment (Fig. 5a), which impacted both epidermal and dermal CD8⁺ T_RM cells, without loss of OT-I cells in the LN or spleen (Extended Data Fig. 6a and Supplementary Fig. 4a). Anti-PD-1 treatment between days 6 and 12 after infection did not reduce skin CD8⁺ T_RM cell numbers compared to isotype control-treated mice (Extended Data Fig. 6b), indicating that T_RM cell dependency on PD-1 signaling likely occurs between days 0 and 6 after infection. Skin OT-I cells in anti-PD-1-treated, but not isotype-treated, mice exhibited lower PD-1 labeling (Extended Data Fig. 6c), suggesting that anti-PD-1 directly targets skin CD8⁺ T cells. There was no difference in the expression of TGFβR1 and TGFβR2 on skin OT-I T_RM cells between anti-PD-1- and isotype-treated mice (Extended Data Fig. 6c), indicating that TGFβR expression did not account for the differences in T_RM cell formation in anti-PD-1-treated mice.

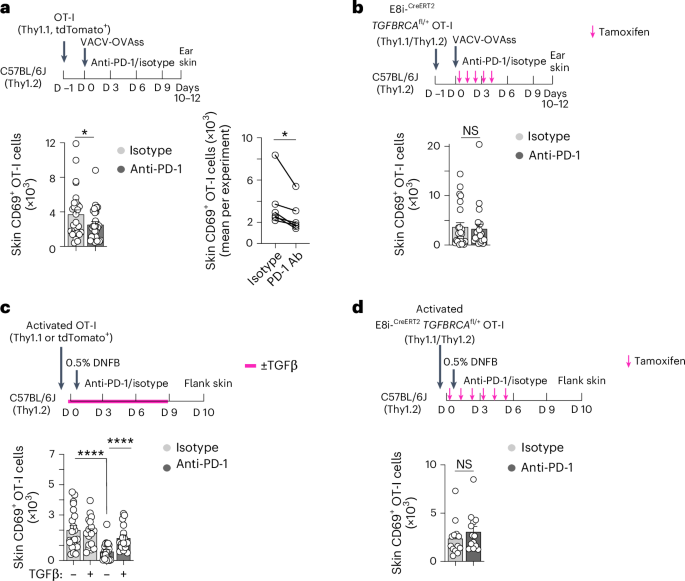

Fig. 5: Constitutive TGFβR signaling rescues the anti-PD-1-dependent inhibition of TRM cell formation and engraftment in a cell-autonomous manner. — **Fig. 5: Constitutive TGFβR signaling rescues the anti-PD-1-dependent inhibition of T_RM cell formation and engraftment in a cell-autonomous manner.**

In the experimental setting in which we transferred OT-I cells that expressed a tamoxifen-inducible constitutively active form of TGFβR1 (ref. ⁴³) into C57BL/6J mice, immunized with VACV-OVAss 1 day later and administered tamoxifen for the first 5 days after infection and anti-PD-1 or isotype control between days 0 and 9 after infection, we no longer observed a specification defect in dermal and epidermal T_RM cells in the anti-PD-1-treated mice at days 10–12 (Fig. 5b and Supplementary Fig. 4b). These data suggest that constitutive, T cell-intrinsic TGFβ receptor signaling largely rescued or compensated the anti-PD-1 effect on early T_RM cell formation. No differences were seen in the number of LN or spleen OT-I cells, despite evidence of anti-PD-1 targeting to these populations by a decrease in cell-surface staining (Extended Data Fig. 6d,e). There was a significant difference between the anti-PD-1 effect on T_RM cell numbers without (Fig. 5a) or with (Fig. 5b) enforced TGFβR1 activity (P < 0.05).

TGFβ is required for skin T_RM cell engraftment^25,40, and absence of TGFβ drives the loss of epidermal T_RM cell retention^34,40,41,43. To assess whether early PD-1 effects on T_RM cell formation were due to differences in TGFβ utilization that could shape T_RM cell engraftment or retention and the specific effect of PD-1 on T_RM cell engraftment, we used a ‘prime and pull’ assay, in which T cells are primed in vitro and then ‘pulled’ into inflamed skin in vivo to generate T_RM cells (based on the observation that although local cognate antigen re-encounter by T cells facilitates optimal CD8⁺ T_RM cell development, nonspecific tissue inflammation is sufficient for T_RM cell engraftment^46,47). OT-I cells were activated in vitro with cognate SIINFEKL peptide and IL-2 for 5 days and transferred intravenously into C57BL/6J mice treated topically on the flank on day 0 after transfer with the chemical hapten 2,4-dinitrofluorobenzene (DNFB⁴⁶; Fig. 5c and Supplementary Fig. 5a,b). Mice were administered either anti-PD-1 or isotype control by intraperitoneal injection every 3 days between days 0 and 9 after transfer. Anti-PD-1-treated mice showed a 71% reduction in the accumulation of epidermal and dermal OT-I cell engraftment in inflamed skin relative to isotype control-treated mice at day 10 after transfer (Fig. 5c and Supplementary Fig. 5c), suggesting heightened anti-PD-1 effects during the engraftment period. Live/dead blue uptake and LN KLRG1⁻CD62L⁺ T_CM cell numbers were similar between anti-PD-1- and isotype control-treated mice (Extended Data Fig. 7a,b). A minor reduction in spleen KLRG1⁻CD62L⁺ T_CM cells and KLRG1⁻CD62L⁻ T_EM cells was observed in the anti-PD-1-treated mice (Extended Data Fig. 7a,b). Systemic administration of recombinant TGFβ1 between days 0 and 9 after transfer almost entirely rescued the reduction in epidermal and dermal T_RM cell engraftment but not spleen T_CM and T_EM cell numbers (Fig. 5c, Extended Data Fig. 7b and Supplementary Fig. 5c), suggesting a skin-specific effect for TGFβ. When OT-I cells that expressed a tamoxifen-inducible constitutively active TGFβR1 (refs. ^27,43) were transferred into C57BL/6J recipients, followed by tamoxifen treatment between days 0 and 5 after transfer to induce the expression of the constitutively active TGFβR1, the number of T_RM cells in anti-PD-1-treated mice at day 10 was similar to isotype control-treated mice (Fig. 5d, Extended Data Fig. 7c and Supplementary Fig. 5d). These data indicate that anti-PD-1 disrupted a signal critical to T_RM cell engraftment, whereas TGFβ1 or T cell-intrinsic constitutive TGFβR1 activity restored this signal. Collectively, these data reveal an unappreciated role for PD-1 in promoting early T_RM cell competitive niche formation by promoting engraftment and response to TGFβ (Extended Data Fig. 7d).

Discussion

Here, we showed that PD-1 signaling governs early T_RM cell specification. PD-1 promotes early CD8⁺ T cell memory by incorporating local cues, like TGFβ, favoring T_RM cell niche engraftment and limiting cell promiscuity toward other fates.

Given the global impact of PD-1 signaling on all memory T cells, these events may take place at the level of a common memory progenitor. However, PD-1-dependent sensitization to TGFβ may render T_RM cells particularly susceptible to failed retention in skin because T_RM cells use TGFβ to engraft in epithelial tissues and form a niche⁴⁵. PD-1-enforced ECM and GPCR pathways are known to support T_RM cell competitive fitness (for example, engraftment, adhesion and residency) when competing for tissue niche occupancy⁴⁸. TGFβ utilization impacts T_RM cell formation in a site-specific manner⁴⁵. PD-1-enforced utilization of TGFβ may promote T_RM cell formation in TGFβ-rich epithelial sites such as the skin and lungs, where anti-PD-1 treatment-induced irAEs occur frequently and where we observed human CD8⁺ T_RM cells expressing PD-1. Therefore, PD-1 signaling may favor site-specific T_RM cell formation by using TGFβ and may help control metastatic spread but could also make T_RM cells vulnerable to anti-PD-1 toxicity at these TGFβ-rich sites. Therapeutic approaches to optimize TGFβ activation and transient PD-1 agonism may improve T_RM cell specification in tissues and tumors alike. Maintaining PD-1 expression after T_RM cell formation may prevent T_RM cell-driven autoreactivity in tissues by regulating the threshold for local recall across different barrier tissues. These effects remain to be tested. The observation that PD-1 signaling might oppose IL-2 signaling also requires further investigation.

To protect the barrier tissues, high-affinity T_RM cells must remain permissive to rapid, sensitive antigen-driven recall. Although T_RM cells cooperate with circulating memory T cells, T_RM cells are sufficient to independently mediate protective recall^10,49,50. T_RM cell recall-triggered pathogen alarm leads to interferon-γ-dependent recruitment of circulating memory T cells and innate natural killer (NK) cell amplification of immune responses^51,52. One limitation of our study is that we did not directly test the clearance of recall VACV after anti-PD-1-impaired T_RM cell formation. However, the number of T_RM cells has been shown extensively to directly correlate with their recall capacity (for example, viral clearance after rechallenge^{5,46,51,53,54} or tumor protection⁵⁵). Inhibitory anti-PD-1 reduced the number of T_RM cells in the skin and lowered the absolute number of T_RM cells before peptide stimulation, resulting in lower numbers of expanded T_RM cells after recall. Future work will interrogate how PD-1 blockade during T_RM cell formation impacts viral clearance or autoinflammatory disease induction. Also, the cellular partners that express PD-L1 or PD-L2 during the various stages of the T_RM cell life cycle remain to be determined.

Ctla4^−/− mice show lymphoproliferation accompanied by tissue immune cell infiltration and death due to organ failure at 2–3 weeks of age^56,57. Autoinflammation in PD-1^−/− mice is less severe, often requiring a trigger⁵⁷. Less severe abnormalities in the differentiation trajectory of T_eff cells were observed in PD-1^−/− cells than in Ctla4^−/− T cells⁵⁸. PD-1 signaling may instead balance peripheral and central memory. Notably, early T_RM cell selection by PD-1 signaling contrasts the inhibition of CD8⁺ T_CM cells by PD-1, which may shape the early distribution of CD8⁺ T_RM and T_M cells across tissue compartments and favor T_RM cell formation and seeding when local site-specific antigen is encountered. Future work is needed to distinguish PD-1 effects on T_RM cell formation from PD-1 effects during T_RM cell maintenance and recall. This distinction may provide mechanistic insights into T cell repertoire selection, memory formation, protection, antitumoral immunity and recall and pathways regulating autoinflammation and irAE in tissues.

Methods

Mice, cell lines, virus preparation and mass cytometry

All mice were bred and/or housed in a specific pathogen-free facility at Harvard University and Weill Cornell Medicine. The Harvard University Animal Care and Use Committee and Weill Cornell Medicine Institutional Animal Care and Use Committee approved all protocols. C57BL/6 mice and CD45.1 mice were purchased from Jackson or Taconic Labs, whereas Cd274/Pdcd1lg2^−/− (PD-L1/PD-L2^−/−) mice and PD-1^−/− OT-I mice were generously provided by the laboratory of A. Sharpe (Harvard University). Mice used to generate the TGFβ loss dataset (C57BL/6, OT-I.CD45.1 and OT-I.Tgfbr2^fl/fl.dLck-cre.CD45.1 (OT-I Tgfbr2^−/−)) were bred in the University of Melbourne, Department of Microbiology and Immunology. E8i-CreERT2 Tgfbrca^fl/fl Thy1.1/Thy1.2 OT-I mice were bred at the University of Pittsburgh. Freshly isolated LNs and spleens were provided by the laboratory of D. H. Kaplan on behalf of D. Vignali (University of Pittsburgh School of Medicine) and L. Bartholin (INSERM, Lyon), who generated this strain^59,60,61 in some experiments or were generated locally after receipt of this line. Female mice were used at 6–12 weeks of age. All animal experiments were approved by The University of Melbourne Animal Ethics Committee. Sex- and age-matched mice between 6 and 12 weeks of age were used. B16-OVA cells were received from C. Drake (Columbia University) and A. Sharpe (Harvard University) and were grown in DMEM (Gibco) with 10% fetal calf serum (Gibco) and penicillin/streptomycin (Gibco) for no more than two passages before intradermal implantation. VACV-OVA was generously provided by J. Yewdell (National Institutes of Health) and was expanded and titered by standard protocols⁶². Mass cytometry of human skin and blood from donors was performed as previously described²².

Flow cytometric staining and antibodies

All flow cytometric staining was performed on ice as previously described⁶³. Cells were stained using a Live/Dead dye in PBS, followed by extracellular staining in PBS containing 2% fetal calf serum (FACS Buffer) at 4 °C and subsequent fixation/permeabilization before staining for intracellular proteins. The following mouse antibodies were obtained from BD, eBioscience or Biolegend: CD3 (eBio500A2, 17A2), CD4 (RM4-5), CD8 (53-6.7), CD45 (30-F11), CD45.1 (A20), CD45.2 (104), Thy1.1 (HIS51), Thy1.2 (53-2.1, 30-H12), Va2 (B20.1), Vb5 (MR9-4), CD69 (H1.2F3), CD103 (2E7), KLRG1 (2F1), CD44 (IM7), CD62L (MEL-14), CD127 (A7R34), PD-1 (29F.1A12, RMP1-30), PD-L1 (10F.9G2), PD-L2 (TY25), IA/IE (M5/114.15.2), CD11c (N418), langerin (4C7), CD11b (M1/70), T-bet (4B10), Eomes (Dan11mag), TGFβR1 and TGFβR2 (R&D Systems) and Ki67 (16A8). BrdU staining was performed using an APC BrdU flow kit according to manufacturer’s instructions (BD Pharmingen). For pSMAD2 staining, cells were first intranuclearly stained with anti-pSMAD2 (Cell Signaling Technology, E8F3R) and then stained with anti-rabbit IgG (Biolegend, Poly4064).

The following human antibodies were obtained from BD, eBioscience or BioLegend: CD3 (UCHT1, SK7, OKT3), CD8 (SK1), CD45 (HI30), CD69 (FN50), CD103 (B-Ly7), HLA-DR (L243), PD-1 (EH12.2H7), TIM3 (F38-2E2), BDCA1 (L161), BDCA3 (AD5), CD20 (2H7), CD66b (G10F5), CD56 (HCD56), CD11c (Bly6), CD14 (RM052), PD-L1 (29E.2A3), TIM3 (F38-2E2), CD45RO (UCHL1), GRZB (GB11, intracellular staining) and CD127 (A019D5).

HSV-generated T_RM cell single-cell suspensions were stained with fluorescently conjugated anti-CD45.1 (A20), anti-CD45.2 (104) or anti-Vα2 (B20.1) from BD Bioscience and anti-CD3ε (145-2C11) from Biolegend at 4 °C for 60 min in PBS containing 0.5% fetal calf serum and 0.05 M EDTA.

Skin scarification

In experiments using VACV-OVA, age- and sex-matched control and experimental mice were taken, and skin scarification was performed. Briefly, for all priming and maintenance experiments (unless specifically stated), 1 × 10⁶ viral p.f.u. was applied to each ear and 2 × 10⁶ viral p.f.u. was applied to the tail before scarification with a 25-gauge needle. In tumor protection experiments, 2 × 10⁶ viral p.f.u. was applied to the tail before scarification.

Mouse tissue digestion

Isolation of single-cell suspensions from mouse skin was previously described⁶⁴. Briefly, ear skin was cut into small pieces and incubated in RPMI 1640 medium/HBSS (Invitrogen) containing 5% fetal bovine serum (Gibco), 10 mM HEPES (Gibco), 2.5 mg ml⁻¹ collagenase IV/collagenase D (Roche) and 1 mg ml⁻¹ DNase I (Roche) for 90 min at 37 °C. Digested skin was passed through a 70-μm cell strainer (BD), and the remaining skin pieces were further mechanically disrupted using a 3-ml syringe plunger accompanied by continuous washing with RPMI/HBSS^−/− to generate a single-cell suspension. Mouse flank skin was isolated by initially shaving with electric clippers and cutting an ~2 × 2 cm portion of the back skin, whereas the tail skin was removed by peeling the skin off the tail bone using forceps in one continuous motion. Flank or tail skin was cut into small pieces and incubated in 3 ml of digestion cocktail containing 2.5 mg ml⁻¹ collagenase XI (Sigma), 0.5 mg ml⁻¹ hyaluronidase (Sigma) and 0.1 mg ml⁻¹ DNase I in C10 medium (RPMI 1640 supplemented with 10% fetal bovine serum (Gibco), 1 mM sodium pyruvate, 1% HEPES and 1× nonessential amino acids). Skin pieces were digested for 90 min at 37 °C in a shaker at 255 rpm. Twenty milliliters of supplemented RPM1 1640 (or C10 medium) was further added to the digested skin solution and vortexed for 15 s. Digested skin was then passed through a 70-μm cell strainer (BD), and the remaining flank or tail skin pieces were further mechanically disrupted using a 3-ml syringe plunger along with continuous washing with RPMI/HBSS^−/− to generate single-cell suspensions.

Adoptive transfer and T_RM cell formation

For adoptive transfer experiments comparing PD-1^+/+ and PD-1^−/− T cells, naive congenically marked Thy1.1⁺/Thy1.2⁺ PD-1^+/+ or PD-1^−/− CD8⁺ OT-I T cells were isolated using a magnetic bead negative selection kit following the manufacturer’s protocol (Miltenyi). To test PD-1 expression in T_RM versus T_CM and T_EM cells, OT-I Rag1^−/− T cells were used for adoptive transfer from mice bred in-house. To ensure that the expression of PD-1 was not related to the use of Rag1^−/− mice, Thy1.2⁺ OT-I T cells isolated from C57BL/6J mice were also used for adoptive transfer to Thy1.1⁺ recipients, followed by VACV-OVA skin scarification the next day. PD-1 expression was checked at different time points in T_RM versus T_CM and T_EM cells. To test the role of WT or PD-1^−/− T cells in T_RM versus T_CM and T_EM cell formation, PD-1^+/+ OT-I Thy1.2⁺ T cells were isolated from mice purchased from Jackson Laboratories, whereas PD-1^−/− OT-I T cells with Thy1.1 congenic markers were isolated from mice bred in-house. For all adoptive transfer experiments with a single donor, 2 × 10⁵ OT-I T cells were transferred by intravenous injection on day −1. Recipient mice were vaccinated by VACV-OVAss on each ear with 1 × 10⁶ viral p.f.u. and on the base of the tail with 2 × 10⁶ viral p.f.u. on day 0. For all mixing experiments, 1 × 10⁵ PD-1^+/+ C57BL/6J OT-I T cells were mixed with 1 × 10⁵ PD-1^−/− OT-I or 1 × 10⁵ PD-1^+/+ OT-I T cells from littermates (to control for genetic mismatch) and were coadoptively transferred to C57BL/6J recipients, followed by VACV-OVAss on day 0. At day 10, 3 weeks, and 6 weeks postinfection, T cells were isolated from the skin, LNs and spleen, and quantitation was performed. T_RM cells were classified based on the expression of CD69⁺ and CD103^+/−, whereas T_CM and T_EM cells were identified in LNs and spleen based on the expression of CD44⁺/CD127⁺ and CD62L⁺ or CD62L⁻, respectively. In some mixed transfer experiments, controls receiving PD-1^+/+ C57BL/6J OT-I cells were mixed 1:1 with PD-1^+/+ OT-I⁺ littermates to PD-1^−/− siblings, and T_CM and T_EM cells were also identified by KLRG1⁻CD62L⁺ and KLRG1⁻CD62L⁻ gating, respectively. BrdU studies were performed by injecting BrdU intraperitoneally into experimental mice between days 5 and 10 after VACV-OVA infection as a measure of proliferation.

For experiments in which anti-PD-1 was administered during early T_RM cell formation, 2 × 10⁵ OT-I T cells from either PD-1^+/+ OT-I or PD-1^+/+ OT-I E8i-CreERT2 Tgfbrca^fl/+ Thy1.1⁺/Thy1.2⁺ mice were adoptively transferred to recipient mice on day −1. VACV-OVAss was administered on the ear and tail on day 0, and anti-PD-1 was administered intraperitoneally on days 0, 3, 6 and 9. Transferred OT-I cells were quantitated between days 10 and 12. Mice receiving E8i-CreERT2 Tgfbrca^fl/+ OT-I cells were treated with tamoxifen on days 0, 1, 2, 3 and 4 for tamoxifen-induced Cre expression of Tgfbrca^fl/+(constitutively active TGFβR1). T_RM cells were classified based on the expression of CD69⁺ and CD103^+/−. Total CD8⁺ T cells were gated for LNs and spleen.

Tamoxifen treatment

Tamoxifen (T5648, Sigma-Aldrich) was dissolved in corn oil (Sigma-Aldrich) at a final concentration of 10 mg ml⁻¹ by shaking overnight at 37 °C and then stored at −20 °C. Mice were administered tamoxifen for five to six consecutive days starting on day 0 by intraperitoneal injection at 0.05 mg per g (body weight).

Vaccinia viral load determination by quantitative PCR

To evaluate vaccinia viral load, the tails of mice that received PD-1^+/+ or PD-1^−/− OT-I⁺ T cells on day −1 and were immunized on the ear and tail at day 0 with 4 × 10⁶ p.f.u. VACV-OVA were isolated at the time points indicated. Briefly, DNA was purified from the tail using a DNeasy Mini kit (Qiagen) according to the manufacturer’s instructions. Taqman probe and primers used in the assay are specific for the ribonucleotide reductase Vvl4L of vaccinia virus. Forward and reverse primers with the sequences 5′-GACACTCTGGCAGCCGAAAT-3′ and 5′-CTGGCGGCTAGAATGGCATA-3′ were synthesized by Invitrogen, while a Taqman probe with sequence 5′-AGCAGCCACTTGTACTACACAACATCCGGA-3′, 5′-labeled FAM and 3′-labeled TAMRA was synthesized by Applied Biosystems. PCR amplification was performed in a 20-μl volume containing 2× TaqMan Master Mix, 500 nM forward and reverse primer, 750 nM probe and template DNA using a StepOnePlus Real-Time PCR System (Applied Biosystems). Thermal cycling conditions were 50 °C for 2 min (UNG activation) and 95 °C for 10 min (AmpliTaq Gold Activation), followed by 45 cycles of PCR amplification at 95 °C for 15 s and 60 °C for 1 min. Viral load was calculated from a standard curve plotted using DNA from known viral stock p.f.u. PCR-based limits of viral DNA detection were identified as 10¹ copies per ng of viral DNA using a standard curve generated from viral dilution (p.f.u. per μl) on CV-1 cells.

Immunofluorescence and image processing

Skin tissues were obtained from recipient reporter mice expressing CD11c–eYFP⁶⁵ that received adoptive transfer of tdTomato⁺ OT-I cells 1 day before VACV-OVAss. These mice were also treated with isotype control or anti-PD-1 by intraperitoneal injection on the day of VACV-OVAss (day 0) and 3, 6 and 9 days after infection. Ear skin was isolated at day 11 and fixed in fresh 4% paraformaldehyde in PBS for 1 h at 4 °C. Tissues were then washed with PBS three times and incubated in 30% sucrose overnight at 4 °C, followed by subsequent washing with PBS the next day. Embedding of the tissue was performed in OCT (Tissue Tek) and frozen at −80 °C for long-term storage. OCT blocks were cryosectioned (10 μm), and sections were additionally stained with DAPI (Sigma) for nuclei visualization before using mounting medium to mount the slides. Images were acquired with a Zeiss Axioplan2 using a Plan-Apochromat ×20/0.8-NA air objective, and data were analyzed using Fiji (ImageJ) software.

Epidermal sheet and immunostaining

The dorsal and ventral halves of the ear were physically separated. Tissues were incubated in dispase (5 U ml⁻¹, STEMCELL Technologies) for 60 min at 37 °C, allowing the epidermis to be physically separated from the dermis. After separation, the epidermal sheets were washed twice in PBS, fixed for 60 min in 4% paraformaldehyde at room temperature and washed twice in PBS before mounting. Epidermal sheets were mounted in Fluoromount Mounting Medium (Southern Biotech). Images were acquired with a Leica Stellaris confocal microscope using a Plan-Apochromat ×20/0.75-NA CS2 air objective. The number of tdTomato⁺ cells was quantified using ImageJ software and was normalized per mm².

In vitro activation and adoptive transfer of OT-I T cells (prime and pull)

Total splenocytes and cells from LNs isolated from OT-I mice were cultured for 3.5 days together with SIINFEKL (OVA 257-264, InvivoGen) for in vitro activation. First, 20 × 10⁶ cells combined from the spleen and LNs were cultured in 20 ml of Hyclone supplemented RPMI medium with 1 μg ml⁻¹ SIINFEKL peptide in culture flasks on day 0. Cells were split 1:2 with the addition of medium and IL-2 (5 ng ml⁻¹; Peprotech) on days 2 and 3 to maintain T cell proliferation. At day 3.5, primed and activated CD8⁺ OT-I T cells were then collected from the cultures, and 10 × 10⁶ cells were transferred intravenously into recipient mice. On the same day of transfer, 0.5% DNFB was applied topically on shaved flank skin to pull or engraft the activated OT-I cells at the site of inflammation. Anti-PD-1 was administered intraperitoneally on day 0 of inflammation and on days 3, 6 and 9 after DNFB application. In some experiments, additional TGFβ1 cytokine was administered during engraftment (days 1–9) to recipient mice. TGFβ1 (recombinant mouse TGFβ1 (carrier-free); Biolegend) was dissolved in endotoxin-free water at a final concentration of 5 μg ml⁻¹ and stored at −80 °C. Mice were injected intraperitoneally with 0.5 μg of TGFβ1 cytokine for 9 consecutive days starting on day 1 of the engraftment period. For prime and pull with TGFβRCA donor OT-I cells, tamoxifen was administered for five to six consecutive days starting on day 0 of the engraftment period. Transferred OT-I cells quantitated on day 10 were classified as T_RM cells based on the expression of CD69⁺ and CD103^+/−, whereas T_CM and T_EM cells were identified based on the markers CD44⁺ and CD62L⁺ (T_CM) or CD62L⁻ (T_EM), respectively.

HSV infection and cell sorting

HSV infection was performed by scarification using 1 × 10⁶ p.f.u. of the KOS strain modified to express OVA protein (HSV-OVA)²⁵. Transgenic OT-I T cells were activated in culture for 4–5 days with OVA_257–264 (SIINFEKL) peptide-pulsed splenocytes, respectively, in the presence of recombinant human IL-2 (25 U ml⁻¹; Peprotech) at 37 °C with 5% CO₂. Cells (5 × 10⁶) were injected intravenously into mice infected with HSV-OVA 2 days prior. On day 14 after infection, epidermal skin T cells were obtained by removing shaved and depilated skin (1–3 cm²) and incubating in dispase solution (2.5 mg ml⁻¹; Roche) for 90 min at 37 °C. The epidermal layer was manually separated, placed in collagenase III solution (3 mg ml⁻¹; Worthington) containing DNase I (2.5 µg ml⁻¹), chopped into fine pieces and incubated for an additional 30 min. Cells were purified by sorting based on the expression of CD3⁺, Vα2⁺ and CD45.1⁺ using a BD FACSAria.

VACV-OVA infection and cell sorting

In total, 1 × 10⁵ PD-1^+/+ CD8⁺ OT-I T cells were mixed with 1 × 10⁵ PD-1^−/− CD8⁺ OT-I T cells (isolated using negative MACS bead selection from littermates) and were coadoptively transferred to C57BL/6J recipients 1 day before infection. Recipient mice were vaccinated by VACV-OVAss on each ear with 1 × 10⁶ viral p.f.u. and on the base of the tail with 2 × 10⁶ viral p.f.u. At day 14, PD-1^+/+ or PD-1^−/− donor CD8⁺ T cells were isolated from ear skin using the skin digestion protocol, directly sorted into TRIzol and stored and frozen at −80 °C. Naive CD8⁺ OT-I T cells were isolated from the LNs and spleen of naive mice by negative selection on MACS beads and stored in TRIzol before RNA extraction. All PD-1^+/+ and PD-1^−/− donor OT-I cells used for sorting and sequencing were isolated from mice that were littermates.

RNA-seq alignment and gene expression analysis

RNA from PD-1^+/+ or PD-1^−/− OT-I T cells from day 14 skin was extracted from 5,000 cells sorted by FACS using an RNeasy mini kit (Qiagen) as per the instructions provided by the manufacturer. Day 0 naive OT-I T cells were purified using negative MACS bead selection, and RNA was isolated from 5,000 cells using the same RNeasy mini kit protocol. cDNA libraries were constructed using a SMART-Seq v4 (Clontech) ultralow input RNA kit for sequencing. Samples were barcoded and sequenced on an Illumina HiSeq 4000 as paired-end runs with a length of 50 bp. For day 14 skin PD-1^+/+ or PD-1^−/− OT-I T cells versus day 0 naive OT-I T cells, raw sequenced reads were aligned to the mouse reference genome (version mm10 from University of California, Santa Cruz) using STAR (version 2.4.2) aligner. Aligned reads were quantified against the reference annotation (mm10 from Gencode) to obtain fragments per kilobase per million (FPKM) and raw counts using CuffLinks (version 2.2.1) and HTSeq, respectively. For PD-1^+/+ or PD-1^−/− OT-I T cell skin versus naive OT-I T cell samples, genes with a minimum expression of counts per million > 3 in at least two or more samples in a given comparison were included for further analysis. Normalized raw counts were voom transformed, obtaining expression profiles (in log₂ scale) that can be analyzed using linear models. Because biological replicate-specific pairing was present wherein both PD-1^+/+ and PD-1^−/− T cells were isolated from the same mice, differential expression analysis was performed using the R package limma, including both genotype and the replicate as factors. P values of moderated paired t-tests were adjusted for multiple hypothesis testing using the Benjamini–Hochberg approach, which controls the FDR. Genes with an absolute log₂ (fold change)of ≥1.5 and FDR of ≤0.05 were considered significantly differentially expressed.

For Tgfbr2^+/+ versus Tgfbr2^−/− day 14 OT-I T cells, cDNA libraries were prepared from 500 cells sorted by FACS using the SMART-Seq v2 protocol⁶⁶ with the following modifications: (1) 1 mg ml⁻¹ bovine serum albumin lysis buffer (Ambion Thermo Fisher Scientific), (2) the addition of 20 µM TSO and (3) the use of 250 pg of cDNA with one-fifth reaction of an Illumina Nextera XT kit (Illumina). The length distribution of the cDNA libraries was monitored using a DNA High Sensitivity Reagent kit on a PerkinElmer Labchip (PerkinElmer). Two biological replicates were generated with two technical replicates each, and samples were subjected to an indexed paired-end sequencing run of 2 × 51 cycles on an Illumina HiSeq 2000 system (Illumina; 16 samples per lane).

Sequence reads were mapped to the Mus musculus genome (GRCm38/mm10) using the align function from Rsubread⁶⁷, and annotated genes for GRCm38 were counted using featureCounts⁶⁸. Counts from technical replicates were summed by gene to produce two combined biological replicate samples for each group. Combined samples were then upper-quartile normalized, followed by application of RUVs⁶⁹ using a single factor of unwanted variation (k = 1) and mouse housekeeping genes⁷⁰ as ‘negative controls’. The edgeR package⁷¹ was used to calculate upper-quartile normalization factors and to fit gene-wise negative binomial generalized linear models for the experimental design using the result from RUVs as an additional model covariate, where ‘trended’ negative binomial dispersions and a prior count of 2 were used. Likelihood ratio tests were used to test for differential expression. Data are deposited in the Gene Expression Omnibus (GEO) under accession code GSE178769 (ref. ⁴⁵).

Hierarchical clustering of RNA expression and principal component analysis

For the PD-1^+/+ or PD-1^−/− OT-I T cells at day 14 after VACV-OVAss skin versus day 0 naive OT-I T cells comparison, gene expression profiles were represented in a two-dimensional space using principal component analysis and clustered based on expression profiles via unsupervised hierarchical clustering (with Pearson’s correlation as the distance metric and the ward.D agglomeration method). Both methods were performed on the log₂-transformed FPKM expression values in R statistical software.

GSEA of RNA-seq expression data

Experiments comparing either PD-1^+/+ or PD-1^−/− OT-I T cells from day 14 skin to day 0 naive OT-I T cells applied a supervised gene set over-representation-based pathway analysis executed with the online webtool ConcensusPathDB⁷² (cpdb), where pathways with an FDR of ≤0.01 were considered significantly enriched. Raw data are available in GEO under accession number GSE130207.

Similarly, in Fig. 3g and Extended Data Fig. 4f,g, over-representation analysis of the nonexclusive or exclusive T cell differentiation state signatures was performed using a Fisher’s exact test. GSVA was used to test enrichment of PD-1-dependent signatures on the following two publicly available datasets: GSE125471 (downloaded and processed using methods described above to obtain FPKM data) and GSE79805 (downloaded using the package GEOquery in R). Per-sample enrichment was calculated using the single-sample enrichment method -ssGSEA from the GSVA package⁷³ and further analyzed as described in the legend.

Formation-dependent recall

In total, 2 × 10⁵ naive congenically marked PD-1^+/+ Thy1.1⁺ or tdTomato CD8⁺ OT-I cells were isolated using a magnetic bead negative selection kit following the manufacturer’s protocol (Miltenyi) and adoptively transferred to congenically mismatched Thy1.2⁺ C57BL/6J recipients 1 day before infection. Recipient mice were vaccinated with VACV-OVAss on each ear with 1 × 10⁶ p.f.u. and on the base of the tail with 2 × 0⁶ p.f.u. Two hundred micrograms of anti-PD-1 or matched isotype (rat IgG2a, κ) was administered via the intraperitoneal route on days 0, 3, 6 and 9 after vaccination. Mice were started on FTY720 (25 μg per mouse) treatment 1 week (5 weeks after immunization) before skin peptide challenge and continued every other day throughout the rest of the experiment. On week 6 after infection, lateral flanks of each mouse were depilated before peptide challenge. Stock SIINFEKL (OVA_257–264; InvivoGen) was prepared to a 10 μg μl⁻¹ concentration dissolved in DPBS. A mixture of SIINFEKL, acetone and olive oil was prepared in a 1:7.2:1.8 ratio. An equivalent mixture of DBPS, acetone and olive oil was prepared as a control. Twenty-five micrograms of the SIINFEKL mixture was topically applied on the right shaved flank, whereas 25 μg of the control mixture was topically applied on the left shaved flank. Transferred OT-I cells quantitated on day 49 were classified as T_RM cells based on the expression of CD69⁺ and CD103^+/−, whereas T_CM and T_EM cells were identified based on the markers KLRG1⁻ and CD62L⁺ (T_CM) or CD62L⁻ (T_EM), respectively.

Statistics

Data are presented as mean ± s.e.m. or mean ± s.d. Group sizes were determined based on the results of preliminary experiments without predetermination of sample size. Preliminary experiments were performed to determine requirements for sample size, considering resources available and ethical, reductionist animal use. Mice were randomly assigned to groups. Mouse studies were not performed in a blinded fashion. Individual mice are reported as a symbol, with filled versus open symbols indicating replicate experiments. Statistical analyses using two-tailed, unpaired Student’s t-tests were performed to compare different groups within each time point when appropriate using Prism software (GraphPad) with significance reported for P ≤ 0.05.

For the indicated experiments, when repeated measures for the same mice were obtained for different time points, or different organs, or when complex correlation structures were detected within experiments, we opted for a MEM approach to maximize power. MEMs account for the correlation structure between samples and within experiments, modeling all sources of variation. In general, a random intercept was considered for each experimental unit and fixed factors, including treatment, time or group and its interactions. Models were fitted using the lme function from the nmle package in R. Models including heterogeneity of variance and random effect for other factors (for example, anatomic site) were also fitted, and the model with the minimum Akaike information criteria was chosen as the optimal model. Marginal means were estimated from the optimal model using the emmeans package, and hypotheses of interest were tested. Model assumptions were checked, and when departures from normality of the residuals were detected, log transformations were applied. All statistical tests were two sided.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All statistical code is available at GitHub at https://github.com/maytesuarezfarinas/Anandasabapathy_NatureImmunology_2025/.

All RNA-seq code is available at Zenodo at https://zenodo.org/records/14213189 (ref. ⁷⁴).
