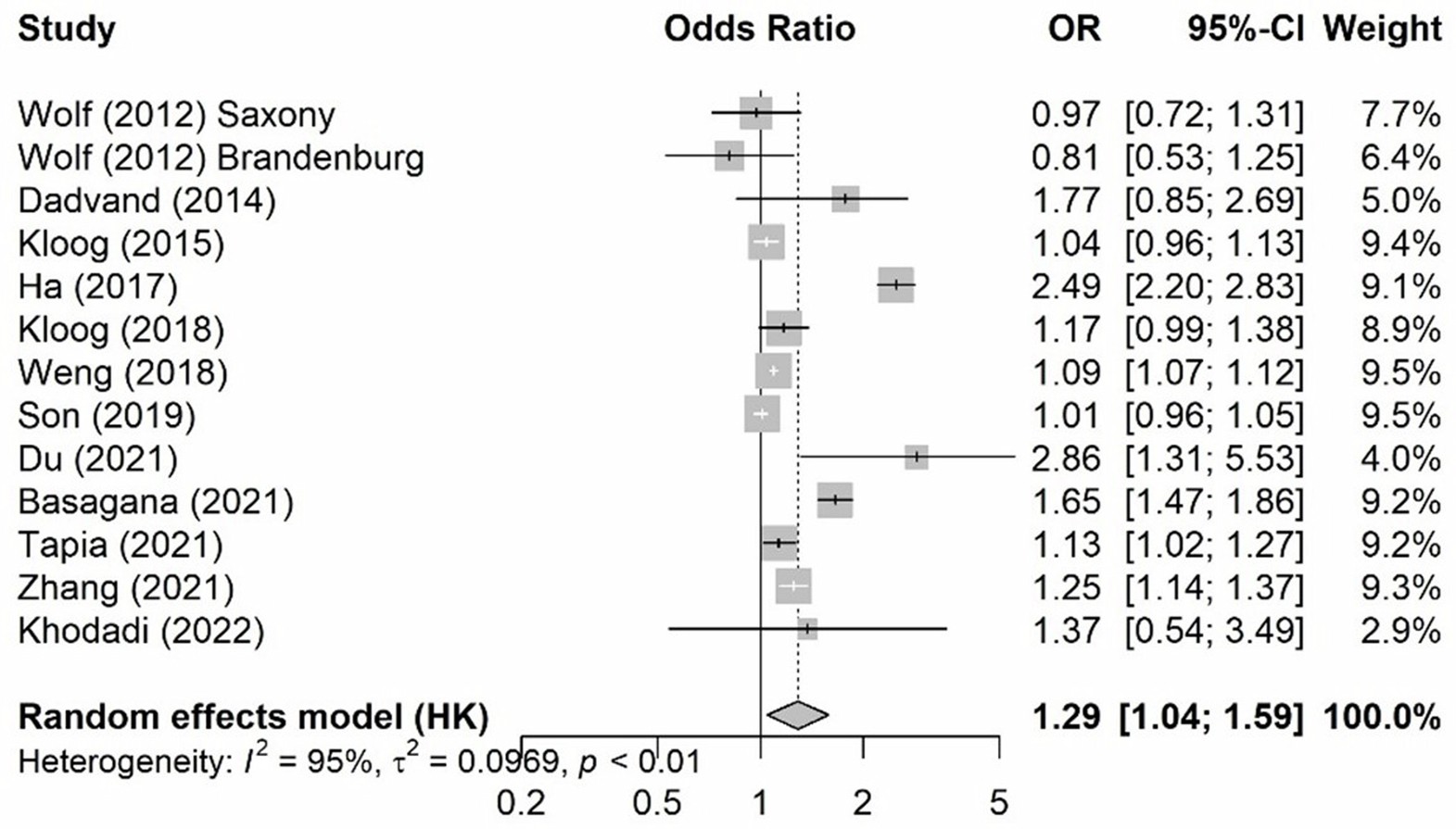

Extended Data Fig. 6: Effects of heat exposure on low birth weight.
Meta-analysis of odds of low birth weight at high versus low heat exposures (n = 13 studies). Each line of the forest plot represents an odds/risk/hazard ratio from a study, represented by the vertical line, and the 95% confidence interval, represented by the horizontal line. The weight each study carries in overall odds is represented by the grey shaded square. The overall odds ratio and 95% confidence interval, using a random effect meta-analysis model, is represented by the diamond. The heterogeneity is illustrated by the I2 percentage in the bottom left of the figure.
