Main

Immune checkpoint blockade (ICB) has become the backbone in the treatment of numerous types of cancer, although there remain major gaps in mechanistic understanding of what leads to clinical response1,2. ICB primarily targets inhibitory pathways, such as PD-1/programmed death ligand 1 (PD-L1) and cytotoxic T lymphocyte antigen 4 (CTLA-4), that regulate T cell function, thereby enhancing T cell activation, infiltration, cytotoxicity and antitumor immune responses3,4. In addition to T cells, ICB also has the potential to modulate other lymphoid and myeloid lineages, including B cells, natural killer (NK) cells and dendritic cells. A robust tumor immune microenvironment response requires the coordination of several immune cell types to activate cytotoxic tumor-infiltrating lymphocytes (TILs)5. Previously, we described intratumoral niches containing mature dendritic cells and CXCL13+ helper T cells, leading to a coordinated clonal expansion of granzyme K+ and PD-1+ effector-like CD8+ T cells in ICB responders with early-stage hepatocellular carcinoma (HCC)6.

In several cancers, infiltrating plasma cells (PCs) and B cells carry strong prognostic significance and have emerged as potential predictors of response to immune checkpoint inhibitors7,8,9. Moreover, they can perform a variety of functions, including antigen presentation and antibody production, which enable them to support both T cell responses and innate mechanisms such as complement activation and opsonization of cancer antigens7. Tumor-associated B cells have been shown to play a crucial role in melanoma inflammation and have been associated with response to ICB therapy10. Intratumoral B cells and PCs identified by single-cell RNA sequencing (scRNA-seq) in non-small-cell lung cancer (NSCLC) showed predictive association with overall survival to PD-L1 blockade, independently of intratumoral CD8+ T cells and PD-L1 expression11. Additionally, these cells can also be present in tertiary lymphoid structures (TLSs), which may contribute to their differentiation into immunoglobulin-secreting plasma cells11,12. These TLSs, particularly those with mature organization with T cells and PCs surrounding germinal center class-switching B cells, have been associated with clinical benefit in multiple studies13.

Although a predictive association between PCs and overall survival in patients treated with anti-PD-1 or anti-PD-L1 (PD-(L)1) therapy blockade has been established, the underlying intricate mechanisms (clonal composition and dynamics, isotype and subclass usage and specificity) driving this association are poorly understood, and no study to date has demonstrated the ability of PD-(L)1 blockade to induce or potentiate humoral antitumor immunity7,14. Furthermore, B cells represent a highly heterogenous and diverse population, and the specific subset of B cells or PCs that might be most important for effective antitumor immunity has not been clearly elucidated.

In the present study, we investigated B cells and PCs during ICB responses with neoadjuvant anti-PD-1 therapy, with or without radiation, in HCC. We used bulk, single-cell and B cell receptor (BCR) RNA sequencing to assess longitudinal dynamics and isotype and clonal expansion in tumor and normal tissues as well as lymph nodes. Responders showed tumor-enriched IgG1 class switching, PC differentiation and clonal expansion after ICB, whereas non-responders accumulated dysfunctional memory B cells. The findings were validated in independent cohorts treated with PD-1, PD-L1, CTLA-4 or VEGF-A blockade. Baseline and tumor-enriched IgG1 PCs correlated with clinical response, and elevated circulating IgGs against cancer/testis antigens (CTAs) suggested humoral antitumor immunity in responders after ICB15,16,17.

Results

PCs are enriched in clinical responders to PD-1 blockade

To test the hypothesis that B cells or PCs have a key role during immunotherapy and treatment response, we examined specimens from eight sets of independent clinical trial cohorts: two newly generated datasets from our own investigator-initiated trials in patients with HCC treated with neoadjuvant PD-1 blockade, with or without radiation, for discovery and validation, respectively. We also analyzed published datasets of a combination of PD-1, PD-L1, CTLA-4 and VEGF-A blockade, including large cohorts such as IMbrave150 and The Cancer Genome Atlas (TCGA) (Fig. 1a). No sex-associated differences were observed in any of the analyzed outcomes, consistent with the balanced representation of male and female patients in the cohort.

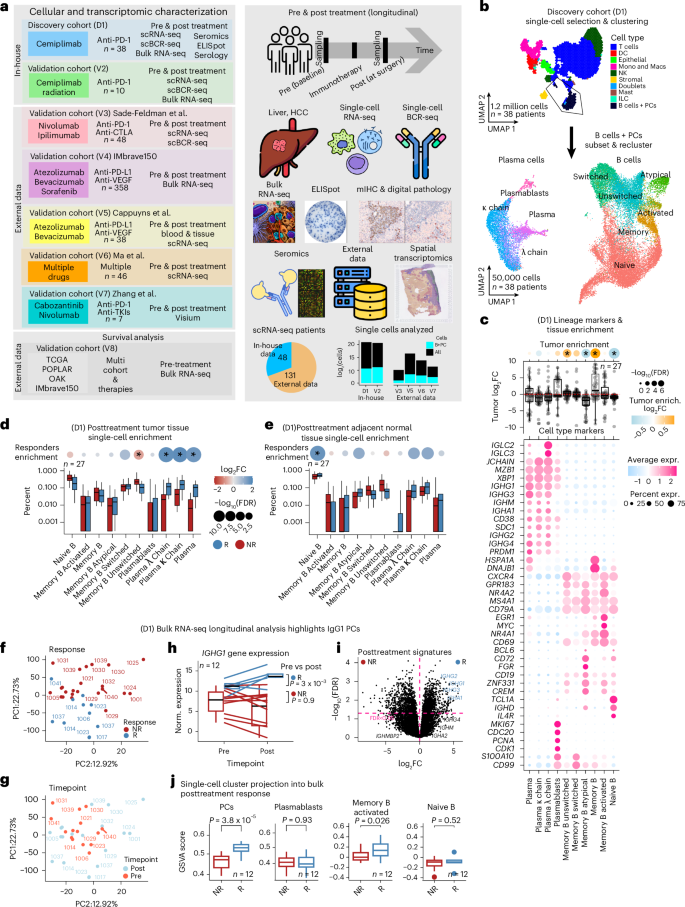

Fig. 1: Discovery cohort and the establishment of a plasma IgG1 isotype.
figure 1

a, Overview of cohorts analyzed in this study. The discovery cohort (D1) consisted of 38 patients (27 patients with HCC treated with anti-PD-1 and 11 untreated patients with HCC). Seven additional validation cohorts were included. Across all cohorts (D1 and V2), data types encompassed pretreatment and posttreatment samples from 48 in-house and 131 external patients, including bulk and single-cell RNA-seq, BCR-seq, mIHC, spatial transcriptomics, seromics (autoantibody panel), ELISpot and ELISAs. Certain validation cohorts included additional therapeutic contexts—for example, V7 included cabozantinib, a multi-tyrosine kinase inhibitor (TKI). b, Uniform manifold approximation and projection (UMAP) plots showing the integrated analysis of 1.2 million cells from 38 patients and the reclustering of 50,000 B cells and PCs. Clusters are colored by cell type/state. Annotation was based on canonical B cell and PC markers together with differentially expressed genes. c, Top, tumor enrichment scores for 27 patients, comparing tumor versus adjacent normal tissue using Wilcoxon rank tests with FDR correction. Box plots show medians, interquartile ranges (IQRs) (Q1–Q3), whiskers (≤1.5× IQR) and outliers. Bottom, dot plot of canonical and top differentially expressed genes per cluster, identified by Wilcoxon tests. The adjacent panel shows enrichment of each cluster in normal (light blue) versus tumor (orange); circle size represents statistical significance. d,e, Box plots (as defined above) showing tissue-specific enrichment of clusters between responders (R; dark blue, n = 8) and non-responders (NR; dark red, n = 19). Proportions were estimated using Dirichlet regression; log-transformed fold change (log2FC) significance was assessed using log-likelihood tests and Benjamini−Hochberg-adjusted P values. Color indicates log2FC; circle size reflects adjusted P value. The y axis indicates percent of cells. f,g, Principal component analysis of bulk RNA-seq showing variance explained by each principal component and sample separation in PC1 and PC2, colored by response category and timepoint (pre/post). h, Box plot showing baseline IgG1 expression, higher in responders (n = 4) than in non-responders (n = 8), with increases after treatment in responders (P = 3 × 10−3, left-sided Wilcoxon test) and no significant change in non-responders (P = 0.8). i, Volcano plot showing differential expression between responders and non-responders on-treatment (x axis: log2FC; y axis: –log10P value). j, GSVA scoring of four single-cell-derived signatures projected into bulk showing increased PC signature after treatment in responders (P < 0.05, two-sided Wilcoxon). Data represent 12 patients (4 responders and 8 non-responders). DC, dendritic cell; GSVA, gene set variation analysis; ILC, innate lymphoid cell; PC1/2, principal component 1/2.

Full size image

First, we profiled approximately 30,000 B cells and PCs derived from 1.2 million single-cell transcriptomes of the tumor microenvironment, uninvolved adjacent liver and the draining lymph nodes resected from 38 patients with early-stage HCC of the discovery cohort18. Of these, 27 patients received neoadjuvant ICB in the form of an anti-PD-1 blocking antibody, and 11 were untreated controls (Extended Data Fig. 1a,b). We resolved six distinct B cell states (naive, memory, activated, class-switched, class-unswitched and atypical) alongside plasmablasts and three PC populations with discrete transcriptional programs (Fig. 1b). Naive B cells were characterized by the expression of IGHD and CD19 and were decreased in tumor compared to adjacent tissue (false discovery rate (FDR) < 0.05); memory B cells showed MYC, CD69 and NR4A1 associated with an activation phenotype and with tumor enrichment, whereas PCs were characterized by MZB1 and JCHAIN (Fig. 1c). Naive B cells dominated the B cell fraction of the immune cells across the tissue compartments, followed by memory B cells, relative to total B cells and PCs (Extended Data Fig. 1c–f). As expected, canonical and cluster-specific genes were expressed in more than 70% of cells (Extended Data Fig. 1g,h). Pathological responses to neoadjuvant PD-1 were defined as more than 50% necrosis of tumor at the time of surgery, followed by differential cell abundance showing an enrichment of all PC phenotypes in the tumor among ICB responders (FDR < 0.05), which was not as pronounced in adjacent uninvolved liver (Fig. 1d,e). Conversely, non-responders were enriched in unswitched memory B cells in tumor (FDR < 0.05) but less so in normal tissues (Fig. 1d,e).

Preexisting IgG1 PCs associated with clinical response are expanded after PD-1 blockade

We hypothesized that skewing of IgG1-producing PCs is linked to clinical response, given their overrepresentation in single-cell data from responders (Extended Data Fig. 1i). To test this, we used complementary bulk RNA-seq of paired pretreatment biopsies and posttreatment resected tumors from the discovery cohort. Principal component analysis showed that gene expression profiles were markedly different between responders and non-responders (Fig. 1f,g and Extended Data Fig. 1j–k).

In posttreatment tumors, IGHG1 emerged as one of the top upregulated genes. Its expression was already elevated in pretreatment samples from responders and increased significantly after therapy, whereas it remained unchanged or decreased in non-responders (FDR < 0.01; Fig. 1h,i). Projection of the single-cell signatures onto bulk data emphasized the increase of PCs in responders (FDR < 0.01) (Fig. 1j). Thus, these results suggest that skewing toward an IgG1 signature may exist at baseline (pretreatment) in anti-PD-1 responders, which was significantly amplified after ICB treatment and was highly associated with response.

ICB responders have clonally expanded IgG1 PCs trafficking between the tumor and draining lymph node

Using a combination of BCR-seq with scRNA-seq, we investigated clonal expansion and immunoglobulin isotype (Fig. 2a). We found that plasmablasts and PCs were largely of the IgG1 and IgG2 subclass (FDR < 0.01), whereas other memory and naive B cells were an admixture of IgM, IgD, IgA and, to a much lesser degree, the other IgG subclasses (Fig. 2b, top). When stratifying by ICB response, IgG1 and IgG2 PCs were almost exclusive to responders, whereas IgM, IgA and IgD dominated in non-responders (Fig. 2b, bottom, and Extended Data Fig. 2a,b). Irrespective of ICB response, 26% of total B cells and PCs were expanded (more than one cell per clone) (Extended Data Fig. 2d,e). Responders exhibited marked intratumoral IgG1+ PC and plasmablast expansion, unlike non-responders, who showed memory B cell expansion (Fig. 2c–e and Extended Data Fig. 2c,f,g). IGHG1, MZB1, JCHAIN and XBP1 were among the top genes enriched in clonally expanded cells from responders (Fig. 2f). In responders, clonally expanded cells were enriched for IgG1+ PCs, whereas non-expanded cells expressed MS4A1 (encoding CD20) (Fig. 2g). Together, these data suggest a tumor-specific clonal expansion of IgG1 antibody-producing cells in ICB responders.

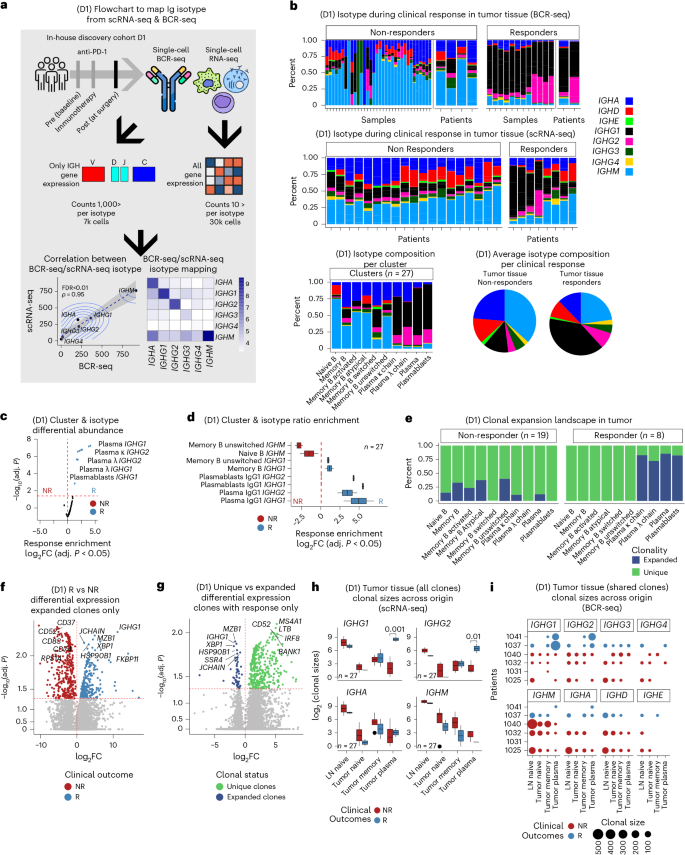

Fig. 2: Clonality.
figure 2

a, Flowchart illustrating Ig isotype mapping for 37,000 single B cells, including 30,000 cells with paired BCR-seq and 7,000 additional cells mapped via gene-expression-based inference. Bottom panels show correlations between isotype assignments from gene expression and scBCR-seq for the 30,000 cells with paired data. b, Stacked bar plots showing isotype composition per sample and per patient. Multiple samples per patient were sequenced to ensure reproducibility. Single-cell BCR-seq data include six patients with HCC treated with ICB (two responders and four non-responders). Using scRNA-seq-based isotype inference, the analysis was expanded to 8 responders and 14 non-responders. The y axis represents the proportion of cells (0–1). Consistent across BCR-seq and scRNA-seq-rescued isotypes, PC clusters are enriched for IgG1/IgG2, whereas naive and memory B cell clusters predominantly express IGHM and IGHA (bottom bar plots and pie charts). c, Volcano plot showing Dirichlet regression comparing responder and non-responder frequencies across clusters and isotypes (from both scRNA-seq and scBCR-seq). The log-transformed fold changes and P values were obtained from log-likelihood tests; adjusted P values were computed using Benjamini−Hochberg correction. PCs and IgG1/IgG2 responses are significantly enriched in responders. d, Box plot (as defined in Fig. 1c) showing increased IgG1+ PC representation in tumor tissue of responders with available BCR-seq. Ratios were estimated using Dirichlet regression with log-likelihood testing. e, Stacked bar plot of expanded clones per cluster, defining expansion as two or more cells per clonotype. Expansion occurs specifically in PCs of responders. f, Differential expression (two-sided Wilcoxon test, Benjamini−Hochberg adjusted) comparing expanded clones in responders versus non-responders. IGHG1, MZB1, JCHAIN and XBP1 are associated with clinical response. g, Differential expression comparing expanded versus non-expanded cells in responders shows expansion-associated upregulation of IGHG1, MZB1, JCHAIN and XBP1, whereas non-expanded cells upregulate LTB, MS4A1, CD52 and IRF8 (Benjamini−Hochberg adjusted). h, Box plots showing clonal sizes after filtering for shared CDR3 sequences within clonotypes and clusters across 27 patients. Clonal sizes increase for IgG1, IgG2, IgA and IgM in both B and plasma compartments (two-sided Wilcoxon test). i, Clonal sizes of expanded (≥2 cell) clones from bulk BCR-seq in two responders and non-responders show increased IgG1 expansion in responders. LN, lymph node.

Full size image

Next, we investigated whether B cell differentiation and clonal expansion occur at the primary tumor site or in draining lymph nodes. In lymph nodes, IgM was the dominant isotype (Extended Data Fig. 2h). Although unique CDR3 sequence overlap among lymph node, tumor and adjacent liver samples was limited within individual patients (Extended Data Fig. 2i), clonal tracking revealed significantly larger IgG1+ and IgG2+ tumor PC clones in responders compared to non-responders (FDR < 0.01; Fig. 2h). The shared CDR3 clonotypes across cellular compartments (lymph node, naive, B memory and plasmablast/PC) revealed that clonally expanded cells with the same CDR3 sequence could be found at the lymph node as well as the tumor site (Fig. 2i and Supplementary Table 1), thus suggesting trafficking of these expanded clones between the tumor and the draining lymph node. Further inspection of the bulk sequencing data validated the expansion of IGHG1 phenotype, including evidence of the same CDR3 barcodes before and after treatment in both responders and non-responders (Extended Data Fig. 2j).

Tumor microenvironment spatial distribution reveals PC-driven immunity in responders and memory B cell dysfunction in poor outcomes

Using multiplex immunohistochemistry (mIHC) and computational tools19, we examined the spatial distribution of the B cells (CD20+), PCs (MZB1+) and other immune cells in the tumor and adjacent liver in 17 mIHC biopsies (6 responders and 11 non-responders) from our discovery cohort. We observed that among anti-PD-1 responders, the MZB1+ PCs were highly infiltrative throughout the tumor parenchyma compared to the PCs in non-responders (Fig. 3a,b). Next, we used a radial binning approach to define cell communities or immune aggregates in an unsupervised fashion (Fig. 3c). Here, responders showed enrichment of CD3+CD8+ T cells, CD68+ macrophages and MZB1+ PCs. Conversely, CD20+ B cells were found within the lymphoid aggregates or within the stromal compartment of the tumor rather than admixed with tumor parenchyma, reinforcing PC expansion as a hallmark of effective ICB response (Fig. 3d).

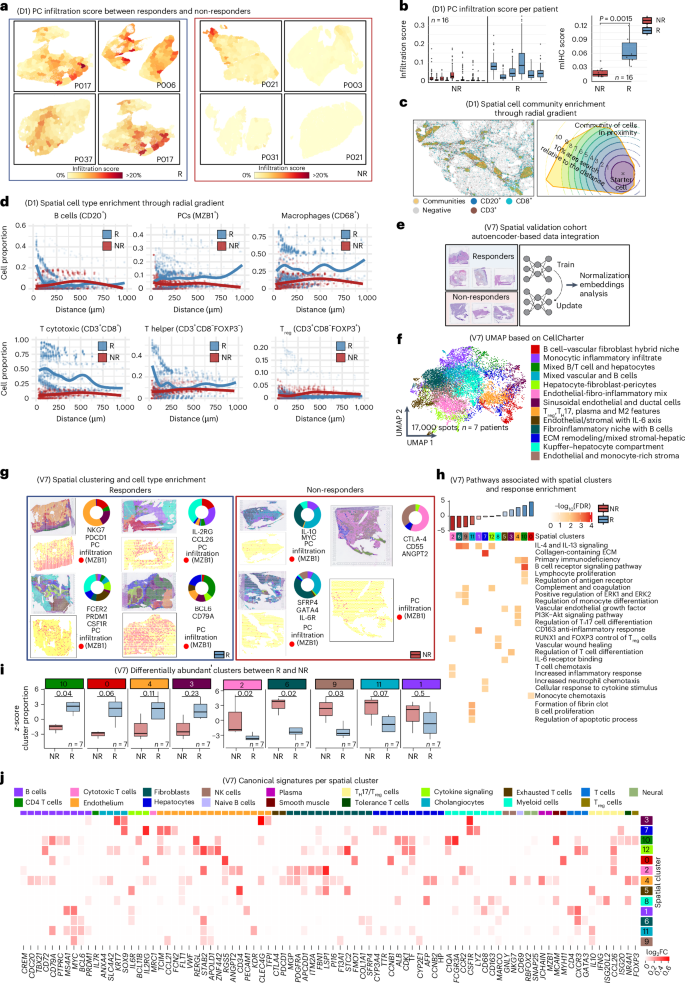

Fig. 3: Spatial analysis of immune infiltrating cells.
figure 3

a, Representative examples showing increased PC infiltration in responders compared to non-responders, quantified as the percentage of PCs within unsupervised neighborhood regions derived from mIHC images. P, patient. b, Box plots (as defined in Fig. 1c) comparing PC infiltration scores between responders (n = 6) and non-responders (n = 10), shown both per patient and as averaged scores across regions (P < 0.05, two-sided Wilcoxon rank test). The left plot displays individual regions per patient; the right plot summarizes patient-level averages across 16 total patients. c, Unsupervised identification of immune cell aggregates from mIHC using a spatial enrichment analysis. A radial gradient approach quantifies local immune communities by evaluating up to three markers within a 10-µm distance (approximately one cell diameter) from a reference cell. Community size is estimated by the area captured within the radial gradient. d, Spatial enrichment of immune populations within aggregates in responders versus non-responders. Responders show increased PCs (MZB1+), cytotoxic T cells (CD3+CD8+) and macrophages (CD68+), whereas non-responders show higher levels of B cells (CD20+) and regulatory T (Treg) cells (CD3+CD8−FOXP3+). e, Schematic of spatial transcriptomics integration using an autoencoder-based framework to cluster spatial spots. f, Spot clustering results identifying 13 spatial clusters across approximately 17,000 spots from seven patients (four responders and three non-responders). g, Enrichment of responder-associated clusters and top markers per most abundant cluster for each patient, demonstrating sample-level concordance between spatial clusters and biological phenotypes. h, Top pathways associated with each spatial cluster, highlighting cellular, molecular and functional programs tied to distinct microenvironmental niches. i, Box plots (as in Fig. 1c) showing cluster-level enrichment patterns stratified by clinical response. Responders exhibit higher representation of plasma, T cell and myeloid-associated clusters, whereas non-responders are enriched for regulatory and dysfunctional phenotypes. Statistical significance was assessed with a two-sided Wilcoxon rank test across seven patients (four responders and three non-responders). j, Canonical cell markers enriched per cluster, confirming the identity of dominant immune and stromal populations defining each spatial niche. ECM, extracellular matrix.

Full size image

Next, we applied an single-cell variational inference-based autoencoder to integrate the spatial transcriptome cohort3 and then used CellCharter to identify spatial clusters constituted by multiple cell types (Fig. 3e,f). In ICB responders, we saw a marked enrichment of IgG1+ PCs confined to an immune-rich T cell/B cell/vascular fibroblast hybrid niche, with significant upregulation of IL-4 and IL-13 signaling (Fig. 3g,h). Pathway analysis of these clusters revealed a pro-BCR/TCR signaling hub, marked by MZB1, IL2RG, FCER2, PRDM1 and CD79A, consistent with a highly immunogenic, PC-driven microenvironment (Fig. 3h,i). By contrast, non-responders harbored focal accumulations of CD27+ memory and dysfunctional B cells within fibroinflammatory stromal regions. These niches were accompanied by regulatory T, T helper 17 (TH17) and monocyte signatures, collectively defining an immunosuppressive ‘stromal memory/exhausted B cell reservoir’ (Fig. 3g–j).

IgG1 PCs in tumor and lymph nodes increase after radiation therapy and PD-1 checkpoint blockade

To validate these findings in an independent cohort18, we analyzed B cells and PCs from patients with HCC treated with neoadjuvant stereotactic radiation followed by anti-PD-1 therapy (biopsy, lymph node, tumor and adjacent normal) (Fig. 1a and Extended Data Fig. 3a–c). In bulk sequencing, differential gene expression between responders and non-responders was most pronounced in pretreatment biopsies and posttreatment tumors but minimal in lymph nodes and adjacent normal tissues (Extended Data Fig. 3d–h). After treatment, total immunoglobulin increased, with responders showing selective IgG1 enrichment (Extended Data Fig. 3i,j). The bulk data also showed an increase in IGHG1, IGHG2 and IGHG3 expression in tumor tissue of responders (Extended Data Fig. 3k). As expected, we observed higher plasmablast and PC levels in responder biopsies (FDR < 0.2) (Extended Data Fig. 3l–n). Interestingly, the increase in IGHG1−IGHG4 and decrease in IGHM were also observed in responders across tissues (FDR < 0.2) (Extended Data Fig. 3o). Clonal size analysis showed that the largest clones were identified in lymph nodes, followed by pretreatment and posttreatment tumor tissue (Extended Data Fig. 3p). Shared clonotypes were observed between all three posttreatment tissue types and pretreatment biopsies (Extended Data Fig. 3q).

Consistent with our findings, validation cohort scRNA-seq revealed significantly enriched plasmablasts in tumor tissue (FDR < 0.05) (Extended Data Fig. 4a). Activated B memory, class-switched and unswitched cells were also enriched in responders’ adjacent normal tissues (FDR < 0.05) (Extended Data Fig. 4b). In tumor tissue of responders, there was a minor increase in PCs (FDR < 0.2), whereas, in non-responders, there was a clear increase in B memory cells (FDR < 0.01) (Extended Data Fig. 4c). However, differential expression analysis recapitulated IGHG1 as the top marker of clinical response in both tumor and adjacent liver (Fig. 4a,b). Contrary to our discovery cohort, this independent validation cohort showed similar B cell and PC numbers between adjacent normal and tumor tissue (Extended Data Fig. 4e). Notably, most of the sequenced cells were already clonally expanded (Extended Data Fig. 4f–h). However, once again, the IgG1 isotype dominated across all PC and non-naive B cell phenotypes in tumor tissues of responders, whereas non-responder B cells and PCs were more prevalent for IgM and IgA (Fig. 4c). Regardless of tissue, differential abundance analysis showed that IGHG1 isotype, activated memory B cells, PCs and plasmablasts were associated with response, whereas IgM and IgG2 in memory B cells were enriched in non-responders (Fig. 4d,e). Although clonal expansion sizes were similar between B cells and PCs, tracking shared CDR3 clones revealed greater memory-to-plasma compartment transitions in responders, with exceptionally large IGHG1 clones (Fig. 4f,g). Together, these results show that IgG1 PCs account for more than 50% of total isotypes identified in responders and for less than 30% in non-responders (Fig. 4h).

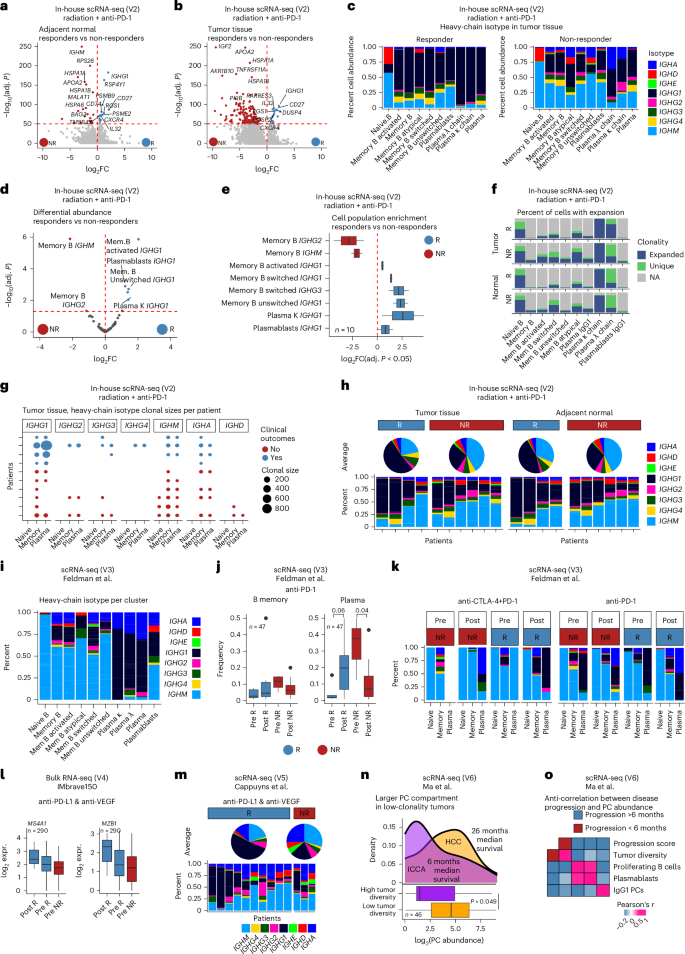

Fig. 4: Validation sets.
figure 4

V2 cohort (radiation + anti-PD-1): a,b, Differential expression analysis of adjacent normal and tumor tissues revealed IGHG1 as the most significant gene associated with response, using a two-sided moderated t-test. c, Tumor heavy-chain isotype composition by cell cluster showed IGHG1 enrichment in responders. d, Differential abundance modeling using Dirichlet regression and log-likelihood testing identified IGHG1+ PC and B cell phenotypes as significantly enriched in responders. e, Box plots (as in Fig. 1c) illustrate the magnitude and heterogeneity of cluster enrichment in responders versus non-responders across 10 patients (four responders and six non-responders), with significant findings at FDR < 0.05 (Benjamini−Hochberg correction). f, Proportions of clonally expanded cells (BCR-seq derived) showed that most cells were expanded in both groups, with no significant difference in overall expansion prevalence. g, Dot plots of shared heavy-chain clonal sizes per patient demonstrated larger IGHG1 clonal expansions in responders. h, Responders showed dominant and expanded IgG1 PC isotypes in both tumor and adjacent normal tissue. V3 cohort (anti-PD-1 and CTLA-4 plus PD-1): i, Heavy-chain isotype analysis confirmed that PC isotypes were predominantly IgG1. j, Box plots comparing pretreatment and posttreatment samples showed that responders increase PC abundance over time, whereas non-responders decrease; memory B cell frequencies remained unchanged (Wilcoxon test). k, Both PD-1 alone and CTLA-4+ PD-1 therapies induced a responder-specific plasma IgG1 signature. V4 cohort (IMbrave150): l, Bulk RNA-seq showed nominal posttreatment increases in CD20 (MS4A1) and MZB1 expression in responders although not statistically significant due to expression heterogeneity (moderated t-test). V5 cohort (anti-PD-1 and anti-VEGF-A): m, Responders receiving VEGF-A blockade in combination with PD-1 therapy also exhibited increased plasma IgG1 abundance relative to non-responders. V6 cohort (multiple treatments in HCC and ICCA): n, Box plots show that HCC samples contain higher PC abundance than ICCA samples and display slower progression times (Wilcoxon test). o, Across samples, disease progression positively correlated with tumor diversity scores and inversely correlated with PC abundance.NA, not available.

Full size image

IgG1 skewing is associated with response in other ICB-responsive tumors

To further extend our observations, we analyzed public datasets and found that patients with melanoma who responded to PD-1 with or without CTLA-4 blockade3 also showed expansion of PCs after treatment and a decrease in non-responders, despite a larger non-responder PC compartment before treatment, potentially due to low number of cells in this study (Fig. 4i–k). Furthermore, inspection of the isotype also showed IgG1 enrichment in PCs of responders (Fig. 4i–k and Extended Data Fig. 5e). Next, we validated our findings in advanced HCC treated with anti-PD-1 and anti-VEGF-A therapies in two independent cohorts of unresectable HCC: IMbrave150 (ref. 20) and Cappuyns et al.21 (Fig. 4l,m). In both datasets, responders exhibited a skewing toward the IgG1 isotype, with IgG1 emerging as the dominant subclass. Another independent cohort of patients with HCC and intrahepatic cholangiocarcinoma (ICCA)22 showed that HCC tumors had a low tumor diversity score, linked to favorable outcomes, whereas ICCA tumors exhibited a high tumor diversity score, linked to a more aggressive phenotype and worse outcomes (6-month survival for ICCA versus 26-month survival for HCC). Notably, HCC samples had greater PC abundance, consistent with better progression-free survival in HCC than in ICCA (Fig. 4n,o). Together, these findings suggest that IgG1 PCs are strongly linked to ICB response.

ICB responders produce IgG antibodies against cancer antigens

Given the enrichment of IgG1 PCs in ICB responders, we explored whether these patients potentially generated antitumor antibodies detectable in the patients’ serum. Thus, we investigated serum samples collected before and during treatment from our discovery cohort, testing against a panel of 20 tumor-associated antigens. This panel included common CTAs, mutational antigens and stem-cell-associated antigens. A higher proportion of responders (63%) exhibited antitumor IgG antibodies in their serum compared to non-responders (17%), with the IgG antibodies primarily belonging to the IgG1 subclass and targeting CTAs such as MAGE-A, GAGE7, PRAME and NY-ESO-1 (Fig. 5a,b). These data suggest that responders with circulating IgG antibodies against CTAs generally had higher titers than non-responders. Conversely, IgG titers in non-responders were less dynamic, showing minimal changes after anti-PD-1 treatment. IgG1 antibodies targeting CTAs can enhance antigen presentation by antigen-presenting cells and potentially prime CD8+ T cells through immune complexes and cross-presentation23,24.

Fig. 5: Cancer antigens and serological markers.
figure 5

a,b, Pie chart and bar plots showing that antibodies against cancer-associated antigens are predominantly enriched in responders compared to non-responders, respectively. c,d, ELISpot analysis of IFNγ-secreting cells in response to varying effector-to-target (E:T) ratios. The left panel shows wells with decreasing numbers of spots from top to bottom, corresponding to different ratios (1:1 and 5:1) for two conditions, indicating the frequency of cytokine-producing cells. The right panels represent different experimental conditions or treatments, with each row representing different replicates or conditions. Darker and more numerous spots indicate higher frequencies of cells secreting IFNγ. e, Similarly, a broader characterization using seromics indicates increased abundance of autoantibodies against CTAs in responders compared to non-responders. f, Number of antigens enriched between responders and non-responders. g, Analysis of 16 patients (8 responders and 8 non-responders) showed that an enrichment of antibodies against CTA, tumor-associated antigen (Tu/AutoAg) and other antigens was also higher in responders. Specifically, comparisons of CTA-specific IgG and IgA levels between responders and non-responders showed statistically significant differences (P = 0.04 and P = 0.01, respectively), as determined by the Wilcoxon rank-sum test and visualized by box plots (same definition as in Fig. 1c). h, Box plots (same definition as in Fig. 1c) showing the CTA gene expression signature divided by timepoint (pre or post) and clinical response (responders and non-responders); paired t-test and Wilcoxon rank test were used to estimate the significance between both groups; only paired t-test results are shown in the figure. i,j, The increase in autoantibodies against CTAs in responders, specifically in the IgG1 and IgA isotypes, was assessed using a heatmap to visualize relative abundance patterns across samples, violin plots to display the distribution and variability of antibody levels and quantile−quantile (Q−Q) plots to evaluate deviations from normality and highlight differences in distribution between responders and non-responders. KS, Kolmogorov–Smirnov test; NS, not significant; P/I, phorbol myristate acetate (PMA) and ionomycin positive control.

Full size image

Next, to investigate T cell responses, we performed an ELISpot assay with CD8+ T cells isolated from pretreatment and on-treatment peripheral blood mononuclear cells (PBMCs), resected tumors and draining lymph nodes with detectable NY-ESO-1 antibodies. The responder’s CD8+ T cells showed significant IFNγ, whereas the CD8+ T cells from the non-responder, who had predominantly IgA, showed only minimal reactivity (Fig. 5c,d). Notably, the responder had circulating NY-ESO-1 antibodies before ICB treatment, but IFNγ production by CD8+ T cells was observed only in on-treatment samples, suggesting that antitumor B cell response may precede T cell response, as in previous reports23,24.

To assess if serum autoantibodies target cancer antigens more than other autoimmune targets, we performed seromic profiling (IgG and IgA against approximately 20,000 antigens, including 186 CTAs; Supplementary Table 1) on 32 paired pretreatment and posttreatment samples from a discovery HCC neoadjuvant PD-1 cohort (8 responders and 8 non-responders). We observed that IgG autoantibodies and, to a lesser extent, IgA were enriched for CTAs in responders compared to non-responders (Fig. 5e).

Surprisingly, reactivity to CTA was enriched for response, as antibodies detected to another approximately 400 other known non-CTA tumor antigens (including p53) had similar prevalence in responders and non-responders for IgG and IgA (Fig. 5f). Notably, almost all antigen-specific antibodies were unique to individual patients and were found before treatment and after treatment, although some increases in reactivity were noted after treatment (Extended Data Fig. 4i,j). Looking in individual samples, only CTA-specific antibodies showed a significant increase with clinical benefit in total number of reactivities (on average, 2−3 hits in responders versus 0−1 hits in non-responders) (Fig. 5g). In parallel, we did not observe correlation between gene expression of CTAs and autoantibodies, suggesting that immunogenicity is more important than expression alone (Fig. 5h). Finally, the increase in autoantibodies against CTAs in responders (P < 0.05) in IgG was identified as specific for CTAs compared to IgA, autoantigens and other antigens (Fig. 5i,j). Together, these results support the notion that antibody production and reactivity against CTAs are indicators of clinical response to ICB, in parallel to an increase of IgG1 PCs.

Plasma IgG1 signature associated with improved survival in immunotherapy

To explore the relevance of IgG1 PC expression in patient survival, we used independent immunotherapy clinical trials (approximately 1,500 patients)25,26,27. Notably, high IGHG1 expression was associated with improved overall survival in multiple datasets, including skin cutaneous melanoma (SKCM) (TCGA)25 and POPLAR26 and OAK26 trials (patients with NSCLC treated with anti-PD-L1) (Fig. 6a). Notably, non-immunotherapy trials showed no effect of IGHG1 on survival (lung squamous cell carcinoma (LUSC) and liver hepatocellular carcinoma (LIHC)). These results indicate that chemotherapy-treated cancers have no clear link between clinical response and IGHG1.

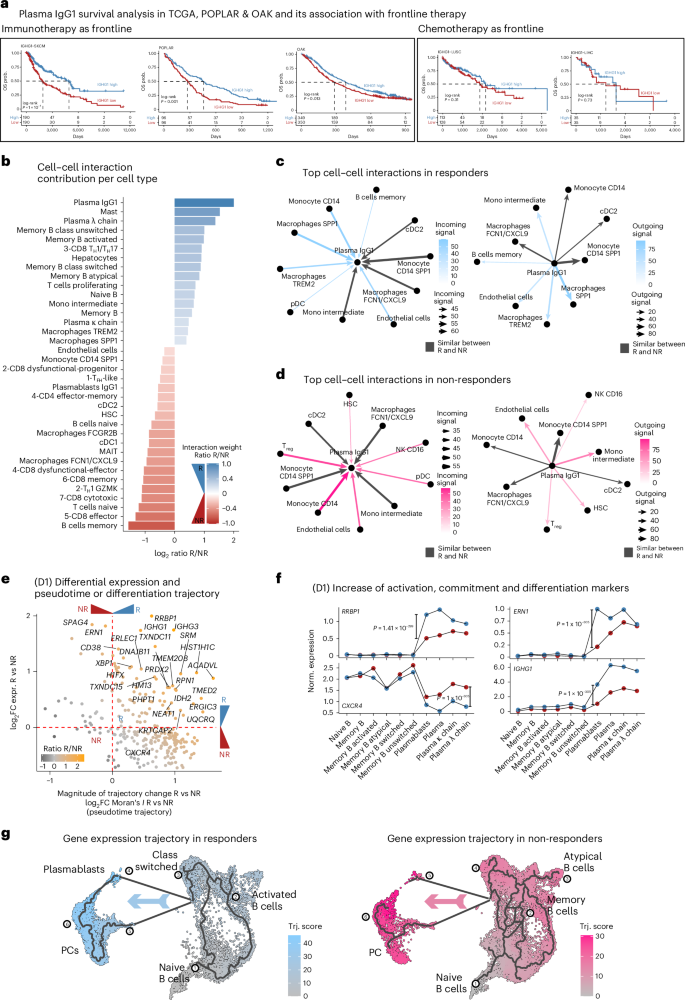

Fig. 6: Survival analysis and potential cell−cell interactions and mechanisms behind IgG1 phenotype.
figure 6

a, Kaplan−Meier survival analysis from TCGA and clinical trial cohorts (POPLAR and OAK) stratified by high versus low IgG1 expression levels across multiple cancer types (SKCM, LUSC and LIHC). High IgG1 expression is associated with improved survival in several contexts (log-rank P values shown). OS, overall survival. b, Cell−cell interaction contribution scores for each cell type, highlighting plasma IgG1 cells as major contributors in responders. Bar plot shows interaction weight ratios (R/NR) per interaction pathway, color coded by interaction strength. cDC1/2, conventional type 1/2 dendritic cells; HSC, hematopoietic stem cells; MAIT, mucosal-associated invariant T cells; TFH, follicular helper T cells. c,d, Top cell−cell interactions enriched in responders (blue) and non-responders (red), based on ligand−receptor analysis. Arrows indicate the directionality and magnitude of cell type interactions, with plasma IgG1 cells and myeloid compartments prominently engaged in responders. e, Trajectory analysis and differential expression overlap between responders and non-responders showing genes significantly changing between compartments and between responders and non-responders (FDR < 0.05 and Moran’s I > 0.5, estimated using two-sided Wilcoxon rank test and the Monocle 3 pseudotime package). f, Line plots showing the pseudobulk normalized median expression of RRBP1, CXCR4, ERN1 and IGHG1 along the trajectory path traced using the Monocle 3 algorithm and Moran’s I statistical tests (FDR < 0.05 and Moran’s I > 0.5 were estimated in e using two-sided Wilcoxon rank test and Monocle 3 pseudotime package). g, RNA trajectories build using either responders (blue) or non-responders (red) showing that responders differentiate mostly in activated and switched B cells leading to plasmablasts and PCs, whereas non-responders have higher pseudotime scores in atypical and memory B cells. Trj., trajectory.

Full size image

B cells differentiate toward plasma IgG1 in clinical responders

Finally, we evaluated the immune cell contributions in cell−cell communication networks. IgG1 PCs, alongside specific macrophage and T cell subsets, were key drivers of interaction strength in responders (Fig. 6b). Responders showed stronger interaction scores among IgG1 PCs, plasmacytoid dendritic cells and macrophages, whereas non-responders had enriched interactions involving monocytes, regulatory T cells, NK cells and immature dendritic cells (Fig. 6c,d). These findings suggest IgG1-skewed PCs foster a favorable immunogenic microenvironment through enhanced immunostimulatory signaling, potentially improving immunotherapy outcomes. We also identified key pathways potentially driving plasma IgG1 differentiation, including IL-6, TNF, MK, CD70, BTLA, MIF, BAG and CypA, which were enriched as both incoming and outgoing signals (FDR < 0.05) (Extended Data Fig. 5a–d and Supplementary Table 2).

By integrating these signaling results with differential gene expression and pseudotime analysis, we identified genes strongly associated with clinical outcomes. Responders showed higher expression of genes related to PC differentiation, such as ERN1 and RRBP1, whereas non-responders showed increased CXCR4 (Fig. 6e,f and Supplementary Table 2). These patterns suggest that ICB induces B cell activation and class switching, leading to plasmablast expansion and differentiation into IgG1-secreting PCs (Fig. 6f,g). By contrast, non-responders accumulate fewer diverse memory cells, atypical B cells and non-IgG1 PCs. In summary, we identified critical gene programs that support sustained B cell activation and plasma IgG1 differentiation, both of which are associated with favorable clinical response.

Discussion

Although ICB is a cornerstone of cancer therapy, its effect on humoral immunity is not well understood. The presence of intratumoral B cells is strongly associated with positive ICB responses across various cancers14, but the specificity of these cells to tumor antigens and the mechanisms driving this benefit remain unclear28,29. We found that clinical responders were enriched in IgG1 PCs, which have high antitumor potential, similar to findings in colorectal cancer30. We observed a dynamic, tumor-specific differentiation of these IgG1 PCs, which were present at baseline and expanded upon ICB treatment. Conversely, non-responders had an abundance of naive and memory B cells, phenotypes that can contribute to cancer progression31,32,33. These data suggest that different B cell phenotypes are recruited to the tumor or lymph nodes12,34, and improper differentiation can worsen outcomes35,36,37,38. This is supported by observations that antigen-specific B cells differentiating into PCs are associated with improved ICB outcomes39,40,41.

The presence and expansion of circulating IgG1 antibodies against CTAs in responders further suggests a dynamic, antigen-driven adaptive immune response. We hypothesize that these antibodies enhance T cell induction through cross-priming23,24, which aligns with previous findings where CTA seropositivity correlates with ICB benefit15,16,17,42,43 despite being linked to worse prognosis44,45,46. Although both responders and non-responders have preexisting tumor-specific clonotypes, only responders show significant clonal expansion with immunotherapy. Correspondingly, PCs in responders heavily infiltrate the tumor parenchyma, mimicking CD8+ T cells, whereas infiltration in non-responders is sparse. These findings suggest that PCs in responders have active effector functions and that CTA-targeted therapies, such as vaccines combined with ICB, could be a promising strategy to stimulate these beneficial IgG1 responses47. Combined, these findings suggest that PCs of responders have active effector function compared to other subsets of B cells.

The B cells and PCs present in the tumor or adjacent tissues in non-responders had a diverse immunoglobulin repertoire, including IgA, IgG1−IgG4 and IgM without specific isotype enrichment, whereas, on the contrary, responders had an enrichment of IgG1 PCs and plasmablasts. Interestingly, studies have associated IgA plasmablasts derived from reprogramming by cancer-associated fibroblasts to be linked with poor clinical outcomes48. However, we noted that, in responders, not only was there a skewing toward IgG1 at baseline, but there was also an amplification of preexisting matching CDR3 IgG1 cells after immunotherapy compared to their abundance in biopsies taken prior to treatment. The expansion of plasma IgG1 effector cells is potentially associated with immunotherapy induced type I interferon responses49. Together, these findings suggest that an IgG1 PC signature may serve as an important pretreatment biomarker. Moreover, the observed increase in IgG1 abundance after ICB indicates that this dynamic change is strongly associated with a favorable response to therapy. Incorporating these insights into current treatment strategies could involve promoting B cell differentiation toward IgG1-producing PCs by targeting pathways identified in this study, such as IL6, TNF, RRBP1, ERN1 and CD70 signaling. Therapeutic agents such as IL-6 agonists or TNF pathway activators warrant exploration as potential means to enhance IgG1 skewing, thereby potentially improving the efficacy of ICB.

A potential mechanism that favors the survival and expansion of plasma IgG1 involves the CyPA and Midkine signaling pathways, which help inhibit IL-6 degradation and promote survival through CD74, respectively50,51. In combination with proinflammatory conditions due to stimulation from myeloid cells through MIF, GAS, CXCL and Complement, IgG1-secreting PCs may be sustained during antitumoral response52,53. Elegant in vitro studies congruent with our trajectory analysis have emphasized the importance of sustained signaling of PCs and stimulation of ERN1 to achieve clinical response54,55. We observed significant clonal expansion after combination of radiation and ICB, suggesting that Ig-secreting PCs survived the radiation treatment, which was also reported to be associated with activation of ERN1 and XBP1 genes56.

These findings from patients with liver cancer treated with neoadjuvant ICB mirror observations in patients with advanced melanoma or NSCLC3 treated with PD-1 with or without CTLA-4 inhibitors from TGCA-SKCM25, POPLAR26 and OAK27 cohorts (immunotherapy as frontline). By contrast, cancers where chemotherapy is frontline are not associated with the IgG1 PC phenotype (TCGA-LUSC and TCGA-LIHC). The association between IgG1 skewing and improved survival across different tumor types underscores the broader implications of our results in guiding immunotherapy strategies34,57,58,59. The dominance of IgG1 subclass antibodies and their correlation with T cell activation highlights the interplay between humoral and cellular immune responses in mediating antitumor immunity. Overall, our study provides insights into the key role of B cell and PC responses in antitumor immunity and in response to ICB therapy, offering potential biomarkers for treatment stratification, and supports the hypothesis that tumor-specific humoral immunity is involved in ICB response. Further exploration of these mechanisms may facilitate the development of more effective immunotherapeutic strategies that further harness the role of the humoral immune system in antitumor immunity.

A shortcoming of our study was small pretreatment biopsy sizes, restricting comprehensive immune tumor microenvironment analysis and allowing only bulk sequencing before ICB. Low cell and patient numbers from single-cell sequencing, limited clonal tracking to unique CDR3 regions and unverified antigen specificity of clonally expanded PCs were additional constraints. For instance, in the radiation plus cemiplimab (PD-1) cohort, PCs were abundant in non-responders but lacked clear IgG1 signatures seen in responders. However, we aimed to overcome these limitations by integrating multiple approaches and cohorts that consistently linked increased IgG1 PC phenotype to posttreatment clinical response.

Methods

Cohort descriptions

Discovery cohort (D1). Early-stage HCC lesions and matched non-involved liver specimens were surgically resected after two doses of cemiplimab (ClinicalTrials.gov registration: NCT03916627; cohort B1) or 2−4 doses of nivolumab. Patients across all HCC etiologies responded to ICB, defined as ≥50% tumor necrosis by pathological examination18.

Validation cohort (V2). Early-stage HCC lesions and matched non-involved liver specimens were treated with stereotactic body radiotherapy ((SBRT) 8 Gy × three fractions) followed by two doses of cemiplimab prior to surgery. These patients were subsequently surgically resected after two doses of cemiplimab. Patients across all HCC etiologies responded to ICB, defined as ≥50% tumor necrosis by pathological examination18 (NCT03916627; cohort B2).

Biopsies and tumor tissues from D1 and V2 cohorts were obtained from these patients undergoing surgical resection at Mount Sinai Hospital, after obtaining informed consent in accordance with a protocol reviewed and approved by the institutional review board (IRB) at the Icahn School of Medicine at Mount Sinai (IRB 18-00407).

Validation cohort (V3), Sade-Feldman et al.3. Patients with metastatic melanoma provided written informed consent for the collection of tissue and blood samples for research and genomic profiling, as approved by the Dana-Farber/Harvard Cancer Center IRB (DF/HCC protocol 11-181) and The University of Texas MD Anderson Cancer Center (IRB LAB00-063 and 2012-0846). Tumor samples (n = 48) were obtained from 32 patients at baseline and/or after checkpoint therapy. Checkpoint blockade therapy used antibodies targeting CTLA-4, PD-1 or PDL-1 (database of Genotypes and Phenotypes (dbGaP) study accession numbers phs001680.v1.p1 and PRJNA489548).

Validation cohort (V4), IMbrave150 (ref. 20): a phase 3, open-label, randomized study of atezolizumab in combination with bevacizumab compared to sorafenib in patients and untreated locally advanced or metastatic HCC. This study evaluated the efficacy and safety of atezolizumab in combination with bevacizumab compared to sorafenib in participants with locally advanced or metastatic HCC who have received no prior systemic treatment. The participants were randomized in a 2:1 ratio to one of the two treatment arms: arm A (experimental arm): atezolizumab + bevacizumab; arm B (control arm): sorafenib (NCT03434379).

Validation cohort (V5), Cappuyns et al.21. This cohort was from the University Hospitals Leuven in Leuven, Belgium. Single-cell transcriptomics was used to characterize the intratumoral and peripheral immune context of patients with advanced HCC treated with atezolizumab + bevacizumab. Both blood and tumor tissue were evaluated (EGAS00001007547).

Validation cohort (V6), Ma et al.22. This cohort consists of individuals aged 18 years or older diagnosed with gastrointestinal cancers, including throat, stomach, gallbladder, liver, pancreatic or colon cancer, who are scheduled for treatment at the National Institutes of Health (NIH) Clinical Center. Participants will undergo a screening process involving a physical examination and medical history, provide a baseline blood sample and contribute additional blood samples at 2 months and 4 months after baseline as well as at the completion of their treatment, across 1−4 NIH visits. They will also provide tumor tissue samples if they undergo cancer-related surgery, with no treatment provided as part of this study, which focuses on analyzing their immune system’s response to the cancer through these samples. The data are available at the Sequence Read Archive (SRA) repository: GSE151530 (NCT01313442).

Validation cohort (V7), Zhang et al.60. This cohort consists of data from the tumor microenvironment in HCC resection specimens from a prospective clinical trial of neoadjuvant cabozantinib, a multi-tyrosine kinase inhibitor that primarily blocks VEGFR2, and nivolumab, a PD-1 inhibitor in which five out of 15 patients were found to have a pathologic response at the time of resection. However, only four responders and three non-responders had data available. The data are available at the SRA repository: GSE238264 (NCT03299946).

Validation cohort (V8)25,26,27. Multiple cohorts with available overall survival data were evaluated with survival analysis. These cohorts include TCGA cohorts25. Data were accessed via the Genomic Data Commons (https://portal.gdc.cancer.gov) and https://www.cancer.gov/tcga. Furthermore, we also investigated the cohorts POPLAR and OAK from NCT01903993 and NCT02008227, respectively.

Grand serology ELISA

ELISA was used to detect and quantify circulating IgG antibodies to known tumor antigens, as previously described. In brief, plasma samples were analyzed by low-volume semiautomated ELISA for seroreactivity to a panel of recombinant protein antigens (NY-ESO-1, p53, SOX2, HORMAD1, ERG, DHFR, PRAME, WT1, MELAN-A, SURVIVIN, UBTD2, CT47, MAGE-A1, MAGE-A4, SSX4, CT10, SSX2, XAGE, GAGE7 and MAGE-A10). Low-volume 96-well plates were coated overnight at 4 °C with 0.5–1 μg ml−1 antigen and blocked for 2 h at room temperature with PBS containing 5% non-fat milk and 0.1% Tween 20. Plasma was titrated from 1:100 to 1:6,400 in fourfold dilutions and added to blocked and washed 96-well plates. For assay validation and titer calculation, each plate contained positive and negative controls (pool of healthy donor sera). After overnight incubation, plates were extensively washed with PBS 0.2% Tween 20 and rinsed with PBS. Plasma antigen-specific IgG was detected after incubation with alkaline-phosphatase-conjugated goat anti-human IgG (SouthernBiotech, 2040-4, diluted 1:4,500), revelation using AttoPhos substrate and buffer and measurement using a fluorescence reader (BioTek Synergy). By linear regression, a reciprocal titer was calculated for each sample and for each antigen as the predicted or interpolated dilution value at which the titration curve meets a cutoff value7. A positive significant result was defined as reciprocal titers more than 100.

ELISpot assay

After bead-guided selection, CD8+ T cells were independently cultured with peptide-pulsed, irradiated T-cell-depleted PBMCs (serving as antigen-presenting cells) in RPMI + 10% serum type AB (to avoid potential reactivity) supplemented with IL-2 (10 U ml−1) and IL-7 (20 ng ml−1) twice a week. Cells were assessed for specificity at day 10 of culture for CD8, using autologous antigen-presenting cells pulsed with NY-ESO-1 peptides or controls (influenza nucleoprotein peptide pool or dimethyl sulfoxide (DMSO)). The IFNγ ELISpot assay was performed on CD8+ T cells. In brief, 96-well nitrocellulose ELISpot plates (Millipore, MAHA S4510) were coated overnight at 4 °C with 2 μg ml−1 anti-human IFNγ monoclonal antibody (1-D1K) and blocked with 10% human AB serum containing RPMI 1640 for 2 h at 37 °C. Then, 2 × 104 sensitized CD8+ T cells and 2 × 104 peptide-pulsed T-APCs were placed in each well of the ELISpot plate at a final volume of 100 μl of RPMI 1640 medium without serum. After incubation for 22 h at 37 °C in a CO2 incubator, the plate was developed using 0.2 μg ml−1 biotinylated anti-human IFNγ monoclonal antibody (Mabtech, 7-B6-1), 1 μg ml−1 streptavidin-alkaline phosphatase conjugate (Roche Diagnostics) and 5-bromo-4-chloro-3-indolyl phosphate/NBT (Sigma-Aldrich). The number of spots was evaluated using a CTL ImmunoSpot analyzer and software (Cellular Technology Limited). Results are shown as the number of spot-forming cells without subtracting the number of background spots, because the number of spot-forming cells in negative control was fewer than three spots per well in all assays. A positive response with more than 50 spot counts per well as well as spot counts ≥twofold more than background spots obtained with non-pulsed target cells was considered to be significant. The significance was defined descriptively only, if the number of spots observed for NY-ESO-1 in pre, post or lymph node was greater than >2× the number of spots in control DMSO as well as more than 50 spots per 50,000 cells.

Seromics

Seromics profiling was performed using CDI Labs’ HuProt Human Proteome Microarray version 4.0, which includes over 21,000 individually purified full-length human proteins and isoforms, providing comprehensive coverage of more than 80% of the human proteome. The proteins were printed in duplicate pairs on PATH nitrocellulose slides (CDI Labs). Patient sera were diluted 1:500 in Seromics Sample Buffer. Simultaneously, the barcoded HuProt Microarrays were blocked using CDIArrayBlock buffer to minimize non-specific binding. The diluted sera samples were applied to the blocked microarrays and incubated for 1 h at room temperature on a shaker. After incubation, the microarrays underwent a series of washes. Goat Anti-Human IgG Fc Cross-Adsorbed Secondary Antibody DyLight 550 and Goat Anti-Human IgA Chain Alpha Antibody DyLight 650 were applied to the microarrays. These were incubated for 1 h at room temperature on a shaker, followed by additional washes. The microarrays were gently dried and scanned immediately using a GenePix 4300A Microarray Scanner, using GenePix Pro software (Molecular Devices). The resulting images were analyzed with Mapix microarray image acquisition and analysis software (Innopsys), where signal intensities of background and positive and negative control spots were quantified.

Single-cell RNA-seq

Sample preparation: single-cell suspensions from HCC tissues were obtained, as described above. Cell dissociation was achieved using gentleMACS standard dissociation protocol. Samples were broadly enriched for CD45+ cells by fluorescence-activated cell sorting, and these cells were suspended in PBS supplemented with 0.05% BSA. Viability of single cells was assessed using Acridine Orange/Propidium Iodide viability staining reagent (Nexcelom Bioscience), and debris-free suspensions of more than 80% viability were deemed suitable for the experiments. Single-cell RNA-seq was performed using the Chromium platform (10x Genomics) with the 5′ gene expression (5′ GEX) V2 kit, as per the manufacturer’s instructions, for a target cell recovery of 10,000 cells per lane. Both gene expression and BCR V(D)J libraries were constructed, according to the manufacturer’s instructions. All libraries were quantified via Agilent 2100 hsDNA Bioanalyzer or TapeStation 4200 and KAPA library quantification kit (Roche, 0797014001). Libraries were sequenced at a targeted depth of 25,000 reads per cell for gene expression and 5,000 reads per cell for BCR V(D)J, using the paired-end Illumina NovaSeq S4 300-cycle kit.

Spatial transcriptomics analysis

Seven HCC samples (cohort V7) profiled using 10x Genomics Visium were integrated using scVI (version 1.3.0). Spatial clustering was performed with CellCharter (version 0.3.3), and differential gene expression analysis was conducted within the scVI framework. For each cluster, canonical immune and HCC-related genes were subjected to pathway enrichment analysis (using gseapy version 1.1.8) to guide annotation. Non-canonical genes were included if uniquely or highly expressed within a specific cluster. Heatmaps of enriched pathways and marker expression profiles were generated for visual comparison.

mIHC and TLS community detection

Seventeen mIHC biopsies (six responders and 11 non-responders) from the discovery cohort (D1) were analyzed to identify TLS-like communities. CD3+, CD8+ and CD20+ cells were used as seeds for community detection. Cells within 10 µm of each other were iteratively connected if positive for any of the three markers, forming spatially contiguous TLS-like communities. Radial density profiles were computed for CD20+, CD3+, CD8+ and MZB1+ cells within each community by defining concentric rings from the centroid—determined via mean shift clustering—to encompass approximately 10% of the effective community area per ring. Marker-specific densities were calculated cumulatively across these rings.

PC infiltration scoring

To assess global infiltration of MZB1+ PCs, spatial graphs were constructed using all cell centroids within each tissue section. A k-nearest neighbor (KNN) graph (k = 10) was constructed and partitioned using the Leiden algorithm. The infiltration score for each community was defined as the ratio of MZB1+ cells to the total number of cells within the community. These scores were used to compare PC dispersion between responders and non-responders.

Statistical analysis

Gene expression reads were aligned to the hg38 reference transcriptome, and count matrices were generated using the default Cell Ranger 2.1 workflow, using the ‘raw’ matrix output. After alignment, barcodes matching cells contained more than 200 unique genes and at maximum 1,000 counts. From these cells, those with transcripts more than 25% mitochondrial genes were filtered from downstream analyses. Matrix scaling, logarithmic normalization and batch correction via data alignment through canonical correlation analysis and unsupervised clustering using a KNN graph partitioning approach were performed as previously described. Single-cell clustering was done on the top 2,000−3,000 genes based on the dataset. Immunoglobulin light, heavy and variable chains were excluded from clustering due to their overabundance in PCs and B cells. Differentially expressed genes were identified using the FindMarkers function (Seurat). Mean unique molecular identifiers (UMIs) were imputed to determine logarithmic fold changes in expression between cell states to further the analysis of markers of interest. Gene set enrichment analysis was performed using the Enrichr, Gene Ontology and Kyoto Encyclopedia of Genes and Genomes databases. Other R packages used include scDissector version 1.0.0, ComplexHeatmap version 2.0, ggplot2 version 3.3.5, tidyverse version 1.0, Matrix version 0.9.8, seriation version 1.3.5, Dream version 1.0, singleR version 1.0, CellChat version 1.0, Dirichlet version 0.9 and immunarch version 1.5. Survival analyses were performed using the survival, survminer and gtsummary R packages. Differential abundance was done using Dirichlet regression modeling strategies. BCR analysis was done using immunarch and Wilcoxon rank test. Reconstruction of BCRs from bulk and single cells was done using TRUST4 and MixCR algorithms. Trajectory analyses were conducted using Monocle 3 and Moran’s I index.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
