Abstract

Three-dimensional (3D) genome organization becomes altered during development, aging and disease, but the factors regulating chromatin topology are incompletely understood and currently no technology can efficiently screen for new regulators of multi-scale chromatin organization. Here, we developed an image-based high-content screening platform (Perturb-tracing) that combines pooled CRISPR screens, a cellular barcode readout method (BARC-FISH) and chromatin tracing. We performed a loss-of-function screen in human cells, and visualized alterations to their 3D chromatin folding conformations, alongside perturbation-paired barcode readout in the same single cells. We discovered tens of new regulators of chromatin folding at different length scales, ranging from chromatin domains and compartments to chromosome territory. A subset of the regulators exhibited 3D genome effects associated with loop extrusion and A–B compartmentalization mechanisms, while others were largely unrelated to these known 3D genome mechanisms. Finally, we identified new regulators of nuclear architectures and found a functional link between chromatin compaction and nuclear shape. Altogether, our method enables scalable, high-content identification of chromatin and nuclear topology regulators that will stimulate new insights into the 3D genome.

Image-based 3D genomics through chromatin tracing

Article 24 October 2024

Super-resolution visualization of chromatin loop folding in human lymphoblastoid cells using interferometric photoactivated localization microscopy

Article Open access 20 May 2022

Understanding 3D genome organization by multidisciplinary methods

Article 05 May 2021

Main

The spatial organization of chromatin is linked to many genomic functions and shows intriguing dynamics in a variety of biological processes and diseases¹. Chromatin organization occurs at many levels and length scales, from local accessibility to longer-range contacts to global nuclear architecture. Studies on effectors such as histone modification enzymes or chromatin loop organizers, for example, CTCF, have bolstered our understanding of chromatin architecture, but our overarching understanding of how chromatin is regulated across length scales and in different cell types and conditions remains limited. It is a substantial challenge to systematically identify new molecular regulators of complex 3D genome architecture and form testable hypotheses about their mechanisms of action. Important 3D genome regulators have been primarily discovered by perturbing one candidate gene at a time^2,3,4 or by plate-based screening focusing on relatively low-content phenotypes such as the spatial distance between one pair of genomic loci^5,6. Recently, high-content CRISPR screens combining Perturb-seq and single-cell assay for transposase-accessible chromatin with sequencing have enabled the high-throughput discovery of candidate regulators of local chromatin accessibility^7,8. However, we still lack scalable, broadly applicable methods to efficiently screen for regulators of higher-order 3D chromatin folding architectures, especially at the length scales of topologically associating domains (TADs, also known as contact domains), chromatin compartments and chromosome territories^9,10,11.

TADs largely confine the scope of promoter–enhancer interactions¹² and are structural units of chromatin with different DNA replication timing¹³ and mutation susceptibility¹⁴. TADs are further sorted into segregated A (active) and B (inactive) compartments in each chromosome territory¹⁰. Whole-chromosome territory compaction has been observed in X-chromosome inactivation¹⁵ and cellular senescence¹⁶. Defining the regulatory landscape and architectural basis of chromatin folding at the length scales that are relevant to each genomic feature is critical to understanding their functions and dynamics in development, aging and disease^1,17,18. Assessing multiple length scales in parallel is technically challenging and currently only possible with single-gene perturbations.

We endeavored to develop a technique that would allow for the discovery of new factors influencing chromatin architecture as well as providing clues into which length scales and chromatin features they act on. To this end, here we present a method termed Perturb-tracing that combines the power of pooled CRISPR screening of candidate regulators with high-content readout of chromatin organization over multiple length scales. Our high-throughput, high-content genetic perturbation screen is combined with super-resolved in situ tracing of complex chromatin folding conformations and imaging of nuclear architectures across multiple length scales in human cells. A key innovation of our technology is the decoding technique we devised, termed ‘barcode amplification by rolling circle and fluorescence in situ hybridization’ (BARC-FISH), which enzymatically amplifies the barcode of each single guide RNA (sgRNA) in situ for robust decoding using fluorescence in situ hybridization (FISH), which is compatible with the multi-scale 3D chromatin mapping required to assess high-content phenotypic readouts for each barcode. After validating our method, we applied it to screen 137 candidate genes with 420 sgRNAs and imaged 30 chromatin or cellular targets per cell, generating 12,600 imaging target–perturbation combinations. The screen identified 21 top-ranking hits as new regulators of 3D genome organization at different length scales. Correlation analyses revealed regulators working in conjunction with known 3D genome regulatory mechanisms. In addition, we discovered a general link between chromatin compaction regulation and the maintenance of nuclear sphericity. Altogether, our work presented here provides a platform for the discovery and characterization of new chromatin regulators across multiple length scales and paves the way to build a global map of how 3D genomic architecture is regulated in diverse contexts.

Results

Perturb-tracing enables image-based screening of 3D genome regulators

To systematically discover new regulators of chromatin conformation, we developed an image-based method termed Perturb-tracing to screen chromatin structures in individual knockout cells. Briefly, we used CRISPR–Cas9 technology to generate a pooled library of knockout A549 human lung cancer cells that coexpress Cas9 with a sgRNA and a unique RNA barcode (Fig. 1a and Extended Data Fig. 1a,b). The barcode RNA comprised ten regions, each encoding one of three sequences (Fig. 1b), a design inspired by a recent report¹⁹. Each region is analogous to a ternary digit (with values ‘0’, ‘1’ or ‘2’) in computation, and each ten-digit barcode was uniquely paired with an sgRNA in the same cell (Fig. 1a,b). We developed BARC-FISH to visually read out the barcode RNAs in single cells, and thereby identify the genetic perturbation in each cell (see below). To map the phenotypic effects of each knockout on 3D spatial organization of numerous genomic loci in single cells, we performed the highly multiplexed DNA FISH method known as chromatin tracing²⁰ on chromosome 22 (chr22; Fig. 1a). Finally, we used a high-throughput computational approach to identify conserved features and systematic changes of chromatin organization caused by the same genetic perturbation in multiple cells, for every gene knockout in the pooled screen.

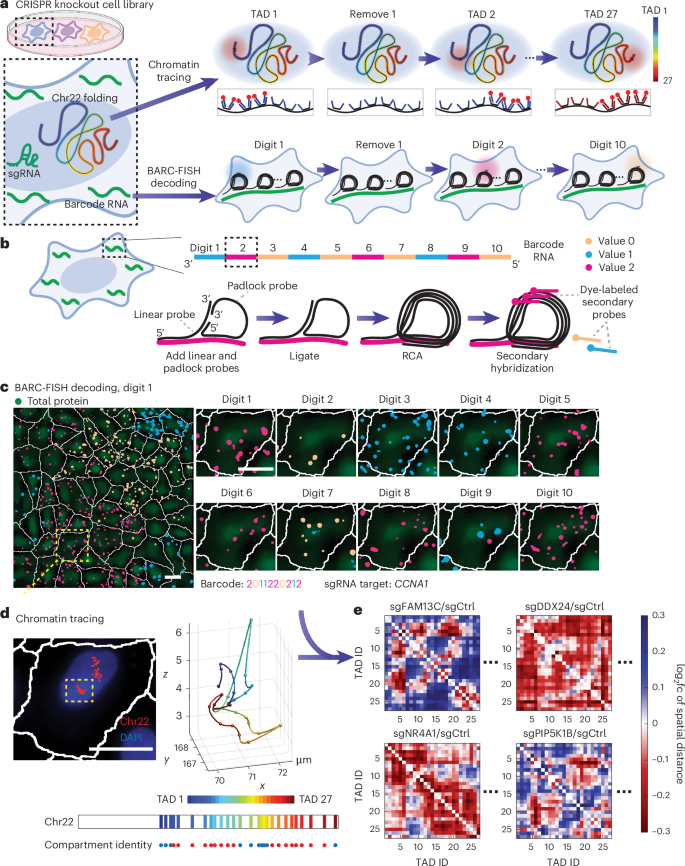

**Fig. 1: Perturb-tracing enables image-based pooled CRISPR screen of chromatin and nuclear organization regulators.**

For BARC-FISH, we adopted a high-efficiency rolling circle amplification (RCA) strategy from an in situ sequencing method²¹. Specifically, a linear probe and a ‘padlock’ probe are hybridized to each ‘digit’ in the RNA barcode. Circularization and ligation of the padlock probe generate a template for RCA, primed by the linear probe, which in turn locally generates many copies of part of the digit sequence (Fig. 1b). For each of the ten digits, we hybridized dye-labeled secondary probes to the RCA product and observed a strong signal over background (Fig. 1b,c). To detect the value of each digit in individual cells, we sequentially applied three-color secondary probes for each digit, and imaged the fluorescence signals from the labeled RCA products over ten rounds of three-color sequential FISH imaging (Fig. 1c). After each round of imaging, the fluorescence signals were removed from the cells before the next round of sequential FISH. Finally, the fluorescence signals from all rounds of imaging were computationally converted to barcode values, and subsequently to sgRNA identities for individual cells by referring to the barcode–sgRNA associations mapped by high-throughput sequencing (Methods). With high signal-to-background ratio and an error-correcting decoding algorithm (Methods), BARC-FISH achieved robust decoding while being compatible with chromatin tracing (Fig. 1c,d and Extended Data Fig. 1c,d), allowing us to match sgRNA identities underlying genetic perturbations to 3D genome phenotypes (Fig. 1e).

For our screen, we generated a plasmid library of 420 sgRNAs composed of 10 non-targeting control sgRNAs and 410 sgRNAs targeting 137 selected genes (a coverage of 2 to 3 sgRNAs per target gene; Supplementary Table 1). The plasmid library was cloned using a high-throughput pooled cloning strategy (Extended Data Fig. 2a and Methods). This strategy randomly paired the ten-digit barcodes with the sgRNAs and used a bottlenecking method to ensure unique mapping of each barcode to a single sgRNA. With this strategy, up to ~5,000 sgRNAs can be distinguished with the current barcoding scheme (Methods). It is possible to extend the barcode sequence to allow for more perturbations in a single screen. The 137 selected genes included ones encoding known chromatin conformation regulators such as NIPBL and CTCF as positive controls²², and primarily genes encoding nuclear proteins that are differentially expressed by more than fivefold upon oncogene-induced senescence²³, given the extensive 3D genome reorganization during this process^16,18. We generated the cell knockout library by lentiviral transduction of the plasmid library with puromycin selection, and detected 8 non-targeting sgRNA controls and 404 sgRNAs corresponding to all 137 targeted genes, suggesting an sgRNA dropout rate of 1.9% with our library construction. To estimate the knockout efficiency in our cell background, we transduced A549-Cas9 cells with selected individual sgRNA constructs and performed next-generation sequencing (NGS) on the target genomic DNA of the polyclonal cells after transduction and selection. The results showed knockout efficiencies of 43–70% for the selected sgRNAs (Extended Data Fig. 2b), close to the predicted knockout efficiencies in previously reported CRISPR editing prediction models^24,25. This less-than-100% knockout efficiency is intrinsic to CRISPR and is expected to potentially lead to a mixture of wild-type and knockout phenotypes in subpopulations of cells carrying the same sgRNA, but we expect to still capture knockout phenotypes that are sufficiently strong in population analyses.

Identification of regulators of multi-scale chromatin folding

For chromatin tracing, we mapped the conformation of chr22 as a model (due to its short genomic length and the lack of known structural variations on chr22 in A549 cells) at the TAD-to-chromosome length scales by pinpointing the central 100-kb regions of all 27 TADs spanning chr22 (Fig. 1d). To exclude the potential influence of cell cycle on chromatin conformation, we incorporated Geminin staining and only included G1 phase cells in our analyses (Extended Data Fig. 2c)²⁶. Individual G1 phase A549-Cas9 cells contained 2–4 chr22 traces each. We analyzed 57,286 traces containing 1,407,797 3D positions from 17,304 cells.

To identify regulators of 3D genome organization, we first investigated the spatial distances between adjacent TADs on chr22. Consistent with recent imaging studies focusing on single pairs of adjacent TADs^27,28, we found that loss of the known cohesin loader NIPBL led to a significant increase in adjacent TAD distance, whereas loss of CTCF significantly decreased adjacent TAD distance as expected^27,28 (Fig. 2a,b). These positive control results are consistent with the opposing roles of CTCF and NIPBL in loop extrusion^2,3,4,27,28 and cross-validated our screening method. Importantly, other knockout hits also altered the adjacent TAD distances, revealing new candidate regulators of chromatin organization. We observed that loss of the tumor suppressor RB1, MRVI1 and PIP5K1B increased the adjacent TAD distance, while loss of GLDC, the nuclear receptor NR4A1 and ZNF114 caused the opposite phenotype (Fig. 2a–c).

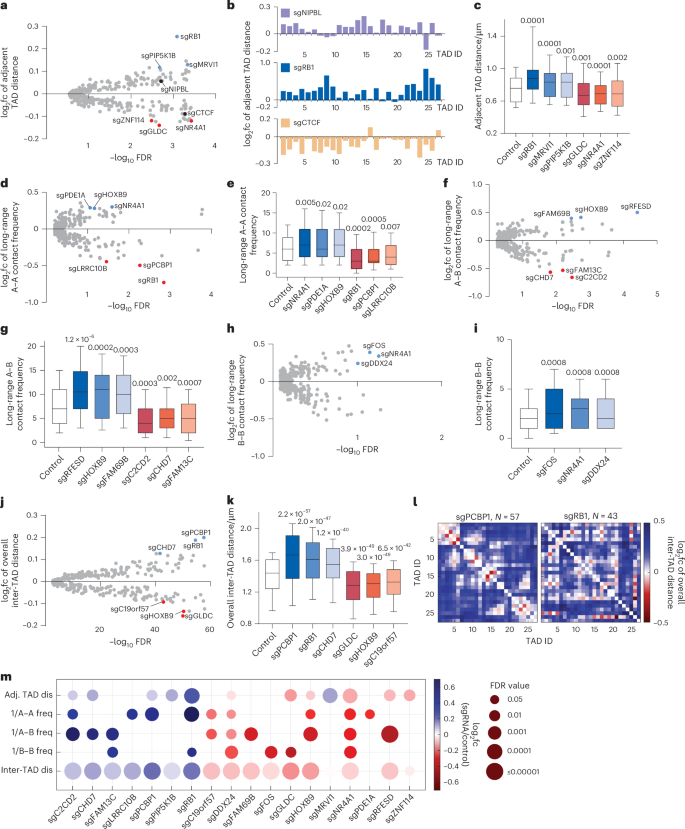

**Fig. 2: Perturb-tracing screen identified regulators of multi-scale chromatin folding.**

We next explored the regulation of chromatin folding conformations at the length scale of A–B compartmentalization by measuring long-range chromatin contact frequencies for each perturbation within the same cells screened above. We defined two TADs spaced less than 500 nm apart as in contact with each other, and derived the long-range contact frequency between nonadjacent TADs along the chr22 genomic map. As A–B compartment organization stems from long-range chromatin contact¹⁰, we further categorized the long-range contacts as contacts between compartment A regions (A–A), contacts between compartment B regions (B–B) and inter-compartmental contacts between A and B regions (A–B). We observed that loss of NR4A1, PDE1A or the homeobox transcription factor HOXB9 increased the long-range A–A contact frequency, while loss of RB1, PCBP1 or LRRC10B showed the opposite phenotype (Fig. 2d,e). Loss of RFESD, HOXB9 or FAM69B increased the frequency of inter-compartmental A–B contacts, while loss of C2CD2, the chromatin remodeler CHD7 or FAM13C decreased A–B contacts (Fig. 2f,g). Finally, loss of the AP-1 transcription factor subunit FOS, NR4A1 or the helicase DDX24 increased the long-range B–B contact frequency (Fig. 2h,i).

Finally, we integrated all pairs of inter-TAD distances to measure and compare the overall compactness of the chr22 chromosome territory. The average fold changes of all 351 inter-TAD distances among the 27 TADs were calculated. We found that knocking out PCBP1, RB1 or CHD7 decompacted chr22 (Fig. 2j–l), while GLDC, HOXB9 or BRME1 (C19orf57) knockout resulted in chr22 compaction (Fig. 2j,k). Intriguingly, RB1 is known to promote the formation of senescence-associated heterochromatin foci²⁹, a highly compacted whole-chromosome conformation. Our results show that RB1 knockout decompacts chr22 across multiple scales, including increased adjacent TAD distance (Fig. 2a–c), reduced long-range A–A contact frequency (Fig. 2d,e) and overall decompacted chromosome territory (Fig. 2j–l). The high-content readouts of our screen are, therefore, in agreement with this prior association but, importantly, provide new insights into the scales at which RB1 and the other hits impact chromatin organization.

We noticed that several chromatin folding regulators identified above, such as RB1, NR4A1, GLDC, HOXB9, PCBP1 and CHD7, were called as top hits in more than one architectural category. This observation led us to ask if chromatin folding regulators in general tend to affect multiple chromatin architectures across different length scales. To this end, we quantified the regulatory effects of each top hit on all five architectural features analyzed above (adjacent TAD distances, A–A, B–B and A–B interactions, and whole-chromosome compaction). The results showed that most top hits significantly affect chromatin folding in more than one architectural category (Fig. 2m). In general, the top hits can be classified into chromatin compactors that reduce inter-loci distances and increase contact frequencies, and chromatin decompactors with the opposite function, although the extents of the regulatory effects often differ between categories for a given regulator (Fig. 2m). These observations indicate 3D genome regulators often have a multi-scale effect.

Correlation analyses link new regulators to known 3D genome mechanisms

The high-content nature of our screen offers whole-distance matrices for individual perturbations, allowing for correlation analyses between the 3D genome regulatory effects of the new regulators and those of previously identified mechanisms. Exploiting this capacity, we first quantified the correlations between each new regulator and NIPBL in controlling short-range (<3 Mb) chromatin distances to detect potential mechanistic associations with the loop extrusion mechanism³⁰. We found DDX24, MRVI1 and ZNF114 showed significant correlations with NIPBL (Fig. 3a–c), suggesting at least partial interactions or involvement with the loop extrusion mechanism, although the involvement may be indirect.

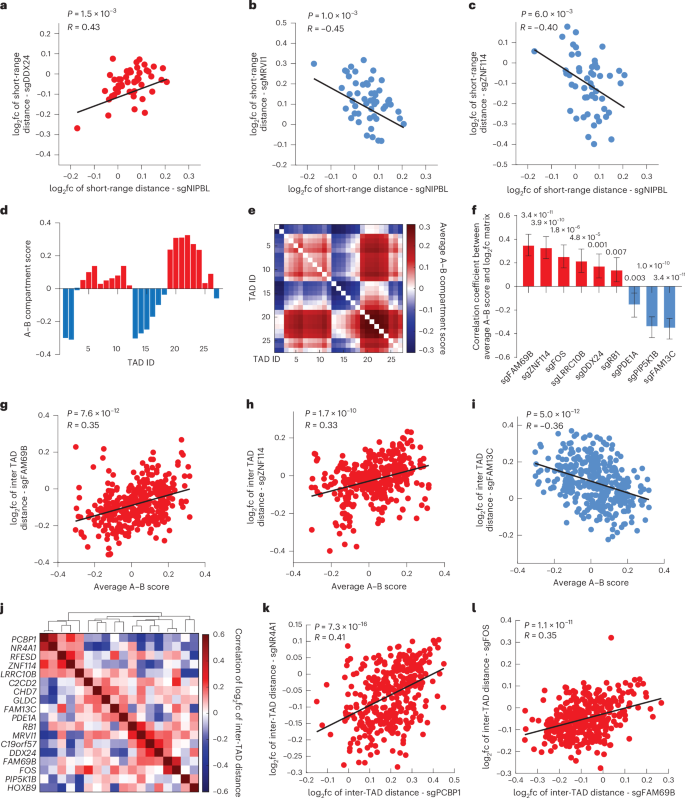

**Fig. 3: Characterization of the regulators of multi-scale chromatin folding.**

We next asked whether the regulatory effects of the top hits are associated with or mediated by the A–B compartmentalization scheme. We converted the one-dimensional A–B compartment score profile to a 2D matrix by calculating the average A–B compartment score between pairs of TADs (Fig. 3d,e), and measured the correlations between this average A–B score matrix and the log₂ fold change matrices of inter-TAD distances for individual top hits. Of the 18 top hits, 9 showed significant correlations in this analysis, among which FAM69B, ZNF114, FOS, LRRC10B, DDX24 and RB1 knockout led to distance changes positively correlated with the average A–B score, whereas PDE1A, PIP5K1B and FAM13C knockout showed distance changes negatively correlated with the average A–B score (Fig. 3f–i). These results indicate that a subset of our identified top hits at least partially interact with or are modulated by the A–B compartmentalization mechanism. We further calculated a correlation coefficient matrix of the 18 top hits and used hierarchical clustering to group top hits that are more correlated with each other in their 3D genome effects. We observed that PCBP1, NR4A1, RFESD, ZNF114 and LRRC10B formed a cluster with correlated 3D genome effects (Fig. 3j,k). In addition, some other pairs of hits also showed significant correlations, such as FOS and FAM69B (Fig. 3j,l). These correlations suggest potential co-regulatory mechanisms of the 3D genome.

Individual validations of selected top hits

As we examined our hits, CHD7 drew our attention because it regulated chromatin conformation on different scales in opposing ways. CHD7, or chromodomain helicase DNA binding protein 7, is a chromatin remodeler known to promote local chromatin openness and is associated with CHARGE syndrome^31,32,33. The results of our screen showed that CHD7 knockout significantly reduced long-range A–B contact frequencies (Fig. 2f,g) and resulted in decompaction of the whole chr22 territory (Fig. 2j,k). To validate this large-scale chromatin compaction function of CHD7 using an orthogonal method, we performed knockdown of CHD7 using small interfering RNA (siRNA) in the same A549-Cas9 cell line. Western blot analysis confirmed that the CHD7 protein level was reduced by >90% (Fig. 4a). Chromatin tracing of chr22 in the CHD7 knockdown (siCHD7) and control (siCtrl) cells showed that while the compartment identities of TADs were largely identical between siCtrl and siCHD7 (Fig. 4b,c), and the A–B compartments were spatially positioned in a conventional, polarized manner²⁰ in both cases (Fig. 4d), A–A, B–B and A–B contacts were less frequent in siCHD7 compared to siCtrl cells (Fig. 4e). CHD7 knockdown also caused overall chromosome territory decompaction, represented by a global increase in inter-TAD distances (Fig. 4f,g) and larger radii of gyration of the whole-chromosome traces (Fig. 4h). The spatial regulatory effect of CHD7 appeared stronger at long range (>3 Mb) compared to short range (<3 Mb; Fig. 4i). Altogether, these results agree with the phenotypes we observed for CHD7 in our knockout screen, confirming that this factor facilitates chromatin compaction especially at long range.

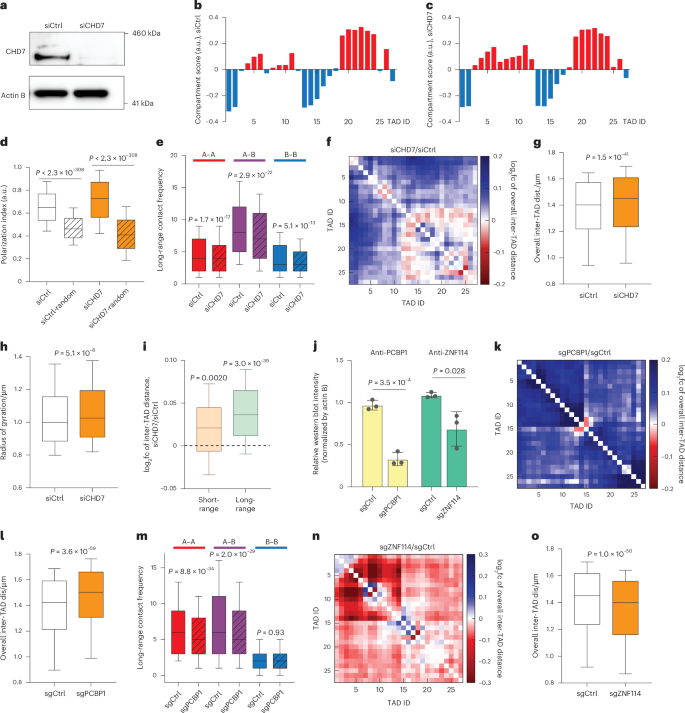

**Fig. 4: Individual validations of top hits.**

To further validate the regulatory effect of CHD7 on chromatin organization, we overexpressed CHD7 in the A549-Cas9 cell line. In comparison to control GFP overexpression using the same vector, CHD7 overexpression significantly compacted chromatin and promoted chromatin contacts across larger length scales. While the A–B compartment identities of TADs and the polarized arrangement of A–B compartments largely remained unchanged (Extended Data Fig. 3a–c), CHD7 overexpression led to significantly higher contact frequencies between A–A, B–B and A–B compartment regions (Extended Data Fig. 3d), and significantly decreased global inter-TAD distances and radii of gyration (Extended Data Fig. 3e–g), indicating overall chromatin compaction. Similarly to the CHD7 knockdown scenario, the compaction effect upon CHD7 overexpression was more significant at long range (Extended Data Fig. 3h). In addition to the chromatin tracing analyses above, we also used whole-chromosome paint (Methods) as an alternative readout method of chromosome territory compaction. Whole-chromosome paint of chr22 showed smaller chromosome territories upon CHD7 overexpression in comparison to control (Extended Data Fig. 3i). Together, these data further validate the findings from our screen, and show that CHD7 specifically promotes long-range chromatin compaction and contact.

To investigate if the chromatin compaction function of CHD7 applies to a different cell background and different genomic context, we performed knockdown of CHD7 using siRNA in human RPE-1 cells and conducted chromatin tracing on chromosome 21 (chr21). CHD7 knockdown caused an overall increase in inter-TAD distance (Extended Data Fig. 4a,b) and an increase in the radius of gyration of chr21 territory (Extended Data Fig. 4c), which were mainly contributed by long-range chromatin decompaction (Extended Data Fig. 4d). CHD7 knockdown also led to decreased contact frequency between A–A, A–B and B–B interactions (Extended Data Fig. 4e). As CHARGE syndrome is known as a neural crest disease and the multiple organs affected by the syndrome are derived from neural crest progenitor cells in early development³⁴, we further tested whether siCHD7 affects long-range chromatin compaction in neural crest progenitor cells differentiated from cultured human embryonic stem cells. Western blots confirmed the neural crest cell identity and effective knockdown of CHD7 (Extended Data Fig. 5a). Chromatin tracing analyses confirmed that siCHD7 in neural crest cells caused long-range chromatin decompaction (Extended Data Fig. 5b,c). Together, these results indicate that the chromatin compaction function of CHD7 exists in distinct genomic contexts and cell lines, including the cell type of origin of CHARGE syndrome.

We further individually validated two more top hits, PCBP1 and ZNF114, using CRISPR knockout in A549-Cas9 cells. Western blots confirmed the effectiveness of the knockouts (Fig. 4j and Extended Data Fig. 6a,b). Consistent with the primary screen results, chromatin tracing targeting chr22 showed that PCBP1 knockout led to decompaction of chromatin folding at multiple scales, including a global increase in inter-TAD distances and decrease in long-range A–A and A–B contact frequencies (Fig. 4k–m), while ZNF114 knockout led to a global compaction of chromatin folding (Fig. 4n,o). Whole-chromosome paint of chr22 consistently showed larger chromosome territories upon PCBP1 knockout and smaller chromosome territories upon ZNF114 knockout (Extended Data Fig. 6i). Neither of the perturbations significantly affected the compartment identities of TADs or the polarized organization of the A–B compartments (Extended Data Fig. 6c–h). Altogether, our individual validations of CHD7, PCBP1 and ZNF114 as new regulators of 3D genome folding using various perturbation methods, cell backgrounds, genomic contexts and readout modalities support the effectiveness of the primary Perturb-tracing screen.

Identification of nuclear morphology regulators

Nuclear DAPI staining bears surprisingly rich information regarding the nuclear organization that can be used to distinguish cell states³⁵. Chromatin is distributed unevenly in the cell nucleus, and the ‘texture’ of nuclear staining pattern is often used as a diagnostic marker of cancer³⁶. Moreover, cells with abnormal, non-spherically shaped nuclei are often seen in cancer and aging and may indicate genome instability^37,38,39. By analyzing changes in DAPI staining caused by each perturbation in our screen, we found that knockout of RB1 or MYBPH reduced the unevenness of nuclear DAPI staining, generating patterns with more homogeneous intensity within each nucleus (Fig. 5a–d), whereas a more heterogeneous intensity pattern with chromatin condensates is often associated with cancer³⁶. In addition, knocking out TRIM36 and EEPD1 decreased the sphericity of the nuclei and led to multi-lobed nuclei shapes (Fig. 5e–g).

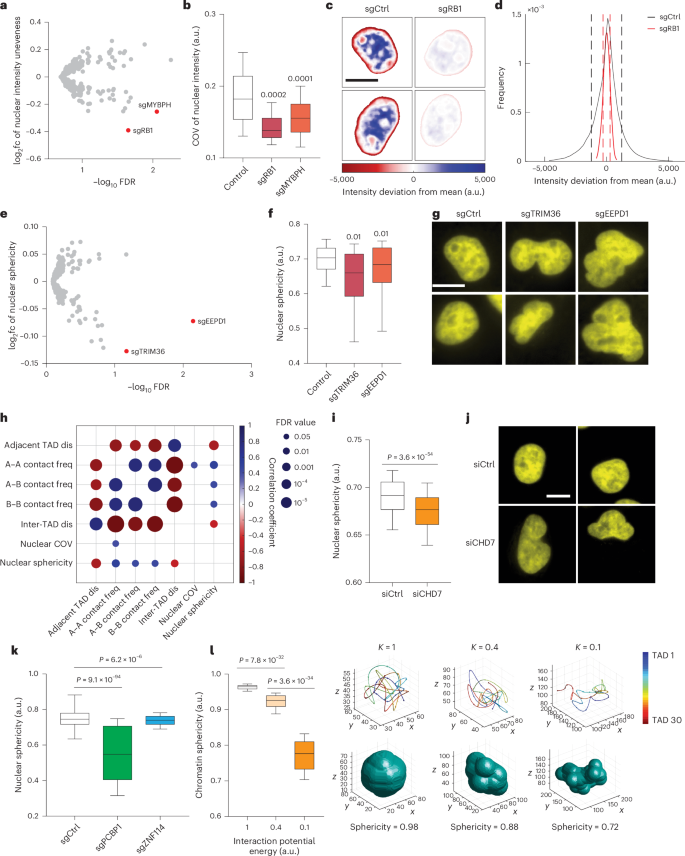

**Fig. 5: Perturb-tracing screen identified hits that regulate the morphological properties of nuclei.**

To test if the nuclear phenotypes are fully orthogonal or at least partially linked to the chromatin folding phenotypes analyzed before, we calculated the correlations among the changes of different chromatin folding and nuclear organization features upon perturbations of the top hits. As expected, all chromatin folding features (adjacent TAD distances, A–A, B–B and A–B contact frequencies and inter-TAD distances) were significantly correlated with each other (Fig. 5h), consistent with the common muti-scale and multifaceted effects of the chromatin folding regulators (Fig. 2m). Interestingly, nuclear sphericity also showed significant correlations with chromatin folding features across length scales and categories (Fig. 5h). In general, chromatin compaction (decreased inter-loci distance or increased contact frequency) is associated with a more spherical nuclear shape (Fig. 5h). To validate this observation, we measured and compared the nuclear sphericity values of siCHD7 and control A549-Cas9 cells. Indeed, CHD7 knockdown led to a less spherical and more multi-lobed nuclear shape (Fig. 5i,j). Furthermore, sgPCBP1 and sgZNF114 cells showed decreased and increased nuclear sphericity, respectively, in comparison to controls (Fig. 5k), consistent with the general trend, even though the extent of the increase in nuclear sphericity in sgZNF114 cells was minimal, likely due to the already highly spherical shapes of the control nuclei. These observations are consistent with previous reports that increasing euchromatin or decreasing heterochromatin (which likely causes large-scale chromatin decompaction) leads to less spherical and more multi-lobed nuclear morphologies^{40,41,42,43,44}, further supporting the effectiveness of the Perturb-tracing method. To interpret this result, we performed simulation of a minimal chromatin polymer model. We showed that reduced monomer–monomer interaction strength (less chromatin compaction/interaction) can lead to a less globular chromatin folding organization, and a bounding envelope surrounding the polymer will in turn adopt a more multi-lobed shape with lower sphericity (Fig. 5l). Overall, our experimental results suggest a general link between chromatin compaction and nuclear shape, and our simulation supports a model that chromatin compaction mediates nuclear morphology.

In summary, our image-based Perturb-tracing screen using pooled CRISPR perturbations, BARC-FISH and multi-scale chromatin profiling allowed us to systematically and simultaneously profile the effect of hundreds of candidate genes on many aspects of spatial genome organization. In this work, we identified 21 top candidate regulators of chromatin/nuclear organization from our screen of 137 selected genes (Supplementary Table 2). Our work represents a high-content screen among recent image-based 3D genome regulator screens, with ~13,000 imaging target–perturbation combinations (Extended Data Fig. 7).

Discussion

Here, we report the development of a high-throughput, high-content, image-based genetic screening platform termed Perturb-tracing and demonstrate its ability to systematically identify regulators of 3D genome folding architectures from short-range to long-range and global nuclear organization. The Perturb-tracing platform integrates a pooled CRISPR knockout screen comprising hundreds of candidate genes with chromatin tracing and the development of a cellular barcoding and in situ decoding technique termed BARC-FISH. Other FISH-based in situ genotyping techniques have previously been reported in genetic screens but are limited to bacterial applications and/or not integrated with 3D genomics^19,45,46. The BARC-FISH barcode design has the capacity to simultaneously assess libraries of up to ~5,000 sgRNAs in pooled format with the current experimental design (see the Methods for an explanation) and can be further extended in the future with longer barcodes and/or with more sequence varieties at each digit of the barcode. Importantly, the phenotypic readout of this screening platform is information rich, allowing for categorization of a gene of interest based on its effects on many different length scales and aspects of chromatin organization. The rich information and high-content nature of the screen also readily enables detection of associations between new regulators and known 3D genome organizers, and discovery of potentially functional linkages and co-regulation mechanisms between different 3D genome and nucleome features.

We note some cytoplasmic proteins included in our screen showed 3D genome phenotypes. For example, AQP3 knockout led to a decrease in adjacent TAD distances (Supplementary Table 13). We hypothesize that these cytoplasmic proteins may indirectly regulate the 3D genome through cellular metabolism, signaling and/or mechanotransduction. Indeed, a recent plate-based RNA interference (RNAi) screen discovered many cytoplasmic signaling proteins that regulate the spatial distance between adjacent TADs⁶. The cytoplasmic proteins might not be direct regulators but could act through downstream effector molecules.

Whereas a recent plate-based RNAi screen focused on the druggable genome and many target genes do not encode nuclear proteins⁶, our screen focused on mostly nuclear protein-coding genes with significant expression changes in cellular senescence to increase the chance of discovery of direct regulators of the 3D genome. We intentionally retained transcription factors among our candidates, as some classic 3D genome regulators, such as CTCF, were originally identified as transcription factors. We suspect that many previously identified master transcription factors in fact are novel 3D genome regulators, and may regulate transcription through their 3D genome function. A caveat of both RNAi and CRISPR loss-of-function screens is that the depletion of target proteins may take several cell cycles, and during this time the cells may undergo major changes that affect the 3D genome through secondary effects. Thus, neither the previous plate-based screen nor the current version of Perturb-tracing can readily distinguish direct versus indirect regulators of the 3D genome. A CRISPR activation screen⁴⁷ that rapidly upregulates target proteins in combination with Perturb-tracing may address this issue.

In our initial screen of 137 candidate genes with multiple sgRNAs per gene, we identified 21 previously unknown or incompletely known regulators of 3D genome and nuclear organization features across multiple length scales. Our seemingly high hit rate (21/137) is due to our screen observing not one but many phenotypes, which essentially combined many screens into one. In comparison to a recent plate-based screen on largely one phenotype, which reported a hit rate of 10%⁶, our effective hit rate per phenotype is lower, which reflects the high stringency of our hit calling to ensure high confidence of our top hits. Indeed, all three new regulators we tested in individual validations showed consistent results as in the primary screen. Our high stringency hit calling and the use of relatively early CRISPR knockout gRNA designs⁴⁸ may cause false negatives, which can be addressed in future works by using more sophisticated CRISPR designs and lower hit calling stringency.

Overall, Perturb-tracing enables mapping of the chromatin organization ‘regulatome’ at scale, which will deepen our understanding of the regulatory landscape of the genome and of the functions of genome architectures.

Methods

Barcode and probe sequence design

Design of BARC-FISH barcodes, linear and padlock probes

We first designed 60 barcode-targeting regions of linear and padlock probes using 46 published 20-nucleotide-long sequences that only contain A, T and C⁴⁹ and 14 newly designed sequences. The 14 extra sequences were generated using a previously introduced orthogonal 25-nucleotide oligonucleotide dataset⁵⁰, by trimming off 5 consecutive nucleotides on the 5′ or 3′ end of the 25-nucleotide sequences, and only sequences that met the following three criteria were retained: (1) the sequence only contains A, T and C; (2) the sequence does not contain four or more consecutive C’s; and (3) the percentage of C is between 40% and 45%. The newly designed 20-nucleotide sequences were pooled with the 46 published sequences, and all these 20-nucleotide sequences were BLASTed among themselves to ensure they were orthogonal to each other⁵¹. Finally, we BLASTed all possible pairs of concatenated 20-nucleotide sequences separated by a G spacer against human genome and transcriptome to ensure they were orthogonal to endogenous nucleotide sequences⁵¹. We then grouped the 60 sequences into 30 pairs, and reverse-complemented the sequences to generate the DNA segments of barcode digits, each of which is 41-nucleotide long (two 20-nucleotide sequences with a 1-nucleotide spacer). We adopted the backbone sequences of linear and padlock probes from a previous work²¹ to generate the full-length linear and padlock probe sequences, with the following modification: The backbone of padlock probes of all sequences with a value of 0 for all barcode digits carried a 20-nucleotide secondary probe targeting region. For value 1 and 2 sequences of the barcode digits, the 20-nucleotide region of the padlock probe that binds to the barcode RNA serves as the secondary probe targeting region. Twenty-seven secondary probe sequences were previously reported^49,52. The other three secondary probe sequences were designed with a previously introduced procedure⁵³. The linear and padlock probes, and secondary probes labeled with ATTO 565, Alexa Fluor 647 and Alexa Fluor 750 dyes were individually ordered from Integrated DNA Technologies (IDT). A list of DNA barcode segment sequences and their corresponding linear, padlock and secondary probe sequences are included in Supplementary Table 3.

BARC-FISH helper probe design

To improve the hybridization efficiency of the linear and padlock probes, we designed helper probes targeting the flanking regions of the barcode RNA, which could help open potential secondary structures and linearize the RNA molecules. To design the helper probes, we adapted the algorithm of a published probe designing tool ProbeDealer⁵⁴. Briefly, three RNA regions were used as the input targeting regions for ProbeDealer: an 888-nucleotide region upstream of the protospacer, a 108-nucleotide region between the protospacer and barcode, and a 310-nucleotide region downstream of a unique molecular identifier (UMI) region (for the region layout, refer to the sections on plasmid library construction below). The probes were generated with the following constraints: The probe length was 30 nucleotides, with at least 1-nucleotide spacing between adjacent probes; the allowed melting temperature range was 66–100 °C; the allowed GC content range was 30–90%; the melting temperature of the internal secondary structure of each probe was no greater than 76 °C; the melting temperature of cross-hybridization regions among the probes was no greater than 72 °C; and the probes containing consecutive repeats of more than five identical nucleotides were excluded. The probe sequences were further BLASTed against the human genome and transcriptome to ensure the hybridization specificity⁵¹. Probes with alignments to either the human genome or the human transcriptome were excluded from the selection. In total, 36 helper probes were generated and ordered through IDT. The sequences of the helper probes are listed in Supplementary Table 4.

Chromatin tracing primary probes

We used the primary probes of human chr21 and chr22 from a previous publication²⁰ with slight modifications on secondary probe-binding regions. Specifically, the probes consisted of the following segments from the 5′ to 3′: (1) a 20-nucleotide priming region at the 5′ end; (2) a secondary probe-binding region of 17–19 nucleotides; (3) a 30-nucleotide primary binding region complementary to genomic DNA; (4) a same secondary probe-binding region of 17–19 nucleotides; and (5) a 20-nucleotide priming region at the 3′ end. The secondary probe-binding regions were generated by trimming the 5′ or 3′ ends of previously published 30-nucleotide secondary probe-binding regions²⁰, so that the melting temperature of the trimmed secondary probe-binding regions became 50–57 °C.

Barcode plasmid library construction

The DNA sequences of the ten-digit barcodes each comprised ten 41-nucleotide digit segments, with a nucleotide ‘C’ separating adjacent digits. Each digit contained one of three different 41-nucleotide sequences, representing the three different values (0, 1, 2) of the ternary digit. The values from the ten digits were randomly assembled. Therefore, theoretically 3¹⁰ or 59,049 possible unique combinatorial barcodes could be generated. To assemble the barcode library, we used a pooled barcode cloning strategy (Extended Data Fig. 2a) modified from approaches previously described^19,46: First, the ten digits were divided into two fragments. Overlapping oligonucleotides encoding and bridging digits 1–5 were mixed to a final concentration of 100 nM each, and the mixture was subjected to phosphorylation and ligation. Oligonucleotides encoding digits 6–10 were treated in the same way in parallel. Then, the two five-digit fragments were gel purified and assembled into full-length barcodes by overlapping PCR. Next, the full-length barcodes were amplified by limited-cycle PCR. In this step, each barcode molecule was paired with a UMI), a 20-base pair (bp) random sequence, at the 3′ end for later NGS, and overhangs at both ends for Gibson Assembly. The PCR products were gel purified and then assembled into a plasmid backbone digested with MluI (New England Biolabs, R3198S) and SpeI (New England Biolabs, R3133S), through Gibson Assembly (New England Biolabs, E2621L). The backbone plasmid was modified from plasmid LentiGuide-Puro (Addgene, 52963), with the addition of a CMV promoter, an EGFP gene and two restriction sites, MluI and SpeI. Lastly, the Gibson reaction products were purified by isopropanol precipitation and electroporated into Endura electrocompetent cells (Lucigen, 60242-2). The transformed bacteria were spread onto LB agar plates containing 100 µg ml⁻¹ ampicillin and incubated overnight at 37 °C. On the next day, ~70 million colony-forming units grown on the plates were collected and subjected to Maxi Prep (Qiagen, 12362) to extract the barcode plasmid library. The barcode plasmid library was then used to generate the CRISPR screen plasmid library. All oligonucleotides and primers were ordered from IDT. The oligonucleotide and primer sequences for constructing the barcode plasmid library are provided in Supplementary Table 5. The modified backbone sequence with annotations is included in Supplementary Data 1. An example barcode plasmid sequence with annotations is included in Supplementary Data 2.

sgRNA plasmid library construction

To construct the sgRNA plasmid library, we selected protospacer sequences from a previous publication⁴⁸. The sgRNA fragments were amplified from a CustomArray oligonucleotide pool via limited-cycle PCR. The backbone was digested with FastDigest Esp3I (Thermo Fisher Scientific, FD0454) together with alkaline phosphatase (Thermo Fisher Scientific, EF0654) overnight at 37 °C. The backbone plasmid was modified from plasmid LentiGuide-Puro with the addition of a CMV promoter and an EGFP gene. The sgRNA fragments and digested backbone were gel purified and assembled through Gibson Assembly. The Gibson reaction products were purified by isopropanol precipitation and the electroporated into Endura electrocompetent cells. The cells were plated onto LB agar plates containing 100 µg ml⁻¹ ampicillin and incubated at 37 °C overnight. About 2.5 million colony-forming units were collected and inoculated into 200 ml LB liquid medium containing 100 µg ml⁻¹ ampicillin, and grown overnight to amplify the sgRNA plasmid library. The sgRNA plasmid library was maxi-prepped from the overnight culture and used for the construction of the CRISPR screen plasmid library. All primers were ordered from IDT. The protospacer sequences, ordered CustomArray oligonucleotide sequences and primer sequences are provided in Supplementary Table 6. The modified backbone sequence with annotations is included in Supplementary Data 3. An example sgRNA plasmid sequence with annotations is available in Supplementary Data 4.

CRISPR screen plasmid library construction

We adopted the cloning strategies from previous publications^19,55 to construct the CRISPR screen plasmid library (Extended Data Fig. 2a). In brief, sgRNA, barcode and backbone were assembled through Gibson Assembly. The barcode fragments were amplified by limited-cycle PCR from the premade barcode plasmid library. Similarly, the sgRNA fragments were PCR amplified from the premade sgRNA plasmid library. The backbone plasmid was modified from plasmid CROP-seq-Guide-Puro (Addgene, 86708), with an addition of a CMV promoter and removal of the gRNA scaffold. The modified plasmid was restriction digested with FastDigest Esp3I overnight at 37 °C. The restriction reaction product was treated with alkaline phosphatase to remove the phosphate groups from the linearized backbone. The DNA fragments of sgRNA, barcode and backbone were gel purified and mixed for Gibson Assembly. The Gibson reaction products were purified by isopropanol precipitation and electroporated into Endura electrocompetent cells. Electroporated cells were grown overnight at 37 °C on LB agar plates containing 100 µg ml⁻¹ ampicillin. To restrict the number of barcodes paired with each sgRNA and allow unique projection from each barcode to a single sgRNA, we used a bottlenecking strategy: Only ~4,000–5,000 bacterial colonies were collected from the plates so that the number of bacterial colonies is one order of magnitude lower than the total number of barcodes (3¹⁰ = 59,049), ensuring the vast majority of barcodes in the retained pool each occur only once, and are each uniquely paired with a gRNA. The number of collected bacterial colonies also reflects the maximum number of different gRNAs our strategy could distinguish with the current 10-trit barcode design, which is one order of magnitude lower than the total number of barcodes. Collected colonies were cultured in 200 ml LB liquid medium overnight at 37 °C with shaking at 225 rpm. The CRISPR screen plasmid library was then extracted and purified by Maxi Prep. In our modified CROP-seq backbone, the U6-gRNA-barcode sequences are inserted within the 3′ long terminal repeat (LTR) and will thus be duplicated into the 5′ LTR during lentiviral integration. After the duplication, both copies of U6 promoters can drive the expression of gRNAs for genome editing. Meanwhile, a CMV promoter can drive the transcription of a longer RNA spanning the U6-gRNA-barcode sequence in the 3′ LTR with the barcode sequences for BARC-FISH detection. This design ensures that the duplicated U6-driven gRNA expression from the 5′ LTR is not subjected to interference by the CMV promoter⁵⁶. All primer sequences are provided in Supplementary Table 7. The modified backbone sequence with annotations is included in Supplementary Data 5. An example CRISPR screen plasmid sequence with annotations is available in Supplementary Data 6.

Lentivirus production and cell line construction

Lentivirus production

The HEK-293FT cells (Thermo Fisher Scientific, R70007) were cultured to be 70–90% confluent at the point of transfection to produce lentiviruses. The Cas9 plasmid lentiCas9-Blast (Addgene, 52962), the GFP overexpression plasmid pLenti-GFP, the CHD7 overexpression plasmid pLenti-CHD7 or the CRISPR screen plasmid library was mixed with helper plasmids psPAX2 (Addgene, 12260) and pVSV-G (Addgene, 138479) together with Lipofectamine 2000 (Thermo Fisher Scientific, 11668019) according to the manufacturer’s instructions. The mixture was then added into the cell culture and incubated for 2 days. After the lentiviral transfection, the lentivirus supernatant was collected from the cell culture and filtered through a 0.45-µm strainer (Millipore, SLHAR33SS) to remove cell debris. The filtered lentivirus supernatant was concentrated using the Amicon Ultra-15 Centrifugal Filter Unit (Millipore, UFC910024), following the manufacturer’s instructions. The concentrated lentivirus supernatant was aliquoted and stored at −80 °C.

Generation of clonal A549-Cas9 cells

A549 cells (American Type Culture Collection (ATCC), CCL-185) were infected with lentivirus generated from the lentiCas9-Blast plasmid. Cells were under Blasticidin selection at 10 µg ml⁻¹ until all untransduced cells were killed. The Blasticidin-selected, polyclonal cells were sorted into single cells by flow cytometry and plated onto 96-well plates. The single cells were clonally expanded and analyzed by immunofluorescence to verify Cas9 expression. The clonal selection was important to reduce the heterogeneity in the cell background in the screen.

Generation of BARC-FISH CRISPR screen cell library

Clonal A549-Cas9 cells were cultured to 60–80% confluency and transduced with the CRISPR screen lentivirus supernatant at a multiplicity of infection < 0.3 to ensure that most cells received only one genetic perturbation. Two days after the lentiviral infection, Puromycin (Thermo Fisher Scientific, A1113803) was added into the medium at 3 µg ml⁻¹ to select the cells with resistance. Cells were under Puromycin selection for 10–12 days until the cell library was established. The cell library was then aliquoted into frozen stocks and stored in liquid nitrogen.

Cell culture for cloning and imaging

A549 cells and the clonal A549-Cas9 cells (introduced in the section above, derived from the A549 cells) were maintained in F-12K medium (Corning, 10-025-CV) supplemented with 10% FBS (VWR, 97068-091) and 1% penicillin–streptomycin (Thermo Fisher Scientific, 15140122) at 37 °C in 5% CO₂. hTERT RPE-1 cells (ATCC, CRL-4000) were maintained in DMEM:F-12 medium (ATCC, 30-2006) supplemented with 10% FBS (VWR, 97068-091) and 1% penicillin–streptomycin (Thermo Fisher Scientific, 15140122) at 37 °C in 5% CO₂. To prepare imaging samples, coverslips (Bioptechs, 40-1313-03193) were disinfected by a 15-min ultraviolet treatment on each side before use. To culture cells for conducting the screen, A549-Cas9 cells transduced with the BARC-FISH screen library at the same passage were seeded onto the disinfected coverslips at 10% density in F-12K medium supplemented with 15% FBS and 1% penicillin–streptomycin and cultured for 6 days. The medium was also supplemented with 3 µg ml⁻¹ Puromycin and 10 µg ml⁻¹ Blasticidin (Thermo Fisher Scientific, R21001) to ensure sgRNA and Cas9 expression. Media were refreshed every 3–4 days. For lentivirus production, HEK-293FT cells were cultured in DMEM medium supplemented with GlutaMAX-I (Thermo Fisher Scientific, 10569-010), 1× MEM Non-Essential Amino Acids (Thermo Fisher Scientific, 11140-050), 10% FBS and 1% penicillin–streptomycin at 37 °C in 5% CO₂, and were used within ten passages. All cells were routinely tested for mycoplasma contamination via Yale Molecular Diagnostics Laboratory.

Detection of sgRNA–barcode associations in the cell library

NGS library preparation for mapping sgRNA–barcode associations

To determine the sgRNA–barcode correspondence in the screen library, the cell genomic DNA was PCR amplified for NGS. Because the total length of the sgRNA–barcode–UMI cassette is longer than the maximum sequencing length of NGS (300-bp paired-end sequencing on Illumina MiSeq), we generated two sequencing libraries: a sgRNA–barcode–UMI library and a barcode–UMI library. The sgRNA–UMI correspondence can be determined by the sgRNA–barcode–UMI library and the barcode–UMI correspondence can be determined by the barcode–UMI library. Then the sgRNA–barcode correspondence can be determined through their common UMI associated with both the sgRNA and the barcode on the same molecule. Briefly, the genomic DNA was extracted from the CRISPR screen cell library using the Zymo Quick-DNA Miniprep Kit (Zymo Research, D4068), following the manufacturer’s protocol. To achieve a sequencing coverage of >500, more than 2.5 million cells were harvested to cover the ~5,000 barcode varieties. We amplified all harvested genomic DNA and limited the number of amplification cycles to 20–23 to reduce amplification bias. For PCR amplification, each 50 µl reaction mixture was composed of 1 µg of genomic DNA, 500 nM of each forward and reverse primers, 5% dimethylsulfoxide and 1× NEBNext High-Fidelity PCR master mix (New England Biolabs, M0541L), following the manufacturer’s instructions. The PCR primers contained a flow-cell binding sequence, a sequencing index, a sequencing primer binding region and a 9–13-bp random sequence that improved the library diversity. After the reactions were completed, the PCR products were purified and concentrated using Zymo DNA Clean & Concentrator (Zymo Research, D4030), following the manufacturer’s instructions. Lastly, the concentrated products were run on a 2% agarose gel to validate the correct DNA amplicon size. The DNA library amplicons with the correct size were then gel purified and eluted with elution buffer (10 mM Tris-HCl, pH 8.5) or MilliQ water. The DNA libraries were sequenced on an Illumina MiSeq system in 2 × 300-bp format. The PCR primers were all purchased from IDT, and the sequences are provided in Supplementary Table 9.

sgRNA–barcode NGS analysis

As described above, we generated two sequencing libraries, a sgRNA–barcode–UMI library and a barcode–UMI library, and determined the sgRNA–barcode correspondence by the common UMI sequence. Briefly, the sequencing reads were filtered by read length and quality score. From the sgRNA–barcode–UMI library, protospacer and UMI sequences were extracted from the reads, and the protospacer–UMI lookup table was generated accordingly. The protospacer sequences were aligned with the sequences in the predesigned sgRNA oligonucleotide library such that the reads with improper protospacers were removed. From the barcode–UMI library, the UMI sequences were extracted and compared to the UMI found in the sgRNA–barcode–UMI library. Only reads with common UMIs were retained for further analysis. Because the read length from a single end did not cover the full length of the barcode, the sequencing read from each end only contained a partial barcode sequence. The digit values from the partial barcode sequences were extracted by BLAST⁵¹ against the predesigned digit sequences. The two decoded partial codes assigned to the two ends of the same sequence were then assembled into one full-length complete code by the overlapping region of the two partial codes. The partial codes that failed to overlap were excluded. The UMI–barcode lookup table was then established. The two lookup tables were merged to determine the sgRNA–barcode correspondence (codebook) through the shared UMIs. This codebook allowed analyses of the percentage of good codes (codes uniquely associated with one sgRNA) versus bad codes (codes associated with multiple sgRNAs; Extended Data Fig. 1d). The final codebook containing both the good codes that each uniquely associate with one sgRNA and the bad codes that each have multiple sgRNA projections is listed in Supplementary Table 10.

Probe synthesis

The template oligonucleotide pool for synthesizing chromatin tracing primary probes was ordered from CustomArray (GenScript). We adopted a previously described probe synthesis workflow^52,53 of limited-cycle PCR, in vitro transcription, reverse transcription, alkaline hydrolysis and column purification. The PCR primers and reverse transcription primers were ordered from IDT. The sequences of the template oligonucleotide library and primers are included in Supplementary Table 11.

Imaging sample preparation

Geminin antibody staining

All steps were performed at room temperature unless otherwise described. Cells grown on coverslips were briefly rinsed with DPBS after media removal, and then fixed in 4% paraformaldehyde (PFA; Electron Microscopy Sciences, 15710) diluted in DPBS for 10 min followed by three DPBS washes. Cells were then permeabilized with 0.5% vol/vol Triton X-100 in DPBS for 10 min followed by three DPBS washes. After permeabilization, cells were blocked in blocking buffer (1% wt/vol bovine serum albumin (Sigma-Aldrich, A9647), 0.1% vol/vol Tween-20 in DPBS) supplemented with 0.1% vol/vol murine RNase inhibitor (MRI; New England Biolabs, M0314L) for 30 min, followed by primary antibody incubation for 1 h with a 1:100 dilution of anti-Geminin antibody (Abcam, ab195047) in blocking buffer supplemented with 1% vol/vol MRI. Unbound primary antibody was washed three times with 0.1% vol/vol Tween-20 in DPBS (DPBSTw), 5 min each, followed by a 1-h incubation with a 1:1,000 dilution of Alexa Fluor 488-labeled secondary antibody (Invitrogen, A11034) in blocking buffer supplemented with 1% vol/vol MRI. Starting from secondary antibody incubation, samples were protected from light during all steps. Excessive secondary antibody was washed off by washing three times, 5 min each with DPBSTw, and samples were post-fixed in 4% PFA in DPBS for 10 min followed by three DPBS washes. Post-fixed samples were next used for the BARC-FISH procedure in the screen experiments and for chromatin tracing primary probe hybridization in the validation experiments.

BARC-FISH

Helper probes and BARC-FISH linear and 5′-phosphorylated padlock probes were ordered from IDT. A total of 36 helper probes were pooled in an equimolar manner to a concentration of 5.6 µM for each probe. A total of 60 probes for BARC-FISH (30 linear probes and 30 padlock probes) were pooled in an equimolar manner to a concentration of 1.67 µM for each probe. Immediately before use, the pooled BARC-FISH probes were denatured at 90 °C for 2–5 min, and then cooled to room temperature. Samples with Geminin staining were pre-hybridized in 2× SSC buffer containing 20% vol/vol formamide and 0.1% vol/vol Tween-20 for 10 min, and then 50 μl of primary hybridization buffer was added to each sample, which contained 20% vol/vol formamide, 0.1 mg ml⁻¹ salmon sperm DNA (Invitrogen, 15632-011), 800 nM each of the 60 BARC-FISH probes, 100 nM each of the 36 helper probes and 1% vol/vol MRI in 2× SSC. Samples were then incubated at 37 °C for 16–20 h. To remove excessive primary probes, samples were washed twice in 2× SSC containing 40% vol/vol formamide and 0.1% vol/vol Tween-20, 15 min each, followed by a third wash for 20 min at 37 °C in buffer containing 4× SSC, 1× DPBS, 0.1% vol/vol Tween-20 and 0.1% vol/vol MRI. Samples were then briefly rinsed twice with DPBSTw before the T4 ligation step. The T4 ligation mixture contained 0.2 mg ml⁻¹ BSA (New England Biolabs, B9000S), 1 mM extra-supplemented dithiothreitol (Thermo Scientific, R0861), 1 mM extra-supplemented ATP (Thermo Scientific, R0441), 0.5 U μl⁻¹ T4 DNA ligase (Thermo Scientific, EL0014) and 1% vol/vol MRI in 1× T4 ligase buffer (Thermo Scientific, EL0014). To perform the T4 ligation step, samples were incubated with 50 μl of T4 ligation mixture for 2 h, followed by two washes in DPBSTw. Samples were then incubated in a 30 °C water bath for 5 h with 50 μl of RCA mixture that contained 250 μM dNTP (New England Biolabs, N0447L), 1 mM extra-supplemented dithiothreitol, 0.2 mg ml⁻¹ BSA, 1 U μl⁻¹ phi29 enzyme (Thermo Scientific, EP0092) and 1% vol/vol MRI in 1× phi29 buffer (Thermo Scientific, EP0092). After the RCA step, samples were washed in DPBSTw, post-fixed with 4% PFA in DPBS for 30 min, and washed with DPBS. Post-BARC-FISH samples were used for the chromatin tracing primary probe hybridization in the screen experiments.

Chromatin tracing primary probe hybridization

Post-BARC-FISH samples (for screen experiments) or post-Geminin staining samples (for validation experiments) were briefly rinsed in DPBS, and then incubated with 0.1 M HCl diluted in water for 5 min. After two DPBS washes, samples were treated with 0.1 mg ml⁻¹ RNase A (AB12023-00100) diluted in DPBS for 45 min at 37 °C, followed by two DPBS washes and one 2× SSC wash. Subsequently, samples were pre-hybridized in 2× SSC containing 50% vol/vol formamide and 0.1% vol/vol Tween-20 for 30 min and carefully dried by dipping on tissue paper to remove excessive pre-hybridization buffer. A total of 25 μl of hybridization buffer containing 50% vol/vol formamide, 20% vol/vol dextran sulfate (Millipore, S4030) and 4 μM (total concentration) chromatin tracing primary probes in 2× SSC was applied to a glass slide, and the sample coverslip was carefully flipped and placed on top so that the glass slide and coverslip ‘sandwiched’ the hybridization buffer, with the cells submerged into the hybridization buffer. The samples were then denatured on an 86 °C heat block (with a surface temperature of ~80 °C) for 3 min with the glass slide touching the heat block, and incubated in a humid chamber for 16–20 h at 37 °C. To remove excessive primary probes, samples were washed twice in a 60 °C water bath with 0.1% vol/vol Tween-20 in 2× SSC, for 15 min each, followed by a third 15-min wash with 0.1% vol/vol Tween-20 in 2× SSC at room temperature. Samples were then briefly rinsed with 2× SSC, and a 1:250,000 dilution of yellow-green fiducial beads (Invitrogen, F8803) in 2× SSC was applied to the samples and incubated for 10 min. Excessive beads were removed by two 2× SSC washes. Post-hybridization samples were used for automated sequential imaging.

Automated sequential imaging

Imaging system setup

Four home-built fluorescence microscopes were used for image acquisition⁵². Each microscope had a Nikon Ti2-U body, a Nikon CFI Plan Apo Lambda ×60 oil objective lens (NA 1.40) and an automated focus-lock system^52,57. One setup has identical lasers, light paths and filters as introduced previously⁵², and the image size was 1,536 × 1,536 pixels with a pixel size of 108 nm. For the other three setups, a Lumencor CELESTA light engine was used for illumination, with the following laser wavelengths: 405 nm, 477 nm, 546 nm, 638 nm and 749 nm. The 405-nm laser was used to excite and image the nuclear stain with DAPI. The 477-nm laser was used to excite and image the yellow-green fiducial beads and the Geminin stain. The 546-nm laser was used to excite and image ATTO 565 dye on secondary probes for BARC-FISH and chromatin tracing, and CF568 dye for total protein stain. The 638-nm laser was used to excite and image Alexa Fluor 647 dye on secondary probes for BARC-FISH and chromatin tracing. The 749-nm laser was used to excite and image Alexa Fluor 750 dye on secondary probes for BARC-FISH. A pentaband dichroic mirror supplied by Lumencor for the light engine was installed on the excitation path to direct the lasers to the sample, together with an ND0.6 neutral density filter to reduce the laser intensity. A pentaband emission filter supplied by Lumencor for the light engine and a Hamamatsu Orca Flash 4.0 V3 camera were each installed on the emission path. The image size was 2,048 × 2,048 pixels with a pixel size of 108 nm. A motorized x–y stage (SCAN IM 112 × 74, Marzhauser) was used to automatically image different fields of view (FOVs). Samples cultured on 40-mm no. 1.5 coverslips (Bioptechs, 40-1313-03193) were assembled in a Bioptech’s FCS2 flow chamber, mounted onto the microscope stage and connected with a previously described automated fluidic system^53,58 for liquid handling during sequential hybridization and imaging.

Chromatin tracing sequential imaging

We conducted 17 and 14 rounds of three-color imaging for chromatin tracing of chr21 and chr22, respectively. During each round of hybridization, the sample was first incubated with 20% vol/vol ethylene carbonate (EC; Sigma-Aldrich, E26258) in 2×SSC containing two secondary probes (one labeled by ATTO 565 and one labeled by Alexa Fluor 647) for 25 min. The final concentration of each secondary probe was 6 nM, with the following exceptions for chr22 tracing to tune signal intensity differences: TAD 4 (0.5 nM), TAD 14 (12 nM), TAD 18 (12 nM) and TAD 26 (12 nM). In 6 initial screen replicates of the 17 total replicates, we used a TAD 4 probe concentration of 6 nM, which led to a bleedthrough of TAD 4 signal (labeled with Alexa Fluor 647 dye) into the TAD 18 fluorescent channel (546-nm laser channel). This bleedthrough issue was computationally addressed as described later (Supplementary Methods). The dye-labeled secondary probe sequences were selected from a previous study²⁰. The secondary probes were ordered from IDT and their sequences are listed in Supplementary Table 12. Around 2 ml of wash buffer containing 20% vol/vol EC in 2× SSC was flowed through the chamber to remove unbound secondary probes, followed by 2 ml of anti-photobleaching oxygen-scavenging imaging buffer that contained 50 mM Tris-HCl pH 8.0, 5% wt/vol glucose, 2 mM Trolox (Sigma-Aldrich, 238813), 0.5 mg ml⁻¹ glucose oxidase (Sigma-Aldrich, G2133) and 40 μg ml⁻¹ catalase (Sigma-Aldrich, C30) in 2× SSC. During the overnight imaging process, the imaging buffer in the input tube was covered by a layer of mineral oil (Sigma-Aldrich, 330779-1L) to prevent oxidization. At each FOV, three z-stack images were taken sequentially with 638-nm, 546-nm and 477-nm laser illumination, with a step size of 200 nm, an exposure time of 0.4 s at each step and a total z-range of 7 μm. After all the FOVs were imaged for the current imaging round, the secondary probes were stripped off by slowly flowing 4 ml of 65% vol/vol formamide in 2× SSC for 10 min and incubating for an additional 5 min. Extra formamide was then removed by flowing 2 ml of wash buffer, and the next round of hybridization and imaging followed. To correct for color shift between 546-nm and 638-nm lasers, a no. 1.5 coverslip was coated with 100-nm Tetraspeck beads (Invitrogen, T7279) diluted at a 1:200 ratio in the imaging buffer, and z-stack calibration images were taken using the two lasers^20,52.

BARC-FISH sequential imaging

For screen samples, we conducted ten rounds of four-color imaging to detect the barcode after chromatin tracing. During each round, the sample was first incubated for 25 min with 20% vol/vol EC in 2× SSC containing three secondary probes that correspond to the three values in each barcode digit, and the three probes were labeled with ATTO 565, Alexa Fluor 647 and Alexa Fluor 750, respectively. The concentrations of the Alexa Fluor 750-labeled and Alexa Fluor 647-labeled probes were 3 nM each, and the concentrations of ATTO 565-labeled probes were 6 nM each. Excessive probes were washed away by flowing 2 ml of wash buffer, followed by application of 2 ml of imaging buffer. At each FOV, four z-stack images were taken sequentially with 749-nm, 638-nm, 546-nm and 477-nm lasers. Each z-stack had a step size of 1.5 μm, an exposure time at each step of 0.4 s and a total range of 9 μm. After each imaging round, 11 ml of 90% vol/vol formamide in DPBS was flowed through the sample chamber for 28 min and then let stand for 100 s to remove the bound fluorescent probes. Excessive formamide was removed with 2 ml of wash buffer.

DAPI and total protein staining

For imaging screen samples, after BARC-FISH imaging was completed, the nuclei were stained by applying 3 ml of a 1:1,000 dilution of DAPI (Thermo Scientific, 62248) in 2× SSC in 4 min, and incubated for 3.5 min. The sample was then washed by applying 2 ml of wash buffer. Total protein stain was then conducted by diluting CF568-labeled succinimidyl ester (Biotium, 92131) at a ratio of 1:100,000 in water containing 0.1 M NaHCO₃ and 25 mM Na₂CO₃, flowing 3 ml of the buffer through the sample chamber over 4 min, and incubating for 3.5 min. After further application of 2 ml wash buffer and 2 ml imaging buffer, three z-stack images were taken at each FOV sequentially with 546-nm, 477-nm and 405-nm lasers. Specifically, the z-stack of 546-nm and 477-nm lasers had the same step size, exposure time and total range as those used in BARC-FISH imaging, and the z-stack of 405-nm lasers had the same parameters as those used in chromatin tracing imaging. For imaging siRNA validation samples, DAPI staining was applied and imaged after chromatin tracing in a similar manner in the 477-nm and 405-nm channels, with parameters identical to those mentioned above.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Raw sequencing data of the CRISPR screen cell library and analyzed imaging data generated from this study are available for download at https://campuspress.yale.edu/wanglab/BARCFISH/. Raw sequencing data have been deposited into the NCBI Sequence Read Archive database under accession no. PRJNA1225422. Raw imaging data are available from the corresponding author upon request and are not deposited online due to the prohibitively large size. The Human Protein Atlas dataset can be accessed at https://www.proteinatlas.org/. Source data are provided with this paper.

Code availability

All original code generated for this study are available for download at https://campuspress.yale.edu/wanglab/BARCFISH/ and on Zenodo via https://doi.org/10.5281/zenodo.14227128 (ref. ⁵⁹). Open-source codes for imaging data collection are available at https://github.com/ZhuangLab/storm-control/.
