Abstract

Light-excited dual-mode imaging that integrates multispectral optoacoustic tomography (MSOT) and near-infrared region II fluorescence (NIR-II FL) imaging allows complementary deep-tissue visualization with high anatomical resolution and molecular sensitivity, thereby enhancing the accuracy of biomedical diagnostics. Activatable probes further advance this approach by producing signals upon recognition of disease-related biomarkers, which reduces background interference and improves imaging specificity. BTPE-NO2@F127, a benzothiadiazole-based nanoprobe, exhibits selective activation of both optoacoustic and NIR-II FL signals in response to hydrogen peroxide (H2O2), a crucial early stage biomarker of liver injury, thus permitting cross-validated detection of hepatic damage in vivo with excellent signal-to-background ratio contrast. Here we present detailed procedures for preparation of the BTPE-NO2@F127 nanoprobe and its applications in MSOT/NIR-II FL dual-mode imaging of trazodone- or ischemia–reperfusion-induced liver injury in mice. Compared to conventional liver injury diagnostic methods, such as invasive tissue biopsy, ex vivo blood analysis and previously reported fluorescent/optoacoustic probes, BTPE-NO2@F127 offers real-time, in situ monitoring with high sensitivity and signal-to-background ratio, as well as mutually corroborating signals for increased reliability. The fabrication of BTPE-NO2@F127, including the chemical synthesis and characterization, requires ~17 d, while the in vitro validation of its H2O2 responsiveness takes ~5 d. Notably, the complete workflow of data acquisition and analysis for MSOT/NIR-II FL dual-mode imaging of liver injury in mice using BTPE-NO2@F127 can be accomplished within 10 h. The protocol is easy to follow and suitable for clinicians and researchers with a basic understanding of chemistry and bioimaging techniques.

Key points

  • This is a protocol for the preparation and characterization of the activatable BTPE-NO2@F127 nanoprobe and its applications in multispectral optoacoustic and near-infrared region II fluorescence dual-mode imaging of liver injury models in mice.

  • Compared to conventional liver injury diagnostic methods, such as invasive tissue biopsy and ex vivo blood analysis, this approach offers real-time, in situ monitoring with high sensitivity and low noise, as well as mutually corroborating signals for increased reliability.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

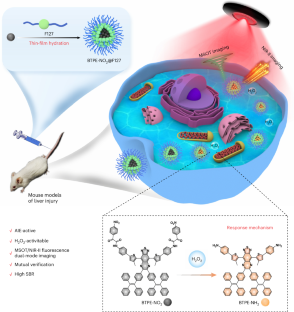

Fig. 1: A schematic illustration of the preparation of the BTPE-NO2@F127 nanoprobe and its biomedical applications.

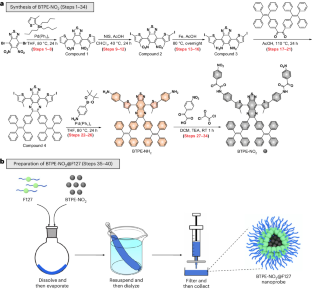

Fig. 2: Preparation of the activatable benzothiadiazole-based nanoprobe BTPE-NO2@F127.

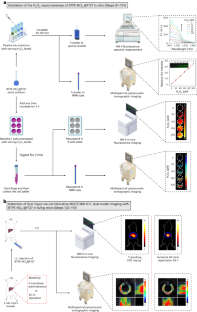

Fig. 3: Overview of the procedures for in vitro property validation and in vivo biomedical applications of the activatable benzothiadiazole-based nanoprobe BTPE-NO2@F127.

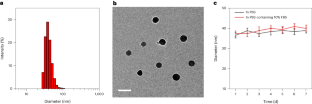

Fig. 4: Characterizations of BTPE-NO2@F127.

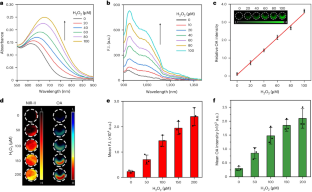

Fig. 5: An assessment of the specific activation behavior of BTPE-NO2@F127 in response to H2O2 in vitro.

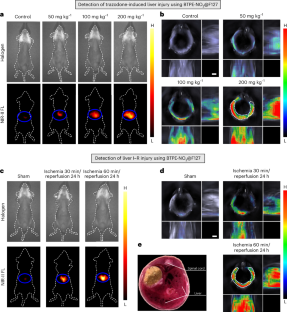

Fig. 6: The evaluation of BTPE-NO2@F127 for in vivo detection of liver injury induced by trazodone administration or I–R.
