Introduction

The generation of gene knockout models based around embryonic stem (ES) cells and chimeric animals has significantly enhanced our knowledge of the function of specific genes. A variety of techniques are available to manipulate or alter the genome including homologous recombination, transcription activator-like effector nucleases (TALENs) and clustered regularly interspaced short palindromic repeats (CRISPR/Cas9)1,2,3.

In oocytes and early stage embryos, gene transcription is arrested in the period between maternal meiotic resumption and embryonic genome activation. In addition, most maternal mRNAs are eliminated soon after the time of embryonic genome activation4. In the period of transcriptional arrest, the oocyte and then the blastomeres are dependent on transcripts produced in the oocyte prior to germinal vesicle (GV) breakdown. For this reason, gene knockout techniques are less practical for genes critical to oocyte maturation or embryonic development before embryonic genome activation. Particularly where homozygous gene knockout leads to embryonic lethality, gene function during oocyte development cannot be studied because functional transcripts will be present in heterozygous mothers.

As an alternative, mRNA translation can be downregulated by the introduction of small interfering RNA sequences (siRNA) into oocytes or early embryos5,6. In vivo, mRNA expression is regulated by small RNAs with sequences homologous to the target mRNA that use proteins such as DICER to form a multicomponent nuclease, RNA-induced silencing complex (RISC), to eliminate the target mRNA7. For species where ES cells are not available, but also for maternally expressed genes, RNA interference (RNAi) can be a useful tool for generating information about gene function. Small RNAs directed against mRNA sequences can be artificially synthesized and introduced into oocytes using electroporation or by direct injection to downregulate mRNA expression8,9,10.

However, genome-wide analysis has revealed that siRNA sequences can also regulate expression of unintended targets11. So-called off-target effects can complicate the interpretation of phenotypic effects during gene-silencing experiments12,13. Off-target effects can be minimized, but not eliminated, by strategies such as careful selection of the siRNA sequence and the comparison of several different siRNA sequences that target the same mRNA12, 14.

When mRNA expression is downregulated by siRNA sequences, nonspecific RNA sequences, preferably of similar size and containing the same nucleotides but in a ‘scrambled’ order to the gene specific siRNA sequence, are used as a negative control. In oocytes and single-cell zygotes the preferred delivery method for siRNA is microinjection. During microinjection the plasma membrane is damaged, cytoskeletal structures may be disrupted, positions of organelles can be changed, and foreign components are introduced into the cell. Although injection of scrambled siRNA is an important control for validating the specificity of siRNA and its targeting for mRNA downregulation, the damaging effects of microinjection and introduction of short RNA sequences per se on the cell have not been analyzed in any depth.

Here we evaluate the effect of injecting small RNA sequences into oocytes, in particular with respect to changes in the transcriptome. Denuded oocytes were injected at the GV stage and cultured first for 16 h in the presence of roscovitine to delay germinal vesicle breakdown and allow more time for the siRNA to exert its influence15,16. Single oocyte RNA sequencing (RNA-Seq) was performed to examine changes in RNA expression as a result of the injection procedure.

Results

Microinjection does not significantly influence the ability of oocytes to mature in vitro

Denuded GV stage bovine oocytes were microinjected with non-specific siRNA containing Dextran-TRITC, as an indicator of successful injection. Only oocytes that showed red fluorescence were cultured further. Regular in vitro maturation (IVM) of bovine oocytes takes 24 h, which might be too short for the RNAi machinery or any other intervention to properly downregulate mRNA expression; in that case, researchers usually extend the reaction time with chemical inhibitors such as roscovitine to delay in vitro maturation. Therefore, oocytes were first cultured in the presence of the cyclin-dependent kinase (CDK) inhibitor roscovitine for 16 h to delay meiotic resumption, followed by culture in conventional maturation medium for 22 h. After 16 h of culture in roscovitine, most oocytes had reached the metaphase (M)I stage (Fig. 1A). At the end of IVM, injected MII stage oocytes still contained red fluorescence, indicating that the injection procedure had not caused significant leakage (Fig. 1B). The maturation rate (based on the numbers of oocytes with a first polar body) of the siRNA injected group (80.4%) was not different to that of the control group (86.8%, Table 1); this was expected given that an injected siRNA was chosen with little homology to known mRNA sequences. These results demonstrate that the injection procedure per se did not affect the oocyte’s capacity to resume meiosis.

Figure 1
figure 1

Microinjection of bovine oocytes. Oocytes injected with non-specific siRNA mixed with Dextran-TRITC at the germinal vesicle stage and cultured in roscovitine for 16 h before maturation in vitro. (A) Oocytes at germinal vesicle (left), Metaphase I (middle) and Metaphase II (right) stages, based on chromatin distribution (DAPI staining in blue. Insets show magnified view of red encircled areas. Scale bar: 30 μm. (B) Bright field (left) and fluorescence (right) microscopic images of matured Metaphase II stage oocytes after siRNA injection. Red fluorescence indicates successful injection. Scale bars: 50 μm.

Full size image
Table 1 Non-specific siRNA microinjection does not influence the maturation rates.
Full size table

Single oocyte RNA sequencing

To improve the accuracy of RNA sequencing result and reduce random transcriptome difference based on single oocytes, 12 single oocytes per group (microinjected and non-injected group) were chosen for Cell-seq217 analyze. The expression of each transcript in each sample was normalized with reads per million (RPM). Analyses of RPM values for each replicate showed that the overall ranges and distribution of the RPM values were consistent among the samples (Fig. 2). These results indicate that our RNA-seq data are reliable, reproducible and of high quality, and meet the conditions for differential expression analysis.

Figure 2
figure 2

Distribution of expression levels of each single cell transcriptome in (A) non-specific siRNA injected and (B) non-injected oocytes. Individual lines represent individual oocytes, 12 oocytes per group.

Full size image

Microinjection alters gene expression

To analyze the effect of microinjection in oocytes, we compared the gene expression profiles between the injected and non-injected groups. The total numbers of detected genes ranged from 9,153 to 12,094 over the two groups. On average, 10,577 different mRNAs were detected in the non-injected group whereas 10,696 expressed genes were detected in the siRNA injected group. Among these, 10147mRNAs were detected in both groups, while 430 and 549 were detected exclusively in non-injected and siRNA injected oocytes, respectively (Fig. 3A). Principal component analysis (Fig. 3B) revealed only a minor difference between oocytes from non-injected and siRNA injected groups. Nevertheless, 119 transcripts were differently expressed between the two groups based on an adjusted p value < 0.05 with a fold change > 1.2 (Fig. 3C, supplementary Table 1). Of the differently expressed mRNAs, 76 transcripts were down-regulated and 43 transcripts were up-regulated in the injected oocytes (Fig. 3D).

Figure 3
figure 3

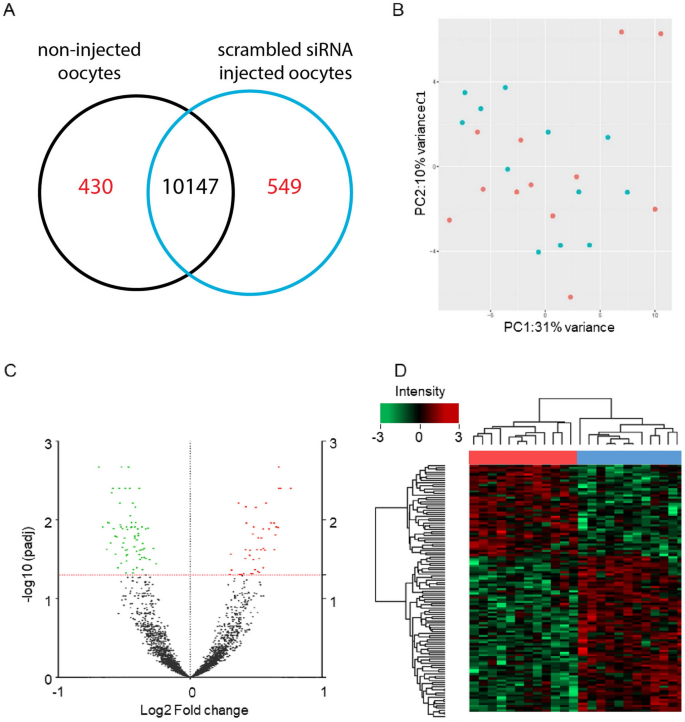

Gene expression differences between non-injected and siRNA injected oocytes. (A) Venn diagram showing overlapping and specific transcripts in the two groups. (B) Principal component analysis (PCA) of the transcriptomes; PC1 and PC2 represent the top two dimensions of the differentially expressed genes among the groups. Blue: non-injected oocytes; red: injected oocytes. (C) Volcano plot showing the estimated fold change (X-axis) versus the –log10 values (Y-axis) for non-injected and siRNA injected oocytes. Red dots represent genes significantly up-regulated in the injected group, green dots represent genes significantly down-regulated in the injected group (adjusted P-value < 0.05). Black dots represent transcripts for which expression did not differ significantly. (D) Heatmap showing the results of cluster analysis for differentially expressed genes between the two groups; n = 119 (red: upregulated; green: downregulated). Red bar: injected oocytes. Blue bar: non-injected oocytes.

Full size image

In order to verify that the exclusively expressed genes in the injected oocytes were indeed due to the injection procedure, oocytes were also injected with a combination of 3 specific siRNAs directed against an oocyte-expressed gene (PIWIL3) and individually sequenced. Since in this group of oocytes an expressed gene was targeted, the differences in expressed mRNA with non-injected oocytes was larger. Indeed, PIWIL3 expression in these oocytes was reduced, but the maturation rate was similar to that of control oocytes (Supplementary Fig. 1). Importantly however, of the 549 exclusive mRNAs in non-specific siRNA injected oocytes, 540 (98%) were overlapping with the specific siRNA injected oocytes (Supplementary Fig. 1), confirming that expression of these genes is caused by the injection procedure.

Microinjection alters the expression of mitochondrial and transmembrane related genes

To gain better insight into alteration of gene expression after siRNA injection, Gene Ontology (GO) term enrichment analysis was performed using ClueGO software (Fig. 4, Table 2). We identified ‘biological process, ‘cellular component’ and ‘molecular function’ as being enriched among these differently expressed mRNAs. For up-regulated transcripts, 8 GO terms within ‘biological process’ were significantly enriched and these incorporated 8 genes: VCP, ATP5H, SNAPIN, COX1, UBE2I, SLC6A8, ABI1 and HMGB2. Among them, VCP was included in 4 different ‘biological process’ lists, namely “positive regulation of Lys63-specific deubiquitinase activity”, “ATP biosynthetic process”, “flavin adenine dinucleotide catabolic process” and “endosome to lysosome transport”. Two cellular component GO terms were significantly enriched, “mitochondrial proton-transporting ATP synthase, stator stalk” which includes ATP5H, and “heterotrimeric G-protein complex” which includes GNA11 and GNB2. Six genes (COX1, UBE2C, UBE2I, SLC6A8, CDKAL1 and RPIA) contributed to 5 significantly enriched GO terms for ‘molecular function’ relating to activity of multiple enzymes. For the down-regulated transcripts, 3 GO terms were enriched within ‘biological process’, where “negative regulation of protein polyubiquitination” was the most significant GO term, and related to two genes (PLAA and TRIP12), while “palmitoyltransferase complex” was the only GO term enriched within ‘cellular component’.

Figure 4
figure 4

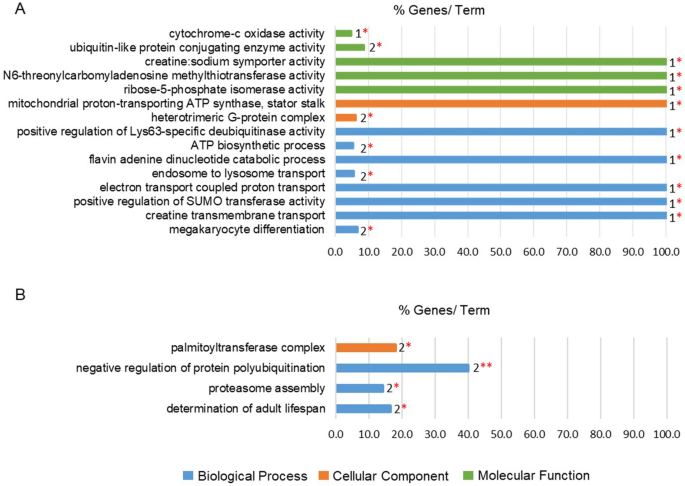

Functionally grouped gene ontology (GO) terms for genes significantly up-regulated/down-regulated in non-specific siRNA injected oocytes compared to non-injected oocytes. (A) Up-regulated GO terms in siRNA injected oocytes. (B) Down-regulated GO terms in siRNA injected oocytes. Number of genes (number behind bar chart) and the percentage of mapped genes from the total number of genes of the term is shown. GO Term is labeled on the left hand side. The level of significance of the terms is shown as ** (p value < 0.001), * (0.001 < p value < 0.05). Same bar color indicates the Go term as being in the same ontology.

Full size image
Table 2 Lists of functionally grouped gene ontology (GO) terms significantly up-regulated/down-regulated in siRNA injected oocytes compared to non-injected oocytes.
Full size table

Discussion

RNAi has been widely used as a method for suppressing gene expression18. For gene expression knockdown before the embryonic genome has been switched on in oocytes and preimplantation embryos , microinjection in oocytes is the preferred method of delivering siRNA, because the timing and amount of introduced RNA can be controlled19,20. Alternatively, cell transfection with for instance lipofectamine can be used to introduce siRNA into cells. For efficient delivery using lipofectamine, removal of the zona pellucida is required however, which reduces the developmental competence of the zygote6. Also, the timing and amount of siRNA delivery are less precise using transfection using lipofectamine. Electroporation has also been used to successfully introduce small RNAs and protein into preimplantation embryos, and for efficient transfection the pulse number, pulse duration, and voltage strength first need to be established21. A disadvantage of microinjection, compared with for instance transfection, is the physical stress that the cells are subjected to as the cell membrane is ruptured and liquid with RNA is deposited into the cytoplasm. Also, the microinjection procedure requires training in use of the equipment. Particularly for gene expression knockdown via siRNA, oocyte injection is however the most used method.

Independent of the delivery method, the RNAi machinery needed for the degradation of mRNA, and natural turnover for downregulation of protein levels, requires a period of time longer than the 22 h during which cattle oocytes normally reach the MII stage when matured in vitro. Oocytes were therefore cultured in the presence of the CDK inhibitor roscovitine for 16 h before being cultured in maturation medium for 22 h15,22. To distinguish non-specific from specific effects, scrambled siRNAs are usually injected and compared with oocytes/zygotes injected with specific siRNAs. A possible downside of this approach is that the effects of the injection procedure itself might be masked, but influence the final results.

Oocyte integrity after microinjection has been studied, but primarily to assess the impact of intracytoplasmic sperm injection (ICSI). For ICSI, injected oocytes are usually already at the MII stage; otherwise, the injection procedure is very similar to that required for siRNA injection. After ICSI, ultrastructural changes within oocytes have been reported, and include membrane-bound vacuoles and plasma membrane inclusions23. Although with human oocytes a lower blastocyst rate has been reported after ICSI24, a meta-analysis study did not indicate differences in birth defects between ICSI and regular IVF born children25. In bovine oocytes it has been reported that fewer blastocysts developed from ICSI oocytes than from oocytes that underwent conventional IVF26 but it cannot be distinguished whether these differences were the result of the injection procedure or the differences in sperm selection.

Here we analyzed the potential damage of the siRNA microinjection procedure per se by comparing non-injected oocytes with oocytes injected with siRNAs that did not target a specific mRNA. After injection, similar percentages of oocytes matured to the MII stage, indicating that the initial developmental capacity of the oocyte was not altered by the microinjection procedure. We have however not examined the capacity of the injected oocytes to develop to the blastocyst stage after fertilization. When embryos develop after injection, the cryopreservation efficiency may be diminished as has indeed been demonstrated for early embryos derived after DNA microinjection27 or after ICSI28.

We have examined the transcriptome in individual injected oocytes and compared it to that from non-injected oocytes17. Transcriptome analysis of single oocytes has been reported in various species including mouse, cow and man29,30,31. We detected approximately 10,600 genes as being expressed in bovine oocytes, which is similar to what has been reported previously30,32,33.

To understand transcriptome and biological pathway changes after siRNA microinjection and to define a background reference effect for conducting future siRNA microinjection experiments, we performed GO analysis based on genes with significantly altered expression levels. Our study identified 11 biological processes, 3 cellular components and 5 molecular functions that were significantly affected by microinjection, based on up and down-regulated genes.

The oocyte membrane and cytoskeleton play important roles in maintaining cell shape, and enabling cytokinesis during cell divisions. During microinjection, the injection needle disrupts the integrity of the plasma membrane and it is therefore not surprising that expression of genes related to transmembrane proteins, cytoskeleton and actin filaments were significantly altered by siRNA microinjection. For instance, GNA11 and GNB2 that belong to the heterotrimeric G-protein complex alpha and beta subunits respectively are involved as modulators or transducers in various transmembrane signaling systems. G-alpha subunits are tethered to the plasma membrane and activate the enzyme adenylyl cyclase. ACTR2, also known as ARP2 Actin Related Protein 2 Homolog, is part of the ARP2/3 complex that mediates the formation of branched actin networks in the cytoplasm and is important for asymmetric division, spindle migration as well as the formation and completion of oocyte cytokinesis during meiotic maturation34,35. The upregulation of ACTR2 expression suggests that actin remodeling is required during oocyte maturation after injection. GOLGA7, which was down-regulated by siRNA injection codes for the palmitoyltransferase complex and may also be involved in vesicular protein transport from the Golgi apparatus to the cell surface36.The downregulation of GOLGA7 transcripts in our data suggests that injection interrupts signaling between cytoplasm, plasma membrane and organelles.

Mitochondria are essential for multiple biological processes via ATP synthesis in maturing oocytes37. Indeed, oocyte quality can be interrupted by mitochondrial dysfunction and inadequate ATP production38. ATP5H and VCP are related to ATP synthesis and were up-regulated in oocytes injected with siRNA, indicating that microinjected oocytes require extra ATP to reach the MII stage.

Ubiquitin is involved in post-translational modification of target proteins. During the maternal to zygotic gene transition, maternal proteins are degraded by the ubiquitin–proteasome system and new proteins are synthesized from the embryonic genome. Reduced proteasome activity leads to accumulation of maternally derived oocyte proteins which can result in early embryonic developmental arrest39. Various types of ubiquitin-mediated modifications are thought to have specific functions. As an ubiquitin ligase, activity of TRIP12 is indispensable for mouse embryogenesis. Gene inactivation of Trip12 results in embryonic lethality during midgestation40. PLAA is required for the Ubiquitin-mediated sorting of membrane proteins from the early to late endosome, targeting them for lysosomal degradation41. However, to fully understand its role in oocyte maturation requires further investigation.

The observed differences in gene expression between siRNA injected and noninjected oocytes can be the resultant of three events. Either the presence of dextran that was co-injected to identify correctly injected oocytes changed gene expression; differences could be caused by the physical damage to cell organelles, chromosomes or cell membrane due to the injection procedure; or the interference of the injected siRNA with the genome or mRNA altered gene expression. At this stage it is not possible to exclude one of these events, although it seems highly likely that a cellular response to mechanical injury is associated with changes in gene expression.

We used RNA-seq to identify changes in the transcriptome of single oocytes after non-specific siRNA injection. Our results show that, after microinjection, cattle oocytes are just as capable of maturing to the MII stage during in vitro culture as non-injected oocytes. On the other hand, we detected 43 upregulated and 76 downregulated genes in the injected oocytes, mainly involved in the cytoskeleton, proteasome and ATP synthesis processes. This result demonstrates that there is a ‘background effect’ of microinjecting oocytes and indicates that one should be careful when interpreting data from microinjected oocytes.

Materials and methods

Oocyte collection and in vitro maturation

Cattle ovaries were collected from a slaughterhouse in the Netherlands and transported to the laboratory in a polystyrene box at room temperature, within 2 h after slaughter. After washing, the ovaries were maintained in 0.9% NaCl supplemented with 0.1% penicillin/streptomycin (10,000 U/ml; Gibco BRL, Paisley, UK) at 30 °C. Cumulus oocyte complexes (COCs) were aspirated from 2–8 mm follicles42. Only oocytes with a multi-layered, compact cumulus complex were selected for microinjection.

Injection of siRNA into oocytes and in vitro maturation

Microinjection of a commercial, non-specific siRNA: UGGUUUACAUGUCGACUAA (D-001810-01, ON-TARGETplus Non-targeting siRNA #1, Dharmacon, Lafayette, OS, USA) and a mixture of three specific PIWIL3 siRNAs: GUGACUAGGACAGAAUGGU, GAUACAGUCCAAUCUUACA, GAUGGAAACUCUUUGCUGU (Sigma-Aldrich, Zwijndrecht, the Netherlands) was as described previously43. In short, siRNA with a final concentration of 25 μM was mixed with 0.1 mg/ml tetramethylrhodamine (TRITC)labeled 3 kDa dextran (Dextran-TRITC; Molecular Probes, Eugene, OR, USA) in water. For microinjection, 6 denuded GV oocytes were transferred to a 5 μl drop of HEPES buffered M199 + 10% FCS overlaid by mineral oil in a 60 mm dish at 37 °C on an IX71 inverted microscope (Olympus, Leiderdorp, the Netherlands) equipped with a heated stage. 5 μl siRNA mix was loaded into a microinjection needle with a 30° angle and a tip with a 4.3–4.9 μm inner diameter (Eppendorf, Hamburg, Germany). A Femtojet pressure injection system (Eppendorf) was used to inject for 0.2 s at a pressure of 120 hpa. After injection, only oocytes with red fluorescence were selected for culture in 25 µm roscovitine (R7772-1MG, Sigma-Aldrich) in maturation medium without FSH for 16 h in a humidified atmosphere of 5% CO2-in-air at 38.5 °C, followed by maturation medium for 22 h (M199 supplemented with 0.02 IU/mL follicle-stimulating hormone [Sioux Biochemical Inc., Sioux Center, IA, USA], 10% FCS, 100 U/ml penicillin and 100 µg/mL streptomycin). Non-injected control oocytes were cultured in the same conditions. After maturation, oocytes with a first polar body were washed in PBS and individually collected into RNase free tubes containing 200 μl RNA lysis buffer and stored at − 80 °C until RNA isolation.

RNA isolation, reverse transcription and quantitative RT-PCR

Total RNA was extracted using an RNeasy Micro Kit (Qiagen, Valencia, CA, USA) as per manufacturer’s instructions. For cDNA synthesis, 10 μl RNA was mixed with 4 μl 5 × RT buffer (Invitrogen, Breda, The Netherlands), 0.2 μl RNAsin (Promega, Leiden, The Netherlands), 0.75 μl Superscript III reverse transcriptase (Invitrogen), 0.4 μl random primers (Invitrogen), 2 μl DTT (Invitrogen) and 1 μl dNTP (Promega). Reverse transcription took place for 1 h at 55 °C, followed by 5 min at 80 °C before storage at − 20 °C.

The quantitative RT-PCR reactions were performed using a real-time PCR detection system (MyiQ Single-color Real-Time PCR Detection System; Bio-Rad Laboratories, Hercules, CA, USA) with IQ Sybr Green Supermix (Bio-Rad Laboratories). Amplification took place in 40 cycles of 95 °C for 15 s, 30 s at the primer-specific temperature (Supplementary Table 2) and 72 °C for 45 s each. The relative starting quantity was calculated based on the standard curve. Data normalization was performed using GAPDH and SDHA as reference genes with the same set of samples.

Single oocyte RNA isolation and Cel-Seq

A total of 24 oocytes (12 non-specific siRNA injected, 12 non-injected, and 12 specific PIWIL3-injected) were collected for total RNA isolation using an RNeasy Micro Kit (Qiagen ) as per the manufacturer’s instructions.

Sequencing library preparation was performed using the CEL-seq2 protocol as described previously17 and sequencing was performed on an Illumina NextSeq500 using 75-basepairpaired-end sequencing (Utrecht Sequencing Facility).

Sequencing data were processed as described previously44. In brief, after demultiplexing, sequencing reads were mapped to a cDNA library, reads mapping to the same gene with identical UMI were counted as a single read.

Identification of differentially expressed gene

In order to identify genes with altered expression levels, R package DESeq2 was used. A P value was computed based on Poissonian statistics and multiple testing corrected by the Benjamini–Hochberg method45. Genes with an adjusted p-value < 0.05 as calculated by DESeq2 were considered to have undergone significant gene enrichment. For identification of up and down-regulated genes in injected oocytes, a Cytoscape App ClueGO was used based on the terms “biological processes”, “cellular components” and “molecular function” in the Bos taurus database46. Statistical significance was set for a K score of 0.4. The function “GO Term fusion” was selected and GO term restriction levels were set at 1–20, with a minimum of one genes or 4% genes in each GO term。
