Introduction

The SCN is the master circadian oscillator and the principal target for light modulation of the circadian rhythm in mammals1. Approximately 10,000 SCN neurons are clustered near the third ventricle above the optic chiasm, the source of direct retinal input to the SCN. The ventral part of the SCN close to the optic chiasm receives input from the retina, while the dorsal part of the SCN does not. Through communication between its ventral and dorsal parts, the whole SCN is synchronised to the ambient light/dark cycle2. The cyclic input serves solely to entrain the clock, not to sustain it. The SCN generates endogenous circadian oscillation with a period (or time taken to complete a full cycle) of approximately 24 h. Animals, including human beings, can therefore sustain overt circadian oscillations in behaviour and physiology even under constant conditions, e.g. under constant darkness.

At the molecular level, individual neurons in the SCN act as cell-autonomous oscillators, exhibiting circadian oscillations of firing rate and gene expression1. The rhythm-generating mechanism of the cellular clock involves clock genes, which regulate their own transcription in a negative transcription–translation feedback loop (TTFL). Positive regulators Clock and Bmal1 and negative regulators Per1, Per2, Cry1, and Cry2 constitute the main core TTFL3. Besides the core clock components directly involved in the TTFL, SCN neurons express a number of genes that are involved in the coordination of cellular clocks within the structure. These are exemplified by VIP and its receptor Vipr2 coordinating the SCN circuit and expression of the circadian clock genes in the SCN4,5,6,7. The AVP receptor V1a/b confers an intrinsic resistance against perturbation such as jet lag8. The transcription factors Zfhx3 and Lhx1 regulate the expression of distinct neuropeptidergic genes to control circadian locomotor activity9,10,11. The G-protein signalling regulator RGS16 participates in circadian period determination by modulating cAMP signalling12,13. The orphan receptor Gpr176 also modulates the period of the SCN clock through circadian cAMP regulation14. The neurotransmitter GABA has been implicated in synchronising individual cells within the SCN15,16,17. However, compared to the well-understood molecular mechanisms of the TTFL, molecular components involved in the coordination of the whole SCN are still not fully understood.

In the entrainment of the clock, phase resetting light pulses increase expression of Per1 as well as other immediate early genes in the SCN. Per1 induction changes the phase of the TTFL. In the SCN, indirect modulators of the TTFL also have a role in modifying the phase resetting response of the clock. Blocking the GABAA receptor leads to increased phase shifts of circadian locomotor activity rhythm in mice18. VIP-Vipr2 signalling is not only required for time keeping but is also involved in circadian clock entrainment to the environmental light–dark cycle19,20,21,22. Lhx1 mutant mice rapidly phase shift under experimental jet lag conditions10,11. Synaptic Ras GTPase-activating protein SynGAP and Ras-like G protein Dexras1 are involved in the modulation of light-induced phase shifts23,24. The voltage-gated channel NaV1.1 in the SCN is also required for the full phase-responsiveness of the clock25. These accumulating data support the notion of multilayered regulation of the capacity of phase response in the SCN clock, although the components involved may not be fully described.

Gpr19 encodes an evolutionarily conserved orphan GPCR (https://www.gpcrdb.org/) first identified from a human genome EST library26. Histological studies previously identified the enrichment of Gpr19 expression in the brain, including the SCN14,27,28; however, how its expression is controlled in the SCN is not characterized. Moreover, currently, Gpr19 lacks assignment to physiological functions; while several articles reported on its potential association with certain metastatic cancers29,30,31, its distinct role in physiology has been unclear, reflecting the absence of study reporting the phenotype of Gpr19−/− mice.

In the present study, we show that Gpr19 is involved in the determination of the circadian period and phase-resetting capacity of the SCN clock. Gpr19 mRNA was mainly expressed in the dorsal part of the SCN, with its expression fluctuating in circadian fashion. We explored the role for Gpr19 in the regulation of circadian behaviour.

Results

Expression of Gpr19 in the SCN

We performed in situ hybridisation using a radioisotope-labelled probe for Gpr19. Coronal brain sections from wildtype (WT) mice confirmed the enrichment of Gpr19 transcript in the SCN, while no signal was observed for Gpr19-deficient (Gpr19−/−) mice (Fig. 1A). To detect distribution of Gpr19 mRNA expression in the SCN, we next performed RNAscope in situ hybridization (Fig. 1B). Coarse-grained RNA signals for Gpr19 were mainly observed in the middle-to-dorsal region of the SCN in WT mice. Corresponding signals were not observed for Gpr19−/− mice (Fig. 1B). To test the possibility that Gpr19 mRNA expression is regulated by the endogenous clock, we performed quantitative in situ hybridisation using samples from mice housed under constant dark conditions (DD). After entrainment on a regular 12-h light:12-h dark cycle (LD), mice were dark-adapted for 2 days before being sacrificed at 4-h intervals starting at circadian time (CT) 0 (Fig. 1C, CT12 corresponds to locomotor activity onset). Gpr19 mRNA was highest in the subjective day at CT4 and lowest in the subjective night at CT16, with an amplitude of ~ 2.75-fold (peak to trough ratio) (P < 0.0001, CT4 vs CT16, one-way ANOVA with Bonferroni’s post hoc test, Fig. 1C). We generated an anti-Gpr19 antibody. This antibody was unfortunately not useful for immunohistochemistry, but we confirmed its ability to specifically immunoprecipitate Gpr19 protein from WT mice but not Gpr19−/− mice (Fig. 1D). In this analysis we also noted a trend of higher Gpr19 protein expression at daytime (ZT4, ZT represents Zeitgeber time; ZT0 denotes lights-on) than at night (ZT16) (Fig. 1D) though the difference was not significant (P = 0.06) in our semi-quantitative immunoprecipitation followed by Western blot analysis.

Figure 1
figure 1

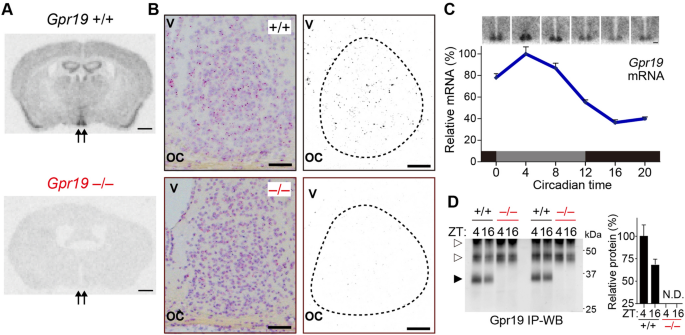

Spatiotemporal expression profile of Gpr19 in the SCN. (A) Representative brain coronal sections of Gpr19+/+ and Gpr19−/− mice hybridised to anti-sense 33P-labelled Gpr19 riboprobe. Arrows indicate the position of the SCN. Scale bars, 1 mm. (B) RNAscope in situ hybridisation of Gpr19 in the SCN. The sections were counterstained with haematoxylin. Right panels show the extracts of the Gpr19-RNAscope signal. The dashed lines delineate the SCN. oc, optic chiasm; v, third ventricle. Scale bars, 50 μm. (C) Circadian rhythm of Gpr19 expression in the SCN. Relative mRNA abundance was determined by in situ hybridisation autoradiography. Values are presented as the mean ± SEM (n = 6, for each time point). Representative time-series autoradiographs are shown on top. Scale bars, 200 μm. (D) Western blots of Gpr19 in the SCN of Gpr19+/+ and Gpr19−/− mice at ZT4 and ZT16. Endogenous Gpr19 proteins were immunoprecipitated from hypothalamic SCN membrane extracts and probed for Gpr19. The solid and open arrowheads indicate Gpr19 and non-specific bands, respectively. Relative protein levels were determined by densitometry. P = 0.06, ZT4 vs. ZT16 in Gpr19+/+ SCN samples (n = 5), two-tailed Student's t-test. N.D., not detectable, in Gpr19−/− samples.

Full size image

CRE sequence in Gpr19 promoter has the ability to produce circadian transcription in the SCN

To investigate the mechanism of circadian Gpr19 expression, we performed sequence conservation analysis of the Gpr19 promoter region among different mammalian species using the UCSC Genome Browser on Mouse (GRCm38/mm10, Fig. 2). We identified the transcription start site by 5′ RACE using total RNA isolated from the SCN (Supplementary Fig. 1) and found a major site of initiation, which we designated as base pair + 1 (Fig. 2A).

Figure 2
figure 2

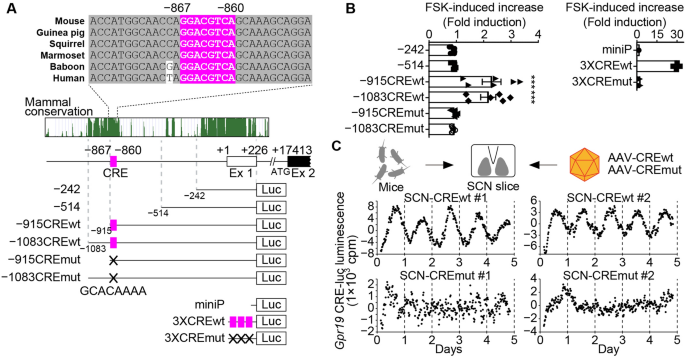

The Gpr19 CRE sequence has the ability to produce circadian transcription in the SCN. (A) The CRE in the Gpr19 promoter. Genomic positions relative to the transcription start site (+ 1) of the Gpr19 gene are indicated along with evolutionary conservation scores among mammalian species. Alignment shows the CRE (− 867 to − 860; highlighted in magenta) and its flanking sequences of mouse, human, and other representative mammalian species. We used reporter constructs containing serial deletions of the mouse Gpr19 promoter (− 242 to + 226, − 514 to + 226, − 915 to + 226, − 1083 to + 226) and the mutant derivative for the CRE (mut; GCACAAAA). We also used reporter constructs containing 3 × isolated CRE (3 × CREwt) or its mutant (3 × CREmut). miniP, minimal promoter. (B) Gpr19 promoter activities in MEF cells after treatment with cAMP enhancer FSK. Average fold increase relative to basal activity was calculated (n = 6, for each construct). Error bars indicate SEM. ***P < 0.001, one-way ANOVA, Bonferroni’s post hoc test. (C) Representative detrended bioluminescence traces from SCN explants infected with AAV carrying the 3 × CREwt (upper) or 3 × CREmut (lower) reporter construct. Luminescence was recorded at 20-min intervals over 5 days in culture.

Full size image

This analysis revealed two conserved segments, one of which was located near the transcription start site, including exon 1 (− 194 to + 232), while the other was located approximately 900-bp upstream of the gene (− 1071 to − 826). There were no consensus sequences matching the canonical circadian cis-elements E-box or D-box in these regions (Fig. 2A); instead, we found a potential cAMP-responsive element (CRE) (− 867 to − 860) in the distal region. Of note, this conserved CRE sequence was functionally responsive, as revealed by the forskolin (cAMP enhancer)-dependent increase in reporter activity of Gpr19 promoter-luciferase constructs that contain the Gpr19 CRE (− 915CREwt and − 1083CREwt, Fig. 2B) but not of those with mutated CRE (− 915CREmut or − 1083CREmut) or shortened promoter constructs devoid of the CRE sequence (− 514 and − 242) (Fig. 2B; see also Supplementary Fig. 2A–C). Vehicle (DMSO) treatment had no effect on the Gpr19 promoter regardless of the presence of the CRE sequence (Supplementary Fig. 2D–F). In addition, similar results were obtained with a reporter construct containing the isolated Gpr19 CRE sequence (Fig. 2A,B). With these results, we next moved to test whether the Gpr19 CRE sequence is able to produce circadian transcriptional rhythm in the SCN. We performed long-term reporter recording using cultured SCN slices (Fig. 2C). Adeno-associated virus (AAV)-mediated 3 × CREwt-luc expression in the SCN slice exhibited persistent circadian rhythms of bioluminescence over multiple cycles under constant culture conditions. In contrast, all tested slices expressing 3 × CREmut-luc did not display detectable circadian luminescence expression (Fig. 2C). The Gpr19 CRE sequence, thus, has the ability to generate autonomous circadian expression in the SCN.

Gpr19 deficiency lengthens the period of circadian locomotor activity rhythm

To assess the in vivo function of Gpr19, we monitored daily locomotor activity of Gpr19−/− mice, which had been backcrossed to the C57BL/6J genetic background over 10 generations. The mice deficient in Gpr19 were viable, fertile and phenotypically indistinguishable from Gpr19+/+ littermates by gross examination14. C57BL/6J-backcrossed mutant mice displayed an entrainment to a 12-h light:12-h dark (LD) cycle, although the phase of activity onset of Gpr19−/− mice under LD conditions was delayed relative to that of WT mice (Fig. 3A,B). On transfer of animals into constant darkness (DD), Gpr19−/− mice showed a free-running period significantly longer than the WT period (WT, 23.77 ± 0.02 h; Gpr19−/−, 24.18 ± 0.03 h, P < 0.001, Student’s t-test, Fig. 3C) and significantly longer than 24 h (95% confidence interval (95% CI) = 24.11, 24.25). These results indicate that Gpr19 is involved in the determination of circadian period length.

Figure 3
figure 3

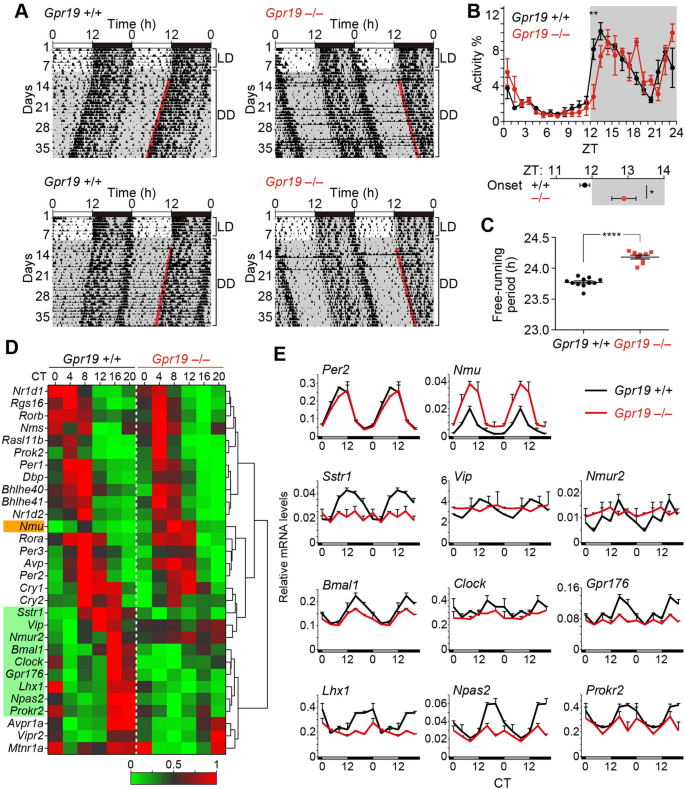

Gpr19 deficiency elongates the period of locomotor activity rhythm and alters circadian clock gene expression in the SCN. (A) Representative double-plotted locomotor activity records of C57BL/6J-backcrossed Gpr19+/+ and Gpr19−/− mice. Mice were housed in a 12L:12D light–dark cycle and transferred to DD. Periods of darkness are indicated by grey backgrounds. Each horizontal line represents 48 h; the second 24-h period is plotted to the right and below the first. The coloured lines delineate the phase of activity onset in DD. (B) Daily profile of locomotor activity of Gpr19+/+ and Gpr19−/− mice in LD. Values are the mean ± SEM of % activity of a day. **P < 0.01, two-way ANOVA with Bonferroni’s post hoc test. The plots below the panel indicate the average times of locomotor activity onset of Gpr19+/+ and Gpr19−/− mice. *P < 0.05, Student's unpaired t-test. (C) Period-length distribution of C57BL/6J-backcrossed Gpr19+/+ and Gpr19−/− mice. Free-running period measurements were based on a 14-day interval taken after 3 days of a DD regime and were executed with a χ2 periodogram. Plotted are the period lengths of individual animals. Bars indicate the mean ± SEM (Gpr19+/+, n = 11; Gpr19−/−, n = 9). ****P < 0.0001, Student's unpaired t-test. (D) Heatmaps displaying circadian expression of representative clock and clock-related genes in the SCN of Gpr19+/+ and Gpr19−/− mice. The highest and lowest values of each gene were adjusted to 1 and 0, respectively. The genes (rows) are ordered by hierarchical clustering using Euclidean distance and Ward agglomeration. (E) Line graphs showing double-plotted circadian expression profiles of the genes affected by Gpr19 deficiency in (D). Relative mRNA levels were determined by qRT-PCR (n = 2 biological replicates, for each data point). Error bars indicate variation. Values are double-plotted for better comparison between the genotypes. Per2 is not affected. Data of all examined genes are shown in Supplementary Fig. 3.

Full size image

Gpr19 participates in maintaining proper circadian gene expression in the SCN

To identify potential molecular mediators of the effects of Gpr19 deficiency in the SCN, we examined expression of representative clock and clock-related genes in the SCN of Gpr19−/−. The SCN of Gpr19+/+ and Gpr19−/− mice housed in DD were micro-dissected every 4 h. Then, a customised panel of 41 SCN genes, which include representative core clock genes, clock-controlled genes, and circadian clock-related neurotransmitters and receptors, were analysed by quantitative RT-PCR using the Fluidigm system. The data of rhythmic genes were hierarchically aligned (Fig. 3D) (see also plots in Supplementary Fig. 3). The core oscillatory gene Per2 was basically circadian in the SCN of Gpr19−/− mice, although the peak was slightly delayed, which was consistent with the prolonged circadian period of Gpr19−/− mice (Fig. 3E). Similarly, the genes with peak expression during daytime (e.g. Per1, Cry1, Nr1d1, Rora, Bhlhe41, Prok2, Avp, Rasl11b, and Rgs16) were apparently normal, except Nmu, whose expression was up-regulated in the SCN of Gpr19−/− mice (Fig. 3D,E; Supplementary Fig. 3). In contrast, a certain number of genes that show peak expression during the nighttime (CT12–16) in WT mice, including Bmal1, Clock, Npas2, Vip, Lhx1, Nmur2, Sstr1, Gpr176, and Prokr2, were consistently downregulated in the Gpr19−/− SCN (Fig. 3D,E), suggesting that Gpr19 is involved in the maintenance of proper gene expression peaking in the night.

Gpr19 deficiency alters entrainment capacity

Next, we investigated the possible involvement of Gpr19 in entrainment of the clock. Light resets the phase of circadian rhythms in a phase-dependent and light-intensity-dependent manner, with delays dominating the early subjective night, advances dominating the late subjective night, and minimal phaseshifts during the subjective day. We illuminated mice with a short light pulse of 20 or 200 lx at CT14, CT22, or CT6 (Fig. 4). In both WT and Gpr19−/− mice, light at CT14 and CT22 caused the phase delay and advance, respectively, while light administered at CT6 had little effect (Fig. 4). In addition, we observed that 200-lx light caused larger phaseshifts than 20 lx in both WT and Gpr19−/− mice (Fig. 4A,B). However, significant quantitative differences were detected in the magnitude of phase delays (Fig. 4C,D). Exposure to a 20-lx light at CT14 caused a delay of 1.90 ± 0.11 h in WT mice, whereas the phase-shifting response of Gpr19−/− mice was only 0.71 ± 0.12 h (P < 0.0001, two-way ANOVA with Bonferroni’s post hoc test) (Fig. 4B,D). A 200-lx light pulse applied at CT14 resulted in a phase delay of 2.04 ± 0.12 h in WT and 1.16 ± 0.16 h in Gpr19−/− mice (P < 0.0001) (Fig. 4A,C). In contrast, a light pulse given at CT22 led to comparable phase advances in WT and Gpr19−/− mice at both 20 lx (0.36 ± 0.14 h for WT, 0.30 ± 0.09 h for Gpr19−/−) and 200 lx (0.72 ± 0.15 h for WT, 0.60 ± 0.16 h for Gpr19−/−) (Fig. 4A–D). These results indicate that Gpr19 is involved in determining the magnitude of phase delay of the circadian locomotor activity rhythm in mice. Actograms of all individual animals are provided in Supplementary Fig. 4 (20 lx) or Supplementary Fig. 5 (200 lx).

Figure 4
figure 4

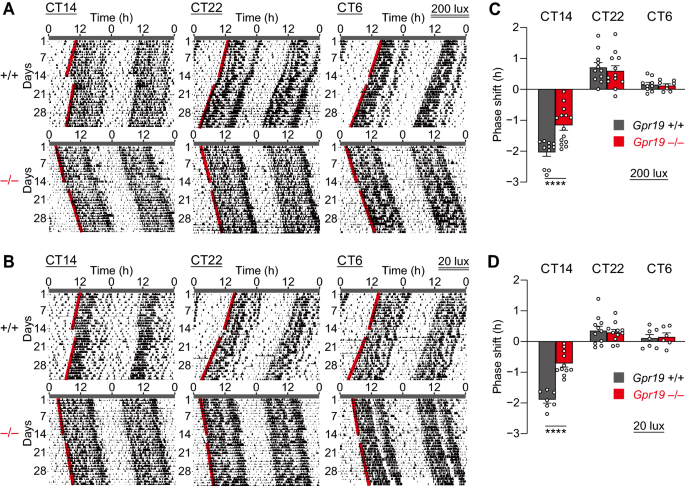

Gpr19−/− mice exhibit a decreased capacity of phase shift to early subjective night light. (A, B) Representative double-plotted locomotor activity records of Gpr19+/+ and Gpr19–/– mice before and after a 15-min light pulse exposure at CT14, CT22, or CT6. CT was determined for individual animals based on their free-running period and the onset of locomotor activity (which is defined as CT12). The red lines delineate the phase of activity onset. Phase shifts (delay at CT14, advance at CT22) were quantified as the time difference between regression lines of activity onset before and after the light pulse, 200 lx for (A) and 20 lx for (B). (C, D) Magnitude of light-induced phase-shifts of Gpr19+/+ and Gpr19–/– mice. By convention, delays are negative, and advances are positive. Data indicate the mean ± SEM for 200 lx (C) and 20 lx (D) (200 lx: CT14, Gpr19+/+ n = 11, Gpr19−/− n = 14; CT22, Gpr19+/+ n = 11, Gpr19−/− n = 12; CT6, Gpr19+/+ n = 9, Gpr19−/− n = 8; 20 lx: CT14, Gpr19+/+ n = 7, Gpr19−/− n = 11; CT22, Gpr19+/+ n = 11, Gpr19−/− n = 11; CT6, Gpr19+/+ n = 7, Gpr19−/− n = 6). ****P < 0.0001, two-way ANOVA with Bonferroni’s post hoc test.

Full size image
Figure 5
figure 5

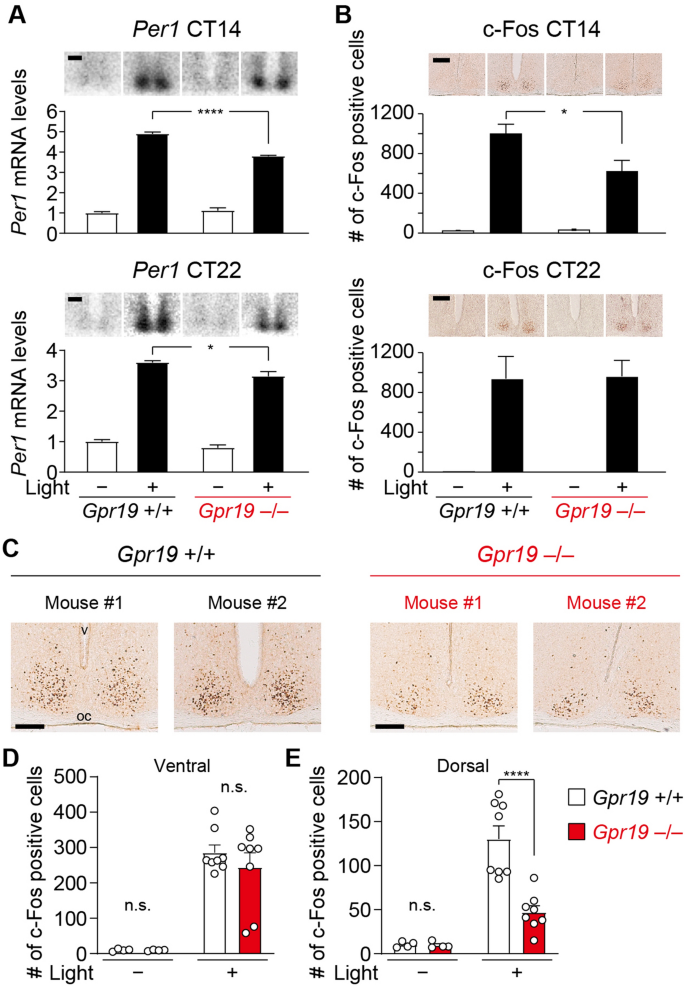

Attenuated light-induced induction of Per1 mRNA and c-Fos immunoreactivity in the SCN of Gpr19−/− mice. (A) Per1 expression in the SCN of Gpr19+/+ and Gpr19–/– mice with or without a 15-min light pulse exposure at CT14 or CT22. Mice were sacrificed 1 h after light onset. Data are presented as the mean ± SEM (n = 4). The mean value in Gpr19+/+ SCN without a light pulse was set to 1. ****P < 0.0001, *P < 0.05, two-way ANOVA with Bonferroni’s post hoc test. Representative autoradiographs are shown on the top. Scale bars, 200 μm. (B) The number of c-Fos-immunopositive cells in the SCN of Gpr19+/+ and Gpr19–/– mice. Mice were illuminated as described in (A). Data are the mean ± SEM (n = 4 for light ( −), n = 6–8 for light ( +)). *P < 0.05, two-way ANOVA with Bonferroni’s post hoc test. Representative images of immunohistochemistry are shown on the top. Scale bars, 200 μm. (C) Reduced c-Fos induction in the dorsal area of the SCN in Gpr19–/– mice. Representative images of immunohistological distribution of c-Fos expression in the SCN of Gpr19+/+ and Gpr19–/– mice (2 mice for each genotype) after a 15-min light pulse exposure at CT14. oc, optic chiasm; v, third ventricle. Scale bars, 200 μm. (D, E) The number of c-Fos-immunopositive cells in the ventral (D) and dorsal (E) area of the SCN in (C) (n = 4 for light ( −), n = 8 for light ( +)). Values are the mean ± SEM. ****P < 0.0001, two-way ANOVA with Bonferroni’s post hoc test. n.s., not significant.

Full size image

Gpr19 deficiency alters light-evoked Per1 and c-Fos expression in the SCN

To gain insight into decreased capacity of phase-shift of Gpr19−/− mice, we examined the magnitude and location of Per1 and c-Fos expression in the SCN of mice after light illumination. Mice were illuminated at CT14 or CT22 with 20 lx light, the intensity with which the difference in phase delay between WT and Gpr19−/− mice was profound, and distribution of light-induced Per1 and c-Fos expression in the SCN was examined either using radioisotopic in situ hybridization (Fig. 5A for Per1) or immunohistochemistry (Fig. 5B–E for c-Fos). Per1 expression in the Gpr19−/− SCN had a lower fold-induction ratio than that had in the WT SCN, at both CT14 and CT22 (CT14: 4.90 ± 0.09 for WT, 3.80 ± 0.04 for Gpr19−/−, P < 0.0001; CT22: 3.60 ± 0.06 for WT, 3.15 ± 0.15 for Gpr19−/−, P < 0.05, two-way ANOVA with Bonferroni’s post hoc test), with apparently reduced Per1-positive-area in the SCN (Fig. 5A). The number of c-Fos-immunopositive cells was decreased at CT14, but not CT22 (CT14: 999 ± 97 for WT, 625 ± 108 for Gpr19−/−, P < 0.05; CT22: 936 ± 224 for WT, 965 ± 160 for Gpr19−/−, P > 0.05, two-way ANOVA with Bonferroni’s post hoc test, Fig. 5B). Within the ventral SCN, the increase in the number of c-Fos-positive cells was almost equivalent between the genotypes. Crucially, however, at CT14, the increased number of c-Fos-positive cells in the dorsal region was significantly reduced in the Gpr19−/− SCN, compared to that in the WT SCN (c-Fos numbers in ventral: 286 ± 22 for WT, 245 ± 40 for Gpr19−/−, P > 0.05, in dorsal: 130 ± 15 for WT, 47 ± 7 for Gpr19−/−, P < 0.0001, two-way ANOVA with Bonferroni’s post hoc test, Fig. 5C–E), demonstrating an impaired expressional response of c-Fos in the dorsal part of the SCN in Gpr19−/− mice.

Discussion

Besides clock components directly involved in the TTFL, SCN bears a number of additional genes implicated in modifying the length of circadian period and phase resetting capacity of the circadian clock1,32,33. A complete understanding of these additional modifiers of the SCN clock, however, still necessitate yet-unidentified related factors to be studied. In the present study, we demonstrate that the orphan G-protein coupled receptor Gpr19, whose mRNA expression exhibits circadian oscillation in the mid-to-dorsal region of the SCN, modulates the period and phase response of the circadian clock (a model, Fig. 6).

Figure 6
figure 6

A putative role of Gpr19 in the central circadian clock modulation. The orphan receptor Gpr19 is a circadian oscillating GPCR localised to the middle-dorsal area of the SCN, is involved in the determination of the intrinsic period of locomotor activity rhythm, and modulates the extent of phase shift response to early subjective night light. Gpr19 controls gene expression in the SCN and affects c-Fos expression in the dorsal SCN. Asterisks on the simplified actograms indicate the time of light pulse. τ stands for circadian period length. D, dorsal area; V, ventral area; Orange, c-Fos expression area; CRE, cAMP-responsive element.

Full size image

We show that Gpr19−/− mice exhibit a circadian period longer than 24 h under constant darkness. Under normal LD cycle conditions, these mice also show a delayed onset of locomotor activity compared to WT mice. The mechanism of this phase angle change is unknown, but a change from a circadian period shorter than 24 h to one longer than 24 h might be related to the observed phase angle phenotype of Gpr19−/− mice34. A similar phase angle alteration was also reported in delayed sleep phase disorder patients35 as well as several animal models, including Neuropeptide Y-deficient mice36, NaV1.1 channel mutant mice25, and lithium-treated mice37.

Although the underlying molecular mechanism(s) of the lengthened circadian period of Gpr19−/− mice is still unclear, we found a group of downregulated genes in Gpr19−/− mice, the majority of which exhibit night-time peak mRNA expression in the SCN of WT mice. Thus, it is plausible to suggest that these alterations in gene expression may, at least in part, explain the phenotype of Gpr19−/− mice. For example, Bmal1 deficiency in SCN neurons lengthens the circadian period of locomotor activity rhythm38,39, consistent with the overall downregulation of Bmal1 mRNA expression in the Gpr19−/− SCN. Clock, Npas2, Lhx1, Sst, and Gpr176, which were also downregulated in the Gpr19−/− SCN, are also involved in modulating the circadian period of locomotor activity rhythm10,14,40,41. The gene encoding Neuromedin U (Nmu) was, on the other hand, up-regulated in Gpr19−/− mice, suggesting the possibility of a compensatory relationship between Gpr19 and Nmu. These complex changes in mRNA expression of circadian clock-related genes might be part of mechanism explaining the phenotype of Gpr19−/− mice.

A reduced magnitude of phase response to an early subjective night light pulse was also observed in Gpr19−/− mice. In WT mice, a light pulse at CT14, of either 20 lx or 200 lx, caused a phase-delay of locomotor activity rhythm of approximately 2 h. A reducing effect of the ablation of Gpr19 on the magnitude of phase delay was more severe at a lower light-intensity condition: 20- and 200-lx light pulses caused phase delays of 0.71 and 1.16 h, respectively, in Gpr19−/− mice. Gpr19 is therefore likely to be required to induce the maximal phase delay response towards a light pulse of relatively low intensity.

On the other hand, interestingly, there was no genotypic difference in the magnitude of phase advance induced by 20- and 200-lx light pulses administered at CT22. Under the conditions of 20 and 200 lx, light intensity quantitatively changed the magnitude of phase advance. Nevertheless, in both light conditions, WT and Gpr19−/− mice were comparable in the magnitude of phase advance (95% CIs of phase advance: WT, 0.04–0.67 h; Gpr19−/−, 0.09–0.51 h for 20 lx, WT, 0.38–1.05 h; Gpr19−/−, 0.24–0.96 h for 200 lx), demonstrating that Gpr19 is not required for the phase advance response of mice. There are examples wherein a gene knockout results in an asymmetric effect on phase delay and advance. These include the mice lacking the dual specificity protein phosphatase 4 (DUSP4)20, the protein kinase C α (PKCA)42, or the lipocalin-type prostaglandin D synthase (L-PGDS)43. Future studies are required to understand the mechanism of phase-delay-specific impairment of the Gpr19−/− mice.

Currently, we could not address the molecular mechanism of the reduced capacity of phase delaying in Gpr19−/− mice. We observed that, in the Gpr19−/− SCN, light-induced induction of Per1 mRNA and c-Fos expression was attenuated in the dorsal region of the SCN. Thus, it is tempting to speculate that Gpr19 may function as an upstream regulator of Per1 and c-Fos expression in the dorsal SCN. However, together with this interpretation, it can also be possible that Gpr19 may exert its indirect influence on the expression of Per1 and c-Fos through affecting, for example, the gene expression required for the control of the circadian clock in the SCN. In this respect, the mRNA expression of Lhx1 and Sst, both previously shown to play a role in circadian entrainment10,11,44, are downregulated in the SCN of Gpr19−/− mice. It is also interesting to note that a similar ventral/dorsal phenotype, that is, a rather normal response in the ventral SCN but an impaired response in the dorsal SCN, has been previously described in NaV1.1 channel mutant mice25 and Sox2-deficient mice45. It is not known whether Gpr19 has an association with these genes. Further studies are also required to identify the cell type(s) of dorsally located c-Fos-positive cells that are affected by the absence of Gpr19 in the SCN.

Our knockout study identified the role of orphan GPCR Gpr19 in the circadian clock system. In an attempt to identify its endogenous ligand, high-throughput ligand screening studies have been performed via several means, including Tango assay46 and other β-arrestin recruitment-based assays47,48. However, no cognate ligand has been determined for Gpr19 to date, hampering its further study in vivo using pharmacology. While adropin is considered a possible ligand for Gpr1931,49, its expression in the SCN has not been identified and the coupling between adropin and Gpr19 remains controversial47. Gpr19 has been shown to be expressed in melanoma, lung cancer, and breast cancer cells29,30,31. In addition, in relation to cancer, a few published research articles suggest a potential role for Gpr19 in the regulation of cell cycle30 and MAPK signalling50,51, using mRNA knockdown in in vitro cultured cells. However, the in vivo physiological functions of Gpr19 have been obscure. In the present study, we provided the first report describing the role of Gpr19 in vivo, using Gpr19 knockout mice. Our animal behavioural data demonstrate that Gpr19 is a functional component involved in the circadian clock. Pharmacological interventions targeting this orphan receptor may provide a potential therapeutic approach that modulates the circadian clock.

Finally, there are a number of limitations in our study. We only used conventional full-body Gpr19 knockout (Gpr19−/−) mice and the causal site of action of Gpr19 is not clear. To address this, experiments using SCN-specific conditional knockout mice and isolated SCN slice cultures are necessary. To gain insight into the potential acting site(s) of Gpr19 in vivo, we examined the expression of Gpr19 in different regions besides the SCN (Supplementary Fig. 6). Gpr19 is most abundantly expressed in the SCN and, to a lesser extent, in other brain regions (cerebral cortex, hippocampus, pituitary) and testis, but little, if any, in the eye and other peripheral organs (liver, heart, lung, kidney26,27), suggesting that Gpr19 in extra‐SCN sites may contribute to other functions and its deletion to behavioral and physiological phenotypes that we have not yet systematically investigated. Particularly, the eyes appear to express a small amount of Gpr19 transcript, raising the question of the integrity of retinal function in Gpr19−/− mice, which was not examined in our study. In addition, in our study, we only used homozygous mutant mice, leaving the question of whether the phenotype depends on gene dosage. Secondly, the spatiotemporal expression profiles of Gpr19 within the SCN is another topic to be addressed by follow-up studies. Although Gpr19 is mainly expressed in the dorsal part of the SCN, the nature or cell-type of Gpr19-positive cells remains to be characterized. The antibody we developed for Gpr19 was only applicable for immunoprecipitation-immunoblot analysis. A series of single cell nuclear RNAseq studies on SCN neurons52,53,54,55 may help to cell-type the Gpr19-expressing cells, but probably due to detection limit, such data is not available. Regarding the question of whether Gpr19 expression in the SCN is responsive to light, we performed in situ hybridization (Supplementary Fig. 7). The maximum induction of Gpr19 expression by light at CT14 was only 1.5-fold. This increase was considerably smaller than the amplitude of circadian change of Gpr19 expression, which was about 2.8-fold. It is unclear whether this mild change in Gpr19 mRNA expression is directly involved in the immediately early expression of c-Fos and Per1 in the SCN. Thirdly and lastly, the relationships between Gpr19 and other known neurotransmitter-receptor system, such as VIP-Vipr2, AVP-V1a, GABA-GABAA receptor, among others, in the SCN, are yet to be explored. Since the expression of Gpr19 in the SCN is under the control of cAMP/Ca2+ response element, it may be worth testing the influence on Gpr19 expression by the regulators of cAMP/Ca2+ signal, such as the regulator of G-protein signalling RGS1612, the orphan receptor Gpr17614, VIP-Vipr27, and AVP-V1a8 axes.

Methods

Mouse strains and behavioural activity monitoring

Gpr19−/− mice were obtained from the Mutant Mouse Resource & Research Centers (MMRRC strain name, Gpr19tm1Dgen) with a mixed genetic background involving 129P2/OlaHsd × C57BL/6J and backcrossed to C57BL/6J for ten generations prior to behavioural assessment. Since homozygous mutation of Gpr19 did not cause overt gross abnormalities, lethality or infertility14, we focused on using Gpr19 null (Gpr19−/−) mice. Single-caged adult male mice (8- to 15-week old) were housed individually in light-tight, ventilated closets within a temperature- and humidity-controlled facility. The animals were entrained on a 12-h light:12-h dark (LD) cycle at least 2 weeks and transferred to constant darkness (DD). Locomotor activity was detected with passive (pyroelectric) infrared sensors (FA-05 F5B; Omron) and data were analysed with ClockLab software (version 2.61, Actimetrics, https://actimetrics.com/products/clocklab/) developed on MatLab (version 7.4.0.287 (R2007a), Mathworks, https://www.mathworks.com/)12. Free-running circadian period was determined with χ2 periodogram, based on animal behaviors in a 14-day interval taken 3 days after the start of DD condition. For phase shift experiments, mice were exposed to a 15-min light pulse at either CT6, CT14, or CT22 with a light intensity of 20 or 200 lx. Phase shifts were quantified as the time difference between regression lines of activity onsets before and after the light stimulation, using ClockLab software. All animals were handled in strict accordance with the recommendations in the ARRIVE guidelines56. All animal experiments were conducted in compliance with ethical regulations in Kyoto University and performed under protocols approved by the Animal Care and Experimentation Committee of Kyoto University.

In situ hybridization

Radioisotopic in situ hybridization was performed as described with the following gene-specific probes57: for Per1 (nucleotides 812–1651, NM_011065) and for Gpr19 (nucleotides 923–1096, NM_008157). Free-floating brain sections (30-μm thick) containing the SCN were hybridized to anti-sense 33P-labeled cRNA probes. Quantification of expression strength was performed by densitometric analysis of autoradiograph films. To detect distribution of Gpr19 mRNA expression in the SCN, RNAscope in situ hybridization was performed using 12 pairs of ZZ probe targeting the nucleotides 911–1583 of the mouse Gpr19 (NM_008157). This region corresponds to the deleted sequence of the Gpr19tm1Dgen allele. The ZZ probes were designed and synthesized by Advanced Cell Diagnostics. RNA hybridization signals were visualized with the RNAscope 2-Plex Detection Kit (Advanced Cell Diagnostics) using the Fast Red chromogen according to the manufacturer’s protocol. Sections were counterstained with haematoxylin.

Immunoblot

Gpr19 antibody was raised in rabbit using a His-tag fused Gpr19 mouse protein fragment (amino acids 333–415). The raised antibodies were affinity-purified using a maltose-binding protein (MBP)-fused Gpr19 fragment (a.a. 333–415). Endogenous Gpr19 proteins were immunoprecipitated from the mouse hypothalamic SCN membrane extracts. The tissues were homogenized with a Dounce tissue grinder in a hypotonic buffer containing 20 mM HEPES (pH7.8), 2 mM EDTA, 1 mM DTT, and 1 × cOmplete Protease Inhibitor cocktail (Roche Diagnostics). After centrifugation at 20,400 × g for 30 min, the pellet was resuspended in a high-salt buffer containing 500 mM NaCl, 20 mM HEPES (pH7.8), 2 mM EDTA, 1 mM DTT, and 1 × cOmplete Protease Inhibitor cocktail. The mixture was then centrifuged, and the resultant pellet was solubilized with a detergent-containing buffer (20 mM HEPES [pH7.8], 150 mM NaCl, 2 mM EDTA, 1 mM DTT, 1% dodecyl-β-d-maltoside, 0.2% cholesteryl hemisuccinate, and 1 × cOmplete Protease Inhibitor). The soluble fractions, collected at either ZT4 or ZT16, were used for Gpr19 immunoprecipitation. Immunoblotting was performed using our standard method12 with the same Gpr19 antibody. An uncropped Western blot image is available in Supplementary Fig. 8.

5′ Rapid amplification of cDNA ends

Total RNA was purified from laser-microdissected mouse SCN using the RNeasy Micro Kit (Qiagen) according to the manufacturer's instructions. The single strand cDNA for 5′RACE was prepared by in vitro reverse transcription with avian myeloblastosis virus reverse transcriptase XL (Takara Bio) using total RNA (0.5 µg) and the primer RT (5′-AGG ATG GAG GGA ATC-3′) and digestion of the template RNA with RNase H. 5′RACE was carried out using a 5′ Full RACE Core Set (Takara Bio). The first PCR was performed using the single strand cDNAs concatenated by T4 RNA ligase and primers S1 (5′-TTC TAT ACC ATC GTC TAC CCG CTG AGC TTC-3′) and A1 (5′-TTC AGC TCG TAC TGA AGC TCT GTC CTG TTG-3′) through a 25 cycle-amplification (94 °C for 15 s, 45 °C for 30 s, and 68 °C for 2 min). Then, a nested PCR was applied to the first PCR products under the same condition using primers S2 (5′-GGG AAC TGC CTA TAC CGT CAT CCA CTT C-3′) and A2 (5′-CTC CTC ATG CAA TCC CAT CAG GCC ATG-3′). The resultant product of the nested PCR was cloned into pCR-Blunt II-TOPO vector for DNA sequencing.

Promoter activity reporter assay

We constructed a piggyBac (PB) transposon-based plasmid DNA containing luciferase (luc) reporter to ensure long-term transgene expression58. The following PB-based reporter plasmids were constructed: (i) pIR Gpr19 promoter-Luc2P (− 1083CREwt), in which a 1309-bp genomic DNA fragment of the murine Gpr19 (− 1083 to + 226)-luciferase reporter (luc2P, Promega) was cloned into a vector engineered to contain the PB IRs and internal sequences necessary for efficient chromosomal integration58; (ii) pIR Gpr19 promoter-Luc2P (− 1083CREmut), which is the same as (i) except that the CRE was mutated to 5′-GCACAAAA-3′; (iii) pIR Gpr19 promoter-Luc2P (− 915CREwt), in which a 1141-bp genomic fragment of the Gpr19 (− 915 to + 226) was cloned into the vector; (iv) pIR Gpr19 promoter-Luc2P (− 915CREmut), which is the same as (iii) except that the CRE was mutated to 5′-GCACAAAA-3′; (v) pIR Gpr19 promoter-Luc2P (− 514), which contains the − 514 to + 226 fragment of the Gpr19; and (vi) pIR Gpr19 promoter-Luc2P (− 242), which contains the − 242 to + 226 fragment of the Gpr19. For the analysis of isolated CRE activity, we used (vii) pGL4.23[luc2/minP] (Promega); (viii) pGL4.23 Gpr19 3 × CREwt-Luc2, in which a tandem repeat of the sequence corresponding to the Gpr19 CRE with its flanking sequences (positions − 874 to − 853) was cloned into the pGL4.23; and (ix) pGL4.23 Gpr19 3 × CREmut-Luc2, which is the same as (viii) except that the CRE sequences were mutated to 5′-GCACAAAA-3′. All the plasmids were verified by DNA sequencing. MEF cells were uniformly plated in a 35-mm dish at a density of 3–4 × 105 cells per dish and cultured for 1 day. Then, cells were transfected with a selected reporter plasmid using the Lipofectamine LTX/Plus reagent (Thermo Fisher Scientific). Where required, PB transposase-expressing vector (pFerH-PBTP)58 was co-transfected. Three days after transfection, culture medium was refreshed to the medium containing 1 mM luciferin. On the following day, cells were treated with FSK (20 μM) or DMSO (1%). Luminescence was measured using a dish-type luminometer (Kronos Dio, ATTO). The average fold increase was determined by dividing the luciferase activity at 4–7 h post FSK or DMSO treatment with the average basal activity, which is 3-h reporter activity before FSK/DMSO treatment.

Viral transduction and bioluminescence recording of organotypic SCN slice culture

A luciferase reporter driven by a tandem repeat of the Gpr19 CRE sequence (3 × CRE-Luc2P) was inserted between the ITR sequences of pAAV-MCS vector (Cell Biolabs Inc) to obtain pAAV-3 × CRE-Luc2P. HEK293T cells cultured in dish were co-transfected with pAAV-3 × CRE-Luc2P, pAAV-DJ, and pHelper according to the manufacturer's instructions (Cell Biolabs Inc). Three days after transfection, cells were harvested and resuspended in 1 ml of DMEM, followed by four freeze–thaw cycles and centrifugation. The titers of 3 × CREwt-Luc2P and 3 × CREmut-Luc2P virus solutions were ~ 8 × 1012 genome copies/mL. The SCN slices were prepared according to our standard method59. Two days after the preparation of SCN slices, the AAV solution (3 μL per slice) was inoculated on the surface of the SCN slices. Infected slices were further cultured for ~ 14 days. Thereafter, luminescence from the culture was measured with a dish-type luminometer (Kronos Dio, ATTO) at 35 °C using 1 mM luciferin59. The luminescence was monitored for 2 min at 20-min intervals for each slice. The raw data were smoothed using a 1-h moving average and further detrended by subtracting a 24 h running average.

Laser microdissection and qRT-PCR analysis

Animals were sacrificed by cervical dislocation under a safety red light at the indicated time points in DD. Coronal brain section (30-μm thick) containing the SCN was prepared using a cryostat microtome (CM3050S, Leica) and mounted on POL-membrane slides (Leica). Sections were fixed in ice-cold ethanol-acetic acid mixture (19:1) for 2 min and stained with 0.05% toluidine blue. SCN were then excised using a LMD7000 device (Leica) and lysed into Trizol reagent (Invitrogen). Total RNA was purified using the RNeasy micro kit (Qiagen) and converted to cDNA with SuperScript VILO cDNA Synthesis kit (Invitrogen). qPCR was run on a BioMark HD System (Fluidigm) with a 48.48 Fluidigm BioMark Dynamic Array chip (Fluidigm) as described59. The primer sets used for Per1, Per2, Per3, Cry1, Cry2, Clock, Bmal1, Nr1d1, Dbp, E4bp4 and Rplp0 were already reported elsewhere59. The TaqMan probe and primers used for the other genes are listed in Supplementary Table 1. The data were normalized with Rplp0. Hierarchical clustering was performed with Ward’s method by calculating Euclidean distances among the time-series data using scikit-learn (version 0.23.1, https://scikit-learn.org/) in Python (version 3.7.9, https://www.python.org/). In this cluster analysis, the values of each mRNA expression were transformed by linear-scaling: the highest and lowest values were adjusted to 1 and 0, respectively.

c-Fos immunolabeling

Free-floating immunohistochemistry was performed with 30-μm-thick serial coronal brain sections. To minimize technical variations in immunostaining, different tissue sections to be compared were immunolabelled simultaneously in a single staining mixture as described14. c-Fos antibody (Abcam, ab7963, RRID:AB_306177, 1:10,000 dilution) and biotinylated anti-rabbit IgG antibody (Vector Laboratories, BA-1000, RRID:AB_2313606, 1:1000 dilution) were used. Immunoreactivities were visualized with a peroxidase-based Vectorstain Elite ABC kit (Vector Laboratories) using diaminobenzidine as a chromogen. The number of c-Fos-positive cells in the SCN was counted with NIH ImageJ software (version 1.53k, https://imagej.nih.gov/ij/). We used a rolling ball algorithm to correct uneven background in each photomicrograph. Nine SCN sections were examined per mouse. To measure c-Fos expression in the dorsal and ventral SCN, the SCN was divided into two regions in equal proportions along the vertical axis (from the dorsal-most to the ventral-most) for non-biased definition of the regions of interest. Three coronal SCN sections with characteristic dorsal and ventral subregions were used for counting.

Data and statistical analysis

P values < 0.05 were considered significant. Outliers were included in data analysis and presentation. All statistical analysis was calculated using GraphPad Prism 8 (version 8.3.0, GraphPad Software, https://www.graphpad.com/).
