Ab initio adiabatic study of the AgH system

Abstract

In the framework of the Born–Oppenheimer (BO) method, we illustrate our ab-initio spectroscopic study of the of silver hydride molecule. The calculation of 48 electrons for this system is very difficult, so we have been employed a pseudo-potential (P.P) to reduce the big number of electrons to two electrons of valence, which is proposed by Barthelat and Durant. This allowed us to make a configuration interaction (CI). The potential energy curves (PECs) and the spectroscopic constants of AgH have been investigated for Σ⁺, Π and Δ symmetries. We have been determined the permanent and transition dipole moments (PDM and TDM), the vibrational energies levels and their spacing. We compared our results with the available experimental and theoretical results in the literature. We found a good accordance with the experimental and theoretical data that builds a validation of the choice of our approach.

Introduction

Transition metal hydrides (TMH) play a crucial role in the chemistry due to their potential use from catalysis to energy applications^1,2,3. In this context, many efforts have been carried out understand their spectroscopic, electronic, and structural properties of TMH. Among them, AgH have been studied by Stephen et al.⁴ using large valence basis sets in connective with relativistic effective core potentials (RECPs).

The silver hydride AgH molecule has been the subject of several experimental^{5,6,7,8,9,10,11} and theoretical^{4, 12,13,14,15,16,17,18,19,20,21,22,23,24,25} works. There is four experimental studies have been examined by Le Roy et al.⁵, Seto et al.⁶, Rolf-Dieter et al.⁷ and Helmut et al.⁸. In addition, this system has been theoretically studied by several works^{4, 12,13,14,15,16,17,18,19,20,21,22,23,24,25}. Their works were only limited to the study of the ground state X¹Σ⁺ and the first excited state A¹Σ⁺. We have been performed a study on AgH molecule because of the absence of the characteristic spectroscopic results for the AgH molecule required for the drafting and the realization of many experimental work. Bengtsson and Olsson²⁶ have been determined the first spectroscopic constants for the A¹Σ⁺ and X¹Σ⁺ states by determining the emission spectrum of the A¹Σ⁺–X¹Σ⁺ transition.

We have been beginning by determining the curves of adiabatic potential energy of all states (Σ), (Π) and (Δ) symmetries singlets and triplets that are tends to their ionic limit (Ag⁺H⁻) as well as the constants spectroscopic (well depth D_e, equilibrium distance R_e, transition energy vertical T_e, the anharmonicity constant ω_eχ_e, the vibration pulsation ω_e and the constant rotational B_e).

Theoretical background

The spectroscopic is a main topic in the theoretical research, which is carried out in our Laboratory of Quantum Physics. We have been performed an ab-initio study of the AgH molecule in the framework of the adiabatic B.O. approximation to determine the ground state X¹Σ⁺ and the other lowest excited states of sigma(Σ⁺), pi (Π)and delta(Δ)symmetries.

The silver atom is composed of 47 electrons whose (1S2, 2S2, 2p6, 3S2, 3p6, 3d10, 4S2, 4p6, 4d10, 5s1) is the fundamental electronic configuration. This atom is considered as a system with a one valence electron by replacing the core electrons with a proposed pseudo-potential of Barthelat and Durand^{27, 28}. Whereas, the hydrogen atom is composed of one electron, when the fundamental electronic configuration is (1s¹). The interaction of the silver core with the electrons valence of hydrogen atom is represented by the core polarization potential (CPP), giving by Muller et al.²⁹ and it is given as follows

$${V_{CPP}} = - \frac{1}{2}\sum\limits_\gamma {{\alpha_\gamma }\overrightarrow {f_\gamma{^\prime}} \overrightarrow {f_\gamma } }$$

(1)

${\kern 1pt} {\vec f_\gamma }$ is the electrostatic field that is at center γ generated through the valence electrons and all the other centers’ cores and ${\alpha_\gamma }$ is the dipole polarizability of the core γ that is given as following.

$$\overrightarrow {f_\gamma } = \sum\limits_i {\frac{{{{\overrightarrow R }_{\gamma i}}}}{{R_{{\gamma}i}^3}}{F_l}({R_{\gamma i}},\rho_\gamma^l) - \sum\limits_{{\gamma{^\prime}} \ne \gamma } {{Z_c}\frac{{{{\overrightarrow R }_{\gamma {^\prime}\gamma }}}}{{R_{{\gamma{^\prime}}\gamma }^3}}} }$$

(2)

${F_1}({R_{{\gamma}i}},{\rho_\gamma })$ represents the cut-off function dependent on ρ_γ according to the expression given by Foucault et al.³⁰ in the following form.

$$F({R_{\gamma i}},{\rho_\gamma }) = \left\{ \begin{gathered} 0;\,{R_{\gamma i}} < {\rho_\gamma } \hfill \\ 1;\;{R_{\gamma i}} > {\rho_\gamma } \hfill \\ \end{gathered} \right.$$

(3)

where the formulation present the cut-off radius.

$$F({R_{{\gamma}i}},{\rho_\gamma }) = \sum\limits_{l = 0}^\infty {\sum\limits_{m = - l}^{ + 1} {{F_l}({R_{{\gamma}i}},{\rho_\gamma })\left| {lm\gamma } \right\rangle \left\langle {lm\gamma } \right|} }$$

whereas, the operator $\left| {lm\gamma } \right\rangle \left\langle {lm\gamma } \right|$ was the spherical harmonic in the center of core γ.

The parameters α_γ and ρ_γ were adjusted to reproduce the experimental ionization potential and the energies of the lowest excited levels. We have been used the core polarizability of the silver is α_Ag = 9.32$a_0^3$²⁹ and ρ_s = ρ_p = ρ_d are the optimized cut-off parameters are equal to 2.00 Bohr.

Results

Basis set

To have a perfect representation of this atomic levels (7s, 7p, 6d, 8s, 8p, 7d, 9s and 9p) of Ag atom, we have been optimized a large Gaussian-Type Orbital (GTO) basis set, which is 8s/6p/5d (see Table 1). While for the hydrogen atom, we have been used this basis (7s/3p/2d), which was re-optimized by the basis set studied by Zrafi et al.³¹ (see Table 2). Therefore, we have been ameliorated the difference between our data and the experimental ones³² that the differences are acceptable (< 33.68 cm⁻¹ for silver and < 50 cm⁻¹ for hydrogen) (see the Tables 1 and 2).

Table 1 Theoretical ionization energies (in cm⁻¹) of silver atom compared with the experimental ones³².

Table 2 Theoretical ionization energies (in cm⁻¹) of hydrogen atom compared with the experimental ones³².

We have been used a chain of programs developed in the quantum physics laboratory in Toulouse to investigate the PECs and the dipole moments. This chain is composed of the Toulouse package code (RCUT, PSHF, IJKL, FOCK, CIPSI, CVAL, MOYEN, BDAV…)^{33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52}. The spectroscopic parameters were determined by fitting the vibrational levels with the method of least square. The ionization potential of silver is 61,106.45 cm⁻¹ and the electron affinity of hydrogen is 6083.057 cm⁻¹. The energy of the first ionic limit Ag⁺ + H⁻ is equal to 55,023.393 cm⁻¹ (see Table 3).

Table 3 Various molecular states of AgH below the ionic limit (Ag⁺ + H⁻).

Adiabatic PEC_S and their spectroscopic parameters

To study the AgH molecule we have been used the P.P approach, which reduces the number of electrons in the molecular system to two valence electrons which allows, thereafter, performing a complete configuration interaction. In this part, we have been displayed the adiabatic results: PECs and spectroscopic constants (R_e: equilibrium distance, De: well depth, T_e: excitation energy vertical, ω_e: the pulsation at equilibrium, ω_eχ_e: the constant of anharmonicity and B_e: the constant rotational) of the 30 electronic states ^1,3Σ⁺, ^1,3Π and ^1,3Δsymmetries tends to the ionic limit (Ag⁺ + H⁻). In Figs. 1, 2, 3, 4, 5, we have been drawn these curves for a huge grid of points from 1.5to 200 a.u. In Table 4, we have been displayed the spectroscopic parameters states’ with the available theoretical work.

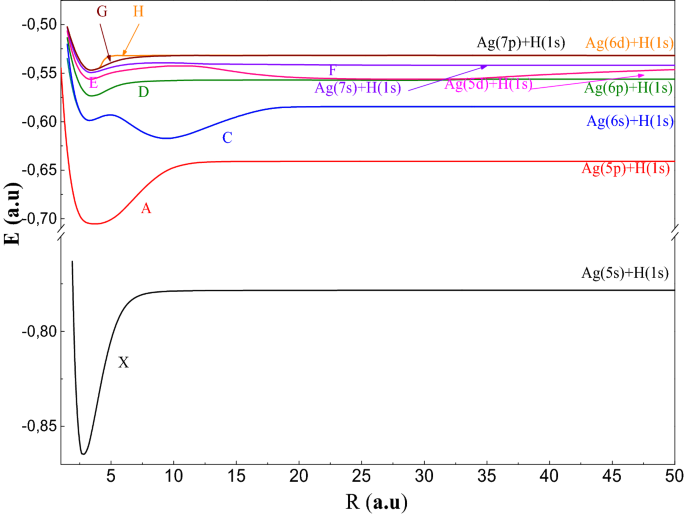

Figure 1

Potential energy curves of the ¹Σ⁺ states of AgH molecule.

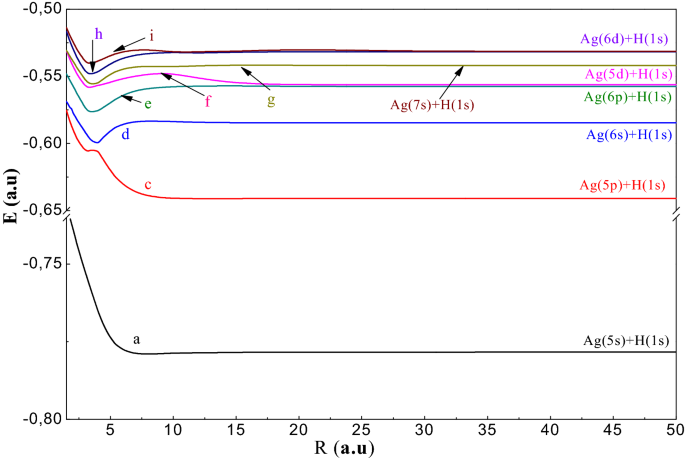

Figure 2

Potential energy curves of the ³Σ⁺ states of AgH molecule.

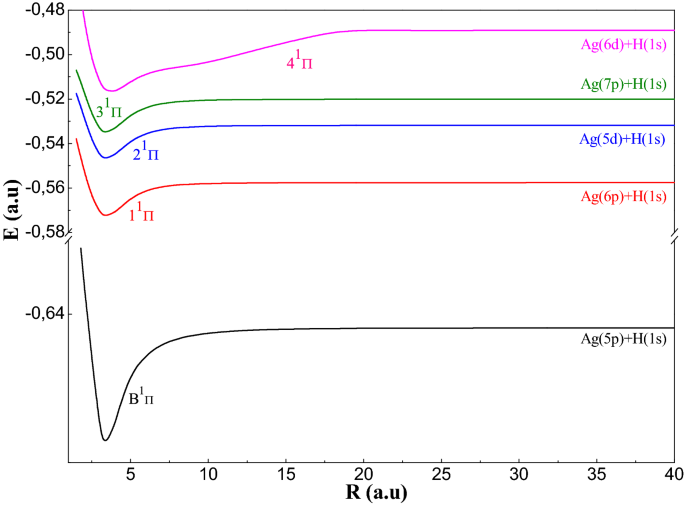

Figure 3

Potential energy curves of the ${}^1\Pi$ states of AgH molecule.

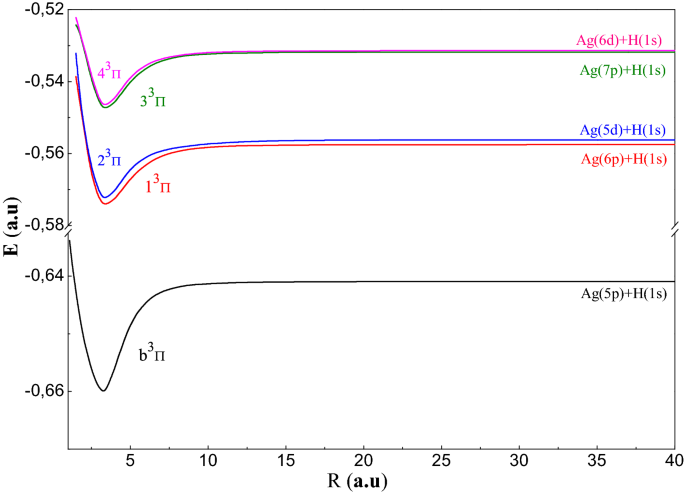

Figure 4

Potential energy curves of the ${}^3\Pi$ states of AgH molecule.

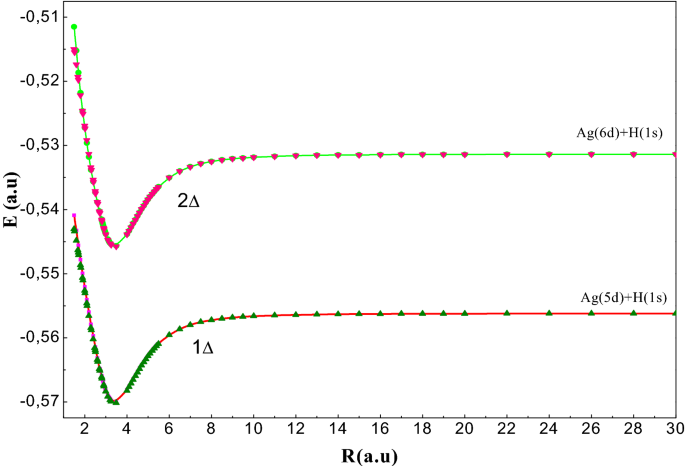

Figure 5

Potential energy curves of the ¹Δ (symbol) and ³Δ (continuous line)states of AgH molecule.

Table 4 Spectroscopic constants for ^1,3Σ⁺, ^1,3Π and ^1,3Δ states of AgH.

In Fig. 1, we present the adiabatic PECs of the states of¹Σ⁺ symmetry of the AgH molecule over the inter-nuclear distance interval R between 1.5 a.u and 50 a.u. We can see in this figure that the ground state X¹Σ⁺ dissociates towards their asymptotic limit (Ag (5s) + H (1s)) and has a single deep well (D_e = 19,100 cm⁻¹), which is near of reference¹ (D_e = 19,250 ± 200 cm⁻¹).Our equilibrium distance is of the order of 2.91 a.u, which is near to the equilibrium distance R_e = 2.95 a.u⁵. Moreover, our pulsation ω_e is equal to 1606 cm⁻¹ and our anharmonicity constant ω_eχ_e = 27 cm⁻¹ are near to that obtained by Witek et al.¹⁴ (= 1759.9 cm⁻¹ and ω_eχ_e = 34.06 cm⁻¹). Turn on the first excited A¹Σ⁺ state, which dissociates towards Ag (5p) + H (1s) has a wider well (De = 17,989 cm⁻¹) at R_e = 3.35a.u.Then, the second excited state C¹Σ⁺ tends rapidly towards their dissociation limit (Ag (6s) + H (1s)) at the distance 25 a.u. Indeed, C¹Σ⁺ have double well, the first well is of depth 3154 cm⁻¹ at R_e = 3.32 a.u. and the second is of depth of 7233 cm⁻¹ at R_e = 9.45 a.u. We present in Table 4a the comparison of our spectroscopic parameters with that available in the literature^{5, 6, 8, 12,13,14} for the states of X¹Σ⁺ and A¹Σ⁺. We notice that the difference between the well depth of X¹Σ⁺ for Le Roy el al.⁵, Seto et al.⁶ and Witek et al.¹² is of the order of 2000 cm⁻¹. On the other hand, the difference between our well depth and those for Le Roy el al.⁵ and Seto et al.⁶ is of the order of 150 cm⁻¹. Concerning the equilibrium distance, the difference between our result and that for Witek et al.¹⁴ is equal to 0.04 a.u. In addition, the comparison between our results of A¹Σ⁺ and that in the literature is in good accordance (see Table 4a). The PECs of the higher excited states of symmetry sigma singlets denoted D; E; F; G and H are presented in the same Fig. 1. All of these states are attractive and their well depths are not deep. We observe the existence of the avoided crossings between the states of the same nature (neutral–neutral) at short distance [(D¹Σ⁺, E¹Σ⁺) and (E¹Σ⁺, F¹Σ⁺)] and ionic neutral [(X¹Σ⁺, A¹Σ⁺), (A¹Σ⁺, C¹Σ⁺) and (C¹Σ⁺, D¹Σ⁺)] (see Table 5). These crossings become less and less avoided, and the difference of energy at these positions becomes smaller at long distances. Their spectroscopic parameters are given in Table 4, which are determined for the first time.

Table 5 Avoided crossing positions.

We have been presented in Fig. 2, the adiabatic potential energy curves of the triplet sigma states ³Σ⁺. We notice that a³Σ⁺ and c³Σ⁺ are almost repulsive because of the lack of interaction with the ionic curve except for the state d, e and h which present a shallow well of values 3494, 4208 and 3629 cm⁻¹, respectively. The spectroscopic parameters of these states are given in Table4b.

We have been displayed in Figs. 3 and 4, the PECs related respectively to the ^1,3Π symmetry states. These curves relating to these states have a regular shape. Indeed, all the curves have a single minimum of potential and tend quickly (≈ 15 a.u.) towards their asymptotic limit except of state 4¹Π. The triplet states³Π are deeper than the singlet ones (De > 1700 cm⁻¹ for ¹Π and De > 3336 cm⁻¹ for ³Π). The spectroscopic parameters of the ^1,3Πstates are given in Table 4c. We notice that in Fig. 4 that the states (1³Π, 2³Π) and (3³Π, 4³Π) have avoided crossings between them.

We have been studied four states of delta 4^1,3Δ symmetry. The PECs related to the 4^1,3Δ states are drawn respectively in Fig. 5. These curves have regular shapes with one minimum potential of the order of 3.43 a.u. Moreover, the triplets and singlets^1,3Δ dissociating towards the same limit are quasi-degenerate which is confirmed by the results in Table 4d.

Electronic dipole moment properties of AgH

In Fig. 6, we have been displayed the curves of the permanent dipole moments PDM of (1–8) ¹Σ⁺of AgH. We can see that all the curves has a linear part and all of these linear form are segments of the identical line of slope (−R). We can see that the junction between two linear forms belonging to two successive states ¹Σ⁺ corresponding to an avoided crossing between the states. Therefore, that at the avoided crossing there is a sudden variation in the permanent dipole moment, and this inter-nuclear distance becomes bigger. On the other hand, that the dipole moment variation at short range is very smooth. There are slow variations at short inter-nuclear distance although this variation is sharp for large distances (see Figure S1.a and b).

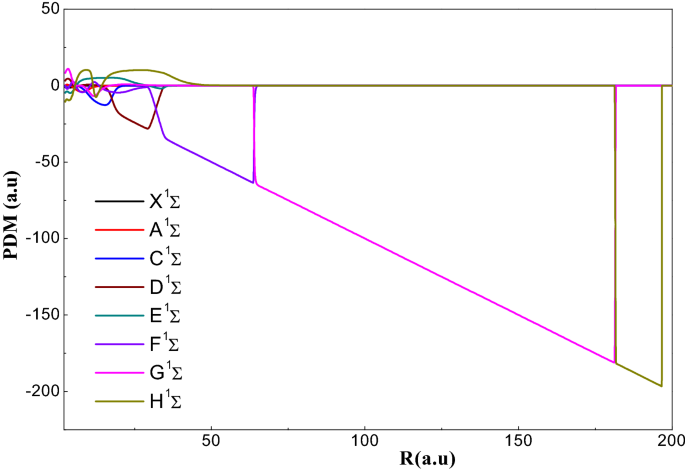

Figure 6

Permanent dipole moment for the ¹Σ⁺ states for the AgH molecule.

The curves of the PDM of the 8 triplet sigma states ³Σ⁺are shown in Fig. 7 whose the inter-nuclear distance varies from 2 to 60 (a.u.). From this figure, we can observe that there is no abrupt variation and there is no line segments associated with the ionic character as in symmetry ³Σ⁺. The analysis of these curves shows the presence of short-distance extreme, which is explained by the transfer of charges between neutral states. This is justifies the absence of the ionic curve. We can observe in Figure S2 that the crossings of the PDM variation curves from ¹Π states for R = 9 a.u. and R = 18 a.u. related to the positions of the avoided crossings (P.A.C). Whereas, for the short distance, the variation is slight and for the long distance this variation is abrupt. We can see that the curves of the singlet states are identical to those of the triplet states that confirm the shapes of the PECs (see Figure S3).

Figure 7

Permanent dipole moment for the ³Σ⁺ states for the AgH molecule. (a) Transition Dipole Moment from the states i = 1, 2 et 3 to the states j = i + 1,i + 2 of the symmetry ${}^1\Sigma$ of AgH molecule. (b) Transition Dipole Moment from the states i = 4, 5, 6,7 et 8 to the states j = i + 1,i + 2 of the symmetry ${}^1\Sigma$ of AgH molecule.

Move on for the transition dipole moment curves, we observe in Fig. 7a,b that the variations are slight and the extremes coincide at the P_AC in the PECs for example, the X-A transitions at a maximum of the order of 5 a.u. and the C-D transitions at a maximum of the order of 4.5 a.u. So, we can conclude that these extremes are characterized by the maximum of ionic character. The observation of Fig. 8 shows that the variations are slight as the curves of the TDMs correspond to ¹Σ⁺ symmetry and the maximum of TDM (2¹Π-3¹Π) is located at R = 5.2 a.u. corresponding to the P.A.C. in the potential energy curves. Examining the Fig. 9, we find that these transitions of ^1,3Δ have slight variations; passing through a single extreme corresponding to the maximum of ionic character.

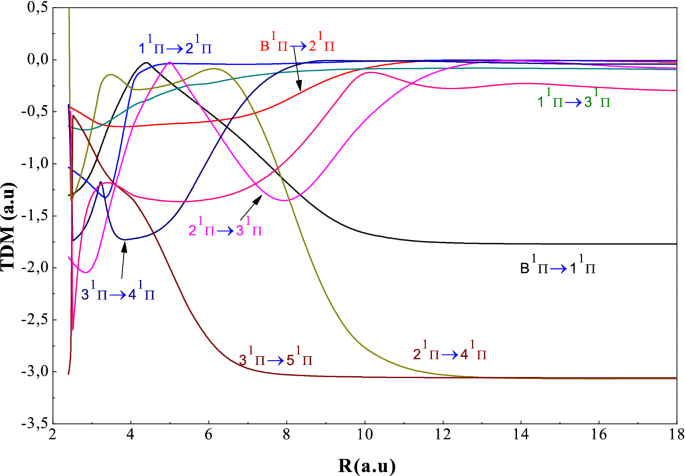

Figure 8

Transitiondipole moment for the ¹Πstates for the AgH molecule.

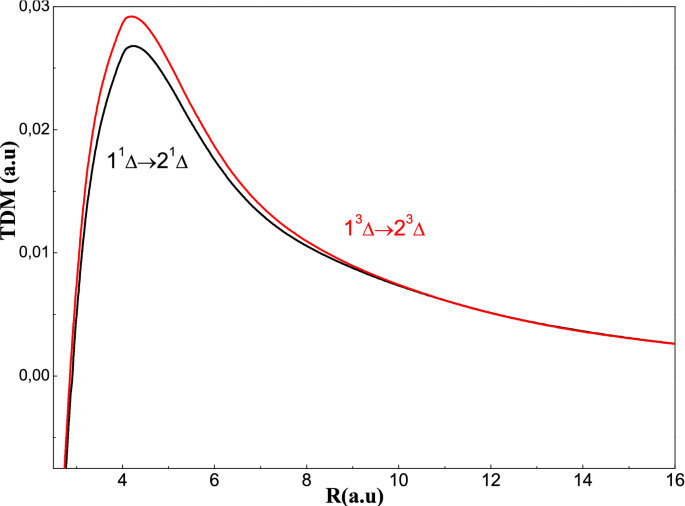

Figure 9

Transitiondipole moment for the ¹Δstates for the AgH molecule.

Vibrational levels of AgH

After determining of the dipole moments, we have been investigated the vibrational levels of 30 electronic states as well as their spacing’s. The analysis of the vibrational levels of different electronic states is of great importance. Indeed, the spacing between these vibration levels provides precise information on the shapes of the PECs as indicated in reference³⁵.

In Fig. 10, we have been illustrated the spacing’s between the vibrational levels of the ground state X¹Σ⁺. Note that the spacing’s are not constant, which is reflected the anharmonicity of the well. At the beginning, the variation is linear decreasing which related to the regular anharmonic shape of the PECs (see Fig. 10a) then it is constant and attaints the dissociation limit Ag (5p) + H (1 s) (see Fig. 10b). This behavior is similar to the ground state spacing of BaH⁺³⁵ and X²Σ⁺ barium hydride from BaXe³⁶. The observation of the state C¹Σ⁺ indicate the variation of the curve of spacing’s between levels is almost linear and decreasing until v = 17 and we have a degenerate level v = 18 therefore the appearance of a second well smaller than the other. Then, from v = 27 to v = 40, we observe a significant drop which reflects the presence of very numerous and tight spaces near to the limit. Move on to the D¹Σ⁺, we can see the shape of the well is regular anharmonic up to v = 10 as a result of a sudden change of pace which translates an important and rapid widening, from v = 10, the levels become tight and numerous.

Figure 10

Vibrational spacing (left) and potential energy curves (right) for (X, C and D) ¹Σ⁺ states of AgH.

Conclusion

We have been started this work by building and optimizing the bases to reproduce the transition energy spectra of silver atoms and hydrogen. Next, we have been calculated the adiabatic PECs of 30 molecular states (16 ^1,3Σ⁺, 10 ^1,3Π, and 4 ^1,3Δ) lying to the Ag⁺ + H⁻ asymptotic limit. Then, we have been calculated the spectroscopic parameters (D_e, R_e, T_e, ω_eχ_e, ω_e and B_e) from these curves. We compared our study with experimental and theoretical ones available in the literature^{6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25}. We observe a good accordance with the experimental and theoretical data, which builds a validation criterion for our method.

We have been determined the vibration levels of each electronic state as well as their spacing’s. Analysis of these properties gives precise information about the shape of the PECs. Moreover, we have been investigated the electrical dipolar properties (PDM, TDM), which make it possible to confirm that the ionic character for the AgH molecule is in the ¹Σ⁺ symmetry.
