Introduction

Contemporarily a green planet is the foremost policy for most countries like G7, G10, G15 etc. Besides, the Paris agreement of COP21 has been accepted by 192 countries so far. This necessitates the maximum reliance on renewable energy sources (RES) and adoptions of electric vehicles (EVs) by developed and developing countries. However, the integration of RES with controlling devices substantiate the entire grid system to follow the grid codes provided by operators of the state/country1. In addition, the dynamically changing definition of smart grid, comprises EVs, energy storage (ES), formation of micro grids (MGs), communication protocols etc., restructure the conventional grid as shown in Fig. 1.

Figure 1
figure 1

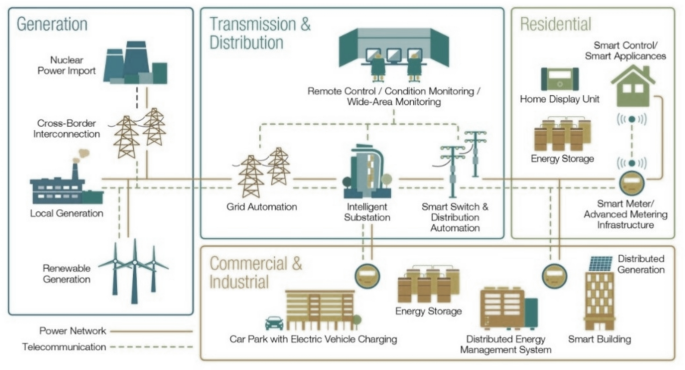

Contemporary smart grid2.

Full size image

The heavy penetration of RES in conventional electrical grid undoubtedly improves the flexibility of grid but reduces the reliability and safety due to intermittent nature of it3. Even the inclusion of RES plays a vital role in reaching the sustainable goals. Moreover, the world has seen an increased frequency of extreme natural disasters. These events adversely impact the electrical grid, specifically the less hardened distribution grid. Therefore, it is imperative to analyze the critical infrastructures like electrical power grid under extreme events like natural disaster and cyber-attack possibilities. However, it is evident from the literature that optimal uses of distributed generations (DGs) can minimize the overall impact on a power system network due to extreme events. Consequently, this paper explores the DGs operation, modelling & analyzing of EV load and impact of earthquake on overall distribution grid resiliency.

Relevance of DGs in distribution grid

The distribution system was initially built to cater the different load consumers without any local electrical generation. In contrast, presently, distribution companies rely on DGs for several benefits. Despite the clear advantages of integration RES-DGs, it presents technical challenges in terms of voltage, frequency, phase unbalance, short circuit level and protection coordination. Eventually, integrating RES-DGs improves the flexibility to cater surplus demand, but the price must be made in terms of system stability. Moreover, there are certain advantages of DGs integration apart from matching demand response. Like, author in Ref.4, presents a method which suppresses the ferro-resonance issue with the DG on the IEEE 33 bus system. In addition, in paper5, the author presented the impact of low voltage ride through (LVRT) during the sudden disconnection of large RES plant. Furthermore, the author also presented various control strategies for controlling the effect of LVRT. However, it is concluded that the intermittent nature of RES-DGs can also lead towards mismatch in generation and demand.

Stochastic loading of EVs

EVs are revolutionary technology of this century, meant to achieve a green environment. In contrast, EVs are seen as stochastic load on distribution grid. It is evident from the literature that the DGs placement improves the voltage profile and minimizes power losses. Conversely, EV load in distribution grid can degrade the voltage profile, power quality and may enhance the power losses, if their future growth with their load profile and pattern is not being considered in planning stage. In this regard, the maximum stress will be on the low voltage distribution grid, as 90% of personnel vehicles are probably charged at home charging stations, whereas the remaining 10% are on commercial charging facilities6. Moreover, the penetration of EVs will be increased exponentially in the future. For an example, the capital city of India, Delhi has worst air quality index. Therefore, EVs will be adopted more rapidly than other metro cities in India. On that note, a report prepared by A. Sharma6, presents the load profile of Delhi, with and without EVs for 2025 and 2030, as shown in Figs. 2 and 3, respectively. In addition, the report graph shows that there is an additional approximate 2 GW/day increase in the load due to EVs by the year 2025 and 8 GW by 2030.

Figure 2
figure 2

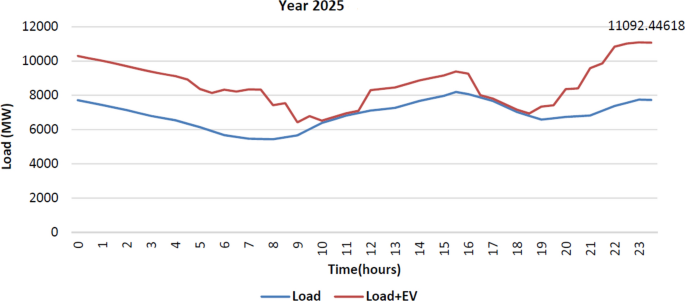

Delhi (India) load profile with and without EV for 20256.

Full size image
Figure 3
figure 3

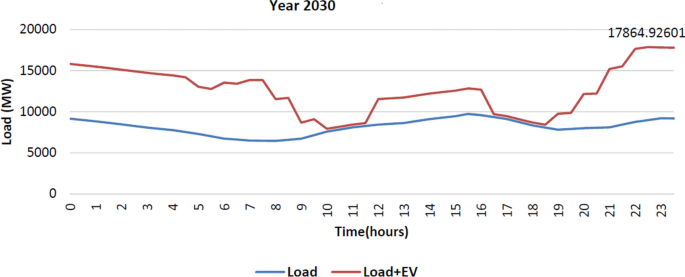

Delhi (India) load profile with and without EV for 20306.

Full size image

Therefore, it is imperative to study the dynamic loading of EVs over electric distribution grid. Consequently,, recent literature presents the many modelling techniques to calculate the EV load demand over distribution grid. However, many of these modelling techniques considered controlled charging behavior which subsequently imposes wrong EV demand over 24 h of period. Moreover, few recent studies suggested the strategies for sustainable deployment of EV infrastructure without considering the RES integration and its intermittency7. In Ref.7, authors have considered only power quality issue of the grid to develop the sustainable strategies for EV infrastructure deployment. However, without considering the future aspect of grid dynamics, it is absurd to say that any strategy would be sustainable towards EV infrastructure development. Furthermore, in Ref.8, authors have presented the optimal allocation of RES and DGs and validated the results on 28 bus Indian distribution system. The presented paper8, shows the impact of renewable DGs and EVs on distribution grid. However, the paper limits its finding in terms of EV demand modelling and quasi dynamic load flow solution. Moreover, the paper does not include the EV driving behavior to formulate the 24-h load demand and, also lacks in terms of RES intermittency. Similarly, the paper9, presents a method to minimize the EV charging impact in distribution grid using DGs and DSTATCOM. However, while modelling the EV load, the author considered the EV load as constant and performed the load flow on absolute value.

Therefore, this presented manuscript caters such aspect by presenting an idea, on dynamically changing grid conditions in terms of EV load uncertainty and RES intermittency. However, the unavailability of data on growth rate, charging pattern, social behavior and driving range of different categories of EVs (like, personal, utility vehicle, city commute, big transportation trucks), necessitate the use of probability theory to model the EVs loading as random variable. Therefore, it becomes necessary to model the EVs stochastic pattern while planning for RES-DGs integration. Consequently, the problem statement has two variables, intermittent generation (RES) and partly load (EVs), which need to be taken care of by planning engineers duly accounting for the future uncertainty.

Impact of natural disasters on electric grid

Recently, the world has seen many catastrophic events like earthquakes, cyclones, floods, cloudbursts, etc. These events adversely impact the electrical grid, as shown in Fig. 4, and the recent disaster and their impact on electrical infrastructure are mentioned in Table 110,11,12,13,14. Also, the map in Table 1 is showing the storm's track and intensity, as per the Saffir–Simpson scale15,16,17,18,19. The disruption of electrical infrastructure halts all the essential and non-essential supply. The critical essential utilities like water supply, communication, fire utility and critical community center loads require reliable electrical power to cope with the post-disaster situation and to reinforce the recovery process20. Therefore, a resilient distribution grid is a prima requirement, serving at least critical utilities and essential services. Recent literature has fair amount of studies, addressing the power grid resiliency. For an example, a dart game theory approach for the enhancement of resiliency during extreme event is presented21. In addition, the proposed model also reduces load shedding and cost of restoration.

Figure 4
figure 4

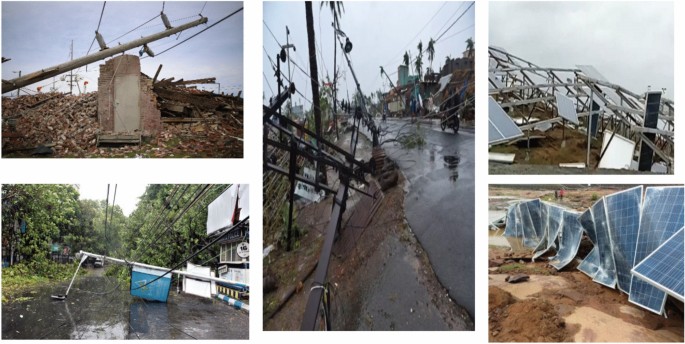

Damaged electrical infrastructure and solar plants after natural disaster22.

Full size image
Table 1 Recent natural disruption10,11,12,13,14.
Full size table

Contribution of the presented paper

The transition towards green energy is going to be faster than ever. Consequently, the entire power system structure will see many reinforcements to adapt dynamic changes as discussed above. The maximum changes will occur on low (440 V) and medium voltage (up to 33 kV) distribution grid. The distribution part is also most vulnerable towards natural disruption. Therefore, a sustainable planning of distribution grid with modern machine learning tools is essential for utility. The paper provides a detailed analysis of voltage variations over a 24-h period with up to 30% EV penetration, highlighting the critical need for grid ancillary services to support frequency and reactive power.

Moreover, the presented study examines grid transformation during extreme events over a 24-h timeframe, underscoring the necessity for distributed generation (DG) allocation to ensure grid stability from seconds to minutes. This research offers a fresh perspective on power system planning, emphasizing the preparedness required for high EV penetration and the resilience needed against high-impact events.

The paper also advocates for the integration of DGs and battery storage to enhance power flow and grid stability. It also explores optimized battery charging and discharging strategies, contributing to the discourse on improving grid efficiency and reliability. Overall, this work provides valuable insights and practical solutions for future power system planning and management in the context of increasing EV adoption and extreme event resilience. The novel contributions (objectively) of the presented paper are stated hereunder:

  • RES-DGs sizing and siting to improve voltage profile and to reduce carbon emission duly accounting the intermittency of RES.

  • Probabilistic approach to model EV load profile based on driving distance, battery status and time of charging and discharging.

  • Optimal allocation of RES-DGs to minimize the adverse effect of EV load on voltage stability and power quality.

  • Modelling of natural disaster for vulnerability assessment of distribution feeders.

  • Application of supervised learning algorithm in planning phase for planning of resilient distribution grid against natural disruption.

The rest of the paper is organized into 6 sections. Section “Introduction” weaves the background of the problem statement and subsequently highlights the contribution of the paper. Section “Power system resiliency modelling” formulates the power system resiliency modelling. Section “Impact modelling of EV load on distribution grid” models the randomness of EV load on distribution grid using probabilistic approach in Indian context. Framework for sizing & siting of solar PV in distribution grid along with EV loading has been presented in section “Problem formulation for sizing and siting DGs”. Section “Impact of extreme event on an urban Indian electric grid” deduces the impact analysis for an extreme disruption using machine learning techniques and an urban Indian electric grid of Dehradun city has been taken to examine the efficacy of framework. Lastly, the findings of the presented manuscript have been concluded in section “Conclusion”.

Power system resiliency modelling

The electric grid has a significant role in human life; primarily things depend on electricity. Therefore, a resilient power system structure that can provide electricity supply during disastrous events (intentional/unintentional) is required. The traditional grids were constructed to satisfy the demand in usual operating condition. However, it is evident now that the conventional grid is highly vulnerable to high impact natural disruption. Therefore, it is time to improve the resiliency of the distribution network by restoring the power in the distribution system quickly after the event. It is apparent from the literature that DERs (specifically solar PV) along with optimally sized ES units (mostly battery storage) have proven to enhance the grid resiliency during the catastrophic events23,24,25,26,27. Moreover, the author28, proposed a metric for finding the optimal location of energy storage units in the distribution system, further improving the voltage profile. In paper29, optimal sizing and siting of the constant and variable capacitors during grid connection and isolated modes are identified using the spotted hyena optimizer (SHO) algorithm. Furthermore, the author includes various load levels, and the results show an overall net cost saving with DGs duly including the capability of active and reactive power injection. In addition, quantum annealing methodology is presented by Silva for minimizing the power loss in the network30. The power grid's reliability differs from the grid resiliency concept in terms of operating and time horizon. The subsequent sections present the details about power grid resilient network and how it differs from the reliability aspect.

Reliable electric grid

The main objective of an electrical grid is to deliver a reliable and continuous power supply. Hence, reliability in terms of the electrical grid deals with high-frequency low-impact events and considers the equipment's ageing effects. The system's reliability is its ability to continuously supply power to the loads without disruption31. The reliability of a power system is measured by various indices such as probability vs expectation in load loss, frequency and duration of power failure, and severity of the failure32. These indices are evaluated either empirically or predictively. In empirical methods, reliability indices are measured by data collection, while in predictive, many ways can be considered for the evaluation, such as network reconfiguration, system behavior, operational characteristics etc. The three main indices are as follows.

i. Loss of load probability estimation (LOLP):

$$LOLP=E\left[\sqcap \right],$$
(1)

where \(\sqcap =\frac{1}{T } \sum_{i=1}^{{N}_{cy}}{T}_{i(d)}\) and \(T={N}_{cy}. {T}_{ry}\). \(\sqcap =\text{Load failure probability estimator}\); cy = cycle; E = Expectation operator; T = Time period. \({N}_{cy}=No. of cycles in simulation\); \({T}_{i(d)}=\) Interruption duration.

ii. Loss of load frequency estimation (LOLF): It estimates the frequency of failures per unit of time.

$$LOLF=E\left[\Phi \right],$$
(2)

where \(\Phi =\) Load failure frequency estimator and is given by \(\Phi = \frac{{N}_{cy}}{T}\)

iii. Expected power not served estimation (EPNS): This index evaluates the failure states of expected demand/power not served. The EPNS is given as:

$$EPNS=\sum_{{f}_{i }\epsilon {F}_{i} }P\left\{fi\right\}.L\{fi\} ,$$
(3)

where \(P\left\{fi\right\}=Probability of occurrence and L\left\{fi\right\}=load curtailment state; {F}_{i}=set of failure states.\)

Furthermore, the power system reliability indices can be divided based on nature, either probabilistic or deterministic. The probabilistic index is much more challenging to incorporate as they deal with uncertainties like loss of power but provide a quality solution. In contrast, the deterministic index is a reserved type and easy to use. However, the reliability factor is incorporated in decision or planning processes such as power grid expansion. The author33 proposed stochastic programming for developing a power system network. Moreover, t reliability indices are also considered at the planning stage.

Resilient electrical grid

A resilient grid is a complicated concept with many driving areas such as grid hardening, transient stability, and adequate resources to examine the resilience, like polar vortex34 and generator governor. The assessment of vulnerability has a goal of locating weak nodes for the improvement of security and resiliency.

The term resilience has various definitions provided by multiple organizations and researchers. According to a UK organization, reliability, resistivity, redundancy, retort, and recovery define a power network's resilience34. CENTRE (National Centre for Earthquake Engineering Research) provides the terms "redundancy, resourcefulness, and rapidity consist of the framework of word resilience"34. Whereas the MCEER (Multidisciplinary Centre for Earthquake Engineering Research) defined the term as the "ability of social units to mitigate hazards that contain the effects of disasters when they occur and carry out recovery activities in ways that minimize social disruption and mitigate the effects of future disaster"35. In 2013, the White House stated the term resiliency as "the ability to prepare for and adapt to changing conditions and withstand and recover rapidly from disruptions"36. "The ability to withstand and reduce the magnitude and/or duration of disruptive events, which includes the capability to anticipate, absorb, adapt to and/or rapidly recover from such an event" is the power system resiliency definition stated by IEEE37. It is concluded from the literature that the term resiliency defined in the literature varies by two factors, namely, adaptation and recovery. Although the terms resiliency and reliability seem the same. However, the resiliency of a system is the property of the object to return to equilibrium after major environmental disturbances such as natural and intentional disasters.

In comparison, the system’s reliability is its ability to supply power to the loads continuously without disruption. The basic difference in resiliency and reliability is given in Table 238. The resilience enhancement work is based on the ability to adapt and ability to recover during the disruption.

Table 2 Difference in resiliency and reliability.
Full size table

Impact modelling of EV load on distribution grid

The penetration of E-mobility is inevitable on distribution grid due to global concern of rising CO2 emission. Therefore, demand of EV is imperative to map on distribution grid to analyze the weak feeders and adverse impacts. However, the exact load modelling of EV in distribution grid requires the historical behavior of charging/discharging pattern, which eventually does not exist due to its gestation period. Therefore, it is being modelled as probability distribution function (PDF) of random variable derived on traffic pattern and geographical nature in literature39. The framework is presented in Fig. 5.

Figure 5
figure 5

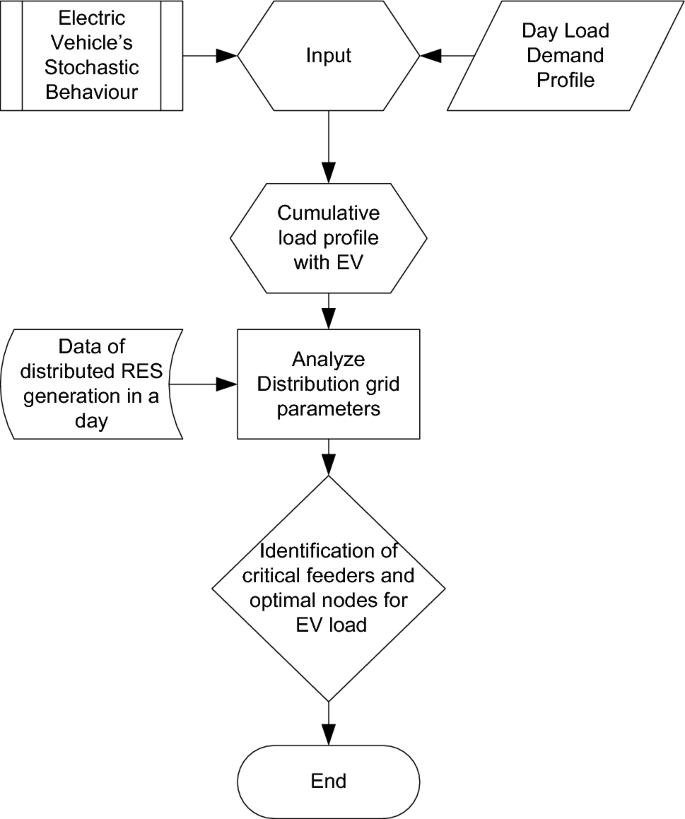

Methodological framework to analyze the EV load impact on distribution grid.

Full size image

This section shows the impact of EV loading on IEEE-33 bus system. Therefore, to identify the charging/discharging time a PDF function has been formulated based on the collected data on arrival and departure of current vehicle in urban city of India (Dehradun). The PDF(s) to identify the charging time and its loading characteristic, the following assumptions are made as stated below:

  • Li-ion battery has been considered as per the current market status of EVs.

  • No commercial charging infrastructure has been considered; therefore, it is assumed that charging happens at individual’s premises (non-commercial).

  • In Indian context TATA EVs have been studied and two models, TATA Tigor and TATA Nexon considered to model the EV load profile.

  • TATA Tigor has 26 kWh battery capacity and Nexon model comes up with 30.2 kWh and 3.3 kWh home charger unit which takes around 9–12 h for full charge (TATA Tigor) and 12–14 h for Nexon model having conversion efficiency stands approximately at 82%.

  • The daily travel distance to model the battery state of charge (SOC) level and required charging energy is derived through running behavior of the present vehicles in urban city of India and a PDF function has obtained.

  • The load profile of EVs with respect to charging and SOC’s PDF(s) function has been generated using Monte-Carlo simulation.

  • The penetration of EVs on IEEE-33 bus system is assumed in three levels, 10%, 20% and 30% on the buses 6, 18, 24 and 30.

Generation of PDF functions

To develop the EV load profile, a PDF function for arrival/departure of EV on weekdays has been generated. To model the traffic pattern, an urban city of India (Dehradun) as a case has been considered. Equations 4 and 5 present the PDF for arrival and departure of EVs40, respectively and subsequent plots are shown in Figs. 6 and 7.

Figure 6
figure 6

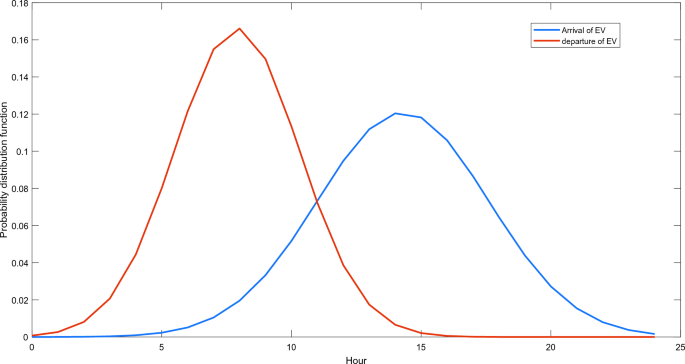

PDF of arrival and departure of EV on weekdays.

Full size image
Figure 7
figure 7

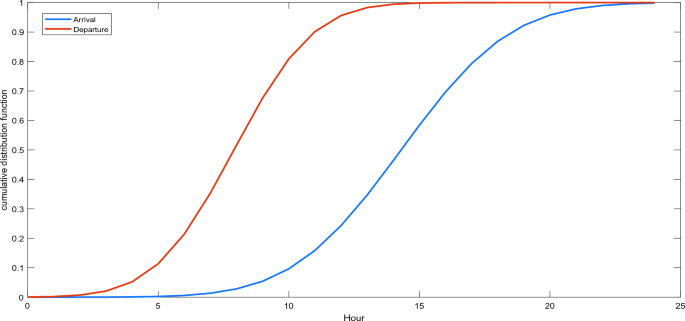

CDF of arrival and departure of EV on weekdays.

Full size image
$${PDF}_{Ar}=\left\{\begin{array}{c}\frac{1}{{\sigma }_{Ar}\sqrt{2\pi }}{e}^{-\frac{{\left(t+24-{\mu }_{Ar}\right)}^{2}}{2{{\sigma }_{Ar}}^{2}}};0<t{\le \mu }_{Ar}-12\\ else\\ \frac{1}{{\sigma }_{Ar}\sqrt{2\pi }}{e}^{-\frac{{\left(t-{\mu }_{Ar}\right)}^{2}}{2{{\sigma }_{Ar}}^{2}}}\end{array}\right\}$$
(4)
$${PDF}_{Dr}=\left\{\begin{array}{c}\frac{1}{{\sigma }_{Dr}\sqrt{2\pi }}{e}^{\frac{{\left(t-{\mu }_{Dr}\right)}^{2}}{2{{\sigma }_{Dr}}^{2}}};0<t{\le \mu }_{Dr}+12\\ else\\ \frac{1}{{\sigma }_{Dr}\sqrt{2\pi }}{e}^{\frac{{\left(t-{24-\mu }_{Dr}\right)}^{2}}{2{{\sigma }_{Dr}}^{2}}}\end{array}\right\}$$
(5)

Furthermore, the PDF function for distance travel in a day has been created using logarithmic distribution as presented in Eq. (6) and plotted in Fig. 8. Thenceforth, the probability distribution of State of Charge (SoC) of the battery has been obtained from Eqs. (7) & (8). Consequently, the charging profile of EV load for a day has been created from Eq. (9).

Figure 8
figure 8

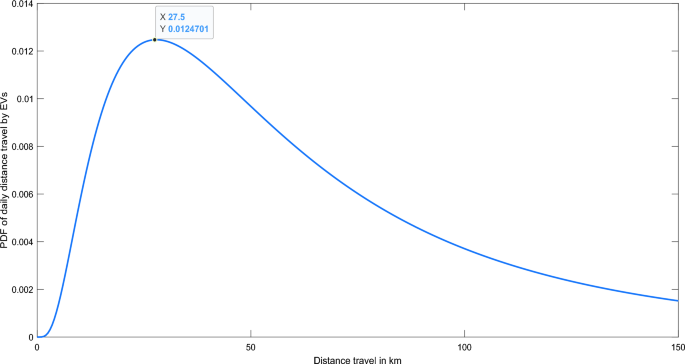

PDF of daily travel distance.

Full size image
$${PDF}_{Dis}=\frac{1}{d\sigma \sqrt{2\pi }}{e}^{-\frac{{(\text{ln}d-\mu )}^{2}}{2{\sigma }^{2}}}; d\,\,=\,\,distance\,\, travel\,\, in\,\, km,$$
(6)
$$SoC=1-\frac{d}{R};R\,\,=\,\,Range\,\, of\,\, EV\,\, on\,\, full\,\, charge,$$
(7)
$${PDF}_{SoC}=\frac{1}{R(1-SoC)\sigma \sqrt{2\pi }}{e}^{-\frac{{(\text{ln}(\text{R}\left(1-\text{SoC}\right))-\mu )}^{2}}{2{\sigma }^{2}}},$$
(8)
$${T}_{charing}= {kWh}_{battery}(1-SoC)/(0.82\times {P}_{charger}).$$
(9)

Load flow profile with EV loading

As stated above, three levels of penetration have been considered viz. 10%, 20% and 30% distributed on four buses. The charging profiles for EVs have been generated through PDF functions and Monte-Carlo simulation. Hence, Fig. 9a–d shows the IEEE-33 bus absolute voltage profile with 10% EV penetration, 24—hour voltage profile, EV bus profile and PV bus profile respectively.

Figure 9
figure 9figure 9figure 9figure 9

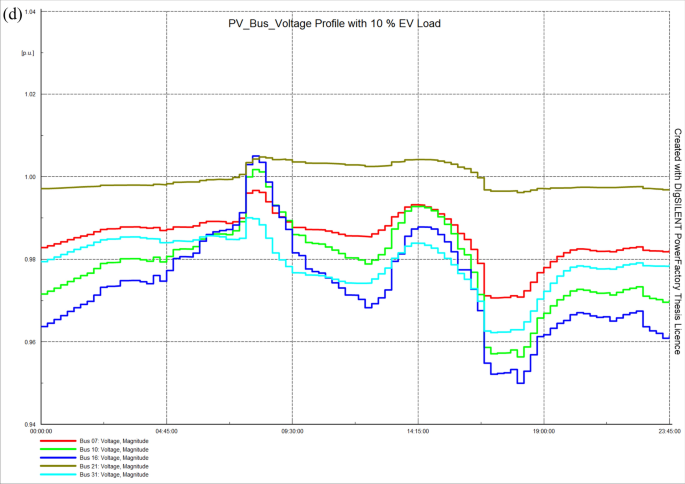

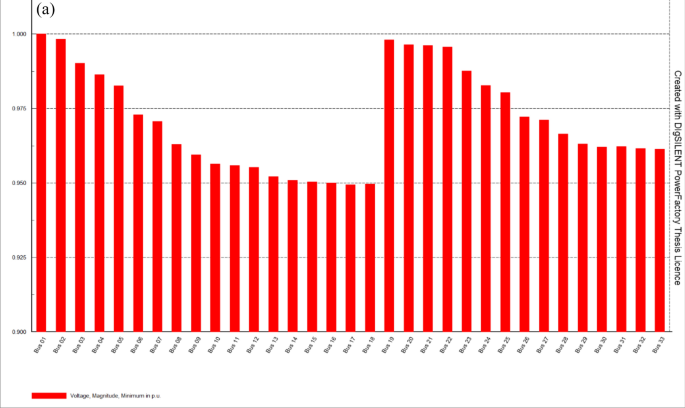

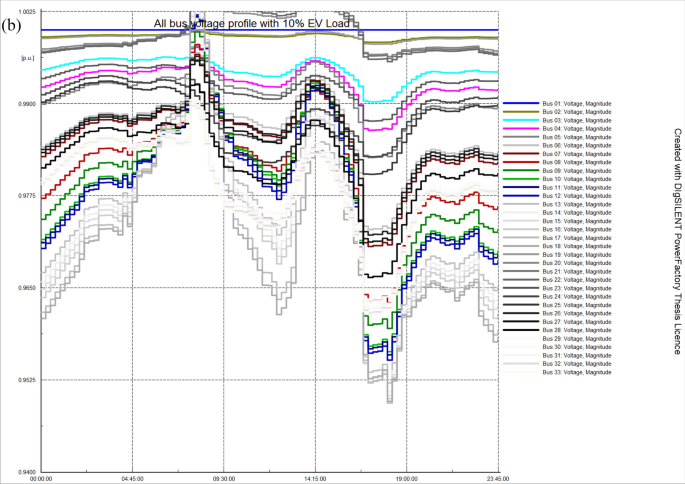

(a) Absolute voltage profile with 10% EV penetration. (b) 24-h voltage profile of all buses with 10% EV penetration. (c) 24-h voltage profile of EV buses with 10% penetration. (d) 24-h voltage profile of PV buses with 10% EV penetration.

Full size image

Similarly, Figs. 10a,b and Fig. 11a,b present the voltage profile with 20% and 30% EV penetration respectively for EV and PV bus for visual comparison.

Figure 10
figure 10figure 10

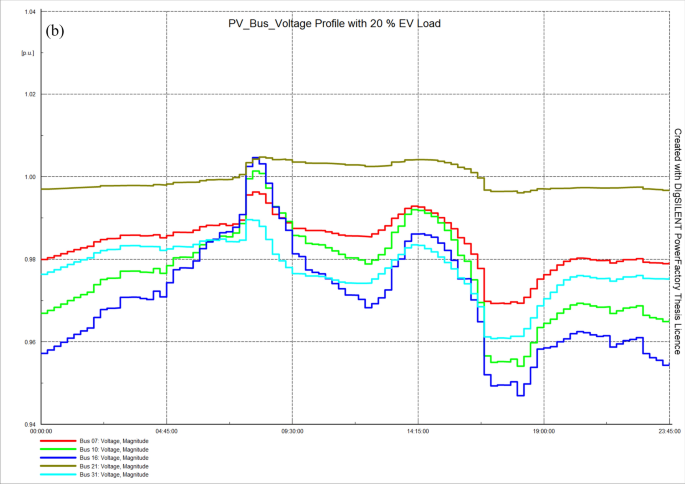

(a) 24-h voltage profile of EV buses with 20% penetration. (b) 24-h voltage profile of PV buses with 20% EV penetration.

Full size image
Figure 11
figure 11figure 11

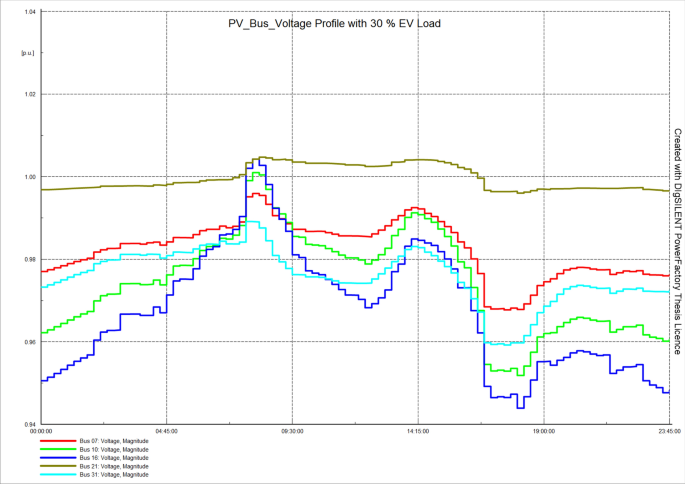

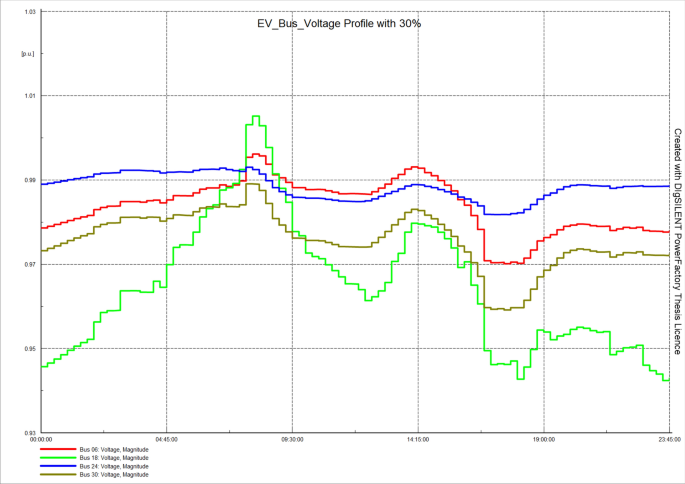

(a) 24-h voltage profile of EV buses with 30% penetration. (b) 24-h voltage profile of PV buses with 30% EV penetration.

Full size image

The above voltage profiles shown for different scenarios, evident that EV loading has an adverse impact on the overall system. Moreover, it is imperative to consider the EV load profile during the planning phase for optimal allocation of distributed generation.

Problem formulation for sizing and siting DGs

Objective function

To obtain the optimal DGs sizing and siting, a binary PSO optimization technique41,42 is used in which a binary variable is taken i.e., 0 or 1 for optimal siting and PSO for sizing. The objective functions (F) are: (i) To minimize the active power loss (ii) Boost the voltage profile.

$$F={f}_{1}+{f}_{2},$$
(10)
$$whereas, min. \left({f}_{1}\right)= {\sum }_{i=1 \, }^{nbr}{I}_{i}^{2} \, ,$$
(11)
$$max. \left({f}_{2}\right)=\sum_{i=1}^{N}{V}_{i}\left(t\right)-{V}_{rated}\left(t\right).$$
(12)

The Eq. (10) is the combined objective function43 and the constraints are given in Eq. (13)–(16)44.

Constraints:

(a) Power flow equations:

$${P}_{i}\left(t\right)={V}_{i}\left(t\right)\times \sum_{i,j\epsilon {N}_{b}}{V}_{j}\left(t\right)\left({G}_{ij}cos{\theta }_{ij}\left(t\right)+{B}_{ij}sin{\theta }_{ij}\left(t\right)\right),$$
(13)
$${Q}_{i}\left(t\right)={V}_{i}\left(t\right)\times \sum_{i,j\epsilon {N}_{b}}{V}_{j}\left(t\right)\left({G}_{ij}sin{\theta }_{ij}\left(t\right)-{B}_{ij}cos{\theta }_{ij}\left(t\right)\right) ,$$
(14)

\(Whereas,\) \({P}_{i}(t)\) = Real power from ith bus at time ‘t’, \({Q}_{i}(t)\) = Reactive power from ith bus at time ‘t’, \({V}_{i}(t)\) = Voltage at ith bus at time ‘t’, \({V}_{j}(t)\) = Voltage at jth bus at time ‘t’, \({G}_{ij}\)+ \({B}_{ij}\)  = Element of the Admittance matrix, \({N}_{b}=\) Set of buses.

(b) Voltage limits:

$${|V}_{min}{(t)|<|V}_{b}\left(t\right)\left|<{|V}_{max}\left(t\right)\right| ,$$
(15)

\({V}_{min}={\text{Minimum}} \, \text{voltage at bus.}{ V}_{b}\left(t\right)= \text{Bus voltage at time } {\prime}{\text{t}}{\prime}\). \({V}_{max}\text{=} \, \text{Maximum voltage at} \, {\text{bus}}\).

(c) Line Loading stability:

$${LL}_{l}\left(t\right){<LL}_{l,max}\left(t\right)$$
(16)

\({LL}_{l}\left(t\right)\) = Line loading of “l” line. \({LL}_{l,max}\left(t\right)\)= Maximum permissible loading of “l” line.

Sizing siting for IEEE-33 bus system

To validate the proposed optimization algorithm, the IEEE-33 bus system having 12.66 kV radial distribution system is taken as a reference. The heatmap of IEEE 33 bus with optimally placed DGs (PV) is shown in Fig. 12.

Figure 12
figure 12

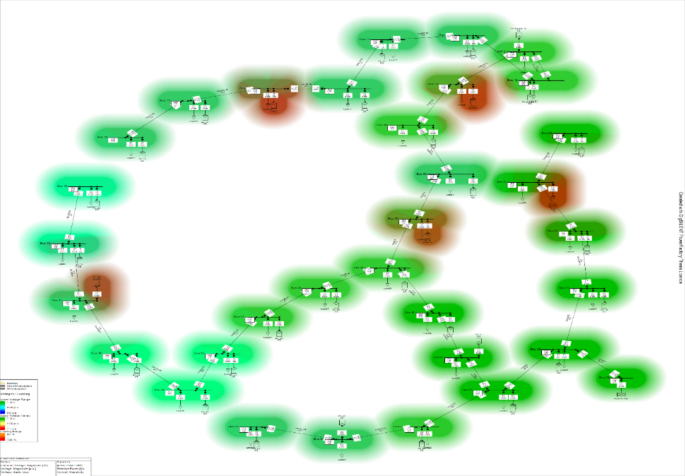

Heat map of IEEE-33 system with PV placement.

Full size image

A combination of binary PSO (for siting) and PSO (sizing) has been applied to find the optimal allocation of DGs for IEEE-33 bus system. Table 3 presents the optimal sizing and siting of DGs for IEEE-33 bus system. Figure 13 shows that the voltage profile has been improved with the optimal PV placement. It is concluded that the generation from PV will suppress the stress on the grid and hence improve the voltage profile.

Table 3 Optimal DGs sizing and siting on IEEE-33 system.
Full size table
Figure 13
figure 13

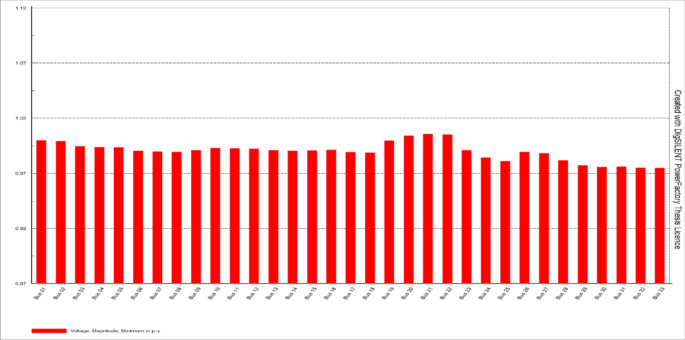

IEEE-33 bus voltage profile with PV placement.

Full size image

DG allocation with Quasi dynamic simulation

Quasi dynamic simulation is used to perform multiple load-flow calculations with time-step sizes defined by the user. In the presented work a time step size of 15 min is taken. Moreover, 15 min step size is also being used to match the generation and demand by state load dispatch center (SLDC), India. To replicate the practical scenario, load profile of urban city of India (Dehradun) has been considered for summer season as depicted in Fig. 14. Moreover, the solar PV per unit output on a sunny day for the said region (Dehradun, 30.3165° N, 78.0322° E) is considered for quasi-dynamic simulation and shown in Fig. 15.

Figure 14
figure 14

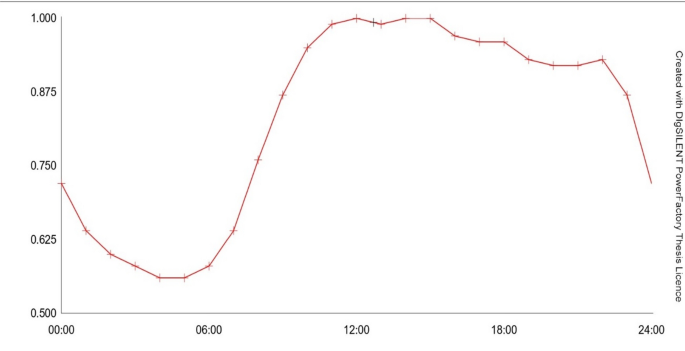

One day per unit load profile.

Full size image
Figure 15
figure 15

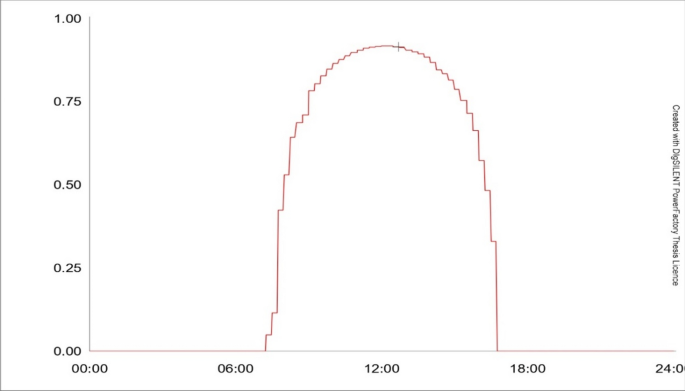

One day per unit PV output profile.

Full size image

Comparing Figs. 13 and 16, it is taken out that one day profile shows very less improvement in voltage profile with PV as load demand stays at its peak even after irradiance goes down. Therefore, it is recommended to integrate DGs (solar PV, wind etc.) with battery storage system to curtail the intermittency of solar PV generation during daytime and hence improving the voltage profile throughout the day.

Figure 16
figure 16

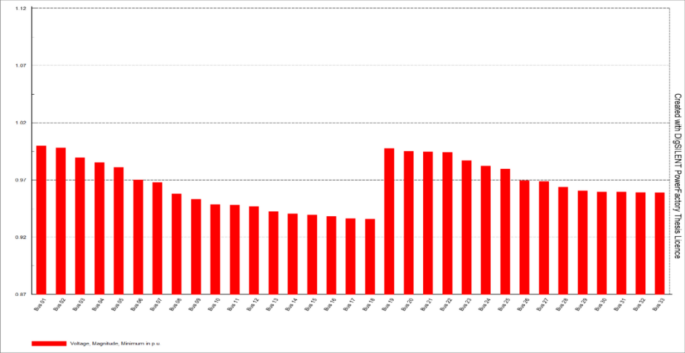

Voltage profile of IEEE 33 Bus with load and PV variability.

Full size image

However, to boost the voltage profile and to cater the PV intermittency; DG with battery storage placement is recommended. Thenceforth, the optimization algorithm has been run on optimally integrated PV IEEE-33 bus system for sizing and siting of battery storage. After 10 iterations, two locations for battery storage have been identified on Bus-21 = 248 kW and Bus-18 = 472 kW. Furthermore, per-unit optimal charging/discharging profile (24 h) of the battery is shown in Fig. 17.

Figure 17
figure 17

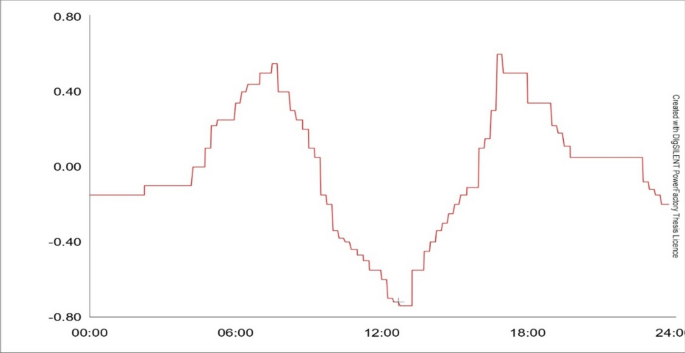

Optimal charging/discharging profile (24 h).

Full size image

Also, the voltage profile of the one-day of IEEE-33 system for PV integrated bus is shown in Fig. 18. In comparison, one day voltage profile of IEEE-33 system for PV integrated bus with optimal charging/discharging of storage (24 h) is shown in Fig. 19. Hence, the overall improved voltage bus profile with PV and storage is shown in Fig. 20.

Figure 18
figure 18

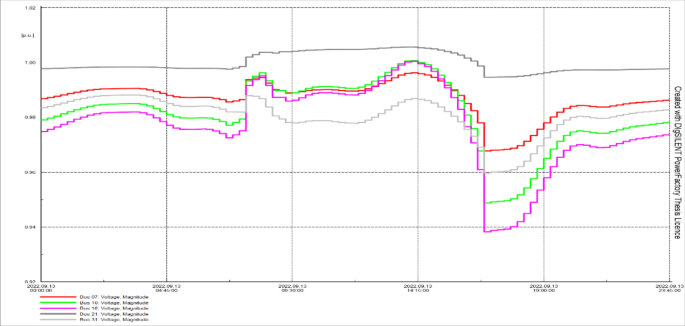

Voltage profile of PV bus (24 h).

Full size image
Figure 19
figure 19

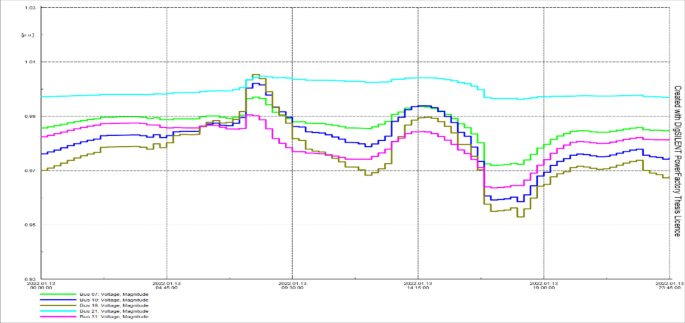

Voltage profile of PV with storage (24 h).

Full size image
Figure 20
figure 20

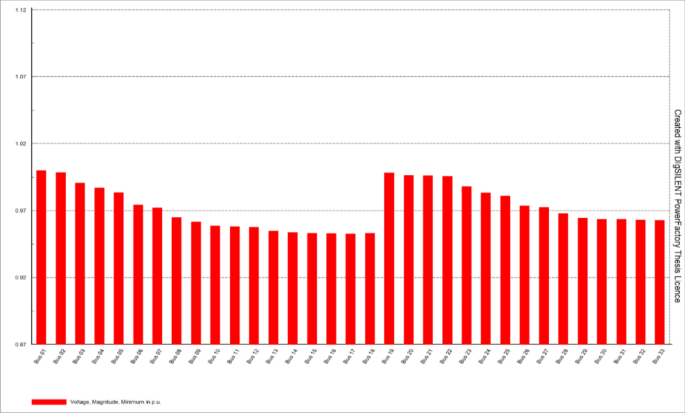

Overall bus profile with PV and Storage (24 h).

Full size image

Impact of extreme event on an urban Indian electric grid

The objective of this section is to demonstrate the effectiveness of machine learning techniques to model the impact of a natural disruption (earthquake) on electrical infrastructure. Therefore, an urban Indian electric distribution grid of Dehradun city (high seismic zone) with critical loads is considered and simulated on power factory software, as shown in Fig. 22. The data for distribution grid modelling has been presented in Annexure 112. Therein, for the impact on grid, earthquake natural disasters are considered as an extreme event in the paper. Five-year data is collected from the years 2017 to 2021 to generate the earthquake profile. The collective data set is provided in Annexure 2, which shows the magnitude and the event depth (in km). The adopted methodology to map the earthquake profile and subsequently generating the damage state of taken case study has been presented in Fig. 21. A complete grid has been simulated on PowerFactory45 as per Annexure 1, single line diagram (SLD) and voltage profile without damage for 24 h is shown in Figs. 22 and 23, respectively.

Figure 21
figure 21

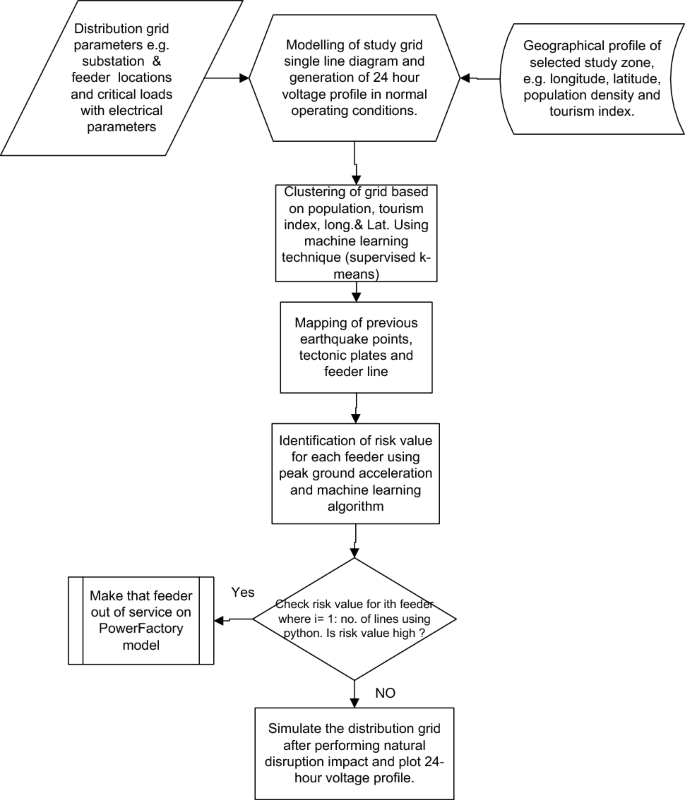

Methodological flowchart to model the grid after impact analysis.

Full size image
Figure 22
figure 22

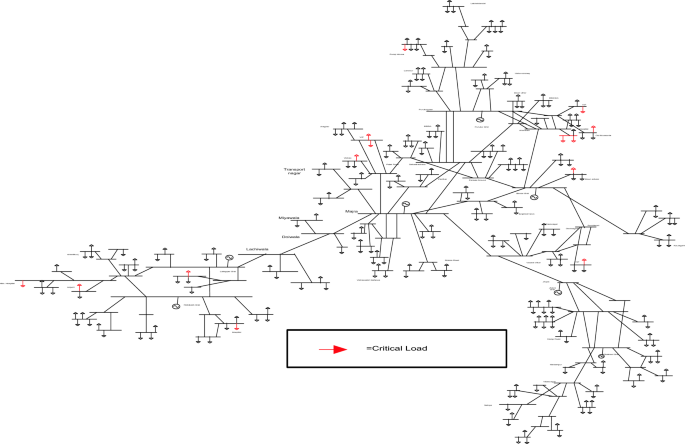

Dehradun city’s grid single line diagram with critical loads.

Full size image
Figure 23
figure 23

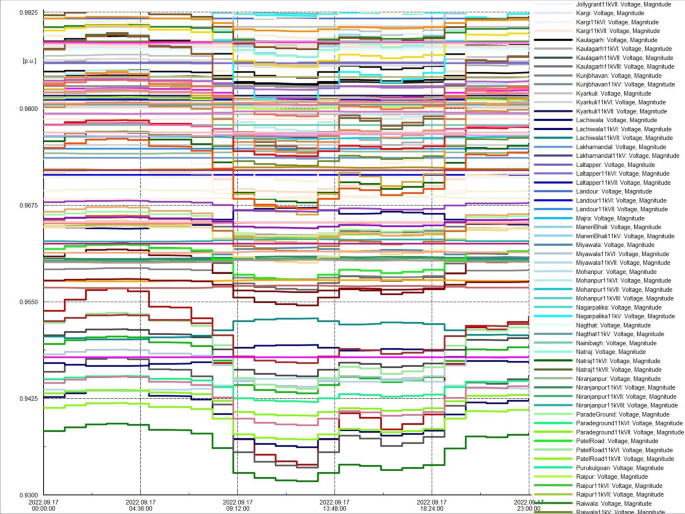

Dehradun Grid profile without natural disruption damage for 24 h.

Full size image

Figure 23 shows the 156-bus voltage profile with load scalability and solar PV variation in normal conditions. It is evident that the lowest voltage goes up to 0.9310 p.u. during late morning to afternoon.

Clustering of network

The clustering of the entire distribution grid has been done on population density, tourism aspect and connected load density. The datasheet is provided in Annexure 3. Several papers in the literature show the optimization process duly accounting clustering like in Ref.46, authors have presented EGC-CMOPSO optimization methodology based on clustering. However, in the presented manuscript, the clustering has been performed by using supervised k-means algorithm and the platform used for visualizing geospatial data is the python library- folium47. The total number of clusters required is given as an input to k-means algorithms. This optimal number of clusters was obtained from elbow curve during the grid transition, as shown in Fig. 24. The obtained optimal number is 8 (Fig. 24a); therefore, the optimal clustered zones within the Dehradun distribution grid are eight as shown in Fig. 25. In Fig. 25, the circle denotes the clusters, and the same colour circles represent all belonging to same clusters. Moreover, the distribution lines along with optimal clustered zones are shown in Fig. 26.

Figure 24
figure 24

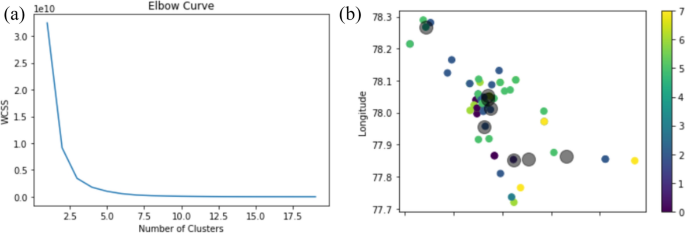

(a) Elbow curve to find optimal clusters. (b) Clusters based on (latitude, longitude, population, tourism index, critical load).

Full size image
Figure 25
figure 25

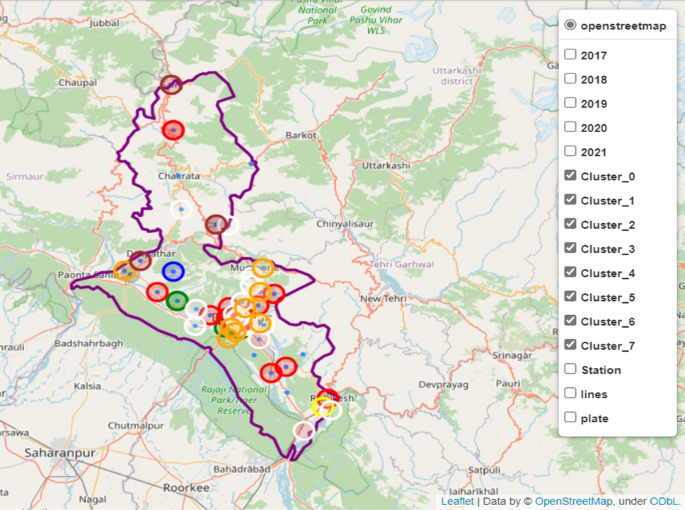

Optimal clustered zones within the Dehradun distribution grid47, map generated using Leaflet data by openstreetmap wiki.

Full size image
Figure 26
figure 26

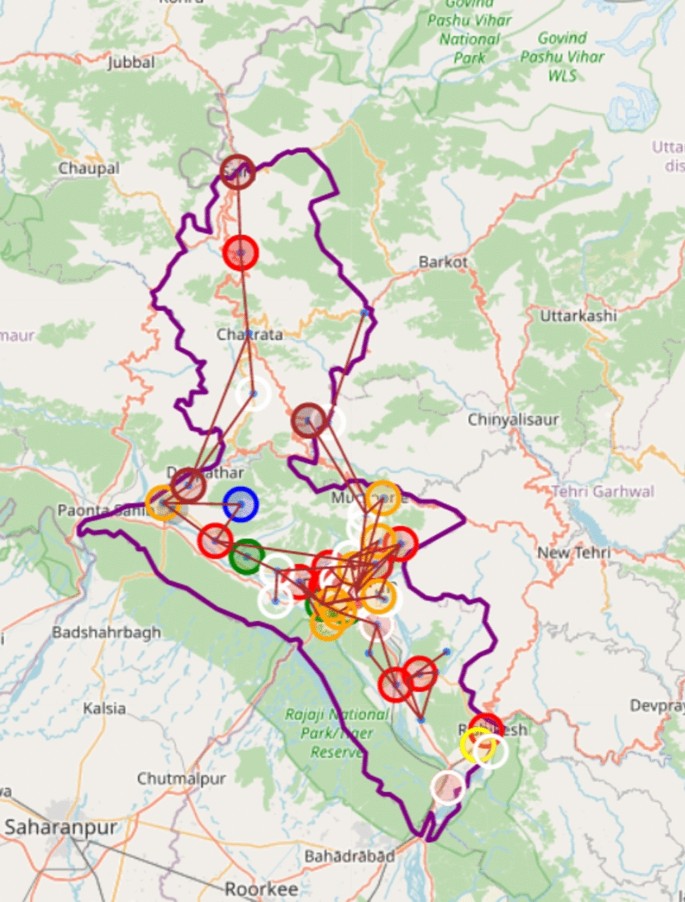

Optimal clustered zones with connecting lines47, map generated using Leaflet data by openstreetmap wiki.

Full size image

Simulation of the proposed methodology on an urban Indian electric grid of Dehradun city

The impact analysis of natural disaster has been performed onthe distribution lines of study region (Dehradun grid) with tectonics plates modelled using Python as shown in Fig. 27. The last five years earthquake locations are show in Fig. 28 (diameter of circles represents the magnitude). Thenceforth, to identify the damageability of the infrastructure (11 & 33 kV feeders), peak ground acceleration (PGA) values are calculated for finding the ground motion.

Figure 27
figure 27

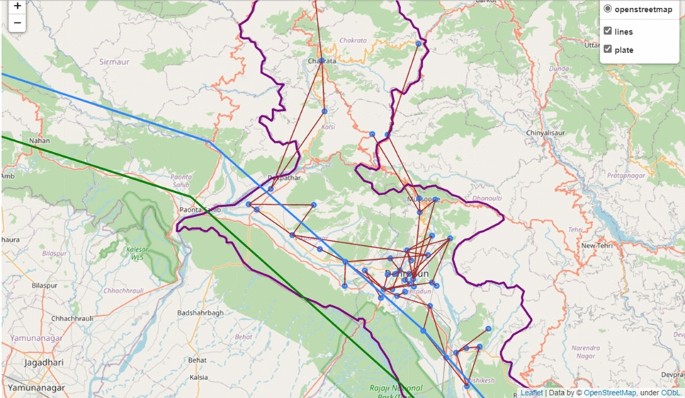

Distribution lines of Dehradun grid with tectonics plates47, map generated using Leaflet data by openstreetmap wiki.

Full size image
Figure 28
figure 28

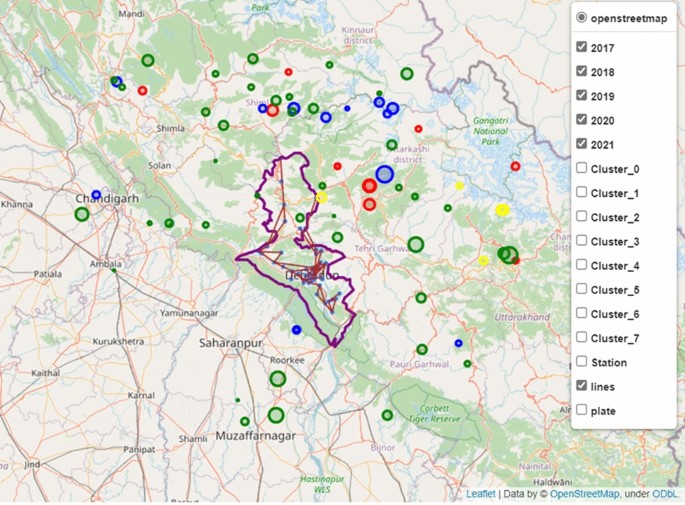

All the station lines and the circles show the previous earthquake points and magnitude47, map generated using Leaflet data by openstreetmap wiki.

Full size image

The values of PGA are calculated by using Eq. (17)48 and the PGA value distribution curve shown in Fig. 29.

$$PGA=0.02938.{e}^{1.19950M}.{\left[R+0.14667.{e}^{0.69689M}\right]}^{-1.73413},$$
(17)

where M is the magnitude of the earthquake. R is the distance between one point in the source of the earthquake.

Figure 29
figure 29

Initial PGA value distribution.

Full size image

However, Fig. 29 shows the random distribution of PGAs, so after using A/B probability test function, the distribution of PGA value is obtained as shown in Fig. 30.

Figure 30
figure 30

Final data distribution after conversion.

Full size image

Risk value assessment

Risk value denotes the damage state of the substation. Based on the risk value, the damage states are classified into five states: High impact, Moderate Impact, Normal Impact, Low Impact and Very low Impact. The range used for the classification is shown in Table 4 and the respective curve is shown in Fig. 31. However, it is concluded that if the PGA value is high it results in high station risk value. Therefore, the final practical values obtained in the python platform is the cumulative result of the PGAs of all stations and shown in Fig. 32. In addition, the risk value of the stations with associated cluster is mentioned in Table 5.

Table 4 Damage state classification.
Full size table
Figure 31
figure 31

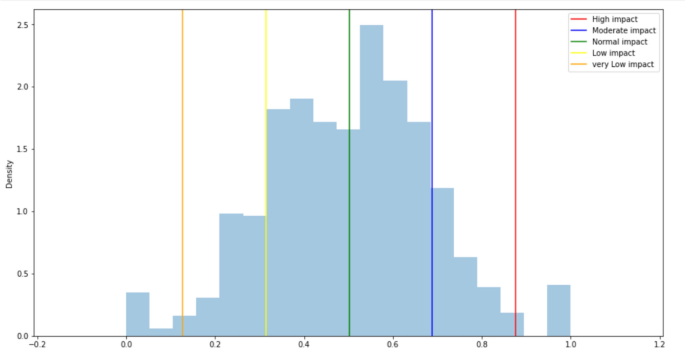

Classifying PGA values into 5 different segments.

Full size image
Figure 32
figure 32

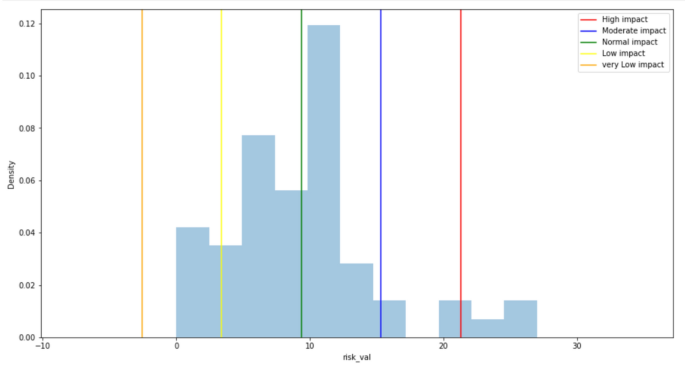

Damage state with respect to practical data.

Full size image
Table 5 Cluster zone and associated risk value.
Full size table

Thenceforth, after identifying the damage lines for the taken study grid, a closed loop process within python algorithm and PowerFactory model has been performed as per Fig. 22 to eliminate damage lines from operational state. Consequently, the affected grid after impact analysis and 24-h voltage profile of the grid has been shown in Figs. 33 and 34 respectively. The gray region in Fig. 33 shows the affected lines.

Figure 33
figure 33

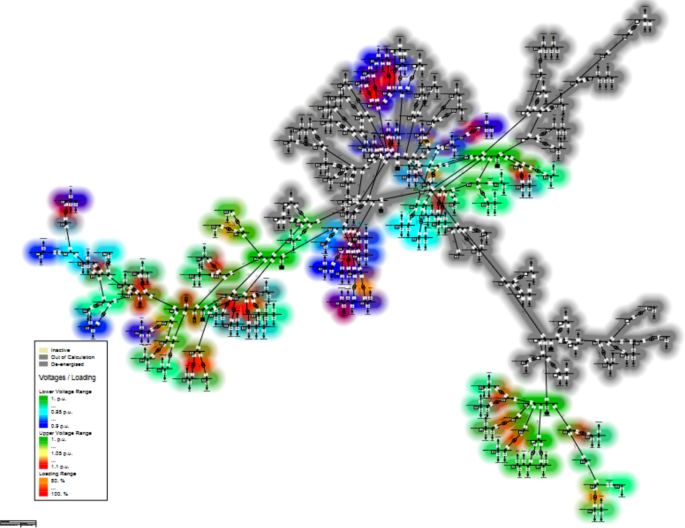

The heat map of study grid after disruption.

Full size image
Figure 34
figure 34

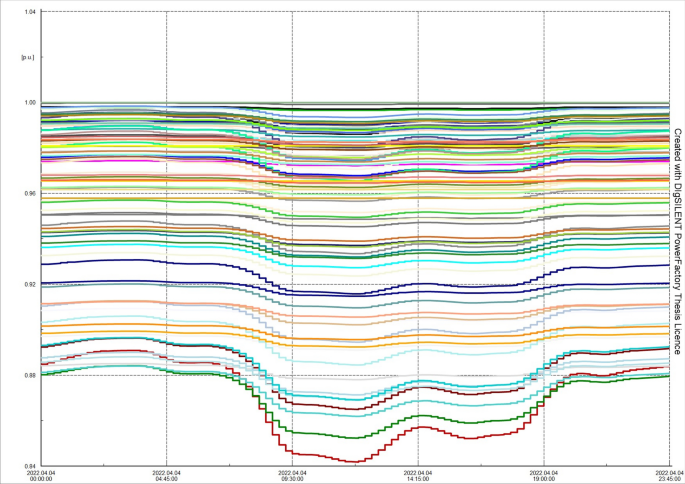

Dehradun Grid profile after natural disruption damage for 24 h.

Full size image

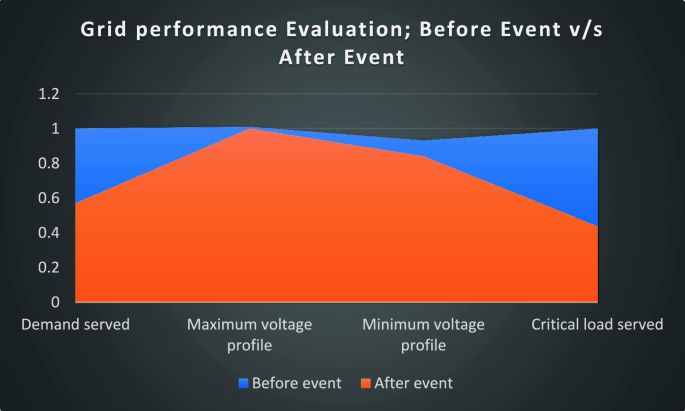

Figure 35 presents the comparative visualization of taken distribution grid state before and after an event. It is evident that a natural disaster can severely affect the vulnerable distribution grid. However, as per present needs, placement of energy storage devices is being implemented in distribution grid to cater the intermittent nature of RES and stochastic loading of EV. Therefore, the presented study substantiates that to build the resilient futuristic grid, RES and storage planning should consider the natural/manmade disruption analysis. The handy machine learning/AI tools are well versed to deliver the results when combined with conventional load flow analysis software tools. Consequently, presented grid case study substantiates that if adverse impact analysis due to any catastrophic event would have been considered in planning phase than engineers can have contingency plan (e.g. parallel critical feeder lines, DGs allocations) to improve the load served after an event which overall improves resiliency.

Figure 35
figure 35

Parametric evaluation of taken grid case; before and after an event.

Full size image

Conclusion

The presented paper proposed the planning framework for a resilient electric distribution grid. To achieve the stated objectives, firstly, a load flow analysis of IEEE 33 bus system is simulated that shows the voltage profile without any DG placement in the distribution system. Then, using optimization, an optimal allocation of DG in the system shows the improvement of voltage profile. Later, a quasi-dynamic simulation is done to analyze the one-day behavior of PV and load. The quasi-dynamic simulation shows that the voltage profile after integration of DG results in improvement of voltage, however up to an extent. Therefore, it is concluded from comparing the voltage profile of the IEEE 33 bus system with different scenarios for reducing the stress on the grid that the optimal placement of DG with battery storage in distribution system is the best solution.

Moreover, earlier, the reliability of the electrical grid was the foremost key performance index. However, recent developments like RES infusion and EVs adaptability demand a sustainable and stable electrical grid. Besides, a resilient index has become a key indicator in dealing with catastrophic events’ impact on the electrical grid. Therefore, the presented work elaborates on the power system resiliency concept and also differentiates the reliability. Subsequently, it is concluded that EVs load can be mapped on the electrical distribution grid through the probability of random variables. Therefore, the probability density function (PDF) to map EV density has been formed based on growth projection and the socio-economic adaptability of EVs. The impact of the catastrophic event on the distribution grid has also been addressed. However, the work shows an approach to analyze the grid degradation after a catastrophic event for an earthquake-prone, mixed terrain India’s urban city electrical distribution grid. The approach considers the optimal clustering of the entire distribution grid based on demand, population, and social index. The smart grid definition is changing every day, and the distribution grid has become the most dynamic part of the smart grid due to inclusion of RES and EV loading. Therefore, it is imperative that planning engineers should consider the natural/manmade disruption analysis for the resilient futuristic grid. The presented paper shows merely an approach which has many limitations like lack of actual data on EV charging pattern, available land mapping with grid, access to charged lines during & after disastrous events, location of underground cables (the impact analysis would have different approach) and the variables list goes on. However, this non-linearity will keep on growing moving forward, therefore, including these dimensions as they appear in future will enhance the degree of resiliency for our electrical infrastructure and grid.
