Introduction

The future of the electrical power system is heavily reliant on renewable energy resources and distributed generation, driven by global energy demand, environmental concerns, and constrained availability of traditional energy sources. However, the intermittency and unpredictability of commonly used renewable energy sources such as solar PV and wind pose a challenge. Therefore, incorporating energy storage elements is crucial for a reliable and continuous electricity supply1,2. Battery energy storage, the leading technology for solar PV-based microgrids, effectively addresses the challenge of renewable energy intermittency3,4,5. However, batteries degrade faster when handling transient power demand6.

Combining a battery with another energy storage device that can handle the transient power demand can solve the above-stated problem7,8. That is known as a hybridization of storage units. Ideally, the concept consists of using one high-power device to handle transient power demand and one high-energy device for the average energy requirement. Several storage combinations have been used in the literature for various applications9,10,11,12. Among these combinations, the couple battery-SC has gained notable attention13,14. In the couple battery-SC, the battery handles the slow energy requirement while the SC manages the fluctuating power demand. When merging multiple storage units, power management, and control strategy are critical for using complementing qualities and efficiently distributing and controlling the power flow between microgenerators while ensuring the safe operation of storage units15. For storage units, this involves prolonging their lifespan by avoiding premature degradation. Hence, the battery must avoid high currents, overcharging, and deep discharging, whereas the SC should be prevented from overcharging16. Various methods have been suggested in the literature, from conventional or classical methods such as filtration-based control (FBC) and rule-based control (RBC) to intelligent methods.

In Ref.17, a strategy for managing energy in a mobile hospital is proposed. An efficient energy management algorithm is developed to control the power converters and manage the continuous energy flow between the hybrid power system’s components and the mobile hospital load. The loads are classified by priority, the DC bus voltage is successfully kept constant, and the storage devices’ SOCs are made to work within safe limits. However, loads must be disconnected based on the battery’s SOC, which can lead to critical situations and create hazardous environments for patients and staff. This may result in interrupted medical treatments, compromised life-support systems, and an unsafe working environment for healthcare professionals.

In Ref.18, an active distribution system’s energy management and voltage control is suggested, with a PV-battery-SC-diesel generator (DG) microgrid configuration that operates in islanded and grid-connected modes. The method employs a HESS to extract maximum power from PV while preventing the DG from sudden loading. This reduces maintenance concerns and running costs and ensures fuel-efficient operation of the DG. The proposed power management system is tested under various situations, including DG failure and extreme conditions without a DG. However, using a diesel generator to support the DC microgrid can contribute to carbon emissions.

Reference19 introduces a military microgrid’s power flow control technique. The technique increases the battery’s lifetime, controls the SC’s current, and overcomes SC overcharge to keep the system running when it is drained to its lower operational limit. The study provides a sensitivity analysis by linking the HESS control technique and configuration to the system’s economics by examining the annualized cash flow. However, the current gain parameter is crucial for the SC’s ability to switch between discharging and charging modes.

The approach in Ref.20 proposed a HESS-based control and energy management method for multiple operational scenarios. Using a 4th-order polynomial equation, the proposed control effectively distributes power among various sources, regulates the DC link voltage irrespective of generation or load changes, and reduces the battery discharging/charging rate during transient power variation.

Reference21 presents a joint and conceptual strategy for designing and controlling a hybrid renewable energy system with a HESS. The control approach achieves appropriate power balancing and improves dynamic response, DC bus voltage stability, and load voltage/frequency under different weather and load interruption scenarios. However, the battery’s and SC’s SOC levels are not considered, which may result in premature degradation of storage units.

Reference22 suggests an optimal energy management strategy for offshore wind/marine current/battery/SC hybrid renewable system. The suggested control algorithm demonstrates the system’s ability to minimize power loss and voltage fluctuations while managing the charge and discharge states of the battery and ultracapacitor (UC). The proposed algorithm continuously transfers the required power across the hybrid energy storage system to meet load demands consistently. However, the method overlooks the UC’s SOC level, which may result in insufficient UC power for future needs.

In Ref.23, a PV/HESS-based distributed rule-based power management technique with an active compensation technique is proposed. The active compensation technique enhances power smoothing efficiency, reduces SC size, and reduces computational complexity, making it suitable for real-time applications. Additionally, a distributed supervisory control strategy and hybrid dynamic adaptive filter ensure the HESS’s reliable operation and scalability, with agents modeled in a hybrid dynamical framework for efficient control. However, computational complexity still appears, and deactivating the power smoothing filter to regulate SC SOC may result in high-frequency current being allocated to the battery, which may increase battery stress and reduce its lifetime.

A summary of classical energy management methods is given in Table 1.

The literature also reports the utilization of intelligent methods like artificial neural networks (ANN)24,25,26, model predictive control (MPC)27,28,29, fuzzy logic control (FLC)30,31,32, etc., to address the limits of classical methods. However, ANN results depend on training data, MPC requires complex mathematical formulations and high computational burdens, and fuzzy logic’s real-time implementation is challenging.

Table 1 Comparison of classical energy management techniques.
Full size table

To address the abovementioned issues, this paper presents a new and straightforward energy management approach. The method introduces a simple linear battery SOC-based power allocation coefficient for effectively distributing power between the battery and the grid. The proposed scheme is designed to mitigate the intermittence under different operating scenarios, ensure appropriate power flow between sources, regulate the DC bus voltage regardless of the load or generation changes, safely operate the battery and SC, and ensure a seamless transition between operating conditions and scenarios. Moreover, the simplicity of the method enhances its suitability for real-world setups.

The remainder of the paper is structured as follows: Sect. "System configuration" outlines the system configuration. Section "Energy management and control strategies" elucidates the energy management and control strategies. Section "Results and discussion" displays and analyzes the simulation results. The final section offers concluding remarks.

System configuration

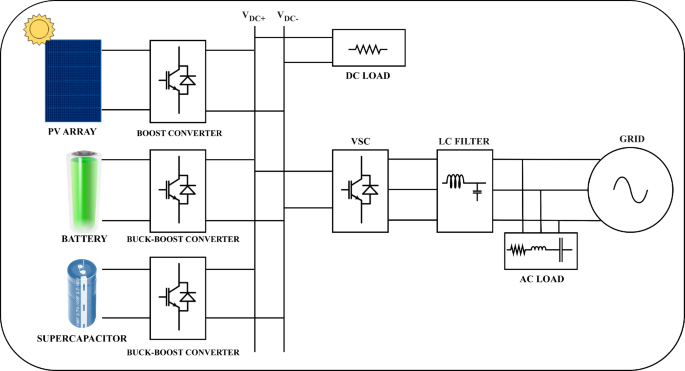

The microgrid configuration under study, shown in Fig. 1, includes a PV source, battery storage, SC storage, and the grid. The PV source is interfaced by a DC-DC boost converter, controlled by the incremental conductance (InCond) maximum power point tracking (MPPT) algorithm, and linked to the DC bus. The battery and SC are connected to the DC link through a bidirectional DC-DC buck-boost converter, enabling bidirectional power flow between the DC bus and the storage units. A three-phase VSC links the DC link to the utility grid. The VSC can act as an inverter or rectifier based on system requirements. The loads are a single-phase DC load and a three-phase AC load.

Fig. 1
figure 1

Proposed microgrid configuration.

Full size image

Energy management and control strategies

PV source control

The widely adopted InCond MPPT algorithm is employed to maximize power extraction from the PV source33. This method involves comparing actual and previous PV voltage and current values and adjusting (increasing or decreasing) the reference duty cycle accordingly. It is straightforward, and the PV source voltage and current are the only inputs required for maximum power extraction.

DC link voltage control and reference currents generation for storage units and the grid

The overall proposed control strategy is depicted in Fig. 2. The microgrid is designed to uphold a power equilibrium between generation and consumption at any instant, regardless of the operating conditions and scenarios, consequently keeping the DC link voltage constant. The following equation expresses this principle:

Fig. 2
figure 2

Overall control strategy.

Full size image
$$\:{\text{P}}_{\text{p}\text{v}}\left(\text{t}\right)+\:{\text{P}}_{\text{b}\text{a}\text{t}}\left(\text{t}\right)+\:{\text{P}}_{\text{s}\text{c}}\left(\text{t}\right)+\:{\text{P}}_{\text{g}}\left(\text{t}\right)=\:{\text{P}}_{\text{t}\text{l}}\left(\text{t}\right),$$
(1)

where, Ppv(t), Pbat(t), Psc(t), Pg(t), and Ptl(t) are instantaneous PV power, battery power, supercapacitor power, grid power, and total load power, respectively.

Taking into account that the total load (DC load and AC load) comprises the average and the transient demand to be absorbed or released by the battery, the SC, and the grid, (1) can be reformulated to obtain (2).

$$\:{{\text{P}}_{\text{t}\text{d}}\left(\text{t}\right)={\text{P}}_{\text{p}\text{v}}\left(\text{t}\right)-\left({\text{P}}_{\text{a}\text{c}\text{l}}\left(\text{t}\right)+\:{\text{P}}_{\text{d}\text{c}\text{l}}\left(\text{t}\right)\right)\:=\text{P}}_{\text{b}\text{a}\text{t}}\left(\text{t}\right)+\:{\text{P}}_{\text{s}\text{c}}\left(\text{t}\right)+\:{\text{P}}_{\text{g}}\left(\text{t}\right)=\:{\text{P}}_{\text{a}\text{v}}\left(\text{t}\right)+\:{\text{P}}_{\text{t}\text{r}}\left(\text{t}\right),$$
(2)

where, Ptd(t), Pacl(t), Pdcl(t), Pav(t), and Ptr(t) denote, respectively, total power demand, AC load power, DC load power, average power demand, and transient power demand.

The strategy for managing the DC link voltage and generating reference currents for storage units and the grid employs the filtration-based approach16. The total reference current (Irt) is obtained from the voltage regulation loop as given by Eq. (3):

$$\:{\text{I}}_{\text{r}\text{t}}\left(\text{s}\right)=\left({\text{K}}_{{\text{P}}_{\text{V}}}+\:\frac{{\text{K}}_{{\text{I}}_{\text{V}}}}{\text{s}}\right)\left({\text{V}}_{\text{r}\text{d}\text{c}}-\:{\text{V}}_{\text{d}\text{c}}\right),$$
(3)

where \(\:{\text{K}}_{{\text{P}}_{\text{V}}}\) and \(\:{\text{K}}_{{\text{I}}_{\text{V}}}\) represent the PI controller (PIV) parameters for the voltage control loop, whereas Vrdc and Vdc are reference and actual DC bus voltages.

By utilizing a first-order low pass filter (LPF), Irt is segregated into two parts: a low-frequency component (average) and a high-frequency component (transient). The following equation expresses this segregation:

$$\:{\text{I}}_{\text{a}\text{v}}\left(\text{s}\right)=\:\frac{1}{1+\text{s}.\text{T}}\:{\text{I}}_{\text{r}\text{t}}\left(\text{s}\right)$$
(4)

where Iav, and T are the average current and the LPF time constant, respectively.

Employing the suggested linear power allocation coefficient (Co) shown in Fig. 3, the battery and the grid share the average current while the SC handles the transient current. The battery (Irbat), the SC (Irsc), and the grid (Irg) reference currents are as follows:

Fig. 3
figure 3

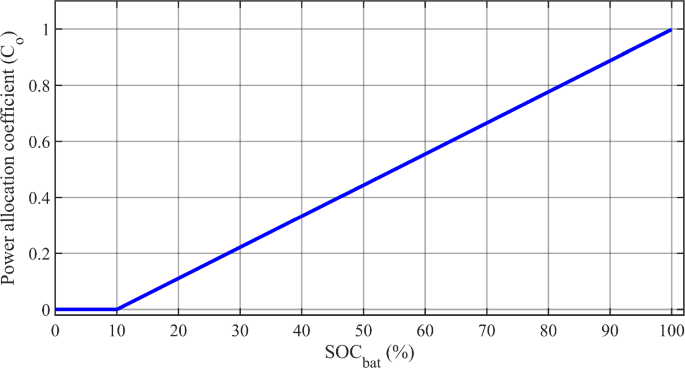

Proposed power allocation coefficient.

Full size image
$$\:{\text{I}}_{\text{r}\text{b}\text{a}\text{t}}\left(\text{s}\right)=\:{\text{C}}_{\text{o}}.{\text{I}}_{\text{a}\text{v}}\left(\text{s}\right),$$
(5)
$$\:{\text{I}}_{\text{r}\text{g}}\left(\text{s}\right)=\left({1-\:\text{C}}_{\text{o}}\right).{\text{I}}_{\text{a}\text{v}}\left(\text{s}\right),$$
(6)
$$\:{\text{I}}_{\text{r}\text{s}\text{c}}\left(\text{s}\right)=\left(1-\:\frac{1}{1+\text{s}\text{T}}\right).\:{\text{I}}_{\text{r}\text{t}}\left(\text{s}\right)\:+\:\frac{{\text{V}}_{\text{b}\text{a}\text{t}}}{{\text{V}}_{\text{s}\text{c}}}\text{*}{\text{I}}_{\text{b}\text{a}\text{t}\_\text{e}\text{r}}$$
(7)

where Vbat, Vsc, and Ibat_er stand for the battery voltage, the SC voltage, and the battery current error. The supplementary term appearing in SC current is used to overcome the slow response of the battery.

The proposed power allocation coefficient is obtained using the following equation in MATLAB software:

$$\:{\text{C}}_{\text{o}}=\text{s}\text{u}\text{b}\text{p}\text{l}\text{u}\text{s}(0.01109375\text{*}\left({\text{S}\text{O}\text{C}}_{\text{b}\text{a}\text{t}}\right)-0.1109375)$$
(8)

PIbat and PIsc generate the pulse signals for the battery and the SC after comparing their actual currents (ibat and isc) to their generated reference currents (irbat and irsc).

VSC control

Figure 4 depicts the VSC control method. The method uses a vector control strategy in which the VSC current (Iabc) controls the exchange of active and reactive power between the DC microgrid and the grid. The Park transformation decomposes the three-phase abc coordinates (Iabc) into dq coordinates (id and iq). The reference phase angle (Θ) for the Iabc transformation is derived using the phase-locked loop (PLL) technique. The resultant currents are compared with their reference values (idr and iqr), and the error signals are fed into the proportional-integral controllers to generate dq reference voltages (Vdr and Vqr). Subsequently, the inverse Park transformation is employed to derive reference 3-phase voltages (Var, Vbr, and Vcr) for generating switching pulses for the VSC. In the dq reference frame, the power exchange between the AC and DC subsystems is controlled by id (for the active power) and iq (for the reactive power). The proposed strategy aims to send only active power to the grid. Therefore, the reference current for the q-axis is set to zero (iqr = 0). Conversely, the reference current for the d-axis equals the current received from the DC subsystem, thus controlling the DC bus voltage.

Fig. 4
figure 4

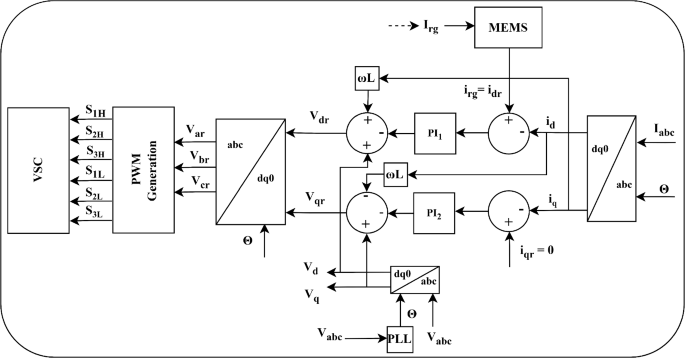

VSC control block diagram.

Full size image

Master energy management system (MEMS)

The MEMS is vital for adequate power flow between the sources and the loads. It collects information from the sources and loads and makes appropriate decisions to ensure adequate power management. The MEMS flowchart is shown in Fig. 5. Two (2) scenarios are envisaged, depending on total power demand (Ptd). Each scenario has four (4) cases depending on the SOCs of the storage units.

Fig. 5
figure 5

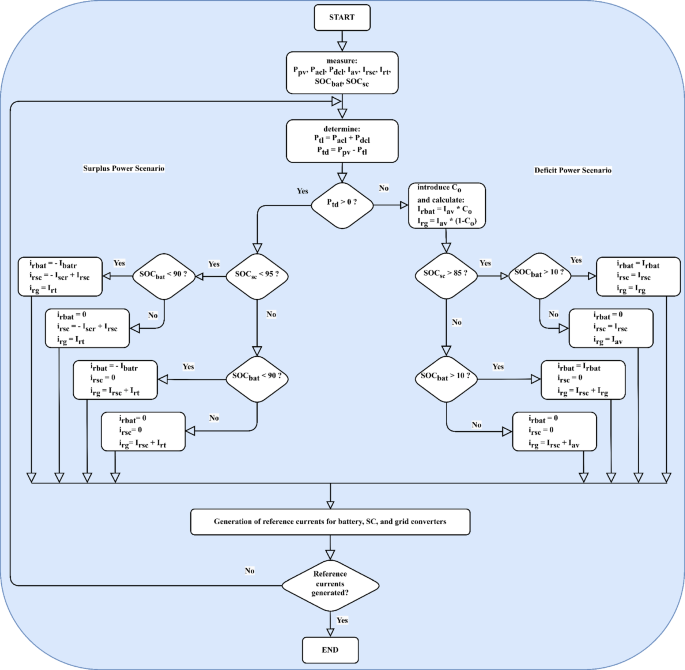

Flowchart of the proposed MEMS.

Full size image

Surplus power scenario (SPS)

Here, the PV power surpasses the total load power (i.e. Ptd is positive). The surplus power is utilized to charge the storage units. Depending on SOC levels and total power demand, this surplus power can also be sent to the grid. Table 2, details the different cases and the corresponding actions and currents. Ibatr (battery) and Iscr (SC) represent the rated charging current of the storage units.

Table 2 Surplus power scenario.
Full size table

Deficit power scenario (DPS)

In this scenario, the PV power falls short of the total load power (i.e. Ptd is negative). The deficit power to be supplied to the loads is divided between the storage units and the grid. Co is introduced, and SOC levels of storage devices are used to allocate power. The cases and corresponding actions and currents are given in Table 3.

Table 3 Deficit power scenario.
Full size table

Results and discussion

All system components were methodically prepared for the simulation, utilizing MATLAB/Simulink. The scenario chosen involves fluctuating solar irradiance conditions while maintaining a constant temperature of 25 °C. Figure 6 provides a visual representation of the solar irradiance profiles. The design parameters for the system are found in Table 4. The proposed system is evaluated for three scenarios: (1) surplus power scenario (SPS), (2) deficit power scenario (DPS), and (3) transition scenario (TS).

Fig. 6
figure 6

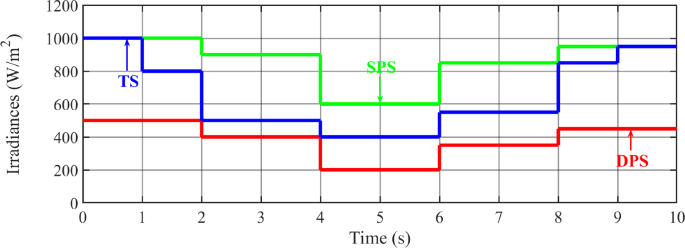

Irradiance profiles.

Full size image
Table 4 Proposed microgrid configuration parameters.
Full size table

Surplus power scenario (SPS)

Figure 7 highlights the results for SPS. The total load remains constant. At the same time, the solar irradiance varies according to the pattern indicated in Fig. 6 (SPS). The PV power is maintained significantly higher than the total load power, and the SOC values are set.

During the initial phase (0 to 2 s), the extra PV power is utilized to charge the storage units at their rated charging current, and the remaining power is transferred to the grid (Pg < 0).

The solar irradiance drops at t = 2s and t = 4s, decreasing the PV power and causing a DC bus voltage deviation. Consequently, the SC reacts by supplying the transient demand, and the grid supplies the average power, keeping the DC bus voltage constant. At the same time, the battery and the SC continue charging.

In the interval (5 to 6 s), SOCbat reaches its maximum safety limit (90%), as shown in Fig. 7c. To prevent it from overcharging, the battery current becomes zero. The SC reacts to this transient phenomenon by absorbing the transient power while the grid handles the average part.

At t = 6s, an increase in solar irradiance boosts the PV power, resulting in another DC bus voltage deviation. SOCbat has already reached its maximum safety limit, so the battery has not taken action. The SC absorbs the transient power, and the grid absorbs the average power, maintaining the DC bus voltage constant. The SC charges, and the grid receives power (Pg < 0).

In the interval time (7 to 8 s), SOCsc reaches its maximum level (95%), as depicted in Fig. 7d. SC charging current is nullified to avoid SC overcharging. The storage units have now hit their maximum safety limits.

Another increase in solar irradiance is observed at t = 8s. As the storage units have reached their maximum safety limits, the grid fulfills the system transient requirement to maintain the DC bus voltage constant while PV extra power is transferred to the grid.

Regardless of the case, the DC bus voltage is kept at 700 V, the frequency is maintained at 50 Hz, and the grid’s unity power factor is maintained, as seen in (e), (f), (h), Fig. 7.

Fig. 7
figure 7figure 7

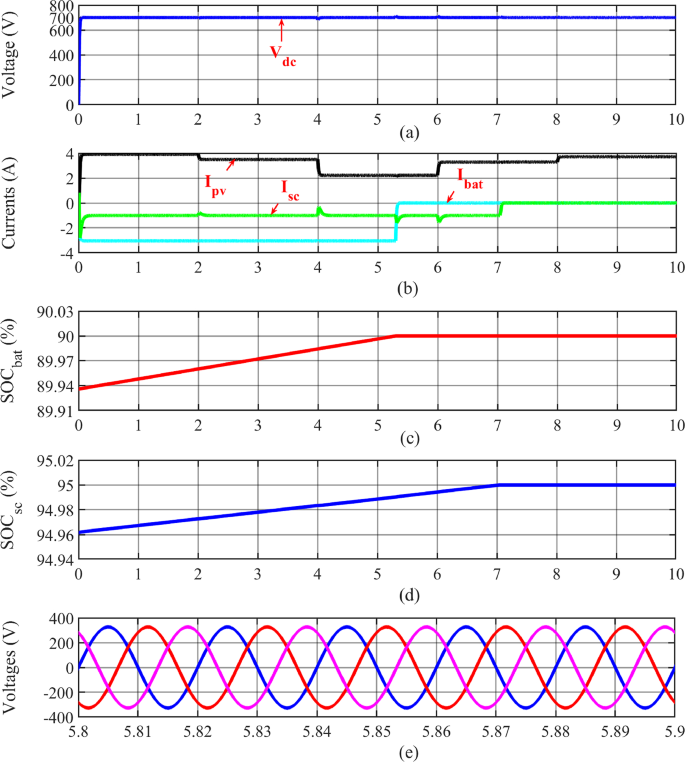

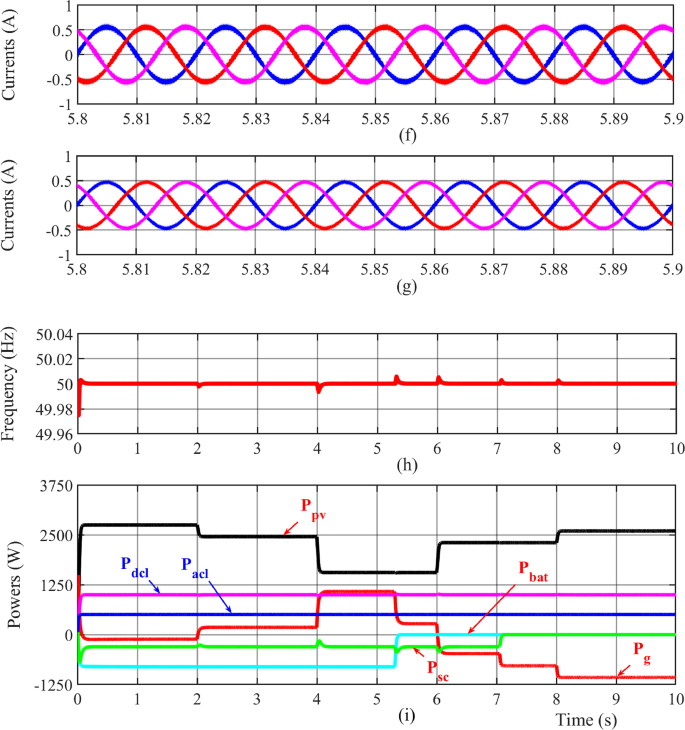

Results under SPS: (a) DC bus voltage; (b) PV, battery, and SC currents; (c) battery SOC; (d) SC SOC; (e) grid voltages; (f) grid currents; (g) inverter currents; (h) system frequency; (i) powers.

Full size image

Deficit power scenario (DPS)

Figure 8 displays the system’s performance under DPS. The total load is kept constant while the irradiance varies following the pattern in Fig. 6 (DPS). SOCbat is set close to its minimum limit (10%) to observe the battery’s deep discharge phenomenon. SOCsc remains above its minimum safety limit (85%) because the SC is not likely to have a deep discharge phenomenon. The PV power is kept lower than the total load power.

During the initial phase (0 to 2 s), the battery and the grid compensate for the deficit average PV power following the power allocation coefficient (Co) scheme.

The irradiance falls at t = 2s and t = 4s, reducing the PV output and causing a DC bus voltage deviation. As a result, the SC responds by meeting transient demand, and the battery and the grid utilize Co to compensate for the average power needed to sustain the DC bus voltage.

SOCbat achieves its minimum level during the time interval (4 to 5 s), as shown in Fig. 8c. Its current is reduced to zero to prevent the battery from deep discharge (Fig. 8b). The SC responds to this transient occurrence by absorbing the fluctuating power while the grid handles the average power.

At t = 6s, an increase in irradiance amplifies the PV power, resulting in another DC bus voltage deviation. The battery SOC has achieved its minimum level; thus, no action is required. The SC and the grid absorb the fluctuating and steady-state powers to keep the DC bus voltage constant.

Another increase in solar irradiance is seen at t = 8s. Because the battery has hit its minimum safety limit, the SC meets the transient demand, and the grid fulfills the system average requirement to regulate the DC bus voltage.

The SC responds to a sudden rise in DC bus voltage by absorbing the transient power and releasing it in case of a sudden drop. The battery and the grid handle the slow responses. (e), (f), (g), and (h) of Fig. 8 show the grid voltages, currents, inverter currents, and the system frequency, respectively. The grid’s unity power factor is maintained, and the frequency is regulated.

Fig. 8
figure 8figure 8

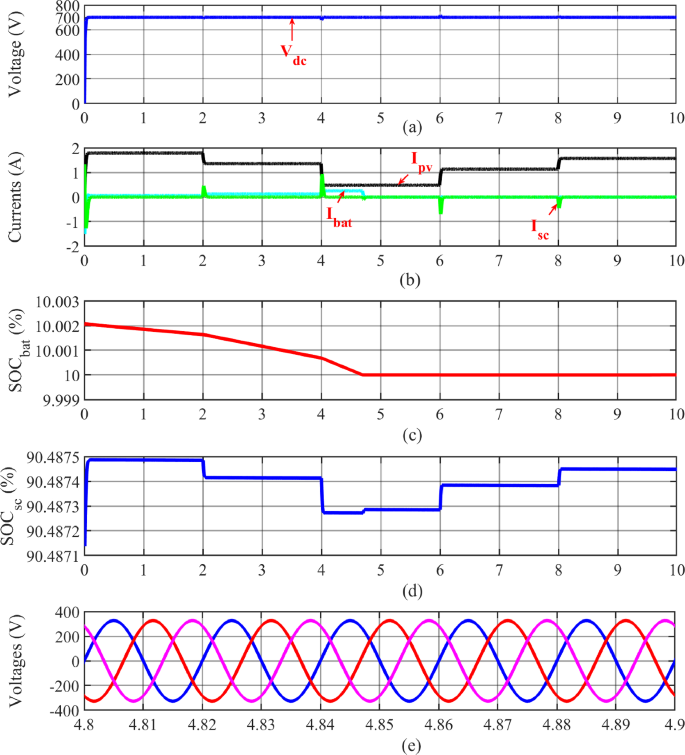

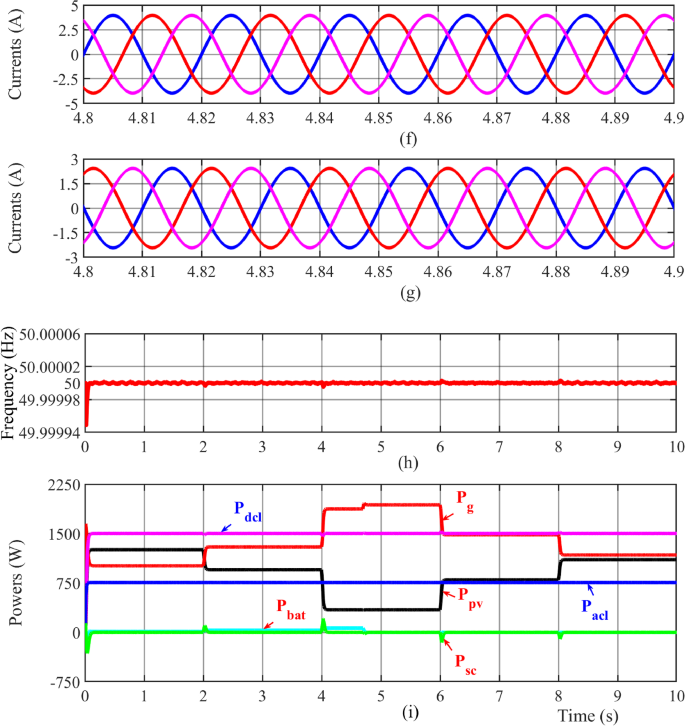

Results under DPS: (a) DC bus voltage; (b) PV, battery, and SC currents; (c) battery SOC; (d) SC SOC; (e) grid voltages; (f) grid currents; (g) inverter currents; (h) system frequency; (i) powers.

Full size image

Transition scenario (TS)

Figure 9 depicts the transition scenario, illustrating two critical transitions: SPS-DPS occurring at t = 2s and DPS-SPS occurring at t = 8s. This scenario showcases the proposed energy management system’s performance during shifts from one operational state to another. Throughout these transitions, the total load power remains constant, and solar irradiance fluctuates according to the pattern shown in Fig. 6 (TS).

At t = 2s, the system smoothly transitions from SPS to DPS, with the battery transitioning from charging to discharging mode and the SC ceasing its charging operation.

Similarly, at t = 8s, the system transitions from DPS to SPS, with the battery transitioning from discharging to charging mode and the SC seamlessly shifting from constant SOC to charging mode.

Notably, these transitions occur without supply interruption, ensuring efficient power allocation and maintaining the DC bus voltage at 700 V and the frequency at 50 Hz while sustaining the unity power factor on the grid side.

Moreover, if the grid is unavailable and there is extra power in the system, the PV should operate in power curtailment mode to maintain power balance. On the other hand, if the system power is deficient, load-shedding techniques should be considered to maintain the system’s power balance.

Fig. 9
figure 9

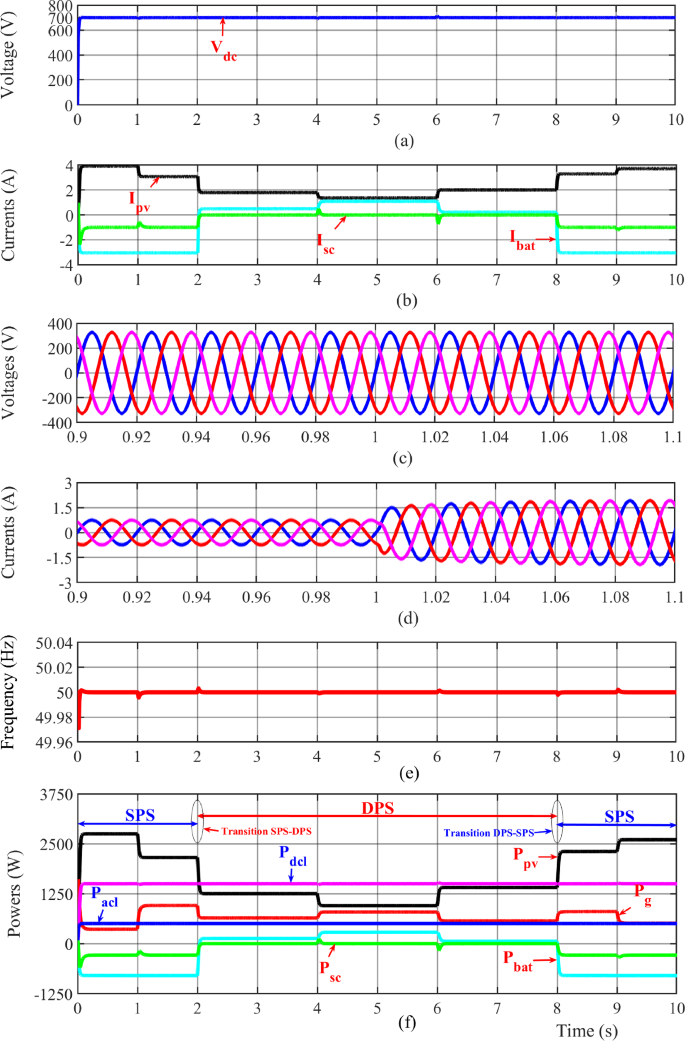

Results under TS: (a) DC bus voltage; (b) PV, battery, and SC currents; (c) grid voltages; (d) grid currents; (e) system frequency; (f) powers.

Full size image

Performance analysis

This section analyzes the performance of the proposed method, highlighting the key findings.

Fast DC bus voltage regulation

Fast DC bus voltage regulation refers to the rapid adjustment and stabilization of the voltage level on the DC bus to its desired setpoint (700 V). This is typically achieved within milliseconds, ensuring minimal voltage deviation during transient conditions and maintaining the power system’s reliable and efficient operation. The DPS scenario is implemented to analyze the system performance. SOCs are within safe operating limits. Figure 10 shows a zoomed view of the results of a step decrease in solar irradiance at t = 4s. Due to that step decrease in solar irradiance, the PV current decreases. The DC bus voltage deviation caused by this disturbance is compensated quickly by the SC (transient demand) and slowly by the battery and the grid (average demand). The results show that the grid currents and voltages are in phase, ensuring the unity power factor. In Fig. 10c, the total harmonic distortion measured in the grid current is less than 2%. The system performance indexes are shown in Table 5.

Fig. 10
figure 10

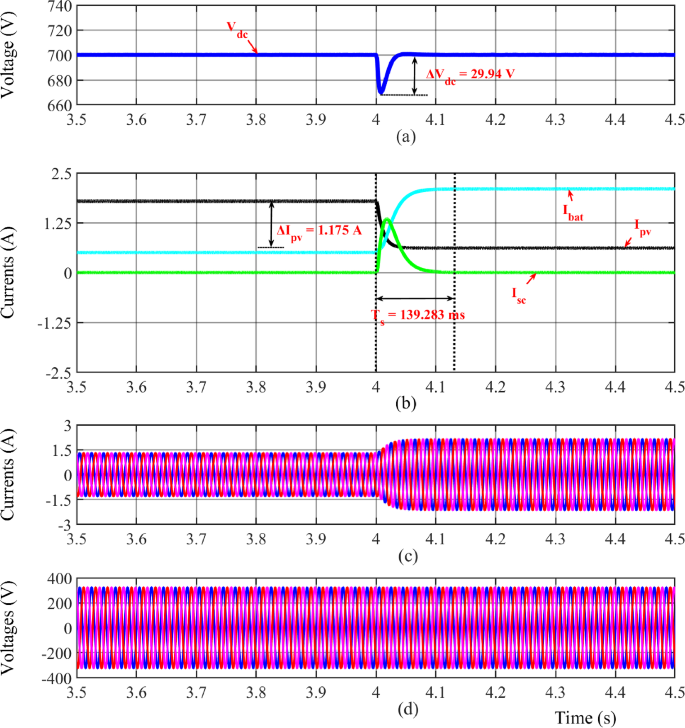

Zoomed view of transient performance: (a) DC bus voltage; (b) PV, battery, and SC currents; (c) grid currents; (d) grid voltages.

Full size image
Table 5 System transient performance.
Full size table

Overall performance analysis

The performance analysis can include many key factors depending on the study’s objectives. Based on our research goals, four (4) specific factors are analyzed and compared to previous works: (i) effective power sharing, (ii) stability (voltage, frequency, and transient), (iii) safe operation of storage units, (iv) total harmonics distortion (THD).

Effective power-sharing refers to the optimal distribution of generated power among various energy sources and loads, maintaining the balance between generation and consumption and ensuring stable and reliable operation across all operating scenarios. It is essential for the seamless functioning of DC microgrids, especially when integrating multiple distributed energy resources.

Stability refers to the system’s ability to maintain a steady state and operate reliably under normal and abnormal conditions. Stability ensures that the microgrid can sustain its voltage, frequency, and overall power quality within acceptable limits when subjected to various disturbances, such as changes in load, generation fluctuations, and other transient events. It shows the robustness of the control method. In our context, voltage, frequency, and transient stability are considered for the analysis.

Safely operating storage units involves preventing their premature degradation. The battery and SC should operate within safe limits, and high currents should not be allocated to the battery. These measures can potentially extend the lifetime of the storage units.

Total harmonic distortion (THD) is a crucial power quality metric that quantifies the level of distortion in a signal caused by harmonics. High THD can result in inefficiencies, overheating, and potential damage to electrical systems. Hence, maintaining low THD is vital for system power quality, reliability, and equipment longevity.

Table 6 provides a performance comparison between the proposed method and previous studies based on the four (4) analyzed factors.

Based on the results in Figs. 7, 8, 9 and 10, the proposed energy management scheme successfully shares power between sources and loads while maintaining energy balance. Additionally, it ensures that voltage and frequency are kept within acceptable ranges, storage units are safely operated, and THD is maintained very low. Moreover, the method’s simplicity enhances its suitability for real-world applications, making it a practical solution for DC microgrid systems. It can be concluded that the proposed energy management scheme is highly effective in several key areas. These outcomes indicate that the method is reliable, efficient, and capable of optimizing the overall performance and stability of DC microgrids. Our proposed method overtakes the drawbacks of existing methods. Future works will include real-world implementation and control involving multiple renewable energy sources.

Table 6 Performance comparison.
Full size table

Conclusion

This research presents an effective energy management technique for a grid-interactive microgrid and battery-SC HESS. The proposed technique is analyzed under different scenarios with changes in loads and generation. The findings reveal that the proposed energy management approach facilitates adequate power management, reduces battery stress, regulates the DC bus voltage, safely operates energy storage elements, and ensures a smooth transition between different scenarios, regardless of operating conditions. In addition to its simplicity, the method has also shown an improvement in power quality features by maintaining a unity power factor for the AC grid. Future research will focus on practical implementation and control involving multiple renewable energy sources.
