Introduction

The proapoptotic protein Baxα causes mitochondria-mediated cell death by forming an oligomer-pore ring on the mitochondrial outer membrane1,2,3,4. Bax∆2, an alternatively-spliced Bax isoform, cannot target mitochondria, due to the lack of the targeting helix coded by exon 25,6. Instead, it forms cytosolic protein aggregates that recruit and activate caspase 8, triggering mitochondria-independent apoptosis7,8,9. Bax∆2 protein levels in normal human organs are low, with 1 ~ 5% of positive cells, which appears scattered in the connective tissues10,11,12. Bax∆2 protein is unstable in cancer cells due to their elevated proteasomal degradation13 and it is rarely detected in highly malignant tumors11. On the other hand, Bax∆2 aggregates are readily detected in the brain of Alzheimer’s disease (AD) patients, especially in AD-susceptible affected regions, with up to 30% of neurons being Bax∆2-positive in AD patient’s frontal lobes14. We also showed that the presence of Bax∆2 aggregates in neurons can trigger the formation of stress granules (SGs), a large protein-RNA complex implicated in many neurodegenerative diseases15,16. Bax∆2 interacts with SGs via its C-terminal end, the same region involved in its interaction with caspase 8 in cancer cells9,14. As a result, the Bax∆2-mediated neuronal cell death is dependent on SGs but not on caspase 814.

Alternative splicing is highly associated with AD progression17,18,19. For example, RBFox is involved in regulation of the alternative splicing of APP exon 7 leading to the production of APP695, which increases beta-amyloid release18,20. Alternative splicing of MAPT exon 10 can cause imbalanced tau protein production, promoting tau protein aggregation21,22. Our previous studies also found that 85% of AD patients presented exon 2 alternative splicing, which is required to produce Bax∆214. Alternative splicing events are common within the Bax family, giving rise to many Bax isoforms23,24,25,26. However, alternative splicing of exon 2 alone leads to a reading frameshift and premature termination5,6. Intriguingly, such premature termination can be avoided by a mononucleotide deletion, which offsets the out-of-frame shift at the beginning of exon 3, restoring the remaining sequence equal to Baxα, including all critical domains for dimerization, oligomerization, and pro-death function1,2,3. The above mentioned mononucleotide deletion often occurs in the Bax microsatellite, a stretch of eight guanine (G8) repeats that is often subjected to mutations. The G8-to-G7 mutation is commonly detected in cancer patients with microsatellite instability (MSI)6. Furthermore, such stretch of nucleotide repeats is highly susceptible to alterations during the transcription and translation, such as transcriptional slippage and translational ribosomal frameshift27.

Transcriptional slippage occurs when the RNA polymerase stops or stalls during DNA transcription, often in regions with repeat sequences27. The polymerase often “slips” and skips part of the sequence, either forward or backward27. Ribosomal frameshift (RFS) happens during translation; the ribosome stalls and skips one nucleotide either forward (+ 1RFS) or backward (-1RFS), subsequently translating the protein in a different reading frame27,28,29. The ribosomal frameshift mechanism is commonly used by viruses to generate different proteins using limited sequences30. However, only a few human genes have been described to use a similar mechanism to regulate protein levels in response to specific cellular signals30,31,32. Antizymes are the representative example, as intracellular polyamine levels function as a molecular switch to turn on or off a + 1RFS for read-through antizyme translation32,33,34,35. It is also known that + 1RFS can contribute to the aberrant forms of beta-amyloid precursor protein APP+1 in AD and other neurodegenerative diseases27,36,37. In this study, we identified RFS as an alternative mechanism for producing Bax∆2 protein, replacing the Bax G8-to-G7 microsatellite mutation. This RFS-generated alternative isoform is named as Bax∆2(G8)-RFS (Genebank Accession# PP524759) to distinguish the original Bax∆2 isoform, which we updated the GeneBank annotation and renamed as Bax∆2(G7)(Genebank Accession# JX524562.1).

Results

The G7 microsatellite mononucleotide deletion is not essential for Bax∆2 expression

We recently detected a significant increase in Bax∆2 protein levels in the brains of Alzheimer’s disease (AD) patients14. The Bax∆2(G7) has a G8-to-G7 mononucleotide deletion, predominantly detected in MSI cancer patients5. However, it was not clear whether such a “G8-to-G7” mutation is common in AD patients. To explore whether the mechanism driving Bax∆2 production in AD parallels that observed in cancer, we performed a comprehensive analysis at both RNA and protein levels using samples (RNA, fresh-frozen tissue, and formalin-fixed paraffin-embedded tissue slides) obtained from the brain of an 85-year-old female AD patient. At the protein level, immunostaining of the frontal lobe tissues detected strong Bax∆2-positive cells in the neurons of the AD patient, but not in the control neurons (Fig. 1a), consistent with what we observed previously14. Bax∆2 protein was also distinctly detected in the AD brain fresh-frozen tissue through immunoprecipitation using anti-Bax antibody (P19, the epitope shared by both Baxa and Bax∆2) followed by immunoblotting with anti-Bax∆2 antibody (2D4, the epitope is specific for Bax∆2 but not Baxα10,11,14) (Fig. 1b). To examine Bax exon 2 splicing, the RT-PCR result showed a smaller gel band compared to the Baxα control, but of a similar size to the Bax∆2 control, suggesting the possibility of the exon 2 deletion. The sequencing analysis confirmed the exon 2 splicing and the microsatellite poly G mutations in this patient (Fig. 1c, Supplementary Fig. 1c and d). We previously detected that a striking high rate (85%) of AD patients exhibit Bax exon 2 alternative splicing using the ROSMAP AD brain RNA-seq dataset (ID: syn8612097)14. Upon further investigation of the Bax microsatellite status in the same AD RNAseq pool, it was revealed that only 5% of Bax transcripts with the exon 2 alternative splicing harbored the microsatellite G7 mutation (Fig. 1d, Supplementary Fig. 1d). These results indicate that the low rate of G7 mutation is inconsistent with the Bax∆2 protein levels detected in the clinical samples14, since Bax∆2(G8) results in premature termination unless rescued by G8-to-G7 deletion to generate viable isoform, Bax∆2(G7) (Fig. 1e). Therefore, other alternative mechanisms that allow the production of Bax∆2 protein in the context of AD should be considered. Here we propose one possible mechanism via ribosomal frameshift (RFS), which can substitute the “G8-to-G7” mutation in production of an alternative Bax∆2 isoform, Bax∆2(RFS) (Fig. 1e).

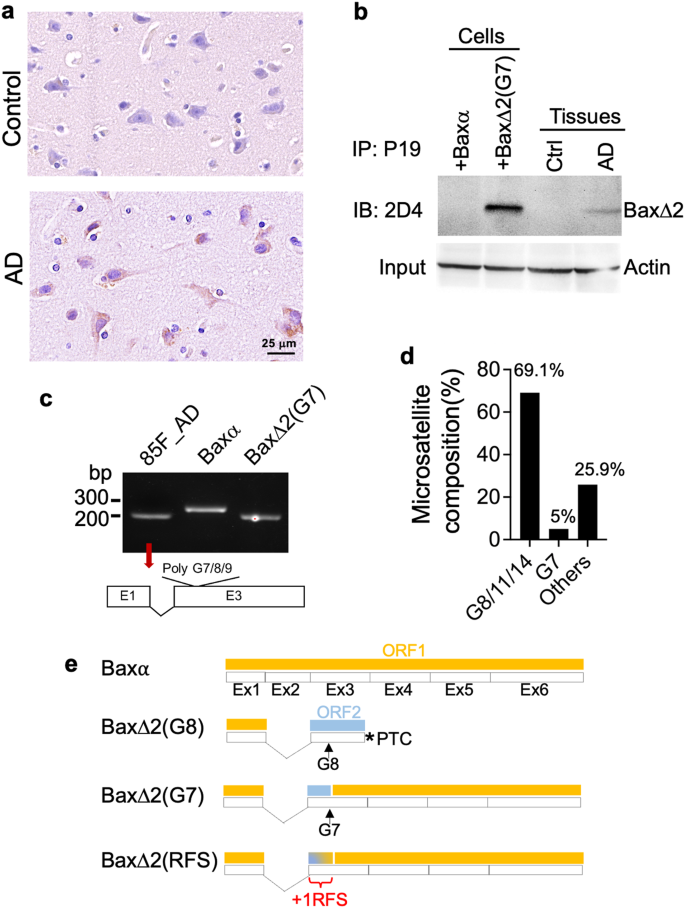

Figure 1
figure 1

Bax G7 microsatellite mononucleotide deletion is not essential for Bax∆2 expression. (a) Human brain frontal lobe tissue was immunohistochemically stained with 2D4 (anti-Bax∆2 antibody). Images were from two individuals (a 54-year-old male control subject and an 85-year-old female AD subject). Scale bar, 25 µm. (b) HT22 neuronal cells transfected with Baxα or Bax∆2 as controls and tissues from the same subjects in (a) were subjected to immunoprecipitation (IP) with anti-Bax antibody P19. The immunocomplexes were analyzed by immunoblotting (IB) with 2D4. Actin levels were used as an input control. The blot was cut prior to the hybridization. Original blots are shown in Supplementary Fig. 1a. (c) Total RNAs ofAD tissue and cells from (b) were subjected to RT-PCR. The Bax transcripts covering exon 1-3 were detected by gel electrophoresis. The arrow indicates the exon 2 splicing and the percentages of microsatellite poly G composition. Original gel is shown in Supplementary Fig. 1b. The sequence and the microsatellite poly G status are shown in Supplementary Fig. 1c and d, respectively. (d) Quantitation of the poly G microsatellite mutations within the AD RNA-seq dataset examined (n = 327). G8/11/14: G8, G11, and G14 have the same reading frame. (e) Schematic representation of reading frames for Baxα, Bax∆2(G8), Bax∆2(G7), and proposed Bax∆2(RFS) (ribosomal frameshift) isoform. PTC, premature termination codon; Ex, exon; ORF, open reading frame.

Full size image

Ribosomal frameshift is an alternative mechanism to produce Bax∆2 protein

To investigate if a + 1RFS compensates the G8-to-G7 microsatellite mutation in the production of Bax∆2 in the context of AD, we performed the well-established ribosomal frameshift dual-luciferase assay38. Two luciferases at 5’ and 3’ ends were in-frame fused with a pre-spliced Bax∆2 variant (exon 1 to exon 3) with either G7 or G8 microsatellite (Fig. 2a). The Bax∆2 (G8, E1-3) construct would be out-of-frame, resulting in premature termination unless a + 1RFS occurs, allowing for translation through the luciferase at the 3’ end (F luc, Fig. 1a). As a control we used Bax∆2(G7,E1-3), an in-frame construct that can translate through without the need for a frameshift. The vector alone was used as a negative control. Out-of-frame Bax exon 4, which has a similar length to the pre-spliced E1-3 contruct, was used as a mock control. All constructs were subjected to cell-free in vitro transcription/translation (IVTT) assay. The results showed that translational read-through rate of Bax∆2(G8,E1-3) was significantly higher than the vector and E4 mock control (Fig. 2b). To verify this in a cellular system, we used a dual-tagged construct that allowed detection of the N- and C-terminus through immunofluorescence staining (Fig. 2c). The N-terminal Flag-tag and C-terminal HA-tag were fused with a Bax∆2 construct consisting of exons 3–5 with G8 microsatellite(G8,E3-5). Bax∆2(G7,E3-5) construct served as the in-frame control. Of note, the N-terminus (encoded by exon 1) was removed due to its instability, often resulting in the loss of the Flag-tag required for detection (Supplementary Fig. 2a and b). The C-terminus (encoded by exon 6) was also removed to reduce cytoxicity7. Expression of these constructs was tested in transfected neuronal HT22 cells. In the G7 control, double-positive cells were readily detected, as no frameshift was needed. For the G8 construct, the presence of double-positive cells indicated that + 1RFS indeed occurred, allowing for read-through. However, we were unable to do a reliable quantitative analysis due to the weak signals and low number of double-positive cells. To further confirm the expression of the complete protein, we expressed Bax∆2(G7 or G8,E3-5,) constructs in HT22 neuronal cells and immunoblotted with N-terminal Bax∆2 specific 2D4 and C-terminal HA antibodies (Fig. 2e). The results showed that the Bax∆2(G8,E3-5) was detected by both N-terminal and C-terminal antibodies (Fig. 2f) with 27% of read-through rate (Fig. 2g). Combination of the results from three different assays confirmed that + 1RFS can occur and compensate the lack of G7 mutation in the production of Bax∆2 protein.

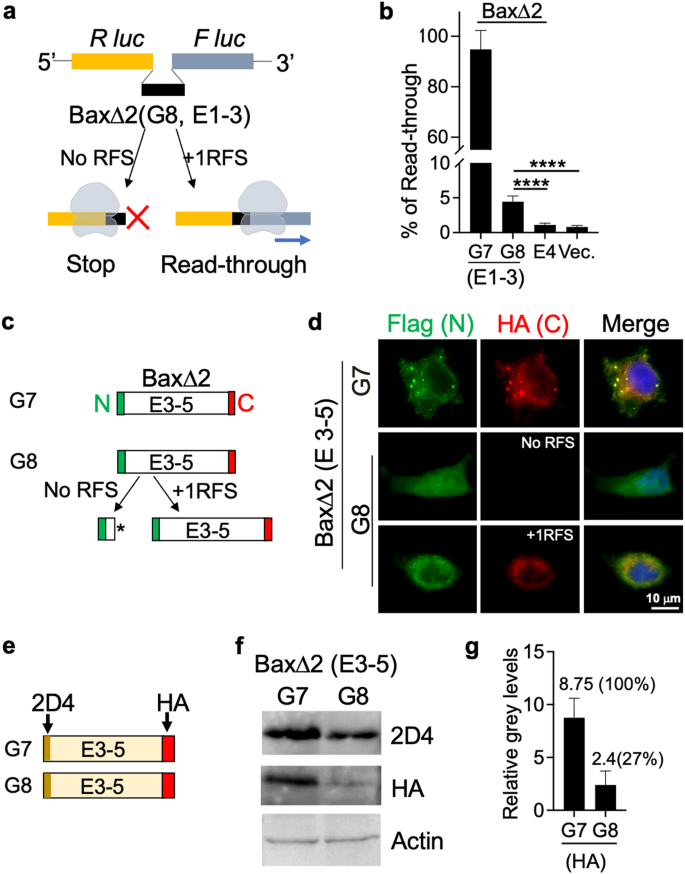

Figure 2
figure 2

Ribosomal frameshift serves as an alternative mechanism for Bax∆2 protein production. (a) Diagram indicating the possible outcomes of dual-luciferase assay with or without frameshift. E1-3, Bax∆2 exon 1 and 3 with G8 microsatellite; R luc, Renilla luciferase; F luc, firefly luciferase. (b) Dual-luciferase activities from in vitro transcribed/translated products from (a); controls: E4, Bax∆2 exon 4 (out of frame); Vec., empty dual-luciferase vector (out of frame). Statistical significance was calculated with one way ANOVA followed by Tukey’s multiple comparisons test. Error bars represent standard deviation (SD). ****, p < 0.0001. (c) Diagram of reading frameshift assay with two-tagged constructs (N-terminal Flag tag, green, and C-terminal HA tag, red). E3-5, Bax∆2 exon 3 to 5. (d) Immunofluorescence staining of HT22 cells transfected with the two-tagged constructs indicated in (b). Scale bar, 10 mm. (e)Diagram of constructs and antibodies used to detect reading frameshift through immunoblot. Antibody recognition sites were labeled on the top. (f) Immunoblotting of HT22 cells transfected with antibodies indicated; Original blots are shown in Supplementary Fig. 3; (g) quantitation of the intensity (grey scale) of bands from three independent HA immunoblots. The percentage of read-through was calculated with G7 control as 100%. Error bars represent SD. The quantitation of the bands for 2D4 antibody is shown in Supplementary Fig. 3e.

Full size image

Bax∆2 ribosomal frameshift appears to rely on RNA structure rather than primary microsatellite sequence

In the original Bax∆2(G7) isoform, the microsatellite G8-to-G7 mutation is required and it is the site where the shifted reading frame caused by exon 2 splicing is restored5,6. We hypothesized that the same site at the microsatellite could serve as the + 1RFS site, as the stretch of guanine repeats is susceptible to ribosomal stalling and slippage, and the RNA/protein structure and microsatellite-downstream sequence could also influence this process27. To test this hypothesis, we generated three mutants of the Bax∆2(G8,E3-5) construct: mutant (mt1), introducing a small alteration to the microsatellite consecutive poly G; mt2 replacing the potential frameshift region within and beyond the microsatellite; and mt3 disrupting only the microsatellite (Fig. 3a). The immunoblot results showed that full translation still occurred in mt1, suggesting the repetitive stretch of poly Gs is not essential for + 1RFS (Fig. 3b). However, both mt2 and mt3 failed to translate through, suggesting + 1RFS was impaired. Of note, the mt1 (from ggg ggg gga to gga gga gga) disrupts the polyG repeat but does not alter the amino acid sequence (both WT and mt1 code for Gly Gly Gly). On the other hand, mt3 not only disrupts the polyG repeat but also changes the amino acid coding (from Gly Gly Gly to Ala, Ala, Ala). The combined results from mt1 and mt3 suggest that the primary polyG sequence may not be critical. Instead, the frameshift process may be influenced by mutation-induced changes in RNA sequence, and/or by the change in the amino acid sequence caused by the mutation. Given that ribosomal frameshift often relies on RNA structure27, we also predicted the RNA structures for all these mutants. We found that the local RNA structures of the failed mutants were dramatically different. Mt1 was able to maintain a similar stem structure as the control (ctrl), whereas mt2 and mt3 showed altered the stem structure with additional hairpin loops (Fig. 3c). These results suggest that the poly-guanine stretch repeat of the microsatellite is not essential for the Bax∆2 ribosomal frameshift. Instead, it appears that the local RNA structure and/or amino acid sequence could be critical for + 1RFS to produce Bax∆2 protein in the absence of the G7 mutation.

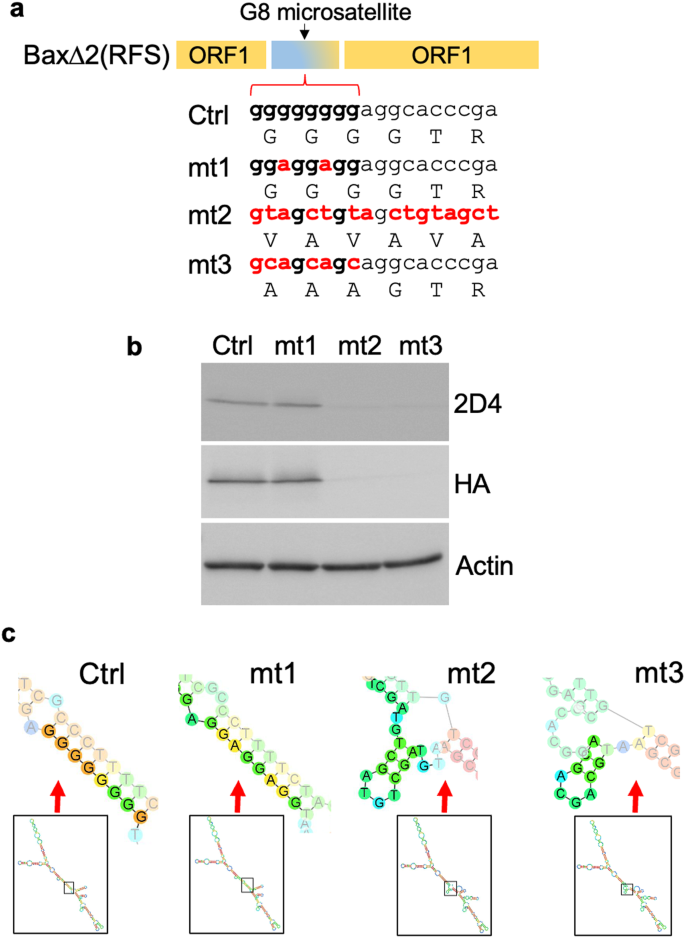

Figure 3
figure 3

Bax∆2 microsatellite poly G sequence is not essential for ribosomal frameshift, but its RNA structure potentially dictates the frameshift. (a) Comparison of the Bax∆2 microsatellite regions among control (ctrl), mt1, mt2, and mt3. Microsatellite sites were bold, mutated nucleotides were colored as red. Translated amino acid sequences are listed below nucleotide sequences. (b) Immunoblotting of HT22 cells transfected with the constructs indicated in (a) using antibodies indicated (all constructs used here are based on Bax∆2 E3-5 in Fig. 2e). The original blots and replicated blots are shown in Supplementary Fig. 4. (c) RNA structure prediction of Bax∆2 microsatellite regions (arrow indicated enlarged region) in (a) and (b).

Full size image

Bax∆2 ribosomal frameshift occurs at a site 15 base pairs upstream of the microsatellite

As both the Bax∆2 specific antibody (2D4) and the general Bax antibody (D2E11, against Leucine shared by both Baxa and Bax∆2) can recognize the frameshifted Bax∆214,39, this indicated that the + 1RFS site is located within the sequence region coding for the 16 amino acids between these two antibody’s recognition epitopes (Fig. 4a). We predicted all possible outcomes from the + 1RFS in this region (Fig. 4a). To pinpoint the exact frameshift site, we performed immunoprecipitation-mass spectrometry (IP-MS) to enrich targeted proteins. HT22 neuronal cells were transfected with Bax∆2(G8,E3-5) tagged with HA at the C-terminus and immunoprecipitated with anti-HA antibody covalently conjugated to agarose beads (Fig. 4b). The immunocomplex proteins were eluted from the beads and validated by both co-immunoprecipitation-immunoblot (Fig. 4c) and Coomassie staining (Fig. 4d). The results showed that the frameshifted Bax∆2 proteins were pulled down and purified with minimal contamination. The eluted sample was subjected to MS analysis and the results showed a clear separation and signal intensity, with the best hit showing 87% sequence coverage under 1% False Discovery Rate threshold for peptide and protein filtering (Supplementary Fig. 4c). The + 1RFS site was identified at the adenine 15 base pairs upstream of the G8 microsatellite (Fig. 4a indicated by an asterisk). This new Bax∆2 is named Bax∆2(G8)-RFS (GenBank accession number PP524759). As a result, the peptide SSRAN in the original Bax∆2(G7) isoform is changed to RAGRM in Bax∆2(G8)-RFS (Fig. 4e). The rest of the protein sequence remains the same, including the critical epitope for the 2D4 antibody. These results provide conclusive evidence that Bax∆2(G8), initially anticipated as a premature truncated form, can produce a functional Bax∆2 protein using the + 1RFS mechanism in neuronal cells.

Figure 4
figure 4

Bax∆2 ribosomal frameshift occurs at the upstream nearby the microsatellite. (a) Predictions of potential Bax∆2 post-frameshifted amino acid reading frames (new reading frames were labeled as red). The antibody recognition sites for 2D4 and D2E11 were labelled. (b) Diagram of the immunoprecipitation (IP) procedure for mass spectrometry (MS) sample preparation. HT22 cells were transfected with Bax∆2(G8,E3-5) with HA tagged at the C-terminus. The cell lysate was pulled down with agarose beads conjugated with HA antibody. (c and d) Validations of the IP pull-down samples by immunoblotting (c) and Coomassie blue staining (d) Original gel and blot are shown in Supplementary Fig. 4b. (e) Sequence comparison between Bax∆2(G7) and Bax∆2(G8)-RFS isoforms covering their distinguished amino acid sequences (in red); the frameshift site (+1RFS) is marked below the sequence and an asterisk in (a). The full mass spectrometry Bax∆2 amino acid sequence is shown in Supplementary Fig.4c.

Full size image

Discussion

Ribosomal frameshift occurs during translation when the ribosome “skips” one nucleotide either forward (+ 1) or backward (-1). This mechanism is very commonly used in viruses and bacteria for generating multiple proteins from a single gene27,28,29,30. Ribosomal frameshift events generally require a signal to stop or stall the ribosome during translation27. Bax exon 2 alternative splicing could cause a change in the RNA structure, which may fulfill the signal requirement for the + 1RFS. It is well-known that the mechanism underlying − 1RFS is generally signaled by RNA superstructure27, while + 1RFS is less known. Evidence showed that RNA structure and RNA/amino acid interactions at the ribosome exit tunnel can control + 1RFS27. This led us to wonder if the reading frameshift might depend on, at least in part, local RNA structure. Our results in manipulating the microsatellite region (Fig. 3) supported this notion. Structural changes that affect RNA structure can be caused by multiple factors, which may be generated during AD development. Further work is needed to identify the factors including both cis and trans factors, which can influence the RNA structure that promote this + 1RFS.

One limitation of our study is that the results presented here may not fully reflect the in vivo intracellular conditions and environment. Due to the limitations of the size-efficiency of the dual tag assay systems and Bax∆2 instability and cytotoxicity, we had to use truncated constructs. The C-terminus coded by exon 6 was removed due to its cellular toxicity. We have previously shown the a9 helix is responsible for activating both caspase-8 and stress granule-mediated cell death8,9. The N-terminal region encoded by exon 1 was also removed from most experiments since it is highly unstable and can get easily cleaved and degraded during the experiments, leading to loss of detection of the N-terminal tag (Supplementary Fig. 2). Although the remaining core region coded by exon 3–5 was sufficient for us to demonstrate the frameshift site, we noticed that its ability to form protein aggregates was weaker than the original Bax∆2(G7) (Fig. 2d) for an unknown reason. We also noticed smaller bands below the predicted-size band on the Bax∆2(G8,E3-5) blots (Supplementary Fig. 3). Although the reasons are unclear, this is likely due to the instability and degradation of the truncated proteins detected by the C-terminal HA antibody. It is unlikely to be caused by internal initiation, as we did not observe similar phenomena in the case of the Bax∆2(G8, E1-5) construct (Supplementary Fig. 2).

Microsatellite mutations are well-documented in cancer patients with microsatellite instability (MSI-H), which have defects in the mismatch repair system, about 90% of hereditary nonpolyposis colorectal cancers (HNPCC) have Bax microsatellite mutations40. Other than that, about 15% of cells in tumors and 5% in normal tissues contain the Bax microsatellite G7 mutation5,11. However, the prevalence of microsatellite instability and the mutation rate of Bax are less explored in neurodegenerative diseases, such as Alzheimer’s disease. Our previous work showed that the G7 microsatellite mutation rate was about 5% in AD14. Intriguingly, the length of the Bax microsatellite repeat in the AD samples varied widely from G7 to G11 (Supplementary Fig. 1d and e). Most of these transcripts will result in outframe and premature termination unless a ribosomal reading frameshift occurs to restore the reading frame, for example G8, G11, and G14 need + 1RFS, and G9 and G12 need − 1RFS. Future work should address the possibility of a -1RFS for Bax∆2 in neurons. In conclusion, our work shows that ribosomal frameshift provides flexible alternatives to ensure the production of Bax variants regulated at the translational level. Such flexible alternatives provide an even greater “plasticity” for the Bax family members to excel in their pro-death function under various cellular contexts and conditions.

Methods

Materials and reagents

Postmortem human brain formalin-fixed paraffin-embedded tissue sections were obtained from BioChain. There was no live human subject involved in this study and the using of these human tissues in this study was exempted by the Institutional Review Board (IRB) at the Illinois Institute of Technology (Legacy-IRB-2019-017). Antibodies against Bax (D2E11), HA, and Flag were purchased from Cell Signaling Technology; Bax (P19, recognizing both Baxa and Bax∆2) was purchased from Santa Cruz Biotechnology; anti-HA agarose was purchased from Thermo Fisher Scientific. The Bax∆2 monoclonal antibody (2D4) was generated previously against the sequence GFHGSSRANG, which is unique to Bax∆2, and was well characterized with no cross-reactivity with Baxα in either immunostaining or immunoblotting10,11,14,39. The murine hippocampal neuronal cell line HT22 was obtained from Kerafast, Inc, Shirley, MA. The pSGDluc vector was a generous gift from Dr. JF Atkins (The University of UTAH). All methods used in this study were carried out in accordance with relevant guidelines and regulations.

Cloning of Bax∆2 truncated and mutant constructs

The Bax∆2 truncated constructs were generated through PCR-based cloning using Bax∆2 as a template. Bax∆2 truncated constructs: the first 190 bp of Bax∆2 cDNA, comprising exons 1 and 3 (E1-3) with either the G7 or G8 microsatellite or Bax∆2 exon 4 (171 bp’s) were cloned into the dual-luciferase pSGDluc vector for luciferase assay. Bax∆2(G7,E3-5) and Bax∆2(G8,E3-5) with C-terminal Flag-tag or/and N-terminal HA-tag were cloned into pcDNA3.1 vector for immunoblotting and immunostaining. Microsatellite mutant constructs as indicated in the text were generated by fusion PCR. All constructs were verified by DNA Sequencing. All constructs used in this study were listed in Supplementary Fig. 5.

Cell culture and transfection

HT22 murine hippocampal neuronal cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% fetal bovine serum (FBS). For transfection, cells were seeded in 6-well plates and grown to approximately 60% confluence before being transfected with Bax∆2 truncated constructs using Lipofectamine 3000 reagent, sourced from Invitrogen (Waltham, U.S.). Cells were then incubated for the appropriate time corresponding to each experiment needs indicated in the text before downstream analysis.

Immunostaining and immunoblotting

Immunohistochemical staining of tissue slides with anti-2D4 antibody was performed the same as for previous publications11,14. Stained slides were scanned using a CRi Pannoramic Scan Whole Slide Scanner at the Integrated Light Microscopy Core Facility at the University of Chicago, and visualized using Pannoramic Viewer 1.15.2. For immunofluorescent staining, transfected cells on glass cover slides were stained with primary antibodies 2D4 (1:100), HA (1:100), or Flag (1:100) as described previously11,14. Fluorescent images were obtained using a Keyence BZ-X710 All-in-One Fluorescence Microscope and analyzed by ImageJ v1.52d. Immunoblotting was performed as described previously11,14 with the following antibody specification for antibody dilutions (D2E11 1:1000; 2D4 1:200; HA 1:1000; Flag 1:1000; or actin 1:3000).

In vitro transcription and translation and dual-luciferase assay

In vitro transcription-translation (IVTT) assay was performed using TnT Quick Coupled Transcription/Translation System by Promega. The reaction was incubated for 90 min at 30 ºC. The IVTT products were immediately used for the luciferase assays using the Dual-Glo luciferase assay kit (Promega) and activities were measured by GloMax 20/20 Luminometer (Promega) according to the manufacturer’s instruction38.

RNA isolation and sequencing

Total RNA was isolated from frozen tissue samples (Biochain) using the PureLink RNA Mini Kit (Life Technology) according to the manufacturer’s instructions. The total RNAs were reversely transcribed to cDNAs using ThermoScript RT-PCR System (Invitrogen). The Bax transcripts were amplified from cDNAs with Bax primers to detect both Bax and Bax∆2, 5’-ATG GAC GGG TCC GGG GAG CAG − 3’ (forward), and 5’-GTC CAC GGC AAT CAT CCT CTG C -3’ (reverse). PCR products were separated through gel electrophoresis and sequenced at the University of Chicago Comprehensive Cancer Center (UCCCC) DNA Sequencing Facility.

RNAseq bax poly guanine analysis

AD brain RNA-seq dataset (ID: syn8612097)41,42 together with clinical data and biospecimen metadata files from the ROSMAP study43 (ROSMAP_clinical.csv, ROSMAP_CognitiveResilience_biospecimen_metadata.csv and ROSMAP_biospecimen_metadata.csv, respectively) were retrieved from the AD Knowledge Portal [database version:2023-02-20]. RNAseq dataset were mapped against Baxα and Bax∆2 reference genes (GenBank accession numbers L22473.1 and JX524562.1, respectively) with minimap2 v2.21-r1071 through the get_SNPS.plv2.0f script from the SSRG pipeline ( https://github.com/PombertLab/SSRG ), details can be found in our previous publication14. The poly G sequences on Bax∆2 isoforms were extrapolated from the presence of 7 or more guanines repeated in a row on each sequencing read per dataset as built in isoforms.pl v.0.7 (https://github.com/annecarolm/Publication_scripts/tree/main/2023_QYao_polyG).

RNA structure prediction

The RNA structure of Bax∆2(G8) control and its mutants (mt1, mt2, and mt3) were predicted using RNA Andronescu 2007 from Geneious 10.0.5.

Immuno-precipitation and mass spectrometry analysis

Cell pellets were lysed in NP-40 buffer (145 mM NaCl, 5 mM MgCl2, 1 mM EGTA, 0.25% NP-40, 20 mM HEPES, pH 7.4) with a cocktail of protease inhibitors at 4 °C for 30 min as described previously12. The cell lysate was incubated with 50 µl of anti-HA antibody conjugated agarose overnight at 4ºC on a rocking platform. Agarose immune-complexes were pelleted and washed twice with 500 µl of TBS-T (TBS with 0.05% Tween-20). The precipitated proteins were eluted with buffer containing 2% SDS, 5% glycerol, and 50mM Tris-HCl, pH6.8) and incubated 10 min at 50ºC. After incubation, the supernatant was collected and added DTT at 50 mM. Eluted sample was verified by immunoblot and Coomassie staining before mass spectrum analysis. The eluted protein sample was analyzed using Q Exactive HF mass spectrometer coupled with an UltiMate 3000 RSLC nanosystem with a Nanospray Flex Ion Source (Thermo, Fisher Scientific) at the Mass Spectrometry Core at the University of Illinois Chicago.
