Introduction

The choroidal vascularity index (CVI) is an image-based metric which describes contributions of the choroidal lumen and stroma to the overall choroidal angioarchitecture1,2,3,4. CVI has been used to accurately describe choroidal changes in many retinal diseases such as age-related macular degeneration, polypoidal choroidal vasculopathy, diabetic retinopathy, central serious chorioretinopathy, heredomacular degeneration, uveitis and Vogt-Koyanagi-Harada disease4. CVI has also been shown to be superior to other choroidal metrics, whereby it is sensitive to subtle changes in the early stages of disease that otherwise are less detectable using choroidal thickness5,6.

The choroid demonstrates several variations in angioarchitecture due to normal physiological factors such as age, refractive error, gender, ethnic differences, axial length and spatial location such macular vs. mid- and far periphery. Understanding these normal changes are important to accurately differentiate from disease. Normative descriptions of CVI, however, have been limited and conflicting. For example, several studies have reported CVI to decreases with normal aging7, while others have found no correlations between CVI and age4,8,9,10,11. Similarly, there are mixed correlations relating axial length and CVI9,10,11,12,13,14,15,16,17. These conflicts may arise from limitation in study design, such as not accounting for mixed ethnic groups and methodological shortcomings such as not accounting for refractive error or use of different methods for CVI calculation.

Spatial variations in CVI have been demonstrated in few studies, though this metric has been typically assessed across rudimentary delineations of space, such as coarse wide-ranging eccentricities or the Early Treatment for Diabetic Retinopathy Study (ETDRS) sectors7,18. These arbitrary spatial configurations may potentially make inappropriate assumptions of the choroid by assuming perfect symmetry across nine uneven sectors and introduce a statistical bias due to the nature of aggregation19. Thus, a comprehensive characterisation of CVI in a well-defined population using appropriate spatial templates is needed to elicit the natural topography without prior assumptions.

Our group has recently developed a grid-wise spatial analysis of optical coherence tomography (OCT) images and shown that this approach can describe detailed spatial topography of individual retinal layers based on thickness that closely aligned to descriptions20,21,22and showed less variability than other spatial analyses performed with other templates such as the ETDRS sectors23. Additionally, this approach has shown superior detection of retinal thickness differences in Age related macular degeneration and glaucoma versus normal eyes, and visual field defects in age related macular degeneration, relative to traditional methods24. This analysis has also been applied to OCT angiography images to quantify spatial patterns of vessel perfusion in normal and disease eyes but to our knowledge, it has yet to be applied to choroidal parameters such as CVI accessible from OCT.

Hence, the aim of this study was to characterise the normal physiological and spatial variations of the CVI and other choroidal parameters using our grid-wise spatial OCT analysis in a large, well-characterised normative population ranging across six decades of life. Finally, we further explore the equivocal relationship between physiological and ocular factors with CVI and Choroidal parameters, generating age-based regression functions for estimation in future studies.

Methods

Study population

All participant data was obtained from normative populations previously identified from retrospective analysis of consecutive records from the Centre for Eye Health (CFEH) Sydney, Australia from June 2012 to July 20227,20,21,23. CFEH is a referral-only clinic providing advanced diagnostic eye testing/disease management by specially trained optometrists and ophthalmologists25. This study included healthy volunteers and patients who were referred to CFEH and found to have no evidence of any posterior segment diseases based on ocular examination including OCT and mydriatic fundus photography and no systemic vascular related disease like Hypertension, Diabetes mellitus or Cardiovascular abnormalities or mental/cognitive impairment based on self-reported medical history. Inclusion and exclusion criteria were described elsewhere7. Briefly, participants were included across a range of 20 to 83 years old and consisted of a minimum of 36 participants per decade group and were excluded if they had a best corrected visual acuity (BCVA) less than 6/9, intraocular pressure (IOP) greater than 21mmHg or had a current or previous history of smoking. To minimise the effect of ocular magnification on scaling26, the range of refractive error (RE) was ± 3D in < 40 years and ± 6D for > 40 years to account for variation secondary to age related changes. The study was approved by the Biomedical Human Research Ethics Advisory Panel of the University of New South Wales (HC200833). All participants gave informed, written consent to have their deidentified data used for research purposes in accordance with the Declaration of Helsinki.

Image extraction and measurement

Spectralis SD-OCT macular cube scans consisting of 61 B scans (scan length: 8.6 mm, scan depth: 1.8 mm, resolution of 3.9 microns) covering an area of 30° X 25°. (Heidelberg Engineering, Heidelberg, Germany) of a single, randomly selected eye from each participant was extracted. If a participant had multiple scans in their file, the latest macular cube scan was used. All scans with less than 15db quality score or poor visibility of choroid due to opacities /shadowing were excluded. If three or more B-scans of the macular cube were to be excluded from a participant for quality reasons, then the participant was excluded from this study. As such no participants were eliminated for this criteria.

All B-scans within the posterior segment analysis of the Spectralis in-built software, an 8 × 8 grid-based analysis of the macula (Fig. 1A), were annotated to align with the 8 grid segments. Annotated B scans were then analysed for choroidal parameters as described by Agrawal et al3. using the purpose-built platform for automated choroidal image analysis (www.ocularimaging.net/home). Specifically, deidentified B-scans images of participants were uploaded to the platform, then the choroidal region of interest (ROI) was marked from the upper border of the retinal pigment epithelium to the lower border of the choroido-scleral junction (Fig. 1B). Thirty images were annotated by two graders (MK, AZ) who were masked to each other’s ROI markings to validate the annotation protocol (ICC = 0.7, p = 0.001) before all remaining images were annotated by a single grader (MK). The binarized image (an image where all pixels are converted to white (pixel value 255) and black pixels (pixel value 0) based on whether they exceed or fall below a threshold pixel value respectively) with ROI was then separated into 8 grid-segments based on the vertical annotations in the B-scan .The luminal area (LA), stromal area (SA) and total choroidal area (TCA) was calculated as the number of black pixels, white pixels, and total pixels, respectively (Fig. 1C), within each grid segment of the ROI. Values were converted from pixel2 to mm2 using image specifications (X = 85 pixel/mm and Z = 255 pixel/mm). CVI was calculated as LA/TCA (unitless) and converted to a percentage. Choroidal parameters from individual B-scans (Fig. 1C) were then grouped and averaged (Fig. 1D) to generate an 8 × 8 grid that mirrored the presentation of thickness values in the posterior segment analysis of Spectralis software.

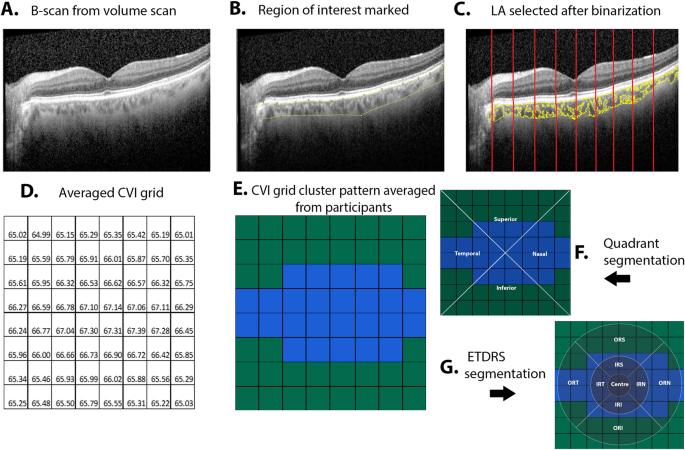

Figure 1
figure 1

(A) Individual B scan extracted from volume scan and (B) region of interest representing the total choroidal area (TCA) is marked. (C) The luminal area (LA) and stromal areas are then identified as black and white pixels respectively within the ROI from a binarized form of the image (where binarization involves converting all image pixels to black or white only based on a threshold pixel value). The segmentation borders for each grid column is indicated by the red lines. (D) CVI is calculated as the ratio of LA: TCA for individual segments in the OCT B scan and then repeated for all B scans of the volume scan before grouping and averaging to generate each of the 64 grid values. (E) These values are averaged across participants to form average cluster for this population. (F) The grid split into quadrant template (G) and ETDRS template where IRS- Inner ring superior, IRN- Inner ring nasal, IRI- Inner ring inferior, IRT-Inner ring temporal, ORS-Outer ring superior, ORN-Outer ring nasal, ORI-Outer ring inferior, ORT-Outer ring temporal. Significance level *p < 0.05, **p < 0.01, *** p < 0.001 ,****p < 0.0001.

Full size image

Spatial analysis

8 × 8 grid data for each choroidal parameter was assessed by three forms of spatial analyses. Firstly, data was subjected to Two-step clustering using Euclidean distance in SPSS (version 28.0; IBM Corporation, Armonk, NY, USA) and cluster membership to determine the number of clusters for each choroidal parameter. Separability of the clusters was then tested using the Wilcoxson-sign ranked t-test. The clusters were then presented spatially in 8 × 8 topographical maps by colour-coding each grid location based on its respective cluster (Fig. 1E) and numerically as the median ± 95% CI value for all grid locations within the cluster.

Next, 8 × 8 grid data was analysed based on the 4 retinal quadrants. Grid locations were separated into the superior, inferior, nasal, and temporal quadrants and averaged (Fig. 1F). For grid locations that fell across two quadrants, the contribution of the grid to the average of the quadrant was scaled by 50%.

Finally, 8 × 8 grid data was analysed based on the ETDRS template. Grid locations were separated into the centre (1 mm), inner ring (3 mm) and outer ring (6 mm). Grid locations outside the ETDRS sectors were assigned to the extramacular region. As most grid locations fell across multiple ETDRS sectors, they were scaled based on the percentage of pixels of a grid location within an ETDRS sector. Analysis was repeated for individual inner ring/outer ring superior, inferior, temporal, and nasal subfields (Fig. 1G).

Statistical analysis

Statistical analysis was performed using SPSS version 28.0 (IBM Corporation, Armonk, NY, USA) and GraphPad Prism (v8.0.2, GraphPad Software, San Diego, CA, USA). A p value of < 0.05 was considered significant. All data, including age, was treated as continuous unless specified otherwise (e.g., sex). All the data were subjected to normality test, failing which non-parametric tests were chosen and the values were expressed in median + 95% CI. Comparison of continuous values between clusters were performed using Wilcoxon’s Sign ranked t-test, while comparisons between ETDRS sectors and quadrants were performed using Friedman test with Dunn’s correction for multiple comparisons. Multivariable regressions were performed using Stepwise elimination method until significance was reached (p < 0.05). Specifically, age regressions were fitted into both quadratic and linear functions and the best fit model was selected using Run’s test.

Results

Study population

Three hundred and forty two participants were screened of which three hundred and nine eyes of 309 participants were included in this study. The demographic details of the population are provided in Table 1. Briefly, all participants were free of systemic vascular-related disorders (e.g. Diabetes, Hypertension, Cardiovascular disorders) and posterior segment diseases. Refractive error (RE) was ± 3D in < 40 years (91%) and ± 6D for > 40 years (9%) to account for variation secondary to age related changes. The overall ethnic distribution of the study population were 55% white population, 34% Asians and 7% other ethnic groups (Table 1).

Table 1 Demographics, ocular characteristics, and global mean values of CVI and area parameters of the study population.
Full size table

Primary analysis: spatial topography of choroidal vascularity index

  1. a)

    Global analysis

Individual grid values of CVI and area parameters (total choroidal area, TCA; luminal area, LA; stromal area; SA) were pooled and averaged to determine a global value across the whole macula region. Global mean CVI for all eyes was 66.4% [66.15, 66.70] and ranged between 65.8 − 67.4% when assessed within individual decade age groups with no significant difference between age groups (p = 0.82; Table 1). Mean TCA, LA and SA was 0.21mm2 [0.20, 0.215], 0.14 mm2 [0.136, 0.143] and 0.071mm2 [0.068, 0.072] respectively with decreasing values across each decade.

  1. b)

    Cluster analysis

Grid-wise values of CVI were grouped into statistically similar clusters, then presented as topographical maps (Fig. 2A) and graphs of cluster medians across all age groups (Fig. 2B). CVI displayed a concentric pattern with a central cluster of higher median value (66.8% [66.18, 67.46]) and an extramacular cluster of lower median value (65.63% [65.63, 66.86]).

  1. c)

    Quadrant analysis

CVI was then assessed using standard clinical templates such as quadrant analysis to account for clusters extending in extramacular region in nasal temporal quadrants. Median CVI was significantly lower in the superior and inferior quadrants compared to the temporal quadrant (sup. vs. temp. difference: -0.19%, p = 0.0001; inf. vs. temp. difference: -0.46%, p = 0.0006) and in the superior quadrant compared to the nasal quadrant (difference: -0.7%, p = 0.0004). There was no significant difference in median CVI of the superior versus inferior quadrants (p = 0.47), inferior versus nasal (p = 0.15) or nasal versus temporal quadrants (p = 0.57, Fig. 2C-D).

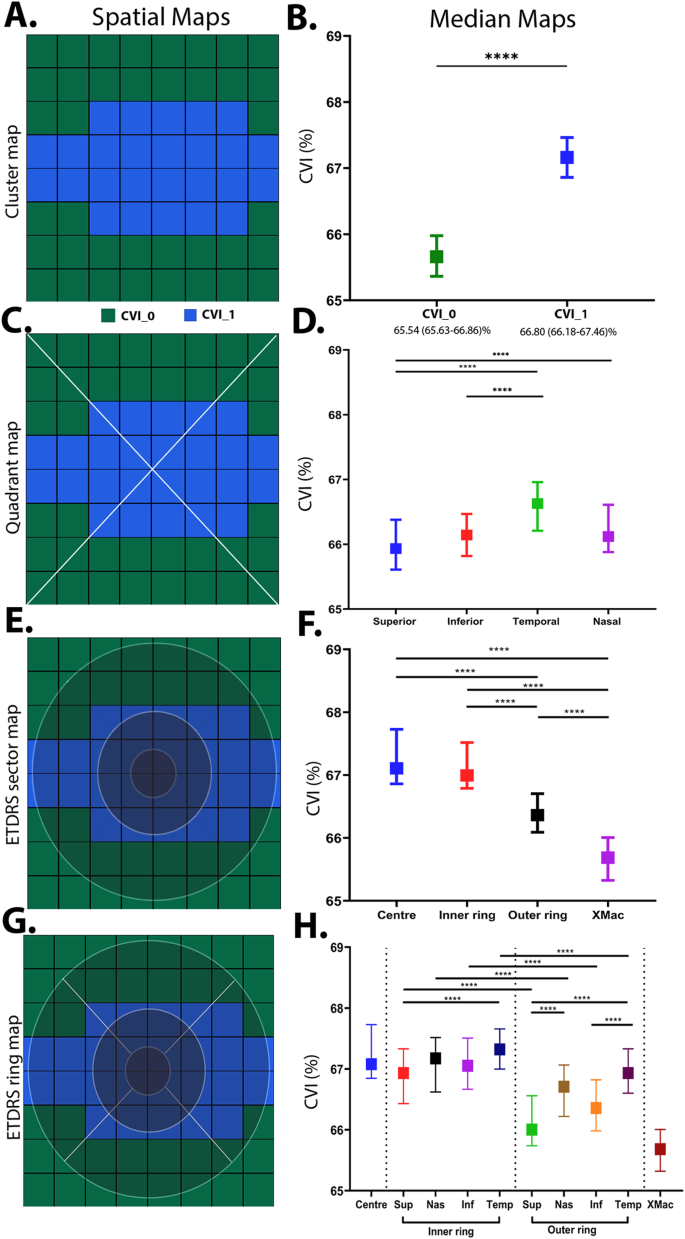

Figure 2
figure 2

Spatial cluster topography of Choroidal vascularity index (CVI %) in different spatial topographies (A) cluster map, (B) cluster median distribution, (C) quadrant map, (D) quadrant median distribution, (E) ETDRS pooled ring map, (F) ETDRS median distribution, (G) ETDRS sectoral map, (H) ETDRS sectoral median distribution. All values are medians and error bars are 95% CI. Significance level *p < 0.05, **p < 0.01, *** p < 0.001, ****p < 0.0001.

Full size image
  1. d)

    ETDRS template analysis

Spatial differences were also analysed within the ring and sectors of the ETDRS template (Fig. 2E-H). CVI was greatest at the central sector (67.08% [66.85,67.73]) and inner ring (67.0% [66.79,67.52]) with no statistically significant difference between these regions (p = 0.26). This was followed by a significant decline in the outer ring (66.36% [66.09, 66.70]; p < 0.0001 for all comparisons) and extra macular region outside the ETDRS sectors (p < 0.0001; Supplementary Table S1; Fig. 2F).

As expected, CVI of all ETDRS sectors significantly decreased between their inner and outer ring counterpart (p < 0.001 for all comparisons, Fig. 2H). Differences in CVI were also observed between the superior versus temporal subfield of the inner ring (p < 0.01) and the superior versus nasal, superior versus temporal (p < 0.0001) and inferior versus temporal subfields in the outer ring (p < 0.0001).

Secondary analysis: spatial topography of choroidal area parameters

  1. a)

    Cluster analysis

TCA displayed a single, central cluster that extended to the superior and inferior borders of the macula grid and a peripheral cluster mostly containing the extra-macular grid locations at the nasal and temporal retina (Fig. 3A). This central cluster displayed a significantly higher median value versus the extramacular cluster (TCAcentral: 0.22 [0.21–0.22] mm2 vs. TCAxmac: 0.18 [0.17–0.18] mm2, p < 0.001; Fig. 3B). LA and SA displayed a similar topography with higher central cluster with a superior-inferior bias and lessor extra-macular cluster (Figs. 4A-B and 5 A-B).

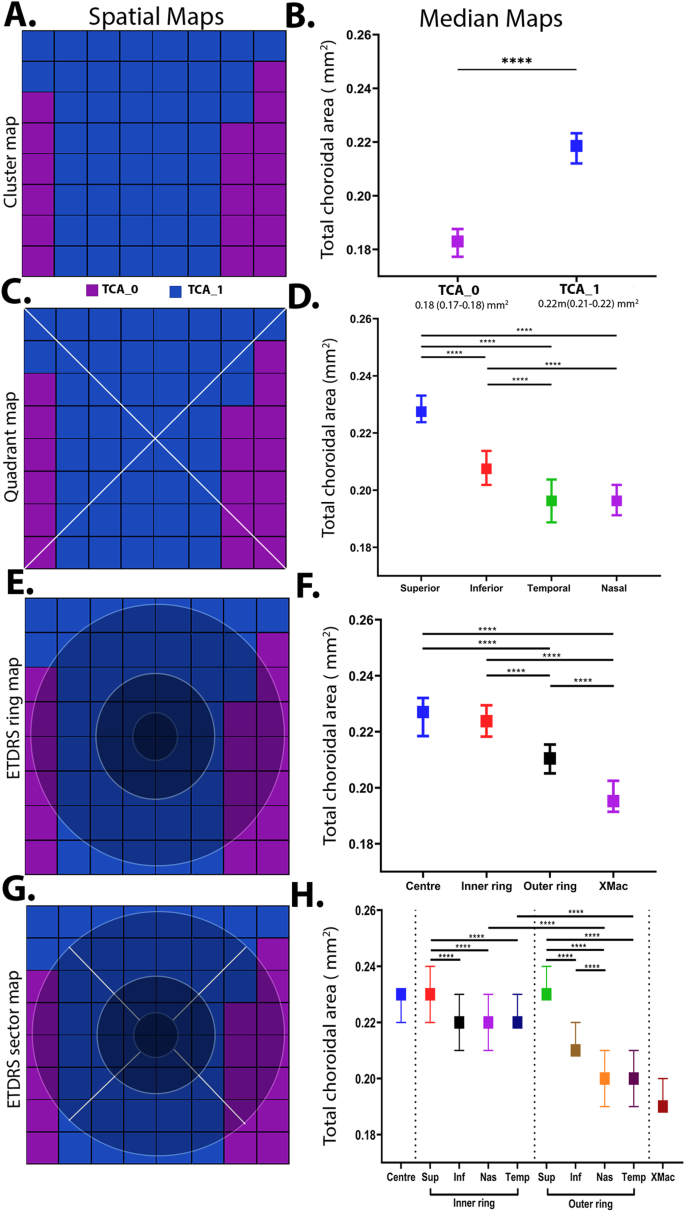

Figure 3
figure 3

Spatial cluster topography of Total choroidal area (TCAmm2) in different spatial topographies, (A) cluster map, (B) cluster median distribution, (C) quadrant map, (D) quadrant median distribution, (E) ETDRS pooled ring map, (F) ETDRS median distribution, (G) ETDRS sectoral map, (H) ETDRS sectoral median distribution. All values are medians and error bars are 95% CI. Significance level *p < 0.05, **p < 0.01, *** p < 0.001, ****p < 0.0001.

Full size image

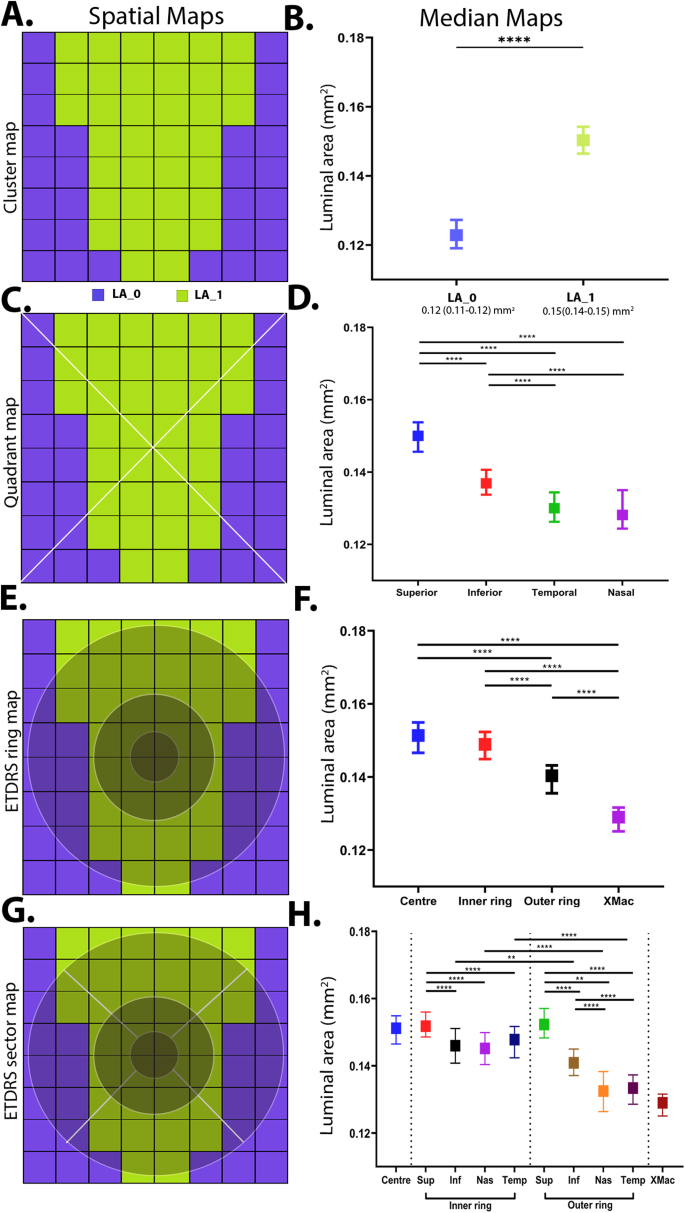

Figure 4
figure 4

Spatial cluster topography of Luminal area (LA mm2) in different spatial topographies (A) cluster map, (B) cluster median distribution, (C) quadrant map, (D) quadrant median distribution, (E) ETDRS pooled ring map, (F) ETDRS median distribution, (G) ETDRS sectoral map H) ETDRS sectoral median distribution. All values are medians and error bars are 95% CI. Significance level: *p < 0.05, **p < 0.01, *** p < 0.001, ****p < 0.0001.

Full size image

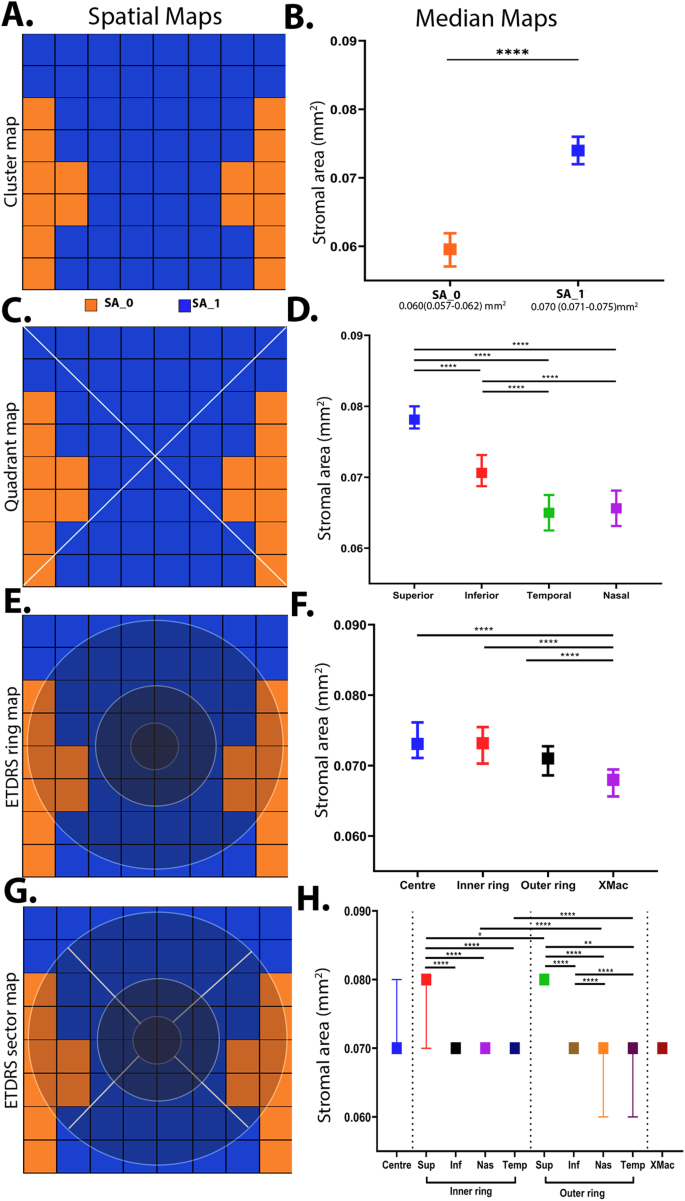

Figure 5
figure 5

Spatial cluster topography of Stromal area (SA mm2) in different spatial topographies (A) cluster map, (B) cluster median distribution, (C) quadrant map, (D) quadrant median distribution, (E) ETDRS pooled ring map, (F) ETDRS median distribution, (G) ETDRS sectoral map, (H) ETDRS sectoral median distribution. All values are medians and error bars are 95% CI. Narrow range of median resulted in clipped error bars. Significance level: *p < 0.05, **p < 0.01, *** p < 0.001, ****p < 0.0001.

Full size image
  1. b)

    Quadrant analysis

Corresponding to the cluster map, the highest median values for TCA were observed in the superior quadrant, followed by the inferior, nasal and temporal quadrant (Fig. 3C-D). All quadrant medians for were significant differently from each other (all p < 0.0001) except the nasal and temporal quadrants. LA and SA displayed the same spatial pattern across retinal quadrants (Figs. 4 C-D and 5 C-D).

  1. c)

    ETDRS template analysis

The ETDRS template revealed that the greatest TCA value was localised to the central (0.227 [0.220, 0.230] mm2) and inner ring (0.223 [0.218, 0.229] mm2) followed by a decline in the outer ring (0.210 [0.205, 0.215] mm2; p < 0.0001; Fig. 3E-F). Pooled values for the ETDRS inner rings were also significantly higher compared to the extra macular region outside the ETDRS sectors (p < 0.0001 for all comparisons; Supplementary Table S1). LA showed similar spatial findings with greater area in the central and inner rings (LAcentral: 0.151 [0.146, 0.154] mm2; LAinner: 0.149 [0.144, 0.152] mm2; p = 0.08) versus outer and extra macular region (p < 0.0001 for all comparisons; Fig. 4E-F). SA showed no significant differences between any pooled ETDRS rings (p ≥ 0.1 for all comparisons) however the central, inner, and outer rings were significantly different to the extra-macular region outside the ETDRS sectors (p < 0.001 for all comparisons; Supplementary Table S1, Fig. 5E-F).

For sectoral considerations, the superior subfield was significantly different to all other quadrants in both the inner (p < 0.00001–0.0005) and outer ring (p < 0.0001) for TCA (Supplementary Table S1; Fig. 3G-H). Between the inner and outer ring, the nasal and temporal subfields also showed significant decline in TCA (p < 0.0001 for all comparisons). LA and SA showed similar patterns in the inner ring with only the superior subfield being significantly greater than all other inner subfields (p < 0.05 for all comparisons, Figs. 4G-H and 5G-H). LA and SA of the outer ring subfields however were all significantly different to each other except between nasal and temporal subfields (p > 0.99). Between the two rings, LA of the inferior, nasal and temporal subfield significantly decreased from inner to outer ring (p < 0.05 for all comparisons) while for SA of the superior, nasal and temporal subfields were reduced significantly decreased between inner and outer ring (p < 0.0001).

Association with ocular factors and age

Multivariate regression indicated that CVI was not significantly associated with any variables including age across any spatial configuration (Fig. 6 A-C). Significant negative associations were observed between age and choroidal area parameters, TCA, LA, SA, for all spatial templates including clusters, quadrants and ETDRS sectors (Table 2). A significant positive association between refractive error and the temporal quadrant for LA, all ETDRS sectors for TCA and LA, and all clusters and quadrants for SA (p = 0.0001). A significant positive association between visual acuity and SA of the superior quadrant was also observed (p = 0.0001). No choroidal parameters showed any significant relationship with IOP, BCVA, ethnicity or sex.

Table 2 The multivariable regression of the cohort for different eccentricities for significant variables.
Full size table

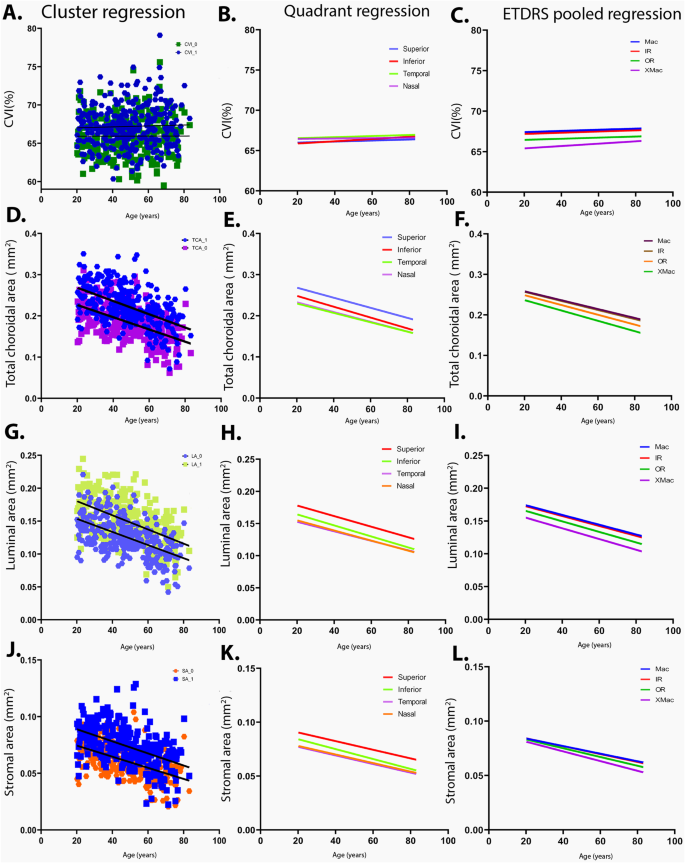

Figure 6
figure 6

Regression equation of all Choroidal parameters across (A, D, G, J) Clusters (B, E, H, K) Quadrant regression (C, F, I, L) ETDRS pooled regression.

Full size image

Based on significant age-related associations observed from multivariate analysis, regression models were applied to all choroidal area parameters and these were found to decline linearly with age(Fig. 6D-L) except CVI which displayed stability with progressing age. Regression models in clusters exhibited slightly different rates of areal decline for TCA (0.00148–0.00161 mm2/year), LA (0.0010–0.00108 mm2/year) and SA (0.00049–0.00053 mm2/year, p = < 0.0001, Supplementary Table S2). The rate of change across quadrants was highest inferiorly for all choroidal parameters (TCA:-0.001318, LA:-0.000858, SA:-0.0004602 mm2/ annum) followed by the superior, nasal and temporal quadrants. The rate of change was significantly different between the quadrants (p < 0.0001).

The decline with age across ETDRS sectors in all parameters exhibited lesser magnitude of decline at the centre (TCA: -0.00143, LA:-0.00097, SA:-0.00045 mm2/annum, Supplementary Table S2), followed by inner ring, outer ring then extra macular region and greater magnitude of decline at the inferior quadrant in all rings (P < 0.0001) for all comparisons).

Discussion

This study found topographical variations in CVI with greatest magnitude in the centre and lesser magnitude in extramacular region but displayed no quadrant bias. TCA, LA and SA, similarly, exhibited the greatest magnitude at the central macula and additionally, a bias towards the superior and inferior quadrants. Multiple linear regression and age-based regressions indicated that CVI was not associated with any ocular factors nor age-related decline. On the other hand, all area-based parameters exhibited declined with increasing age and at significantly greater rates within the inferior ETDRS sectors and quadrant. These findings suggest that accurate assessment of choroidal area requires spatial and temporal considerations, while CVI may be robust against the latter.

Spatial analysis of CVI indicated central vs. extramacular gradient suggesting a higher luminal versus stromal area in the central retina. While this was consistent with our previous work7, it contrasts Singh et al27. who found reduced CVI at the macula and Breher et al28. and Agrawal et al. 201729 reported minimal variation in CVI at various eccentricities. These discrepancies may be due to methodological limitations in these studies, whereby partial CVI values were calculated from single, representative B-scans. This current study however used a spatial-refined analysis across a high density, OCT volume scan and therefore may have better detected subtle topographical variation of choroidal parameters across all eccentricities.

All spatial analyses of choroidal area parameters in this study also indicated greater choroidal area in the central macula. This is consistent with in vivo studies that indicate the macula is structurally rich in choroidal vasculature compared to the peripheral retina30, likely to accommodate the greater photoreceptor density31of the central retina and corresponding metabolic demand32,33. Choroidal area parameters also demonstrated a superior to inferior bias, a spatial deviation which has previously been observed for choroidal area7and normal retinal vasculature33and may relate to the bi-arch choroidal vascular pattern noted in histological studies and similar to retinal vasculature, with superior and inferior branches across the posterior poles34. This superior-inferior bias appears to have physiological implications with higher rates of age-related regression noted in the inferior quadrants and rings for all choroidal parameters similar to previous work7. This bias may also explain spatial differences in chorio-retinal pathologies such as greater upper versus lower vortex vein filling in central serous chorioretinopathy35.

We found that CVI was found to be independent of all physiological factors tested including age, IOP, sex, and refractive error while all the individual choroidal area parameters (LA, SA, and TCA) were negatively correlated with age. This suggests that the rate of change remains consistent for all area components across all macula locations giving stable CVI in a healthy population. The role of normal aging on CVI is a current topic of debate with a number of studies suggesting CVI declines with age7,36,37,38,39,40,41while others support the absence of a correlation, similar to this study4,15,42,43,44,45,46,47,48,49. A meta-analysis of studies reporting CVI for healthy populations also suggest no significant association between age and CVI50. Reasons for these discrepancies could again be methodological (i.e., scan selection, OCT device, grading protocol) or sample based, considering most studies assess CVI within small homogenous populations. The present study however assessed a large, multi-ethnic, multi-decade, normative population with strict inclusion criteria including no systemic vascular related diseases, no smoking history, no ocular diseases and limited refractive error range. Hence, the null correlation between age and CVI in this study is likely to be robust and reiterates the value of CVI as a metric for assessment of the choroidal angioarchitecture based on its rigidity against physiological factors.

All choroidal area parameters declined linearly with age which aligned with in vivo and histological studies which describe decreased choroidal blood flow, choriocapillaris thickness, and overall choroidal thickness from the 3rd – 4th decade of life51,52. We also observed significant correlations between TCA and LA and refractive error when analysed according to clusters and ETDRS-based spatial analyses, but not quadrant analyses. Several studies have established reduction in choroidal elements in myopia14,53. Wallman54and Swiatczak et al55. have also demonstrated the ability of the macular choroid to locally vary its thickness (hence changes in TCA) according to myopic or hyperopic stimuli, which may explain why changes were accentuated in clusters and ETDRS sectors (with higher spatial density) but not quadrants.

There were a few limitations in this study. We quantified choroidal parameters from SD-OCT images which may have limited visualization of the choroid and its scleral boundary due to limited signal penetration. Future work using other OCT imaging modes such as swept-source OCT may help confirm the impact of this. Secondly, due to the retrospective nature of the study, the time of OCT measurement could not be standardized; therefore, the effect of diurnal variation could not be ascertained. Some physiological factors such as systemic vascular-related diseases were also ascertained based on self-reporting and therefore may not have been as reliable as objective measurement. We attempted to mitigate the impact of these limitations by employing strict selection criteria however future work could include further characterisation of individuals to confirm normal health of the population. Similarly, axial length measurements were unavailable to correct for individual ocular magnification, however our primary outcome measure, CVI being a ratio, is less likely to be affected by this. To reduce the effect on area parameters, refractive error criteria was fixed to56:91% of our participants had mild refractive error range and 9% of our participants had moderate myopic changes secondary to aging changes.

Conclusions

This study found that the choroidal angioarchitecture exhibits topographical variations, with greater TCA, LA, and SA areas towards the central macula and significant differences between superior and inferior macula. Individual choroidal area parameters were associated with myopia in certain segments and significantly declined with age across all defined spatial analyses. In a homogenous healthy population, these changes are proportional in all choroidal parameters, resulting in stable CVI from the 2nd to the 7th decade of life. CVI was not associated with refractive error, IOP, ethnicity or visual acuity, highlighting its utility a valuable tool. CVI is also independent of ocular factor but changes in different eccentricities. Hence future studies involving choroidal measurement should be mindful of spatial topographical changes.
